Lakeside 9600 Series User manual

OWNERS’ MANUAL
Mobile Hand
Washing Stations
9600 Series
4900 W Electric Ave
West Milwaukee WI 53219 USA
[e-mail] www.eLakeside.com

www.elakeside.com
4900 W. Electric Ave. West Milwaukee WI. 53219 414-902-6400
2

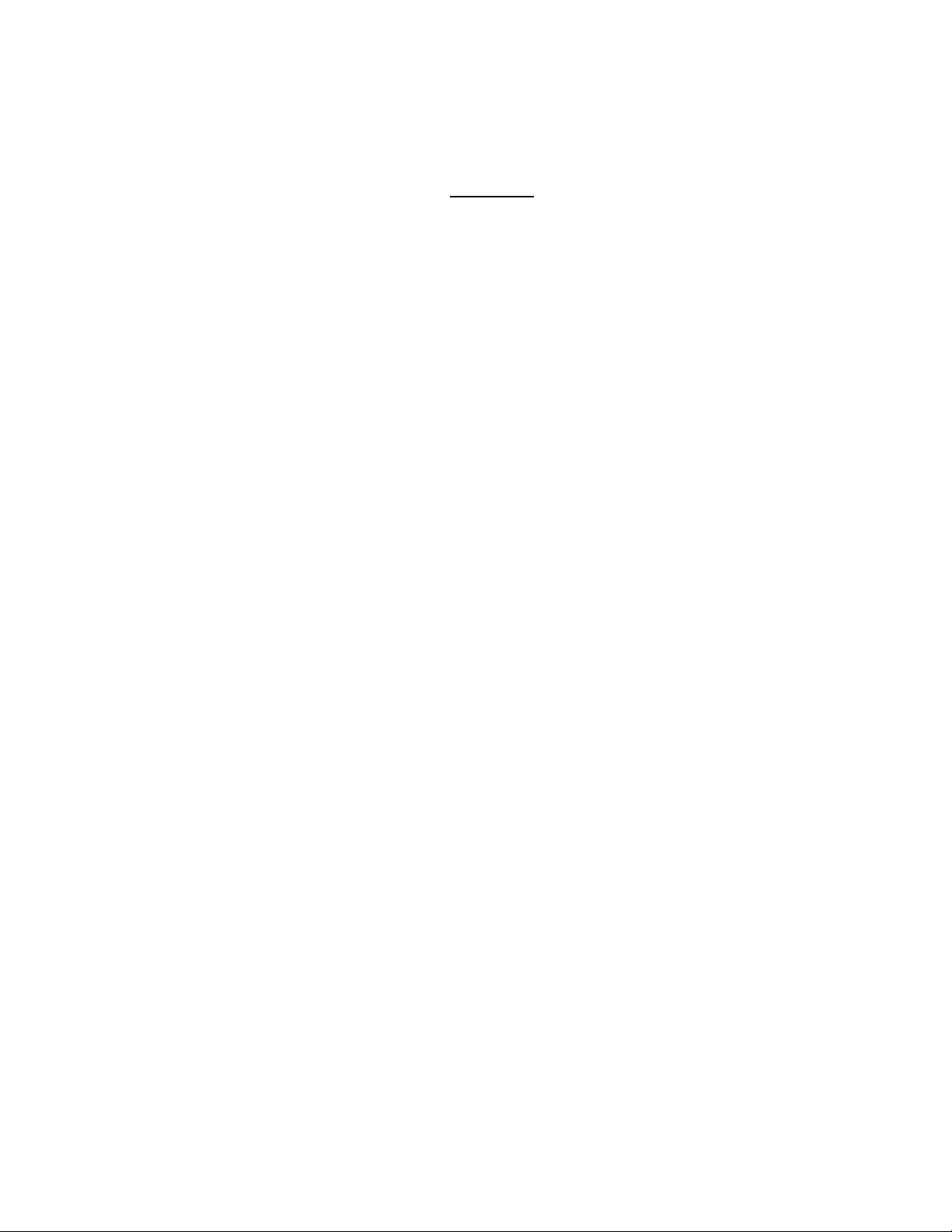

NOTES

www.elakeside.com
4900 W. Electric Ave. West Milwaukee WI. 53219 414-902-6400
3
**** IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS ****
When using an electrical furnishing, basic precautions should always be followed, including
the following:
Read all instructions before using.
DANGER
To reduce the risk of electric shock:
Connect the Hand Washing Station to a properly grounded outlet. The Hand Washing
Station has an internal GFCI outlet to protect end users from electrical shock should a
failure occur within the unit. Do not remove or circumvent the ground pin on the electrical
cord. Always turn unplug the Hand Washing Station from the electrical outlet before
cleaning.
WARNING
To reduce the risk of burns, fire, electric shock or injury to persons:
1. Unplug from outlet before putting on or taking off parts.
2. Close supervision is necessary when this unit is used by, or near children, invalids, or
disabled persons.
3. Use this unit only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
4. Never operate this unit if it has a damaged cord. Never operate this unit if it is not
working properly, if it has been dropped or damaged. Call the factory regarding
examination or repair.
5. Keep the power supply cord away from heated surfaces.
6. Never drop or insert any object into any opening, unless allowed in the installation
instructions below.
**** IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS ****

www.elakeside.com
4900 W. Electric Ave. West Milwaukee WI. 53219 414-902-6400
4
**** INSTALLATION INSTRUCTIONS - SAVE THESE INSTRUCTIONS ****
Part I. General Installation and Use
Prior to installation, inspect product - including all electrical equipment - for possible
shipping damage. Do not install any products showing cracks, de-lamination or other
damage. Do not substitute any other parts for fasteners or other items supplied with the
product. Contact the factory if spare parts are needed.
Part II. Eectrical Installation
WARNING
To Prevent Possible Electric Shock or Product Damage, Read and Observe All
Instructions and Product Markings Prior to Installation and Use of These Products
Ratings: 120 Volts, 13.4 Amps, 60 Hz . for heated water units; 0.9 Amps for non-heated
Use a 15 Amp Branch Circuit unless instructed otherwise by local authorities.
Part III. Operation
The Mobile Hand Washing Stations must be properly set up prior to use. With the unit
unplugged from the power supply, the following must be done:
1. Open the compartment door to expose the water tanks and controls.
2. Remove the fresh water tank and the waste water tank.
3. Empty the waste water tank and rinse any residue out of the tank.
4. Fill the fresh water tank with clean, potable water.
5. Reinstall the empty waste water tank and the full fresh water tank.
6. Inspect the interior for loose hoses, sings of leaking, disconnected, cracked, or
damaged wires. DO NOT USE UNIT if anything is not correct. Fix or repair prior to
use.
7. Plug unit into properly grounded outlet and open faucet to test pump operation.
Water may not be hot if the unit has been unplugged for a period of time. If water
does not flow from the faucet, check the indicator light on the GFCI. If the light is not
on, reset the GFCI by pushing the reset button in on the face of the GFCI.
8. Close door to place unit into operation. Heated units may require a ½hour pre heat
for initial run.
9. Refill the soap dispenser as needed by lifting the dispenser up and out of the holder
and pouring the soap into the holder.

www.elakeside.com
4900 W. Electric Ave. West Milwaukee WI. 53219 414-902-6400
5
Typical heated water compartment.
(Cold water-only units will not have the heater.)

www.elakeside.com
4900 W. Electric Ave. West Milwaukee WI. 53219 414-902-6400
6
**** USER-MAINTENANCE AND STORAGE INSTRUCTIONS–SAVE THESE INSTRUCTIONS ****
Please follow cleaning instruction below when cleaning unit. No parts require lubrication.
Other than cleaning, all servicing is to be performed by a licensed electrician or an
authorized factory representative.
CLEANING OF STAINLESS STEEL
•DO NOT use cleaners containing chlorides (chlorine), bromides, or iodides (consult
label or cleaner manufacturer).
•ALWAYS rinse thoroughly with FRESH WATER after EVERY cleaning operation.
•ALWAYS wipe dry to remove water (and possible hard water deposits) and to allow
protective oxide layer to reform.
•DO NOT use steel wool, or other steel pads or brushes. They can leave iron metal
particles and cause rust formation.
•ALWAYS rub in the direction of the steel grain for maximum effectiveness and to
avoid marring the surface.
•Use the mildest cleaning procedure that will do the job effectively
•FREQUENT CLEANING IS RECOMMENDED
OPERATION
CLEANING AGENT
PROCESS
Routine Cleaning
Use mild soap or detergent
diluted with warm water. If
more aggressive cleaning is
needed, add a small amount
of vinegar to the solution
being used.
Apply with sponge or clean
cloth. Rinse with clean warm
water. Wipe dry with a clean,
soft cloth.
Smears and Finger Prints
Use a commercial cleaner
such as 3M®Stainless Steel
Cleaner and Polish.
Use this cleaner as
instructed on the label.
Medium Dirt and
Discoloration
Use Soft Scrub®Cleanser
(WITHOUT CHLORINE
BLEACH)
Follow instructions on the
label. Apply and rub in the
direction of the steel grain.
Rinse thoroughly and wipe
dry with clean, soft cloth.
Grease and Oil
Any good commercial
detergent. (Consult label for
presence of chlorides,
bromides, or iodides).
Use this cleaner as
instructed on the label.
Refer to enclosed Point-of-Use Water Heater Owner’s Manual for water heater care and
use. If not enclosed, go to www.insinkerator.com for information on Model W152.
