Lamona LAM6000 User manual

LAM6000
LAM6050
LAM6401
www.howdens.com/appliance-registration
Built-Under
Larder Fridge / Fridge / Freezer
Generic instructions, (To be used in conjunction with User Instructions).
lPlease read this Installation Manual to ensure safe fitting and use of the appliance.
lThe appliance should be fitted by a suitably competent and qualified person.
lPlease keep these instructions in a safe place for future reference.
lDanger of suffocation keep packaging material away from children.
Installation Instructions
ISSUE v1.1 071022

2www.howdens.com
Screw hole
plug
Screw hole
cover
Remove parts bag and trim
from the appliance.
DO NOT use high speed
impact power tools.
2mm drill bit
3.5x13
3.9x13 FH
TORX25
and
cross head
screw driver
Bracket and
cover x2
Extension feet x4
Plastic trim
Cover caps x4
Installation
 GenericinstructionsforttingaLarderFridge/Fridge/Freezer.
(Fridge shown for illustrative purposes only)
Tools required
Parts supplied - PLEASE RETAIN, DO NOT THROW AWAY!

3
Exclusive to Howdens
820 - 920mm
(890mm Howdens
standard install)
min
575mm
600mm
(+2mm)

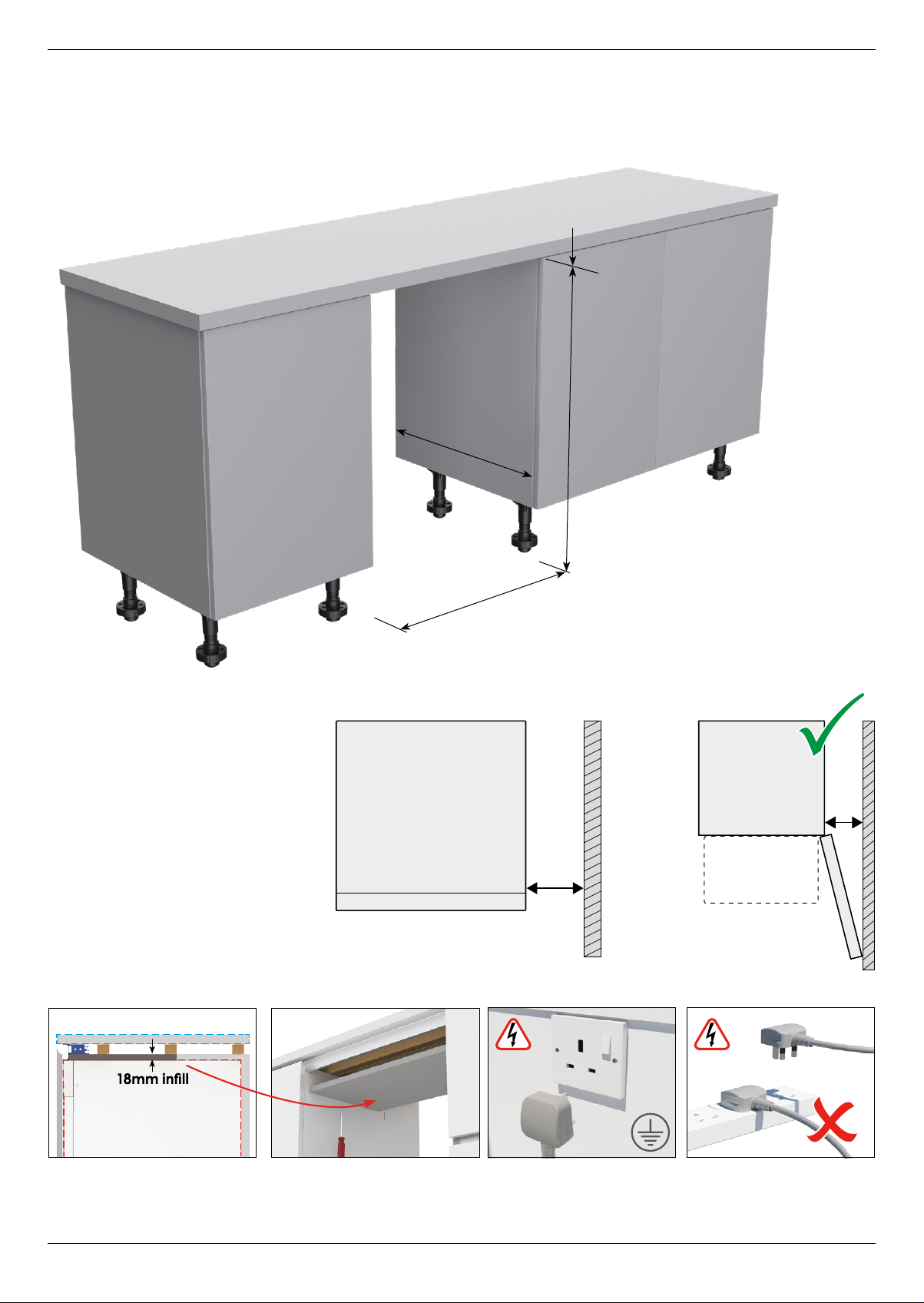

Position the appliance relative to service
connections.
Prepare cabinet niche
It is critical that
the appliance is
installed level.
Worktop
WARNING!
Appliance must be
earthed. Socket must
be accessible after fitting.
WARNING!
Do not use extension
cable or adapters.
Note: For profile kitchens -
insert 18mm board below
worktop, level with bottom
edge of front panel.
Note:
If opening against a wall, 180mm
clearance is required to allow
the baskets to be removed.
180mm
180mm

4www.howdens.com
1
2
Reverse door opening, (if applicable), DO IT NOW.
(Handle door with care)
1- Ensure the appliance is not connected to a power supply.
3- Remove door and keep in a safe place.
2- Remove door hinge screws and keep in a safe place for future use.
Remove all contents
and door balconies,
(if applicable).
(See also ‘Reversing
Inner Freezer Door’).
WARNING:
Support door
when removing
hinge screws.

5
Exclusive to Howdens
1
2
3
1
2
4
3
x2 pieces

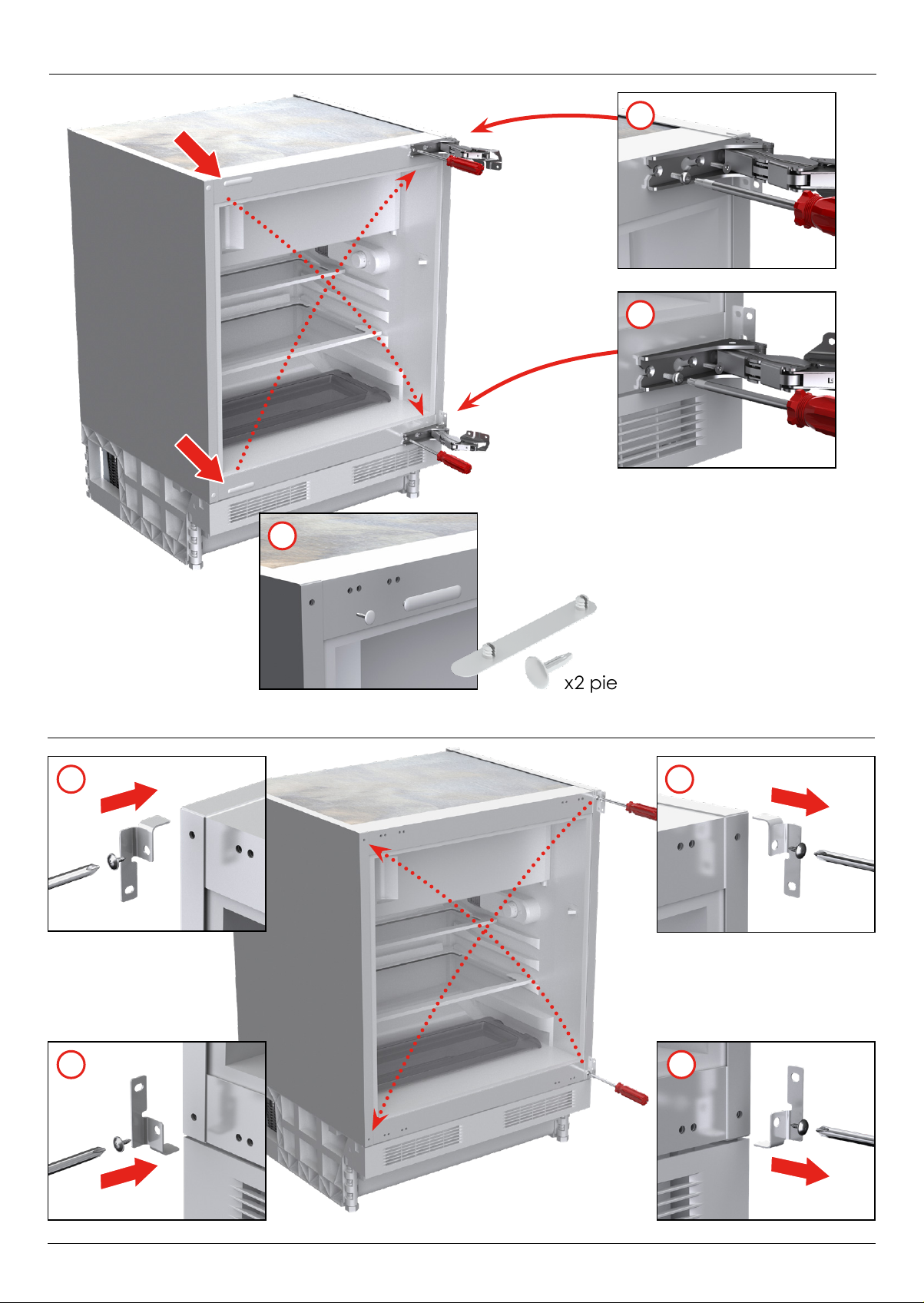

4 - Remove hinges, plastic cover caps and plugs. Keep in a safe place for future use.
5 - Remove side xing brackets and re-position to opposite side.
Note:
When retting the hinges;
Top right hinge will be tted
bottom left.
Bottom right hinge will be
tted top left.

6www.howdens.com
1
2
Ret x2 pieces
3
1
2
6 - Re-position hinges, plastic cover caps and plugs.
7 - Carefully ret door and replace door balconies.
Note:
Ret bottom right hinge
to top left.
Ret top right hinge
to bottom left.
WARNING:
Support door
when retting.
(See also ‘Reversing
Inner Freezer Door’).

7
Exclusive to Howdens
2 - Attach top trim.
1
1
c.65mm
(3.9x13 FH) x2
2
Howdens standard worktop install height (890mm),
(Fridge shown for illustrative purposes only)

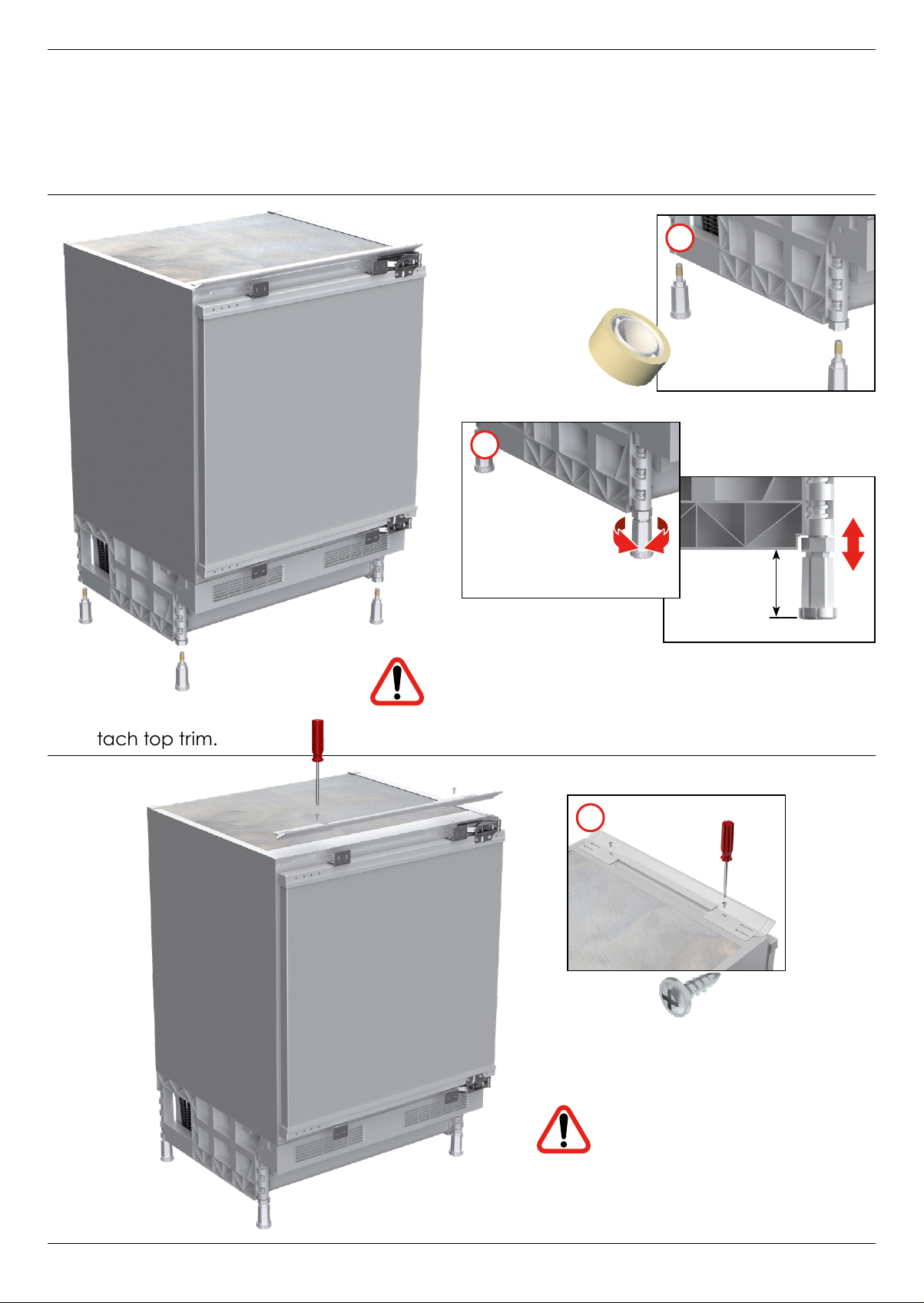

1 - Attach extension feet and adjust to c.65mm.
Tip: Use masking
tape to stop feet
dropping out.
IMPORTANT: Do not use extension feet for Prole
Kitchens and when tting a granite/solid surface
worktop, see stages 5d/5e.
CAUTION: When extension
feet are tted move with
care to avoid damage.

8www.howdens.com

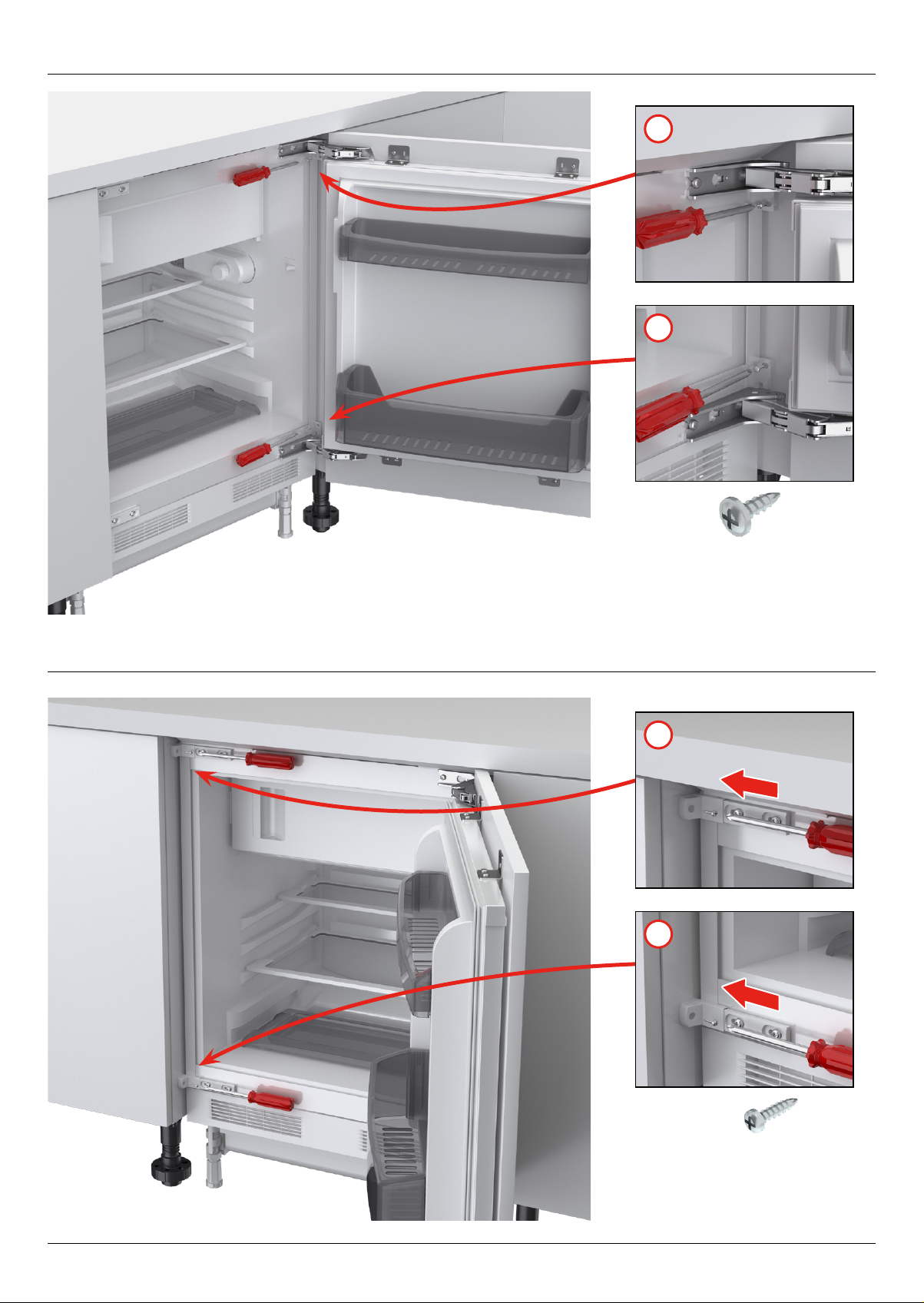

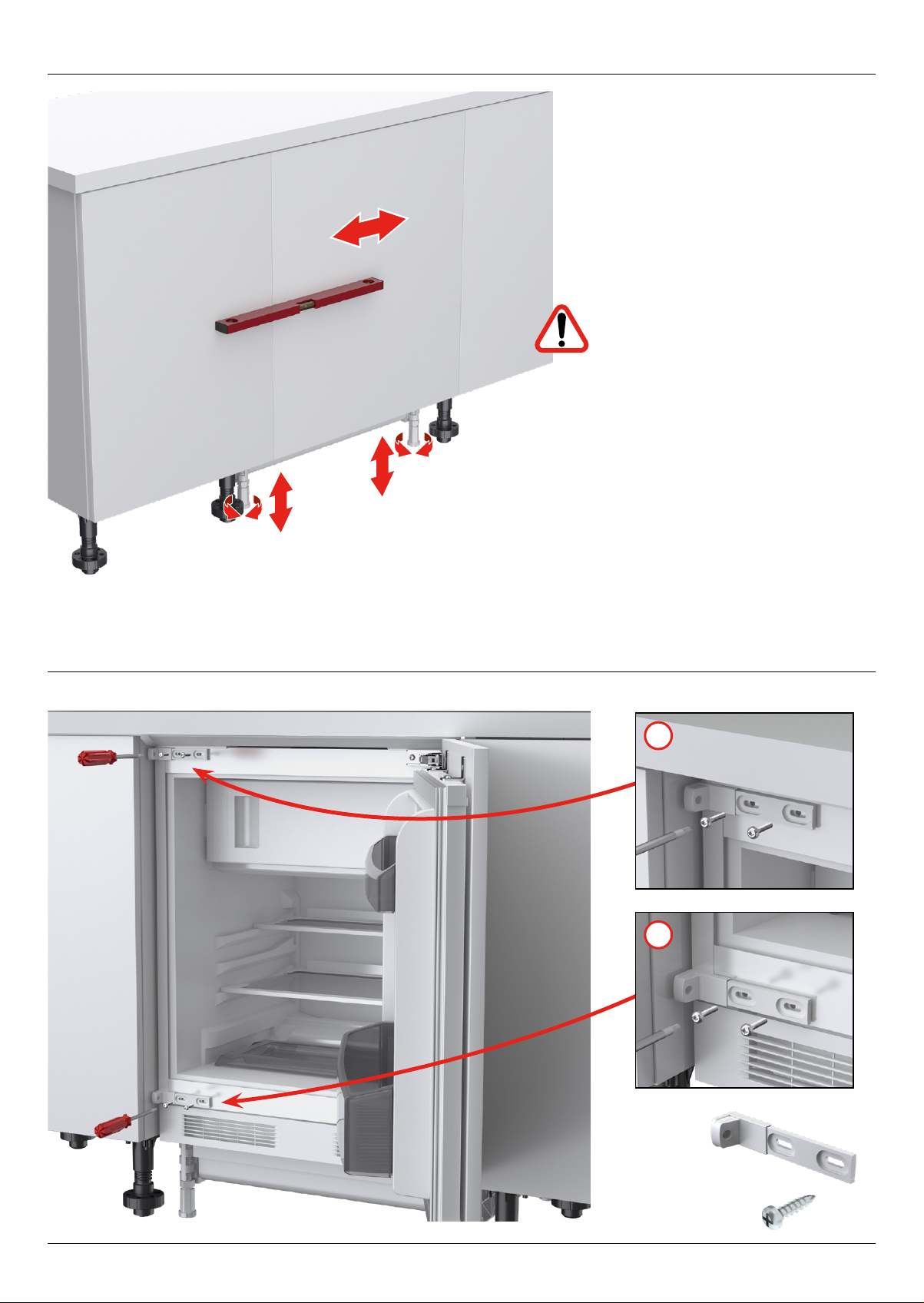

4 - Raise feet so that the top trim engages with the underside of the worktop.
Ensure the appliance is level and true.
Adjust appliance
height if necessary
Worktop to brackets c.12mm
top of bracket to underside
of worktop.
c.40mm c.40mm
3 - Move into position.
WARNING:
Take care not to damage
appliance or surrounding
cabinetry.
Do not trap electric cable.
Appliance depth in niche - from cabinet edge to
appliance body when door is open.

9
Exclusive to Howdens
167.5mm 25mm
335mm
649mm
2
1
(3.9x13 FH) x4
3
(3.9x13 FH) x4
= =
5a - Prepare decor door frontal
Slab door frontal
Mark xing positions.
Do not attach
brackets to frontal.
If applicable, t door
handle at this stage
using countersink screws.
Loosen top bracket
screws and slide
left/right to achieve
frontal alignment.
Secure when
positioned correctly.
Attach door, using
top brackets only,
1 x screw only at 1st.
Secure bottom
brackets.

10 www.howdens.com
167.5mm 55mm
39mm335mm
650mm
1
2
(3.9x13 FH) x4
(3.9x13 FH) x4
= =

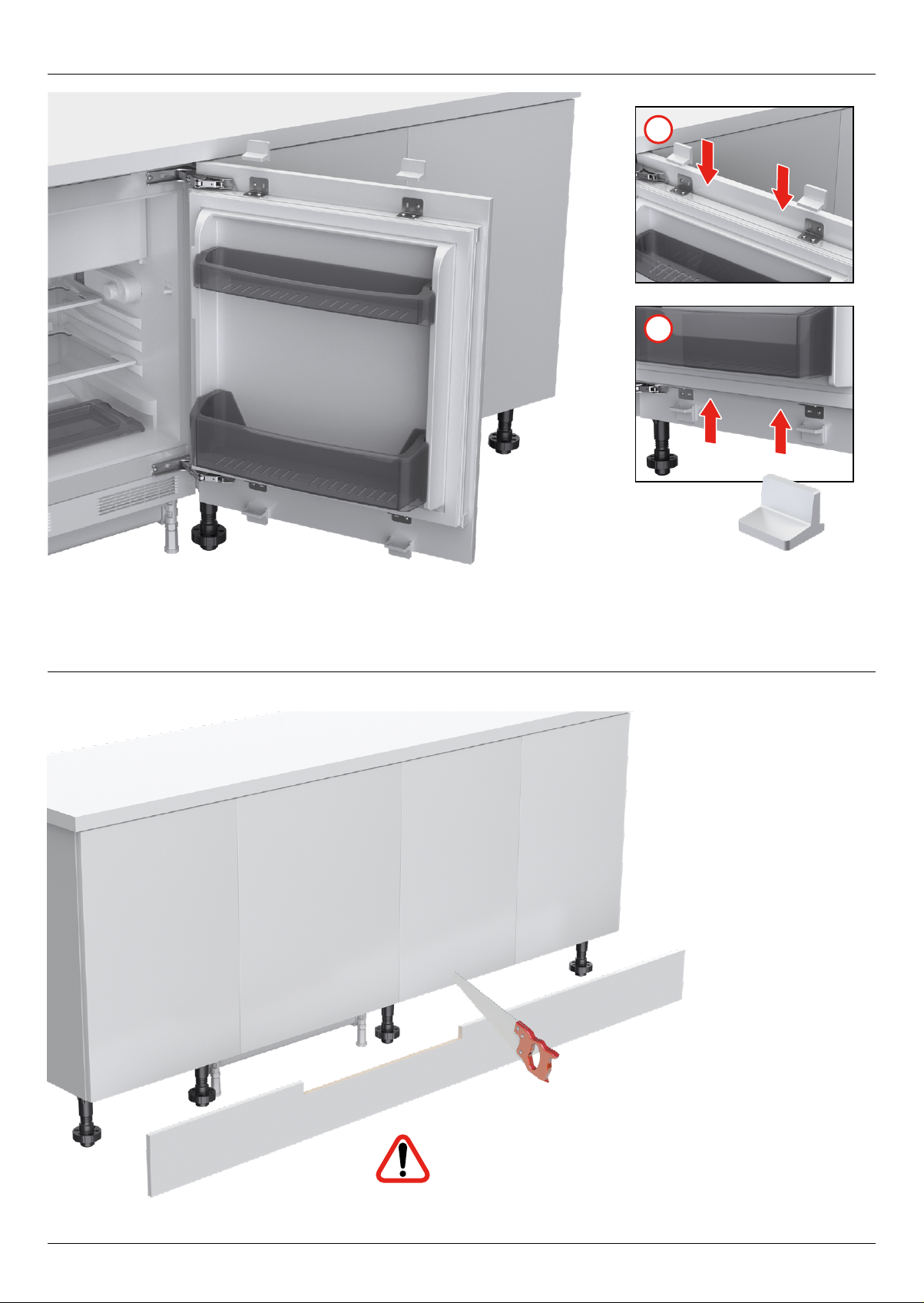

5b - Prepare decor door frontal, (continued)
Integrated handle door frontal
Secure bottom
brackets.
Attach frontal to
the appliance door
and slide left/right
to achieve frontal
alignment.
Secure when
positioned correctly.
Invert bracket.
Mark xing positions.
Remove top door brackets from appliance,
invert and attach to the door.
Do not attach the bottom
brackets to the frontal.
