Lancia Ypsilon User manual

AUDIO SYSTEM
USER MANUAL
Oct . 2019 Ver. 2.0

1
1
1
CONTENTS
1. INTRODUCTION......................................................................................................2
2. TIPS AND GENERAL INFORMATION. ..................................................................3
ROAD SAFETY...................................................................................................................... 3
RECEPTION OF RADIO BROADCATINGS................................................................3
PROTECTION AND MAINTENANCE..........................................................................3
3. CONTROLS.............................................................................................................4
4. CONTROLS ON STEERING WHEEL.....................................................................6
5. IDENTIFYING YOUR RADIO. .................................................................................7
SWITCHING THE SYSTEM ON / OFF...................................................................................7
PASSWORD SCREEN................................................................................................7
DISPLAYED INFORMATION.......................................................................................7
6. RADIO MODE..........................................................................................................8
FM................................................................................................................................9
AM................................................................................................................................9
DAB............................................................................................................................10
7. MEDIA MODE........................................................................................................12
USB............................................................................................................................12
IPOD. .........................................................................................................................12
BLUETOOTH AUDIO.................................................................................................12
8. PHONE MODE.......................................................................................................14
9. SETTINGS MENU..................................................................................................18
AUDIO........................................................................................................................18
SYSTEM. ...................................................................................................................21
RADIO........................................................................................................................23
10. SAFETY GUIDELINES........................................................................................24

2
2
1. INTRODUCTION
The audio system in your car is designed to match the characteristics of the
passenger cabin, and in particular the appearance of the front panel.
The instructions for use are given below; we recommend you read them carefully
and always keep them on hand (for example, in the glove compartment).
The Information and Entertainment System is installed to give the driver and
passenger easy access. The controls can be quickly located from the graphical
display on the front, making the device easy to use.
To increase protection against theft, the system has a protection system, which
only allows it to be used on its originally fitted vehicle.

3
3
3
TIPS AND GENERAL INFORMATION
ROAD SAFETY
It is recommended that you learn how to use the system functions before starting to
use the tool.
Please read this manual carefully.
RECEPTION OF RADIO BROADCASTINGS
Reception conditions change constantly while driving. Reception may be interfered by
the presence of mountains, buildings or bridges, especially when you are far away
from the broadcaster.
ATTENTION
Traffic announcements and DAB announcements are given at a higher volume than
active volume level.
PROTECTION AND MAINTENANCE
In order for the system to work properly, please follow the instructions below:
The screen is susceptible to scratches, cigarettes and detergents. The screen should
never come into contact with sharp objects or hard objects; otherwise the surface may
be damaged. Do not press the screen while cleaning.
Never use alcohol, benzine or its derivatives to clean the screen.
Prevent liquid from penetrating into the system: Damage that may not be repaired
may occur.
IMPORTANT
In case of a malfunction, the system should only be checked and repaired by an
authorized Lancia Service.
If the temperature is too low, it can take time for the screen to reach optimum
brightness.
If the vehicle has been stopped for a period of time and the outdoor temperature is
too high, the system may enter “thermal protection” mode to pause the operation
until the radio temperature reaches acceptable levels

4
4
CONTROLS
Button Functions Mode
Switching On Brief Button Press
Switching Off Long Button Press
Volume Adjustment Knob Rotation
Goes to Last Active FM/AM/DAB Source
and Cycles Radio Sources
Brief Button Press
Goes to Last Active Media Source and
Cycles Media Sources (USB/Ipod/Bluetooth)
Brief Button Press
Volume Activation/Deactivation (Mute/Unmute) Brief Button Press
Access to the Phone Menu and Pick-Up
Incoming Call
Brief Button Press
Hang-Up Ongoing Call Brief Button Press
Return Back to Upper/Previous Menu Brief Button Press

5
5
5
CONTROLS
Button
Functions
Mode
Confirmation of Option Displayed Brief Button Press
Manual Seek for Radio /
Change the Selection Up/Down
Knob Rotation by
Step
Change the Selection Up/Down Knob Rotation
Continuous
Play/Pause the Playing Track Brief Button Press
Recall Stored Radio Station /
Shuffle Active Playlist for USB/iPod Brief Button Press
Store Current Radio Station Long Button Press
Recall Stored Radio Station /
Previous Track For Media Sources Brief Button Press
Store Current Radio Station /
Fast Rewind For Media Sources Long Button Press
Recall Stored Radio Station /
Next Track For Media Sources Brief Button Press
Store Current Radio Station /
Fast Forward For Media Sources Long Button Press
Recall Stored Radio Station /
Repeat Active Track / Repeat All Tracks Brief Button Press
Store Current Radio Station Long Button Press
Access to the Settings Menu Brief Button Press

6
6
CONTROLS ON STEERING WHEEL
The controls for the main system functions are present on the steering wheel to
make control easier.
The activation of the function selected is controlled, in some cases, by the duration
of pressing button (short or long press) as described in the table below.
Button Functions Mode
Volume Activation / Deactivation (Mute / Unmute) Brief Button Press
+One Step Volume Increase Brief Button Press
Fast Volume Increase Long Button Press
–One Step Volume Decrease Brief Button Press
Fast Volume Decrease Long Button Press

Auto Seek for Next Radio Station / Next Track
for Media Sources / Change the Selection
Upwards in a List
Brief Button Press
Auto Seek for Next Radio Station / Fast
Forward for Media Sources /
Fast Change the Selection Upwards in a List
Long Button Press

Auto Seek for Previous Radio Station / Previous
Track for Media Sources / Change the Selection
Downwards in a List
Brief Button Press
Auto Seek for Previous Radio Station / Fast
Backward for Media Sources /
Fast Change the Selection Downwards in a List
Long Button Press
Pick-Up Incoming Call Brief Button Press
Hang-Up Ongoing Call Brief Button Press

7
7
7
GENERAL INFORMATION
SWITCHING THE SYSTEM ON/OFF
The system is switched on by pressing briefly the button/knob. For switching off the
radio, press the button/knob long. Turn the button/knob clockwise to increase the
radio volume or anticlockwise to decrease it.
PASSWORD SCREEN
When the system is turned on for the first time after battery detachment&attachment,
the radio will display “Password” if necessary, and a keypad will appear on the screen
to enter the secret code. The code is given with the
radio printed on a FIAT Code Card.
The secret code consists of four digits from 0 to 9:
To enter the first digit of the password, turn the
TUNE / SCROLL button on the right and press to
confirm.
After entering the fourth digit, press the “TUNE / SCROLL” button on the right, the
system will start working if entered password is correct.
If an incorrect password is entered, the system displays the message “Incorrect Code”
on the screen to let the user know that the correct password must be entered.
Each unsuccessful trial increases the waiting time for new trial.
Once the message disappears from the screen, it is possible to start re-applying the
procedure for entering the password.
DISPLAYED INFORMATION
The active radio station frequency and band names are given in the main radio
interface. For FM Stations having RDS information, also Radio Text is shown as well.
If the active radio station is stored in pre-set memory, pre-set can be seen as like
P1/P2/P3/P4 in the right bottom of the screen.
For DAB interface, service label section, PTY and DLS information is shown on the
screen. As same as if the active radio station is stored in pre-set memory, pre-set can
be seen as like P1/P2/P3/P4/ in right bottom of the screen.
For USB/iPod/ Bluetooth Audio interface, track name, artist name or folder name is
displayed on the screen. Showing ID3 Tag info or File Name info can selected by using
Settings Menu. The elapsed time can also be seen on the screen.
On Phone main screen, if a mobile phone is connected, cellular operator name, cellular
reception level, battery charge level and the phone name are displayed on the screen.

8
8
RADIO (TUNER) MODE
GENERAL DESCRIPTION
Press the RADIO button, to enter the radio mode and switches to the band AM, FM
and DAB. The radio is equipped with the following modes:
• AM
• FM
• DAB
Volume & Mute
• Rotate the rotary knob to adjust the volume. When the audio system is turned on,
the sound will be set at the same volume level as last played (If Max Volume Setting
is not set to ON).
• Press the Mute button to mute the system. Press the Mute button again to un-mute
the system.
Setting Presets
The Presets are available for all Radio Modes. Pre-memorized radio stations
can be selected by pressing one of the pre-setting buttons 1-2-3-4 on the front panel
or entering pre-set list by pressing button. In the pre-set list the radio stations
can be stored by holding button. By holding pre-setting buttons 1-2-3-4 active
radio station will be stored.
If an adjusted frequency of a radio station wanted to be commit into memory,
press and hold the desired numbered button for more than 2 seconds or until you
hear a beep confirmation.
The Radio stores up to 12 presets in FM / DAB mode and 8 presets in AM mode.
The stored radio list can be seen by pressing “TUNE / SCROLL” button.

9
9
9
RADIO (TUNER) MODE
FM/AM
Tune/Scroll Control
• Turn the rotary “TUNE / SCROLL” control knob clockwise to increase the radio
station frequency or counter clockwise for decreasing.
• Seek Functions: Auto-Seek Up/Down can be carried out by steering wheel control
commands.
• During a Seek Up function, if the radio reaches the starting frequency after passing
through the entire band, the radio will stop at the station where it began.
FM

10
10
RADIO (TUNER) MODE
DAB
BROWSE menu appears when user presses “TUNE / SCROLL” button. User can
navigate inside the list by rotating “TUNE /SCROLL” knob, enter in directories by
pressing same button.
RADIO STATION SELECTION / Tune/Scroll Control to select next / previous
available station, turn the knob step-by-step.
AVAILABLE STATIONS section is used for displaying the complete list of DAB stations
that can be received. Stations are sorted alphabetically in the list. Desired station could
be selected by pressing button.

11
11
11
RADIO (TUNER) MODE

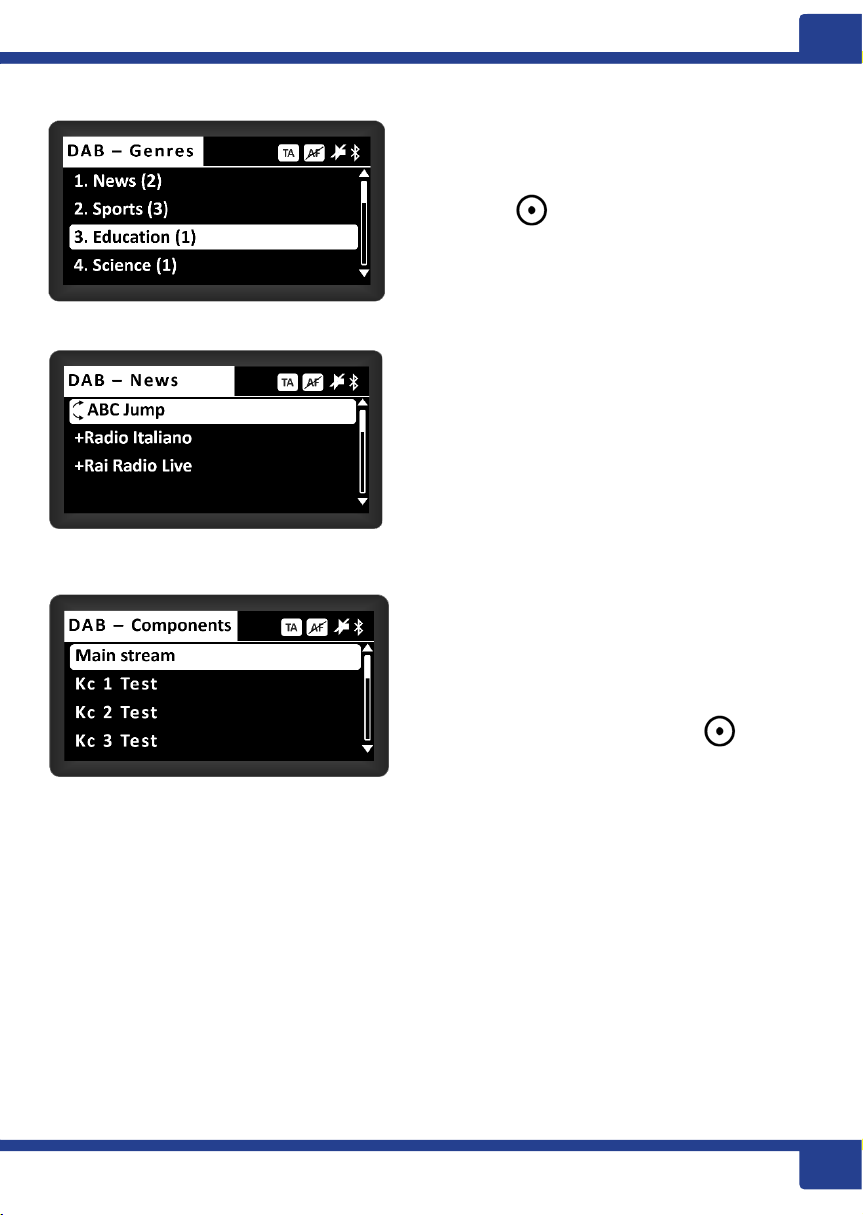

GENRE DAB channels are classified by
PTY information. In related genre list,
desired station could be selected by
pressing button.
ABC JUMP function is used for finding the
radio stations or directory easily by
entering first letter of the station.
CURRENT STATION COMPONENTS If
selected station has any secondary
component, ‘Current station components’
label appears in browse screen. In this
section desired components of the station
could be selected by pressing button.

12
12

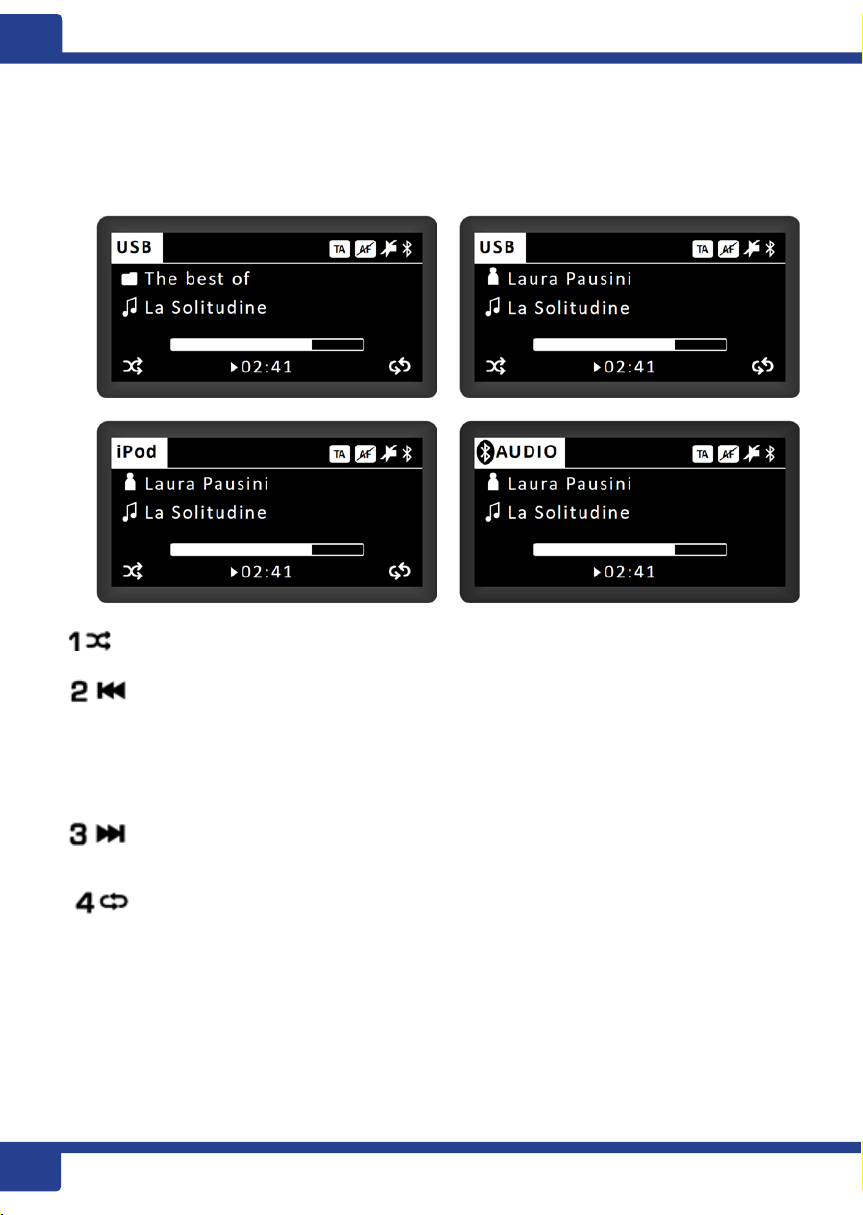

MEDIA MODE
AUDIO SOURCE SELECTION
This chapter describes the interaction modes concerning the operation of Bluetooth
Audio / USB / iPod. To activate or change “Media Mode” press the MEDIA button.
Enables/Disables shuffle of the active playlist. Default status is Random Off.
If elapsed time of actual track is less than 2 seconds, radio jumps to the
beginning of previous track. If elapsed time is more than 2 seconds, jumps to
beginning of current track.
If button is pressed while 1st track on the current playlist is playing, radio jumps to
the last track of the playlist.
Jumps to the next track if pressed. If active track is the last track of the playlist,
jumps to the first track of the current playlist.
Enables/Disables “Repeat” functions, cycling through following order:
REPEAT ALL --> REPEAT ONE --> REPEAT OFF. Default status is Repeat Off.
Note: If device connected via USB is an Android device (not a USB memory or Apple
device), is not supported to play music (recharge only).
To listen the music of an Android device, use the BT streaming Audio.

13
MEDIA MODE
BROWSE menu appears when user
presses “TUNE / SCROLL” button. User
can navigate inside list by rotating “TUNE
/SCROLL” knob, enter in directories by
pressing same button. Pressing a song
directly starts playing the song with
creating playlist from songs in the same
directory.
ABC JUMP function is used for finding the
requested song or directory easily by
entering first letter of the song or directory.
ABC JUMP search screen is constituted
by capital letters, numbers or other
characters. By entering one these
characters will show result screen having
song and directory names beginning with
selected letter. If selected character is “1”,
all songs and directories beginning with
numbers will be listed. If “#” character is
selected, songs and directories will be
listed beginning with other characters than
numbers and letters.
RESULTS screen will be shown with
search results according to selected
character.

14
14
PHONE
HOW TO PAIR THE PHONE: Press
button to activate BT (Bluetooth)
Phone interface. This button is also used
for taking a incoming call, and
activating/deactivating private call during
the call. is pressed for hanging up
the ongoing call or reject an incoming call.
PHONE BROWSE screen is default
screen when there is no connected
device to the radio. On this screen user
can add a new device, select or delete
one of the devices already paired before.
On BT Phone main screen, opens
the Phone Menu having following items;
•Add
•Select
•Delete
PHONE-ADD screen is for starting the
pairing process with a mobile phone
having BT functionality.
After that, Radio will show PIN on display,
then it is necessary to search the Radio
“Lancia” from Phone. Insert the PIN
shown on radio display to Phone.
After entering Pin number shown on radio
screen to the mobile phone, mobile
phone will be connected to the radio
automatically. PHONE MAINSCREEN
consists of operator name, phone name,
cell reception and battery levels of the
connected phone.

15
PHONE
PHONE-SELECT screen is selecting
already paired (before paired) phone to
start Bluetooth connection.
PHONE-DELETE screen is deleting an
already paired (before paired) phone
from radio paired list. Thus, radio will not
try to connect to deleted phone.
If there is a connected device to the
radio. PHONE BROWSE screen will be
shown with additional 3 items;
•Recents
•Contacts
•Connected Devices
For the first-time pairing, sharing
approval of contacts of mobile phone to
the radio will be asked. If user approves
the sharing, radio will update the
contacts without asking any approval
again. The approval (non-approval) is
valid for recent calls and phone-book.
Recent calls can be seen by selecting
“Recents” menu item in the PHONE
BROWSE screen.

16
16
PHONE
PHONE-CONTACTS can be seen by
entering “Contacts” menu item. During
new pairing process, or connection in-
process (after radio turns on, it takes up
to 20 seconds to connect already paired
phones), “Loading, Please Wait” warning
will be shown, until whole phonebook is
downloaded to the radio.
By using “ABC Jump” menu item (like in
MP3-List menu), first letter of requested
phone contacts can be
entered for
navigating directly to the contacts starting
with requested letter.
After entering first letter in “ABC Jump”
main screen, all contacts starting with
requested initial letter will be shown in
PHONE-Results main screen.
If user presses on one of the contacts in
PHONE-CONTACTS or PHONE-
RESULTS screen, details of the contact
will be shown in terms of mobile, home or
work phone numbers as registered in
mobile phone.

17
PHONE
PHONE-CONNECTED main screen is
shown when “Connected Devices” menu
item is selected from the PHONE
BROWSE screen. There are 2 different
modes for connecting Bluetooth devices;
•PHONE Mode: For Handsfree talk
with BT-enabled mobile phone.
•AUDIO Mode: For listening music
from BT-enabled devices.
Normally radio connects for both modes to
the same device if supported. But user
can connect different devices by entering
Phone Mode and Audio Mode menu
items.
The list shown after entering one of the
modes contains already paired devices
which is same with PHONE-SELECT list.
This way, each mode of the Bluetooth can
be connected different devices (e.g. user
mobile phone can be connected as Phone
Mode for managing and making phone-
calls, while a tablet device can be
connected as Audio Mode for listening
music from tablet’s music list.
Note: Changing device for one of the
modes, makes radio disconnect from all
connected devices for both modes, and
reconnect them as requested. (e.g., if
there is an ongoing call during the change
of Audio Mode, call will be diverted to
mobile phone for a couple of seconds,
then be transferred to the radio again.)
To download all phone contacts into the
radio phonebook, be sure your device has no
restriction activated.

18
18
SETTINGS
SETTINGS
To access the SETTINGS menu, press
the button.
The menu includes the following items:
•AUDIO
• SYSTEM
• RADIO
AUDIO SETTINGS
To access the “AUDIO” Settings
menu, press the button and
chose the AUDIO.
The menu includes the following items:
• Bass
• Treble
• Equalizer Mode
• Fade
• Balance
• Loudness
• Speed Volume
• Max Volume
BASS
Set the bass tones as desired using the
TUNE / SCROLL rotary knob, press OK
to confirm. The adjustment can be set to
13 positions: from -6 to +6, “0” is the
balanced position.
TREBLE
Set the treble (high freq.) tones as desired
using the TUNE / SCROLL rotary knob,
press OK to confirm. The adjustment can
be set to 13 positions: from -6 to +6, “0” is
the balanced position.
