LANCIA
MULTIMEDIA SYSTEM USER MANUAL
Model number: D721AL
Date of release:
Version number: v1

TIPS, CONTROLS AND GENERAL INFORMATION
ROAD SAFETY
Learn how to use the various system functions before setting off. Read the instructions for the system carefully
before setting off.
RECEPTION CONDITIONS
Reception conditions change constantly while driving. Reception may be interfered by the presence of
mountains, buildings or bridges, or when you are far away from the broadcaster.
IMPORTANT The volume may be increased when receiving traffic alerts and news.
CARE AND MAINTENANCE
Observe the following precautions to ensure the system is fully operational:
➢ the display is sensitive to scratching, liquids and detergents. The display should not come in contact with
pointed or rigid objects which could damage its surface. Do not press on the display when cleaning it.
➢ prevent any liquid from entering the system: this could be damaged beyond repair.
Only clean the front panel and the display with a soft, clean, dry, anti-static cloth. Cleaning and polishing products
may damage the surface. Do not use alcohol or similar products to clean the panel or the display and ensure that
the system is in OFF mode during cleaning operations.
MULTIMEDIA DEVICES: SUPPORTED AUDIO FILES AND FORMATS
For memory stick (USB) and portable media players (iPod) sources the system can play files with the following
extensions and formats:
➢.MP3 (8 –320Kbps);
➢ .WAV;
➢.WMA (8 –320Kbps);
➢ .AAC;
➢ .FLAC
➢ .ALAC
For all sources (USB, iPod and Bluetooth® ), the system can also play the following Playlist formats:
➢ .M3U
➢ .PLS
➢ .WPL
For USB sources the system can play videos with the following extensions and formats:
➢.MP4;
➢ .DAT;
➢ .AVI;
WARNING
It can be dangerous if the volume is too high.
Adjust the volume so it can still be heard
background noises (e.g. horns, ambulances,
police vehicles, etc.)

Video Codec Name
Profile
Level
Limitation
MPEG4
Simple Profile
L5
For Advanced Simple profile, only
one point GMC is supported.
Advanced Simple Profile
H264
Baseline profile
L 4.1
For Baseline profile with SGM,
the width limitation is 1280.
Main profile
For Baseline profile without SGM, the
width limitation is 4096.
High profile
NOTE It makes no difference whether the suffixes are written in capital or small letters.
For USB sources, the system can view images with the following extensions and formats:
➢ .JPEG;
➢ .JPG;
The system supports FAT16, FAT32, ex FAT formatted USB devices. The system does not support devices with a
capacity higher than 128 Gb.
FRONT PANEL CONTROLS
WARNING
ALWAYS drive safely with your hands on the steering wheel. You
have fully responsibility and assume all risks related to the use of the
multimedia system features in this vehicle. Only use multimedia
system when it is safe to do so. Failure to do so may result in an
accident involving serious injury or death.

Button
Function
Description
SwitchingOn/Off,
Volume Adjustment &
Back to Main Menu
Press the buttonto turn on the device, press and hold for 2
seconds to turn it off. Increase or decrease the volume via turning
the knob clockwise or anti-clockwise respectively. Press the
buttonto go back to mainmenu inany selected menu.
Radio
Press the button to enter radio source / Select radio band
Media Source
Press the button to enter/Select USB/iPod/BT media Sources. If
Apple CarPlay or Android Auto Connectionis active, Android Auto
or Apple CarPlay media menu can be accessible.
Phone
Press the button to enter the mobile phone menu. Further
details are given in next chapters.
Display On/Off
Press the buttonto turn the display onor off.
Enter/Browse&
Tune/Scroll
Press the buttonto enter the selected menuor approve a pop-up.
Rotate the knob for manual seek for radio and change the
selection up & down inbrowse.
USB/iPodPort
Connect the device to USB connectionport to activate
iPod/CarPlay/AndroidAutoport.

STEERING WHEEL CONTROLS
Button
Function
Description
Mute Button
Press the button for the activation/deactivation of the volume. To cut off the
microphone device during BT (Bluetooth®) call, press the button to activate
mute function. This allows to hear the interlocutor but not being heard from it.
Press the mute button again to deactivate the function.
Voice Command Button
Press to activate Android Auto and Apple Car Play voice command
Call Accept Button
Press to pick-up incoming calls
Call End Button
Press to end the call, or for refusing an incoming call.
Search Button
Press the button to auto seek for next or previous radio station/ track for media
sources.
Long press to change them faster.
Volume Up/Down Button
Press to increase/decrease the volume.
Long press to increase/decrease volume faster
TURNING ON/OFF THE RADIO
Press button briefly to turn on the device, press it for 2 seconds to turn it off. Rotate the button clockwise to
increase the volume, or anti clockwise to decrease the volume.
RADIO MODE
Press the Radio button on the touchscreen, bottom left corner or icon in the Home page, to enter the
Radio Menu.

Radio Mode Selection
In radio main screen, press “ ” button on the front panel or “FM/AM, AM/DAB, DAB/FM” to switch to the
bands AM,FM and DAB. Each tuning mode can have a specific preselection set.
Radio Station Selection
In radio main screen turn button/knob or press and button on screen to search for the desired radio
station.
Displayed Information
After the desired radio station is selected on the display, the following information is shown:
At the top: the list of radio stations stored (preset) is displayed; the station being listened to is
highlighted only if it is among the ones stored in the preset.
In the middle: the name of the radio station being listened to and the buttons to select the previous or
the next radio station are displayed.
At the bottom: the following buttons are displayed:
➢ "FM/AM/DAB ”: selection of the desired frequency band (button reconfigurable according to the band
selected: AM, FM, DAB );
➢ "Stations": list of the available radio stations.
➢ "Info": additional information on the source playing.
➢ "Audio": access to the "Audio setting" screen.

AM/FM/DAB Radio Station Tuning
Press the icon to enter Direct Tune menu. The graphic keyboard on the display is used to enter
the frequency of the station. In this mode, use buttons + and –to fine-tune the frequency. Press button to
delete a wrong number (and enter the correct station frequency). Press button or the " " button on the
display to return to the system main screen.
Fast searching of next/previous radio broadcasting
Keep pressing on or buttons to start fast searching. When you stop pressing the button, the audio
will find the first listenable broadcast.
FM broadcasting list
To see all FM stations list, you need to press button.
Presetting a Station (Preselection)
Pre-selections are activated by touching one of the preselection buttons located at the top of the display. To store
the current radio station, press and hold down the button corresponding to the desired preset until a confirmation
acoustic signal is heard. The system can store up to 12 radio station in each mode: 4 radio stations are displayed at
the top.

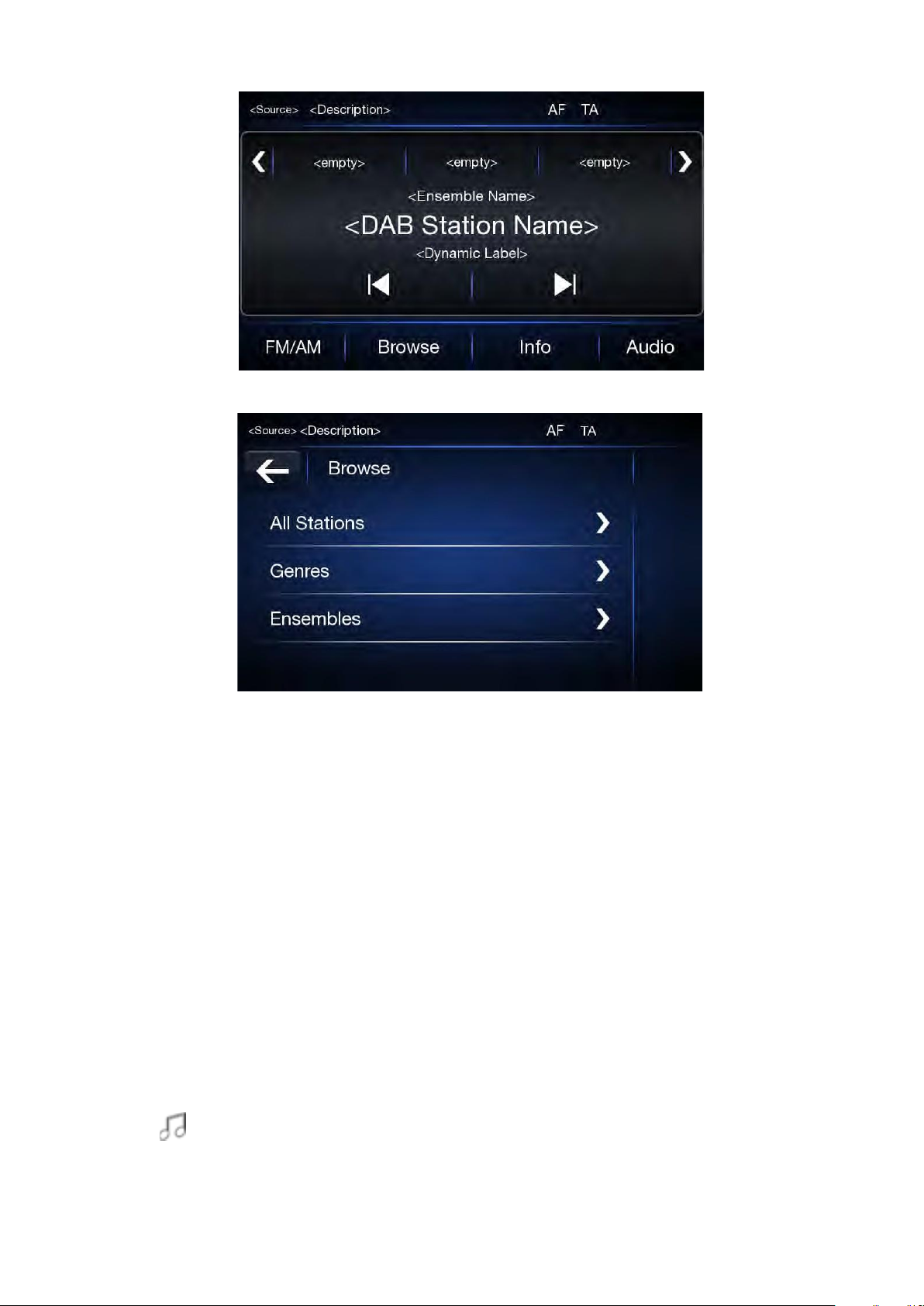

DAB broadcasting
DAB third-generation broadcasting -- digital audio broadcasting, which provides sound quality close to CD,
broadcasting and additional data services with the advantages of anti-noise.
Press the "Browse" button to select “All stations” “Genres” “Ensembles”.

All stations
Press “all stations”, to see all the DAB broadcasts.
Genres
Press “Genres”, to choose various types of DAB radio programs, such as weather, finance, children, religion, etc.
Ensembles
Press “Ensembles”, to scroll through the DAB ensembles groups
MEDIA MODE
Press “”button located on the faceplate to activate media sources. After source selection i s
completed, sound/photo files in the source are played automatically.

To play audio/photo files via USB, the corresponding device must be connected to the USB port on the radio, if
needed via a required cable. When a USB / iPod device is plugged in while the system is on, tracks stored on
USB/iPod are available to play. Supported USB flash disks list is provided at the following link:
http://www.lanciainfotainment.com/it/nuova- home-page/
If the mobile phone supports Bluetooth® connection, the audio files stored on the mobile phone can be listened
via the radio in the car.
Seek Previous/Next
Press button to play the next selection. (this can be track/picture). Press button to return to the beginning
of the selection or the beginning of the previous selection.
Fast Seek Previous/Next
Press and hold button on the touchscreen to fast forward the selected track. To fast rewind the track, press and
hold the button.
Browse
This function is used to select tracks in the directory of active device. Additional options for the selection may vary
depending on the connected device or the type of device connected. For example, if a USB / iPod device is
connected, it can be navigated between artists, music genres, and albums, depending on the information in the
songs.
In order to activate this function on corresponding device press the “Browse”button on the display, which allows
the user to scroll through files and make a search. This button may not be available for some specific Apple®
devices. Press button to cancel browse function.
Use the "ABC" button inside each list to skip to the desired letter inside the list.
Song Information
Press “Info” button to display the information of the current track. Press “CLOSE” button to go back to the
previous screen
WARNING
When connecting a device (USB or iPod) to
the USB port, make sure that the
handbrake lever is not obstructed.

Shuffle
Press button to play the tracks in a random order. Press again to deactivate this function. Shuffle function can
be available only if the USB or Bluetooth® device supports this function.
Repeat Song
Press button repeatedly to cycle between Repeat One, Repeat All and Repeat OFF in loop. Repeat function can
be available if the USB or Bluetooth® device support this function.
➢Repeat One ; in this mode the system repeatedly plays the current track.
➢Repeat Al l; in this mode the system repeatedly plays the list of the current tracks.
➢Repeat OFF ; in this mode the tracks cycling is deactivated.
USB/iPod MODE
USB/iPod Mode is entered by either inserting a USB Jump Drive or iPod cable into the USB port, or by
pushing the button on the faceplate located to the bottom of the display. Once in Media Mode, push the
button and select USB/iPod. Gently insert the USB/iPod device into the USB port. When AutoPlay setting is
ON, if you insert a USB/iPod device while the radio is ON, the unit will switch to USB/iPod mode and begin to play
the tracks on the device.
BLUETOOTH® MODE
Bluetooth® Streaming Audio (BTSA) mode is entered by pairing a Bluetooth® device, containing music, to the
Multimedia System. Before proceeding, the Bluetooth® device must be paired
to the Multimedia System.
NOTE: See the pairing procedure in the Phone Mode section for more details.
To access Bluetooth® mode, press the “Source” button under the Media Menu of the Home Page, and then select
“Bluetooth® Audio”.

PHONE MODE
Activating Phone Mode
Press “” button on the front panel or on the main screen to activate phone mode.
Key Features:

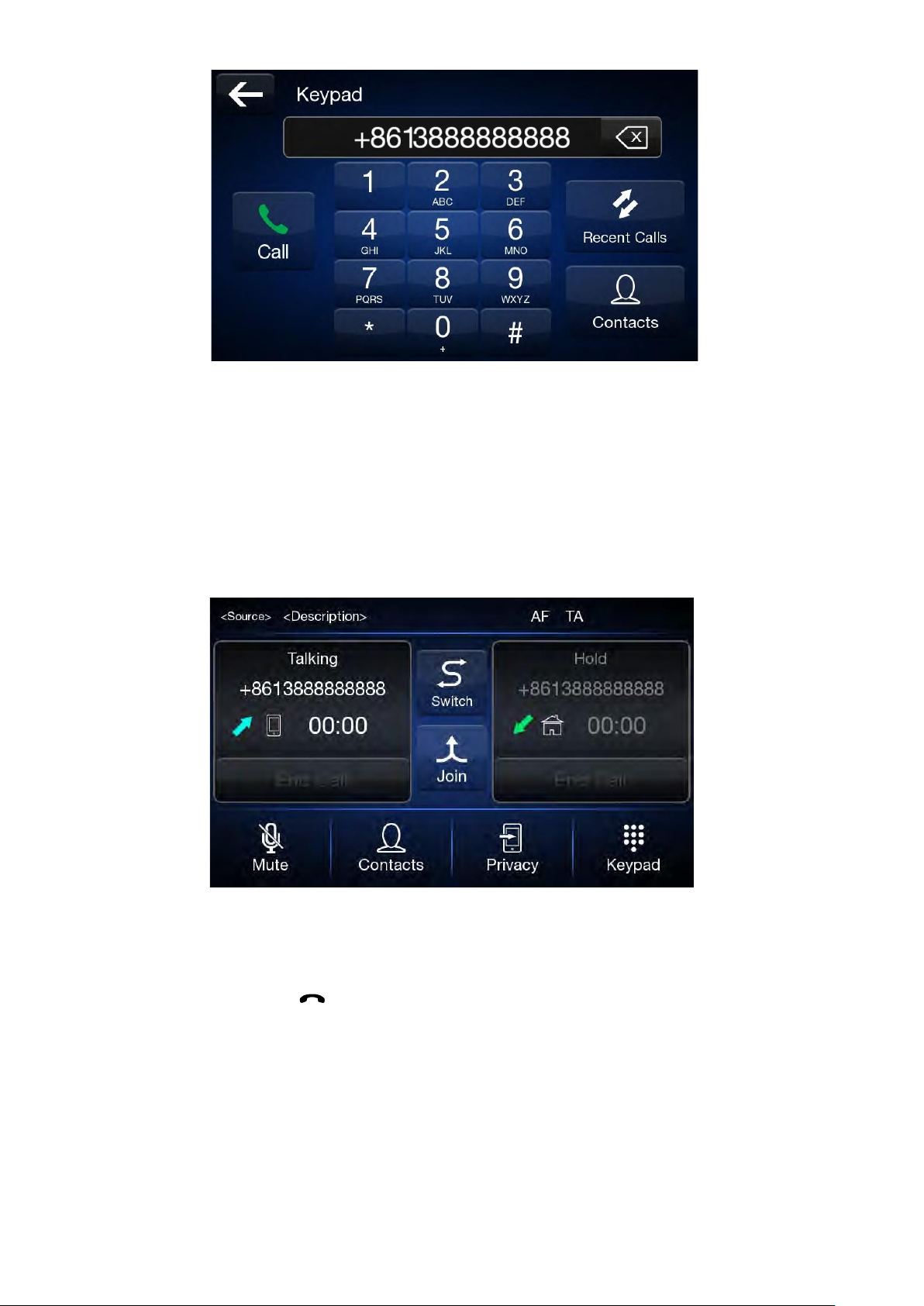

➢ Dialing the number of the person wanted to be called.
➢ Contacts on the phone book of the cell phone can be viewed and called.
➢ Contacts on the recent calls can be viewed and called
➢ Up to 5 cell phones/digital players can be stored for easier and faster access.
➢ The calls on the device can be transferred to cell phone and the call on the mobile transferred to the
device. Microphone device can be disabled.
➢ Sound files that are stored on mobile phone, can be played over radio device.
Sound of the mobile phone is directed to the car speaker system over radio. System interrupts radio sound
automatically while mobile phone function is in use.
Pairing the Mobile Phone over BT
The instructions below are to be followed for registering procedure:
➢ Ensure that the vehicle is stationary; the pairing process between vehicle and mobile phone can happen
only when the vehicle is stationary.
➢ Ensure Apple CarPlay/Android Auto is not active on the phone.

➢ Activate Bluetooth® function of the mobile phone.
➢ Press button of the radio in front panel in Home Page.
➢ Press Button if any cell phone device is not paired previously yet.
➢ Search for “LANCIA_XXXX”on mobile phone after button is pressed to start pairing.
➢ Enter the PIN code that is displayed on the screen of the radio, using the mobile phone, after mobile phone
requires it, or confirm the code that is displayed on mobile phone.
➢ An Information screen which contains cell phone details is displayed when the pairing is completed.
After updating the mobile phone's software, it is recommended to remove the phone from the radio-connected
devices list, delete the previous connection of the phone from the Bluetooth® list, and pair the mobile phone again
to assure the system works correctly.
Transfer of the Phone Data (Phonebook and Recent Calls)
If your mobile phone has a function for sending the phonebook via Bluetooth® technology, during the pairing
procedure a pop-up screen will appear with the following request. Answer "Yes" to copy the whole phonebook and
the list of recent calls to the system. Answer "No" to carry out the operation later.
WARNING
Apple phones set the Bluetooth ®volume
to the half of maximum for the first pairing.
If the phone volume is low, change the
Phone volume level in the
Settings/Audio/Volume menu.
WARNING
Bluetooth®Connection Functions and
sound quality may vary and depends on
Mobile Phone Brand.
Supported mobile phones list is given at
web http://ww.lanciainfotainment.com

After the first phone data transmission, the procedure for transmitting and updating the phonebook (if supported)
starts as soon as a Bluetooth® connection is established between mobile phone and system.
This downloaded phonebook cannot be edited on the multimedia system. It can only be edited on the mobile
phone. When the device is deleted from the paired device list or the restore default settings option is activated, the
phonebook will be automatically deleted from the multimedia system. The changes are transferred and updated to
the multimedia system on the next phone connection.
Whenever a mobile phone is connected to the system, a maximum of 2000 contacts can be
downloaded and updated for each phone. Depending on the number of items downloaded from
the phonebook, a slight delay can occur before the last names downloaded can be used. Up to then the phonebook
downloaded previously (if present) will be available.
Only the phonebook of the mobile phone currently connected to the system can be accessed.
Connecting To A Particular Mobile Phone Or Audio Device After Pairing
Multimedia System will automatically connect to the highest priority paired phone and/or Audio Device within
range. If you need to choose a particular phone or Audio Device follow these steps:
➢ Ensure that the Bluetooth® function is in ON status on the mobile phone
➢ Press the button on the touchscreen, then the button on the touchscreen.
➢ Press to select the particular phone or the particular Audio Device in “Paired Devices List” screen.
➢ If the mobile phone is in use as a Media source, press button on the touchscreen.
➢ If the mobile phone is in use only for Phone function, press button on the touchscreen.
➢ If the mobile phone is in use as both Media source and Phone, press “Connect Both”button on the
touchscreen.
➢ A pop-up will appear, and multimedia system connects to the mobile phone automatically.
Disconnecting A Phone Or Audio Device
➢ Press the button on the front panel.
➢ Press the button on the display.
➢ Select the specific device from the "Paired Devices List”.
➢ Press button to disconnect as “Media source” and/or press button to disconnect as
“Phone source”.

Deleting A Phone or Audio Device
To delete a mobile phone or Bluetooth® audio device from a list, proceed as follows:
➢ Press the button on the front panel.
➢ Select button on the display.
➢ Select the specific device from the "Paired Devices List”.
➢ Press the "Delete" button
➢ A confirmation screen will appear on the display: press "Yes" to delete the device or "No" to cancel the
operation.

PHONE CALL FEATURES
The following features can be accessed through the Multimedia system if the feature(s) are available and supported
by Bluetooth® on your mobile service plan. For example, if your mobile service plan provides three-way calling, this
feature can be accessed through the Multimedia system. Check with your mobile service provider for the features
that you have.
Ways To Initiate A Phone Call
A call can be made by:
➢ Pressing “Contacts” button (mobile phone phonebook);
➢ Pressing "Recent Calls" button;
➢ Pressing “Keypad” button;
➢ Pressing the "Call Back" button.
Making a Phone Call
The operations described below can only be accessed if supported by the mobile phone in use. For all functions
available, refer to the mobile phone owner's handbook.

Dialing the phone number using the "keypad" button
Enter the phone number using the graphic keyboard displayed. Proceed as follows:
➢ Press the button on the touchscreen in Phone Main Menu;
➢ Use the numbered buttons to enter the number;
➢ Press the "Call" button to make a call.
Dialing the phone number using the mobile phone
It is possible to dial a phone number with the mobile phone and continue using the system (never allow yourself to
be distracted while driving). When a phone number is dialed with the keyboard
of the mobile phone, the audio of the call is played over your car's sound system.
Recent calls
The list of the last calls made for each of the following call types can be displayed:
➢ Incoming calls;
➢ Outgoing calls;
➢ Missed calls
➢ All calls
To access these types of calls, press the "Recent Calls" button on the Phone menu main screen.
Managing an Incoming Call - Answering a phone call
When a phone call is received on the mobile phone, the system deactivates the audio system (if active)
and displays a popup screen. Press the "Accept" button or the button on the steering wheel controls to answer.
Press the "Reject" button or the button on the steering wheel controls to reject.
Press the “Ignore” button to ignore the incoming call, the incoming call still exist in the background, if user press
button of the front panel, the incoming call screen will appear again.

Answering an incoming call during an active conversation
To answer an incoming call while another phone conversation is in progress, press the "Hold”button to put the
ongoing call on hold and answer the new incoming call.
Press “Reject”button to close the ongoing call and answer the new incoming call.
Press “Ignore” button to ignore the new incoming call and continue with the ongoing call.
IMPORTANT: Not all mobile phones may support the management of an incoming call when another phone
conversation is active.
Making a second Phone Call
When a phone conversation is active, a second phone call can be made in 3 different ways on the same menu as
follows:
Press “Add Call” button and Keypad screen is open;
➢ Dial the number using the numbered buttons and press “Call” button;
➢ Press “Recent Calls” button to select from the list of recent calls;
➢ Press “Contact” and go to the Phonebook then select the contact;

Managing two Phone Calls
If two calls are in progress (one active and one on hold), it is possible to switch between them pressing
the "Switch”" button or to merge the two calls in a conference pressing the "Join" button.
Note
Check whether the telephone in use supports the management of a second call and the "Conference"
mode.
Ending a Call
Press the "End" button or the button on the steering wheel controls to end a call in-progress. Only the ongoing
call is ended and any call on hold becomes the new active call. Depending on the type of mobile phone, if the ongoing
call is ended by the caller, the call on hold may not be activated automatically.
Redialing
To call the number/contact of the last call made, press the "Call Back" button on the Phone Main Menu.

Continuing a Phone Call
After the engine is switched off, if in the power off delay setting it is selected the 20 minutes option it is still
possible to continue a phone call. The call continues until it is ended manually or for a maximum period of about 20
minutes. When the system is switched off the call is transferred to the mobile phone.
Activation/Deactivation of the Microphone
During a call the microphone can be deactivated pressing the “Mute” button on the touchscreen (or on the
steering wheel controls ). When the microphone is deactivated it is still possible to listen to the call in progress.
To reactivate the microphone, press the corresponding button again.
Transferring a Call
The ongoing calls can be transferred from the mobile phone to the system and vice versa without ending the calls.
To transfer the call, press the "Privacy" button.
Apple CarPlay and Android Auto
The Apple CarPlay and Android Auto applications allow you to use your smartphone in the car safely and intuitively.
To enable them, just connect a compatible smartphone via the USB port and the phone’s contents will be
automatically shown on the system display. To check the compatibility of your
smartphone, see the indications on the websites: https://www.android.com/auto/ for Android Auto and
https://www.apple.com/tr/ios/carplay/ for CarPlay.
If the smartphone is connected correctly to the car via the USB port, the Apple CarPlay or Android Auto icon will be
displayed the main menu.

Android Auto APP Setup
Before use, download the Android Auto application to your smartphone from Google Play Store. The application is
compatible with Android 5.0 (Lollipop) and later versions. To use Android Auto, the smartphone must be connected
to the car with a USB cable. On the first connection, you will have to perform the setup procedure that appears on
the smartphone. You can only perform this procedure with the vehicle stationary. Once connected to the USB port,
the Android Auto application establishes a parallel Bluetooth® connection.
Apple CarPlay APP Setup
WARNING!
When Apple Car play/Android Auto apps are
enabled by the user, the scrolling function via
rotary knob is not available.
WARNING!
If you installed and uninstalled "Android Auto" application on the
phone; when connecting the mobile phone by USB to the radio, it
is possible that appears the "Android Auto" pop up on the radio.
To listen the music inside the phone it is necessary to disconnect
and reconnect again the USB connector on the radio.
