LandAirSea 3100 User manual

2022S.Route31
McHenry,IL60050
LandAirSea 3100 GPS Tracking System
Version 6.4
F0502 Rev. A
Copyright 2004. L.A.S. Systems, Inc. All rights reserved
Past Track is registered trademarks of L.A.S. Systems, Inc. Microsoft, Windows, and Windows95 are
U.S. registered trademarks of Microsoft Corporation. Pentium is a U.S. registered trademark of Intel
Corporation. CompactFlash is a U.S. registered trademark of Sandisk Corporation. Names and products
mentioned herein are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective company.
Printed in USA.

ProprietaryNoticeandDisclaimer
Unless otherwise noted, this document and the information herein disclosed are propri-
etary to L.A.S. Systems, Inc. (“L.A.S.”).Any person or entity to whom this document is
furnished or who otherwise has possession thereof, by acceptance agrees that it will not
be copied or reproduced in whole or in part, or used in any manner except to meet the
purposes for which it was delivered.
The information in this document is subject to change without notice, and should not be
construed as a commitment by L.A.S.Although L.A.S. will make every effort to inform
users of substantive errors, L.A.S. disclaims all liability for any loss or damage resulting
from the use of this document or any hardware or software described herein, including
without limitation contingent, special, or incidental liability.
Copyright ©2004 by: L.A.S. Systems, Inc.
All rights reserved 2022S.Route31
McHenry,IL60050
LicenseAgreement
Read this agreement before opening the software. Once you have removed the software
from its envelope you have accepted the agreement.
UsageRights
Your rights, with respect to the Software, are non-exclusive. The software may only be
used by one user, on one computer at a time. The software may be transferred to another
computer, as long as it is only used by one user at a time. The Software and its documen-
tation may not be copied or distributed to others. You may not create, modify, alter, adapt,
merge, decompile, or reverse-engineer the Software, and you may not remove or obscure
L.A.S. or other included copyright or trademark notices.
TermofLicense
ThisAgreement is effective until terminated. Terminate the Agreement by destroying the
Software, documentation and all backup copies.

Backup Copies
You may make backup copies of the Software. The copyright notice(s) must be included
on each backup copy.
Copyrights
The Software accompanying this manual is protected by United States copyright law.
The Software documentation is copyrighted. You may only copy the Software and the
Software documentation for backup or to load the Software onto your computer as part
of program execution.
Title to Software and Confidentiality
The Software and all copies thereof are proprietary to L.A.S. and title thereto remains in
L.A.S. All applicable rights to patents, copyrights, trademarks and trade secrets in the
Software are and shall remain in L.A.S.
You may not sell, transfer, publish, or otherwise make available any software or copies
thereof to others. You acknowledge that the Software is a trade secret of L.A.S. You
agree to secure and protect each program, software product and copies thereof in a
manner consistent with the maintenance of L.A.S.’ s rights therein and to take appropri-
ate action by instruction or agreement within your organization to satisfy your obliga-
tions hereunder. Violation of these provisions shall be a basis for immediate termination
of this license. Termination of the license shall be in addition to and not in lieu of any
other legal or equitable remedies available to L.A.S.

Software Limited Warranty
SOFTWARE IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE
OF THE LICENSED PROGRAM IS WITH YOU.
L.A.S. does not warrant that the functions contained in the Software will meet your
requirements or that the operation of the Software will be uninterrupted or error-free.
However, L.A.S. warrants the CD-ROM on which the Software is furnished to be free
from defects under normal use for a period of ninety (90) days from the date of delivery
as evidenced by a copy of your paid invoice or sales receipt.
If the CD-ROM fails due to neglect, accident, or abuse, L.A.S. shall not be liable to
replace the CD-ROM under this Limited Warranty.
L.A.S.’s entire liability and your exclusive remedy for a diskette not meeting L.A.S.’s
Limited Warranty will be the replacement of such diskette which is returned to L.A.S. or
to an authorized dealer with a copy of your paid invoice.
In no event will L.A.S. be liable for any damages, including any lost profits, or other
incidental or consequential damages arising out of the use or performance of the Soft-
ware, even if L.A.S. or an authorized dealer has been advised of the possibility of such
damages.
You agree that L.A.S.’s liability arising out of contract, negligence, strict liability in tort
or in warranty shall not exceed any amounts paid by you for the Software.
This Limited Warranty gives you specific legal rights. You may have additional rights,
depending on the state in which you live. Some states do not allow the exclusion of
incidental or consequential damages, or the limitation on how long an implied warranty
lasts, so some provisions of this Limited Warranty may not apply to you.
You acknowledge that you have read this Agreement and understand it, and agree to be
bound by its terms, and further agree that it is the complete and exclusive statement of
the Agreement, which supersedes and merges all prior proposals, understandings and
other agreements, oral and written, between the parties to this Agreement. This Agree-
ment may not be modified or altered except by a written instrument duly executed by
both parties. This agreement and performance hereunder shall be governed by and
construed in accordance with the laws of the State of Illinois.

The waiver or failure of either party to exercise in any respect any right provided for
herein shall not be deemed a waiver of any further right hereunder.
No action, regardless of form, arising out of this Agreement may be brought by you more
than two (2) years after the cause of action has arisen.
L.A.S. shall have the right to collect from you any reasonable expenses incurred in
enforcing this Agreement, including attorney’s fees.
If any of the provisions, or portions thereof, of this Agreement are invalid under any
applicable statute or rule of law, such invalidity shall not affect the validity of the balance
of this Agreement, and such provisions or portions thereof are to the extent of their
invalidity to be deemed omitted from this Agreement.
HardwareWarranty
L.A.S. warrants the LandAirSea 3100 tracking system to be free from defects in manufac-
ture, labeling, and packaging for 90 days from the date of purchase. L.A.S. disclaims all
other warranties, express or implied, including warranties of merchantability and firness for
a particular purpose. In the event of a breach of foregoing warranty, L.A.S.’s sole
obligation, and buyer’s exclusive remedy, shall be the replacement of such defective
product. Should this exclusive remedy fail its essential purpose, L.A.S.’s entire liability
shall be limited to the refund of the purchase price of the defective product. in no event
shall L.A.S. be liable for incidental and/or consedquential damages, including the cost of
cover.

TableofContents
Chapter1: TheLandAirSea 3100 System 1
Chapter2: TheLandAirSea3100TrackingUnitandInstallation 2
Chapter3: InstallingtheSoftware 5
Chapter4: Running theSoftwareForTheFirstTime 7
Chapter5: UploadingNewDataTotheSoftware 9
Chapter6: BasicLandAirSea 3100Functions 10
Chapter7: OtherSoftwareFunctions 12

Chapter 1:
The LandAirSea 3100 System
IntroductiontotheLandAirSea3100
1
TheLandAirSea3100 isahigh-precision, low-costdigitaltravel recordingand
reviewsystem.Using asatellite-basedradio positioningnetwork(GPS)cross
referencedwithdigitalstreetmapsofthecontinentalUSA,theLandAirSea
3100GPSunitand computer software canbeusedtoaccuratelyevaluate travel
activities,withproofof exact date,time,speed,andlocation down tothestreet
level.
Onceinstalled,itcan be leftfordays,weeks or evenmonths.Whenthetravel
activityisplayedback,itwill accuratelyshowthe month,day, year,hour,
minute,second,speeds, anddetailedstreetlevel mappingoftheentire route of
travel.

Chapter 2:
The LandAirSea 3100 Tracking Unit
and Installation
It is strongly recommended that you take the unit out for a test drive before using it for an
actual application. This trial run will give you a feel for how the unit works. It is also
recommended the you use Lithium AA batteries as they last close to 3 times longer than
conventional alkaline batteries.
The first time you use the 3100 unit, place it on your dash board and drive a mile or two.
This will properly initialize the unit for your area.
Helpful Hint: Always leave the unit on after replacing the batteries. If you turn the unit
off it will have to initialize again which can take a few minutes. It is unnecessary to turn it
off since the unit will go into a very low power mode after 3 minutes of non-movement.
If you plan to leave the unit in a vehicle for more than a few days, make sure you use fresh
batteries.
If the unit does not wake up from sleep mode ( Power light is off in sleep mode, moving the
unit will wake it up), that is your indication that you need to replace the batteries.
2
Wheretoplacethe LandAirSea 3100-INT (InternalGPSantenna)
Make sure you choose a good location to place the unit for the best results. The easiest
location to place the unit is the glove box but depending on the design of the vehicle, it
may take longer to lock onto the location. If the glove box is very low inside the vehicle
with a lot of obstructions, it may not be able to track. In this case you will have to find a
better location to place the GPS unit.
Make sure that there isn’t any metal completely blocking this upward line of sight. GPS
signals will go through plastic, glass, rubber, fiberglass, cloth material, or anything else
not made of metal. The more metal obstructions that are above and around the GPS unit,
the longer it will take to lock onto the location
THESIDEWITHTHEBATTERYCOMPARTMENTMUSTALWAYSBEFACING
DOWN. IFYOUDONOTHAVETHEBATTERYCOMPARTMENTSIDEFACING
DOWN,THEUNITWILLNOTWORK.

3
If you mount the GPS antenna inside the vehicle’s bumper, try to mount it as high up as
possible and preferably in the corner. Just remember, you cannot have a metal surface
directly above the GPS antenna.
Wheretoplace the LandAirSea 3100antenna(3100-EXT)
If you purchased the LandAirSea 3100-EXT, then you can place the actual unit anywhere
you like. However, make sure you place the GPS antenna in a location where it will have
good reception. The diagram below should give you some hints on where you can place
the GPS antenna.
NOT RECOMMENDED
ItisnotrecommendtomounttheGPSantennainthefollowinglocations:
1. In the trunk. If you mount the antenna in the trunk it will be almost completely enclosed
by metal surfaces. The tracking unit will not work.
2. In a bumper that is completely made of metal. Again, the metal will affect the results.

4
MakingthePowerConnectionsdirectlytothevehicle’sbattery
The diagram above shows how you would connect the power cable directly to the
vehicle’s battery. Remember, the Red is the Positive (+) and the Black is the Negative (-).
Figure 2.2. Power cable connections.
PowerCableConnectionDirectlytoBattery
If you are going to power the LandAirSea 3100 using an external power source, then
followthe simple diagram below.

Installing the Software
To begin the installation, place the software CD into your CD-ROM drive. The setup
program should begin automatically. If it doesn’t, you can run the setup program by
clicking on the Windows Start button and selecting Run. Type d:setup.exe. (Assuming
that d: is your CD-ROM drive).

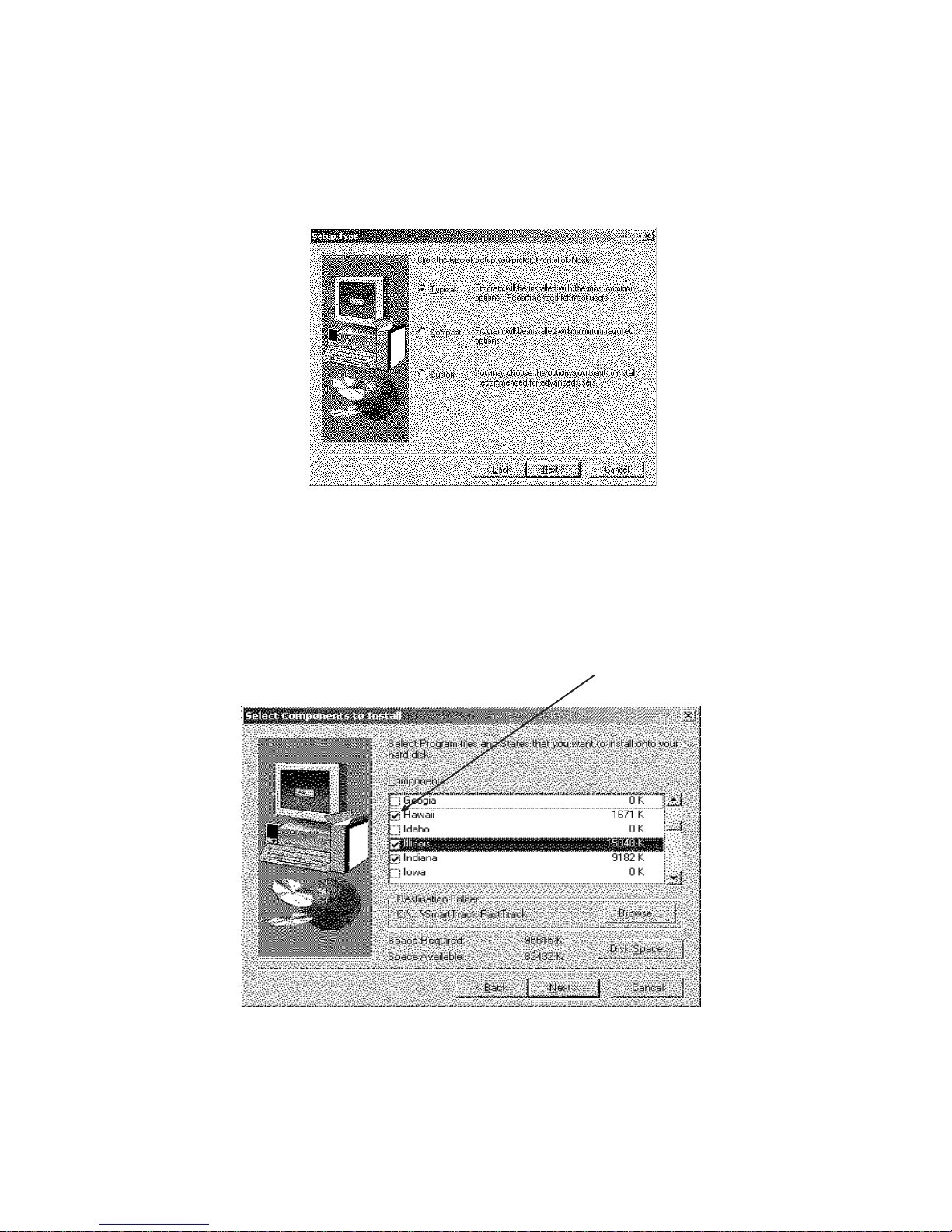

The first choice you have when installing the software is the location to store the pro-
gram. The default location is C:\Program Files\LandAirSea Systems\SmartTrack-
PastTrack. The next option is the type of installation: Typical, Compact, and Custom.
Typical will install the entire program and maps of the the U.S. on your hard drive. This
will take up approximately 700 Mb of disk space. If you want to select only a few states,
choose Custom. Compact will install only the minimum number of files. With the Compact
option, you will need the CD to run the program every time which will increase the amount
of time it takes to display the maps.
Chapter 3:
Installing the Software
5

6
If you choose the Custom Installation, you will be asked which street maps you wish to
load. You are not limited to the number of maps you load but each state uses between 5
MB and 15 MB of hard disk space.
Figure 3.1. Installation Options
MAKE SURE YOU CLICK ON THE BOX NEXT
TO THE STATE YOU ARE SELECTING.
WARNING!!! Make sure when selecting the states that you click on the box next to
that state. If the box is not checked after you click it, that state will not be loaded.
See Figure below:

7
Chapter 4:
Running Software for the First Time
IMPORTANTNOTE:Aftertheinstallation,youwillseetwo(2)icons on yourdesktop.
Oneiconis labeled PastTrackandthe otheris labeled SmartTrack. TheSmartTrack
programisnotusedwiththe LandAirSea 3100 product. Dragthaticontoyourrecycle
bin.
SettingUpThe Time ZoneandDisplayUnit. Under Setup select SetTimeZone. Select
“Set Time Zone with GMT offset”. Double check with Table 4.1 to make sure you have
the correct offset.
You can also change the time display format from this dialog box. The default setting is to
use a 12 hour format.

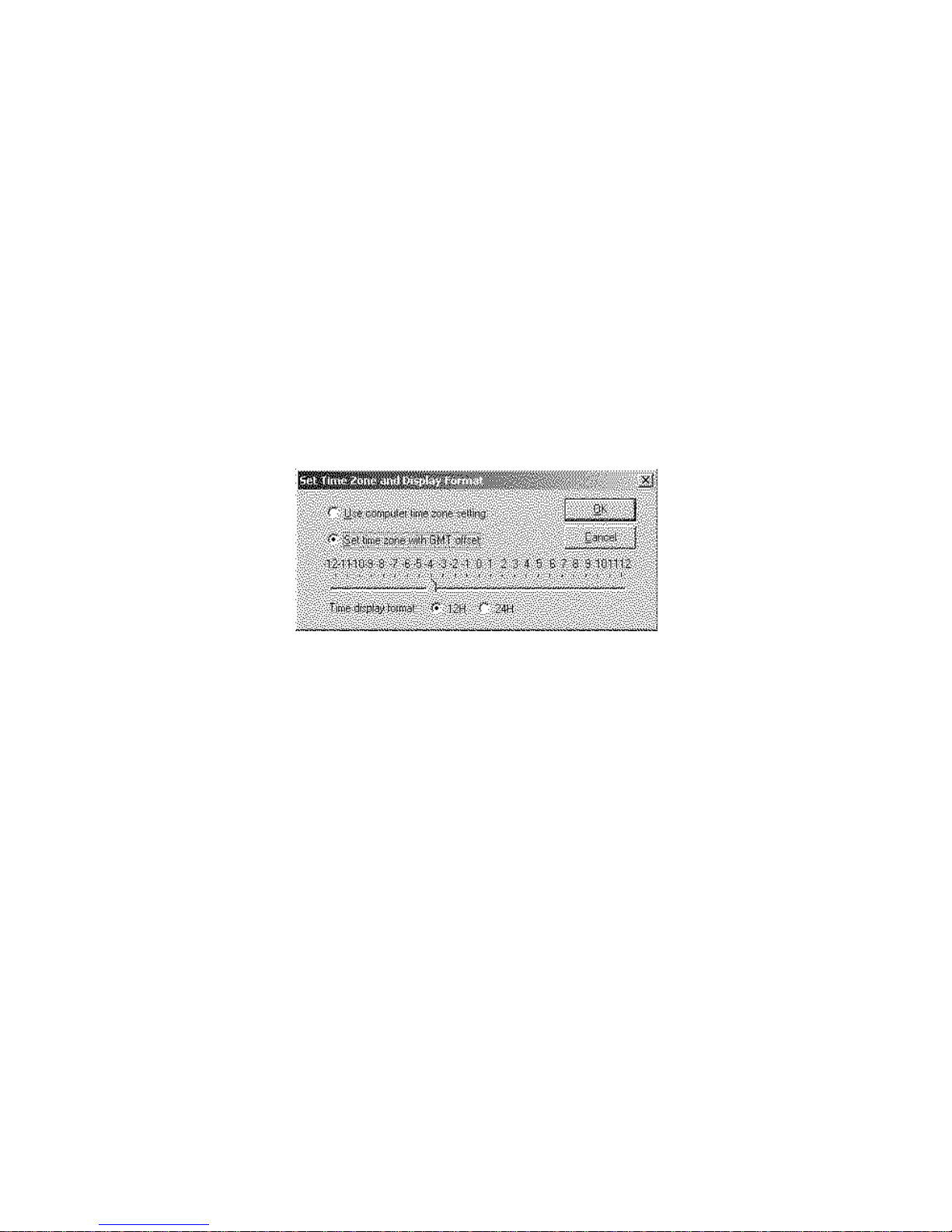

Figure 4.1 - Setting the time zone and display format.
Settingup theDisplay Units. Under Setup, select “Setup Display Unit” Select either
Kilometers, Miles, or knots and click Ok.

Table 4.1. GMTOffset by Time Zone
Pacific Standard Time (Winter) -8
Mountain StandardTime (Winter) -7
Central StandardTime (Winter) -6
Eastern StandardTime (Winter) -5
PacificDaylightSavingsTime(Summer) -7
MountainDaylight Savings Time(Summer) -6
CentralDaylightSavings Time (Summer) -5
EasternDaylight Savings Time (Summer) -4
TimeZone GMT Offset
Warning: The Setup functions “Set Memory Card Drive”, “Set Recorder Parameters”,
and “Updated Recorder Firmware”, are not used with the LandAirSea 3100.
SettingtheFilterforActivityReports and StopLocations. Youcan use the LandAirSea
3100 software to print text activity reports and display all the stops a particular vehicle has
made. Under Setup, select “Activity Report”. Choose the time in minutes you want to the
software to view as a stop. Acommon value used is 10 minutes.
8

9
Chapter 5:
Uploading New Data to the Software
Before you download data from you LandAirSea 3100 unit, make sure you have an
available serial port. It is helpful to know the COM port number but not necessary. Plug
in the download cable to the computer and the 3100 unit. Make sure the are fully plugged
in. The connection to the 3100 unit is not forgiving so make sure it is plugged in all the
way. Now click on the button with the number “3” on it.
Figure5.1 - TheLandAirSea3100 download window
Click the Find button. This will prompt the software to start looking for your 3100 unit.
When the software finds the unit, the Port will sayASSIGNED. If the software does not
find the unit, check your connections and make sure the green light on the unit is on.
If you want the data that is stored in the 3100 unit to be erased after the download, then
check the checkbox that says “Erase logged data after download”.
Click the download button and your tracking data should start downloading. You will be
prompted to save the data on your computer. Make sure you know where you are saving
the data for future reference. For example, in your “My Documents” folder.

10
Replaying/Simulatingthedata:
To play back the data, click once on the play button. You will see the car icon move and
the instruments replay the actual travel.
PauseandStepPlay:
Click on the Pause / Step Play button if you wish to pause the data. When the data is
paused you can continue to click the button and the software will move forward through
the data sample by sample. Pausing the data is very important if you wish to scroll (See
Scrolling / Panning) to different portions of the map where the car icon is not displayed.
PlaybackSlower /PlaybackFaster:
To speed up or slow down the replaying of the data, click on the Playback Slower or
Playback Faster buttons. Holding the button down does not rewind or fast forward the
data. You need to single click on the button to change the speed of playback.
ResetMap:
This button will reset the map to its original position and zoom level. It will also reset the
data playback to the beginning.
ViewEntireU.S:
Clicking this button will zoom out to a scale that will allow you to view the entire U.S.
Chapter 6:
Basic LandAirSea 3100 Functions

Zoom Out:
You can also zoom out two different ways. The first way is to click on the zoom out
button. The second way is to simply click the right mouse button.
Scrolling / Panning the Map:
These button will allow you to scroll to different map locations. Before using these
buttons, make sure you have paused the playback using the pause button.
Time Stamp Bubbles:
This button will either enable or disable the time stamp bubbles. The time stamp bubbles
are the white labels that show you an exact time and location at different points on the
data track.
Timer:
This button will will reset the elapsed time display. This function is very useful for quickly
determining the length of time that a vehicle was parked in a particular location.
ShowStops:
This button will display a time stamp bubble showing where the vehicle stopped for
longer than X minutes. Where X represents the number you entered under Setup |
Activity Report (See Chapter 4).
11
ZoomIn:
You can zoom in two different ways.The first way is to simply click the zoom in button.
This will zoom in the map from the center of the screen. The second way is perhaps more
useful. Hold the left mouse button down and drag the mouse. You will see a box being
drawn When you let go of the mouse button, the map will zoom in to the location you
selected with the box.

12
Chapter 7:
Other Software Functions
File Open:
You can open previously loaded data by clicking on the File Open button. Select the
file that you wish to open and click on the open button.
OpenMap:
This function allows you to open a blank map even if you do not have any data to review.
SaveDataFileAs:
This function will allow you to save a copy of the data you currently have loaded. This
function is usually used if you want to save an additional copy of the data to a floppy
disk for backup or moving it to another computer.
Print:
You can print the map and data track by clicking on the print button. Make sure you zoom
in or zoom out to the portion of the data track that you wish to print.After clicking print,
you will see a dialog box similar to the one shown in Figure 7.2.
LaptoporPortablePCNavigation:
If you have a laptop or portable PC you can utilize the maps in the Past Track program to
navigate while you are driving. Simply connect the LandAirSea 3100 to your laptop, make
sure the correct port is assign and then click this button. You will see a message about
acquiring satellites. As soon as 3 satellites are acquired, you will see the icon of the car
on the map exactly where you are on the map. You can now navigate using the GPS
output of the LandAirSea 3100.

13
Changing the Track Colors
You can change the track colors by selecting View | Select Track Color. There are three
different color selections available: Speed Below, SpeedAbove and Normal. (See Figure
7.1). The example shown in Figure 7.1 will display all speeds below 20 MPH in red, all
speeds above 60 MPH in blue and display all other speeds in Cyan. Clicking on the
Enable Color Speed Display will display the entire track with the normal track color.
Figure 7.1 - Track Display Color Setup
Panel
You can enable or disable the Clock, Speedometer, Timer, Compass or Coordinates from
the panel. As an example, if the clock is being displayed and you wish to disable it, select
Panel|Clock.
JumpingtoDifferentPortionsoftheTrack.
You can jump to different portions of the data track by click on any point on the track. Be
precise when doing this. If you do not click exactly on the data track, the car icon will not
reposition to the point you click on.
Distance(Mileage ) Calculations:
You can use this feature to determine the entire distance of the data loaded or a section of
your data. Clicking on this button will bring up a bubble on the map telling you the entire
distance travelled. If you click twice on the data track, once for the start, and second for
the end, it will tell you the distance travelled between those two data points.

14
ExportingtheMapandTracktoaWindowsBMPfile
You can export the map and the track to a Windows BMPfile by selecting Tools | Export
Screen to BMP File. You will be asked to give a name to that file. Click Save and the file
will be saved.
SetArea
This function is used in conjunction with Open Map. When you have a map open,
choose Set Area. It will ask you to type a name to save this information. When you select
Open Map, you will see your new area in the list.
TextActivityReports:
To create a text report, select Tools | GenerateActivity Report. You will then be asked to
save the file to a location. We recommend you save it to your My Documents folder so it
is easy to find. A default name will be given to the file unless you change it. Click the
save button to save the activity report. It will automatically open up in your default web
browser.
Figure7.2-ViewByDate
SelectingWhichDaysto Review
You have the option of selecting which days to review and print by selecting View | Enable
View By Date. The default setting is to display the data from everyday. When a day is
shown in Bold Type, that means that you have data from that day. You click on the day
you want to review by clicking on that date. See Figure 7.2.
