Tracking Key / Tracking Key Pro
2010 User Guide
www.landairsea.com
• Software Version 2010 Instructions
• Trouble Shooting Guide
• Contact Information
Release Date: 01/15/2010

LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20102

Contents
QuickStartGuide................................................................................................5
SystemRequirements...............................................................................................................................5
PastTrackSoftwareInstallation...............................................................................................................5
ConnectingtheTrackingKey/Pro®toyourcomputer...........................................................................11
GoogleEarth®downloadandinstallationinstructions..........................................................................12
FeaturesoftheLandAirSeaGPSTrackingKey®:.....................................................................................13
TheGPSTrackingKeyPro®Features:.....................................................................................................14
ReadbeforeusingKey/TrackingKeyPro®..............................................................................................15
GPSANTENNAPLACEMENTCHART................................................................................................................16
UsingPastTrackSoftware................................................................................17
DOWNLOADINGDATAFROMYOURGPSDEVICETOPASTTRACK..........................................................................17
PASTTRACKSETUPMENU............................................................................................................................19
SetupDevice.......................................................................................................................................19
SetTimeZone.....................................................................................................................................21
SetDisplayUnit...................................................................................................................................22
SetGoogleEarth®...............................................................................................................................23
LowSpeedDataDisplay......................................................................................................................23
ActivityReportSetup..........................................................................................................................23
SETTINGLINECOLORINPASTTRACKSOFTWARE(STREETMAPS)........................................................................24
STREETMAPSMENUS..................................................................................................................................25
GUIDETOTHEMEANINGOFICONSINPASTTRACKSOFTWARE............................................................................27
VIEWINGTRACKINGDATAINGOOGLEEARTH®.................................................................................................30
CREATINGANACTIVITYREPORTINPASTTRACK................................................................................................31
SETTINGGPSSAMPLINGRATEINPASTTRACK.................................................................................................34
TroubleshootingGuide......................................................................................35
GENERALTROUBLESHOOTING........................................................................................................................35
TROUBLESHOOTINGPROBLEMS/SOLUTIONS....................................................................................................37




LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20103








Warranty
LandAirSea,Inc.http://www.landairsea.com/LimitedWarrantyPolicywarrantsallproductstobefree
fromdefectsinmaterialsandworkmanshipforoneyearfromthedateofpurchaseunlessotherwise
stated.(Custombuiltorfactorymodifiedproductsarecoveredby60daylimitedwarranty.)Withinthis
period,LandAirSea,Inc.http://www.landairsea.com/,atitssolediscretion,willrepairorreplacethe
defectiveunit,whichfailedfromestablishednormaluse.Shouldrepairsorreplacementberequired,they
willbemadeatfreeofchargetotheoriginalpurchaserforpartsorlabor;however,thecustomershallbe
responsibleforanyandallshippingcoststothemanufacturer.Thiswarrantydoesnotcoverfailuresdue
toabuse,misuse,waterdamage,accident,improperinstallationorunauthorizedalterationsorrepairs.
















LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20104

ImportantNotice
























ITISTHESOLERESPONSIBILITYOFTHEBUYER,OWNER,ORUSER,TOCONSULTLEGALCOUNSELFOR
THEINTERPRETATIONOFANYLAWSAPPLICABLETOTHEAREAOFINTENDEDUSEOFTHESEPRODUCTS.
Thistrackingdeviceisconsideredwater‐
resistant,NOTwaterproof.Iftheintended
useisoutsidethevehicle,westrongly
recommendprotectingthedeviceusinga
waterproofcaseoralternatemethod,such
asaplasticsandwichbag.Watersprayat
highspeedscanpenetratethedeviceand
causefailure.Waterdamageisnotcovered
underthewarrantyandrepairsrequire
sendingthedevicebacktothe
manufacturer.Costfortimeandmaterials
willapply.Inaddition,weuseapowerful
magnettoprovidesecuremountingoptions.
However,mountingthisdeviceundera
vehicleexposestheunittoroadhazards.
Becauseofthis,lostunitsarenotcovered
underthewarranty.Warrantyinformation
canbeviewedonourwebsiteat
www.landairsea.com.

LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20105

QuickStartGuide
SystemRequirements
PConly,softwareisnotMaccompatibleatthistime
WindowsXPorVista
Pentium4processororbetter
512mbRAM
600mbharddrivespace
Highspeedinternetconnection(ForGoogleEarth®use)
USB2.0connection
IftheTrackingKeydoesnotfitsecurelyinyourUSBport,(portisrecessed)youmayneedtopurchasean
USBExtensionCable(notsuppliedbyLandAirSea)

PastTrackSoftwareInstallation
ThefollowinginstructionsareforWindowsXP/Vista/7installation.
Note:Customersoutsidethe50UnitedStatesandPuertoRicowillnothaveaccesstothedigitalstreet
maps.Therefore,internationalcustomerswillneedtouseGoogleEarth®astheirmappingengine.U.S.
customers,whocanalsouseGoogleEarth,canalsochoosethisoptioniftheywanttoreducethe
programsizeontheircomputer.
InstallthePastTracksoftwareBEFOREconnectingyourTrackingKey/Pro®tothecomputer.
Youmustfollowtheseinstructionsexactly.Ifyoudonot,yourGPSdevicewillnotdownloadcorrectly.

1. InsertthePastTrackCDthatcamewithyourGPSdeviceintoyourCD/DVDdrive.Thesoftware
installationprogramwillstartautomatically.
ThefollowingUserAccountControlscreenwilldisplayonWindowsVistaandWindows7computers.
Thisisnormal.PastTrackwillinstallthemappingsystemandGPSdevicedriversonyourcomputer.This
willnotharmyourcomputerinanyway.Choose‘Yes’.


LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20106


2. TheInstallShieldWizardscreenwilldisplaytostarttheinstallation.Choose‘Next’.


3. ReadandaccepttheLicenseAgreement.Choose‘Next’


4. Choosethesetuptypewhichbestsuitsyourneeds.ForallusersoutsideoftheUnitedStates,
chooseInternational.YoucanusetheStreetMapsmoduleofPastTrackorGoogleEarth®ifyou
areloggingdataintheUnitedStates.IfyouareusingthedeviceoutsideoftheU.S.,choose
InternationalanduseGoogleEarth®(downloadinstructionsonpage12)forviewingyour
trackingdata.Choose‘Next’.


LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20107


5. Selectwhereyouwanttoinstallthesoftware.Thedefaultrecommendedpathis:
C:/ProgramFiles/LandAirSeaSystems/PastTrack


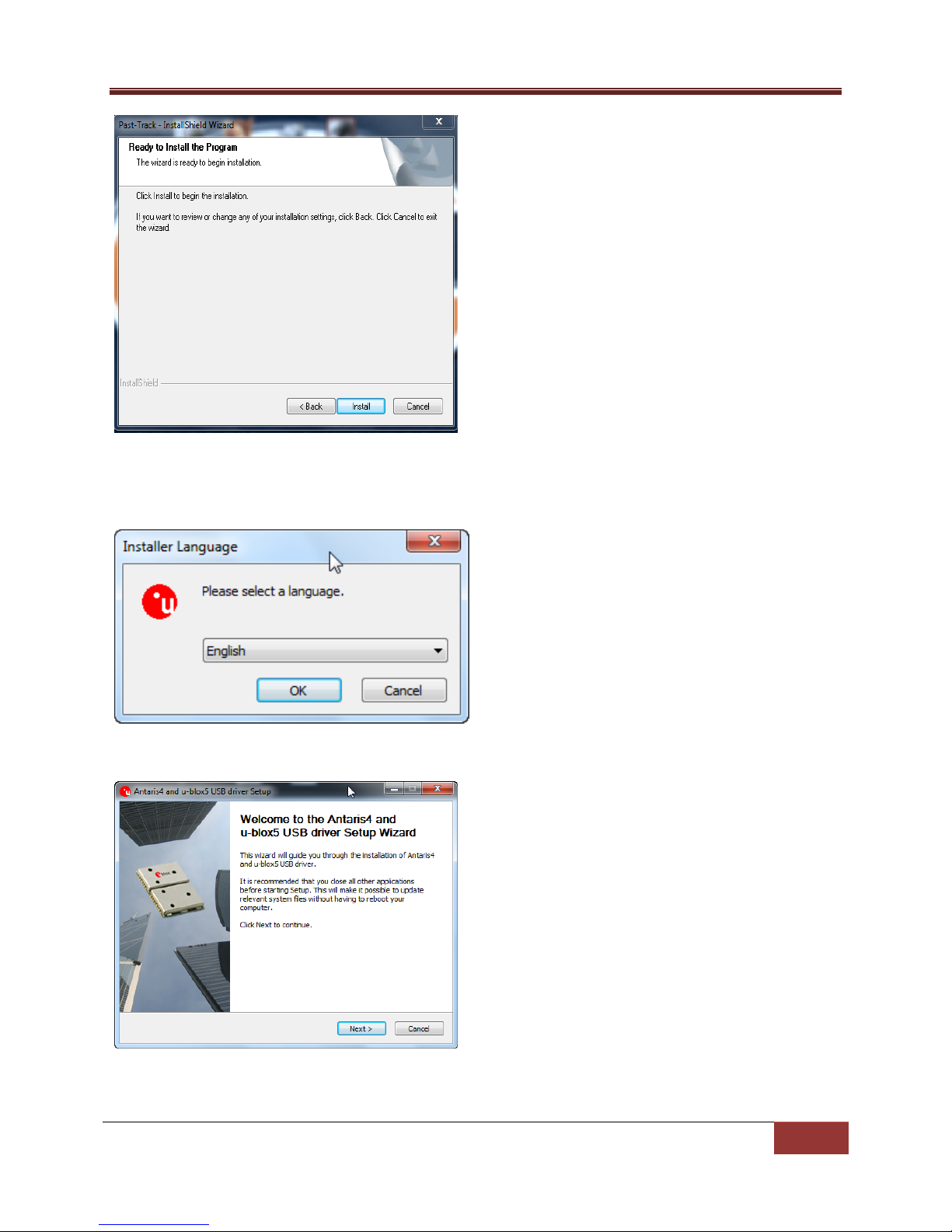

6. Click‘Install’tostarttheprograminstallation.InstallShieldwillinstallPastTrack.

LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20108



7. Nexttheu‐bloxdevicedriverinstallationwillbegin.ChooseyourLanguage.

8. TheAntaris4/u‐blox5devicedriversetupwillbegin.Choose‘Next’.



LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide20109

9. Choose‘IAgree’fortheu‐bloxlicenseagreement.

10. TheDeviceDriverInstallationWizardwillstart.Choose‘Next’.



LandAirSeaTrackingKey/Pro®UserGuide

LandAirSea,Inc|UserGuide201010


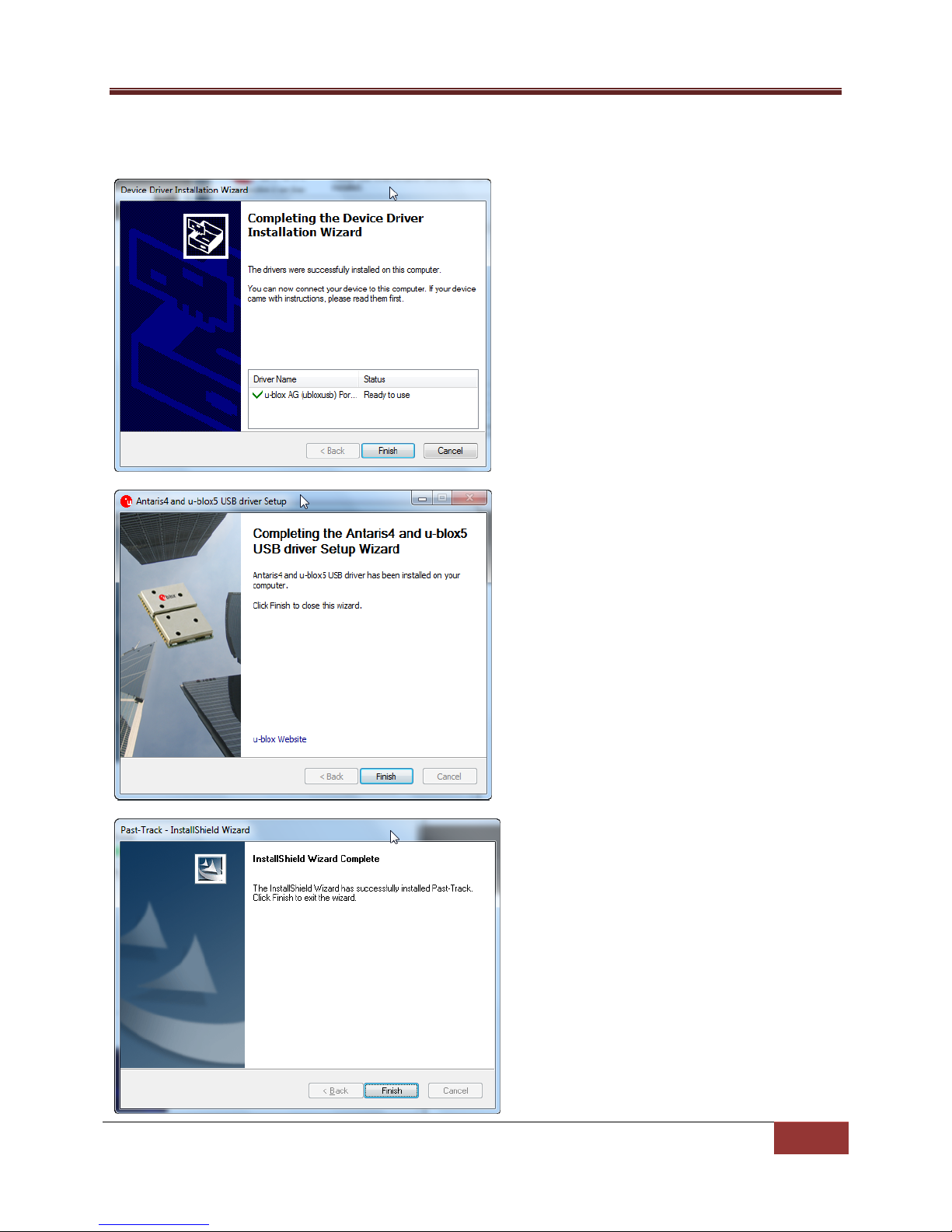

11. TocompletethePastTracksoftwareanddriverinstallation,choose‘Finish’onallthreescreens
below.



