Laney MBH165 User manual

Laney
MBH165

Laney
Care of your amplifier will prolong it's life.....andLaney
After unpacking your amplifier check that it is factory fitted with a three pin 'grounded' (or earthed) plug. Before
plugging into the power supply ensure you are connecting to a grounded earth outlet.
If you should wish to change the factory fitted plug yourself, ensure that the wiring convention applicable to the
country where the amplifier is to be used is strictly conformed to. As an example in the United Kingdom the cable
colour code for connections are as follows.
EARTH OR GROUND - GREEN/YELLOW
NEUTRAL - BLUE
LIVE - BROWN
Congratulations on your decision to purchase a amplifier.
products are designed with ease of operation as a primary objective, however to ensure you derive the best
from your new amplifier, it is important you take time to read this user manual and to familiarise yourself with the
control functions and facilities available
Laney
Laney
INTRODUCTION
BEFORE
SWITCHING ON
This manual has been written for easy access of information. The front and rear panels of each unit are
graphically illustrated, with each control and feature numbered. For a description of the function of each control
feature, simply check the number with the explanations adjacent to each panel.
Your bass amplifier has undergone a thorough two stage, pre-delivery inspection, involving actual play
testing, as well as burn in.
Laney
When you first recieve your bass amp, follow these simple procedures:
(i) Ensure that the amplifier is set at the correct voltage for the country it is to be used in.
(ii) Connect your instrument with a high quality shielded instrument cable. Use of cheap cables will compromise
the sound of your instrument and your amplifier.
Laney
If there is a problem with your bass amplifierLaney
DON'T DO
PHONE YOUR DEALER!
1
MBH165

Laney
2
Active and Passive/Active Inputs:
Gain:
Compressor:
Bass:
Treble:
Volume:
Direct Inject:
FX Loop:
Tuner out:
ACTIVE and PASSIVE/ACTIVE inputs are
provided for connection of bass guitars. Active basses should be connected via the
ACTIVE socket. Non active basses should be connected using the passive input. Active
basses may also be placed in the PASSIVE input if pre-amp overloading is desired.
This control is used to set the level of gain present in the pre-amp. The higher the
level of gain, the more the signal will clip producing distortion. The GAIN control should
be used in conjunction with the VOLUME control (8) to produce the desired signal
characteristics.
Engages and disengages the on-board COMPRESSOR. This
compresses the input-signal giving a punchier sound.
Controls the low-frequency response of the pre-amplifier.
Controls the high-frequency response of the pre-amplifier.
Sets the overall listening level of the amplifier.
XLR socket for direct-injection of the amplifier signal to a mixing-desk or
additional power-amplifier. The XLR socket provides a low-impedance output-signal.
Send and return sockets are provided for connecting external effects-units.
Socket for connecting external tuner.
Enhance:
Limiter Defeat:
The ENHANCE control provides an increased definition at the low-end of the
frequency spectrum giving you a tighter, punchier sound. The ENHANCE control does
this by providing a dip in the frequency-response of the amplifier at approximately 200hz.
This dip eliminates some of the secondary-harmonics of the important low-frequencies
around 40-80 Hz producing a thicker sound. Turning the control through to its maximum
has the effect of boosting both the low and high-frequency content of the signal whilst not
effecting the mids.
Allows the on-board LIMITER to be defeated if desired. With the switch
in the out position the LIMITER is engaged. The LIMITER is automatically triggered at
high-output levels and is designed to prevent power-amp distortion at high-output levels.
The LIMITER monitors both power-amp clipping and load so it automatically registers the
cabinet-impedance and sets itself accordingly.
1.Inputs:
2.Gain:
3.Compressor:
4.Bass:
7.Treble:
8.Volume:
9.D.I:
11.FX loop:
12.Tuner out:
MBH165 front
8
FREQUENCY
500
ACTIVE ACTIVE
INPUT
100
7 7 2
3 2 3
0
2
1
8 8 2
10
GAIN COMP
9
5 5 10 0
ENHANCE BASS
4
9
1
4
3 3
4 6
5
6
5
4 1
-0+
1
MBH165
4
2
2 2
2 2
TREBLE
4
1K
3
5
GAIN
5 55 4K 400 5
FREQUENCY GAIN
4 4
4
4
3 3 3 3
5
LO PARAMIDLO PARAMID
1
-0+
1 1
-0+
1
HI PARAMIDHI PARAMID
1K5 -0+
1 1
2 7
3
DEFEAT
LIMIT
3 82
HORN
10 0
VOLUMEVOLUME
9
1
D.I.
6
5
4
0
POWER
1
13 9
16
14
127 319 20 21
18
4
PASSIVE/
MBH165
16.Limiter:
14.Enhance:

Laney
3
Lo Paramid Frequency :
Lo Paramid Gain:
Hi Paramid Frequency :
Hi Paramid Gain:
Speaker Outputs:
Line Out:
Selects the LO MID-frequencies to be cut or boosted in
conjunction with the LO PARAMID GAIN control (19). To access low LO mid-frequencies
turn the FREQUENCY control anticlockwise, to access higher LO MID frequencies turn the
FREQUENCY control clockwise
Sets the level of boost or cut applied to the frequency set by control 18.
For frequency-boost turn the control clockwise. For frequency-cut, turn the control anti-
clockwise
Selects the HI MID-frequencies to be cut or boosted in
conjunction with the Hi PARAMID GAIN control (21). To access low Hi mid-frequencies turn
the FREQUENCY control anticlockwise, to access higher Hi MID frequencies turn the
FREQUENCY control clockwise
Sets the level of boost or cut applied to the frequency set by control 20.
For frequency-boost turn the control clockwise. For frequency-cut, turn the control anti-
clockwise
Socket for providing a line-level-signal-source for connecting to an additional
external power-amplifier.
Both speakon-connectors and jack sockets are provided for the
connection of external cabinets. RICHTER bass-heads feature a single speakon-connector
and either one or two jack-sockets, depending on the model. Multiple cabinets can be
connected using either connection method. All Laney cabinets feature link out speakon and
jack sockets for connecting additional cabinets to Richter bass heads. CAUTION: the
minimum load that the MBH165 can be run at is 4 Ohms. A load of less that 4 Ohms will
cause the amplifier to operate below its recommended impedance. This should be avoided
as it may result in permanent damage.
Laney
CAUTION
ELECRIC SHOCK DO NOT REMOVE
COVERS. NO USER SERVICABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL
TO REDUCE THE RISK OF
FIRE HAZARD REPLACE FUSE WITH
SAME TYPE AND RATING ONLY.
REMPLACER LE FUSIBLE
PAR LE MEME ET LE CALIBRE.
SUPPLY VOLTAGE
~115V T2A
& FUSE RATING
~230V T1A
WARNING
MAXIMUM POWER CONSUMPTION
140 WATTS ~ 50 - 60 Hz
CAUTION
ATTENTION
THIS EQUIPMENT MUST BE EARTHED.
NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
WARNING TO REDUCE THE RISK
OF FIRE OR ELECTRIC SHOCK DO
TO REDUCE THE RISK OF
SPEAKER OUTPUT
SEND
EFFECTS LOOP
RETURN
TUNER OUT
LINE OUT

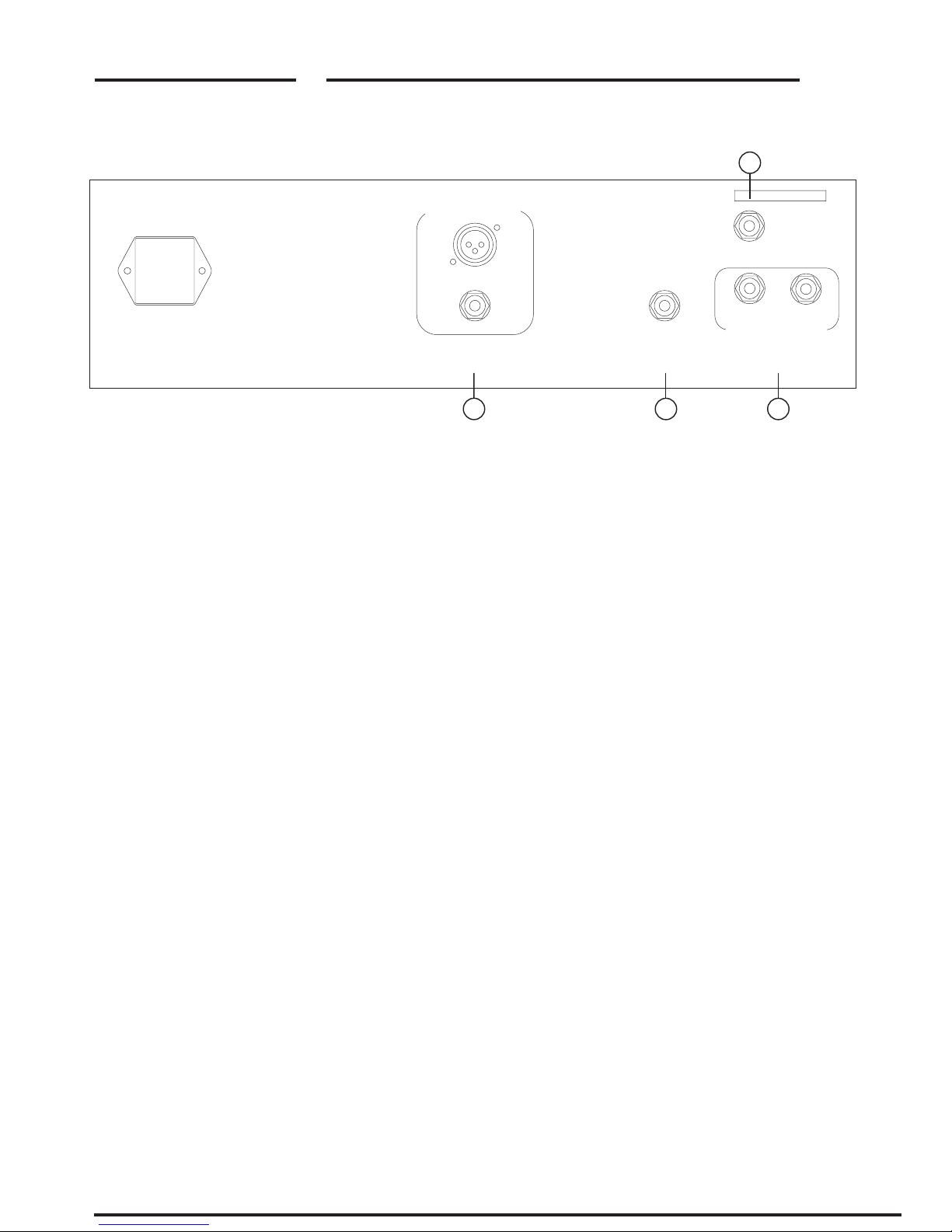

MBH165 REAR
11
12
22 23
21. Hi Paramid gain:
20. Hi Paramid Freq:
18. Lo Paramid Freq:
19. Lo Paramid gain:
MBH165
22. Output socket:
23.Line out:
