Lanner electronics NCA-4210 User manual

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
1
NCA-4210
User Manual
Rev 1.7 July 12th, 2018

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
2
Revision History
This document contains proprietary information of Lanner Electronics Inc. –and is not to be disclosed or
used except in accordance with applicable agreements.
Copyright © 2018. All Rights Reserved.
Copyright© 2016 Lanner Electronics Inc. All rights reserved. The information in this document is
proprietary and confidential to Lanner Electronics Inc. No part of this document may be reproduced in
any form or by any means or used to make any derivative work (such as translation, transformation, or
adaptation) without the express written consent of Lanner Electronics Inc. Lanner Electronics Inc.
reserves the right to revise this document and to make changes in content from time to time without
obligation on the part of Lanner Electronics Inc. to provide notification of such revision or change.
The information in this document is furnished for informational use only, is subject to change without
notice, and should not be construed as a commitment by Lanner Electronics Inc. Lanner Electronics Inc.
assumes no responsibility or liability for any errors or inaccuracies that may appear in this document or
any software that may be provided in association with this document.
Rev
Date
Descriptions
0.1
2016/02/23
Preliminary
1.0
2016/02/26
Official release
1.1
2016/8/17
Modified memory specifications
1.2
2016/09/26
Modified cooling fan specifications
1.3
2016/09/30
Modified CPU specifications
1.4
2016/11/04
Modified jumper J1, J2 and J3 availability
1.5
2017/06/02
Modified cooling fan specifications and
relevant information
1.6
2017/08/28
Modified Ordering information,
Motherboard Layout and Jumper Settings
1.7
2018/07/12
Modified the entire BIOS Setip chapter

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
3
Online Resources
The listed websites are links to the on-line product information and technical support.
Resource
Website
Lanner
www.lannerinc.com
Product
Resources
www.lannerinc.com/support/download-center
RMA
http://eRMA.lannerinc.com
Acknowledgement
Intel, Pentium and Celeron are registered trademarks of Intel Corp.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Compliances and Certification
CE Certification
This product has passed the CE test for environmental specifications. Test conditions for
passing included the equipment being operated within an industrial enclosure. In order to
protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage,
we strongly recommend the use of CE-compliant industrial enclosure products.
FCC Class A Certification
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
4
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case users will be required to correct the interference at
their own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free before, during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie
or scarf and roll up your sleeves.
Wear safety glasses/goggles if you are working under any conditions that might be
hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the
equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before
installing or removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
LITHIUM BATTERY CAUTION:
Risk of explosion could occur if battery is replaced by an incorrect type. Please dispose of
used batteries according to the recycling instructions of your country.
Installation only by a trained electrician or only by an electrically trained person who knows
all the applied or related installation and device specifications..
Do not carry the handle of power supplies when moving to other place.
The machine can only be used in a fixed location such as labs or computer facilities.

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
5
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to
cool equipment to acceptable operating temperatures without adequate circulation. Be
sure that the room in which you choose to operate your system has adequate air
circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate
effectively. An open chassis permits air leaks, which may interrupt and redirect the flow of
cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD
damage occurs when electronic components are improperly handled and can result in
complete or intermittent failures. Be sure to follow ESD-prevention procedures when removing
and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist
strap is available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1
and 10 megohms (Mohms).
Rackmounting Installation Environment
Precaution
1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an environment
compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
2. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of
air flow required for safe operation of the equipment is not compromised.
3. Mechanical Loading - Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
4. Circuit Overloading - Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on over-current
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connections to the
branch circuit (e.g. use of power strips).”

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
6
Consignes de sécurité
Suivez ces consignes pour assurer la securite generale :
Laissez la zone du chassis propre et sans poussiere pendant et apres l’installation.
Ne portez pas de vetements amples ou de bijoux qui pourraient etre pris dans le chassis.
Attachez votre cravate ou echarpe et remontez vos manches.
Portez des lunettes de securite pour proteger vosmyeux.
N’effectuez aucune action qui pourrait creer un dangermpour d’autres ou rendre
l’equipement dangereux.
Coupez completement l’alimentation en eteignant l’alimentation et en debranchant le
cordon d’alimentation avant d’installer ou de retirer un chassis ou de travailler a proximite
de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont presentes.
Ne considerez jamais que l’alimentation est coupee d’un circuit, verifiez toujours le circuit.
Cet appareil genere, utilise et emet une energie radiofrequence et, s’il n’est pas installe et
utilise conformement aux instructions des fournisseurs de composants sans fil, il risque de
provoquer des interferences dans les communications radio.
Avertissement concernant la pile au
lithium
Risque d’explosion si la pile est remplacee par une autre d’un mauvais type.
Jetez les piles usagees conformement aux instructions.
L’installation doit etre effectuee par un electricien forme ou une personne formee a
l’electricite connaissant toutes les specifications d’installation et d’appareil du produit.
Ne transportez pas l’unite en la tenant par le cable d’alimentation lorsque vous deplacez
l’appareil.
La machine ne peut etre utilisee qu’a un lieu fixe comme en laboratoire, salle d’ordinateurs
ou salle de classe.

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
7
Sécurité de fonctionnement
L’equipement electrique genere de la chaleur. La temperature ambiante peut ne pas etre
adequate pour refroidir l’equipement a une temperature de fonctionnement acceptable
sans circulation adaptee. Verifiez que votre site propose une circulation d’air adequate.
Verifiez que le couvercle du chassis est bien fixe. La conception du chassis permet a l’air
de refroidissement de bien circuler. Un chassis ouvert laisse l’air s’echapper, ce qui peut
interrompre et rediriger le flux d’air frais destine aux composants internes.
Les decharges electrostatiques (ESD) peuvent endommager l’equipement et gener les
circuits electriques. Des degats d’ESD surviennent lorsque des composants electroniques
sont mal manipules et peuvent causer des pannes totales ou intermittentes. Suivez les
procedures de prevention d’ESD lors du retrait et du remplacement de composants.
- Portez un bracelet anti-ESD et veillez a ce qu’il soit bien au contact de la peau. Si aucun
bracelet n’est disponible, reliez votre corps a la terre en touchant la partie metallique du
chassis. Verifiez regulierement la valeur de resistance du bracelet antistatique, qui doit etre
comprise entre 1 et 10 megohms (Mohms).
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le cable de mise a la terre de l’equipement a la terre.
Une bonne mise a la terre (connexion a la terre) est tres importante pour proteger l
equipement contre les effets nefastes du bruit externe et reduire les risques d’electrocution
en cas de foudre.
Pour desinstaller l’equipement, debranchez le cable de mise a la terre apres avoir eteint
l’appareil.
Un cable de mise a la terre est requis et la zone reliant les sections du conducteur doit
faire plus de 4 mm2 ou 10 AWG.

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
8

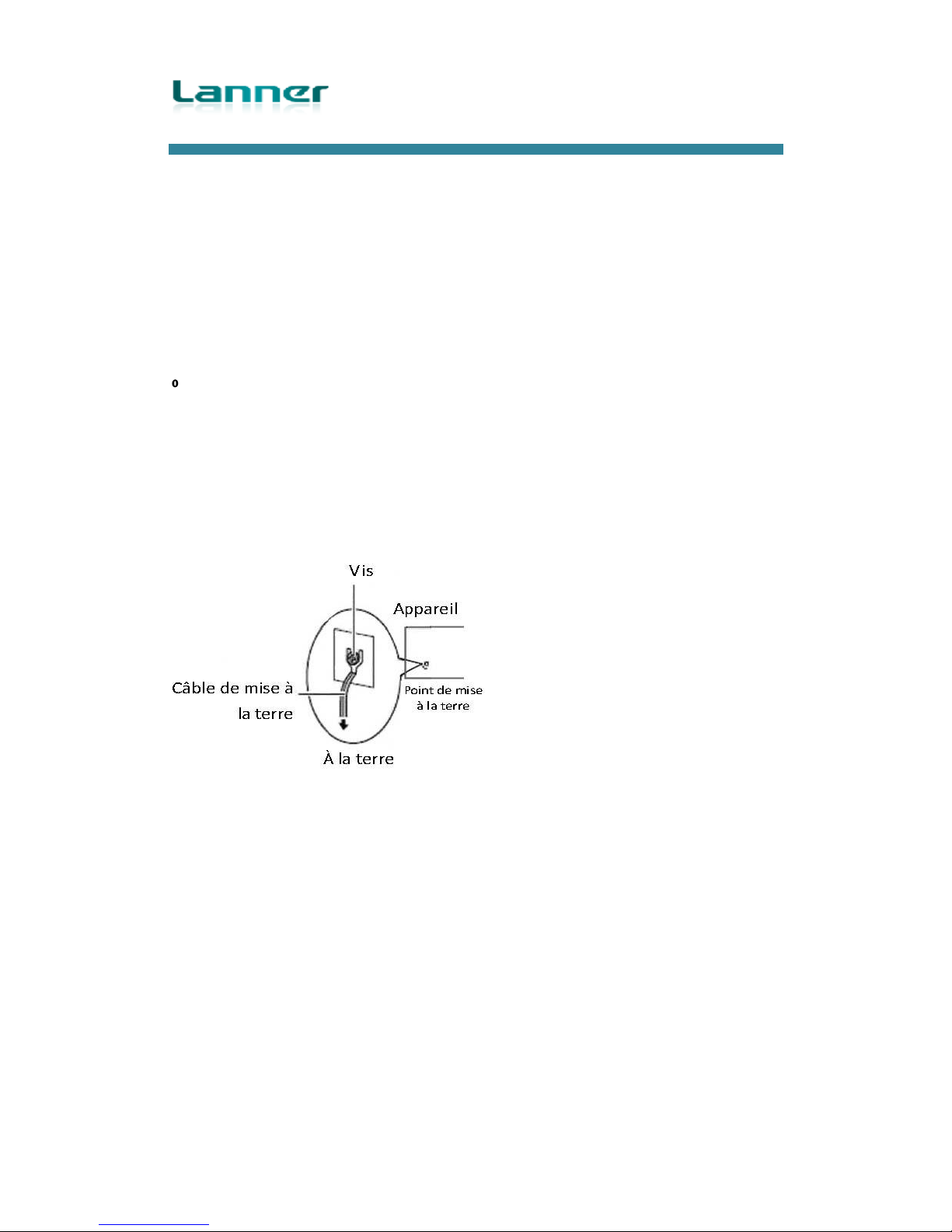

Procédure de mise à la terre pour
source d’alimentation CC Procédure de
mise à la terre pour source
d’alimentation CC
Desserrez la vis du terminal de mise a la terre.
• Branchez le cable de mise a la terre a la terre.
• L’appareil de protection pour la source d’alimentation
CC doit fournir 30 A de courant. Cet appareil de protection doit etre branche a la source
d’alimentation avant l’alimentation CC.

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
9
Table of Contents
Chapter 1: Introduction................................................................................................11
System Specification............................................................................................11
Ordering Information...........................................................................................13
Package Contents.................................................................................................13
Optional Accessories............................................................................................14
Chapter 2: System Overview.......................................................................................15
Mechanical Drawing –NCA-4210A...................................................................15
Mechanical Drawing –NCA-4210B ...................................................................16
Block Diagram.....................................................................................................17
Front I/Os.............................................................................................................18
Rear I/Os..............................................................................................................19
Chapter 3: Board Layout..............................................................................................20
Jumpers and Connectors on the Motherboard .....................................................20
Jumper Setting and Connector Pin-out................................................................22
Jumper Settings............................................................................................22
Connector Pin Assignments.........................................................................24
Chapter 4: Hardware Setup..........................................................................................29
Installing the CPU................................................................................................31
Installing the CPU Heat-Sink and Fan Duct........................................................34
Installing the System Memory.............................................................................38
Installing Disk Drives ..........................................................................................39
Installing a mSATA Module.................................................................................42
Installing an IPMI Card .......................................................................................43
Replacing Cooling Fans.......................................................................................44
Installing Ethernet NIC Module...........................................................................45
Chapter 5: BIOS Setup.................................................................................................47
Main.....................................................................................................................48
Advanced .............................................................................................................49
PCH-FW Configuration...............................................................................53
Trusted Computing ......................................................................................55
Super IO Configuration................................................................................59
HW Monitor.................................................................................................63
Smart Fan Configuration..............................................................................64

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
10
Serial Port Console Redirection...................................................................65
CSM Configuration......................................................................................69
NVMe Configuration...................................................................................70
USB Configuration ......................................................................................71
LAN Boot Select..........................................................................................72
Chipset .................................................................................................................73
PCH-IO Configuration.................................................................................79
Security................................................................................................................85
Boot Menu ...........................................................................................................86
Save and Exit Menu.............................................................................................87
Appendix A: Programming Watchdog Timer ..............................................................89
Appendix B: Setting up Console Redirection..............................................................90
Appendix C: Programming Generation 3 LAN Bypass ..............................................91
Appendix D: Programming the LCM ..........................................................................92
Appendix E: Terms and Conditions.............................................................................97

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
11
Chapter 1: Introduction
Thank you for choosing NCA-4210. The internal core of NCA-4210 is the 6th generation
Intel® 14nm microprocessor, the new LGA 1151 socket, DDR4 memory support and the I/O
boosting, comprehensive Intel® H110 and C236 series chipset, and flexible LAN
configurations. The adoption of the 6th generation Intel® Core™ processor comes with the
promise to enhance processor performance, while lowering the TDP. NCA-4210 supports
flexible LAN configurations. Depending on the SKUs, there are Ethernet connectivity options of
6 x RJ-45 GbE LAN + 2 x SFP GbE LAN with 2 pairs of bypass, and 6 x RJ-45 GbE LAN with 2
pairs of bypass.
Here is the summary of the key features:
6th generation Intel® Core™processor codenamed Skylake
PCH: Intel® H110 or C236
2 x DDR4 2400MHz ECC/UDIMMs (Up to 16GB each)
1 x 3.5” or 2 x 2.5” SATA HDD/SSD drive bays (disk drive is not included)
1 x mSATA socket
1 x OPMA socket for IPMI
Please refer to the following chart for a detailed description of the system's specifications.
System Specification
Processor Options
Intel® Core™ i7-6700, i5-6500, i3 or Pentium
Series processor (codename Skylake),
LGA 1151
PCH
Intel H110 or C236
Socket
LGA1151
CPU TDP
Approximately 65W
Super I/O
NCT6776
BIOS
AMI SPI BIOS
Support PXE function
Support Console redirection
Watchdog/ Watchdog control LAN Bypass
function/ Power off LAN Bypass function

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
12
System Memory
2 x DDR4 2400MHz ECC/UDIMMs (Up to
16GB each)
USB
2 x USB 3.0 Type-A ports
Storage
1 x 3.5”or 2 x 2.5”HDD/SSD (the drive is not
included)
1 x mSATA socket via mini-PCIe interface
Networking
LAN
Model-A: 6 x RJ-45 GbE Ethernet ports
Model-B: 6 x RJ-45 GbE Ethernet ports and 2 x
SFP ports
Controller
Model-A: 6 x Intel i210-AT
Model-B: 6 x Intel i210-AT + 2 x Intel i210-IS
Management
N/A
NIC Module
space
1 x Slim Type NIC module socket (PCIe Gen3 x
8 interface) supporting
1/10/40G/Fiber/Copper/Bypass
Console
1 x RJ-45 console port
IPMI
OPMA socket to support IPMI
Bypass
2 pairs of LAN bypass on RJ-45 ports
Fan
2 x Cooling fans
Display
LCM
1x character type LCM
LED
POWER/STATUS/HDD
Keypad
4x Keypads
Expansion
Optional PCIe riser card for rear expansion
TPM
Optional
Thermal
CPU heatsink with fan duct
Physical
Characteristics
Form Factor
1U rackmount
Housing
SPGC
Dimensions
438mm x 320mm x 44mm (W x D x H)
Mounting
Options
Rackmount by slide rail
Environment
Operating
Temperature
0℃～40°C
Non-operating
Temperature
-40℃～70℃

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
13
Ambient
Humidity
5 to 90% (non-condensing)
Power
Input
AC 90 to 264V@47 to 63Hz
Power supply
220W single PSU
Certifications
EMC
CE/FCC Class A/UL
Green product
RoHS
Ordering Information
NCA-4210A
Intel PCH H110 with 2x DDR4 UDIMM , 6x RJ45 (2 Pairs Bypass) , 1x
Slim-type NIC Module (PCIEX8 only)
NCA-4210B
Intel PCH C236 with 2x DDR4 ECC DIMM 16G/DIMM , 6x RJ45 (2
Pairs Bypass) +2x SFP , 1x Slim-type NIC Module (PCIEX8 only, 2
PCIEX 4 as optional)
NCA-4210C
Intel PCH C236 with 2x DDR4 ECC DIMM 16G/DIMM , 14x RJ45 (2
pairs bypass) +2x SFP , 1x Slim-type NIC Module (PCIEX8 only, 2
PCIEX 4 as optional)
Package Contents
Please unpack your package carefully and inspect all the following items
1 –NCA-4210 Network Security Platform
1 –power cable
1 –Short Ear Rack mount kit with screws
1 –Console cable
1 –LAN Cable (Grey)
Optional : 1U slide rail kit
Note：If you should find any components missing or damaged, please contact your dealer
immediately for assistance

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
14
Optional Accessories
NCS2-IGM428A
1x Intel i350 4port RJ45 w/ 2pairs bypass
NCS2-IGM806A
2x Intel i350 8port RJ45 w/ 4pairs bypass
NCS2-ISM405A
1x Intel i350 4port SFP w/ bypass
NCS2-ISM406A
1x Intel i350 4port SFP w/o bypass
NCS2-ISM802A
2x Intel i350 8port RJ45 w/o bypass
NCS2-IXM205A
1x Intel 82599 2port SFP+ w/ bypass
NCS2-IXM405A
2x Intel 82599 4port SFP+ w/o bypass
NCS2-IGM427
NCS2-MTX401
NCS2-IQM201A
NCS2-IXM407A
AV-ICE01
AV-ICE02
AV-ICE03
AV-ICE04
AV-CVE20000

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
15
Chapter 2: System Overview

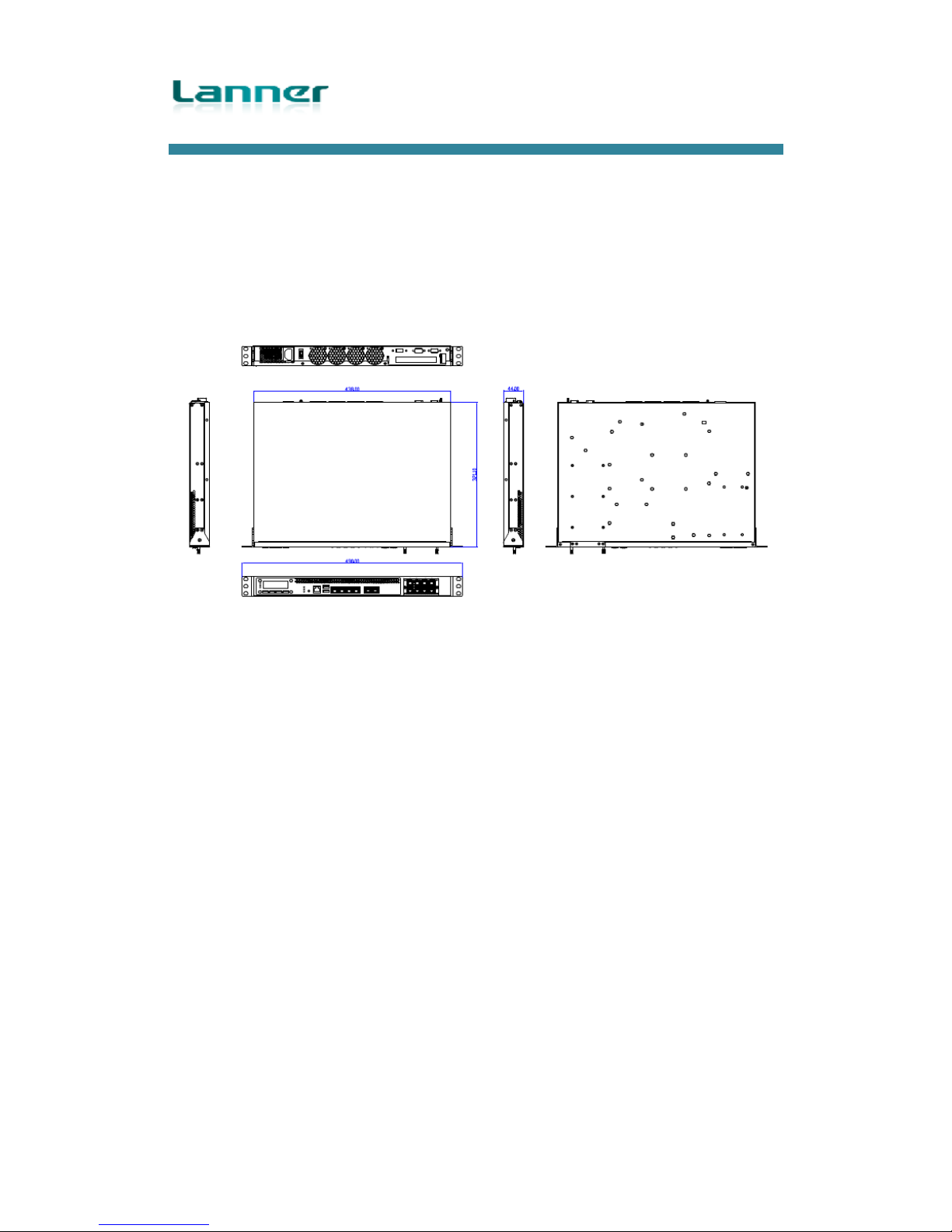

Mechanical Drawing –NCA-4210A
Unit: mm

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
16

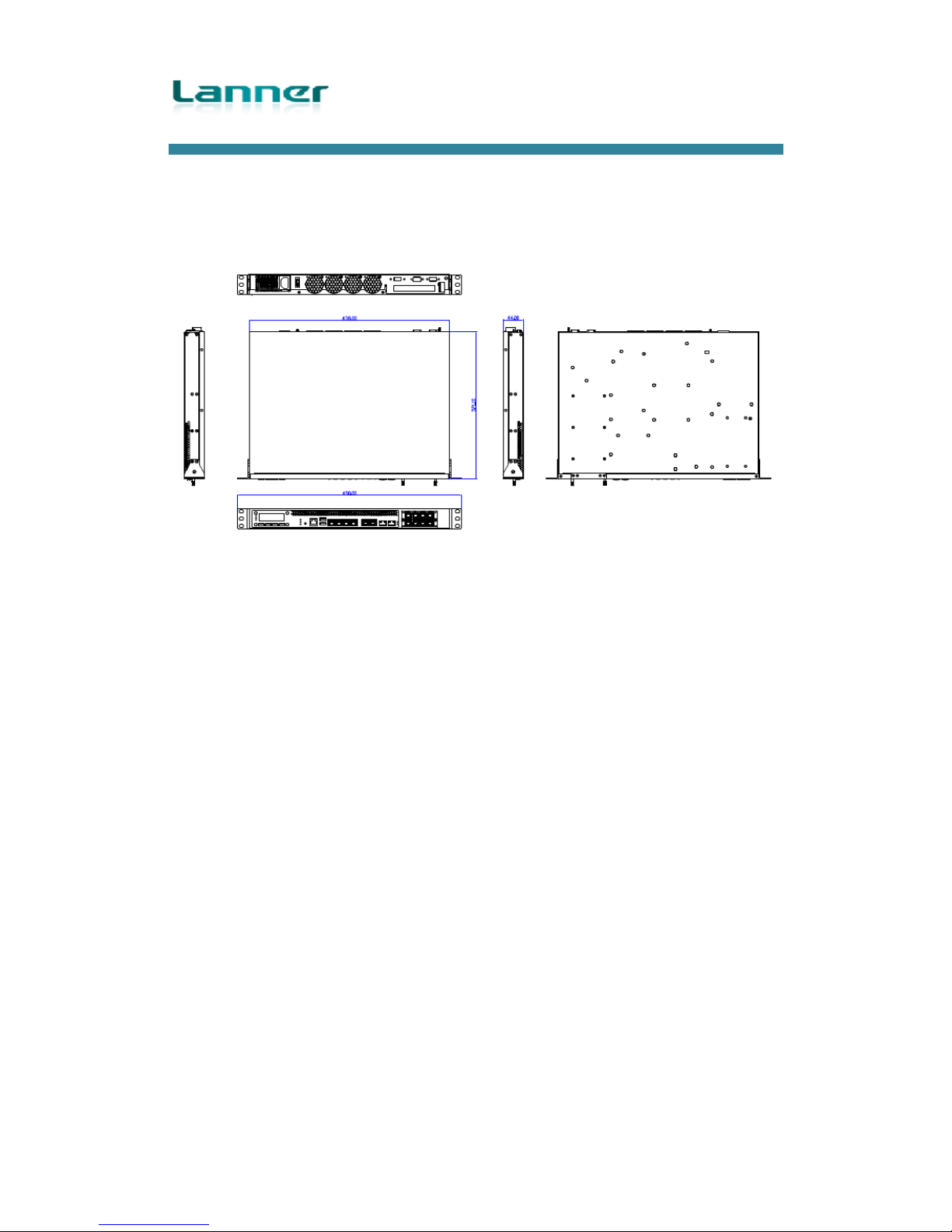

Mechanical Drawing –NCA-4210B
Unit: mm

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
17
Block Diagram
Note:
The 2 x 10G SFP+ ports are only available in model B.
Unit: mm

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
18

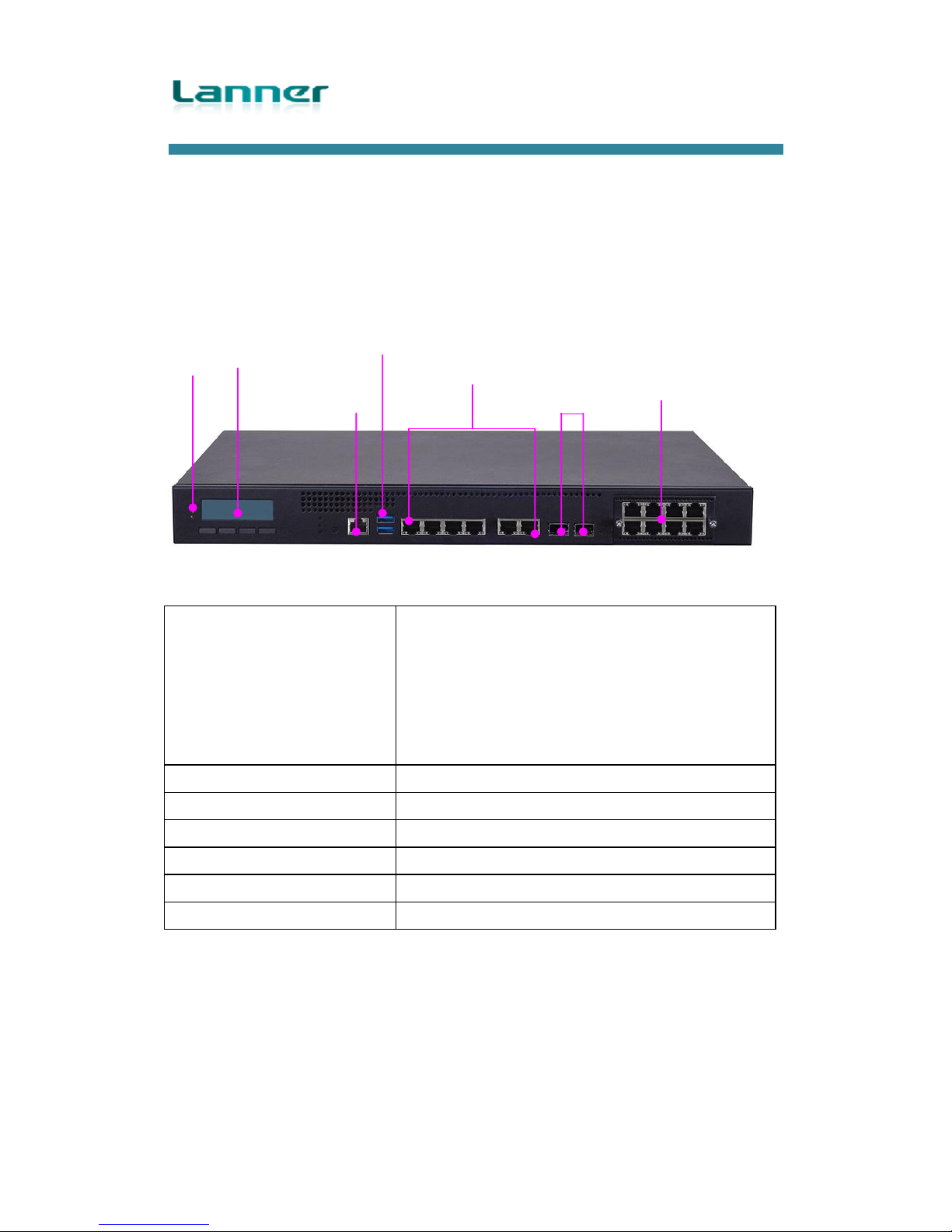

Front I/Os
F1 LED Indicators
POWER/STATUS/HDD
Power: status about power supply
Status: programmable status LED signals for
system activities
HDD: status about storage devices, such as HDD
or SSD
F2 LCM
LCM with 4 x keypads
F3 Console
1 x RJ-45 console port
F4 USB
2 x USB 3.0 Type-A ports in double stacked form
F5 LAN
6 x RJ-45 GbE ports
F6 SFP LAN
2 x SFP LAN ports (available in model-B only)
F7 NIC
1 x NIC module space with PCIe interface
F1
F2
F3
F4
F5
F6
F7

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
19

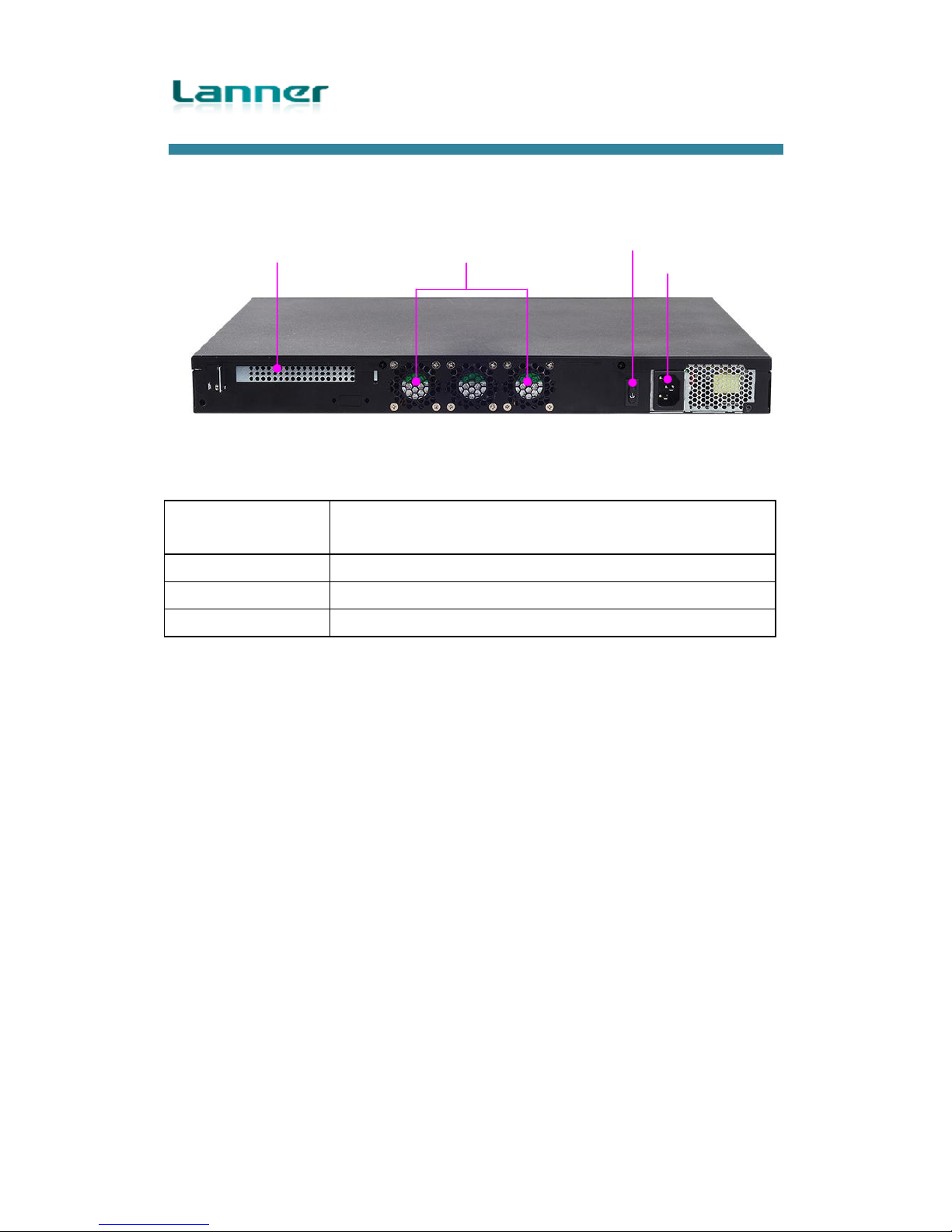

Rear I/Os
R1 PCIe
Expansion
1 x PCIe expansion slot (optional)
R2 Fans
2 x cooling fans
R3 Power switch
1 x power on/off switch
R4 power jack
1 x power jack for connection with power adapter
R1
R2
R3
R4

Lanner Electronics Inc.
7F, 173, Section 2 Datong Road
Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone]
URL: www.lannerinc.com
20
Chapter 3: Board Layout
Jumpers and Connectors on the
Motherboard
Notes: SFP ports are in model-B only.
FAN1-4
ATX1
DIO1
PCIESLOT1
JUSB1
mSATA
SPIROM1
DIMM1/2
ATX2
VGA1
LCM1
J5
OPMA1
COM1
USB1
LAN
1SFP
J3
2
