1. Package Contents
The following items should be found in your package:
¾Wireless-N USB Adapter
¾Quick Installation Guide
¾CD-ROM
Please make sure that the package contains the above items, if any of the listed items is damaged or
missing, please contact with your distributor.
2. Product Overview
The USB Wireless Adapter improves wireless transmission over long distance and fully supports
the 11N technology which enables you to connect to wireless networks at farther distances than
before. It provides up to 150Mbps data transmission rate in 2.4GHz frequency, complies with IEEE
802.11n, IEEE 802.11g and IEEE802.11b and backwards compatible with all IEEE 802.11n/g/b
devices. When the adapter is connecting to the standard 11n, 11g or 11b APs or Routers, it can
perform much better than standard clients. It also supports wireless LAN up to 128-bit WEP,
WPA/WPA2 encryption security that protects your wireless network from eavesdropping. This
Wireless-N USB Adapter provides enhanced multimedia support. It is a cost-effective and best
solution for you to build your wireless network.
3. System Requirement
You must have the following at least
¾A laptop computer/desktop PC with an available 32-bit USB slot
¾At least a 300MHz processor and 32MB of memory
¾Windows 98SE, ME, 2000, XP, Vista/7
¾A CD-ROM Drive
¾USB controller properly installed and working in the computer
¾、
A 802.11n 802.11g or 802.11b Access Point (for infrastructure Mode) or another
、
802.11n 802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode).

USB Wireless Adapter Quick Installation Guide
3
4. Driver and Utility Installation
Before you proceed with the installation, please notice following descriptions.
¾Please do not install the adapter into your computer before installing the driver from the CD.
¾We use driver installation in Windows XP for example. Procedures are similar for Windows
98SE/Me/2000/2003/vista/7.
¾If you have installed the Turbo Wireless LAN USB Adapter driver & utility before, please
uninstall the old version first.
Next is driver and utility installation:
¾Insert the Driver and Utility CD-ROM into the CD-ROM driver.
¾The Wizard should run automatically, and the driver installation window should appear. If not,
click the Start button and choose Run and enter D:\autorun.exe (if ‘D’ is the letter of your
CD-ROM drive)
Figure 1
¾Select click "Next”，
¾
Figure 2
¾Click install, then it will finish the installation automatically. Now you can insert you USB card
into computer, it will be installed automatically

USB Wireless Adapter Quick Installation Guide
4
¾
¾Figure3
5. Connect to Wireless Network
The Utility appears as an icon on the system tray of Windows while the adapter is running. You can
open the utility by double-click on the icon,
Figure 4
You can use the following methods to connect to a wireless network.
Method1:
¾Select Network tab and click Rescan button to refresh current available wireless network

USB Wireless Adapter Quick Installation Guide
5
Figur
Figure 5
¾Highlight the wireless network you want to connect, click connect. If it is encrypted, enter
authentication key and then click OK. The connection is successful

USB Wireless Adapter Quick Installation Guide
6
Figure 6
Method2:
Convenient way to connect to a safety wireless network
Note: you can use method2 only if you have a wireless router that has WPS hardware button
¾Push the WPS hardware button of the wireless Router until the WPS LED is flashing
¾Push the WPS button in this wireless network card for a few seconds
¾The safe connection will be established automatically, please wait

USB Wireless Adapter Quick Installation Guide
7

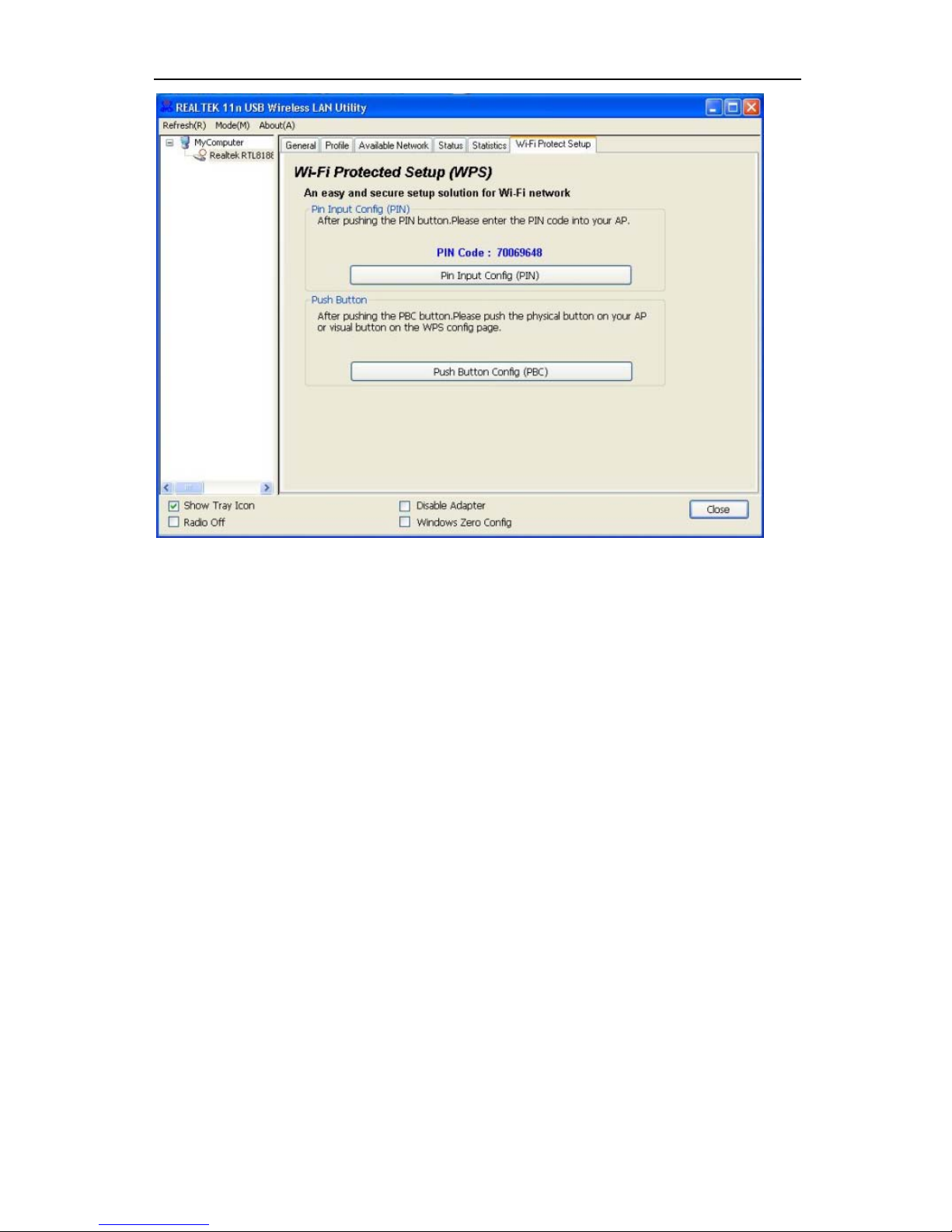

Figur
Figure 7
6. FAQ
This chapter provides solutions to problems usually encountered during the installation and
operation of the adapter
1. The Wireless USBAdapter does not work properly.
Reinsert the Wireless USB Adapter into your PC’s USB slot. Right click My Computer and select
Properties. Select the device manager and click on the Network Adapter. You will find the Adapter
if it is installed successfully. If you see the yellow exclamation mark, the resources are conflicting.
You will see the status of the Adapter. If there is a yellow question mark, please check the
following:
Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware interrupt on a PC.)
Make sure that you have inserted the right adapter and installed the proper driver.
If the Adapter does not function after attempting the above steps, remove the adapter and do the
following:
Uninstall the driver software from your PC.
Restart your PC and repeat the hardware and software installation as specified in this User Manual.
2. I cannot communicate with the other computers linked via Ethernet in the Infrastructure
configuration.

USB Wireless Adapter Quick Installation Guide
8
Make sure that the PC to which the Adapter is associated is powered on.
Make sure that your Adapter is configured on the same channel and with the same security options
as with the other computers in the Infrastructure configuration.
3. What should I do when the computer with theAdapter installed is unable to connect to the
wireless network and/or the Internet?
Check that the LED indicators for the broadband modem are indicating normal activity. If not, there
may be a problem with the broadband connection.
Check that the LED indicators on the wireless router are functioning properly. If not, check that the
AC power and Ethernet cables are firmly connected.
Check that the IP address, subnet mask, gateway, and DNS settings are correctly entered for the
network.
In Infrastructure mode, make sure the same Service Set Identifier (SSID) is specified on the settings
for the wireless clients and access points.
In Ad-Hoc mode, both wireless clients will need to have the same SSID. Please note that it might
be necessary to set up one client to establish a BSS (Basic Service Set) and wait briefly before
setting up other clients. This prevents several clients from trying to establish a BSS at the same
time, which can result in multiple singular BSSs being established, rather than a single BSS with
multiple clients associated to it.
Check that the Network Connection for the wireless client is configured properly.
If Security is enabled, make sure that the correct encryption keys are entered on both the Adapter
and the access point.
