lassele LHD-1023LG User manual

Electric Dish Dryer User Manual
Read this manual thoroughly before installation and operation.
Improper installation or operation may damage the unit and cause serious injury or death.
Normal Door Type LHD-1023LG / LHD-1633LG
Pass-through Door Type LP-1023HD-2G/LP-1633HD-3G/1633HD-3GV01

•The drying cond iti on can vary depending on the number of dishes, drying temperature and drying time.
•When the dryer is turned on again after a blackout or power off,the temperature is automatically set to the one
just before the blackout or power off.
•Dishes and the dryer inside just after the drying are very hot. . Do not touch them without protective
gloves.
Comprehen
sion and
preparation
How to use
References
Product overview 4
How to ground 6
For your safety 7
Installation 11
How to control temperature 12
UV Sterilization 14
Scheduled time setting 15
How to keep the product clean 16
Troubleshooting
17
Specification 18
Plug into exclusive outlet only.
Do not use multiple plug or voltage transformer.

Product overview

LP-1633HD-3GV01
Shelves
Fixing Leg
Glass door
Operating Part
Front panel
Moving wheel

cannot
* Keep children away from the product. Serious injury or death may occur.
- 6 -

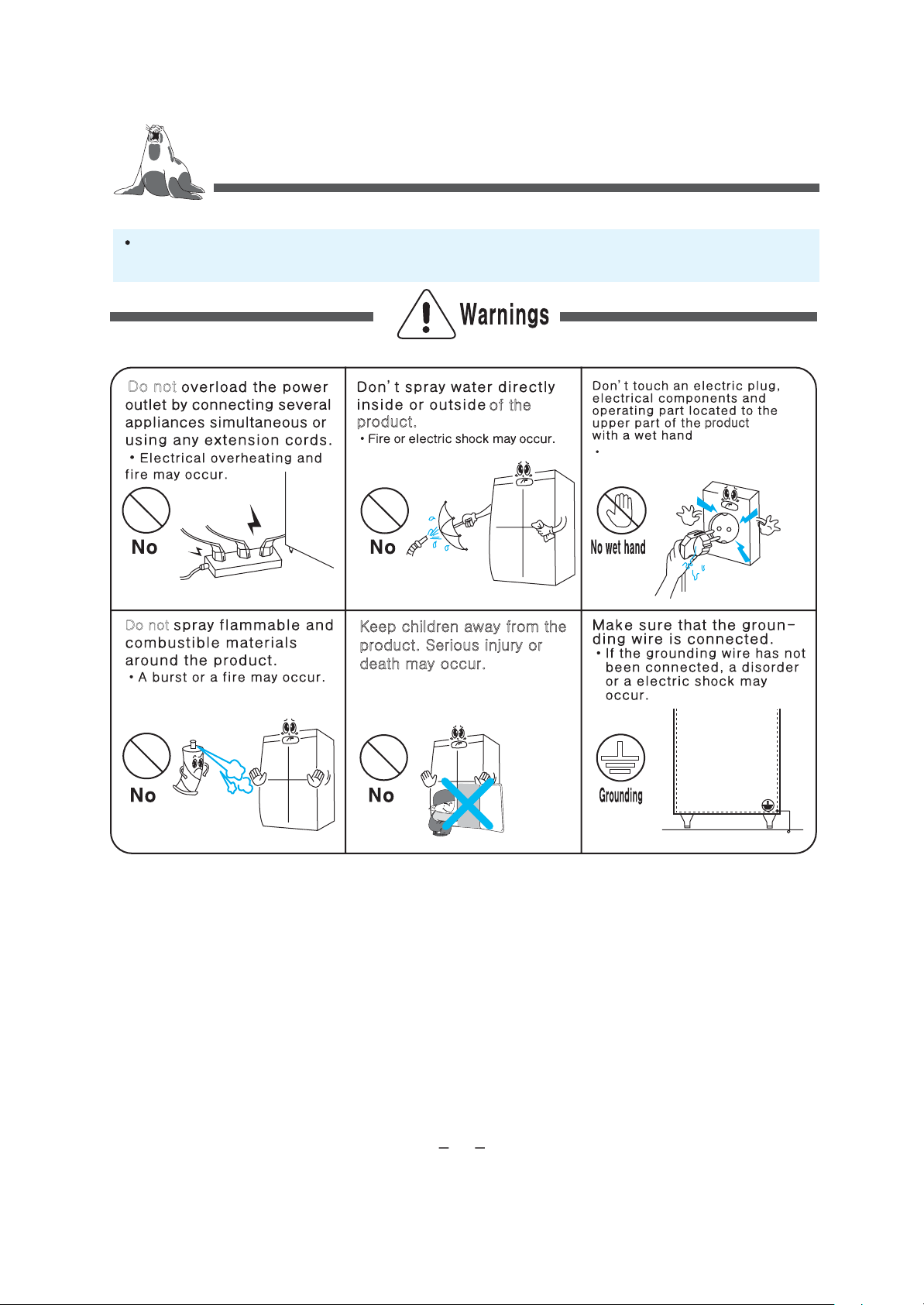

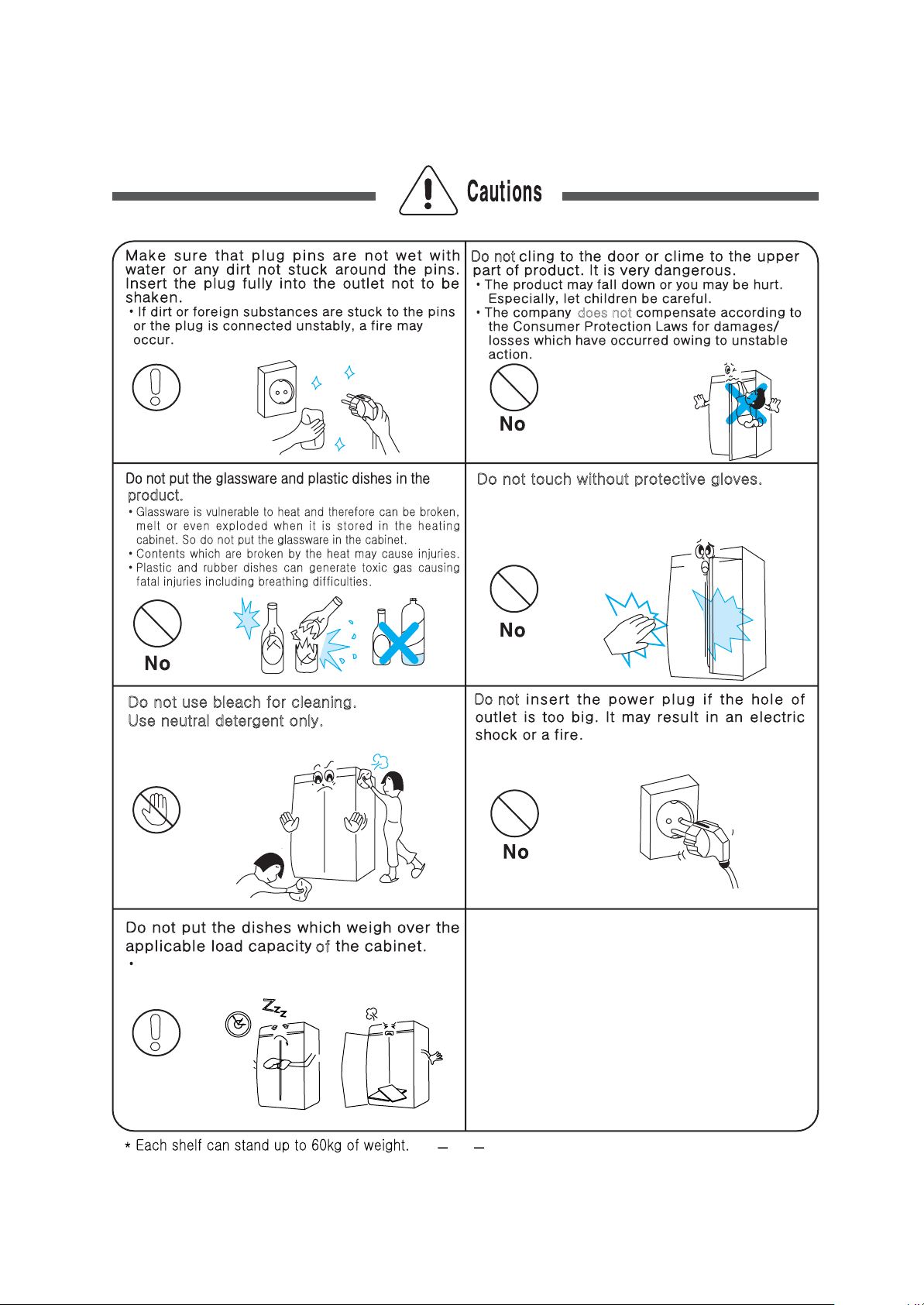

For your safety
Electric shock or serious injury
may occur.
Thoroughly read followings before installation and operation.
Improper installation or operation may damage the unit and cause serious injury or death.
7
Do not
of the
product. product
Keep children away from the
product. Serious injury or
death may occur.

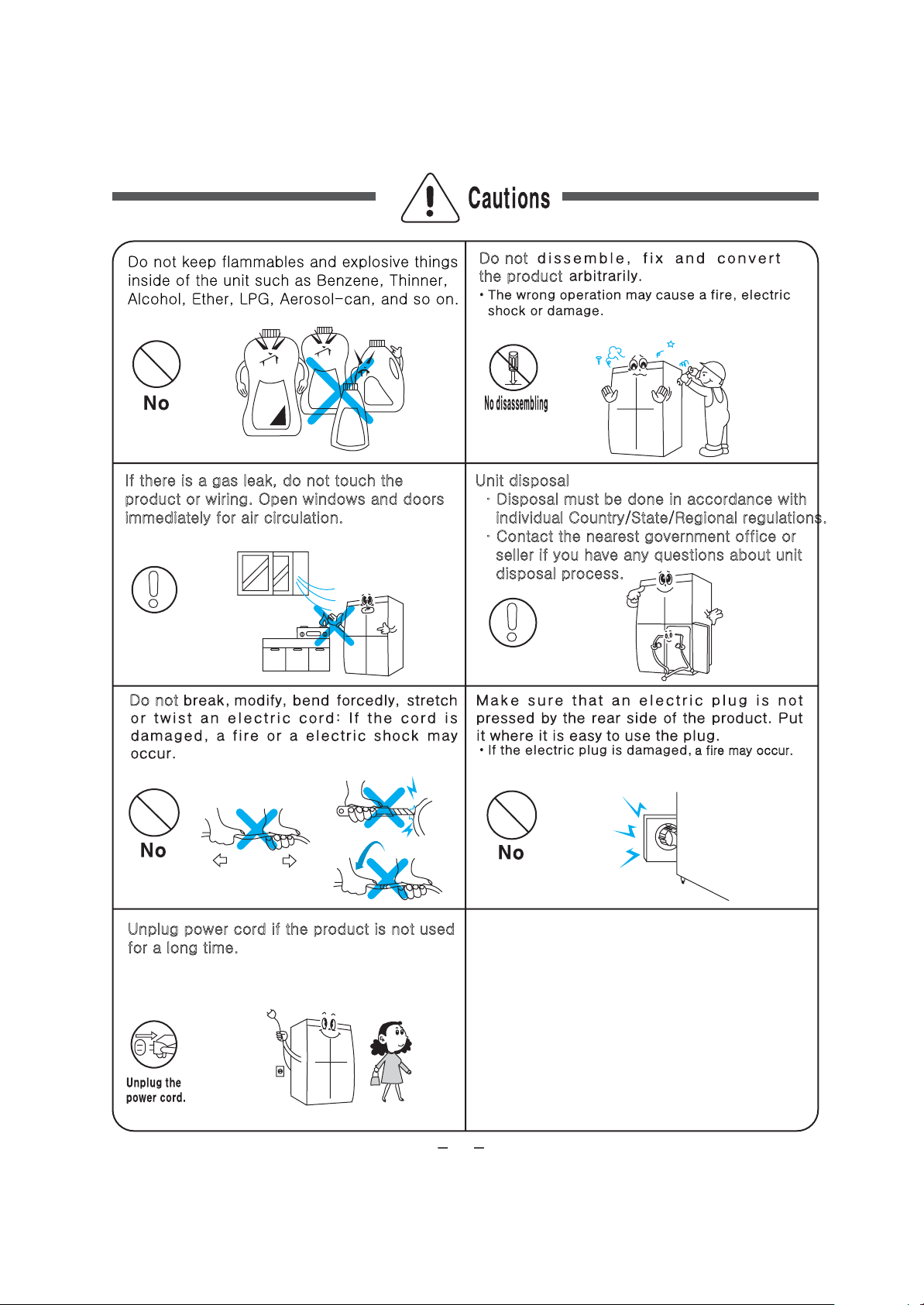

Do not

8
Do not keep flammables and explosive things
inside of the unit such as Benzene, Thinner,
Alcohol, Ether, LPG, Aerosol-can, and so on.
Do not
the product
If there is a gas leak, do not touch the
product or wiring. Open windows and doors
immediately for air circulation.
Unit disposal
· Disposal must be done in accordance with
individual Country/State/Regional regulations.
· Contact the nearest government office or
seller if you have any questions about unit
disposal process.
Do not
a fire may occur.
Unplug power cord if the product is not used
for a long time.

Install the unit where rodents do not exist.
A fire may occur if rodents gnaw wiring.
9
Unplug power cord and call for a service
immediately if the product seems damaged.
(Strange sound, smoke, smell)
Do not touch meal trays in the product with
wet hand after drying cycle for sanitation.
Garb door handle when opening and closing
doors. Opening and closing door by using
other part may hurt your hand.
Do not put anything on the top.
The product is heavy. Do not move it alone
and lay the product down while moving it.
· Grab power plug, not wire to disconnect the
power cord from outlet.

10
* Each shelf can stand up to 60kg of weight.
Do not
product.
Do not touch without protective gloves.
Do not
· Doors and frame surface is hot. Risk of scalding.
Do not use bleach for cleaning.
Use neutral detergent only.
of
Do not overload meal trays more than the product's
capacity. Overloading meal trays may damage the unit.
does not

Install the unit on the flat and solid floor.
The unit might be falling down if it is installed
on not-proper condition and it may cause
serious injury or death.
Make sure the unit is proferly fixed on the floor
by turning the screws on the bottom side of legs
to the left to avoid door opening while operation.
The product is for indoor use only.
from the top.
Do not install the product around heating
equipment.
Do not install the product at dusty or humid
place.

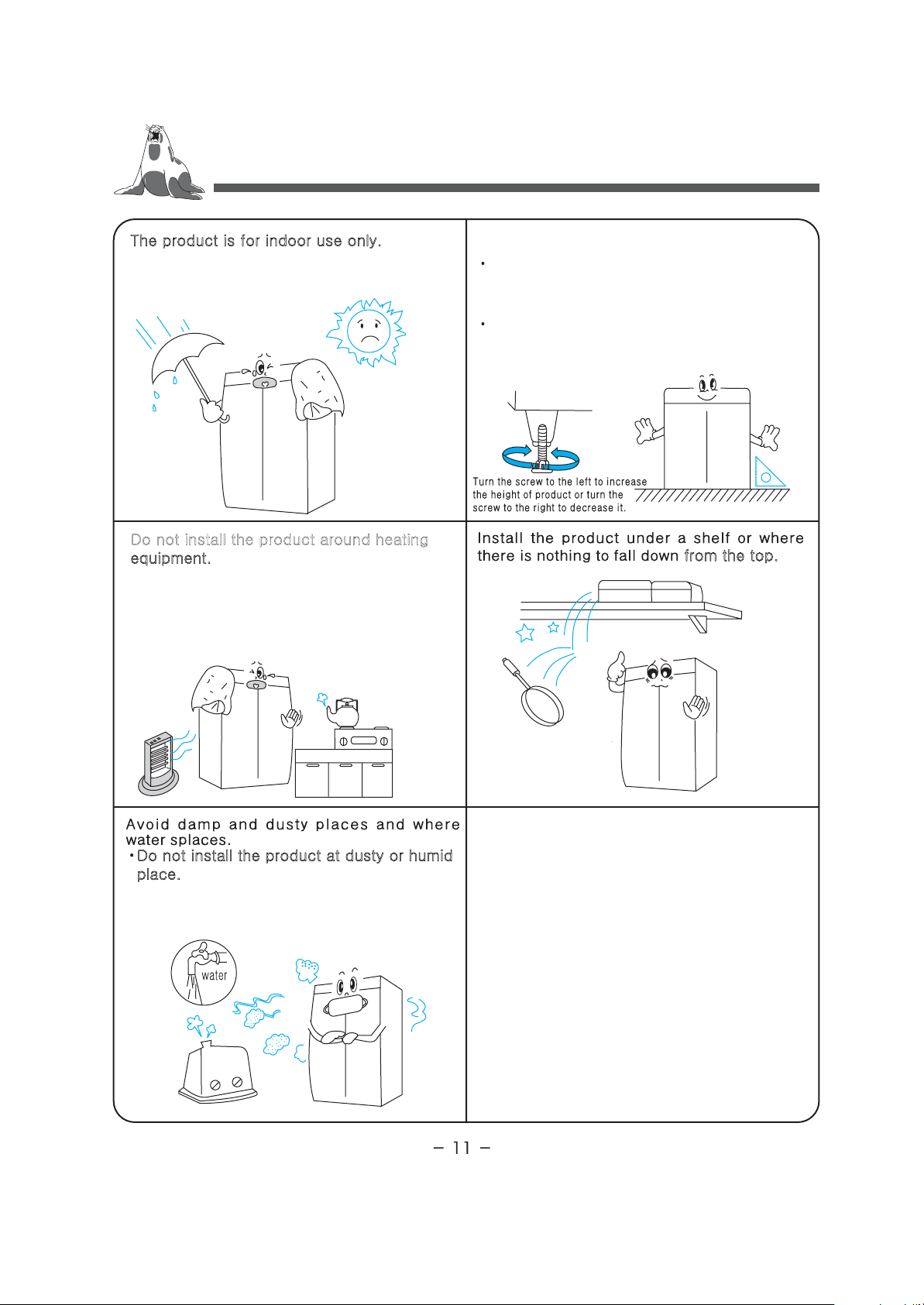

Installation

Tip

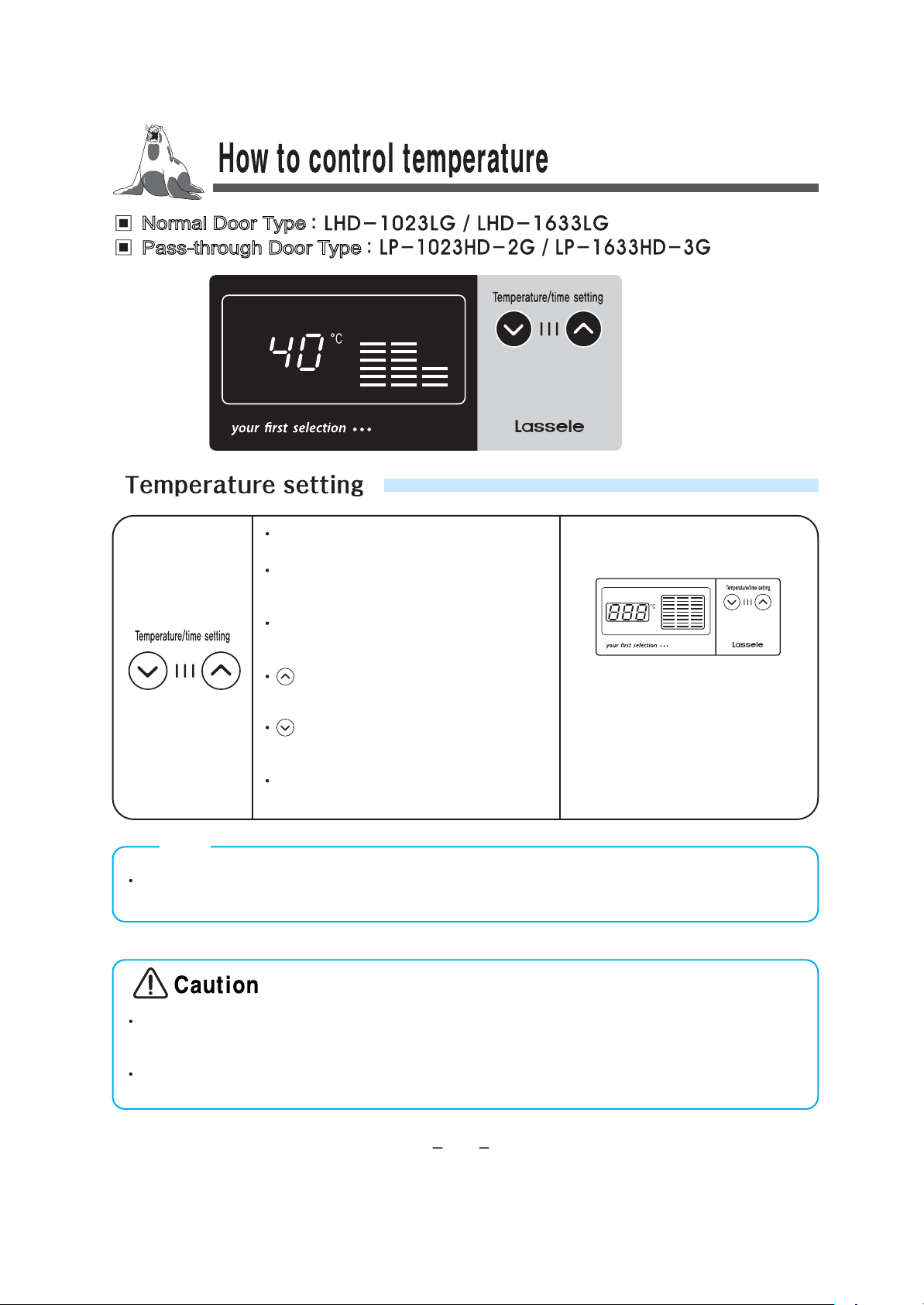

Temperature setting range
-For stainless meal trays : 60℃~120℃
-For melamine(plastic) meal trays : 30℃~50℃
When the dryer is turned on again after a blackout or power off, the temperature is automatically
set to the one just before the blackout or power off.
When the dryer is operated with melamine dishes while set to “stainless”, it results in damage to
the dishes.

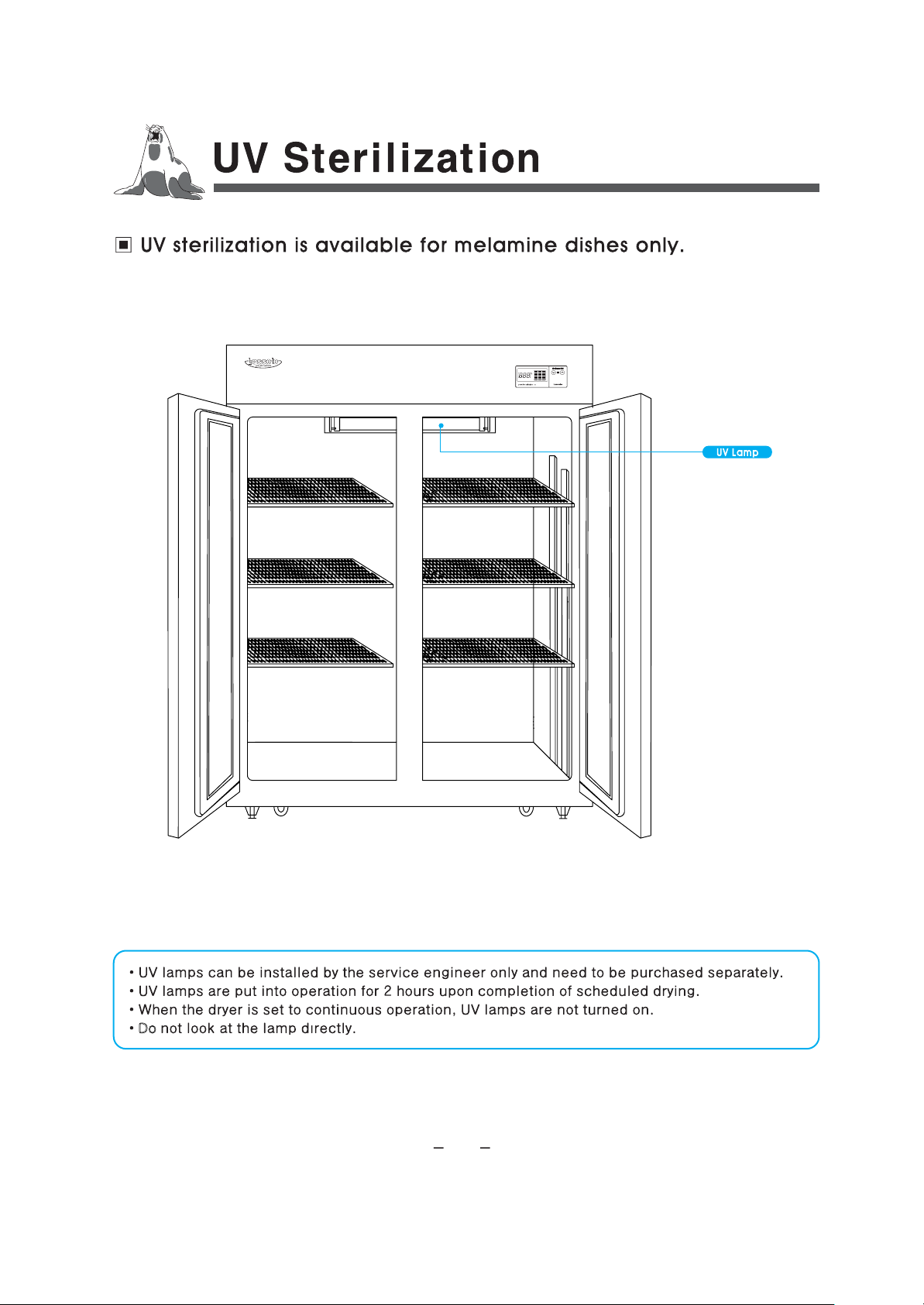

For melamine dishes, UV lamps (optional) need to be additionally installed for sterilization.
12
Normal Door Type
Pass-through Door Type
Press power button to turn on the unit.
Press power button for two seconds to
turn off the unit.
Unplug the power plug while the unit is
turn off to reset all setting.
Stop pressing button when you reach
required temperature.
Press this button to set 5℃higher
temperature.
Press this button to set 5℃lower
temperature.

- 13 -

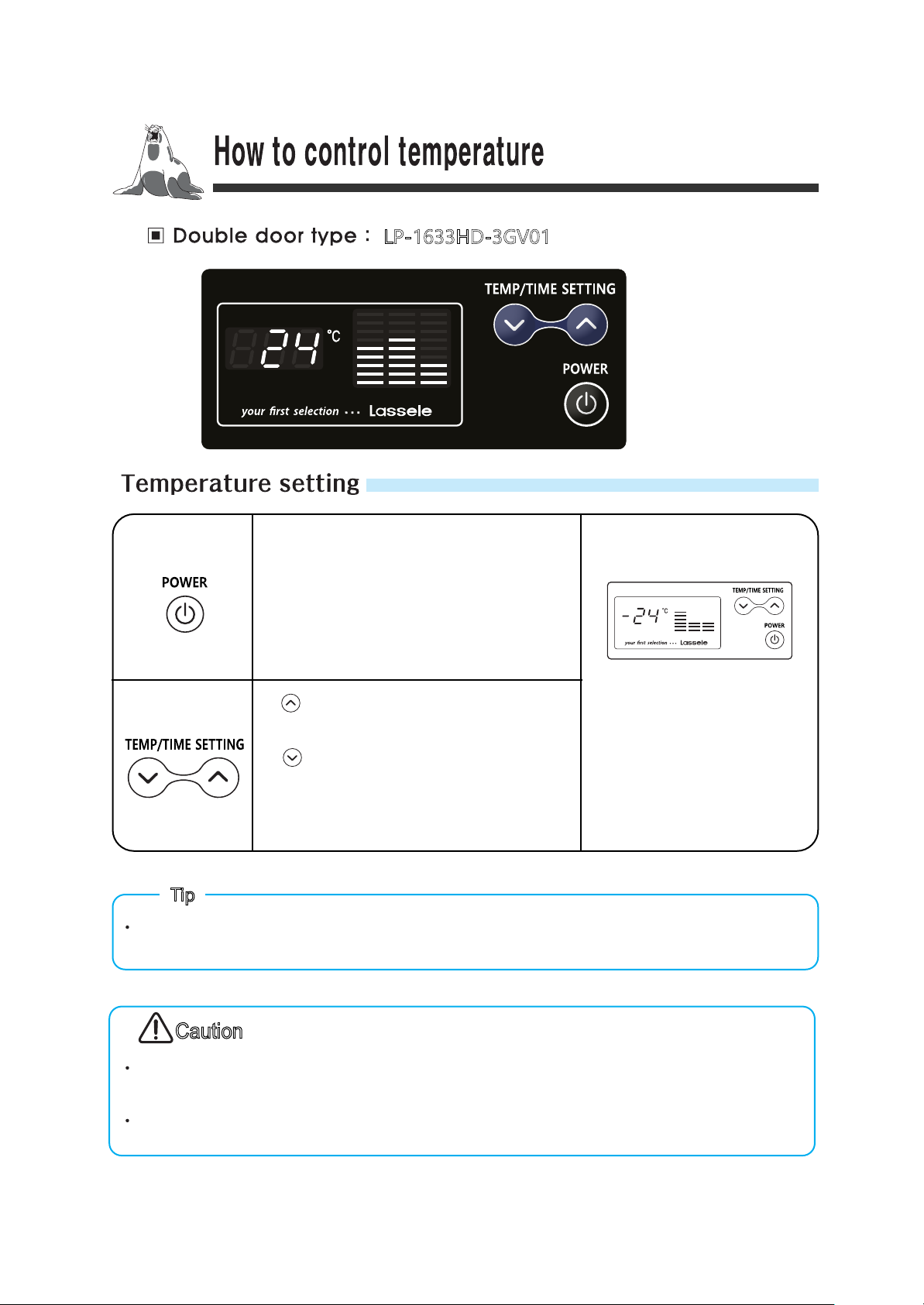

LP-1633HD-3GV01
• Press this button to set 5℃higher
temperature.
• Press this button to set 5℃lower
temperature.
•Stop pressing button when you reach
required temperature.
Temperature setting range
- For stainless meal trays : 60℃~120℃
- For melamine(plastic) meal trays : 30℃~50℃
Tip
Caution
•Press power button to turn on the unit.
•Press power button for two seconds to turn
off the unit.
•Unplug the power plug while the unit is turn
off to reset all setting.
When the dryer is turned on again after a blackout or power off, the temperature is automatically
set to the one just before the blackout or power off.
When the dryer is operated with melamine dishes while set to “stainless”, it results in damage to
the dishes.
For melamine dishes, UV lamps (optional) need to be additionally installed for sterilization.

14

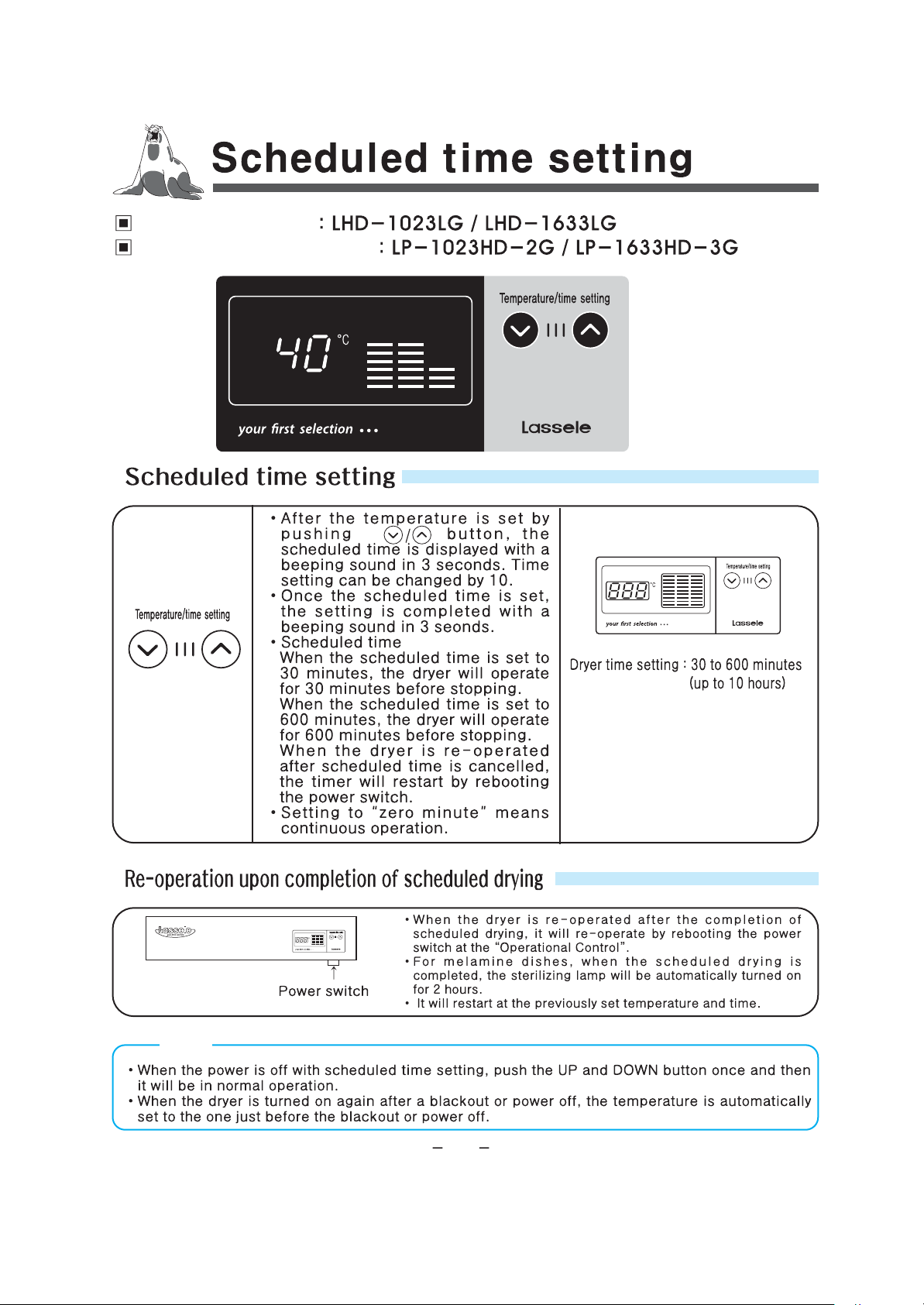

Do

Tip
15
Normal Door Type
Pass-through Door Type

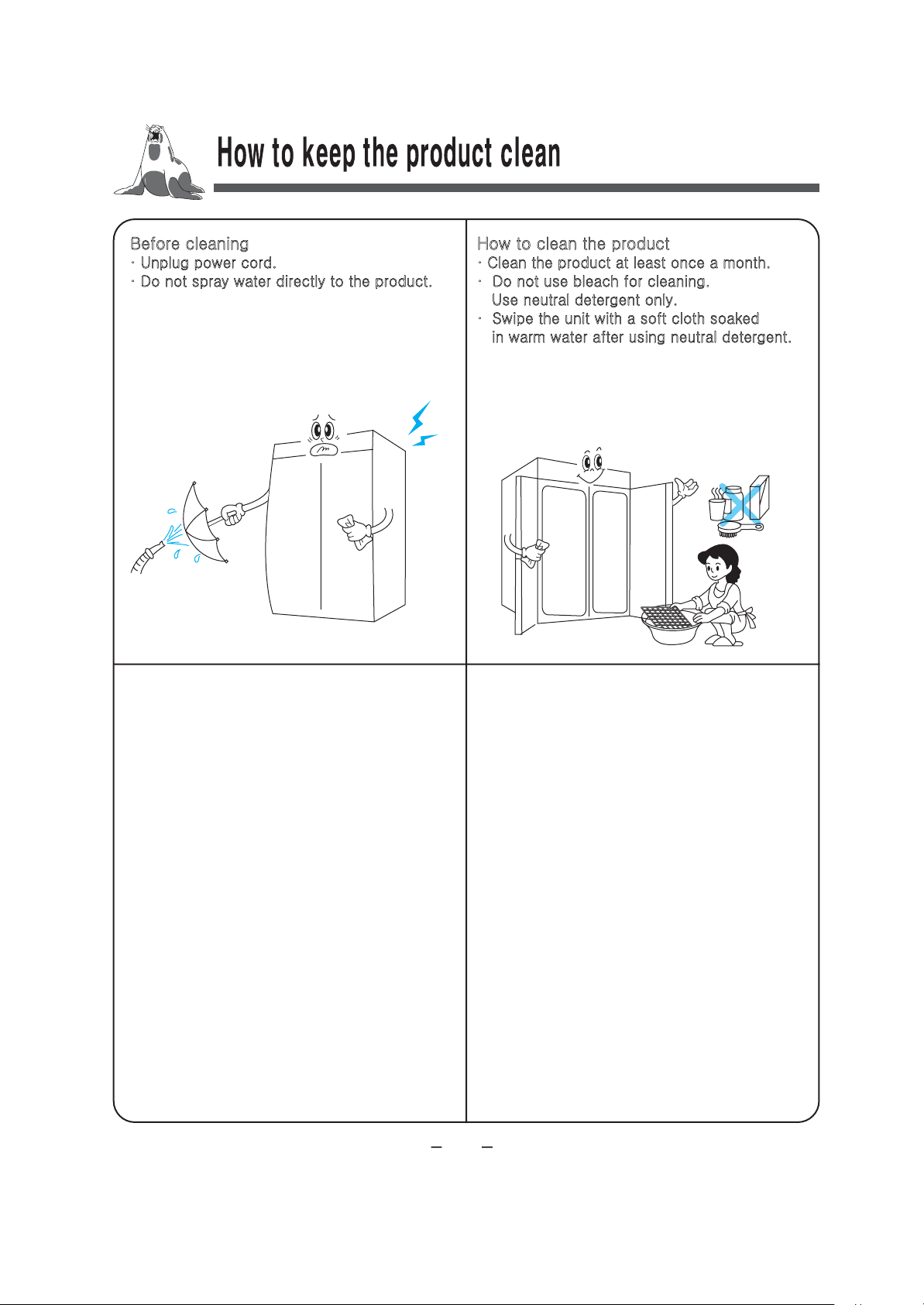

Before cleaning
· Unplug power cord.
· Do not spray water directly to the product.
How to clean the product
· Clean the product at least once a month.
· Do not use bleach for cleaning.
Use neutral detergent only.
· Swipe the unit with a soft cloth soaked
in warm water after using neutral detergent.
16

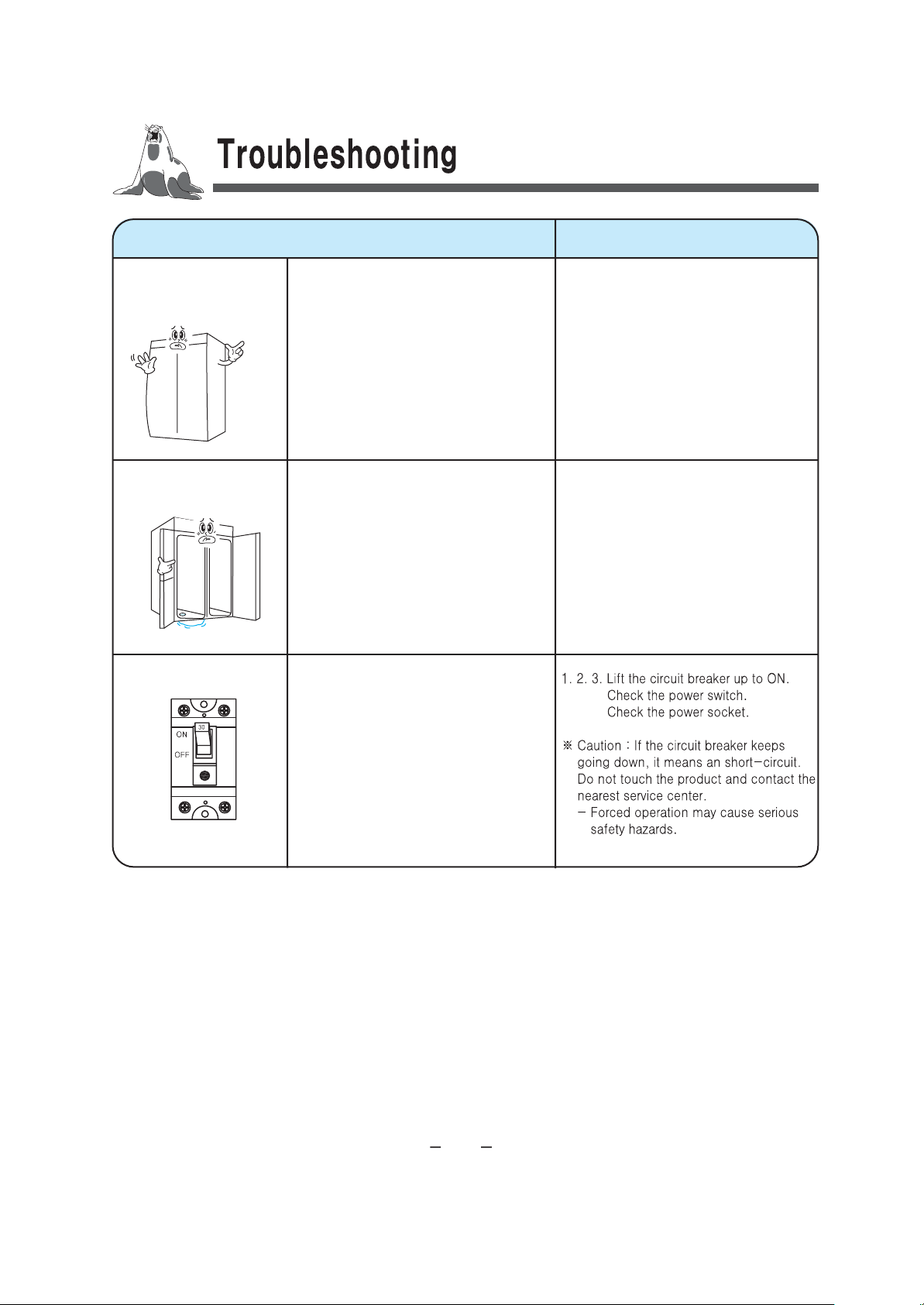

1. Power is not comming in.
2. Temperature is not increasing.
3. Dishes are not dried enough.
4. Static occurs when touching the
unit.
1. Water is leaked.
2. The product is not in operation after
scheduled time setting.
3. The product is not in operation after
a certain period of time.
1. The product is not in operation
2. The product is not in operation after
a blackout.
3. The product is not in operation after
cleaning.
1. Check the drain line at the back
side of the product and clean it if
required.
2. Press "UP" and "DOWN" button
together before use.
3. Check if scheduled time setting is
set.
1. Check if power cord is properly
connected to the power outlet.
2. Check temperature setting.
3. Check if dishes are overloaded.
4. Check if power cord is properly
grounded.
17
Problems Resolution

C
Net
Auto stop over 170℃
Hot air circulation
Exterior dimension
input
Safety device
Power consumption
Circuit Breaker
Number of shelves
Specification
18

19
