Lasvit Tac Tile CL028FA-2CE User manual

EENN
The Beauty Of Glass
TAC TILE
FLOOR
LAMP
MANUAL CE
Tac Tile Collection
by André Fu Living

CCoonntteennttss
TTeecchhnniiccaall ppaarraammeetteerrss 11
SStteepp--bbyy--sstteepp iinnssttaallllaattiioonn 22
RReemmoovviinngg ooff tthhee ggllaassss hhoollddeerr
IInnssttaallllaattiioonn ooff tthhee lliigghhtt ssoouurrccee 44
IInnssttaallllaattiioonn ooff tthhee ssmmaalllleerr ddiiffffuusseerr 55
IInnssttaallllaattiioonn ooff tthhee bbiiggggeerr ddiiffffuusseerr 66
IInnssttaallllaattiioonn ooff tthhee ggllaassss ccoommppoonneenntt 77
IInnssttaallllaattiioonn ooff tthhee sseeccoonndd ((mmiirrrroorreedd)) ppaarrtt ooff tthhee llaammpp 99
TTuurrnniinngg OOFFFF//OONN,, ddiimmmmiinngg 1100
LLiigghhtt ssoouurrccee rreeppllaacceemmeenntt 1111
WWaarrrraannttiieess aanndd WWaarrrraannttyy TTeerrmmss aanndd CCoonnddiittiioonnss 1122
MMaarrkkiinnggss
Warning
Warns you of high risk of damage to the fixture or injury.
Risk of electrical injury.
Warns you of high risk of electrical injury should a live part be directly or
indirectly touched.
Notice
Warns you about possible damage to the fixture.
Important
Important information regarding the usage of your fixture.
Note
Gives you general information about the usage of your fixture.

PPlleeaassee rreeaadd tthhiiss mmaannuuaall ccaarreeffuullllyy aanndd kkeeeepp iitt
iinn ccaassee yyoouu nneeeedd aassssiissttaannccee wwhhiillee ppeerrffoorrmmiinngg
mmaaiinntteennaannccee aanndd cclleeaanniinngg pprroocceedduurreess..
LLAASSVVIITT GGLLAASSSS CCOOLLLLEECCTTIIOONNSS AARREE UUNNIIQQUUEE AANNDD HHAANNDDCCRRAAFFTTEEDD..
Tiny bubbles and other irregularities may occur due to the nature of the
glass-blowing technique.
Thank you for purchasing a Lasvit Collection.

1
11// TTeecchhnniiccaall ppaarraammeetteerrss
Item ID / CL028FA-2CE
Dimensions / W 0 mm x H 1218 mm x L 256 mm
Color variants / Artistic fused glass
Weight / approx. 40 kg
Input voltage / 220 – 240 V AC, 50 Hz
Rated power / max. 2 W
Light source / 2 × LED module
Protection rating / IP 20
Safety class / CLASS II

2
22// SStteepp--bbyy--sstteepp iinnssttaallllaattiioonn
BBeeffoorree ssttaarrttiinngg aannyy pprroocceedduurreess mmaakkee ssuurree tthhaatt tthhee ppoowweerr ccaabbllee ooff
tthhee llaammpp iiss ddiissccoonnnneecctteedd ffrroomm tthhee ssoocckkeett,, ppoowweerr iiss sswwiittcchheedd OOFFFF aanndd
sseeccuurreedd aaggaaiinnsstt uunnaauutthhoorriizzeedd,, nneegglliiggeenntt oorr aacccciiddeennttaall sswwiittcchhiinngg oonn..
If the power cable of the luminaire is damaged, it shall be replaced by
the manufacturer or a similar qualified person only in order to prevent any
damage to health or property.
TToo rreettaaiinn qquuaalliittyy ooff hhaanndd--bblloowwnn ggllaassss,, LLaassvviitt rreeccoommmmeennddss ttoo cclleeaann
tthhee ggllaassss aatt lleeaasstt eevveerryy mmoonntthhss..
The manufacturer shall not be held liable for any defects caused by
unqualified handling of the lamp.
Do not cover the lamp with any material, it is necessary for the hot
parts to be cooled by freely flowing air, otherwise there is a risk of fire.
For indoor use only. Installation requires 1 persons.

// RReemmoovviinngg ooff tthhee ggllaassss hhoollddeerr
Before any manipulation disconnect the power cable (position A) from
the socket.

4
44// IInnssttaallllaattiioonn ooff tthhee lliigghhtt ssoouurrccee
Do not forget install the pin cover to the light source (pos B). Cover is
included in the light source package.

5
55// IInnssttaallllaattiioonn ooff tthhee ssmmaalllleerr ddiiffffuusseerr

6
66// IInnssttaallllaattiioonn ooff tthhee bbiiggggeerr ddiiffffuusseerr

7

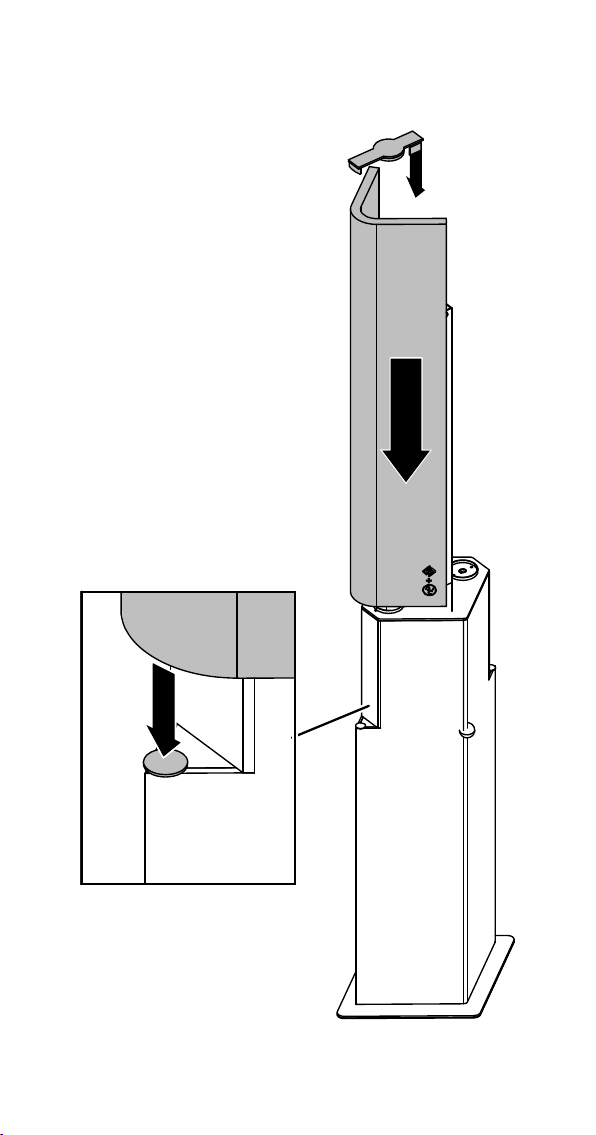

77// IInnssttaallllaattiioonn ooff tthhee ggllaassss ccoommppoonneenntt
SStteepp 11

8
SStteepp 22

9
88// IInnssttaallllaattiioonn ooff tthhee sseeccoonndd ((mmiirrrroorreedd)) ppaarrtt
ooff tthhee llaammpp
Second part of the lamp (see the picture). Follow chapters 4–7.

10
99// TTuurrnniinngg OOFFFF//OONN,, ddiimmmmiinngg
Connect the power cable (position A) Turn the dimming knob (position C)
clockwise for increase the intensity of the ilumination.

11
1100// LLiigghhtt ssoouurrccee rreeppllaacceemmeenntt
All light sources can be supplied by the manufacturer, Lasvit s.r.o.
Replacement of the bulb should be carried out by qualifed technician to
prevent damage to health or property.
Lasvit provides NO warranty on bulbs and is not responsible for any damage
or injury caused during its installation or during its operation.
The manufacturer shall not be held responsible for injuries, damage to the
lamp and/ or other property when other than specified light source type
and/ or rating is used.
For change of the light source follow chapters 7,6,5,4 in reverse order.

12
1111// WWaarrrraannttiieess aanndd WWaarrrraannttyy TTeerrmmss aanndd
CCoonnddiittiioonnss
1/ The warranty is defined in the Price Quotation, Price Agreement,
Contract, or Order. If the Price Quote, contract, or order is not issued, the
warranty does not apply to resources, maintenance, service and cleaning
and the standard warranty on the goods is set for 2 years. Other agreed
warranties must be specified in the Price Quotation, Price Agreement,
Contract, or Order.
2/ As a basis for the claim, the customer must provide a valid contract,
invoice, or other proof of payment. Otherwise, the manufacturer reserves
the right to refuse to provide a warranty, so keep the proof of product
purchase carefully.
/ If the warranty applies to the defect found, the customer informs the
seller by e-mail, telephone, or the Sales department of the manufacturer
(Lasvit) and passes the required information (project number or light
number, project or light name and describes the defect).
4/ The Sales Department proceeds on the basis of an internal customer
complaint resolution directive.
5/ The manufacturer will analyse the occurrence of a disagreement with the
customer or with the manufacturer after delivery of the non-conforming
product to the manufacturer's premises.
6/ Once the analysis has been made, the Sales department is handed over
the decision to accept or reject the complaint with an explanation.
7/ The Sales department agrees with the customer for further steps (e.g.
repair or replacement date, etc. on the basis of customer and manufacturer
possibilities). Unless otherwise agreed, the manufacturer is obliged to
remove the defect within 0 days of the claim date at the manufacturer's
expense.
8/ The warranty does not apply to:
- defects caused by the customer
- defects caused by a third party
- defects caused by regular usage
- defects caused by an installation contrary to the installation manual
- defects caused by inappropriate attachment or product connection
- defects caused by performed in contradiction with the cleaning manual

1
- defects caused by the use of other than defined light sources
- defects caused by installation in premises that do not correspond to the
nature of the light and its IP cover (intrusion protection).
- defects caused by force majeure
9/ The company LASVIT has the exclusive right to grant, deny or change the
terms and conditions for the provision of warranty services.

14
NNeevveerr ddiissppoossee ooff tthhiiss pprroodduucctt iinn mmiixxeedd mmuunniicciippaall wwaassttee,,
iitt mmuusstt bbee ssuubbmmiitttteedd aatt tthhee ddeessiiggnnaatteedd ddiissppoossaall iinnssttaallllaattiioonn..

15
The fxture was designed and manufactured by /
Lasvit s.r.o. / Komunardů 2 / 170 00 Praha 7 /
Czech Republic T [phone] / F [phone] /
E [email protected] lasvit.com
