Latitude Cabinets WFD301824 Quick guide

CABINET NOMENCLATURE
WFD301824
ex. W3036 = Wall Cabinet: 30-in wide x 36-in tall
Width x Height x Depth (depth is standard 12-in, so is not noted)
ex. 4BD18 = Four Base Drawer Cabinet: 18-in wide
Height x Depth not noted (these are standard 24-in deep x 34 1/2-in high)
• • •

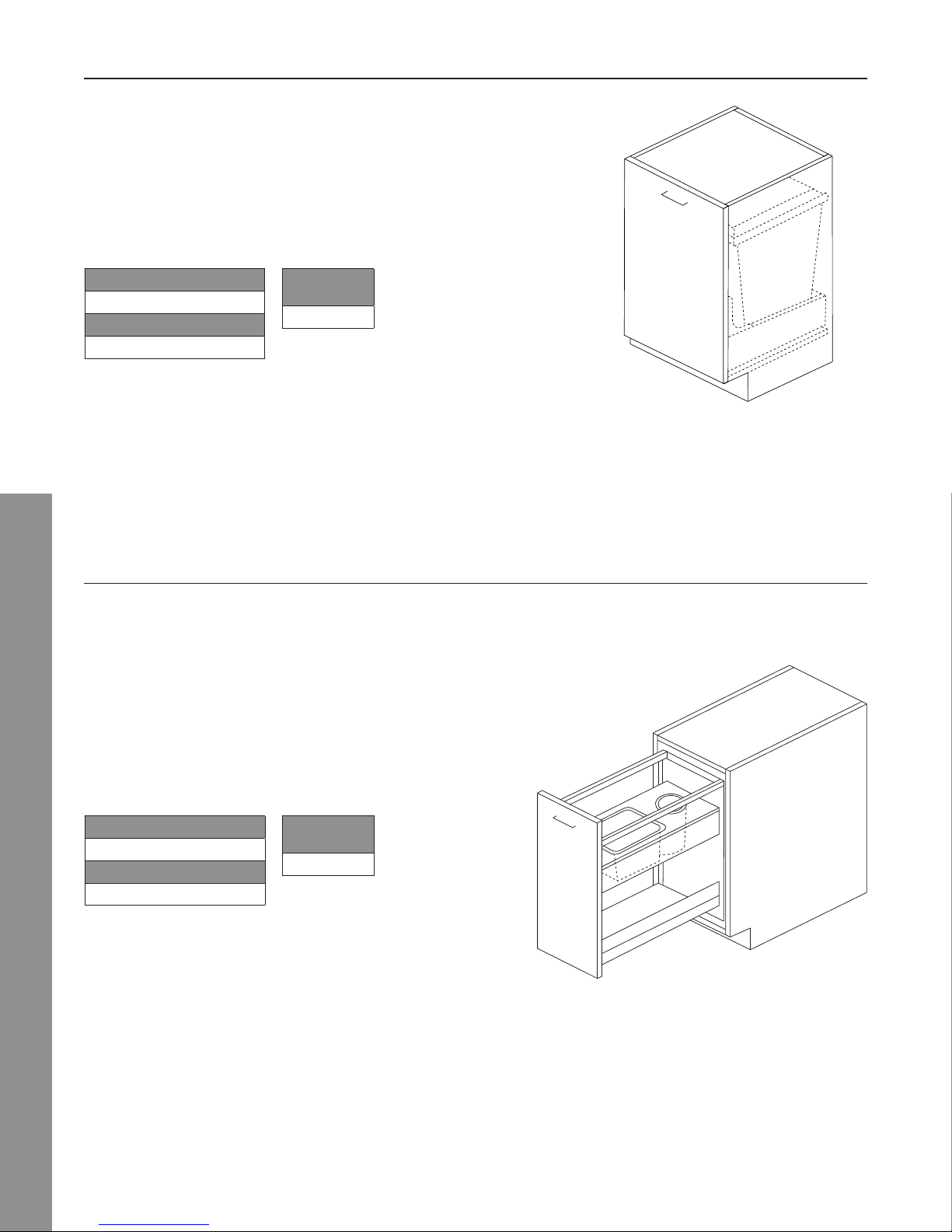

BASE CABINETS: Standard 34 1/2-in tall (before countertop) and 24-in deep (not including door/drawer faces).
WALL CABINETS: Standard 12-in depth. Latitude oers an additional standard 15-in depth.
TALL CABINETS: Available in 84, 90, 93, and 96-in heights. 24-in deep with select 12-in deep options.
VANITY CABINETS: Available in 32-in and 34 1/2-in heights (not including countertop). Both are 21-in deep.
Cabinet sizing uses a 3-in increment system for width, height, and depth. Latitude Cabinets oers select base and wall cabinets in 1
1/2-in width increments to allow for design flexibility. Height, width, and depth reductions are also available on most cabinets.
CABINET TYPE WIDTH HEIGHT DEPTH
Vanity Cabinet Configurations

CABINET CONSTRUCTION
Latitude - May 2018 | 63

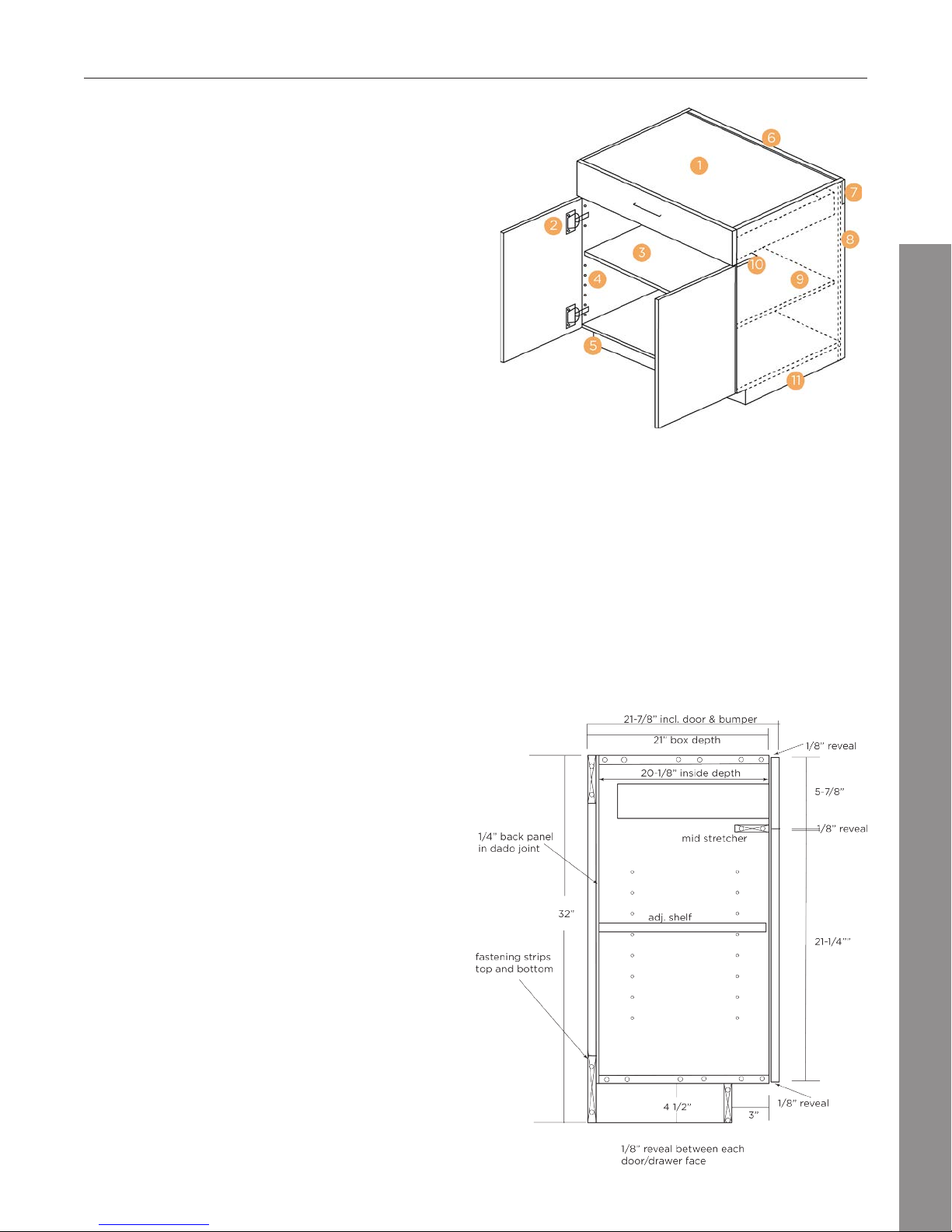

VANITY CABINET CONSTRUCTION
1. 3/4” Full Top
2. 110 degree opening, 6-way adjustable soft-close hinges.
3. 3/4” Full depth adjustable shelf rests on steel shelf pins.
4. Adjustable shelving line boring 1 1/4” centers.
5. Integral toe kick 3” deep, 4 1/2” tall,
3/4” frong toe board dowelled into sides.
6. 1/4” Back runs to floor.
7. 5/8” x 4 1/2” Fastener glued and dowelled.
8. 1/4” Back set in dado joints on side panels.
9. 3/4” Sides dowelled into 3/4” sides dowelled
into 3/4” top and bottom.
10. 3/4” Intermediate stretcher on 2 door cabinet
21 1/4” and wider.
11. 3/4” Floor dowelled into sides.
Notes:
• Vanity cabinets 9-21” wide will have single width door; specify hinge direction.
• Vanity cabinets 24” and wider will have 2 equal width ‘butt’ doors; reveal or gap between doors will be 1/8” (3mm) once
field adjusted.
• Toe kick is built as integral part of the cabinet; the side panels extend to the floor.
• Vanity cabinets 39” & 42” wide will include a 1 1/4” thick full center partition drilled for adjustable shelves on each side.
• Standard white, gray and optional maple melamine interior details – exterior sides and of base cabinets will be raw
particleboard unless factory finished ends are specified; all interior surfaces are white or optional maple melamine.
• Plywood option details - exposed sides and top of base cabinets will be unfinished plywood unless factory finished ends
are specified; all interior surfaces and shelves are clear coat finished plywood.
• Minimum depth of cabinet with drawer is 12”, without drawer is 4”
• CABINET DEPTH = 21”, INTERIOR DEPTH = 20-1/8”
DRAWER BOX DEPTHS (FRONT TO BACK):
• Access Drawer:
12-13 1/2” deep cabinets = 9” deep drawer box
14-16 1/2” deep cabinets = 12” deep drawer box
17-19 1/2” deep cabinets = 15” deep drawer box
20-22 1/2” deep cabinets = 18” deep drawer box
23-24” deep cabinets = 21” deep drawer box
• Satino Drawer:
12-13” deep cabinets = 10 1/2” deep drawer box
14” deep cabinets = 11 7/8” deep drawer box
15-16” deep cabinets = 13 3/4” deep drawer box
17-18” deep cabinets = 15 3/4” deep drawer box
19-20” deep cabinets = 17 3/4” deep drawer box
21-22” deep cabinets = 19 5/8” deep drawer box
23-24” deep cabinets = 21 5/8” deep drawer box
DRAWER BOX SIDE HEIGHTS:
• Access Drawer: 4” for standard top drawers,
8” for deep drawers.
• Satino Drawer: all drawers are 4”, deep drawer will have
an additional galley rail.

VANITY CABINETS
164 | Latitude - May 2018
Vanity | V
32” High x 21” Deep
• 1 full width drawer.
• Includes 1 adjustable shelf.
• 12” - 21” will have 1 full width door, specify hinge left or right.
• 24” - 36” will have 2 equal width doors.
32” HIGH
21” DEEP
V12
V15
V18
V21
V24
V27
V30
V33
V36
VANITY CABINETS

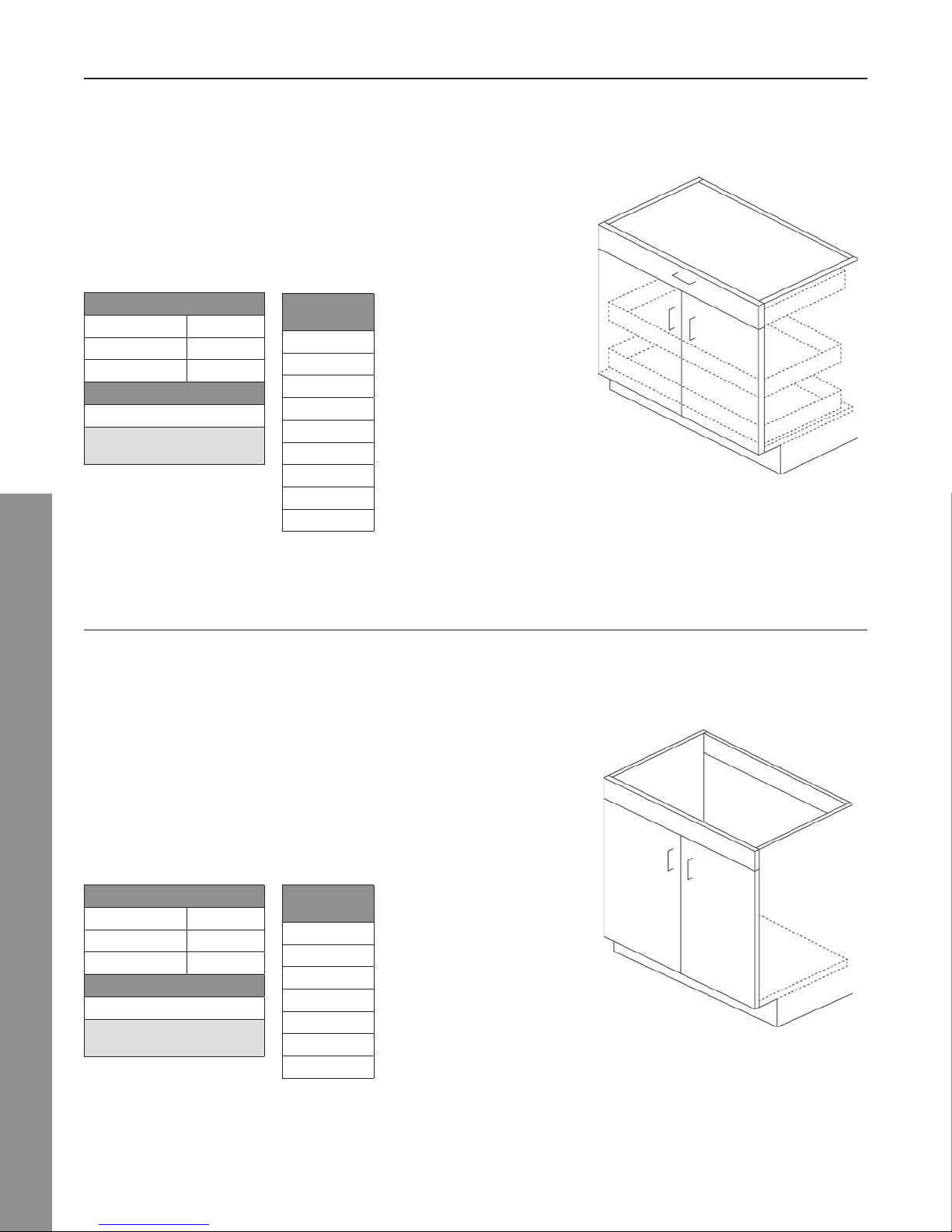

Vanity Roll-Out Drawers | VROD
32” High x 21” Deep
• 1 full width drawer.
• Includes 2 full width roll-outs.
• Roll-outs are full extension and soft close.
• 12” - 21” will have 1 full width door, specify hinge left or right.
• 24” - 36” will have 2 equal width doors.
32” HIGH
21” DEEP
VROD12
VROD15
VROD18
VROD21
VROD24
VROD27
VROD30
VROD33
VROD36
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 9”
Minimum Height 20-1/2
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 9”
Minimum Height 20-1/2
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.

VANITY CABINETS
Latitude - May 2018 | 165

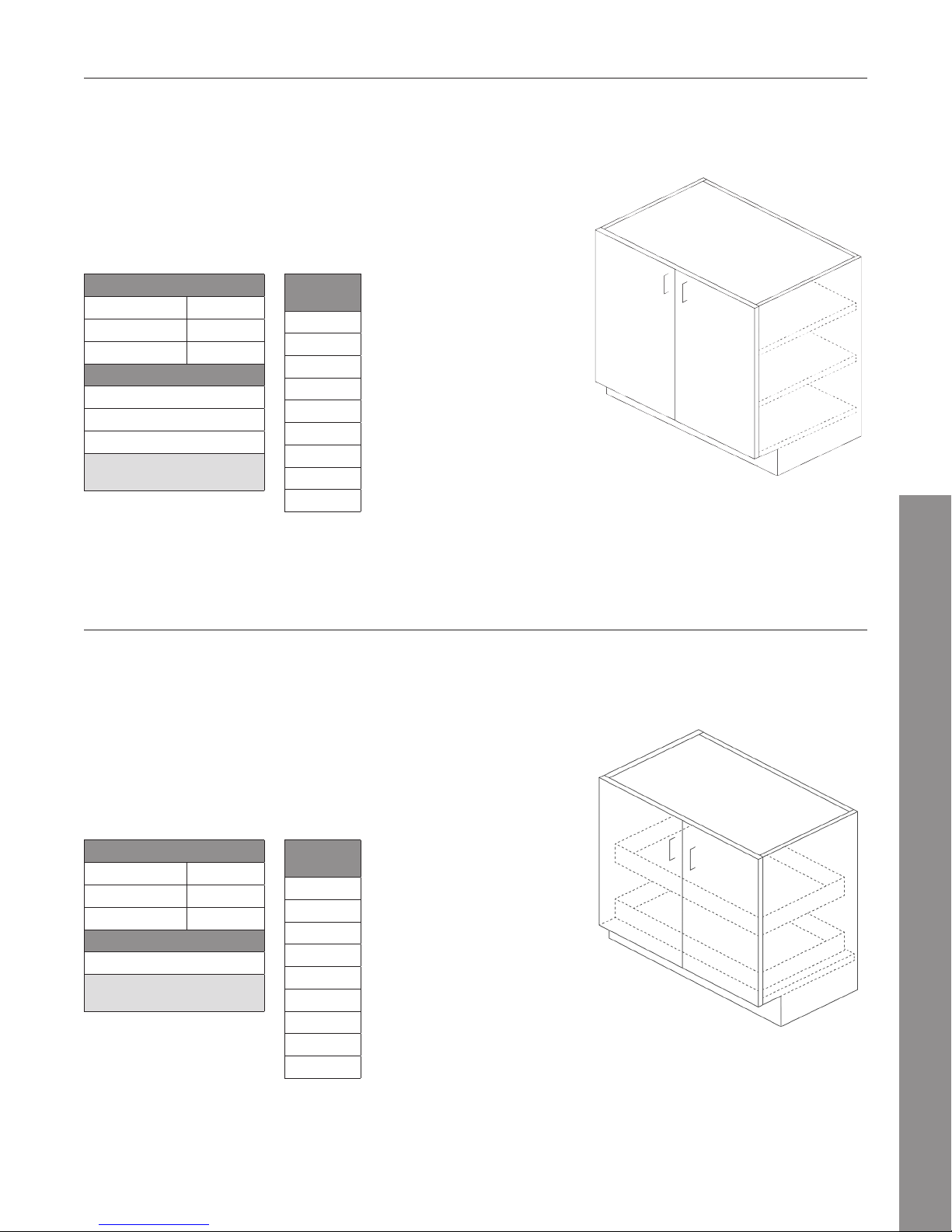

VANITY CABINETS
Vanity Full High Roll-Out Drawers | VFROD
32” High x 21” Deep
• Includes 2 full width roll-outs.
• Roll-outs are full extension and soft close.
• 12” - 21” will have 1 full width, full height door, specify hinge
left or right.
• 24” - 36” will have 2 equal width, full height doors.
32” HIGH
21” DEEP
VFROD12
VFROD15
VFROD18
VFROD21
VFROD24
VFROD27
VFROD30
VFROD33
VFROD36
Vanity Full High | VF
32” High x 21” Deep
• Includes 2 adjustable shelves.
• 12” - 21” will have 1 full width, full height door, specify hinge
left or right.
• 24” - 36” will have 2 equal width, full height doors.
32” HIGH
21” DEEP
VF12
VF15
VF18
VF21
VF24
VF27
VF30
VF33
VF36
MINIMUM SIZE
Minimum Depth 4”
Minimum Width 9”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
Finished Interior
Frame for Glass Door
Metal Frame Door
See Modifications for other available
mods and details.
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 9”
Minimum Height 20-1/2
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.

VANITY CABINETS
166 | Latitude - May 2018

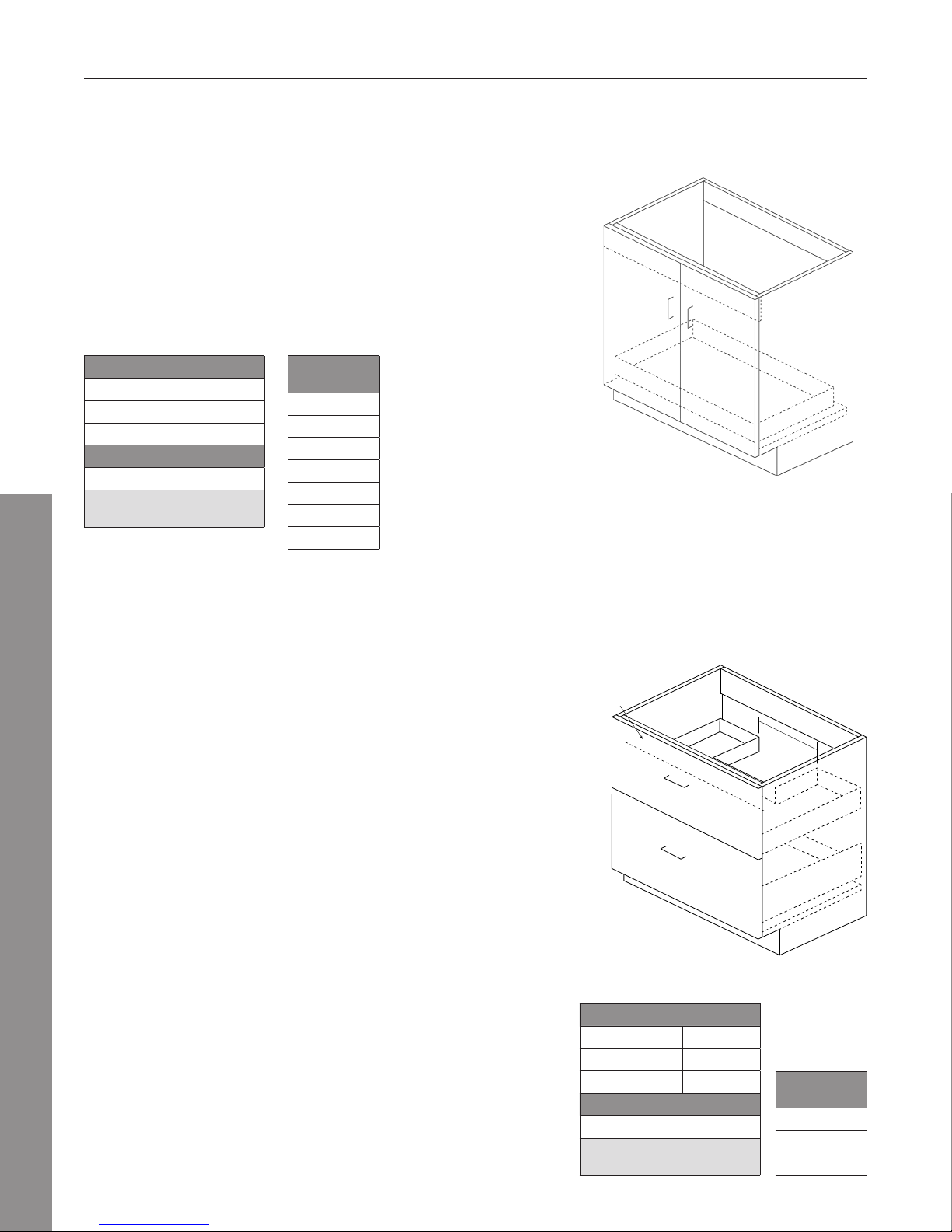

Vanity Sink | VS
32” High x 21” Deep
• 1 false drawer front.
• Full back.
• 18” and 21” models have 1 full width door, specify hinge left or right.
• 24” - 36” have 2 equal width doors.
Note:
• Factory Installed Sink Liner available for this cabinet. See Accessories.
32” HIGH
21” DEEP
VS18
VS21
VS24
VS27
VS30
VS33
VS36
VANITY CABINETS
Vanity Sink Roll-Out Drawer | VSROD
32” High x 21” Deep
• 1 false drawer front.
• Full back.
• Includes 1 full width roll-out.
• Roll-out is full extension and soft close.
• 18” and 21” models have 1 full width door, specify hinge left or right.
• 24” - 36” have 2 equal width doors.
32” HIGH
21” DEEP
VSROD18
VSROD21
VSROD24
VSROD27
VSROD30
VSROD33
VSROD36
MINIMUM SIZE
Minimum Depth 15”
Minimum Width 18”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
MINIMUM SIZE
Minimum Depth 15”
Minimum Width 18”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.

VANITY CABINETS
Latitude - May 2018 | 167

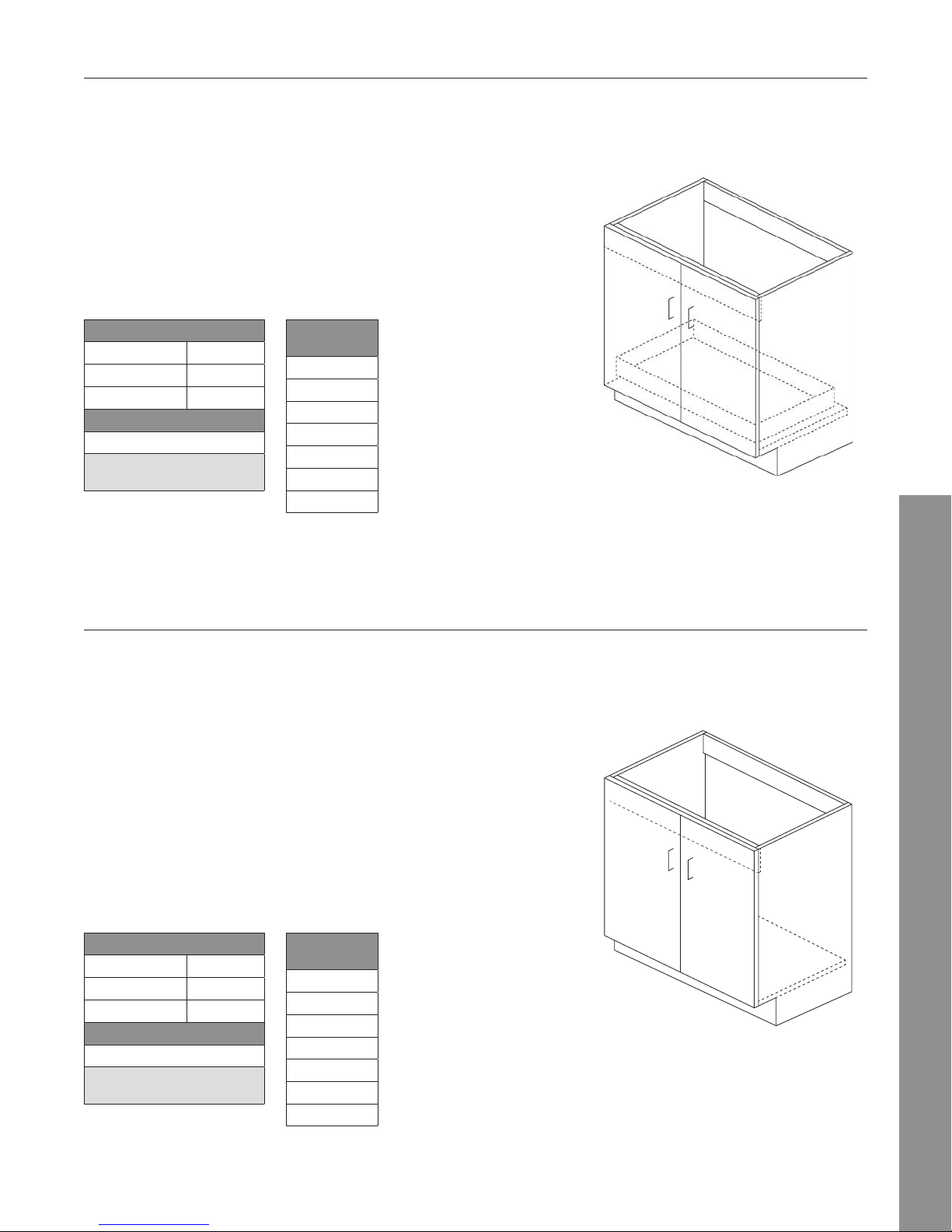

VANITY CABINETS
Vanity Full High Sink | VFS
32” High x 21” Deep
• Full back.
• 6 5/8” high sink fascia at top behind doors. Matches door material.
• 18” thru 21” widths have 1 full width door, specify hinge left or right.
• 24” - 36” have 2 equal width doors.
Note:
• Factory Installed Sink Liner available for this cabinet. See Accessories.
32” HIGH
21” DEEP
VFS18
VFS21
VFS24
VFS27
VFS30
VFS33
VFS36
Vanity Full High Sink Roll-Out Drawer | VFSROD
32” High x 21” Deep
• Full back.
• Includes 1 full width roll-out.
• Roll-out is full extension and soft close.
• 6 5/8” high sink fascia at top behind doors.
• 18” and 21” models have 1 full width door, specify hinge left or right.
• 24” - 36” have 2 equal width doors.
32” HIGH
21” DEEP
VFSROD18
VFSROD21
VFSROD24
VFSROD27
VFSROD30
VFSROD33
VFSROD36
MINIMUM SIZE
Minimum Depth 15”
Minimum Width 18”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
MINIMUM SIZE
Minimum Depth 15”
Minimum Width 18”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.

VANITY CABINETS
168 | Latitude - May 2018
VANITY CABINETS

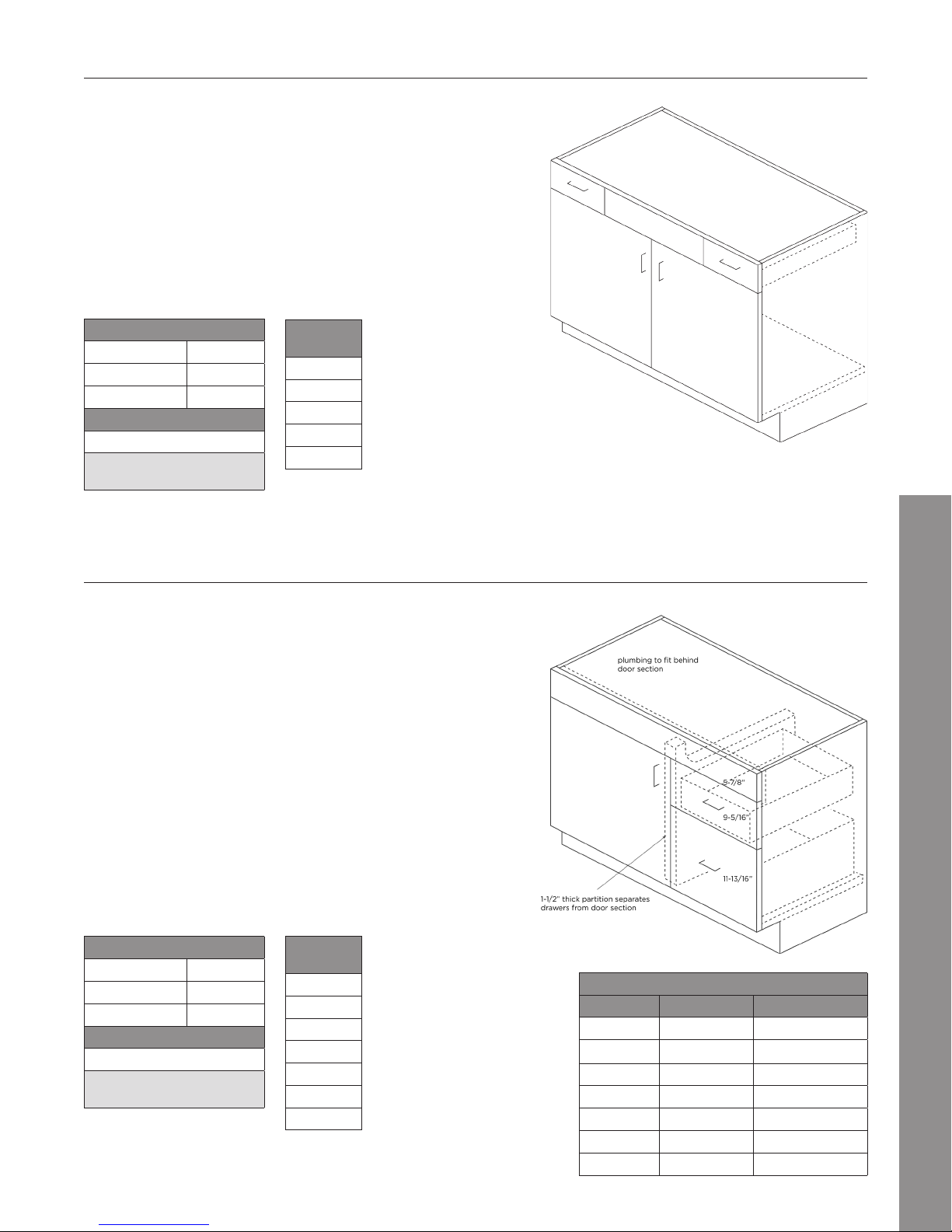

Vanity Sink Two Base Drawer | VS2BD
32” High x 21” Deep
32” HIGH
21” DEEP
VS2BD24
VS2BD27
VS2BD30
13-9/16”
13-9/16”
12”
6-5/8” fascia behind
top drawer face
• Sink base designed to provide clean continuous styling of deep
drawer cabinets.
• Drawer faces align with standard 2BD cabinets.
• Top drawer face connects to a ‘U’ shaped drawer to not interfere
with sink or plumbing and provide easy access to small cleanser
and bottle storage. 4” drawer side heights are used.
• The usable storage space is 4” in width,all three sections of the top
drawer. 6” clearance to the bottom of the fascia behind the drawer
face.
• 10” height clearance from top edge of top drawer to top of cabinet.
• Bottom drawer is a full drawer with 8” tall sides that angle down to
4” height in the back to clear plumbing. Usable storage height is
apprx. 10/1/2”.
• Clearance width for plumbing on top drawer is 12” .
• It is responsibility of designer to verify clearances needed to assure
a proper fit.
Note:
• Distance between legs of top drawer will be 12” on all vanity
cabinet widths.
Vanity Knee Drawer | VKD
6 1/8” High x 21” Deep
• Vanity desk drawer cabinet.
• Drawer front height – 5 7/8”.
• Cabinet box height – 6 1/8”.
• Solid top.
6 1/8” HIGH
21” DEEP
VKD24
VKD27
VKD30
VKD33
VKD36
MINIMUM SIZE
Minimum Depth 15”
Minimum Width 24”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 12”
Minimum Height No Mods
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.

VANITY CABINETS
Latitude - May 2018 | 169

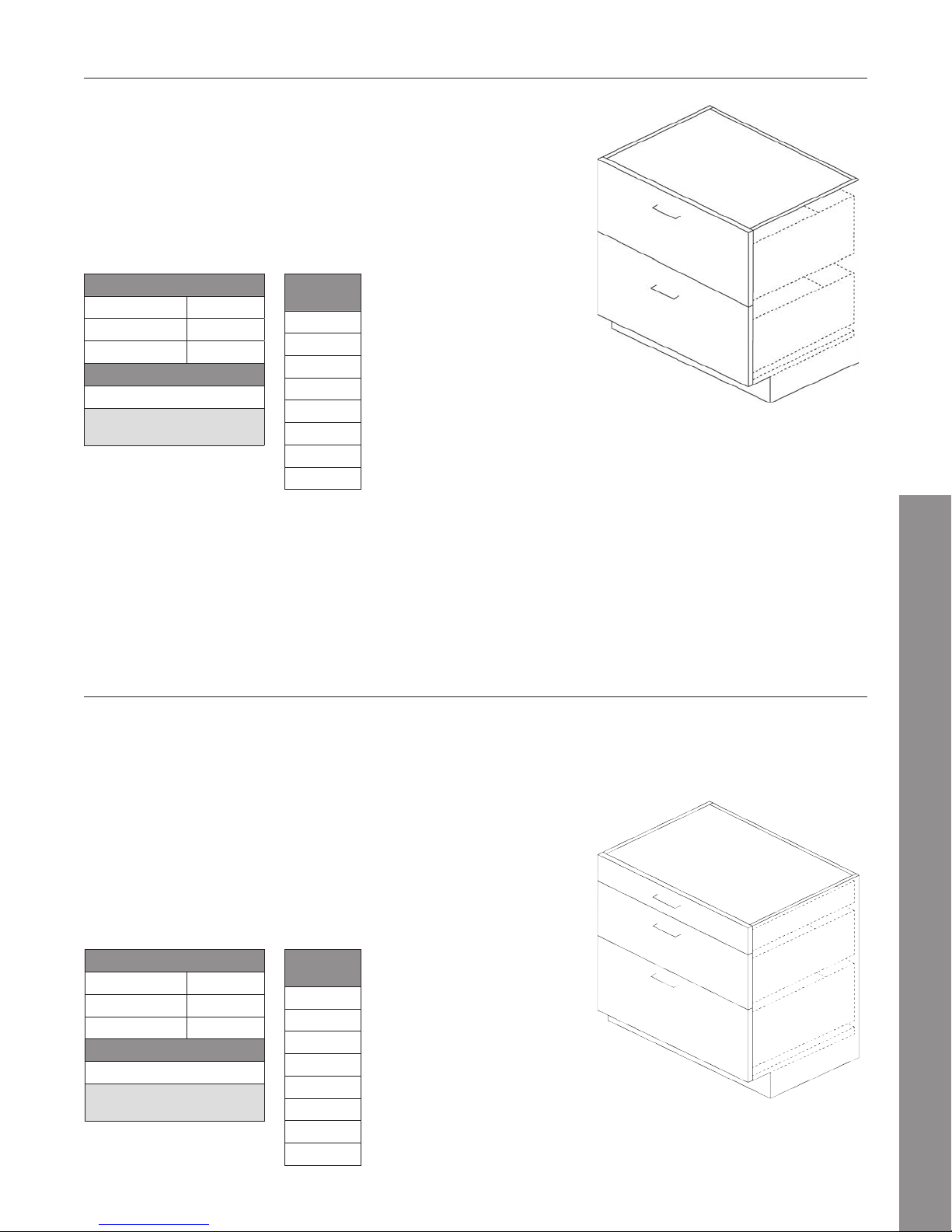

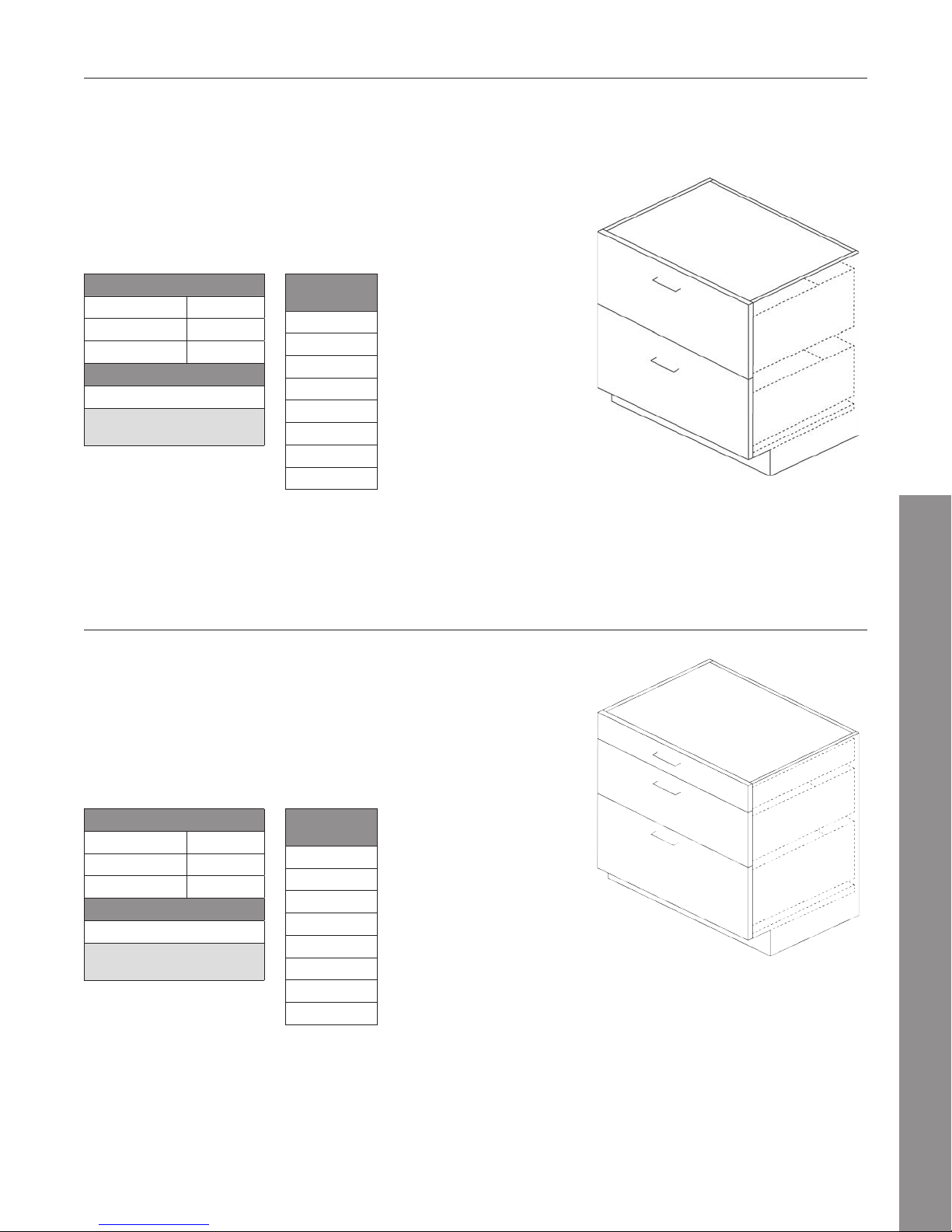

Two Vanity Drawer | 2VD
32” High x 21” Deep
• 12” - 24” will have 2 equal width drawers.
• Drawer Front Heights = 13 9/16”.
• Drawers are 8” tall side heights on Access drawer; Satino drawer will
have galley rails.
32” HIGH
21” DEEP
2VD12
2VD13.5
2VD15
2VD16.5
2VD18
2VD19.5
2VD21
2VD24
VANITY CABINETS
Three Vanity Drawer | 3VD
32” High x 21” Deep
• Top drawer front height – 5 7/8”.
• Second drawer front height – 9 5/16”.
• Third drawer front height – 11 13/16”.
Note:
• Satino drawer option- drawer side height is 4” on top and middle drawer;
bottom drawer will have 2 sets of galley rails for a total height of 10”.
32” HIGH
21” DEEP
3VD12
3VD13.5
3VD15
3VD16.5
3VD18
3VD19.5
3VD21
3VD24
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 9”
Minimum Height 20-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
13 9/16”
13 9/16”
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 9”
Minimum Height 28-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
9 5/16”
5 7/8”
11 13/16”

VANITY CABINETS
170 | Latitude - May 2018
VANITY CABINETS
• These vanity cabinets include a factory installed powered 120 V docking
station called ‘Docking Drawer’.
• Top Drawer Front Height: 5 7/8”.
• 3VDOI, 3BHVDOI - Middle Drawer Front Height: 9 3/8”.
• 3VDWHOI - Middle Drawer Front Height: 5 7/8”.
• Bottom Drawer Front Height: 11 13/16”.
• Docking Drawer is a UL approved purpose-built unit providing a safe and
clutter free solution for powering typical vanity devices (up to 20 amps)
such as curling irons and hair dryers.
• 3VDOI, 3BHVDOI - The Outlet Docking Drawer is factory installed into
the middle drawer. 3VDWHOI Outlet Docking Drawer is factory installed
into bottom drawer. All that is required on the job site is hardwiring from a
120 V source into the J-box (included) of the Outlet Docking Drawer unit,
which will be out of site, behind the drawer.
• Unit is ETL listed to UL962a & CSA-C22.2 standards.
• Built in circuit breaker.
• Two 120 V GFI AC outlets.
• 3VDOI, 3BHVDOI - The middle drawer box including the Docking Drawer
unit will be 15” deep instead of standard 18” drawer for 21” deep vanity
cabinets. This provides the clearance needed for the cord management
pivot arm. Pivot arm keeps power chord from binding as drawer is
opened and closed; tested to 500,000 cycles.
3VDWHOI - Same except bottom drawer box.
• Docking Drawer installed in left corner of drawer. Drawer can be removed
from cabinet by first removing face cover plate.
Outlet Docking Drawer Insert Vanity Cabinet | 3VDOI, 3BHVDOI, 3VDWHOI
24” HIGH
3VDOI15
3VDOI6.5
3VDOI18
24” HIGH
3BHVDOI15
3BHVDOI16.5
3BHVDOI18
24” HIGH
3VDWHOI15
3VDWHOI16.5
3VDWHOI18
• Standard 21” deep three
drawer vanity.
• Middle drawer will be 15”
deep.
• Outlet Docking Drawer
factory installed.
• Standard 21” deep BASE
HEIGHT three drawer
vanity.
• Middle drawer will be 15”
deep.
• Outlet Docking Drawer
factory installed.
• Standard 21” deep WALL
HUNG three drawer vanity.
• Bottom drawer will be 15”
deep.
• Outlet Docking Drawer
factory installed.
• Cover plate is black. Only the black
face plate and re-set button will show
inside the drawer, all other parts are
concealed behind the drawer.
MINIMUM SIZE
No Modifications
MODIFICATIONS AVAILABLE
No Modifications

VANITY CABINETS
Latitude - May 2018 | 171
VANITY CABINETS

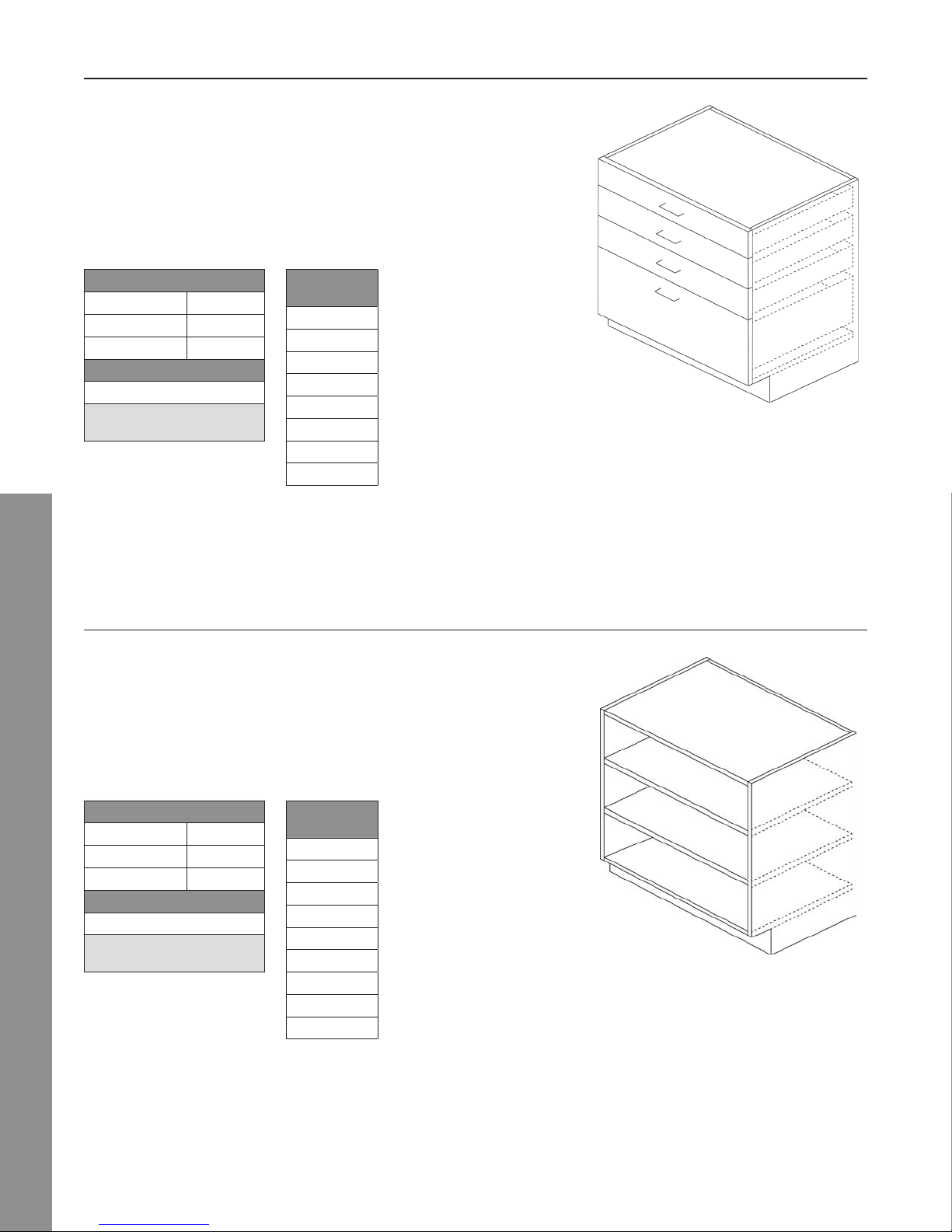

Four Vanity Drawer | 4VD
32” High x 21” Deep
• Top drawer front height – 5 7/8”.
• Second drawer front height – 5 7/8”.
• Third drawer front height – 5 7/8”.
• Fourth drawer front height – 9 5/16”.
32” HIGH
21” DEEP
4VD12
4VD13.5
4VD15
4VD16.5
4VD18
4VD19.5
4VD21
4VD24
MINIMUM SIZE
Minimum Depth 12”
Minimum Width 9”
Minimum Height 28-1/2”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
9 5/16”
5 7/8”
5 7/8”
5 7/8”
Vanity Open | VO
32” High x 21” Deep
• 3/4” material construction with finished interior and exterior.
• Two adjustable shelves included.
• Specify no charge factory finished ends if exposed side.
32” HIGH
21” DEEP
VO12
VO15
VO18
VO21
VO24
VO27
VO30
VO33
VO36
MINIMUM SIZE
Minimum Depth 4”
Minimum Width 9”
Minimum Height 10”
MODIFICATIONS AVAILABLE
No Modifications
See Modifications for other available
mods and details.
