Latte ICE Tab2 LV70D User manual

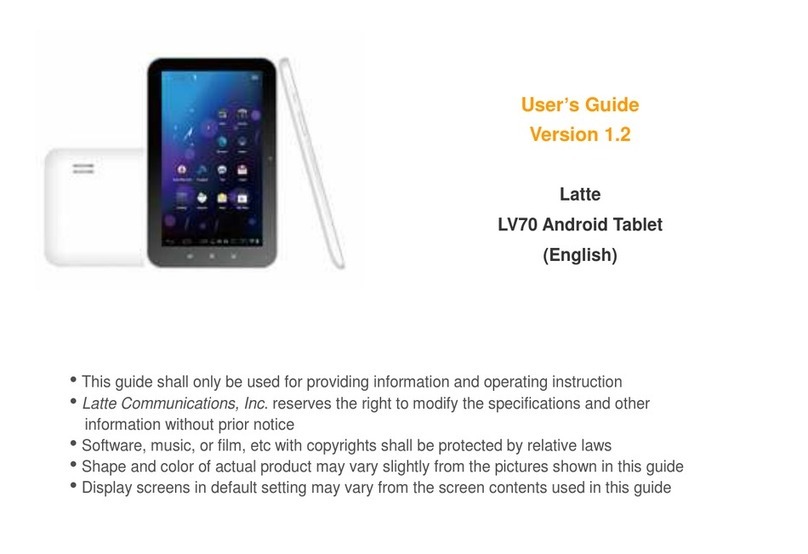

User’s Guide V. 1.2
Latte ICE Tab2 LV70D Android Tablet
• This guide shall only be used for providing information and operating instruction
• Latte Communications, Inc. reserves the right to modify the specifications and other
information without prior notice
• Software, music, or film, etc with copyrights shall be protected by relative laws
• Shape and color of actual product may vary from the pictures shown in this guide
• Screen in default setting may vary from the screen contents used in this guide

2
+ SAFETY PRECAUTIONS
• Do not use the tablet in extremely hot, cold, dusty or damp environments.
• Do not leave the tablet inside a car with all windows closed in summer
weather.
• Do not drop the tablet when using it. It might seriously damage the
components inside and crack the screen.
• Do not pull out the adapter cord or touch the power plug with wet hands.
• Do not use a damaged power cord, a damaged plug or a loose power
outlet.
• Do not disassemble, repair, or modify the tablet arbitrarily. These
actions will void the manufacturer’s standard warranty.
• When formatting the tablet or uploading/downloading files, do not
disconnect the tablet from the PC. This may damage files or the tablet itself.
• Do not visit unreliable websites.
• Delete suspicious messages and e-mails sent by unidentified senders.
• Install an anti-virus application and execute a virus check regularly.

3
+ CONTENTS
4 About LV70D
5 Main Specifications
6 Memory Partitions
7 Exterior
9Basic Operations
10 Charging
11 Turning On/Off
12 Unlocking The Screen
13 On Screen Buttons
14 Using Touch Screen
15 Moving Files from PC to LV70D
17 Wifi Connection
18 Home Screens
18 Changing your Wallpaper
18 Moving Icons
18 Removing Icons
19 Apps / Widget Screens
19 Accessing the Application
screen
19 Creating a Shortcut
20 Download Applications
21 Web Browsing
21 Opening a Browser
21 EnteringURL
22 Settings
23 Copy & Paste
24 System Settings
26 Language & Input
27 Managing Applications
28 Factory Data Reset
29 Extras
30 Important Tips
31 Legal
33 FCC Notification and Cautions
34 Contact Information

4
ABOUT LV70D
Main Specifications
Memory Partitions
Exterior

5
+ MAIN SPECIFICATIONS
• O/S: Android 4.2.2 Jelly Bean
• Screen: 7.0” HD TFT Capacitive Screen (1024 X 600, 16million colors)
• CPU: Dual Core Cortex A9 up tp 1.2Ghz (Built-in 3D accelerator)
• RAM: 1GB DDR3
• Connectivity: Wi-Fi (IEEE802.11 b/g/n)
• Video: 1080P HD Video support
MPEG-2, MPEG-4, H.264, WMV, MP4, RMVB, FLV, MKV
• Audio: MP3, WAV, WMA, ASF, APE, FLAC
• Photo: JPEG, BMP, PNG, TIFF
• Memory Expansion: External Micro SD card slot (Up to 32GB)
• Applications: Access to Google Play Store
• Others
• G-Sensor
• Built-in speaker and MIC
• Internet browsing, emails, eBook, documents, games, VOIP, etc

6
+ MEMORY PARTITIONS
Internal built-in memory on the tablet is split into 2 areas. This is a very
important concept to understand (this is an Android O/S memory structural
requirement)
• The system memory (Internal memory in Android: ~1GB):
This is the area where your downloaded applications will be stored by default
• The user memory (SD card in Android: total memory minus system
memory):
This is the area where you can store music, video or picture files. You can
also move downloaded applications from the system memory to the user
memory to free up the system memory
Note:
Please free up the system memory by moving files to the user memory. Once the
system memory is full, you can not download applications any more (See “Managing
Applications. Page 27)

7
+ EXTERIOR
Front

8
+ EXTERIOR
Back
Side

9
BASIC OPERATIONS
Charging
Turning On/Off
Unlocking The Screen
On Screen Buttons
Using Touch Screen
Moving files from PC to Tablet
WiFi Connection
Home Screens
Applications/Widget Screens
Downloading Applications
Web Browsing
Copy & Paste
System Settings
Language & Input
Managing Applications
Factory Data Reset

10
+ CHARGING
Please connect the included power adapter to your tablet. Fully charge your
tablet for about 4-5 hours before the first use.
Please charge the tablet in the following instances
• The battery icon is showing a low power level
• The player turns off automatically or turns off soon after restart
• The buttons and screen do not respond properly
Notes:
• The battery is a consumable part and the lifespan of the battery will decrease slowly
as you use the tablet over time
• Charging time will be longer if you use the tablet while you are charging

11
+ TURNING ON/OFF
• Turn on: Press and hold the power button. It will take up to 1 minute to
boot.
• Turn off: Press and hold the power button and follow the screen instruction
Note:
Press the power button shortly to turn on/off the screen (Stand-by mode)

12
+ UNLOCKING THE SCREEN
The tablet goes into a sleep mode after a set time of no operation. When you
are in the sleep mode, you will need to unlock the screen to activate your
tablet.
• Press the power button shortly
• When you see the standby screen, slide the lock icon sideway to unlock the
screen

13
+ ON SCREEN BUTTONS
There are 3 main buttons located at the bottom center of the screen: Back,
Home and Recent Apps.
• Back: Go back to the previous screen
• Home: Go back to the home screen. Hold and slide up to access
”Google Now”
• Recent Apps: Open a list of recent apps. Tap an app to open or swipe left
or right to remove the app from the list.
You can also tap the “Notifications” (Top left) / “Information” (Top Right)
areas to view various notifications and information
.

14
+ USING TOUCH SCREEN
Precautions before use
- Do not press the screen with a sharp object.
- The sensors may be damaged when they are pressed too hard or
excessive pressure is applied.
• Tapping: You can select or execute a function by tapping
a desired menu or item.
• Tapping and holding down: You can check available options
by tapping and holding down a desired menu/item/text or screen.
• Dragging: You can move the item you want to a desired location
on the screen by tapping and holding down the item.
• Enlarge/Reduce screen/images: You can enlarge/reduce the screen or
images by touching the screen with two fingers and dragging them
outwards to enlarge and inwards to reduce them. This is an essential
feature for some popular applications. Also you can zoom in and out by
double tapping a webpage, picture, or map.

15
+ MOVING FILES FROM PC TO TABLET
You can move files from/to the tablet and your PC easily via the USB cable.
1. Make sure the tablet is on
2. Connect the tablet to your PC via the included USB cable.
3. When successfully connected, you will see the new USB
connection notification in the notification area.
4. Tap the “USB connected” in the notification bar

16
+ MOVING FILES FROM PC TO TABLET
5. On the next screen, tap “Turn on USB storage”
6. The driver for the tablet should be automatically installed and the
tablet will be recognized as a removable disk by your PC
7. Open the removable disk on your PC and start moving files from/to
your PC and tablet
8. Once you are done, please tab the notification bar and select “Turn
off USB Storage” and make sure you turn off “USB Storage”
function before you start using the tablet again
9. Once the USB Storage function is turned off, you can disconnect
the USB cable.
Note:
If you use the tablet while the USB Storage function is on, the tablet can not access
the internal memory and can not use any internally stored files/Applications. Make
sure you turn off “USB storage” function before you start using your tablet

17
+ WiFi Connection
Internet and many other services can only used when the tablet connects
with a Wi-Fi Access Point (AP) or a free unsecured Wi-Fi hotspot.
You can change the Wireless network setting.
1. Tap the Wi-Fi setting under Settings to turn on/off Wi-Fi
2. The device will start searching for available Wi-Fi networks
3. Select the Wi-Fi network available to you (You will need to enter a
password for a secured Wi-Fi network)

18
+ HOME SCREENS
When you press the home button, the home screen appears. Swipe the
screen left or right to view all the screens.
• Changing the Wallpaper
1. Tap and hold on any open space on your home screen
2. A list of options will appear
3. Select the picture from “Gallery”, “Live Wallpapers” and
“Wallpapers” and set it as a wallpaper
• Moving Icons
1. Tap and hold an icon
2. Slide your finger to the new position (To move between Home
screens, slide toward the edge of the screen. To bump another
icon out of the way, slide slowly towards it)
3. Lift your finger to drop the icon into the new position
• Removing Icons
1. From the Home screen, tap and hold the icon
2. Drag it to the remove icon (X) and release your finger

19
+ APPLICATION / WIDGET SCREENS
This is the area where all your applications and widgets will appear. As you
download new applications, they will appear on the screens.
• Accessing the Application Screen
1. From any Home screen, tap the Application/Widget button on the
screen
2. Swipe left or right to view all applications in your device.
• Creating a Shortcut to the Home Screen
1. From the application screen, tap and hold an application/widget
icon
2. The shortcut of the application/widget will appear on the Home
screen

20
+ DOWNLOAD APPLICATIONS
You can download and install various applications/widgets
Download from “Play Store by Google”
1. Tap the “Play Store” icon
2. You will need to create a Gmail account if you do not have one
3. Log in to the Play Store using your Gmail account username and
password
4. Search or browse through categories for applications you want
5. Tap the application you want and follow the instruction on the
screen
Note:
There are more than 500,000+ applications in the store and growing. There are free
applications as well as paid applications. Not all Android devices in the market are
100% compatible with all of applications available. Please make sure to test a free
version of the paid applications to ensure they can run on this tablet before you
purchase applications.
