Latte LV70 User manual

User’s Guide
Version 1.2
Latte
LV70 Android Tablet
(English)
•This guide shall only be used for providing information and operating instruction
•Latte Communications, Inc. reserves the right to modify the specifications and other
information without prior notice
•Software, music, or film, etc with copyrights shall be protected by relative laws
•Shape and color of actual product may vary slightly from the pictures shown in this guide
•Display screens in default setting may vary from the screen contents used in this guide

2
English: 3-32
Español: 34-64

3
+ SAFETY PRECAUTIONS
•Do not use the tablet in extremely hot, cold, dusty or damp environments
•Do not leave the tablet inside a car with all windows closed in summer weather
•Do not drop the tablet when using it. It might seriously damage the components inside and
crack the screen
•Do not pull out the adapter cord or touch the power plug with wet hands
•Do not use a damaged power cord, a damaged plug or a loose power outlet
•Do not disassemble, repair, or modify the tablet arbitrarily. These actions will void the
manufacturer’s standard warranty
•Ensure that the battery is charged only with the original adapter included in the package
•When formatting the tablet or uploading/downloading files, do not disconnect the tablet
from the PC. This may damage files or the tablet itself
•Do not visit unreliable websites
•Delete suspicious messages and e-mails sent by unidentified senders
•Install an anti-virus application and execute a virus check regularly

4
+ CONTENTS
5 About LV70
6 Main Specifications
7 Memory Partition
8Exterior
9 Basic Operations
10 Charging
11 Turning On/Off
12 Unlocking The Screen
13 Buttons
14 Using Touch Screen
15 Moving Files from PC to ICE Smart
17 Downloading Applications
18 Home Screens
19 Changing your Wallpaper
19 Moving Icons
19 Removing Icons
20 Application Screens
21 Accessing the Application Screen
21 Creating a shortcut to Home Screen
22 System Settings
24 Wireless and Network
25 Language and Keyboard
26 Applications
28 Factory Reset
29 Extras
30 Real Tips from Inside Latte
31 Legal
32 FCC Notification and Cautions

5
ABOUT LV70
Main Specifications
Memory Partitions
Exterior

6
+ MAIN SPECIFICATIONS
•O/S: Android 4.0 Ice Cream Sandwich
•Screen: 7.0”TFT Capacitive Screen (800 X 480, 16million colors)
•CPU: Cortex A8 up tp 1.2Ghz (Built-in 3D accelerator)
•RAM: DDR3 512 MB
•Connectivity: Wi-Fi (IEEE802.11 b/g/n)
•Video: 1080P HD Video support
MPEG-2, MPEG-4, H.264, WMV, MP4, RMVB, FLV, MKV
•Audio: MP3, WAV, WMA, ASF, APE, FLAC
•Photo: JPEG, BMP, PNG, TIFF
•Memory Expansion: External Micro SD card slot (Up to 32GB)
•Applications: Access to Google Play Store
•Others
•G-Sensor
•Built-in speaker and MIC
•Internet browsing, emails, eBook, documents, games, VOIP, etc

7
+ MEMORY PARTITIONS
Internal built-in memory on the tablet is split into 2 areas. This is very important concept to understand
(this is an Android O/S memory structural requirements)
•The system memory, often called Internal memory in Android system (~1GB):
This is the area where your downloaded applications will be stored by default
•The user memory, often called SD card in Android system (~total memory 4GB/ 8GB /16GB
minus system memory): This is the area where you can store music, video or picture files. You can
also move downloaded applications from the system memory to the user memory
Please free up the system memory by moving files to the user memory. Once system memory is full,
you can not download applications any more

8

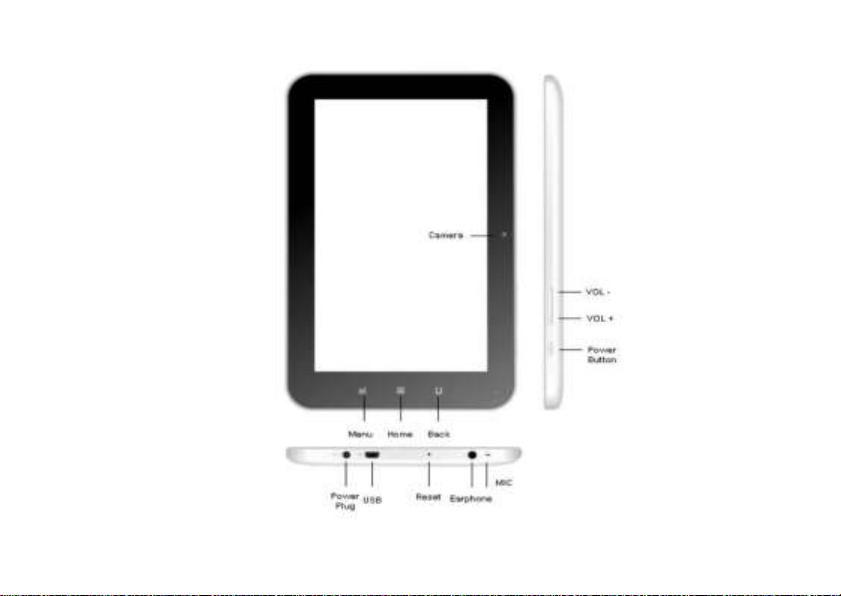

+ EXTERIOR

9
BASIC OPERATIONS
Charging
Turning on/off
Unlocking the screen
Buttons
Using touch screen
Moving files from PC to the tablet
Downloading applications
Home Screens
Application/Widget Screens
System Settings
Factory Reset

10
+ CHARGING
Please connect the power adapter to the tablet. It takes about 3-4 hours to be fully charged.
Please charge the tablet in the following instances
•The battery icon is showing a low power level
•The player turns off automatically or turns off soon after restart
•The buttons and screen do not respond properly
Notes:
•Only use the original power adapter included in the package. Using a power adapter
with wrong specifications might damage the tablet and will void the standard warranty
•The battery is a consumable part and the lifespan of the battery will decrease slowly as
you use the tablet over time
•Charging time will be longer if you use the tablet while you are charging

11
+ TURNING ON/OFF
•Turn on: Press and hold the power button. It will take up to 1-2 minutes to boot.
•Turn off: Press and hold the power button
Note:
Press the power button shortly to turn on/off the screen (Stand-by mode)

12
+ UNLOCKING THE SCREEN
The tablet goes into a sleep mode after a set time of no
operation. When you are in the sleep mode,
you will need to unlock the screen to restart.
•Press the power button shortly
•When you see the standby screen, slide the unlock icon
sideway to unlock the screen

13

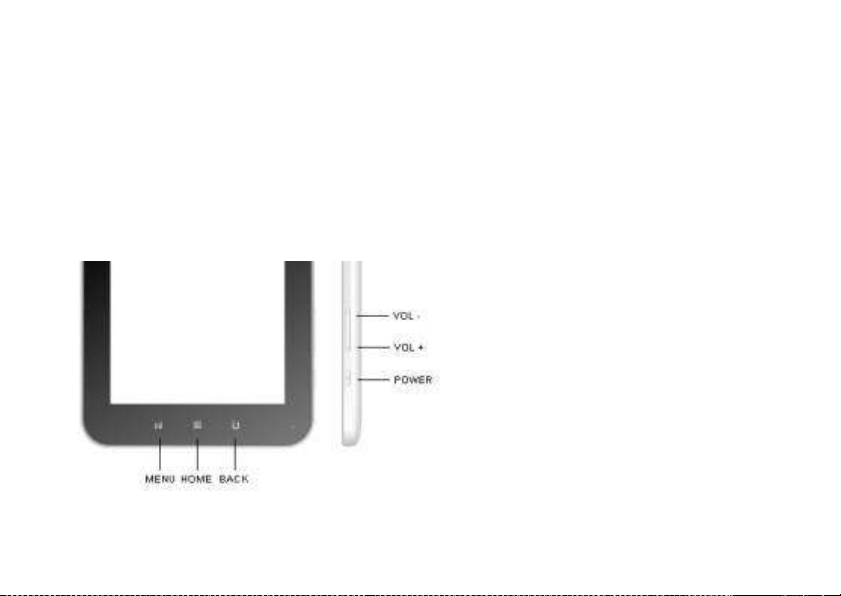

+ BUTTONS
There are 3 main buttons located at the bottom of the tablet: Previous Menu, Menu and Home.
•Previous Menu: On any screen, if you press this button, it will go back to the previous screen
•Menu: On any screen, if you press this button, it will pop-up a window with all available options for that
screen. If a pop-up window doesn’t show up, there are no available options for that screen
•Home: On any screen, if you press this button, it will go to the Home screen

14
+ USING TOUCH SCREEN
Precautions before use
-Do not press the screen with a sharp object.
-The sensors may be damaged when they are pressed too hard or excessive pressure is applied.
•Tapping: You can select or execute a function by tapping
a desired menu or item.
•Tapping and holding down: You can check available options
by tapping and holding down a desired menu/item/text or screen.
•Dragging: You can move the item you want to a desired location
on the screen by tapping and holding down the item.
•Enlarge/Reduce screen/images: You can enlarge/reduce the screen or
images by tapping the screen with two fingers and dragging them
outwards to enlarge and inwards to reduce them. This is an essential
feature for some popular applications

15
+ MOVING FILES FROM PC TO ICE SMART
You can move files from/to the tablet and your PC easily via the USB Cable.
1. Make sure the tablet is on
2. Connect the tablet to your PC with the USB cable.
3. When successfully connected, you will see the following screen

16
4. Tab “Turn on USB storage”button
5. Tab OK button when asked
6. Now the tablet will be recognized as a removable disk by your PC.
7. Simply open the window in your PC and start moving files from your PC to this window
8. After you finish, Press “Turn off USB storage” to disconnect the USB cable from the player

17
+ DOWNLOAD APPLICATIONS
You can download and install various applications/widgets
Download from “Play Store by Google”
1. Tap the “Play Store”icon
2. You will need to create a Gmail account if you do not have one already
3. Search or browse through categories for applications you want
4. Tap the application you want and follow the instruction on the screen
Note:
There are more than 150,000+ applications in the store and growing. There are free applications as well
as paid applications. Not allAndroid devices in the market are 100% compatible with all of applications
available. Please make sure to test a free version of the paid applications to ensure they can run on this
tablet before you purchase paid applications.

18
+ HOME SCREENS
When you press the home button, the home screen appears. Swipe the screen left or right to view all the
screens.

19
- Changing Your Wallpapers
1. Tap and hold an empty spot on your Home screen
2. A pop-up window will show
3. Select the picture you want and tap Set wallpaper
- Moving Icons
1. Tap and hold an icon
2. Drag it to the place where you want to have it
- Removing Icons from the Home Screens
1. From the Home screen, tap and hold the item you want to delete
2. Drag it to the remove icon (X) and release your finger

20
+ APPLICATION / WIDGET SCREENS
This is the area where all your applications and widgets will appear. As you download new
applications, they will appear on the screens.
