LCN LCN-MRS User manual

Multi-Room-System / audio crossbar
The Multi-Room-System LCN-MRS (Audio crossbar) is an external and flexible acoustic
solution.
It is ideally suitable for operation in hotels, in gastronomy, in conference halls, schools,
sport- and fitness centres. 8 different audio sources, such as CD players, sat-receivers and
radio channels can be distributed over 13 outputs. Any choice of assignment is possible.
The controls are carried out per LCN command over keypads or the visualization software
LCN-GVS.
Hardware layout:
·
·13 outputs [12 cinch, 1 optical]
·6 integrated power boosters
·Further connections: LCN + Ethernet
·integrated display for showing status
·Digital high-end equalizer
Scope of delivery
LCN-MRS, 3 pcs. connecting terminals, 1 pc. nut M6 & 1 pc. wire end-sleeve.
7 inputs [6 cinch, 1 optical] & internet-radio
LCN-MRS
Installation guide Local Control Network
1
®

Installation guide
Local Control Network
2
LCN-MRS
®
Function
·
·Boosting and cushioning all audio inputs
·Grouping (synchronising groups) possible
·Volume regulation and mute mode for audio outputs
·8 inputs and 13 outputs
·Volume and sound regulation for every output individually
·Emergency announcement (duty call) with priority for any output
Further information can be found in the LCN-MRS operating manual or the online help
in the LCN-PRO/-GVS.
Installation
The installation is carried out in a 19" rack.
The supply lines to the speakers should have a cross section between 0,75-2,5 mm². The
cable length should not exceed 50m. Even electrical acoustical audio equipment with
100V speakers can be connected.
Switching asymmetrical stereo-audio signals

3
Installation guide Local Control Network LCN-MRS
®
Display
The display on the LCN-MRS
informs over the actual status of the
LCN-MRS. The values of the outputs
(volume & chosen source), equalizer
settings and diagnostics
information can be shown
selectively.
It is possible to change the
betwe en t he d iff er en t
notifications using the key on
the top right.
When the LCN-MRS is
switched on from standby,
or just been supplied with
power, the internet radio has to
reboot, which takes around 1 minute.
After that the diagnostics screen will
be refreshed.
Vol: 33
Output
1
2
3
4
5
status
equalizer
Input
7
0
7
0
0
Volume
15
33
19
0
0
Filter
6-Band EQ
6-Band EQ
6-Band EQ
6-Band EQ
6-Band EQ
16k
Filter type: 6 band equalizer IN: web radio
Vol: 33
20 50 100 250 1k 4k
20
10
-20
-10
0
output 2
Ch.-
Ch.+ diagnosis
diagnostic
status
IP: 192.168.100.4
GW: 192.168.100.1
SMask: 255.255.255.0
56°C
refresh

Installation guide
Local Control Network
4
LCN-MRS
®

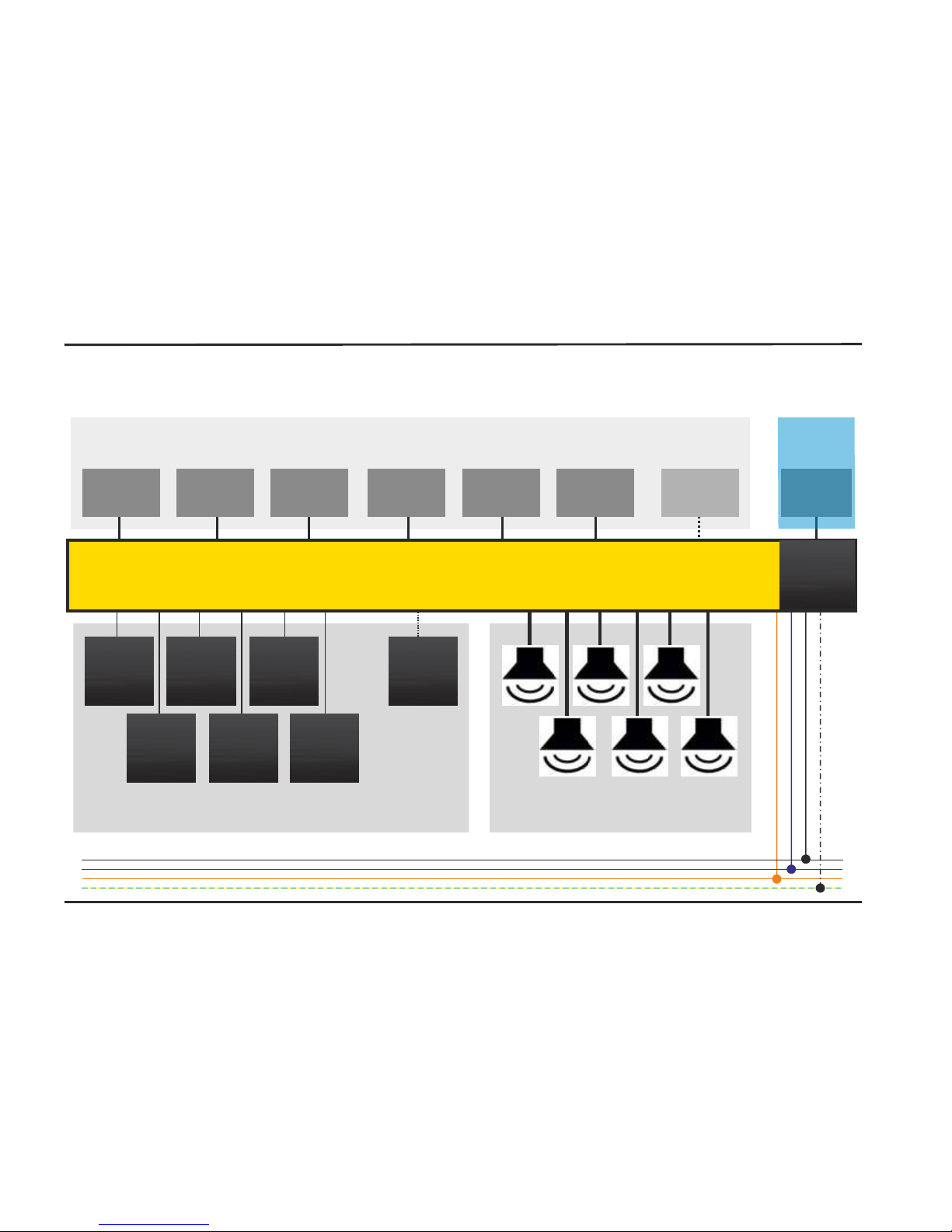

8 inputs: 6 x cinch, 1 x optical, 1 internet radio
13 outputs: 12 x cinch,1 x optical 6 stereo boosters
SPDIF
OUT
sound
system
AV
receiver
active
speakers
sound
system
AV
receiver
SPDIF
IN
3
source
source
12
source source
6
4
source
5
source
active
speakers
D
L
N
PE D
L
N
PE
Source control + speaker management
LCN-MRS
ethernet
INTERNET
RADIO

5
Installation guide Local Control Network LCN-MRS
®

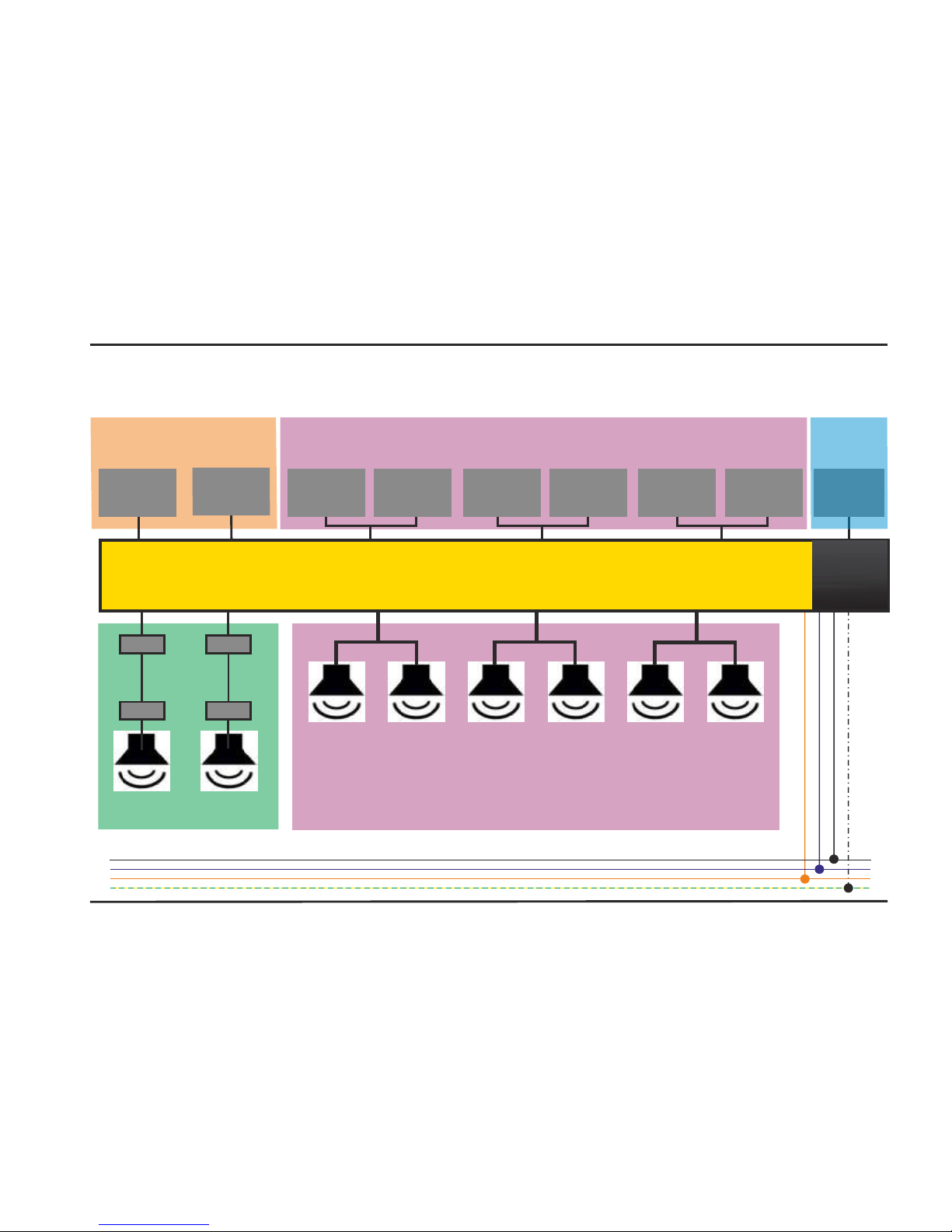

further application possibilities
Dolby 5.1 system
source 1
D
L
N
PE D
L
N
PE
100V
technic
all outputs in a synchronized group
Dolby 5.1 system
back
left bass
back
right
front
right
centre
class 1a class 1b
front
left
LCN-MRS
INTERNET
RADIO
Quelle
1 2source
transf.
transf. transf.
ethernet
source
bass
8 source
front l.
7 6
front r.
source
4
back r.
source 3
back l.
source 5
centre
source
transf. transf.

Installation guide
Local Control Network
6
LCN-MRS
®
Putting into operation
Requirements: The
and can be parameterized over the menu for the I-Port. You will find the LCN-MRS
configuration under Ports > I-port > LCN-MRS.
The firmware in the LCN-GT4D/-GT10D must have at least version 6.x to be able
to show the dynamic text.
Settings: The following points should be preset
LCN-MRS will be recognized as a module with an LCN-PRO version 5
Note:
Please be aware, that a larges amount of telegrams could be sent when switching
over the sources, especially when more than one output channel is located in a
synchronized group. To avoid losing status messages, it is recommended to lock
the keys during the time that the status messages are being sent.
: Name of the inputs & outputs, equalizer,
maximal volume of the outputs and the synchronized groups.
Internet radio
To change the channels in the internet radio, you must enter the IP address of the LCN-
MRS into the address line of the web browser (e.g. Firefox). The website of the internet
radio will then open. Now a channel can be erased or added. To do this, you must copy the
link of the livestream into the domain “Add”. Further information can be found in the
operating manual of the LCN-MRS.

7
Installation guide Local Control Network LCN-MRS
®
Technical data
Assembly
dimensions
operating temperature: 0°C bis +40°C
air humidity: max. 80% rel., non condensing
environmental conditions: use as in installation according to VDE632, VDE637
protection art: IP 20
installation: installation in a 19" insertion
(B x H x T): 482,6mm (19") x 90mm x 245mm (280mm mit grips)
Rear side view
In5In6
Out10 Out9 Out6 Out5 Out2 Out1
Ethernet
SPDIF
In Out Power
D L L N N
In1In2Out1Out2Out3Out4In3In4Out5
Out6Out7Out8
Out10Out11Out12 Out9
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
outputs
(cinch)
outputs
(cinch)
outputs
(cinch)
ethernet
(RJ45)
earth
(PE)
(M6)
optical
in-/outputs
(SPDIF / Toslink)
230V AC &
data wire
(WAGO Picomax)
power outputs
6 pcs. stereo
(WAGO picomax)
inputs (cinch)

ISSENDORFF KG, 31157 Sarstedt
LCN-MRS D06/2014
8
Installation guide
Local Control Network
LCN-MRS
®
connection
power supply
power consumption: max. 400W, high efficiency factor through class-D
booster
power consumption standby: <2W
LCN-connection: native LCN connection
terminals/wire type (supply side): WAGO Picomax 0,2 - 2,5mm² for one core wire
and fine wire with wire end-sleeves
terminals/ (audio out booster): WAGO Picomax 0,2 - 2,5mm² for one core wire
and fine wire with wire end-sleeves
terminals/wire type (audio out): cinch
terminals/wire type (audio out): cinch
outputs: 13 outputs (12 cinch, 1 optical) additionally
6 integrated boosters with each 2x80W on 4Ω
(0.03% THD+N, 20Hz – 20kHz) all with 6 band
equalizer for each stereo output
inputs: 7 inputs (6 cinch, 1 optical)
1 ethernet RJ45 (for internet radio)
: 230V AC 15%, 50/60Hz±
Technical data
Technical information and images are non binding. Changes are reserved.
Technical hotline: [phone] or www.LCN.de
