FEATURES & GETTING STARTED:

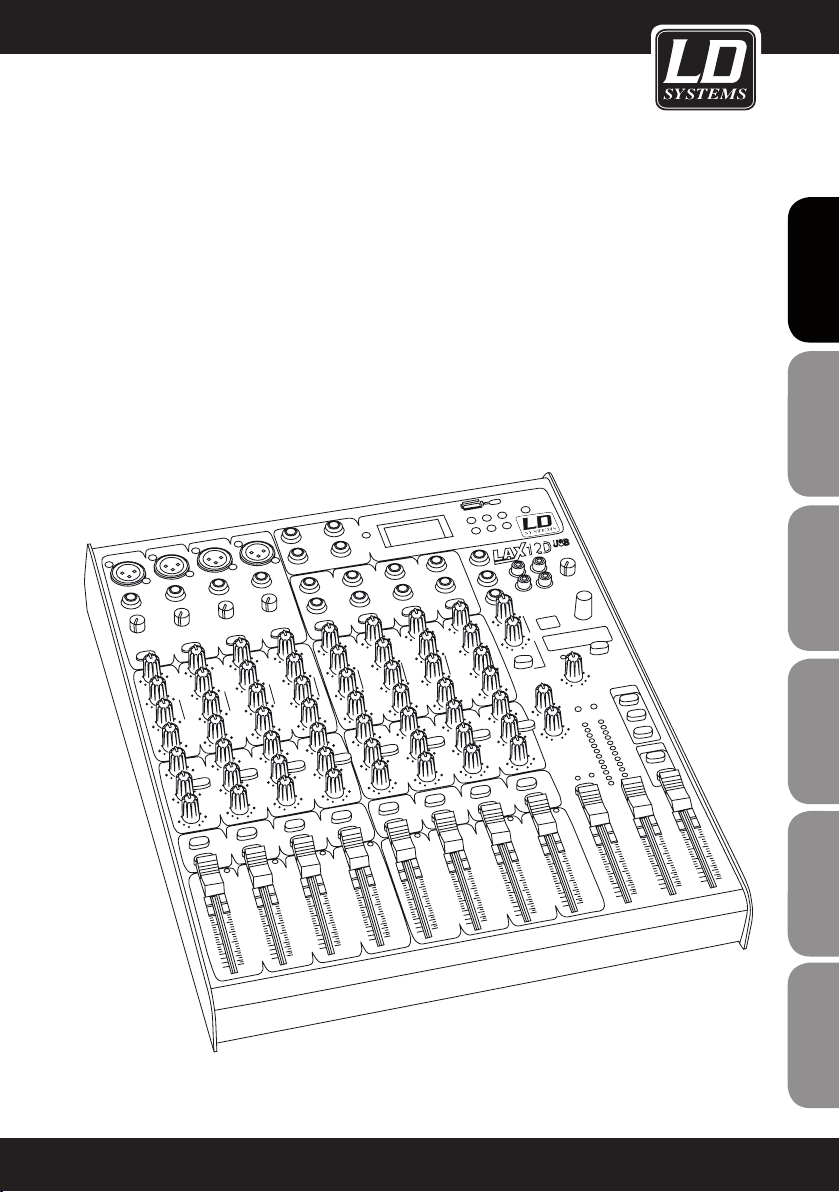

INTRODUCTION
Thank you for choosing this LD Systems audio product. The LAX12D is a professional compact mixer. It's
smooth, natural sound and precise reproduction make it ideal for gigs, recording, and fixed PA installations. The
LAX12D offers some features that are not often found in this price class. The mono channels stand out because
of their ultra-low-noise microphone preamps with +48V phantom power. In addition, all channels are equipped
with warm and natural sounding equalizers: the mono channels have 3-band EQs (MID: with adjustable centre
frequencies), the stereo channels with 4-band EQs with fixed centre frequencies. Moreover, the LAX12D has a
highly precise (12-segment) level meter, 2-track inputs that are assignable to both the main mix outputs and
the phones/control room outputs, and much more. In addition, the integral 24-bit effects processor provides 100
effects presets. The LAX12D mixer is extraordinarily easy to use. Nevertheless, we recommend that you read this
manual carefully before using the product for the first time. This will enable you to get the most out of your mixer.
FEATURES
The LAX12D mixer was developed for professional applications and offers the following features:
• MIC input channels with gold-plated XLR connectors and balanced line inputs
• stereo input channels with balanced TRS jacks
• ultra-low-noise, discrete MIC preamps with +48V phantom power
• High headroom and dynamic range
• mono channels with inserts
• switchable low-cut lter on each mono channel
• +4dBu/-10dBV selector on each stereo channel
• warm and natural sounding 4-band (xed-frequency) EQ on each stereo channel
• 3-band EQ (MID: adjustable centre frequency, 100 Hz – 8 kHz) on each mono channel
• peak LED on each channel
• mute/Alt3-4/solo function on each channel
• 2 AUX returns as additional inputs
• control room and phones outputs
• 2-track inputs assignable to main mix outputs and phones/control room outputs
• highly precise (12-segment) level meter
• integral 24-bit effects processor
• 100 effects presets
• effect bypass function via MUTE switch or footswitch (available optionally, connects to DFX FOOTSWITCH jack)
5
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

FEATURES & GETTING STARTED:
• Before plugging in your LAX12D mixer, make certain that the available AC voltage is suitable for your device.
• Make certain that the mixer is turned off before connecting it to the mains power, and set all controls to "zero".
This will avoid damage to your speakers due to loud power-on noise and high levels.
• Always turn on the mixer rst and then the power amplier. When powering down, the sequence is reversed:
First turn off the power amplifier and then the mixer.
• Always turn off the LAX12D mixer before connecting cables.
• Do not use solvents to clean the LAX12D; use a clean, dry cloth. When powering down, the sequence is
reversed: First turn off the power amplifier and then the mixer.
• Always turn off the LAX8D mixer before connecting cables.
• Do not use solvents to clean the LAX8D; use a clean, dry cloth.
6
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

CONTROL ELEMENTS:

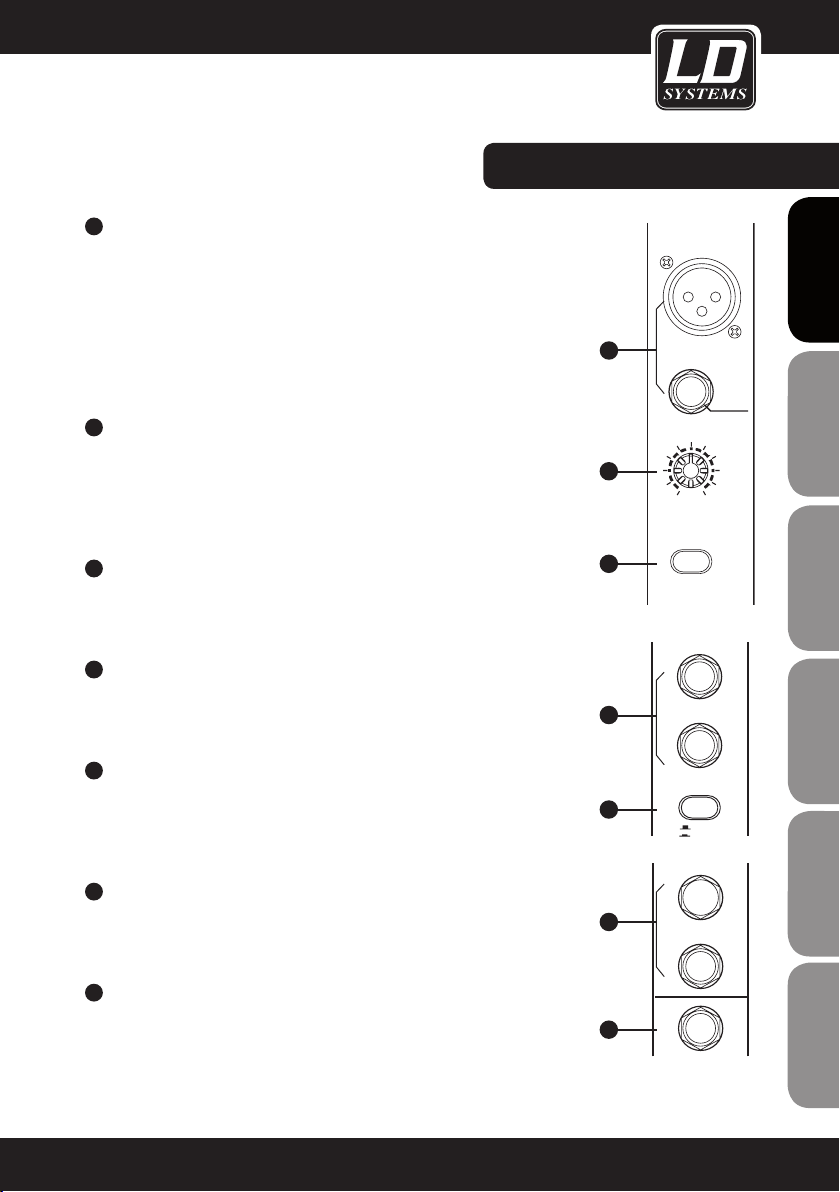

1MONO CHANNELS (MIC/LINE)
The mono channels offer balanced XLR connectors for low-impedance micro-
phones and other low-level equipment. In addition, there are 6.3 mm TRS jack
input connectors for microphones and line level equipment (e.g., synthesizers,
drum computers, effects processors, etc.). Important: The MIC and LINE inputs
cannot be used simultaneously on the same channel. +48V PHANTOM POWER
The XLR inputs on the mono channels provide +48V phantom power for con-
denser microphones. Important: Never connect a microphone without phantom
power to the XLR input when phantom power is on.
2INPUT GAIN ADJUSTMENT
The input gain control has two different scales: one for microphones and one
for line level devices. The outer ring (0 ~ 44 dB) refers to microphones, the
inner one (+15 ~ -30 dB) to line level devices. Always adjust the gain control
so that the peak LED above the channel fader lights up only occasionally. If the
LED is on constantly, this can lead to distortion.
3LOW CUT FILTER
The LOW CUT button activates a low cut lter (75 Hz, slope 18 dB/octave) for
reducing low-frequency noise such as mains hum or handling noises from
vocal microphones.
4STEREO CHANNELS
The stereo channels are configured as stereo pairs with 6.3 mm TRS jack
input connectors. Mono signal sources should be connected to the left jack
input connector.
5+4dBu/-10dBV SELECTOR
The line inputs of the stereo channels have a button for selecting the input
sensitivity (+4 dBu for professional audio equipment, -10 dBV for general hi-
devices, etc.). If you are uncertain which setting to use for the respectively
connected device, rst try +4 dBu. If the level is too low, switch to -10 dBv.
6AUX SENDS
These 6.3 mm TRS sockets can be used to split the signal and send it additio-
nally to external effects processors or the like. In addition, these outputs can
be used as submix outputs.
7PHONE
Headphones for monitoring the output signal (MAIN MIX) can be connected to
this TRS socket.
1
2
3
4
6
5
7
LINE IN 1
BAL OR
UNBAL
LINE
MIC
+15dB -25dB
0dB 40dB
LOW CUT
75Hz 18dB/Oct
MIC 1
LINE IN 19/20
+4dBu
-10dBV
LEFT(MONO)
RIGHT
AUX SENDS
1
PHONE
2
7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

CONTROL ELEMENTS:
8
10
11
12
14
17
9
13
15
16
18
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
KAEPKAEP
OO O
O
EQUALIZER
The mono input channels of the LAX12D are equipped with 3-band
equalizers (HI/MID/LOW; MID: with adjustable centre frequencies), the
stereo channels with 4-band EQs with fixed centre frequencies (HI,
HI-MID, MID-LOW and LOW). The boost/cut range is +/-15 dB.
8HI
This knob is used to control the high frequencies. You can use it to
add more brilliance and presence to the corresponding signal or
attenuate undesirably loud high frequencies (boost/cut range -15
dB to +15 dB, centre frequency 12 kHz).
9MID
This knob is used to control the midrange frequencies. These are
the most important frequencies for musical instruments and the
human voice (boost/cut range -15 dB to +15 dB). The FREQ knob
is used to set the centre frequency that is to be boosted or cut
(100 Hz to 8 kHz).
10 HI-MID
This knob is used to control the hi-mids, which are slightly higher
than the frequencies covered by the MID EQ. This provides even
greater flexibility when it comes to equalization of the important
midrange frequencies.
11 MID-LOW
This knob is used to control the mid-low frequencies (boost/cut
range -15 dB to +15 dB, centre frequency 500 Hz).
12 LOW
This knob is used to control the low frequencies. You can use
it, for example, to boost a bass drum, bass guitar or male voice
(boost/cut range -15 dB to +15 dB, centre frequency 80 Hz).
13 AUX SEND CONTROLS
These two knobs are used to adjust the level of the signals sent
to AUX buses 1 and 2. This does not affect the MAIN MIX output
signal. AUX 1 can be configured as PRE or POST fader using the
PRE/POST button. In the POST position (button not pressed) the
signal is sent after the channel fader, meaning that the volume set
for this channel also affects the AUX 1 signal. In the PRE position
(button pressed), the signal is sent before the fader, so that the
channel fader does not affect the AUX 1 signal. AUX 2 is a "post
fader" path.
8
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

14 PAN/BAL
The mono channels of the LAX12D have panorama (PAN) controls and the stereo channels have balance
(BAL) controls, both of which are used to distribute the signal to the right and left output channels.
15 MUTE/ALT3-4
Each of the channels of the LAX12D has a MUTE/ALT3-4 switch. This switch can be used to send the signal
of the respective channel to the ALT3-4 output.
16 SOLO
The SOLO switch lets you hear only the signal of the channel for which the solo function is activated (button
pressed) without the other channels. The SOLO switch is especially useful for adjusting input levels (gain
adjustment) and as a "preview" option for monitoring the respective signal.
17 PEAK LED
All channels of the LAX12D are equipped with a peak LED for monitoring the respective audio signal. If the
peak LED lights up (6 dB below the actual clipping threshold), this means that the signal is peaking and
distortion may ensue.
18 CHANNEL FADER
This fader controls the overall volume of the respective channel, i.e., the level at which the signal is sent to
the main mix.
19 2-TRACK IN/OUT
TAPE IN: Use the TAPE IN input to connect a tape recorder or DAT recorder. Press the 2TK IN button on the
front panel to send the signal coming from the connected device to the PHONES/CONTROL ROOM output or
the 2TK TO MAIN MIX button to send it to the MAIN MIX output. TAPE OUT: The mix can be output to a tape
recorder via these cinch (RCA) connectors. 2TK IN CONTROL: This control is used to adjust the level of the
2TK IN signal, which can be varied from ∞ to MAX.
CONTROL ELEMENTS:
9
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

20 STEREO AUX RETURNS
These 6.3 mm jack (TRS) sockets are primarily used to return the audio signal from an external effects processer
to the mixer (MAIN MIX). In addition, these connectors can be used as additional AUX inputs. Note: If no connector
is plugged into Aux Return 2, the signal of the internal effects processor is present on Aux Return 2.
LEFT
LEFT(MONO)
RIGHT
STEREO AUX RETURNS
2
1
RIGHT
TAPE IN TAPE OUT
2-TRACK IN/OUT
MAX
2TK IN
R
L
20 19
CONTROL ELEMENTS:
10
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

21 AUX RETURN CONTROL
This control is used to adjust the return levels of AUX
paths 1 & 2, whereby the signals are added to the L/R
MAIN MIX.
22 EFX TO AUX 1
This switch routes the signal that is present at AUX
RETURN 2 to the AUX 1 output so that the effects
can also be heard in the monitor mix - which proves
extraordinarily helpful in practice.
23 AUX SEND CONTROLS
These controls adjust the master AUX SEND level (-∞
to +15 dB). This makes it possible to boost the AUX
signals by up to 15 dB if necessary.
24 LED LEVEL METER
The stereo level meter (12 segments) is used to
monitor the level of the output signal.
25 SOLO MODE BUTTON & SOLO LED [25]
These buttons are used to toggle between the
two solo modes PFL (pre-fader listening, button
not pressed) and AFL (after-fader listening, button
pressed).
In PFL mode, the signals of the channels that have
been switched to SOLO are sent pre fader, i.e., the fa-
der position (channel volume) does not influence the
solo signal. In AFL mode, the signals of the channels
that have been switched to SOLO are sent post fader
plus panorama control – which, although it is above
the channel fader, comes after the fader in terms of
circuitry. In this mode, the position of the channel
fader and the panorama control also influences the
solo signal. Note: The SOLO mode selection (PFL/AFL)
does not have any affect until at least one channel
has been switched to solo mode. In this case, the
SOLO ACTIVE LED is also illuminated.
26 ALT3-4 FADERS
These faders are used to control the level of the ALT
output (control range -∞ to +10 dB).
AUX RTN 1
8
-
0
+15
2
AUX RTN 2
8
-
0
+15
EFX TO AUX 1
AUX SENDS
2
8
-
0
+15
SOLO
ACTIVE
SOLO MODE
LEVEL
SET
PFL
AFL
-2
0
-4
-7
-10
-20
+2
-30
OUTPUT LEVEL
LR
ALT 3-4
2TK
CLIP
+10
+7
+4
2TK IN
ASSIGN
TO MIX
MAIN MIX
LEVEL

10
dB
-5
-10
-15
-20
-30
-40
-60
0
5

10
dB
-5
-10
-15
-20
-30
-40
-60
0
5

10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
ALT 3-4
1
PWRPHANTOM
MAIN MIX
ALT 3-4
CTR ROOM
SOURCE
+15
0
PHONES
CONTROL ROOM
10
+15
8
-
RIGHT
LEFT
DFX MUTE
PEAK/MUTE
PROGRAM (PUSH)
00-09 Echo
10-19 Echo +Verb
20-29 Tremolo
30-39 Plate
40-49 Chorus
FUNCTION
50-59 Vocal
60-69 Rotary
70-79 Small Room
80-89 Flange+Verb
90-99 Large Hall
DFX
8
-
88
21
22
23
24
25
26
27
28
29
30
31
32
33
CONTROL ELEMENTS:
11
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

27 MAIN MIX LEVEL
These two faders are used to control the level of the signals sent to the L/R MAIN MIX and TAPE OUT outputs.
28 TK TO MAIN MIX
When this button is pressed, the 2-TRACK IN signal is sent to the MAIN MIX output.
29 ALT3-4 TO MAIN MIX
When this button is pressed, the ALT3-4 signal is sent to the MAIN MIX output and added to the output signal.
30 CONTROL ROOM SOURCE
These buttons are used to determine which signal is heard via the monitor speakers or headphones: MAIN
MIX, ALT 3-4, 2TK IN. Please note that these buttons are inactive in solo mode. If the selected signal cannot
be heard after the CONTROL ROOM SOURCE buttons are pushed, please first check whether the solo mode
has been activated in one of the channels.
31 PWR LED (POWER)
This LED indicates that the mixer is on.
32 PHANTOM LED
This LED indicates that phantom power has been activated.
33 PHONE/CONTROL ROOM
This control is used to adjust the level of the signal sent to the PHONE/CONTROL ROOM output.
CONTROL ELEMENTS:
12
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

DIGITAL 24-BIT EFFECTS PROCESSOR
34 DFX MUTE SWITCH
This switch is used to activate/deactivate the effects
module. If necessary, this function can also be controlled
conveniently using a footswitch connected to the FOOT
SW socket.
35 DISPLAY
The selected preset is displayed here.
36 PRESET SELECTOR
This knob is used to select the desired effects preset.
There is a total of 100 presets available: Echo, vocal, pla-
te and versatile two-effect combinations. Once you have
selected the desired preset, press the knob to confirm
your selection.
37 PEAK LED
This LED lights up when the input signal reaches the
clipping threshold. When the digital effects module is
deactivated, this LED is illuminated constantly.
35
37 34
36
DFX MUTE
PEAK/MUTE
PROGRAM (PUSH)
00-09 Echo
10-19 Echo +Verb
20-29 Tremolo
30-39 Plate
40-49 Chorus
FUNCTION
50-59 Vocal
60-69 Rotary
70-79 Small Room
80-89 Flange+Verb
90-99 Large Hall
88
CONTROL ELEMENTS:
13
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

38 INSERTS (MONO CHANNELS)
All mono MIC channels are additionally equipped with Insert sockets (stereo jack, TRS), via which external
effects devices or the like can be patched into the respective channel. The signal is sent immediately after
the input gain control (TRIM) to an external signal processor, for example, a compressor or limiter. Once the
signal has passed through the external signal processor, it is returned to the same channel immediately
before the EQ. Note: Connecting external devices to insert points requires a so-called "Y" cable.
39 CTRL ROOM OUTPUT
These 6.3 mm sockets are used to send the signal to studio monitor speakers (CONTROL ROOM) or a PA
system.
40 ALT OUTPUT
These unbalanced 6.3 mm sockets serve as additional outputs. Their level is controlled using the ALT 3-4
fader in the master section of the mixer (max. +22 dBu). The signals of all channels for which the Mute/Alt
3-4 button has been pushed are routed to this bus; they no longer reach the main mix.
41 MAIN MIX OUTPUT
The L/R MAIN MIX OUTPUT has both XLR and 6.3 mm TRS sockets via which the main mix output signal can
be sent to an amplier. The output level is controlled by the MAIN MIX LEVEL fader (-∞ to +10 dB).
42 FOOT SW
This socket can be used to connect an external footswitch for activation/deactivation of the integral effects
processor (function identical with that of the DFX MUTE switch).
43 PHANTOM SWITCH
This switch activates the +48V phantom power for the four XLR microphone inputs. Important: Make certain
that the phantom power is off before connecting microphones.
44 POWER SWITCH
This switch is used to turn the mixer ON or OFF.
45 AC INPUT
This socket is used to connect the power adapter.
POWER
ON OFF
PHAN TOM
INSERT
INSERT
INSERT
INSERT
LEFT
RIGHT
MAIN MIX OUTPUT(BAL/UNBAL)
R
ALT OUTPUTCTRL ROOM
OUTPUT RIGHT(4)
LEFT
RIGHT
34
FOOT SW
1
2
L
LEFT(3)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
REPLACE WITH THE SAME TYPE FUSE AND RATING
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
WARNING: SHOCK HAZARD
AVIS: RISQUE DE CHOC ELECTRIQUE
- DO NOT OPEN
- NE PAS OUVRIR
AC INPUT EUROPE
210-240V 50Hz
£
RATED POWER CONSUMPTION: 23W
Fuse:T250mAL
SER I AL
MODEL
Apparaten skall anslutas
till jordat uttag nar den
ansluts till ett natverk
44 42
43 45 41 40 39 38
BACK PANEL:
14
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

INSTALLATION AND CONNECTION
Now that you have familiarized yourself with the functions of the LAX12D mixer, you should have no trouble
using it. Nevertheless, we recommend that you read the following section carefully. It contains important infor-
mation about how to obtain the best results with your mixer.
-Before connecting mics or instruments, make certain that the channel and MAIN MIX faders of the LAX12D
mixer are set to minimum (all the way down).
- Make certain that all external devices such as mics, power amplifiers, speakers, effects processors, etc. are
connected properly.
- When running cables, take care not to injure anyone or damage the equipment.
- Set the output level of your mixer and the connected power amplifier to no more than 75%.
- Do not set the PHONE/CONTROL ROOM level higher than 50%.
- Set the EQ controls (HI, MID, LOW) to the middle position.
- Set the PAN/BAL controls to the middle position.
- While speaking into each connected mic (speech or vocals) or playing the instrument, adjust each channel
fader (LEVEL) so that the peak LED of the corresponding channel comes on only occasionally. This will ensure
that there is always enough headroom and dynamic range available.
- You can shape the sound of the individual signals using the respective channel equalizer.
- Repeat this sequence of steps for all of the input channels being used, always keeping an eye on the LED level
meter (OUTPUT LEVEL) so that it does not swing too far into the red area.
AUDIO CONNECTIONS
The LAX12D mixer offers numerous, highly flexible possibilities for balanced or unbalanced connection of your
equipment via XLR and 6.3 mm TRS connectors. These are explained below.
WIRING CONFIGURATION
The XLR and 6.3 mm TRS connectors of the LAX12D permit balanced and unbalanced connections depending on
the equipment connected. Examples for wiring your system:
INSTALLATION AND CONNECTION:
15
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

Tip
Ring
Sleeve
Tip
Ring
Sleeve
Tip
Ring
Sleeve
1
2
3
1
2
3
1
2
3
TIP RINGSLEEVE SLEEVE RING TIP
TIP RINGSLEEVE
21
3
1 2
3
12
3
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Tip
Sleeve
Tip
Sleeve
Tip
Sleeve
Cent er
Cent er
Centre
Screen
Screen
Screen
1
2
3
Tip
Ring
Sleeve
1
2
3
1
2
3
TIPSLEEVE
TIPSLEEVE
TIPRINGSLEEVE
TIPRINGSLEEVE
12
3
2 1
3
2 1
3
Tip
Ring
Sleeve
1
2
3
Tip
Sleeve
1
2
3
TIPRINGSLEEVE
TIPSLEEVE
1 2
3
12
3
SLEEVETIP
SLEEVERINGTIP
WIRING CONFIGURATION:
Sleeve
Tip
+
Tip
Ring
Sleeve
+
-
Tip
Ring
Sleeve
+
Pin3 (-)
Pin2 (+)
Pin1 ( )
(Linked to Pin1 manually, )
Pin1 ( )
Pin2 (+)
Pin3 (-)
IN-LINE CONNECTION

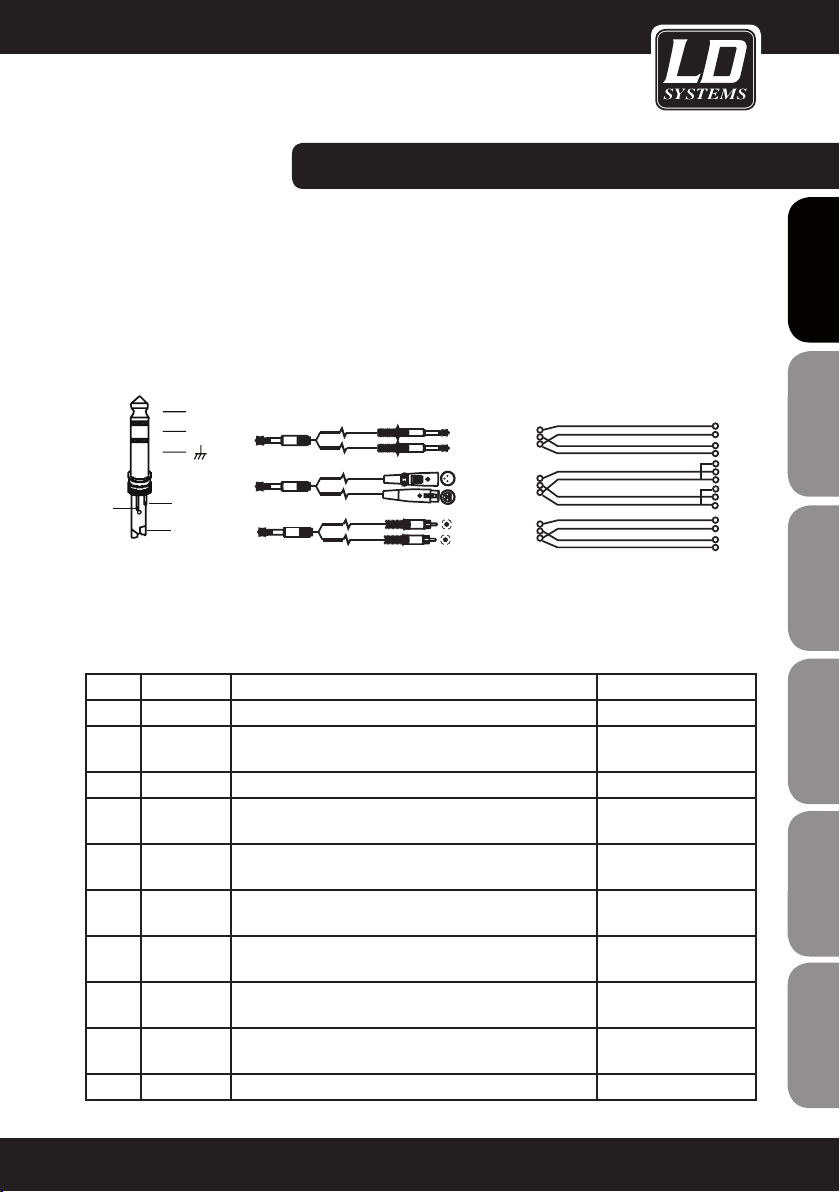

The mixer provides 6.3 mm stereo and XLR connectors for in-line connection of most professional audio equip-
ment. Configuration examples for the respective connections are provided below.
BALANCED
FOR 6.3 MM
TRS PLUGS
FOR XLR
CONNECTORS
UNBALANCED
UNBALANCED
UNBALANCED
BALANCED
BALANCED
UNBALANCED
16
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

WIRING CONFIGURATION / PRESET
LIST:
BALANCED
UNBALANCED INSERT CONNECTION
When connecting external signal processors via the main insert on the mixer, one TRS cable is required for each
send/return. The conguration of this so-called "Y" cable is depicted below.
FOR 6.3 MM STEREO PLUGS (TRS INSERT)
INSERT CABLE
Send
Return
Tip
Ring
Sleeve
21
3
12
3
TIP RING SLEEVE
TIP RING SLEEVE
SLEEVE TIP
SLEEVE RING TIP
TIP RING SLEEVE
Centre (Send)
Screen
Centre (Return)
Screen
Tip
Ring
Sleeve
Tip (Send)
Sleeve
Sleeve
Tip
Ring
Sleeve
1
2 (Send)
3
1
2 (Return)
3
Tip
Ring
Sleeve
Tip (Return)
NO. PRESET DESCRIPTION PARAMETER
00-09 Echo The input signal is sent to the output with a time delay Delay time: 145 - 205 ms
10-19 Echo+Verb Echo with room effect (hall) Delay time: 208 - 650 ms
Decay time: 1.7 - 2.1 s
20-29 Tremolo Amplitude modulation of the signal Rate: 0.6 Hz - 5 Hz
30-39 Plate Hall effect: Simulation of the classic plate vocal effect
(adds brightness)
Decay time: 0.9 s ~ 3.6 s
40-49 Chorus Creates the illusion of multiple instruments (voices) on the basis of a
single signal
Rate: 0.92 Hz ~ 1.72 Hz
50-59 Vocal Hall effect: Simulation of a small room with a short decay time Rev. decay time: 0.8 ~ 0.9 s
Pre-delay: 0 - 45 ms
60-69 Rotary Simulation of typical rotary speaker effect incl. bass box Modulation depth :
20% ~ 80%
70-79 Small room Hall effect: Simulation of a bright studio room effect Decay time: 0.7 ~ 2.1 s
Pre-delay : 20 - 45 ms
80-89 Flanger + Verb Combination of a modulated delay effect plus hall Decay time: 1.5 ~ 2.9 s
Rate : 0.8 Hz ~ 2.52 Hz
90-99 Large hall Hall effect: Simulation of a large room Pre-delay : 23 ~ 55 ms
17
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

MONO CHANNELS
Microphone input: electronically balanced, separate
inputs
Frequency range: 10 Hz … 45 kHz, +/-3 dB
THD+N: 0.005% @ +4 dBu, 1 kHz
Gain: 0 dB … 40 dB (MIC)
Signal-to-noise ratio: 102 dB
Line input: electronically balanced
Frequency range: 10 Hz … 45 kHz, +/-3 dB
THD+N: 0.005% @ +4 dBu, 1 kHz
Gain: +15 dBu … -25 dBu (LINE)
STEREO CHANNELS
Line input: unbalanced
Frequency range: 10 Hz … 45 kHz, +/-3 dB
THD+N: 0.005% @ +4 dBu, 1 kHz
IMPEDANCE
Microphone input: 3.6 kohm
All other inputs: 10 kohms or higher
Tape out: 1 kohm
All other outputs: 120 ohms
EQUALIZER
Treble (shelving):+/-15 dB @ 12 kHz
Midrange (bell, mono channels): +/-15 dB @ 100 Hz
… 8 kHz
High midrange (stereo channels): +/-15 dB @ 3 kHz
Low midrange (stereo channels): +/-15 dB @ 500 Hz
Bass (shelving): +/-15 dB @ 80 Hz
Low cut filter: 75 Hz, 18 dB/oct.
DSP EFFECTS SECTION
A/D and D/A converters: 24-bit
DSP resolution: 24-bit
Effect types: Echo, echo+ reverb, tremolo, plate, chorus,
vocal, rotary, small room, flanger + reverb, large hall
No. of presets: 100
Switches: Preset selector switch, effect bypass
MAIN MIX SECTION
Noise (bus noise): Fader 0 dB, channels muted: -100 dBr
(ref.: +4 dBu)
Fader 0 dB, all input channels activated (unity gain): -90
dBr (ref.: +4 dBu)
Max output level: +22 dBu (XLR, balanced); +22 dBu
(6.3-mm jack, unbalanced)
AUX returns, gain: OFF … +15 dB
AUX sends, max. output level: +22 dBu
POWER SUPPLY
(AC adapter)
Mains voltage:
USA/Canada 100 – 120 V, ~60 Hz
Europe 210 – 230 V, ~50 Hz
Great Britain/Australia 240 V, ~50 Hz
Power consumption: 12-channel mixer: 30 W
PHYSICAL SPECIFICATIONS
Dimensions (WxDxH):
12-channel mixer: 315 x 436 x 86 mm
Weight:
12-channel mixer: 5.1 kg without adapter
Subject to technical modifications without prior notice,
because all of our products are tested and improved
continually.
SPECIFICATIONS:
18
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

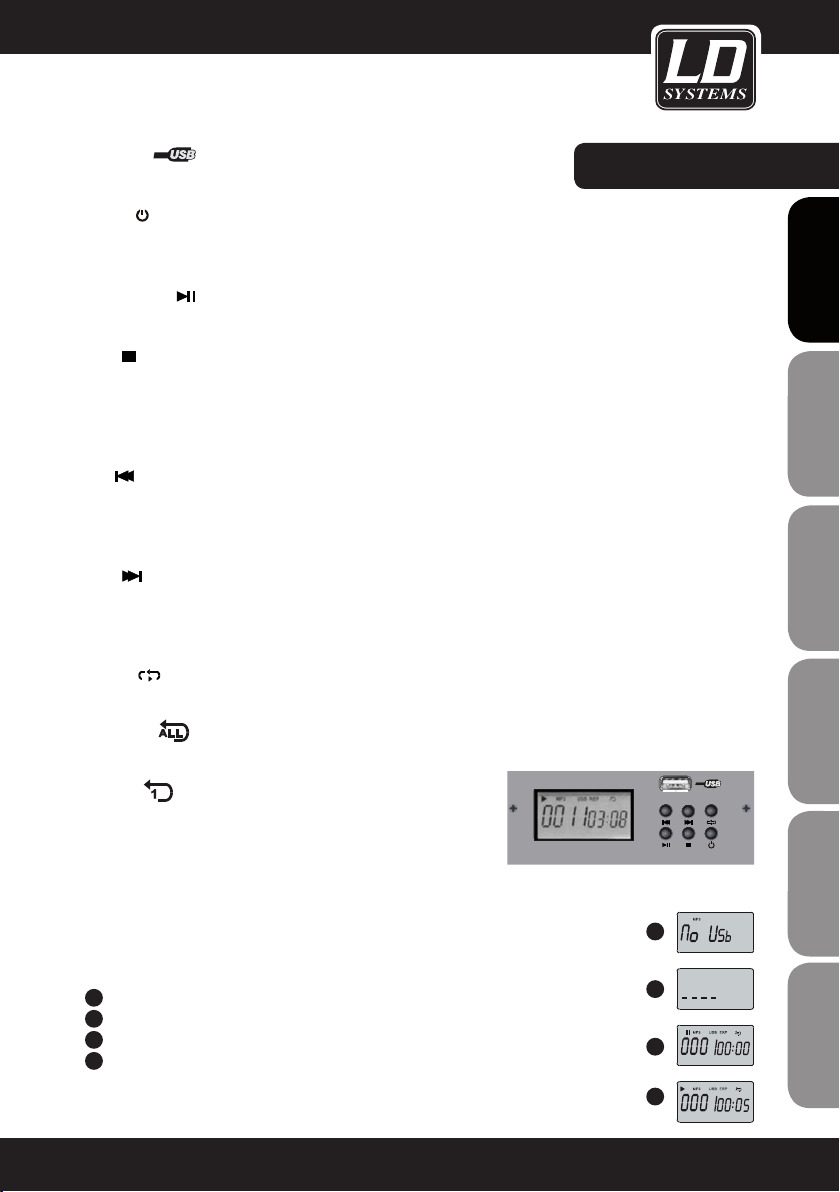

USB PORT
For USB memory sticks only
POWER
To power on the USB-MP3 player keep the power button pressed for 3 seconds. Same procedure to power it off.
Once the player is on, it is automatically set to the "pause" mode.
PLAY / PAUSE
Press this button during playback to pause the playback. Press again to start the playback again.
STOP
Press this button during playback to stop the playback. The display will now show how many tracks are available
on the USB memory stick. When the playback has been stopped press PRE/NEXT to go the previous/next track
or press the STOP button again to go to the beginning of the first track. Press the PLAY/PAUSE button to start the
playback again.
PRE
Pressing this button while in pause mode will take you to the previous track. The pause mode remains ON. Press
the PLAY/PAUSE button to start the playback again. Pressing this button during playback will take you to the
previous track and play it.
NEXT
Pressing this button while on pause mode will take you to the next track. The pause mode remains ON. Press
the PLAY/PAUSE button to start the playback again. Pressing this button during playback will take you to the next
track and play it.
REPEAT
Press this button to choose between the four following repeat modes:
1. REP ALL
Repeat all tracks available on the memory stick. Display shows:
2. REP 1
Repeat one track. Display shows
3. PLAY IN ORDER
Plays the tracks selected previously. No display indication
4. RANDOM PLAY
Plays all tracks in a random order. Display shows: A
IMPORTANT:
ADisplay when no USB memory stick is connected:
BDisplay when the player scans your USB memory stick for MP3 music files:
CDisplay when the player is in pause mode:
DDisplay when the player is on:
MUSIC PLAY ER
MP3 PLAYER:
A
B
C
D
19
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans-
ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During
the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All
component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defec
tive as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the
product
- by use of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER´S DECLARATIONS:
20
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
