Le Feu TURTLE User manual

USER MANUAL - TURTLE
EVERY HOME DESERVES A WARM HEART

CO N G R AT U L ATI O N S
with your new Turtle Pizza Oven from Le Feu Fires
Thank you for choosing Le Feu Fires. We hope your new Pizza Oven will contribute to
many pleasant moments.
Before you get started, it is highly important that you read and understand this entire
user manual.
Le Feu Fires continuously work to ensure the highest product quality. We want to
make sure that you always have a safe and secure product experience.
If you have any questions regarding the product after reading this user manual,
please contact your local dealer, distributor or Le Feu technical support. Information
can be found at www.lefeufires.com
Make sure to handle your Pizza Oven and fuels as described in this user manual, to
avoid any accidents.
READ THIS MANUAL BEFORE USE!
We hope you will enjoy your new Le Feu product
Best Regards

INDEX
DATASHEET - TECHNICAL INFORMATION 4
PACKAGING CONTENT - ASSEMBLY INSTRUCTIONS 6-7
SAFETY INSTRUCTIONS 8-10
USER INSTRUCTIONS 11
MAINTENANCE 12
TROUBLESHOOTING 13
WARRANTY 14-15

4
LE FEU TURTLE - DATA SHEET
Manufacture Le Feu By Lauritsen Aps
2531
Address Algade 31, 4 sal - 9000 Aalborg -
Denmark
Application name Le Feu Turtle
Model No. 830001
Heat output 3,2 kW
Gas category I3+(28-30/37) I3B/P(30) I3B/P(37) I3B/P(50)
Types of gas G30/G31 G30/G31 G30/G31 G30/G31
Gas pressure Butane: 28-30 mbar propane: 37 mbar 28-30 mbar 37 mbar 50 mbar
Contry of destination BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT,
LT, LU, LV , PT, SI, SK
AL, BG, CY, DK, EE, FI,
FR, HU, HR, IS, IT, LT,
LU, MT, MK, NL, NO,
RO, SK, SI, SE, TR
PL AT, CH, DE, SK
Burner injector 0,77 mm 0,77 mm 0,72 mm 0,67 mm
Gas consumption (g/h) 320 g/h
This manual is for: 830001
PIN NO. 2531DN-0009
This application must be installed in accordance with the rules in force, and used only in a sufficienly ventilated space. Consult
instructions before installation and use of this application.
WARNING: THIS APPLIANCE HAS AN OPEN FLAME, A SUITABLE GUARD SHOULD BE USED FOR THE PROTECTION OF
YOUNG CHILDREN, THE ELDERLY AND THE INFIRM.
• Close the valve of the gas cylinder or the
regulator after use.
• Read the instructions before using this
appliance. For outdoor use only in well
ventilated areas.
• The use of this appliance in enclosed areas can
be dangerous and is PROHIBITED.
• The appliance must be installed in accordance
with the instructions and local regulations.
• A well ventilated area must have a minimum of
25% of the surface area open. The surface area
is the sum of the walls surface.
• This appliance must use an EN16129 approved
gas regulator and EN16436-1

5
LE FEU TURTLE - DATA SHEET
Manufacture Le Feu By Lauritsen Aps
2531
Address Algade 31, 4 sal - 9000 Aalborg -
Denmark
Application name Le Feu Turtle
Model No. 830001
Heat output 3,2 kW
Gas category I3+(28-30/37) I3B/P(30) I3B/P(37) I3B/P(50)
Types of gas G30/G31 G30/G31 G30/G31 G30/G31
Gas pressure Butane: 28-30 mbar propane: 37 mbar 28-30 mbar 37 mbar 50 mbar
Contry of destination BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT,
LT, LU, LV , PT, SI, SK
AL, BG, CY, DK, EE, FI,
FR, HU, HR, IS, IT, LT,
LU, MT, MK, NL, NO,
RO, SK, SI, SE, TR
PL AT, CH, DE, SK
Burner injector 0,77 mm 0,77 mm 0,72 mm 0,67 mm
Gas consumption (g/h) 320 g/h
This manual is for: 830001
PIN NO. 2531DN-0009
This application must be installed in accordance with the rules in force, and used only in a sufficienly ventilated space. Consult
instructions before installation and use of this application.
WARNING: THIS APPLIANCE HAS AN OPEN FLAME, A SUITABLE GUARD SHOULD BE USED FOR THE PROTECTION OF
YOUNG CHILDREN, THE ELDERLY AND THE INFIRM.

6
PACKAGE CONTENT
1. Body - 1 pc 2. Stone - 2 pc 3. Knob - 1 pc 4. Leg - 3 pc

7
4. Leg - 3 pc
ASSEMBLY INSTRUCTIONS
STEP 1:
Place the leg (part 4) over the bottom plate as shown and fasten it. Put the AA
battery (battery is NOT included) into the battery box as shown in the figure
below.
STEP 2:
Put the stone (part 2) and the knob (part 3) into the body as shown in the figure
below .

8
IMPORTANT: FOR OUTDOOR USE ONLY
1. Incorrect installation, adjustment, service or maintains can cause property damage, injury, or
death.
2. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing the Pizza Oven.
3. WARNING: The Pizza Oven will become very hot. Do not move during operation.
4. WARNING: The Pizza Oven has an open flame, a suitable guard should be used for the
protection of young children, the elderly and the infirm.
5. Never leave the Pizza Oven unattended.
6. Only use the Pizza Oven on a level surface.
7. Turn o the gas supply after use.
8. Any modification of the Pizza Oven may be dangerous and will void the warranty.
9. Do not replace the grill with an extra hotplate. The warranty will be voided, and it is in violation
of the gas approval. The grill provides the ventilation needed for the Pizza Oven to operate
safely. It is not designed to be a solid hotplate device.
10. Please ensure all packaging and transit protection materials are removed prior to using the Pizza
Oven.
11. Do not use the Pizza Oven in a confined or enclosed space such as a garage, carport, tent,
marquee, to avoid risk of fire and the accumulation of smoke and fumes.
IMPORTANT SAFETY INSTRUCTIONS
Before using this product, it is important that you follow the step-by-step instructions
on the following pages.
FOR YOUR SAFETY
If you smell gas:
1. Shut o gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odour continues, immediately call your gas supplier.
5. Do not store or use gasoline or other flammable vapours
or liquids in the vicinity of this or any other appliance.
6. A gas cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.

9
12. Strong winds and low temperatures can aect the heating and performance of your Pizza Oven
13. Do not obstruct the flow of ventilation air around the Pizza Oven housing. This Pizza Oven is
not intended to be installed in or on recreational vehicles and/or boats.
14. This Pizza Oven must be installed in accordance with the installation instructions provided by
the manufacturer, local gas fitting regulations and other relevant statutory regulations.
15. Please check for gas leakage the first time you are connecting the Pizza Oven to the gas
cylinder, and each time you are replacing the gas cylinder or disconnecting/reconnecting any
fittings. Inspect the hose before each use.
This Pizza Oven should not be located under
overheadcombustible construction and proper clearances
must be always maintained from combustible construction
and/or materials, with MINIMUM clearances as follow:
From Sides: 450 mm
From Back: 450 mm
Above: 1000 mm

10

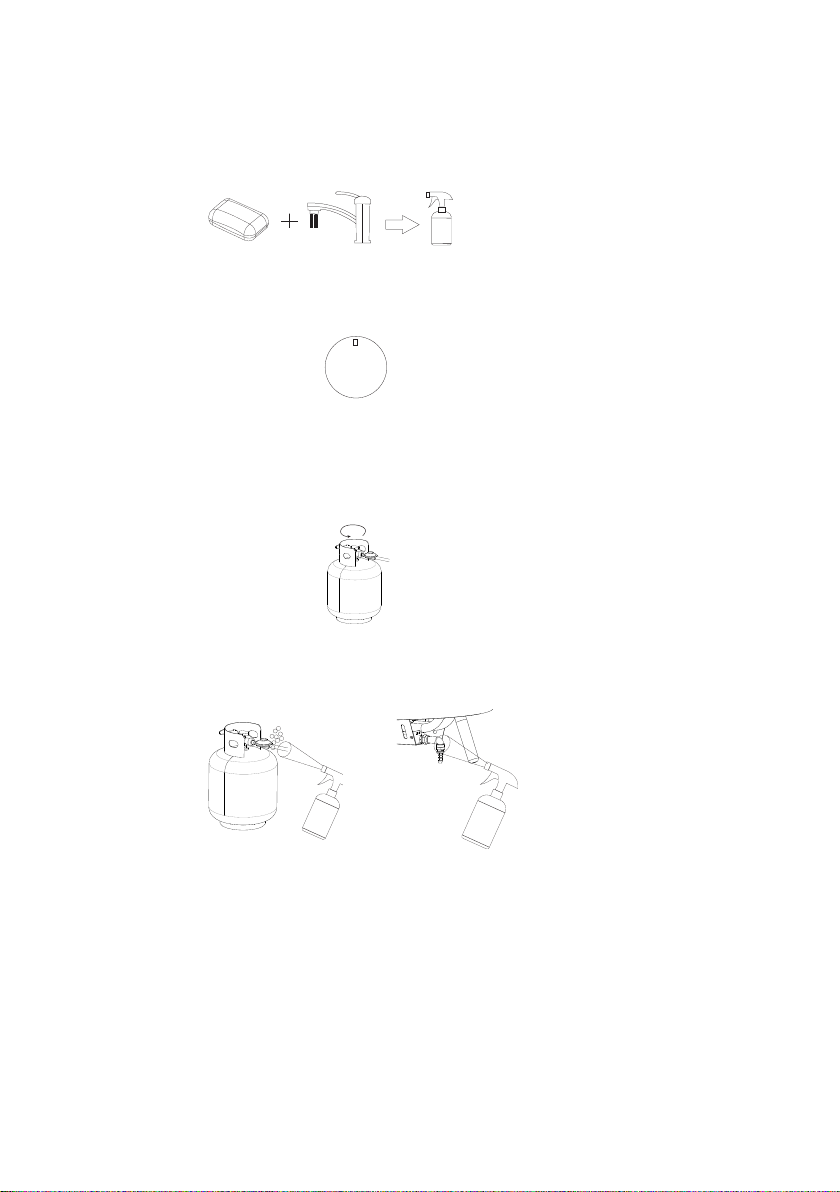

LEAK TESTING:
1. Add soap and water to a spray bottle or soapy water with a brush.
water
soap
2. Turn o the gas valve in the front of the Pizza Oven.
OFF
HIGH
LOW
3. Turn on the gas cylinder. Add soap and water to a spray bottle or
soapy water with a brush.
ON
4. Spray or apply soapy water on the gas connections. If a leak is present
bubbles will appear.
soap
soap

11
1. Lightning the Pizza Oven. Make sure all gas connections are securely tightened.
2. Check that the gas cylinder/regulator is turned on.
3. This Pizza Oven is equipped with automatic ignition, push the knob in and turn anticlockwise to
high position. You should hear a clicking sound from the igniter, hold the knob in until the burner
ignites. If the burner does not light on first attempt, return the knob to o position, and try a
couple of more times.
4. The knob has three basic positions. You can achieve any flame height between low and high by
rotating the knob between these positions.
USER INSTRUCTIONS
MANUAL IGNITION
If the battery is low on power, it is possible to manual lightning the Pizza Oven.
1. Place a lighted match or gas lighter on top of the burner. (not provided)
2. Keep your hand below the bottom of the burner while doing this.
3. Turn the power to HIGH position
4. You should see the burner alight
OFF
HIGH
LOW
Burner OFF Burner HIGH Burner LOW
5. When finishing cooking, leave the Pizza Oven on high position up to 5 minutes so that remaining
grease from the food will be removed.
6. When turning o the Pizza Oven, close the main supply from the gas cylinder first; this will allow
the remaining gas in the hose to evaporate. The burners can then be turned o.
7. Always ensure that the Pizza Oven has cooled down before cleaning. Hot surfaces may course
serious burns or injuries. If the Pizza Oven is still hot use glows for protection.
NOTE: Blowback is a situation where the flame burns inside the burner, towards the front. This can
be recognized by a sharp roaring sound coming from the burner. It is not dangerous. If this occurs,
simply turn o the burner, wait a few seconds and then relight.

12
1. Your Pizza Oven should be kept clean to prevent deterioration and it will look better and last
longer if you keep the Pizza Oven clean.
2. The Pizza Oven should be regularly cleaned and be protected by a fitted cover (accessories)
when not in use. Clean the Pizza Oven thoroughly on a regular basis.
3. On regular basis it’s recommended to brush the burner to keep the holes clean and prevent
blocking.
4. In freezing periods it’s recommended to store the baking stone inside under dry and warm
conditions.
5. When not used store your Pizza Oven in dry condition.
MAINTAINCE
Please note: Always allow Pizza Oven to cool completely before covering with an outdoor
weather cover. Likewise prior to service and maintenance.

13
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The Pizza Oven will not ignite
Battery is missing in the
batterybox
Put a AA-battery in the
batterybox
Gas cylinder is turned o, or
not correct mounted.
Check that the regulator is
correctly mounted and turn the
gas cylinder ON.
Control knob is not in
“HIGH” position
Turn the control knob to
“HIGH” position (see page 11)
The burner flame is too low
The gas pressure is low Turn the cylinder valve o
and replace the cylinder
The outdoor temperature is
less than 40°F/4.5°C .
Use a full gas cylinder
Check the burner ports for
blockage

14
• Our Pizza Oven are guaranteed for one year of part replacement. The warranty is valid from the
date of purchase.
• Warranty will be applied on presentation of a dated cash receipt or invoice and is strictly limited
to factory service repair of the piece(s) that are found to be defective.
• The manufacturer will not be held responsible for any incidental or consequential defects on
goods or individuals.
• The warranty will not be applied if the product have been subjected to abnormal use or if used
under other conditions of use than the ones they were intended for.
• The warranty will not apply in case of deterioration or accident due to negligence, damages
caused by failing to maintain and service the device or resulting from an alteration of material.
• The manufacturer guarantees the product, with the exception of the following parts, which are
subjected to normal wear and tear, for 1 year from the date of purchase, as stated in: Proof of
document (invoice and/or receipt) stating the seller’s name and the date of sale. The Le Feu
Pizza Stones are not covered by any warranty.
• The warranty is valid provided that the instructions and warnings in the operating and
maintenancemanual accompanying the Pizza Oven are observed to be used in the most correct
way.
• The warranty covers free replacement or repair of parts found defective due to manufacturing
defects.
• Complaints are made through the dealer from whom the Pizza Oven is purchased.
• The manufacturer disclaims any responsibility for any direct or indirect damage to persons,
animals or objects caused by non-compliance with the instructions contained in the instructions
for use, in particular the instructions regarding installation, use and maintenance of the Pizza
Oven.
• Burner, steel bowl, all mechanical parts and fittings to control panel and burner assembly,
and all parts that are not cast aluminum are warranted against defects in materiale and/or
workmanship for a period of one (1) year from original date of purchase. Rust is not covered.
• The surface of the Pizza Oven is warranted against peeling, cracking or blistering for a period
of one 1 year provided the product has not been scratched or abraded. Scratches and chips
resulting from normal wear and tear are not covered. Please use the original Le Feu Turtle Cover
to protect the product.
• Fading from exposure to elements, e.g. sunlight, is not covered. Stains as a result of chemical
spills and food items are not covered.
• Pizza Oven sold as clearance items, display models or items purchased in an “as is” condition,
WARRANTY

15
freight damage, firepit damaged by acts of nature, vandalism, fire, abuse, lack of proper
care and maintenance or improper assembly. Straps and normal fading or discoloration from
exposure to elements, oils, spills, fluids or chemicals. Also excluded is loss of use of time and or
inconvenience, money, travel, packaging or any other consequential or incidental damages.
• Le Feu Fires can’t be held responsibel to exceed the value of the replacement product. Warranty
is to the original purchaser when items are purchased from one of our authorized retailers and is
not transferable.

WWW.LEFEUFIRES.COM
