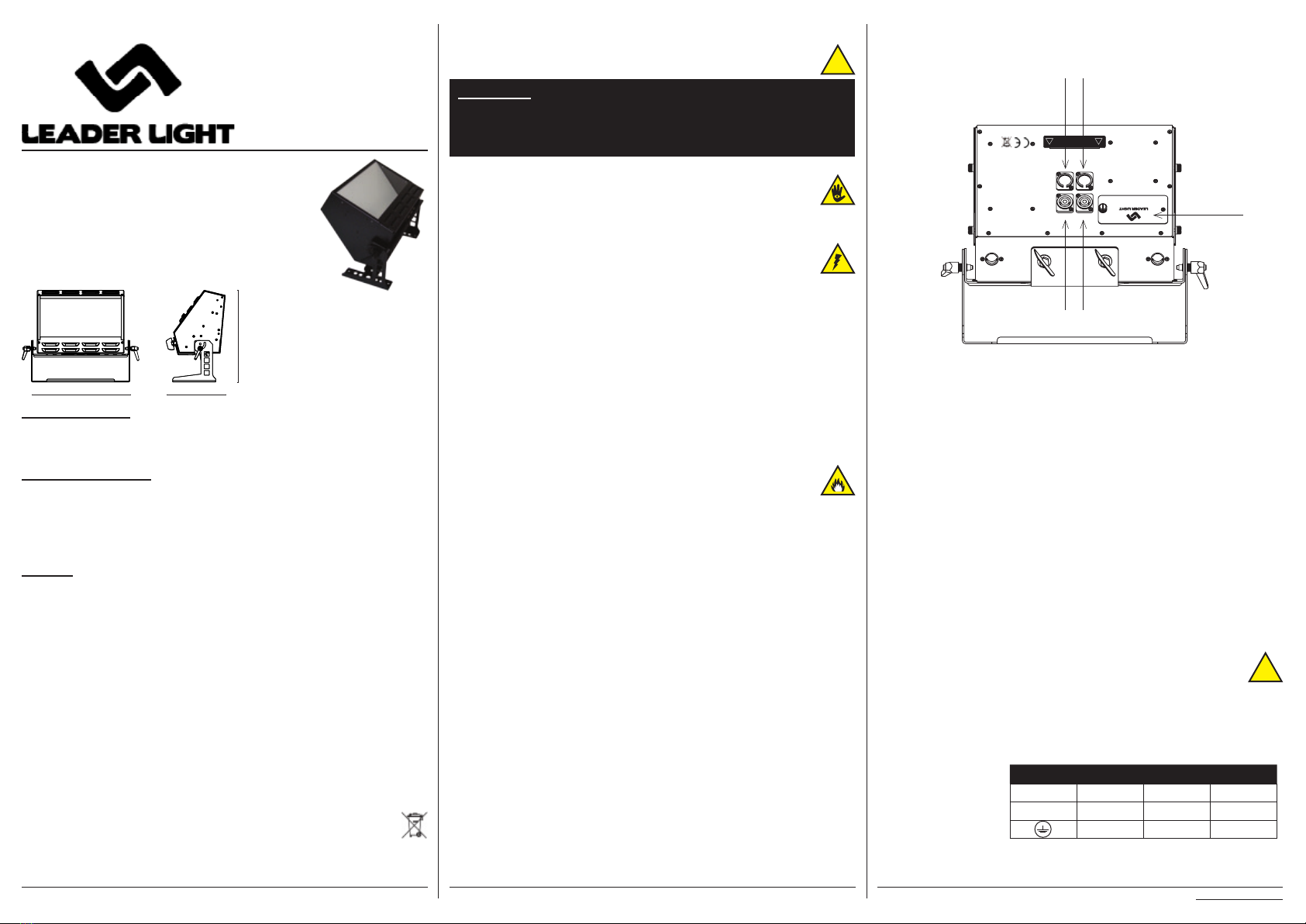

Leader Light LL STAGE CYC 6C User manual

©MMXVI - LEADER LIGHT – All right reserved Edition: A - 2016 Additional information on [email protected]
LEADER LIGHT s.r.o.
M.Gorkeho 33
052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
USER MANUAL
Page 1 /2
ENVIRONMENTAL PROTECTION
Do not throw away the appliance with the normal household waste at the end of its
life, but hand it in at an o󰀩cial collection point for recycling. By doing this, you help to
preserve the environment.
COMPLIMENTS ON YOUR PURCHASE!
All dimensions are in millimeters
Package includes:
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Safety instructions
01.3 Fire protection
02 PRODUCT SPECIFICATION
02.1 Technical specication
02.2 Product description
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Connection
03.4 Control data connection
03.5 DMX channels
04 PERMANENET USE LIMITATIONS
05 MAINTENANCE AND SERVICE
LL STAGE CYC 6C / 3C / 2C / 1C
02.2 Product description
03 INSTALLATION
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be
claim immediately by the transport company. Photo pictures as evidence are
valuable for future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all
device clusters.
- Hairbreadth from combustible materials is 0,5m.
03.3 Connection
- Respect all SAFETY INFORMATION 01!
- Connect the ground (earth) !
- It is not necessary to open the xture before power supply. Power supply is
solved simple with Neutrik PowerCon connectors.
- The xture is equipped with auto-switching power supply that automatically
adjusts to any AC 90 – 264 V, 47 – 63 Hz.
- Cord plug connections:
Symbol Pin Wire Colour Screw (US)
Llive brown yellow or brass
Nneutral blue silver
ground (earth) yellow/green green
!
343
334
200
- LL STAGE CYC with adj. bracket 1pc.
- User manual 1pc.
Additional items needed:
- Data and power cables
- Controller compatible with DMX 1pc.
- Mounting accessories as necessary
Power Out
PowerCon
Power In
PowerCon
DMX Out
XLR-5pin
DMX In
XLR-5pin
Address
set-up
under cover
01 SAFETY INFORMATION
WARNING!!!
Carefully read before installing, powering or servicing. Nothing to do if
anything misunderstand! Installation can be done only by a qualied
professional in accordance with relevant local codes.
01.1 Risk of eyes damage
-Do not look directly into LED lamps.
-Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Safety instructions
- Shut down power before installation or maintenance.
- Do not modify, alter, or attempt to service the LEADER LIGHT appliance. Doing
so will void the warranty.
- Appliance and recommended AC power supply must be installed by a qualied
professional in accordance with relevant local codes. Use only acceptable source
of AC power and frequency that complies with local biulding and electrical codes.
- Use only the recommended voltage source.
- Appliance always connect to earth (eltech.)!
- Do not use or do not connect the products if the power cable, power plug or
xtures are any way damaged, wet, or if they are overheating.
- Before removing or installing any cover or part of appliance disconnect it from AC
power.
- AC power supply must be protected against overvoltage and short circuits.
01.3 Fire protection
- Follow all safety restrictions.
- Thermostatic switches or fuses never to bypass.
- Device never shield. Around the axis of the tting (180°) must be maintained space
for cooling. Minimum distance from the surrounding objects must be 100mm (4 in.).
- LEDs never direct cover with lters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
- Luminaries never use without mounting brackets. The housing never install
directly to the surface.
02 PRODUCT SPECIFICATION
02.1 Technical specication
Power connection: AC 90 – 264 V, 47 – 63 Hz In/Out PowerCon
IP: IP20
Control data: DMX 512 In/Out with XLR 5pin
Ambient temp. (Ta): Maximum 40°C
Net weight: 5kg
Installation: Surface mounting
Cooling: Active 5 dB @ 1 m
!
WARNING - Disconnect
mains before remove cover!
Made in EU
Leader Light s.r.o.
Slovakia, 20__
www.leaderlight.eu
AC/DC 90 – 264 V, 50/60 Hz
T max. 40° C
SN
LL Stage CYC 6C
LL Stage CYC 5C
LL Stage CYC 4C
LL Stage CYC 3C
LL Stage CYC 2C
LL Stage CYC 1C
POWER
POWER IN
DMX IN
POWER OUT
DMX OUT
MADE IN SLOVAKIA
www.leaderlight.eu

©MMXVI - LEADER LIGHT – All right reserved Edition: A - 2016 Additional information on [email protected]
Page 2 /2

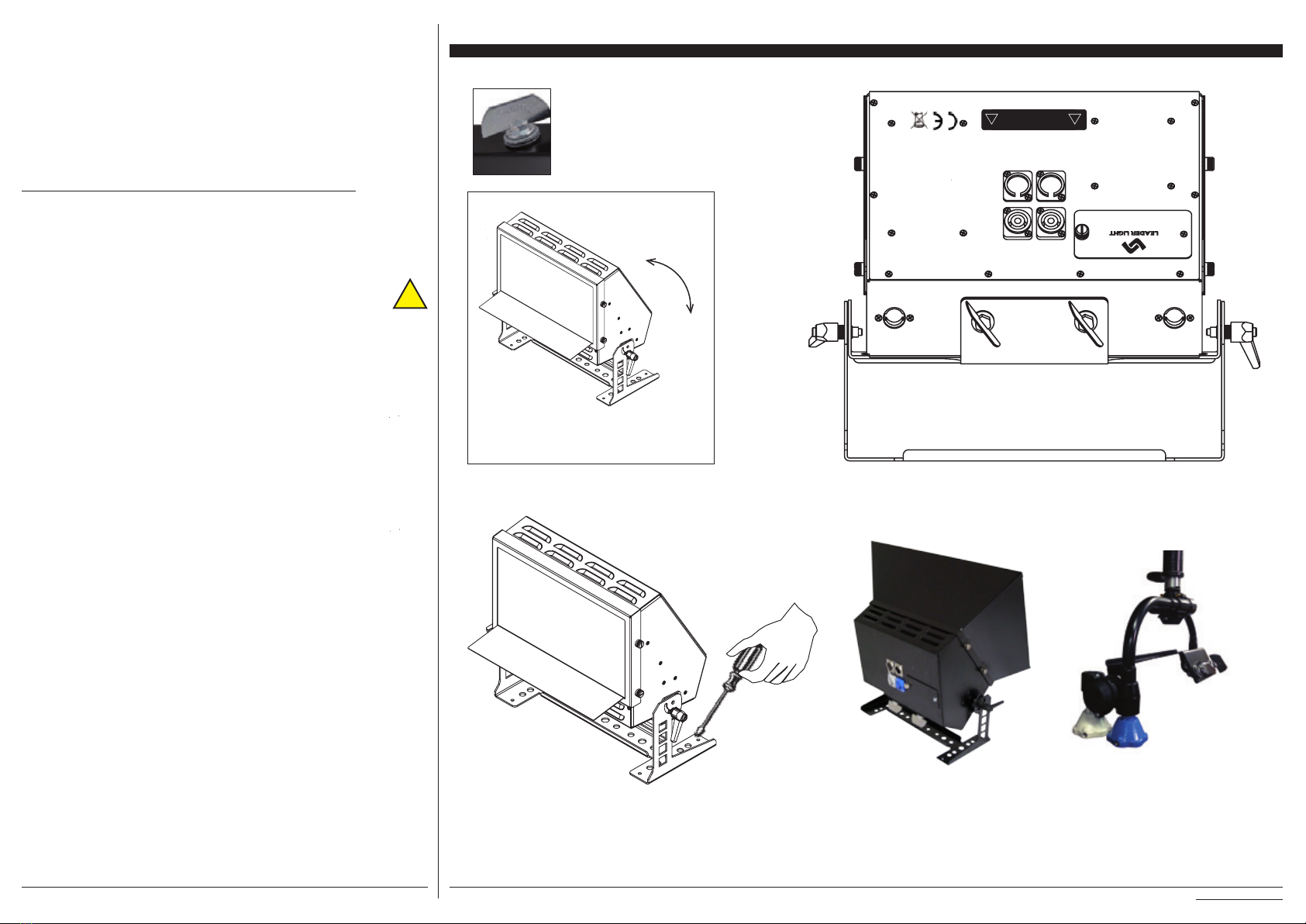

Camloc 1/4 turn fasteners
- Safe mechanical quick release
fastener systems
- Locking/unlocking by quarter turn
- Hand operated
- Service-friendly, time-saving
and cost cutting
- Vibration-resistant
Mechanical mounting of LL STAGE CYC
03.4 Control data connection
-Control data cable length is specied by Norm IEC929 Annex E4.
-It is not necessary to open the xture before connecting of DMX512 control
signal. Interconnections are realized by Neutrik XLR 5pin In/Out connectors.
03.5 DMX channels
See the relevant Appendix!
These informations are subject to change, latest data are on: www.leaderlight.eu
05 MAINTENANCE AND SERVICE
- Before any maintenance is necessary to carefully read all SAFETY INFORMATION 01!
- Damages caused by inadequate cleaning or maintenance are not covered by warranty.
- Requires periodic cleaning (dust, dirt ,...)
Procedure for maintenance:
- Unplug mains before maintenance and at least 10 minutes cool o󰀨.
- Appliance do not illegal open or demount.
- Clean-up dust only from outer surface. Use vacuum or dumpy duster (warm
water)
- Before reinstalling make sure everything is intact and dry– no wet parts!
Service:
- Customer service provided by the manufacturer.
ACCESSORIES
!
180°
AIMING POSSIBILITY
The xture could be aim to wish position with
adjustable bracket.
Mounting on stage is easy. The brackets are connect by Camlocs.
Screw the BRACKET to the surface/structure at least in 4 points LL STAGE CYC TUBUS LL STAGE CYC POLE OPERATION BRACKET
04 PERNAMENT USE LIMITATIONS FOR HEATING DISSIPATION
-Pernament use limitations for heating dissipation of LL STAGE CYC - body temperature
must be less then 55°C
WARNING - Disconnect
mains before remove cover!
Made in EU
Leader Light s.r.o.
Slovakia, 20__
www.leaderlight.eu
AC/DC 90 – 264 V, 50/60 Hz
T max. 40° C
SN
LL Stage CYC 6C
LL Stage CYC 5C
LL Stage CYC 4C
LL Stage CYC 3C
LL Stage CYC 2C
LL Stage CYC 1C
POWER
POWER IN
DMX IN
POWER OUT
DMX OUT
MADE IN SLOVAKIA
www.leaderlight.eu
