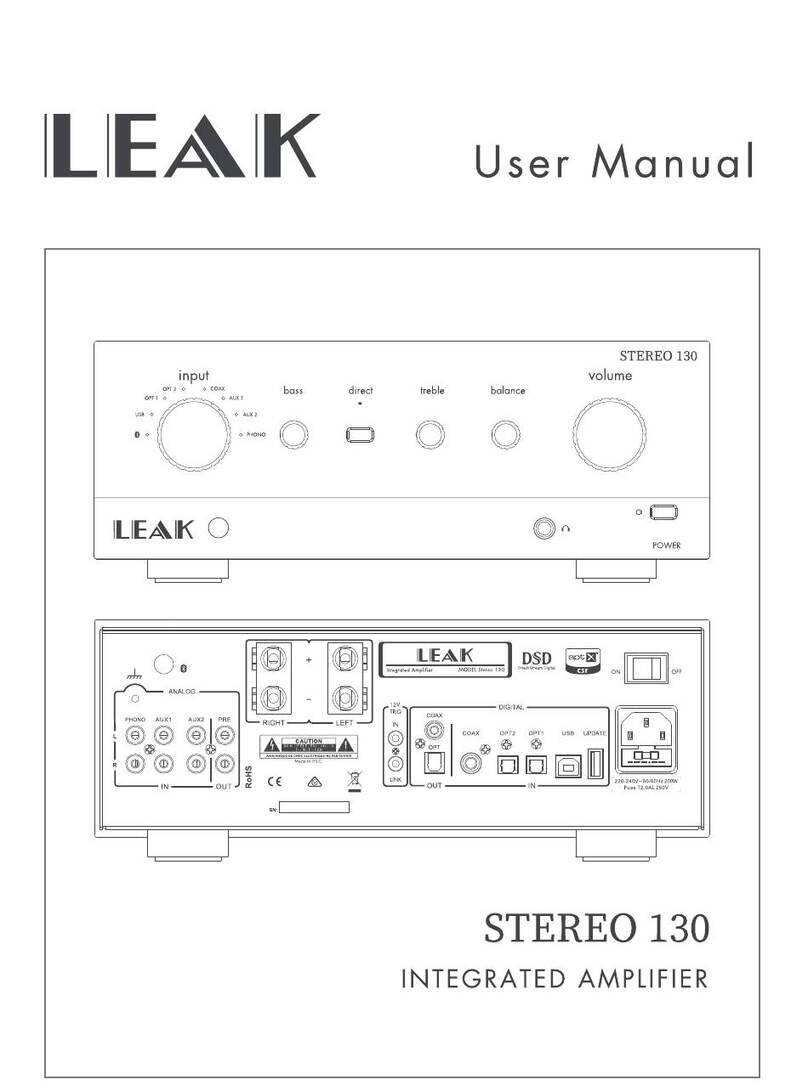

Leak STEREO 130 User manual

INTEGRATED AMPLIFIER
User Manual
STEREO 130
STEREO 130
input volume
POWER
bass direct treble balance
COAX
AUX 1
AUX 2
PHONO

‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
WARNING: SHOCK HAZARD-DO NOT OPEN
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
Warning: To reduce the risk of electric shock, do not remove cover (or
back) as there are no user-serviceable parts inside. Refer servicing to
qualified personnel.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions
in the literature accompanying the appliance.
CAUTION: These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you
are qualified to do so.
Do not install this equipment in a confined or built-in space such as a
bookcase or similar unit, and keep well ventilated in open space. The
ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
WARNING: Only use attachments/accessories specified or provided by
the manufacturer (such as the exclusive supply adapter, battery etc).
WARNING: Please refer to the information on the exterior panel of the
enclosure for electrical and safety information before installing or
operating the apparatus.
WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to
dripping or splashing and that objects filled with liquids, such as vases,
shall not be placed on apparatus.
WARNING: For the terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external
wiring connected to the terminals requires installation by an instructed
person or the used of ready-made leads or cords.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being stepped on or pinched, particularly at
the plugs, convenience receptacles, and at the point where they exit from
the apparatus.
Unplug this apparatus during lightning storms or when unused for long
periods of time.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING: No naked flame sources, such as lighted candles, should be
placed on the apparatus.
WARNING: Attention should be drawn to environmental aspects of
battery disposal.
WARNING: Use of the apparatus in tropical climates.
THE FUSE VALUES ARE:
220 – 240V (UK, China, etc.) T2.0AL 250V Slow Blow
100 – 120V (USA, Japan, etc.) T4.0AL 250V Slow Blow
Protective earthing terminal. The apparatus should be connected
to a mains socket outlet with a protective earthing connection.
The product is designed to use in moderate/ tropical climates.
Important Safety Information

Contents
GETTING STARTED ……………………………………………………………………………………………… 4
CONNECTION ………………………………………………………………………………………………… 10
OPERATION ………………………………………………………………………………………….…………. 11
WARRANTY .…………......…………………......……………...………………......……………………… 13
SPECIFICATIONS ………...........................…………………………………………….……..….…… 14
CONTROLS AND CONNECTORS ………......................………………………………………………. 5
REMOTE HANDSET …………………………………………….............…………..………….………….... 6
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Getting Started
INTRODUCTION
FEATURES
• 2 x 65W RMS (4 ohm) / 2 x 45W RMS (8 ohm) amplifier
• ESS Sabre32 Reference ES9018K2M D/A converter
• Bluetooth 4.2 aptX receiver
• 2 x Optical TOSlink inputs
• 1 x RCA coax input
• 1 x Optical TOSlink output
• 1 x RCA coax output
• 2 x RCA aux inputs
• 1 x RCA MM phono input
• 1x 6.3mm (1/4”) jack headphone output
UNPACKING THE EQUIPMENT
Unpack the product fully. The carton should contain:
• The LEAK STEREO 130 amplifier
• One IEC power cord suitable for your area
• One remote headset
• One antenna (for metal enclosure version only. LEAK STEREO 130 with wooden chassis does not have antenna)
• The LEAK STEREO 130 user manual
USB DRIVERS (AND FIRMWARE UPDATES)
To download Windows Drivers, please see the separate manual. Any firmware updates will also be available from www.leak-hifi.co.uk
PLACEMENT
The unit must be mounted on a solid, level and stable surface.
Before you connect the LEAK STEREO 130 to the AC mains power, ensure your AC mains voltage corresponds to the rating on the rear panel of the product.
If in doubt, consult your dealer. If you move to an area which has a different AC mains voltage, seek advice from a LEAK appointed dealer or a competent
service technician.
The LEAK STEREO 130 is high performance, high-fidelity integrated amplifier designed for the audio enthusiast. It is designed to be the perfect match to a wide
variety of sources and provides the necessary amplification to realise the highest quality of your stored music through your loudspeakers and headphones.
The LEAK STEREO 130 can be connected to both analogue and digital sources, thanks to its diversity of inputs. A built-in Moving Magnet (MM) phono
pre-amplifier allows for direct connection to turntable record players.
The LEAK STEREO 130 will operate as a high-fidelity Digital Audio Converter (DAC). You can also stream music to the LEAK STEREO 130 from any Bluetooth
device such as portable music players and smartphones. The LEAK STEREO 130 is designed with the innovative built-in aptX codec so that you can hear CD
quality audio over the Bluetooth wireless connection.
To ensure proper operation, please read this owner's manual carefully before using the product. After reading this manual, be sure to keep it for future reference.
Page 4
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 5
Controls and Connectors
REMOTE
INPUT
BASS
CONTROL
TREBLE
CONTROL
BALANCE
CONTROL
VOLUME
CONTROL
SOURCE
INPUT
DIRECT
BUTTON / LED
HEADPHONE
OUTPUT
POWER
LED
STANDBY
BUTTON
PRE OUTPUT LOUDSPEAKER
OUTPUT
12V
TRIGGERS
DIGITAL
OUTPUTS
DIGITAL
INPUTS
ANALOG
INPUTS
BLUETOOTH
ANTENNA
GROUND PC USB
INPUT
UPDATE FUSE POWER
SWITCH
AC
MAINS
INPUT
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
STEREO 130
input volume
POWER
bass direct treble balance
COAX
AUX 1
AUX 2
PHONO

Page 6
Remote Handset
NOTE:
Always use AAA batteries and replace them in sets - never mix old and new batteries.
Very weak batteries can leak and damage the handset. Replace them in good time! There is a risk of fire and burns if a battery is handled improperly. Do not
disassemble, crush, puncture, short the contacts or dispose of the batteries in fire or water.
Do not attempt to open or service a battery. Discard used batteries in full accordance with recycling regulations in force in your area.
NOTE : the handset buttons shown crossed out are for use with other LEAK units such as the LEAK CDT and are therefore not functional when used with the
LEAK STEREO 130.
Press to select the direct mode
8
Press to select the source input
7
Press to select the LEAK STEREO 130 remote mode
(press the CD button for the LEAK CDT controls)
6
VOL-
A
INPUT
DIRECT
Press to decrease volume
5
Press to move to the next track. (Bluetooth play mode)
4
VOL+ Press to increase the volume
3
MUTE Press to Mute/Unmute the sound. In Mute, the source indicator on
the front panel will flash.
2
9 Press to Play/Pause (Bluetooth play mode)
Press and hold for 3 seconds to disconnect Bluetooth
Press to move to the previous track. (Bluetooth play mode)
10
Press to bring the unit in/out of Standby
1 STANDBY
VOL
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 7
Connection
INSTALLATION
Before making any connections to your high fidelity equipment make sure that all units in the system are switched off and unplugged at the mains.
AC POWER CONNECTION
The Power On/Off switch is on the rear panel. Before connecting the LEAK equipment to the AC mains supply check and make sure the voltage marked on
the back matches your supply voltage.
DIGITAL SIGNAL OUTPUT CONNECTIONS
Coaxial Output
LEAK STEREO 130 has one coaxial SPDIF output. Connect an RCA digital interconnect between the digital coaxial out of LEAK STEREO 130 unit and the
required input of your equipment.
Optical Outputs
LEAK STEREO 130 has one optical SPDIF output. Connect an optical (TOSLink) interconnect between the digital optical out of LEAK STEREO 130 and the
required input of your associated equipment.
ANALOG SIGNAL OUTPUT CONNECTIONS
Preamplifier Output
The LEAK STEREO 130 has one pair of unbalanced RCA outputs which can make the unit operate as a preamplifier.
Connect an RCA cable between the unbalanced pre output of the LEAK STEREO 130 and the unbalanced input of a power amplifier or associated equipment.
Interconnection should be of low-noise construction and fully screened to minimize hum and noise transmission.
Loudspeaker Outputs
The LEAK STEREO 130 has two sets of loudspeaker outputs. They are independent for right and left stereo amplifier outputs.
Connect the Positive (+) RED terminals of the amplifier to the Positive (+) RED terminals of the loudspeakers. Connect the Negative (-) BLACK terminals similarly.
If the speaker has the wrong polarity connection, the sound becomes unnatural or lacks bass When connecting loudspeakers tighten the terminals securely by
hand. Make sure there are no loose strands of wires which could cause short circuits.
Headphone Output
The LEAK STEREO 130 has a stereo 6.3mm(1/4”) jack on the front panel for connecting headphones. Connecting the headphones will mute the audio signal
to the loudspeakers. The LEAK STEREO 130 headphone output can be adjusted up to 4.5V. Select a comfortable output level to suit your headphones.
WARNING: Listening to music at high volume levels and for extended durations can damage one’s hearing. In order to reduce the risk of damage to hearing,
one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels. Headsets should comply with EN 50332-2
requirements (for GS certification).
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 8
Output Connection
+
-+-
Speaker(right) Speaker(left)
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 9
ANALOG SIGNAL INPUT CONNECTIONS
The LEAK STEREO 130 has two sets of unbalanced RCA inputs for connection to units which do not feature balanced outputs. Both sets are identical.
Connect an RCA cable between the unbalanced input of the LEAK STEREO 130 and the unbalanced output of a source unit like a CD player or DAC.
Interconnections should of low-noise construction and fully screened to minimize hum and noise transmission.
PHONO SIGNAL INPUT CONNECTIONS
The LEAK STEREO 130 has a PHONO signal input, the PHONO input should only be connected to turntables fitted with MM or high output MC cartridges.
DIGITAL SIGNAL INPUT CONNECTIONS
The LEAK STEREO 130 has a variety of digital inputs, which can be connected to most popular digital sources, like the digital output of a CD or DVD player,
DAC, PC.
Coaxial Inputs
The LEAK STEREO 130 has a coaxial SPDIF input. Connect an RCA digital interconnect between the digital coaxial output of the source unit to the COAX
input of the LEAK STEREO 130.
Optical Inputs
The LEAK STEREO 130 has an optical SPDIF input. Connect an optical (TOSlink) interconnection between the digital optical output of the source unit to the
OPT1 or OPT2 input on LEAK STEREO 130.
Bluetooth Input
The LEAK STEREO 130 has a built-in Bluetooth signal processor module which can play audio files transmitted from the source unit via Bluetooth wireless
transmission. Please refer to page 12 to enable this function.
USB Input
The LEAK STEREO 130 has one B-type USB input which lets you connect a Mac or PC to play audio files stored on a computer.
UPDATE
The LEAK STEREO 130 provides a type A USB port for firmware upgrades.
Upgrade method: Put the upgrade file onto a USB disk, plug it into the UPDATE USB interface, press and hold the STANDBY button on the front panel while
switching on the power using the rear panel POWER switch. LEAK STEREO 130 will upgrade automatically. After upgrading, unplug the USB disk and
power on the amplifier for normal use.
GROUND TERMINAL
The grounding terminal connected with this product is used to reduce noise when connecting with other associated equipment fitted with a separate ground
lead. This terminal is required to be used when the turntable amplifier and turntable player are both double insulated. In this case, the metal housing of the
machine is grounded to eliminate the residual hum, and the ground terminal cannot be used as safety for other equipment. If you have any questions, please
consult the distributor.
B-type USB
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 10
Input Connection
Computer
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 11
Operation
REMOTE
INPUT
BASS
CONTROL
TREBLE
CONTROL
BALANCE
CONTROL
VOLUME
CONTROL
SOURCE
INPUT
DIRECT
BUTTON / LED
HEADPHONE
OUTPUT
POWER
LED
STANDBY
BUTTON
STANDBY MODE
The LEAK STEREO 130 will be in standby mode when powered on. Power LED indicator on front panel will show dark red. Press the Standby button or the
aaabutton on the remote handset to bring LEAK STEREO 130 out of standby.
You can activate the ‘auto standby’ function by pressing and holding the Standby button on the front panel until the LED blinks. A short press of the Standby
button then selects the Auto - Standby function as follows:
20 min Auto-Standby
The Power LED indicator flashes twice: Auto-Standby 20 minutes. LEAK STEREO 130 will automatically go into Standby mode if there is no signal input or
operation for 20 minutes.
1 Hour Auto-Standby
The Power LED indicator flashes thrice: Auto-Standby 1 hour . LEAK STEREO 130 will automatically go into Standby mode if there is no signal input or
operation for 1 hour.
Never Auto-Standby (Default)
The Power LED indicator flashes once: Auto-Standby Never. LEAK STEREO 130 will not go into Standby mode.
VOLUME CONTROL
Before turning on the LEAK STEREO 130, please check the volume level before playing the source. The volume control will remain at the level it was last set
at when the unit was put in stand-by.
You can adjust the volume knob on the front panel or press the volume button of the remote control to adjust the volume level as needed.
Press the MUTE button on the remote control to enter MUTE mode. Note: the selected input indicator flashes to show the amplifier is in MUTE mode.
PLAYING MUSIC VIA ANALOG INPUTS
Connect the analog signal of a source unit to LEAK STEREO 130’s AUX1 or AUX2 input. Rotate the INPUT selector on the front panel (or press the INPUT select
key on the remote control) to select the AUX1 or AUX2 input indicator will light and music will start playing.
PLAYING MUSIC VIA DIGITAL INPUTS
Connect the coaxial SPDIF signal of source units to the digital in COAX jack or the optical (TOSlink) signal of source units to the OPT1 or OPT2 jack on the
LEAK STEREO 130’s rear panel. Rotate the INPUT selector on the front panel (or press the INPUT select key on the remote control) to select the
COAX/OPT1/OPT2 LEAK Stereo130 input, the selected input indicator will light and music will start playing.
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
STEREO 130
input volume
POWER
bass direct treble balance
COAX
AUX 1
AUX 2
PHONO

Page 12
PLAYING MUSIC VIA USB INPUTS
When connecting the LEAK STEREO 130 to a Windows computer for the first time, you will need to install the USB driver on your computer.
Connect to a Mac or PC via the type-B USB interface on the LEAK STEREO 130’s rear panel. Rotate the INPUT selector on the front panel (or press the INPUT
select key on the remote control) to select the USB input, the selected input indicator will light. Select the unit as the playback output device on the computer
and then start playing music with your chosen music software program.
PLAYING MUSIC VIA BLUETOOTH
You can wirelessly connect LEAK STEREO 130 to a music source via Bluetooth wireless technology . When the Bluetooth is not connected, the indicator light
of the Bluetooth input flashes. After the Bluetooth is connected, the indicator LED glows steadily.
Open Bluetooth search on your mobile phone or tablet and connect to "LEAK STEREO 130 BT" , if prompted to enter the password, enter "0000". When the
connection is successful, the music starts playing. Switch to another input during Bluetooth playback will disconnect after 1 minute. Switch back to the Bluetooth
input for automatic connection.
To disconnect the Bluetooth:
• Move the Bluetooth source beyond the communication area.
• Turn off the connected device or turn off its Bluetooth function.
• Hold press the button of the remote control for 3 seconds to force the current Bluetooth connection to be disconnected.
BASS
Turn the bass adjusting knob on the front panel to increase (clockwise) or decrease (counterclockwise) the low-frequency response. Control
range: -6db to +6dB.
TREBLE
Turn the treble adjusting knob on the front panel to increase (clockwise) or decrease (counterclockwise) the high-frequency response. Control
range: -6db to 6dB.
Note:
The RIAA playback characteristic has been incorporated in the LEAK STEREO 130, as this is the internationally agreed standard. This characteristic does not
take into account the acoustics of the recording studio, the position of the microphones relative to the artistes, your pickup, your loudspeaker systems, the
acoustics of your room and your particular ears! In other words, the play-back characteristic is of use only as an approximation, and it may well be necessary
to adjust the final result by using the controls marked as ‘BASS’ and ‘TREBLE’; this is the reason for their presence. When playing LP records (331/3 and 45
r.p.m) made prior to 1955, for instance, the bass and treble controls maybe used to correct differences in the recording characteristic.
When playing European 78 recrods, the ‘TREBLE’ control should, theoretically, be turned to ‘2 O’Clock’.
Consumer opinion in some countries insists on a magnitude of available bass boost which, if used at maximum, can only result in a travesty of the original
music. We have provided you with an availability of bass boost which you certainly should not need if your pickup and loudspeakers are moderately good.
It is not possible to obtain true bass from small loudspeaker systems by turning the 'BASS'; control to maximum, though an intermediate setting may be helpful,
particularly when listening at low intensity levels (as in an apartment late at night).
BALANCE
The balance knob on the front panel can adjust the sound output balance of the left and right speakers to compensate for an unbalanced sound.
Note: if you turn the balance control knob to full Left or Right, the other channel will be silent.
DIRECT
Press the Direct button on the front panel of the LEAK STEREO 130 to activate the direct function, and the indicator above the key will light up. Click to turn
off Direct again and the indicator goes off.
The LEAK STEREO 130 will bypass certain circuits within the amplifier design by stopping the power supply to these circuitts. It will reduce noise and electronic
interference (albeit minor) in order reproduce the purest sound as is electronically possible.
Note: bass, treble, and balance controls are not available when direct is activated.
PROTECTION MODE
LEAK STEREO 130 is protected by a thermal switch which interrupts the AC Power supply if the amplifier is grossly overloaded for a period of time. To restore
operation, simply press the Standby button on the front panel. It is thus fully protected against gross overload, short-circuited output etc, but not necessarily
against seriously inadequate ventilation.
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

LEAK warrants this product to be free from defects in materials and workmanship, subject to the terms and conditions below. During the warranty period LEAK
will repair or replace (at LEAK’s option) this product, or any defective part in this product, if it is found to be defective due to faulty materials, workmanship or
function. The statutory warranty period may vary from country to country.
You must provide proof of purchase/delivery before work can be carried out. Without this proof, any work carried out will be subject to charge.
TERMS AND CONDITIONS
The warranty starts on the date of purchase as per the proof of purchase (or the date of delivery if this is later).
This warranty is valid only in the county of purchase, applies only to the first purchaser and is not transferable.
All work will be carried out by LEAK or its authorized agents or distributors.
Any unauthorized repair or modification will void this warranty.
If any part is no longer available it will replaced with a functional replacement part.
Any parts that are replaced will become the property of LEAK.
Any repair or replacement under this warranty will not extend the original period of warranty.
4. Accidental damage, fault caused by commercial use, acts of God, incorrect installation, connection or packing, misuse, neglect or careless operation or
handling of the product which is not in accordance with LEAK’s user instructions.
5. Repairs or alterations carried out by parties other than LEAK or its authorized agents or distributors.
THE FOLLOWING ARE NOT COVERED:
1. Products where the serial number has been removed, altered or otherwise made illegible.
2. Normal wear, tear and cosmetic damage.
3. Transportation or installation of the product.
6. Products not purchased from an LEAK authorized dealer.
7. Products that were not new at the time of original purchase.
8. Products sold ‘as is’, ‘as seen’ or ‘with all faults’.
LEAK shall not be liable for any incidental or consequential damages for breach of any express or implied warranty in this product. Except to the extent
prohibited by law, this warranty is exclusive and in lieu of all other warranties whatsoever, both express and implied, including, but not limited to, the warranty
of merchantability and fitness for a practical purpose.
This warranty provides benefits that are additional to and do not affect your statutory rights as a consumer.
Some countries and U.S. states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the exclusions in the
paragraph above may not apply to you. This warranty gives you specific legal rights, and you may have other statutory rights, which vary from state to state
or county to county.
To obtain warranty service contact the LEAK authorized dealer from which you purchased this product. Do not dispatch goods without the prior agreement of
the dealer, LEAK or their authorized distributors.
If asked to return products for inspection and/or repair, pack carefully, preferably in the original cartons or packing affording an equal degree of protection,
and return prepaid. If unsuitable packaging is used, LEAK may make a charge for the supply of new packaging.
Insurance is recommended and goods are returned at owner’s risk. LEAK or their authorized distributors cannot be held liable for loss or damage in transit.
Repairs or replacements as provided under this warranty are the exclusive remedy of the consumer.
HOW TO CLAIM:
Warranty
Page 13
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 14
Specifications
Measurement made with 230V power supply
Corrent disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
10Kohm (AUX) ; 47Kohm //100pF (phono MM)
< 0.005% (30W, 8ohm)
480mV (RCA AUX IN); 4.1mV (phono MM)
Pre Output Signal to Noise (S/N)
< 0.003%
>110dB (A-weighted)
D/A Converter ESS Sabre32 Reference ES9018K2M
Input Sampling Rates Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~384kHz (PCM)/DSD64, DSD128, DSD256
Rated Output Power 2 x 45W (8ohm)/2x65W (4ohm)
Total Harmonic Distortion
Frequency Response 20Hz-20kHz (+/-0.5dB)
Input Sensitivity
Input Impedance
Signal to Noise Ratio (S/N) ≥108dB (A-weighted, ref.45W)
Pre Output Level 2.3V (Max)
Pre Output Total Harmonic Distortion (THD)
Bluetooth Version 4.2
Profile A2DP
Codec aptX (priority), SBC
USB Input 1 x USB (B-type)
Digital Audio Inputs 2 x Optical TOSlink ,1 x RCA COAX
Digital Audio Outputs 1 x Optical TOSlink ,1 x RCA COAX
Analog Inputs 2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM)
Analog Output 1 x RCA (PRE OUT)
Power Requirement 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
(Depends on your area)
Dimensions W x H x D (mm)
Carton Size W x H x D (mm)
302 x 118 x 270 (Metal)
326 x 146 x 276 (Wood)
475 x 248 x 450
Net Weight
Finish
7.02kg (Silver）
8.30kg (Walnut)
Silver/Walnut
Model STEREO 130
Gross Weight 9.30kg (Silver）
10.60kg (Walnut)
‘STEREO 130’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

IAG House, 13 /14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
Tel: [phone] Email: [email protected] Website: http://www.leak-hifi.co.uk
