Leak STEREO 230 User manual

INTEGRATED AMPLIFIER
User Manual
STEREO 230

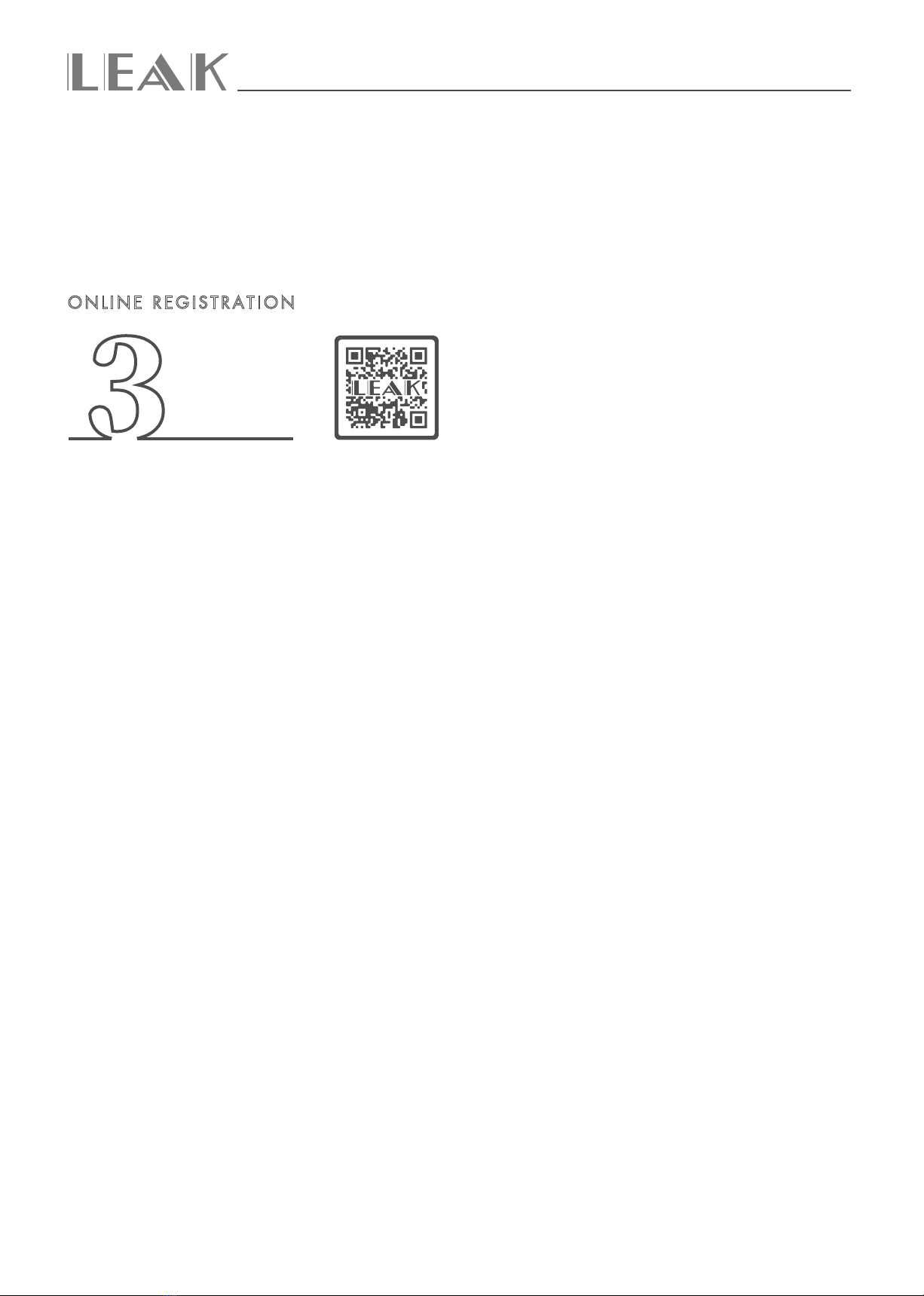

Scan the QR code using a smart-phone device,
for product warranty registration online.
WARRANTY
YEAR

‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
WARNING: SHOCK HAZARD-DO NOT OPEN
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
Warning: To reduce the risk of electric shock, do not remove cover (or
back) as there are no user-serviceable parts inside. Refer servicing to
qualified personnel.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions
in the literature accompanying the appliance.
CAUTION: These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you
are qualified to do so.
Do not install this equipment in a confined or built-in space such as a
bookcase or similar unit, and keep well ventilated in open space. The
ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
WARNING: Only use attachments/accessories specified or provided by
the manufacturer (such as the exclusive supply adapter, battery etc).
WARNING: Please refer to the information on the exterior panel of the
enclosure for electrical and safety information before installing or operat-
ing the apparatus.
WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to
dripping or splashing and that objects filled with liquids, such as vases,
shall not be placed on apparatus.
WARNING: For the terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external
wiring connected to the terminals requires installation by an instructed
person or the used of ready-made leads or cords.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A ground-
ing plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete
outlet.
Protect the power cord from being stepped on or pinched, particularly at
the plugs, convenience receptacles, and at the point where they exit from
the apparatus.
Unplug this apparatus during lightning storms or when unused for long
periods of time.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING: No naked flame sources, such as lighted candles, should be
placed on the apparatus.
WARNING: Attention should be drawn to environmental aspects of
battery disposal.
WARNING: Use of the apparatus in tropical climates.
THE FUSE VALUES ARE:
220 – 240V (UK, China, etc.) T2.0AL 250V Slow Blow
100 – 120V (USA, Japan, etc.) T5.0AL 250V Slow Blow
Protective earthing terminal. The apparatus should be connected
to a mains socket outlet with a protective earthing connection.
The product is designed to use in moderate/ tropical climates.
Important Safety Information

‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
The Bluetooth® word mark and logos are registered trademarks, owned by Bluetooth SIG, Inc. and any
use of such marks by IAG Group Ltd is under license. Other trademarks and trade names are those of
their respective owners.
aptX® software is copyright CSR plc. or its group companies. All rights reserved.
The aptX® mark and the aptX® logo are trademarks of CSR plc. or one of its group companies and may
be registered in one or more jurisdictions.
Being Roon Tested means that IAG Group Ltd and Roon have collaborated to ensure you have the best
experience using Roon, software and IAG Group Ltd equipment together, so you can just enjoy the music.
MQA (Master Quality Authenticated)
MQA is an award-winning British technology that delivers the sound of the original master recording.
The master MQA file is fully authenticated and is small enough to stream or download.
Visit mqa.co.uk for more information. LEAK STEREO 230 includes MQA technology, which enables you to
playback MQA audio files and streams, delivering the sound of the original master recording.
MQA and the Sound Wave Device are registered trademarks of MQA Limited ©2016
The LEAK STEREO 230 LED on the front panel glows green or blue to indicate that the unit is decoding and
playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the
source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved
in the studio by the artist/producer or has been verified by the copyright owner.

Contents
GETTING STARTED ……………………………………………………………………………………………… 5
CONNECTION ………………………………………………………………………………………………… 11
OPERATION ………………………………………………………………………………………….…………. 12
WARRANTY .…………......…………………......……………...………………......……………………… 14
SPECIFICATIONS ………...........................…………………………………………….……..….…… 17
CONTROLS AND CONNECTORS ………......................………………………………………………. 6
REMOTE HANDSET …………………………………………….............…………..………….…………... 7
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Getting Started
INTRODUCTION
FEATURES
• 2 x 75W (8 ohms) / 2 x 115W (4 ohms) amplifier
• ST MOSFET TDA7293 dual parallel amplifier
• ES9038Q2M 32-bit DAC
• Bluetooth 5.0 (aptX / aptX HD) input
• HDMI ARC support
• PC USB port for replaying stereo from a compatible host
• MQA full decoder for PC USB / coaxial SPDIF / optical SPDIF inputs
• Roon Tested for PC USB
• Low-noise moving magnet phono stage
• Dedicated current-feedback headphone amplifier
• USB firmware update functionality
• 2 x Analogue inputs
• 1 x Phono (MM) input
• 1 x Coaxial SPDIF digital input
• 1 x Optical SPDIF digital input
• 12V Trigger input
• Pre-amplifier output
• Loudspeaker output
• Headphone output
• Trigger output
UNPACKING THE EQUIPMENT
Unpack the product fully. The carton should contain:
• The LEAK STEREO 230 amplifier
• One IEC power cord suitable for your area
• One remote handset
• One antenna (for metal enclosure version only. The LEAK STEREO 230 with wooden chassis does not have antenna)
• The LEAK STEREO 230 user manual
USB DRIVERS (AND FIRMWARE UPDATES)
To download Windows Drivers, please see the separate manual. Any firmware updates will also be available from www.leak-hifi.co.uk
PLACEMENT
The unit must be mounted on a solid, level and stable surface.
Before you connect the LEAK STEREO 230 to the AC mains power, ensure your AC mains voltage corresponds to the rating on the rear panel of the product.
If in doubt, consult your dealer. If you move to an area which has a different AC mains voltage, seek advice from a LEAK appointed dealer or a competent
service technician.
The LEAK STEREO 230 is a high-performance, high-fidelity integrated amplifier designed for the audio enthusiast. It is designed to be the perfect match to a
wide variety of sources and provides the necessary amplification to realise the highest quality of your stored music through your loudspeakers and headphones.
The LEAK STEREO 230 can be connected to both analogue and digital sources, thanks to its diversity of inputs. A built-in Moving Magnet (MM) phono pre-am-
plifier allows for direct connection to turntable record players. It also offers a newly developed HDMI ARC connectivity function to realise the highest quality
audio in AV applications, for a fully equipped integrated amplifier to meet the demands of modern audiophiles and cinephiles.
The LEAK STEREO 230 will operate as a high-fidelity Digital Audio Converter (DAC). You can also stream music to the LEAK STEREO 230 from any Bluetooth
device such as portable music players and smartphones. The LEAK STEREO 230 is designed with the innovative built-in aptX codec so that you can hear
CD-quality audio over the Bluetooth wireless connection.
To ensure proper operation, please read this owner's manual carefully before using the product. After reading this manual, be sure to keep it for future reference.
Page 5
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 6

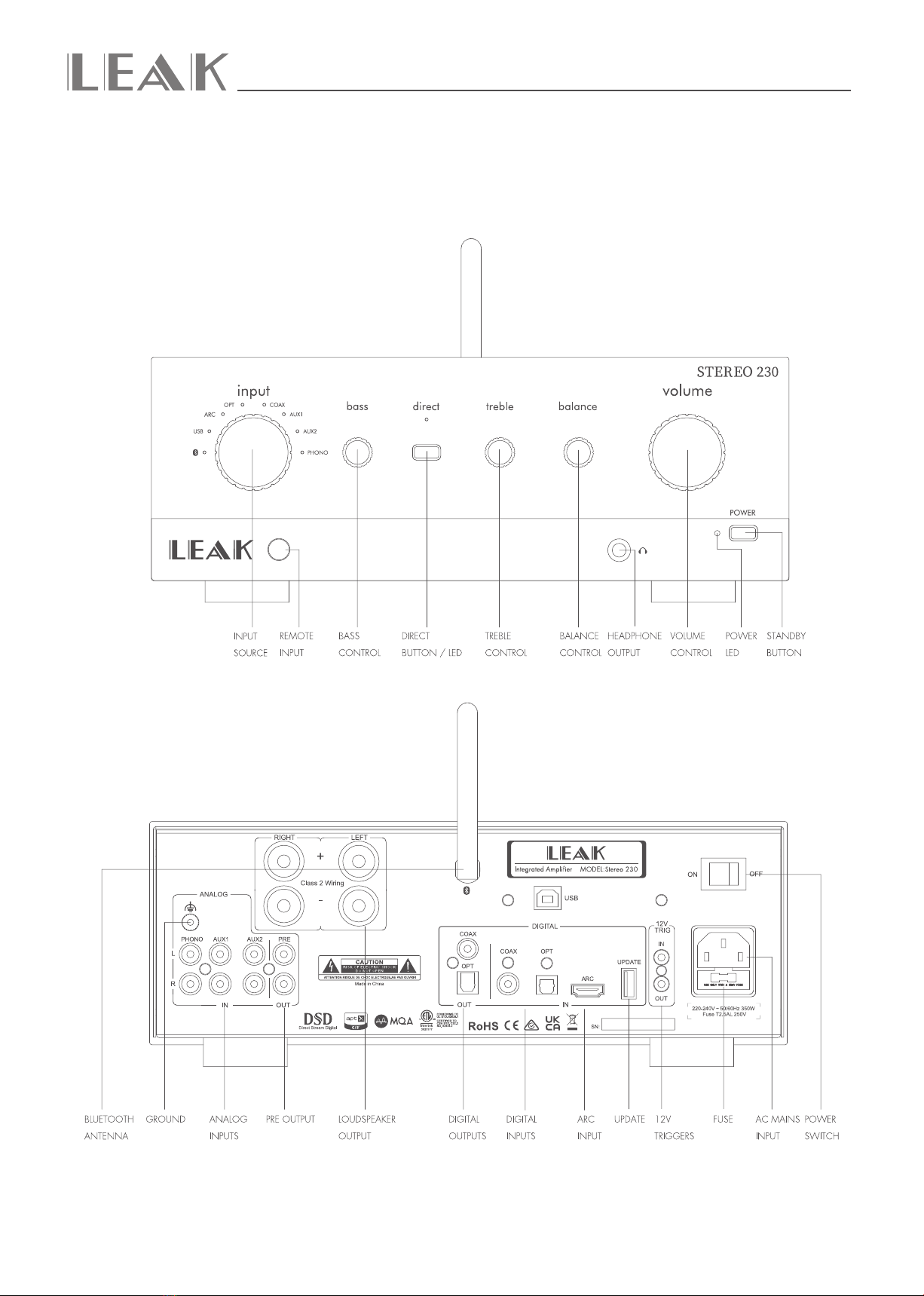

Controls and Connectors
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 7
Remote Handset
NOTE:
Always use AAA batteries (not supplied) and replace them in sets - never mix old and new batteries.
Very weak batteries can leak and damage the handset. Replace them in good time! There is a risk of fire and burns if a battery is handled improperly. Do not
disassemble, crush, puncture, short the contacts or dispose of the batteries in fire or water.
Do not attempt to open or service a battery. Discard used batteries in full accordance with recycling regulations in force in your area.
NOTE : the handset buttons shown crossed out are for use with other LEAK units such as the LEAK CDT and are therefore not functional when used with the
LEAK STEREO 230.
Press to select the LEAK STEREO 230 remote mode
(press the CD button for the LEAK CDT controls)
10 A
Press to select the source input
5INPUT
Press to select the direct mode
4DIRECT
VOL- Press to decrease volume
9
Press to skip track forward in Bluetooth / PC USB playback mode
8
VOL+ Press to increase the volume 7
MUTE Press to mute/unmute the sound. In mute mode, the source indicator on
the front panel will flash
1
6Press to bring the unit in/out of Standby
STANDBY
VOL
3Press to Play/Pause in Bluetooth / PC USB playback mode
Press and hold for 3 seconds to disconnect Bluetooth
Press to skip track backwards in Bluetooth / PC USB playback mode
2
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 8
Connection
INSTALLATION
Before making any connections to your high fidelity equipment make sure that all units in the system are switched off and unplugged at the mains.
AC POWER CONNECTION
The Power On/Off switch is on the rear panel. Before connecting the LEAK equipment to the AC mains supply check and make sure the voltage marked on
the back matches your supply voltage.
DIGITAL SIGNAL OUTPUT CONNECTIONS
Coaxial Output
The LEAK STEREO 230 has one coaxial SPDIF output. Connect an RCA digital interconnect between the LEAK STEREO 230 unit and the required input of your
equipment.
Optical Outputs
The LEAK STEREO 230 has one optical SPDIF output. Connect an optical (TOSLink) interconnect between the LEAK STEREO 230 and the required input of
your equipment.
ANALOGUE SIGNAL OUTPUT CONNECTIONS
Preamplifier Output
The LEAK STEREO 230 has one pair of unbalanced RCA outputs which can make the unit operate as a preamplifier.
Connect an RCA cable between the unbalanced pre output of the LEAK STEREO 230 and the unbalanced input of a power amplifier or associated equipment.
Interconnection should be of low-noise construction and fully screened to minimize hum and noise transmission.
Loudspeaker Outputs
The LEAK STEREO 230 has two sets of loudspeaker outputs. They are independent for right and left stereo amplifier outputs.
Connect the Positive (+) RED terminals of the amplifier to the Positive (+) RED terminals of the loudspeakers. Connect the Negative (-) BLACK terminals similarly.
If the speaker has the wrong polarity connection, the sound becomes unnatural or lacks bass. When connecting loudspeakers tighten the terminals securely
by hand. Make sure there are no loose strands of wires which could cause short circuits.
Headphone Output
The LEAK STEREO 230 has a stereo 6.3mm (1/4”) jack on the front panel for connecting headphones. Connecting the headphones will mute the audio signal
to the loudspeakers. The LEAK STEREO 230 headphone output can be adjusted up to 4.5V. Select a comfortable output level to suit your headphones.
WARNING: Listening to music at high volume levels and for extended durations can damage one’s hearing. In order to reduce the risk of damage to hearing,
one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels. Headsets should comply with EN 50332-2
requirements (for GS certification).
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 9

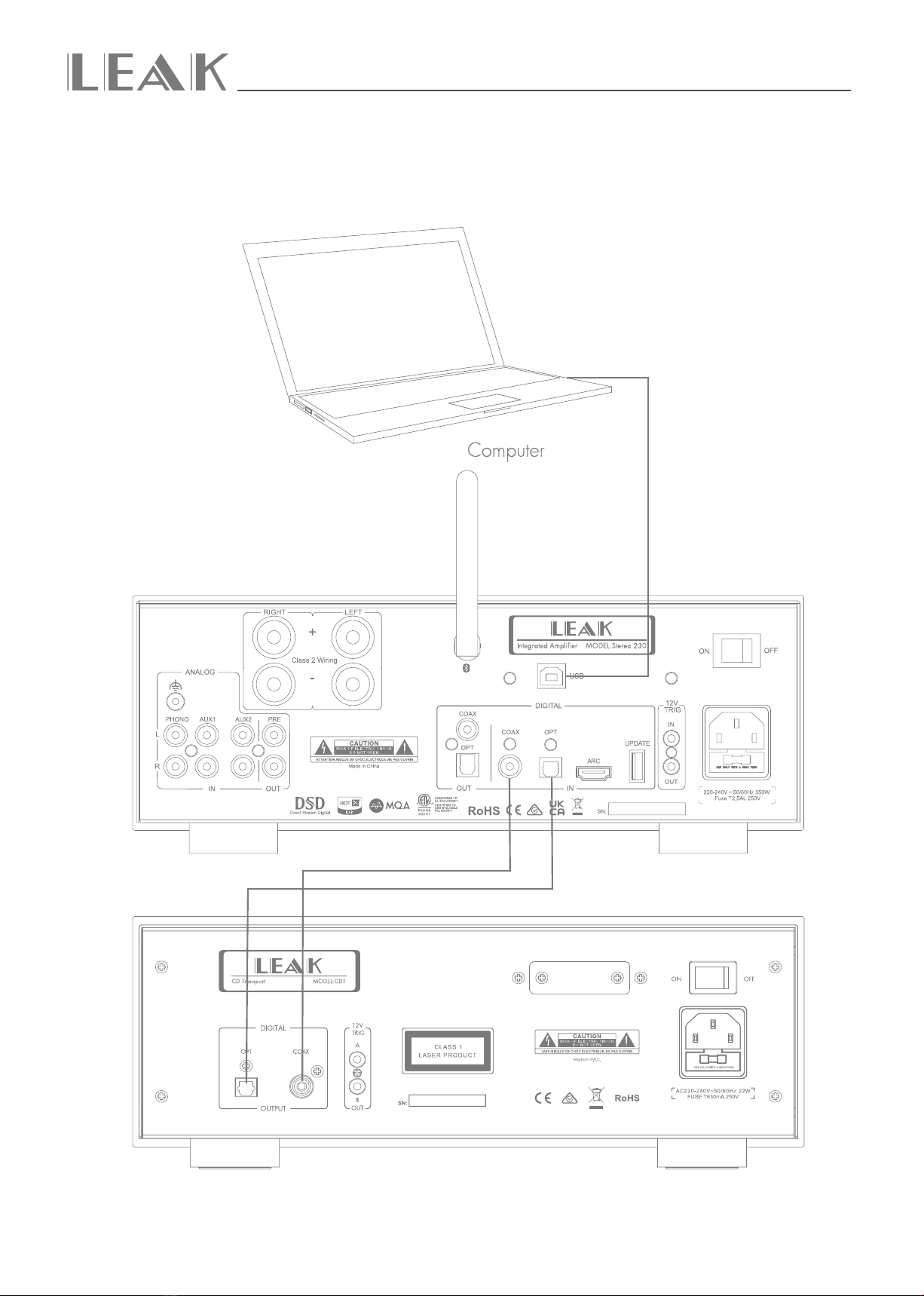

Output Connection
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 10
ANALOGUE SIGNAL INPUT CONNECTIONS
The LEAK STEREO 230 has two sets of unbalanced RCA inputs for connection to units which do not feature balanced outputs. Both sets are identical.
Connect an RCA cable between the unbalanced input of the LEAK STEREO 230 and the unbalanced output of a source unit like a CD player or DAC.
Interconnections should be of low noise construction and fully screened to minimize hum and noise transmission.
PHONO SIGNAL INPUT CONNECTIONS
The LEAK STEREO 230 has a PHONO signal input, the PHONO input should only be connected to turntables fitted with MM or high output MC cartridges.
DIGITAL SIGNAL INPUT CONNECTIONS
The LEAK STEREO 230 has a variety of digital inputs, which can be connected to most popular digital sources, like the digital output of a CD or DVD player,
DAC or PC etc.
Coaxial Inputs
The LEAK STEREO 230 has a coaxial SPDIF input. Connect an RCA digital interconnect between the digital coaxial output of the source unit to the COAX
input of the LEAK STEREO 230.
Optical Inputs
The LEAK STEREO 230 has an optical SPDIF input. Connect an optical (TOSlink) interconnection between the digital optical output of the source unit to the
LEAK STEREO 230.
Bluetooth Input
The LEAK STEREO 230 has a built-in Bluetooth signal processor module which can play audio files transmitted from a source unit via Bluetooth wireless
transmission. Please refer to page 12 for instructions on how to operate this function.
USB Input
The LEAK STEREO 230 has one type-B USB input which allows you to play audio files stored on a computer.
UPDATE
The LEAK STEREO 230 provides a type-A USB port for firmware upgrades.
Upgrade method: Put the upgrade file onto a USB disk, plug it into the UPDATE USB interface, press and hold the STANDBY button on the front panel while
switching on the power using the rear panel POWER switch. The LEAK STEREO 230 will upgrade automatically. After upgrading, unplug the USB disk and
power on the amplifier for normal use.
GROUND TERMINAL
The grounding terminal connected with this product is used to reduce noise when connecting with other associated equipment fitted with a separate ground
lead. This terminal is required to be used when the turntable amplifier and turntable player are both double insulated. In this case, the metal housing of the
machine is grounded to eliminate the residual hum, and the ground terminal cannot be used as safety for other equipment. If you have any questions, please
consult your dealer.
ARC
ARC function allows you to send audio from your ARC-compliant TV to the LEAK STEREO 230 through a single HDMI connection. To enjoy the ARC function,
please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. Please note: Your TV must support the HDMI-CEC and ARC function.
HDMI-CEC and ARC must be set to ‘ON’. The configuration method of HDMI-CEC and ARC may differ depending on the brand or model of your TV. For
details about the ARC function, please refer to your TV owner's manual. Only HDMI 1.4 cables can support the ARC function.
Type-B USB
ARC
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 11
Input Connection
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Operation
REMOTE
INPUT
BASS
CONTROL
TREBLE
CONTROL
BALANCE
CONTROL
VOLUME
CONTROL
INPUT
SOURCE
DIRECT
BUTTON / LED
HEADPHONE
OUTPUT
POWER
LED
STANDBY
BUTTON
STANDBY MODE
The LEAK STEREO 230 will be in standby mode when powered on. Power LED indicator on front panel will show dark red. Press the Standby button or the
aaabutton on the remote handset to bring LEAK STEREO 230 out of standby.
You can adjust the ‘auto standby’ function by pressing and holding the Standby button on the front panel until the LED blinks. A short press of the Standby button
then selects the Auto - Standby function as follows:
20 min Auto-Standby
The Power LED indicator flashes twice: Auto-Standby 20 minutes. The LEAK STEREO 230 will automatically go into Standby mode if there is no signal input
or operation for 20 minutes.
1 Hour Auto-Standby
The Power LED indicator flashes thrice: Auto-Standby 1 hour. The LEAK STEREO 230 will automatically go into Standby mode if there is no signal input or
operation for 1 hour.
Never Auto-Standby (Default)
The Power LED indicator flashes once: Auto-Standby Never. The LEAK STEREO 230 will not go into Standby mode.
VOLUME CONTROL
Before turning on the LEAK STEREO 230, please check the volume level before playing the source. The volume control will remain at the level it was last set
at when the unit was put in stand-by.
You can adjust the volume knob on the front panel or press the volume button of the remote control to adjust the volume level as needed.
Press the MUTE button on the remote control to enter MUTE mode. Note: the selected input indicator flashes to show the amplifier is in MUTE mode.
PLAYING MUSIC VIA ANALOGUE INPUTS
Connect the analogue signal of a source unit to the LEAK STEREO 230’s AUX1 or AUX2 input. Rotate the INPUT selector on the front panel (or press the INPUT
select key on the remote control) to select the AUX1 or AUX2 input. The selected input indicator will light and music will start playing.
PLAYING MUSIC VIA DIGITAL INPUTS
Connect the coaxial SPDIF or optical (TOSlink) output from your source unit to the digital in COAX jack or the optical (TOSlink) input on the LEAK STEREO 230’s
rear panel. Rotate the INPUT selector on the front panel (or press the INPUT select key on the remote control) to select the COAX / OPT input. The selected
input indicator will light and music will start playing when signal is present.
Page 12
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
STEREO 230
input volume
POWER
bass direct treble balance
COAX
AUX 1
AUX 2
PHONO

Page 13
PLAYING MUSIC VIA USB INPUT
When connecting the LEAK STEREO 230 to a Windows computer for the first time, you will need to install the USB driver on your computer.
Connect to a Mac or PC via the type-B USB interface on the LEAK STEREO 230’s rear panel. Rotate the INPUT selector on the front panel (or press the INPUT
select key on the remote control) to select the USB input, the selected input indicator will light. Select the unit as the playback output device on the computer
and then start playing music with your chosen music software program.
PLAYING MUSIC VIA BLUETOOTH
You can wirelessly connect the LEAK STEREO 230 to a music source via Bluetooth wireless technology. When the Bluetooth device (smartphone, tablet or PC
etc) is not connected, the indicator light of the Bluetooth input will flash. When a Bluetooth devices is connected, the indicator LED will be illuminated.
To connect a Bluetooth device, access the Bluetooth connectivity menu on your your Bluetooth device (smartphone, tablet or PC etc) and connect to
'LEAK STEREO 230 BT'. If prompted to enter the password, enter '0000'.
Bluetooth will disconnect after 1 minute, if you switch to another input from Bluetooth playback. Your device will automatically reconnect to the LEAK STEREO
230 when you switch back to the Bluetooth input (assuming the device is within range).
To disconnect the Bluetooth:
• Hold press the button on the remote control for 3 seconds to force the current Bluetooth connection to be disconnected.
• Bluetooth with automatically disconnect if you remove the Bluetooth source beyond the communication area or turn off the connected device or turn off its
Bluetooth function.
BASS
You can adjust the bass output by adjusting thr BASS knob on the front panel. To increase, turn clockwise. To decrease, turn counterclockwise. The BASS
control range is -6db to +6dB.
TREBLE
You can adjust the treble output by adjusting the TREBLE knob on the front panel. To increase, turn clockwise. To decrease, turn counterclockwise. The TREBLE
control range is -6db to +6dB.
Note:
The RIAA playback characteristic has been incorporated in the LEAK STEREO 230, as this is the internationally agreed standard. This characteristic does not
take into account the acoustics of the recording studio, the position of the microphones relative to the artists, your pickup, your loudspeaker systems, the
acoustics of your room and your particular ears! In other words, the play-back characteristic is of use only as an approximation, and it may well be necessary
to adjust the final result by using the controls marked as ‘BASS’ and ‘TREBLE’; this is the reason for their presence. When playing LP records (331/3 and 45
r.p.m) made prior to 1955, for instance, the bass and treble controls maybe used to correct differences in the recording characteristic.
When playing European 78 recrods, the ‘TREBLE’ control should, theoretically, be turned to ‘2 O’Clock’.
Consumer opinion in some countries insists on a magnitude of available bass boost which, if used at maximum, can only result in a travesty of the original
music. We have provided you with an availability of bass boost which you certainly should not need if your pickup and loudspeakers are moderately good.
It is not possible to obtain true bass from small loudspeaker systems by turning the 'BASS'; control to maximum, though an intermediate setting may be helpful,
particularly when listening at low intensity levels (as in an apartment late at night).
BALANCE
The balance knob on the front panel can adjust the sound output balance of the left and right speakers to compensate for an unbalanced sound.
Note: if you turn the balance control knob to full Left or Right, the opposite channel will be silent.
DIRECT
Press the Direct button on the front panel of the LEAK STEREO 230 to activate the direct function, and the indicator above the key will light up. Click to turn
off Direct again and the indicator goes off.
The LEAK STEREO 230 will bypass certain circuits within the amplifier design by stopping the power supply to these circuitts. It will reduce noise and electronic
interference (albeit minor) in order reproduce the purest sound as is electronically possible.
Note: bass, treble, and balance controls are not available when direct is activated.
PROTECTION MODE
The LEAK STEREO 230 is protected by a thermal switch which interrupts the AC Power supply if the amplifier is grossly overloaded for a period of time. To
restore operation, simply press the Standby button on the front panel. It is thus fully protected against gross overload, short-circuited output etc, but not
necessarily against seriously inadequate ventilation.
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

Page 14
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
Scan the QR code using a smart-phone device,
for product warranty registration online.
WARRANTY
YEAR
Warranty Coverage
LEAK warrants its products, subject to the following terms and conditions below, to be free from
defects in materials and workmanship.
The three (3) year extended warranty is applicable to items purchased from Jan 1st 2021, onwards. Items purchased
prior to this date are not eligible for this extended warranty service but are subject to statutory warranty claims and
all applicable consumer rights.
To qualify for the extended 3 year warranty, you must register your product within ninety (90) calendar days from the
date of purchase. Visit to complete your online registration. Items not registered
online will have a Limited Warranty for one (1) year, or for the period of your country’s statutory warranty, whichever
is longer.
Warranty can only be offered to products registered with proof of purchase with date, model and details of the
authorised dealer clearly stated on the receipt/invoice. Please keep the original receipt/invoice in case it is required
for a warranty claim.
This Limited Warranty is non-transferable and is offered exclusively to the original owner.
This Limited Warranty is valid only in the original country of purchase.
Repairs or replacements are provided under this warranty are the exclusive remedy of the consumer. LEAK shall not
be liable for any incidental or consequential damages for breach of any expenses or implied warranty with any
product. Except to the extent prohibited by law, this warranty is exclusive and in lieu of all other warranties
whatsoever, both expressed and implied, including but not limited to the warrant of merchantability and fitness for
practical purpose.
This warranty provides benefits that are additional to and do not affect your statutory consumer rights.
This Limited Warranty offer is subject to correct information being submitted in your application. Incorrect dates or
mismatched purchase receipt dates that are outside of the warranty terms will immediately invalidate any warranty
claim.
*Please check with your dealer local distributor for further information.
ONLINE REGISTRATION
leak-hifi.co.uk/warranty-registration

Page 15
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
EXCLUSIONS
The following items are excluded from the LEAK warranty:
Normal wear and tear and cosmetic damage (including but not limited to any wear from reasonable use,
environmental deterioration or neglect)
Products on which the serial number has been removed, altered or otherwise made illegible.
Products not purchased from an authorised LEAK dealer.
Products that were not new at the time of original purchase.
Products sold ‘as is’, ‘as seen’ or ‘with faults’
Product not purchased from an Authorised Dealer/Distributor within the region of the claim (ie parallel imports or grey
market products)
Accidental damage or faults caused by commercial use, acts of God, incorrect installation, incorrect connection,
incorrect packaging, misuse or careless operation or handling which is not in accordance with the user instructions.
Equipment that has been operated in conjunction with unsuitable, inappropriate or faulty apparatus.
Repairs, alterations or modifications carried out by parties other than LEAK or its authorised service partners.
Damage in transit that cannot be attributable to the fault of LEAK, the authorised distributor or dealer (ie. claims
otherwise covered by transit insurance.)
Faults relating to abnormal or inappropriate power supply voltage or power surges.
Faults relating to extremities in temperature, exposure to heat, water or other liquids, insects, excessive moisture, sand,
chemicals, battery leakage or any other contaminants.
Any force majeure events, including but not limited to any acts of God, fire, lightning, typhoon, storm, earthquake,
hurricane, natural disaster, tsunami, flood, war, riot, public disturbance.
Any other causes beyond the reasonable control of either LEAK and its Authorised Distributor.
Please note items purchased before 1st Jan 2021 are not eligible for the extended warranty claim.
HOW TO CLAIM
To obtain warranty service please contact the authorised dealer from which you purchased this product and present
the limited warranty certificate offered upon registration of your product’s extended warranty offer.
Do not dispatch goods without the prior agreement of the dealer distributor or authorised service centre.
If asked to return products for inspection and or repair, please pack carefully preferably in the original carton or
packaging affording an equal degree of protection and returned via insured, trackable courier service.
The authorised dealer or distributor will offer full return details and instructions. However, please note if unsuitable
packaging is used the warranty may be deemed void due to improper action in return.
LEAK or the authorised distributor, dealer or service centre may make a charge for the supply of new packaging for
the return of the repaired item. Please note, insurance is recommended as goods are returned at the owner’s risk.
Authorised distributors or service centres cannot be held liable for loss or damage in transit. insurance and freight
charges on the return journey will be paid for by LEAK, authorised dealer, distributor or service centre if corrective work
proves to be necessary.
In the event of ‘no-fault found’ or ‘no repair necessary,’ the return shipping charge will be the responsibility of the
owner.

Page 16
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE
REPAIRS
All repairs will be carried out by the appointed distributor (or locally appointed service centre). Repairs handled or
processed without authorisation or approval of the appointed representative will be excluded from this limited
warranty. Please note, LEAK is not able to supply parts or replacement items to any other entity than the official
distributor or authorised service centre.
Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, LEAK shall not be
liable to you and/or any third party or entity whatsoever for:
Should a fault occur with your product, please pack it correctly using the original packing, so you can ship it safely.
For technical support, servicing or product queries and information, please contact either your local retailer or the office
below:
IAG Service Dept.
13/14 Glebe Road
Huntingdon
Cambridgeshire
PE29 7DL
UK
Tel: [phone]
Email: [email protected]
For information on other authorised service centres worldwide contact LEAK International, UK.
A world wide distributors list is available on the LEAK website: www.leak-hifi.co.uk
Any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the products
covered by this warranty.
Any damages, loss and liability, whether direct, indirect, incidental, consequential special, punitive or otherwise,
howsoever caused by, arising out of or otherwise, in relation to the installation, delivery, use, service, repair,
replacement and/or maintenance of the product;
Any damages, loss and liability under this warranty in respect of any act, omission, or negligence of any of their
technicians, employees, agents, representatives or independent contractors relating to the actual or purported
performance of any of the obligations under this warranty.
SERVICE CENTRE ADDRESS

Page 17
Specifications
Measurement made with 230V power supply
Corrent disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
10k ohm (AUX) ; 47k ohm / 100pF (Phono MM)
< 0.003% (1kHz @ 30W / 8 ohms)
550mV (RCA AUX IN); 4.1mV (Phono MM)
Pre Output Signal to Noise (S/N)
< 0.002%
>110dB (A-weighted)
D/A Converter ESS Sabre32 Reference ES9038Q2M
Input Sampling Rates Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~512kHz (PCM)/DSD64, DSD128, DSD256,
DSD512
Rated Output Power 2 x 115W (4 ohms) / 2 x 75W (8 ohms)
Total Harmonic Distortion
Frequency Response 20Hz-20kHz (+/-0.5dB)
Input Sensitivity
Input Impedance
Signal to Noise Ratio (S/N) ≥109dB (A-weighted)
Pre Output Level 2.3Vrms
Pre Output Total Harmonic Distortion (THD)
Bluetooth Version 5.0
Profile A2DP
Codec aptX / aptX HD
USB Input 1 x USB Type B (MQA Full Decoder & Roon Tested)
Digital Audio Inputs 1 x Optical TOSlink ,1 x RCA COAX (MQA Full Decoder)
Digital Audio Outputs 1 x Optical TOSlink ,1 x RCA COAX, 1 x ARC
Analogue 2 x RCA (AUX1, AUX2) ,1 x RCA (Phono MM)
Analogue 1 x RCA (PRE OUT)
Power Requirement 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
(Depends on your area)
Dimensions W x H x D (mm)
Carton Size W x H x D (mm)
328 x 147 x 414 (Walnut)
328 x 115 x 414 (Silver)
514 x 428 x 210
Net Weight
Finish
11.1kg (Silver）
12.7kg (Walnut)
Silver / Walnut
Model STEREO 230
Gross Weight 12.7kg (Silver）
15.2kg (Walnut)
‘STEREO 230’
INTEGRATED AMPLIFIER
INSTALLATION - OPERATION - MAINTENANCE

IAG House, 13 /14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
Tel: [phone] Email: [email protected] Website: http://www.leak-hifi.co.uk
