VOLCANO GAS HOB
Instruction Manual
LKGH-8602MB
LKGH-8603MB
www.lebensstilkollektion.com

Table of Contents
Components and features
Description of the appliance
Using the gas hob
Maintenance
Practical Advice
Safety
Troubleshooting
Installation instructions
1
2
3
4
5
6
8
9

1
Components and Features
A. Wok burner
B. Support Grid for Cookware
C. Control Knobs for Gas Burners
D. Ignition for Gas Burners
E. Safety Device
F. Energy gathered pan
G. Auxiliary burner

2
Description of the appliance
This built in gas hob is supplied with 2 burners(LKGH-8602MB) or 3
burners(LKGH-8603MB) on a glass panel. Each burner is operated by a FSD/
plug type gas valve, controlled by a metal control knob positioned on the top of
the panel. Each burner is fitted with a flame safety device. The appliance uses
a battery supply of 1.5V DC that operates the ignition system.
Burner
Injector
size(mm)
Injector
marking
Full rate
kW
For LPG
Wok
Inner ring
0.6
60
5.5kW
Outer ring
0.9
90
Auxiliary
/
0.6
60
1.5kW
Model number
Burner Variants
Wok burner
Auxiliary burner
Total
Dimensions
LKGH-8602MB
2
0
11.0kW
（860×500）mm
LKGH-8603MB
2
1
12.5kW
（860×500）mm
Note:Wok burner=Rated at 5.5kW

3
Using the gas hob
The position of the corresponding gas burner is indicated on each control knob.
Gas Burners
Choose appropriate diameter of the cookware being used.
The diameter of the cookware used should be larger than the burners in order
to save energy. Always make sure that your pans are placed centrally on the
burners and do not allow the flame to extend over the base of the pan.
The burner can be regulated with the corresponding control knob by using one
of the following settings:
To turn on the burner
Please press the corresponding knob all the way down and turn it in the
counter-clockwise direction to the “high” setting.
Keep the knob press down for approximately 3 seconds to allow the safety
device to heat up.
To turn off the burner
Turn the knob in the clockwise direction until it stops (at “●” setting).
Should the cooktop be installed directly under a cupboard, it should be at least
720 mm (millimeters) from the top, as shown in Fig. C.
The dimensions of the cutout for the appliance must be those indicated in the
Fig D. Clamps are provided to fasten the cooktop to counters measuring from
20 to 60 mm in thickness. To fasten the cooktop securely, it is recommended
that all the clamps be used.
Caution: If the burner goes out accidentally, turn off the gas with the control
knob and try to light it again after waiting for at least 1 minute.

4
Maintenance
Before cleaning or performing maintenance on your appliance, disconnect it
from the gas supply.
To extend the life of the cooktop, ensure that it is cleaned carefully and
thoroughly on a frequent basis, keeping in mind the following:
Do not steam equipment to clean the appliance.
The enameled parts,if present,must be washed with warm water without
suing abrasive powers or corrosive substances which could ruin them;
The removable parts of the burners should be washed frequently with warm
water and soap,making sure to remove caked-on substances;
The end of the electronic ignition device must be cleaned carefully and
frequently making sure that the gas holes are not clogged.
Greasing the Taps
The taps may become difficult to turn over time.If so,the tap itself must be
replaced.
N.B.:This operation must be performed by a technician authorized by the
manufacturer.

5
Practical Advice
Practical Advice on Using the Burner
For best performance,follow these general guidelines:
Use the appropriate cookware for each burner(see table below as
reference)in order to prevent the flame from reaching the sides of the
cookware;
When the contents come to a boil,turn the knob to “Low”
Burner
Φcookware diameter(cm)
Wok burners (A)
24-26
Auxiliary burner(G)
12-20

6
Safety
To maintain the Efficiency and Safety of this appliance, we recommend:
Call only the Service Centers authorized by the manufacturer or
authorized service agent in order to avoid a hazard.
Always use original Spare Parts.
This manual is for a class 3 built-in or class 2 built suitable with a built in oven
beneath.
This appliance is designed for non-professional use in the home and its
features and technical characteristics must not be modified.
Prevent children and the disabled from coming into contact or having
access to the following, as they are possible sources of danger:
The controls and the appliance in general;
The packaging (plastic bags, polystyrene, nails, etc.);
The appliance, during the immediate after use given the heat generated by its
use.
The appliance when no longer installed (in this case, all potentially dangerous
parts must be made safe).
The following should be avoided:
Improper and/or dangerous use;
Obstructing the ventilation or heat dissipation slots;
Allowing the power supply cord of small appliances to come into contact with
the hot parts of the cooktop.
Exposure to atmospheric agents (rain, sun); Using flammable liquids nearby;
Using adaptors, multiple outlet plugs and/or extensions; Using unstable or
deformed cookware;
Trying to install or repair the appliance without the assistance of qualified
personnel.

7
The assistance of qualified personnel must be called upon in the
following cases:
Installation (in accordance with the manufacturer’s instructions) When in doubt
about the operation of the appliance;
Contact service centers authorized by the manufacturer, its service agent
in the following cases:
When in doubt about the condition of the appliance after having removed the
packing; In the case of the breakdown or malfunction: ask for original spare
parts.
It is recommended that you follow the guidelines below:
Only use the appliance to cook food, avoiding all other uses. Check the
condition of the appliance after it has been unpacked.
When not in use, take out the battery and turn off the gas valve (if present);
Always check to make sure that the control knobs are on the “●” setting when
the appliance is not in use;
The manufacturer or distributor will not be held liable for any damages
arising out of : incorrect installation or improper or unreasonable use.

8
Troubleshooting
It may occur that the cooktop does not function or does not function properly.
Before calling the customer service for assistance, please see what can be
done.
First of all, check to see that there are no interruptions in the gas and battery
supplies, and, in particular, that the gas valves for the mains are open.
The burner does not light or the flame is not uniform around the burner.
Check to make sure that:
The gas holes on the burner are not clogged;
All of the movable parts that make up the burner are mounted correctly;
There are no draughts near the cooking surface.
The burner does not remain on when set to “Low”.
Check to make sure that:
The gas holes are not clogged.
There are no draughts near the cooking surface.
The cookware is not stable.
Check to make sure that:
The bottom of the cookware is perfectly in shape.
The cookware is centered correctly on the burner.
The support grids have not been inverted.
Smell of gas
Check to make sure that:
None of the controls have inadvertently been turned on. If all the controls
are in the off position, turn off the gas supply & call Customer Care.
If despite all of these checks, the cooktop does not function properly and
problem persists, call the Customer Service Centre, informing them of the
issue faced.
Never call upon technicians not authorized by the manufacturer or its service
agent.

9
Installation Instructions for Built-In
The following Instructions are intended for the installer so that the installation
and maintenance procedures may be followed in the most professional and
expert manner possible.
Positioning
This appliance may only be installed and operated in properly ventilated rooms
in compliance with provision laid down by current regulations and
standards,The following requirement must be observed:
A) The room must be fitted with a ventilation system which vents smoke and
gases from comnusion to outside.This must be done by means of a hood or
electric ventilator that turns on automatically each time the hood is operated
In a chimney stack or branched flue. Directly to the Outside
(exclusively for cooking appliances)

10
B)The room must also allow for the influx of the air needed for proper
combustion.The flow of air for combustion purposes must not be less than 2m³
/h per kW of installed capacity.The supply of said air can be effected by means
of direct influx from the outside through a duct with a inner cross section of at
least 100 ㎡which must not be able to be accidentally blocked.
Those appliances which are not fitted with a safety device to prevent the flame
from accidentally going out must have a ventilation opening twice the size

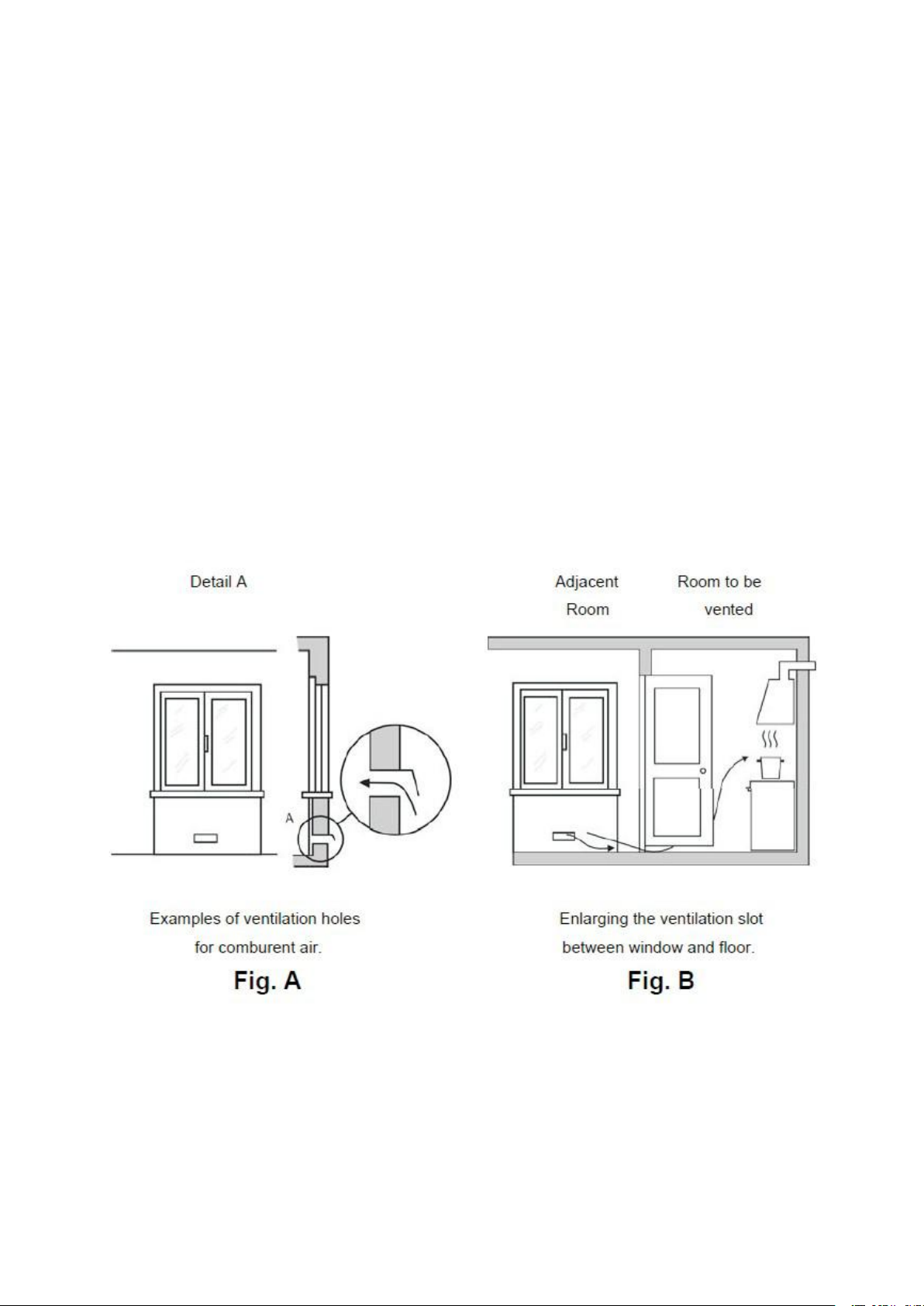

otherwise required,i.e.a minimum of 200 cm²(Fig.A.).Otherwise,the room can
be vented indirectly though adjacent rooms fitted with ventilation ducts to the
outside as described above,as long as the adjacent rooms are not shared
areas,bedrooms or present the risk of fire(Fig.B).
C)Intensive and prolonged use of the appliance may necessitate supplemental
ventilation,e.g.opening a window or increasing the power of the air intake
system (if present).

11
D)Liquefied petroleum gases are heavier than air and as a result,settle
downwards.Rooms in which LPG tanks are installed must be fitted with
ventilation openings to the outside in order to allow the gas to escape in the
event of a leak.Therefore,LOG tanks,whether empty or partially full,must not be
installed or stored in rooms or spaces below ground level(cellars,etc.).It is also
a good idea to keep only the tank currently being used in the room,making sure
that it is not near sources of heat(ovens,fireplaces,stoves,etc.) that could raise
the internal temperature of the tank above 50℃.
Installation of Built-in cooktops
The appliance can be installed next to furniture units which are no taller than
the top of the cooker hob.The wall in direct contact with the back panel of the
cooker must be made of non-flammable material.During operation the back
panel of the cooker could reach a temperature of 50 ℃above room
temperature.For proper installation of the cooker,the following precautions
must be taken:
If the cabinet(s) located next to the cooktop are higher than the cooktop
itself,the cabinet(s) must be installed at least 600 mm from the edge cooktop:
Hoods must be installed in the accordance with the instructions contained in
the installation manual for the hoods themselves,and no less than 650mm from
the cooktop.

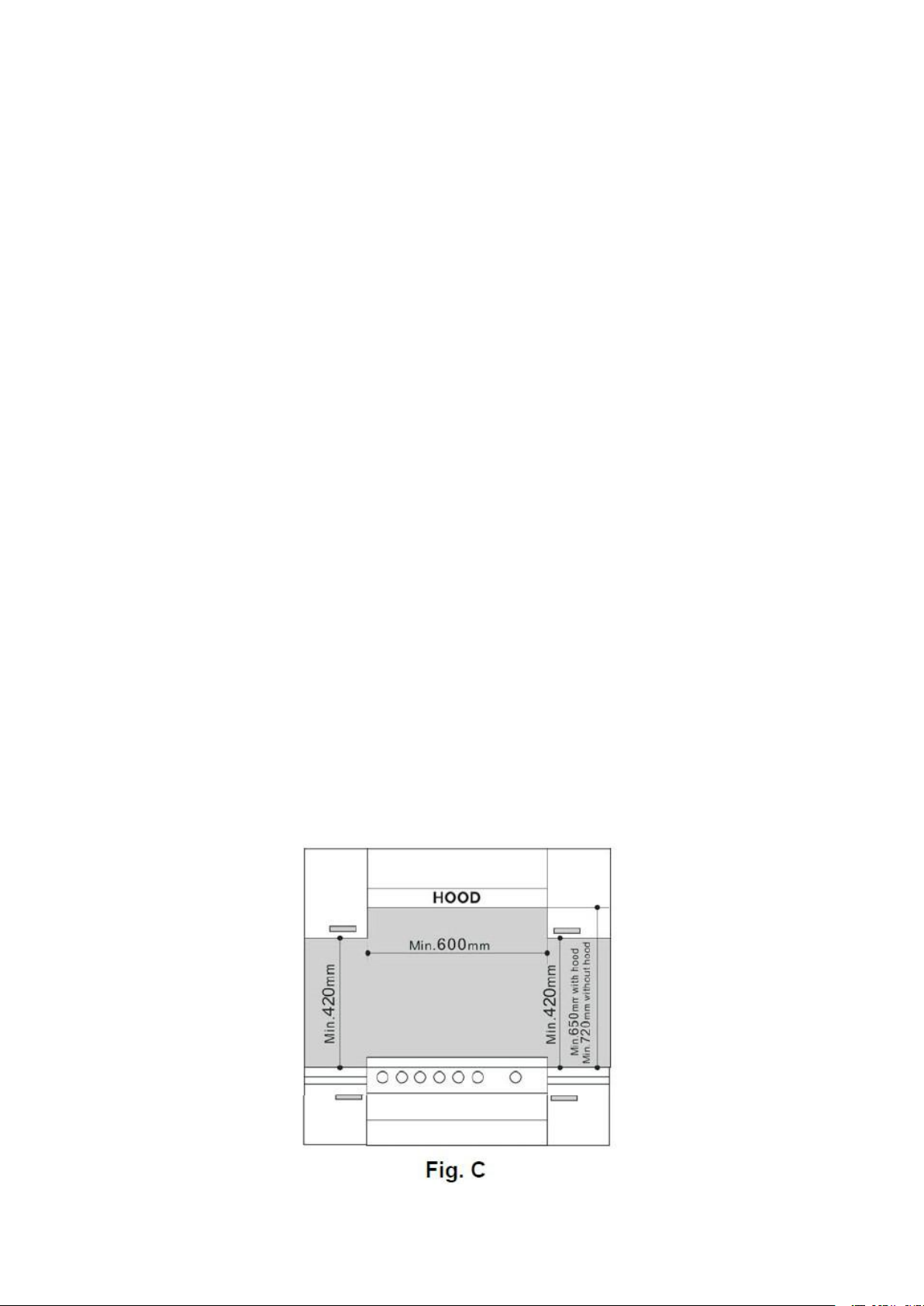

The cabinets installed next to the hood must be located at a height of at least
420mm from the top,(as shown in Fig.C)

12
Should the cooktop be installed directly under a cupboard, it should be at least
720 mm (millimeters) from the top, as shown in Fig. C.
The dimensions of the cutout for the appliance must be those indicated in the
Fig D. Clamps are provided to fasten the cooktop to counters measuring from
20 to 60 mm in thickness. To fasten the cooktop securely, it is recommended
that all the clamps be used.
Apply to LKGH-8602MB
Apply to LKGH-8603MB

13
The hob can also be installed above built-in provided with cooling
ventilation.

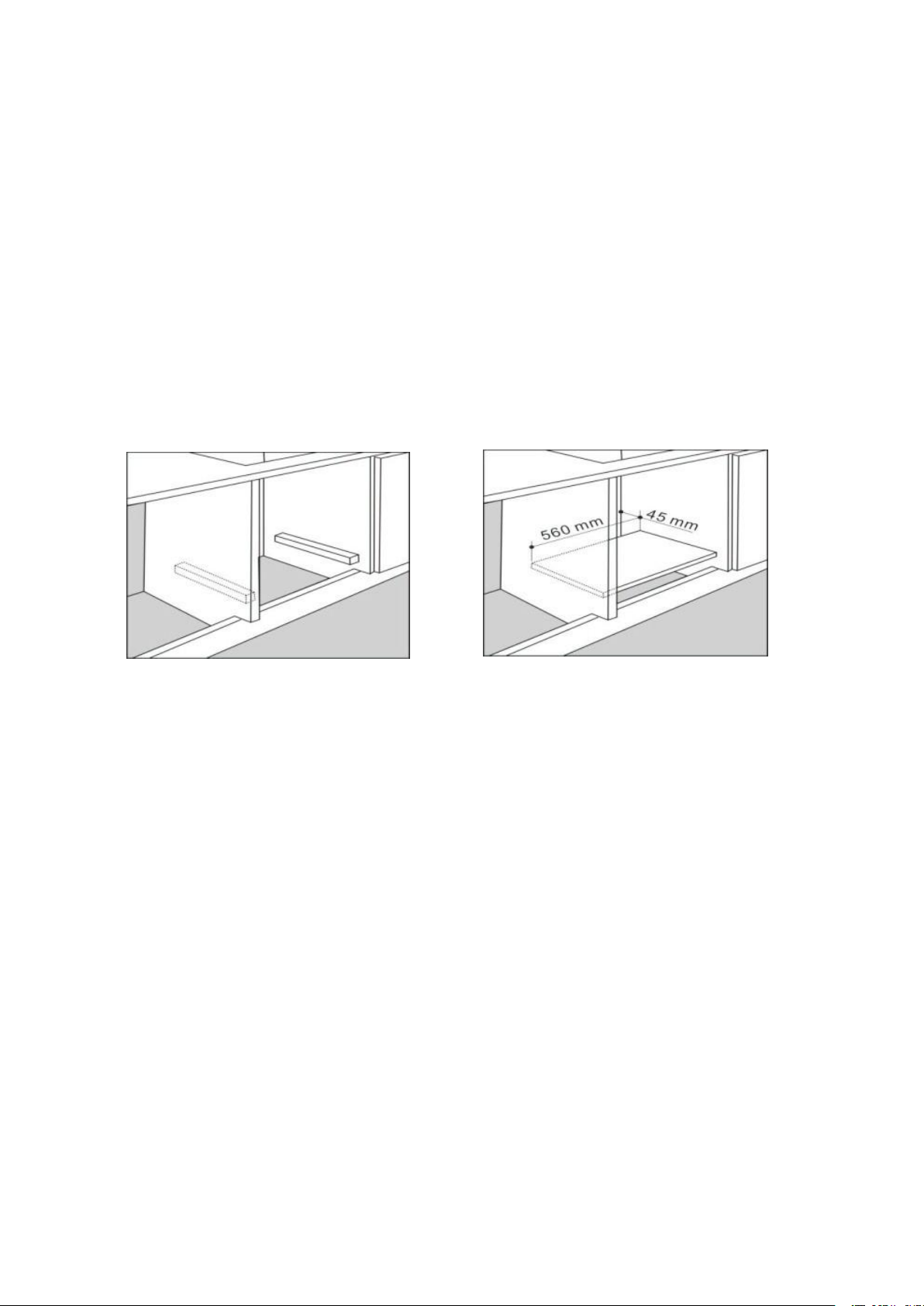

In the event the cooktop is installed above a built-in oven,a wood panel must be
inserted as insulation.This panel must be placed at about 50 mm from the
bottom of the cooktop itself.
Important:When installing the cooktop above a built-in oven,the oven should be
placed on two wooden strips:in the case of a joining cabinet surface,remember
to leave a space of at least 45 ×560 mm at the back.
Installation of Built-In Cooktops on a CYLINDER COMPARTMENT
In the event the cooktop is installed above cyylinder compartment,a wood
panel must be inserted as insulation.This panel must be placed at about 50mm
from the bottom of the cooktop itself.
The opening of this compartment have to permit the easy introduction and
removal of the cylinder.The dimension of the opening and the inside of the
compartment shall be at least large enough to accommodate the cylinders
(with regulator fitted) which are the most commonly used in the country.The
total area of the openings of the base shall be at least 1/50 of the floor area of
the compartment.The cylinder support:]
Shall have sufficient mechanical strength.
Shall not let the cylinder rest directly in the ground.
Shall not sill higher than the base on which the cylinder rests.

14
The cylinder tap have to be readily accessible.
Over flow of liquid from pans of the hotplate shall not fall onto cylinder or its
accessories.
The flexible tube shall not be in contact with sharp edges.No internal
connection shall exist between the cylinder compartment and the different parts
of the appliance where burners are placed.
The ventilation openings of the compartment cannot be obstructed when the
appliance is placed in position.
Gas Connection for Cooktop
The cooktop should be connected to the gas supply by an authorized
installer.During installation of this product it is essential to fit an approved gas
regulator to isolate the supply from the appliance to the gas mains or liquid gas
tanks must be carried out according to the safety standards currently in
force,and only after it is ascertained that it is suitable for the type of gas to be
used.If not,follow the instructions indicated in the section entitled.If the cooktop
is to be connected to tanks containing liquid gas, use pressure regulators that
comply with current safety standard.
Gas connection to Non-flexible Pipe
(Copper or Steel)
Connection to the gas source must be done in such a way as to not create any
stress points at any part of the appliance.
The appliance is fitted with an adjustable, “L” shaped connector and a gasket
for the attachment to the gas supply. If leakage is found after the connector
assembled, please replace the gasket (supplied with appliance).
The gas feed connector to the appliance is a threaded, male 1/2” connector for
round gas pipe.

15
Gas Connection to Flexible Steel Pipe
The gas feed connector to the appliance is a threaded, male 1/2” connector for
round gas pipe. Only use pipes, tubes and gaskets that comply with current
safety codes. The maximum length of the flexible pipes must not exceed
200cm. Once the connection have been made, ensure that the flexible metal
tube does not touch any moving parts and not crushed.
Check the Seal
Once the appliance have been installed, make sure all the connections are
properly sealed,check using a soapy water solution. Never use igin.
How to load the battery
Open the battery box, and then place a 1.5V size “D” battery into the box.( take
note of the polarity)
Note:
a)"prior to installation, ensure that the local distribution conditions (nature of the
gas and gas pressure) and the adjustment of the appliance are compatible";
b)"the adjustment conditions for this appliance are stated on the label (or data
plate)";
c)"this appliance is not connected to a combustion product evacuation device.
It shall be installed and connected in accordance with current installation
regulations. Particular attention shall be given to the relevant requirements
regarding ventilation".
CAUTION:in case of cooktop glass breakage:shut immediately of all
burners and any electrical heating element and isolate the appliance from
the gas supply do not touch the appliance surface,do not use the
appliance.

Distributed by:
Kollektion Distribution Sdn.Bhd.(596854-A)
Lot 11B,Jalan 223,Section 51A,
46100 Petaling jaya,
Selangor Darul Ehsan,Malaysia.
Tel:[phone] Fax:[phone]
www.lebensstilkollektion.com
