Ledj Fresco 24 RGBW Exterior Fixture User manual

Order code: LEDJ267

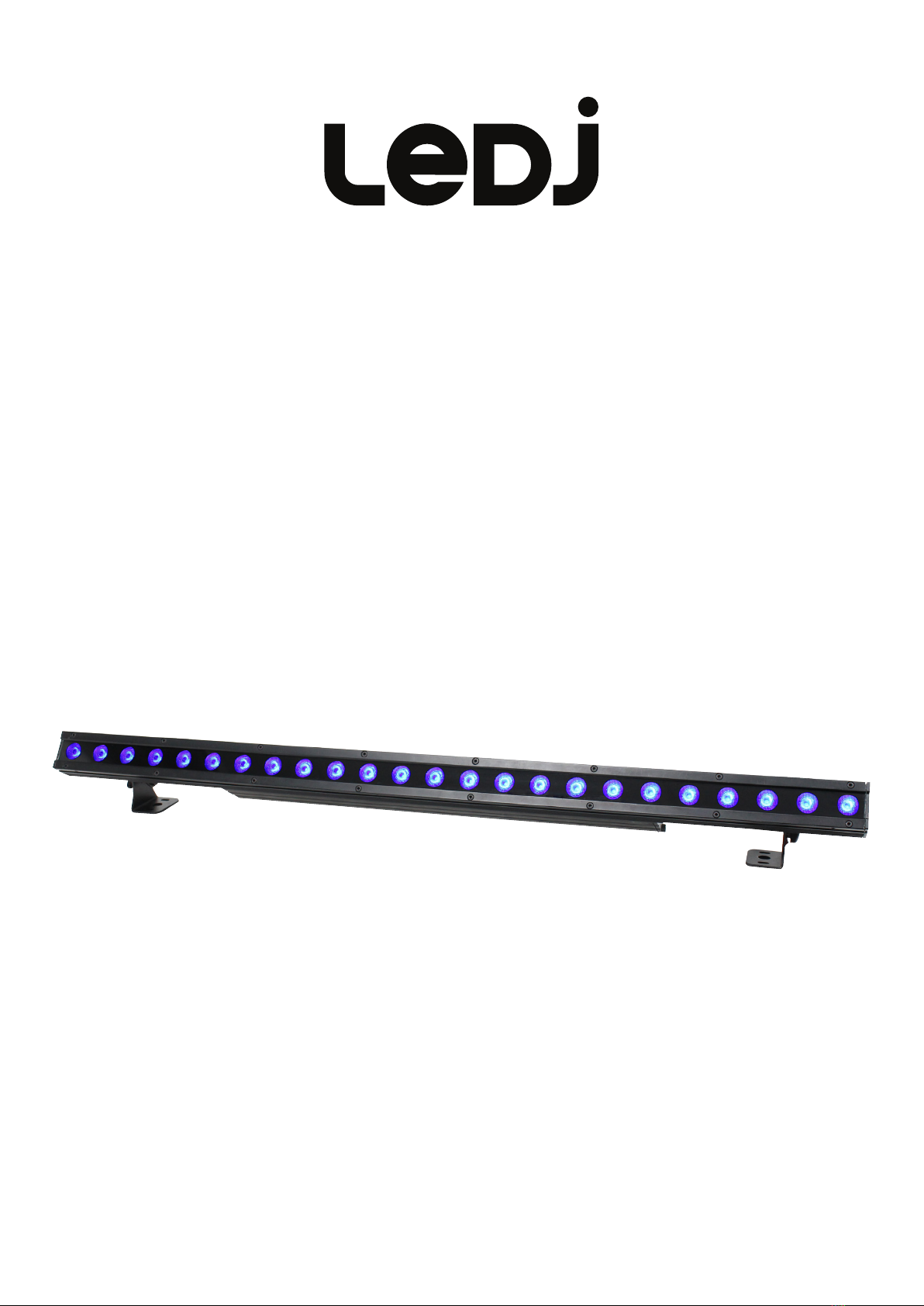

Fresco 24 RGBW
Exterior Fixture
User Manual

www.prolight.co.uk Fresco 24 RGBW User Manual 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Beforeyourinitialstart-up,pleasemakesurethatthereisnodamagecausedduringtransportation.
• Shouldtherebeanydamage,consultyourdealeranddonotusetheequipment.
• Tomaintaintheequipmentingoodworkingconditionandtoensuresafeoperation,itisnecessary
fortheusertofollowthesafetyinstructionsandwarningnoteswritteninthismanual.
• Pleasenotethatdamagescausedbyusermodicationstothisequipmentarenotsubjecttowarranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
Ifthisequipmentisoperatedinanyotherway,thanthosedescribedinthismanual,theproductmaysufferdamageand
thewarrantybecomesvoid.Incorrectoperationmayleadtodangere.g:short-circuit,burnsandelectricshocksetc.
Donotendangeryourownsafetyandthesafetyofothers!
Incorrectinstallationorusecancauseseriousdamagetopeopleand/orproperty.
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!
• Neverletthepowercablecomeintocontactwithother
cables.Handlethepowercableandallmainsvoltage
connectionswithparticularcaution!
• Neverremovewarningorinformativelabelsfromtheunit.
• Donotopentheequipmentanddonotmodifytheunit.
• Donotconnectthisequipmenttoadimmerpack.
• Donotswitchtheequipmentonandoffinshortintervals,
asthiswillreducethesystem’slife.
• Donotexposetoammablesources,liquidsorgases.
• Alwaysdisconnectthepowerfromthemainswhen
equipmentisnotinuseorbeforecleaning!Onlyhandle
thepower-cablebytheplug.Neverpullouttheplugby
pullingthepower-cable.
• Makesurethattheavailablemainssupplyvoltageis
between100~240VAC,50/60Hz.
• Makesurethatthepowercableisnevercrimpedor
damaged.Checktheequipmentandthepowercable
periodically.
• Iftheequipmentisdroppedordamaged,disconnectthe
mainspowersupplyimmediatelyandhaveaqualied
engineerinspecttheequipmentbeforeoperatingagain.
• Ifyourproductfailstofunctioncorrectly,stopuse
immediately.Packtheunitsecurely(preferablyinthe
originalpackingmaterial),andreturnittoyourProLight
dealerforservice.
• Onlyusefusesofsametypeandrating.
• Repairs,servicingandpowerconnectionmustonlybe
carriedoutbyaqualiedtechnician.THISUNITCONTAINS
NOUSERSERVICEABLEPARTS.
• Thislightingxtureisforprofessionaluseonly-itis
notdesignedfororsuitableforhouseholduse.The
productmustbeinstalledbyaqualiedtechnicianin
accordancewithlocalterritoryregulations.Thesafetyof
theinstallationistheresponsibilityoftheinstaller.The
xturepresentsrisksofsevereinjuryordeathduetore
hazards,electricshockandfalls.
• Warning!RiskGroup2LEDproductaccordingto
EN62471.Donotviewthelightoutputwithoptical
instrumentsoranydevicethatmayconcentratethebeam.
• WARRANTY:Oneyearfromdateofpurchase.

www.prolight.co.uk Fresco 24 RGBW User Manual 3
Product overview & technical specications
ThissleekIP65battenisperfectlysuitedforwallwashingandcycloramaapplicationsandis
manufacturedusingsuperiorqualitycomponentstoensuresmoothcolourmixingand
optimumreliability.Utilisinganinnovativeopticalarrangementcombinedwithaspeciallydesignedlightsource,
the15°x52°beamangleproducesanunprecedentedchromaticperformance.The4buttonbacklitLCDdisplay
facilitatescontroloverstaticcolours,colourmixing,changes,fades,DMXandmaster/slaveandoffersanaccess
locktopreventunauthorisedsettingchanges.Theruggedaluminiumexteriorensuresyearsofuseinallweather
conditionswhiletheintegralmountingbracketscompletethexturessleek,modernappearance.
• 24x3Wquad-colourLEDs(RGBW)
• Beamangle:15°x52°
• 2,150Lux@2m(fullon)
• 1.1kHzrefreshrate
• DMXchannels:3/4/6/8/10/16
or20selectable
• Staticcolour,colourchange,colourfadeandmaster/slavemodes
• 0-100%dimmingandvariablestrobe
• Bracketallowsformultipleriggingoroorstandingapplications
• Suppliedeyebrowforuplightingsituations
toreducetheglareandhidetheLEDs
• 4buttonmenuwithLCDdisplay
• IPratedpowerinput/outputtrailingconnections
• IPrated3-PinDMXinput/outputtrailingconnections
• Convectioncooled
Fresco 24 RGBW
Specications Fresco 24 RGBW
Powerconsumption 108W
Powersupply 100~240V,50/60Hz
Fuse T1.5A250V
Dimensions 115x965x57mm
Weight 5.2kg
Ordercode LEDJ267
0m 1m 2m 3m 4m 5m
15° x 52° - Lux
FULL ON
R
G
B
W
8600
1600
3280
456
3080
2150
400
821
114
771
956
178
365
50.7
343
15° x 52°
538
100
205
28.5
193
344
64
131
18.2
123
57mm965mm
115mm
IP65

www.prolight.co.uk Fresco 24 RGBW User Manual 4
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
MENU
ENTER
UP
DOWN
POWER CONSUMPTION: 58W
Fresco 24 RGBW
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
MENU
ENTER
UP
DOWN
POWER CONSUMPTION: 58W
Fresco 24 RGBW
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
MENU
ENTER
UP
DOWN
POWER CONSUMPTION: 58W
Fresco 24 RGBW
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
MENU
ENTER
UP
DOWN
POWER CONSUMPTION: 58W
Fresco 24 RGBW
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
MENU
ENTER
UP
DOWN
POWER CONSUMPTION: 58W
Fresco 24 RGBW
www.prolight.co.uk
Technical specications
01-LCDdisplay
02-Functionbuttons
03-IPrated3-PinDMXtrailinginput
04-IPrated3-PinDMXtrailingoutput
05-IPratedpowertrailinginput
06-IPratedpowertrailingoutput
07-Safetyeyes
08-Hangingbrackets
09-Hangingbracketadjustableknobs
Inthebox:1 x xture,
1 x eyebrow,
1 x power cable
& 1 x user manual
02
08
03
06
05
04
0707 0809 09
0201
Fuse:TheFresco24RGBWisttedwithaninternalmains(line)fuse.Thefusemustonlybe
changedbyqualiedpersonnel.Beforeopeningthextureshousingorchangingthefuse,
thexturemustbedisconnectedandisolatedfromthemainssupply.Replacementcartridge
fusesmustbeofthesametypeandrating(20mmGlassT1.5A250V).Whenclosingthexture
pleaseensurethesealiscorrectlypositionedandfreefromdamagetoensurethextureis
watertightandtopreventwateringress.

www.prolight.co.uk Fresco 24 RGBW User Manual 5
Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description
ADDR 001-512 DMXAddressSetting
CHANNELMODE
03CH(01channelmode)
04CH (04channelmode)
06CH(06channelmode)
08CH(08channelmode)
10CH(10channelmode)
16CH(16channelmode)
20CH(20channelmode)
DMXChannelSetting
SlaveMode SlaveMode
AUTORUN SP:01-SP:99 REP:01-REP:99 AutoMode
01.CFADE
01.CFADE
SP:01-SP:99 F:00-F:99
ColourFadeMode
02.METEOR MeteorMode
03.FADE ColourFadeIn/OutMode
04.CHANGE ColourChangeMode
05.FLOW1 Flow1Mode
06.FLOW2 Flow2Mode
07.FLOW3 Flow3Mode
08.FLOW4 Flow4Mode
09.FLOW5 Flow5Mode
10.FLOW6 Flow5Mode
FLOWINVERT OFF
ON FlowDirectionInvert
STATICCOLOR
RED
ORANGE
YELLOW
GREEN
CYAN
BLUE
PURPLE
WARMWHITE
COOLWHITE
StaticColourMode
MASTERDIM 000-255(000-100%) MasterDimmer
MANUALDIM
RED:
GREEN:
BLUE:
WHITE:
000-255 ManualDimmingMode
SETWHITEBAL PIXEL
001-004
RED:
GREEN:
BLUE:
WHITE:
000-255 WhiteBalanceSetting
IMPORTANT! PLEASE NOTE:TheLCDdisplayforthisxturehasalockingfunctionwhichcanbe
enabledviathemenuwhereafter20secondsofinactivityitwilllock.Tounlockthemenupressthe
buttonsinthefollowingsequence“UP”,“DOWN”,“UP”,“DOWN”,“ENTER”.
Operating instructions

www.prolight.co.uk Fresco 24 RGBW User Manual 6
Operating instructions
Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description
DIMMERCURVE
LINEAR
SQUARE
INV.SQUARE
S-CURVE
DimmingCurvesSetting
DIMMERSPEED LED
HALOGEN DimmingCurvesModeSetting
LOCKING OFF
ON AutoLockMenuSetting
DMXFAIL HOLD
BLACKOUT DMXFailSetting
DEFAULT
SETTINGS FACTORY LOAD NO YES DefaultFactorySettings
TEMPINFO –––C FixtureTemperature
FIRMWARE V–.–– FixtureVersion
Value CH1 CH2 CH3
000-008 RNofunction
Masterdimmer(0-100%)
009
Strobe(slow-fast)
whenCH1isbetween
009-149
Speed(slow-fast)
whenCH1isbetween
150-255
010-019 G
020-029 B
030-039 W
040-049 RG
050-059 GB
060-069 BW
070-079 RW
080-089 GW
090-099 RB
100-109 RGB
110-119 GBW
120-129 RGW
130-139 RBW
140-149 RGBW
150-159 CFade
160-169 Meteor
170-179 Fade
180-189 Change
190-199 Flow1
200-209 Flow2
210-219 Flow3
220-229 Flow4
230-239 Flow5
240-255 Flow6
3 channel mode:

www.prolight.co.uk Fresco 24 RGBW User Manual 7
Operating instructions
Channel Value Function
1 000-255 Reddimmer(0-100%)
2000-255 Greendimmer(0-100%)
3000-255 Bluedimmer(0-100%)
4 000-255 Whitedimmer(0-100%)
4 channel mode:
Channel Value Function
1 000-255 Reddimmer(0-100%)
First
Quarter
2000-255 Greendimmer(0-100%)
3000-255 Bluedimmer(0-100%)
4 000-255 Whitedimmer(0-100%)
5 000-255 Reddimmer(0-100%)
Second
Quarter
6 000-255 Greendimmer(0-100%)
7 000-255 Bluedimmer(0-100%)
8 000-255 Whitedimmer(0-100%)
9 000-255 Reddimmer(0-100%)
Third
Quarter
10 000-255 Greendimmer(0-100%)
11 000-255 Bluedimmer(0-100%)
12 000-255 Whitedimmer(0-100%)
13 000-255 Reddimmer(0-100%)
Fourth
Quarter
14 000-255 Greendimmer(0-100%)
15 000-255 Bluedimmer(0-100%)
16 000-255 Whitedimmer(0-100%)
16 channel mode:
Channel Value Function
1 000-255 Reddimmer(0-100%)
Left
Half
2000-255 Greendimmer(0-100%)
3000-255 Bluedimmer(0-100%)
4 000-255 Whitedimmer(0-100%)
5 000-255 Reddimmer(0-100%)
Right
Half
6 000-255 Greendimmer(0-100%)
7 000-255 Bluedimmer(0-100%)
8 000-255 Whitedimmer(0-100%)
8 channel mode:
Channel Value Function
1 000-255 Reddimmer(0-100%)
Left
Half
2000-255 Greendimmer(0-100%)
3000-255 Bluedimmer(0-100%)
4 000-255 Whitedimmer(0-100%)
5 000-255 Masterdimmer(0-100%)
6 000-255 Reddimmer(0-100%)
Right
Half
7 000-255 Greendimmer(0-100%)
8 000-255 Bluedimmer(0-100%)
9 000-255 Whitedimmer(0-100%)
10 000-255 Masterdimmer(0-100%)
10 channel mode:
Channel Value Function
1 000-255 Reddimmer(0-100%)
First
Quarter
2000-255 Greendimmer(0-100%)
3000-255 Bluedimmer(0-100%)
4 000-255 Whitedimmer(0-100%)
5 000-255 Masterdimmer(0-100%)
6 000-255 Reddimmer(0-100%)
Second
Quarter
7 000-255 Greendimmer(0-100%)
8 000-255 Bluedimmer(0-100%)
9 000-255 Whitedimmer(0-100%)
10 000-255 Masterdimmer(0-100%)
11 000-255 Reddimmer(0-100%)
Third
Quarter
12 000-255 Greendimmer(0-100%)
13 000-255 Bluedimmer(0-100%)
14 000-255 Whitedimmer(0-100%)
15 000-255 Masterdimmer(0-100%)
16 000-255 Reddimmer(0-100%)
Fourth
Quarter
17 000-255 Greendimmer(0-100%)
18 000-255 Bluedimmer(0-100%)
19 000-255 Whitedimmer(0-100%)
20 000-255 Masterdimmer(0-100%)
20 channel mode:
Channel Value Function
1 000-255 Reddimmer(0-100%)
2000-255 Greendimmer(0-100%)
3000-255 Bluedimmer(0-100%)
4 000-255 Whitedimmer(0-100%)
5 000-255 Masterdimmer(0-100%)
6000-004 Nofunction
005-255 Strobe(slow-fast)
6 channel mode:

www.prolight.co.uk Fresco 24 RGBW User Manual 8
Setting the DMX address:
TheDMXmodeenablestheuseofauniversalDMXcontroller.Eachxturerequiresa“startaddress”
from1-512.Axturerequiringoneormorechannelsforcontrolbeginstoreadthedataonthechannel
indicatedbythestartaddress.Forexample,axturethatoccupiesoruses7channelsofDMXandwas
addressedtostartonDMXchannel100,wouldreaddatafromchannels:100,101,102,103,104,105
and106.Chooseastartaddresssothatthechannelsuseddonotoverlap.E.g.thenextunitinthe
chainstartsat107.
DMX 512:
DMX(DigitalMultiplex)isauniversalprotocolusedasaformofcommunicationbetweenintelligent
xturesandcontrollers.ADMXcontrollersendsDMXdatainstructionsformthecontrollertothexture.
DMXdataissentasserialdatathattravelsfromxturetoxtureviatheDATA“IN”andDATA“OUT”
XLRterminalslocatedonallDMXxtures(mostcontrollersonlyhaveadata“out”terminal).
DMX linking:
DMXisalanguageallowingallmakesandmodelsofdifferentmanufacturestobelinkedtogether
andoperatefromasinglecontroller,aslongasallxturesandthecontrollerareDMXcompliant.
ToensureproperDMXdatatransmission,whenusingseveralDMXxturestrytousetheshortest
cablepathpossible.TheorderinwhichxturesareconnectedinaDMXlinedoesnotinuencethe
DMXaddressing.Forexample;axtureassignedtoaDMXaddressof1maybeplacedanywherein
aDMXline,atthebeginning,attheend,oranywhereinthemiddle.Whenaxtureisassigneda
DMXaddressof1,theDMXcontrollerknowstosendDATAassignedtoaddress1tothatunit,
nomatterwhereitislocatedintheDMXchain.
Also remember that DMX cable must be daisy chained and cannot be split.
DATA cable (DMX cable) requirements (for DMX operation):
ThisxturecanbecontrolledviaDMX-512protocol.TheDMXaddressissetonthebackoftheunit.
DMX setup
FurtherDMXcablescanbepurchasedfromallgoodsoundandlightingsuppliersorProLightConceptsdealers.
Pleasequote:
LEDJ1mInterior-
ExteriorDMXcable
LEDJ1mExterior
DMXcable
LEDJ2mExterior
DMXcable
LEDJ5mExterior
DMXcable
LEDJ10mExterior
DMXcable
Ordercode:LEDJ91 Ordercode:LEDJ141 Ordercode:LEDJ142 Ordercode:LEDJ143 Ordercode:LEDJ144
LEDJ1mExterior
Powercable
LEDJ2mExterior
Powercable
LEDJ5mExterior
Powercable
LEDJ10mExterior
Powercable
LEDJSpectraSeries
EndCapSet
Ordercode:LEDJ146 Ordercode:LEDJ147 Ordercode:LEDJ148 Ordercode:LEDJ149 Ordercode:LEDJ93

www.prolight.co.uk Fresco 24 RGBW User Manual 9
Notice:
Besuretofollowthediagramsbelowwhenmakingyourowncables.Donotconnectthecables
shieldconductortothegroundlugorallowtheshieldconductortocomeincontactwiththeXLRs
outercasing.Groundingtheshieldcouldcauseashortcircuitanderraticbehaviour.
Special note:
Line termination:
Whenlongerrunsofcableareused,
youmayneedtouseaterminatoron
thelastunittoavoiderraticbehaviour.
Using a cable terminator will decrease
the possibilities of erratic behaviour.
(3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89)
5-pin XLR DMX connectors:
Somemanufacturesuse5-pinXLRconnectorsfordatatransmissioninplaceof3-pin.5-pinXLRxtures
maybeimplementedina3-pinXLRDMXline.Wheninsertingstandard5-pinXLRconnectorsintoa
3-pinlineacableadaptormustbeused.Thediagrambelowdetailsthecorrectcableconversion.
Terminationreducessignaltransmission
problemsandinterference.itisalways
advisabletoconnectaDMXterminal,
(resistance120Ohm1/4W)betweenpin2
(DMX-)andpin3(DMX+)ofthelastxture.
5-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
DMX setup

www.prolight.co.uk Fresco 24 RGBW User Manual 10
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
Thismarkingshownontheproductoritsliterature,indicatesthatitshouldnotbedisposedof
withotherhouseholdwastesattheendofitsworkinglife.Topreventpossibleharmtothe
environmentorhumanhealthfromuncontrolledwastedisposal,pleaseseparatethisfromother
typesofwastesandrecycleitresponsiblytopromotethesustainablereuseofmaterialresources.
Householdusersshouldcontacteithertheretailerwheretheypurchasedthisproduct,ortheir
localgovernmentofce,fordetailsofwhereandhowtheycantakethisitemforenvironmentally
saferecycling.
Businessusersshouldcontacttheirsupplierandcheckthetermsandconditionsofthe
purchasecontract.Thisproductshouldnotbemixedwithothercommercialwastesfordisposal.

www.prolight.co.uk Fresco 24 RGBW User Manual 11

www.prolight.co.uk Fresco 24 RGBW User Manual 12
