LEDLight LED High Bay Light Fixture User manual

I
LED Light Technology
LED High Bay Light Fixture
Product Manual
Up to 15000 lumen for 18m high-mount applications
Warehouse

II
Contents
1 Product Description ....................................................................................................2
1.1 Major Applications.............................................................................................2
1.2 Features..............................................................................................................2
2 Technical Parameters ..................................................................................................3
3 Light Distribution .......................................................................................................4
4 Illuminance Chart .......................................................................................................5
5 Lumen Test Report......................................................................................................7
6 Product Profile............................................................................................................8
6.1 Fixture Dimensions............................................................................................8
6.2 Components Break-Down..................................................................................9
7 Installation Guide .......................................................................................................9
8 Troubleshooting........................................................................................................14
9 Packaging Information..............................................................................................15
10 Lamp Comparison - LED vs Conventional .............................................................15
11 Other Star Product Highlight……………………………………………………….18

2

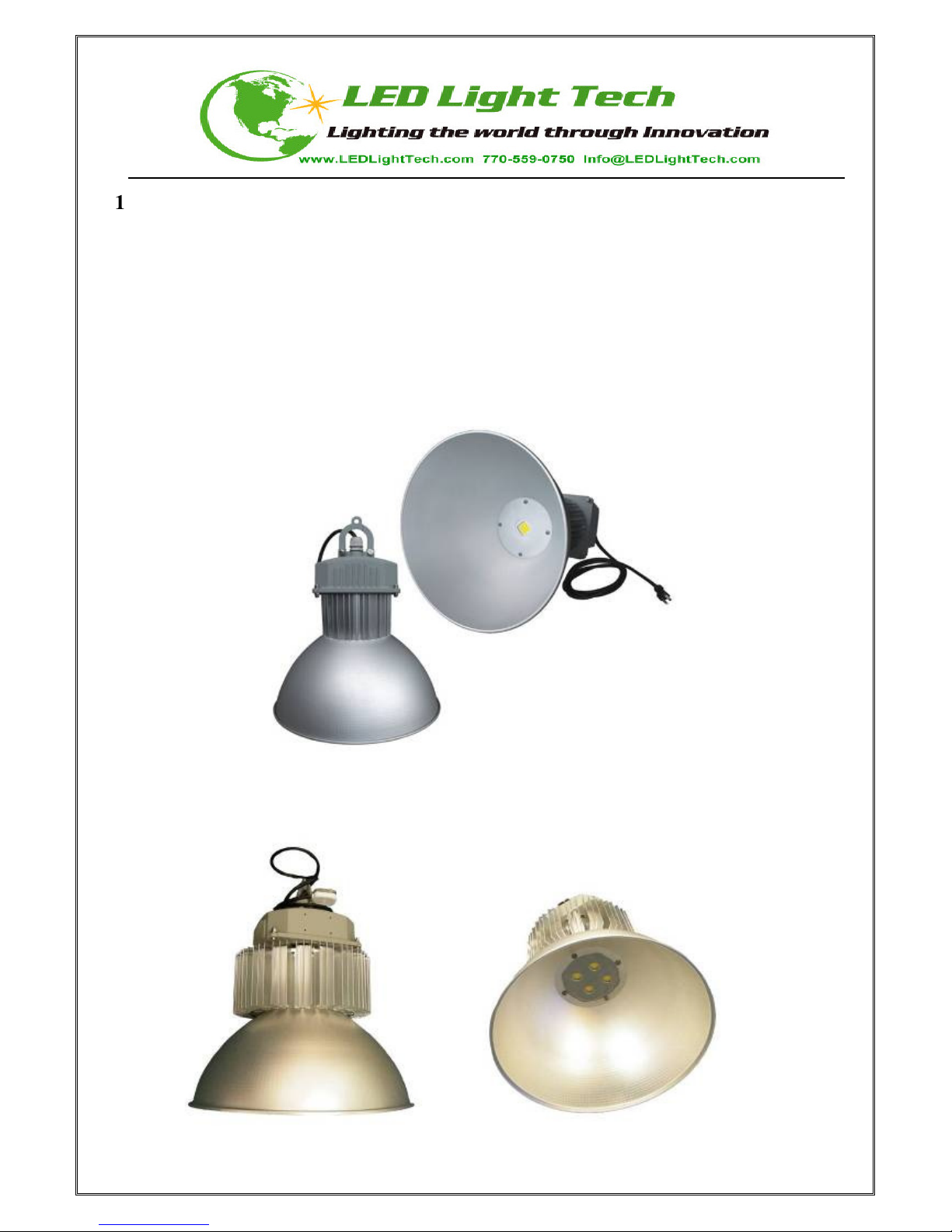

1. Product Description
The LED Light Technology LED Bay light fixture is designed and developed to replace traditional
high bay or low bay fixtures for industrial and other rugged applications. Our fixtures are light weight
and easy to install. The LED High Bay/Low Bay fixtures are designed to offer maximum energy savings,
substantially reduced maintenance costs and superior quality.
LED Bay Light: 30W, 50W, 60W, 80W, 100W, lumen output up to 7200lm
LED Bay Light: 120W, 150W, 200W, lumen output up to 15000lm

3
1.1 Major Applications
Factory production floors, Workshop, Warehouses, Road toll gates, Petrol stations, Supermarkets,
Sports stadiums, Convention center halls, Airport passenger halls, etc., where high ceiling lighting
required.
1.2 Features
1) Low power consumption. More than 60% energy saving compared to conventional HID/HPS.
2) Environmental friendly. Lead and mercury free.
3) Long operation life time, above 50,000hours. Low maintenance costs.
4) Voltage input 100-240VAC or 100-277VAC, 50/60Hz at choice.
5) Instant ON/OFF operation.
6) Superior color rendition compared to conventional industrial luminaire.
7) Selectable color temperature.
8) Patented single piece 30W-120W high power LED light source with unique multi-chip
integration design ensure high light purity, high heat conduction and slow brightness derating.
9) Unique heat sink design ensures superior heat management.
10) Resistant to shock and vibration.
Gas Station
Parking Garage
Hall & Corridor

4

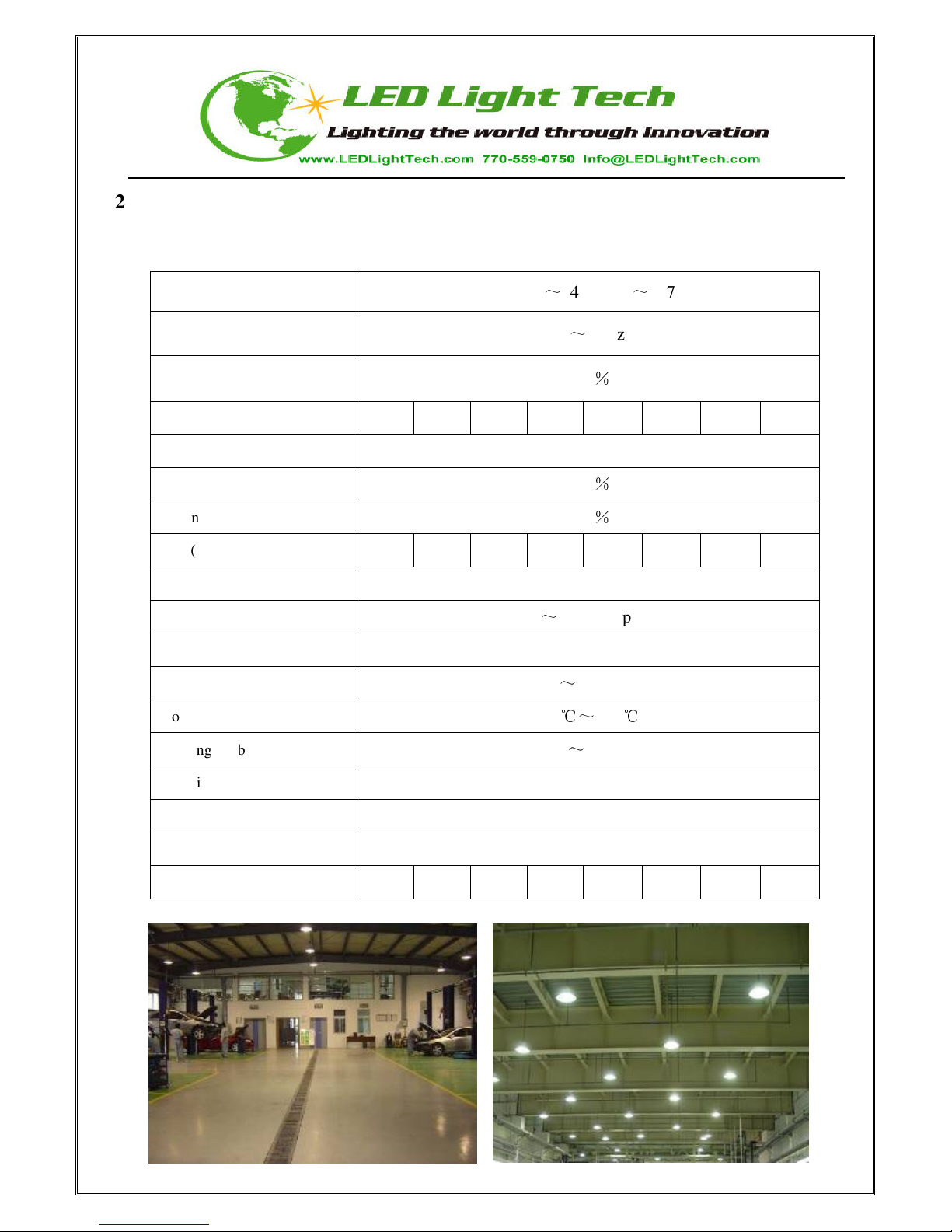

2. Technical Parameters
Input Voltage
AC 100 ～ 240V/100 ～ 277V
Power Frequency of Driver
50 ～ 60Hz
Power Efficiency of Driver
≥85 ％
LED Power Consumption
30W 50W 60W 80W 100W 120W 150W 200W
Power Factor(PF)
≥0.98
Total Harmonic Distortion
≤10 ％
Luminaire Efficiency
≥90 ％
Flux (Lumens)
2400 4000 4800 6000 7200 9500 11500 15000
Color Rendering Index
≥80
Color Temperature
2700 ～ 7000K Optional
Beam Angle
90/120 Degree Optional
Light Effect
70 ～ 80lm/W
Working Ambient Humidity
-25 ℃～ +45 ℃
Working Ambient Humidity
15% ～ 90%RH
IP Rating
IP30/IP54 Optional
Service Life
≥50000 Hours
Light Fixture Material
Aluminum Alloy
NW (Kg) 3.2 3.6 4.5 4.9 6.2 7.7 9.5
3.9
Garage Exhibition Hall

5

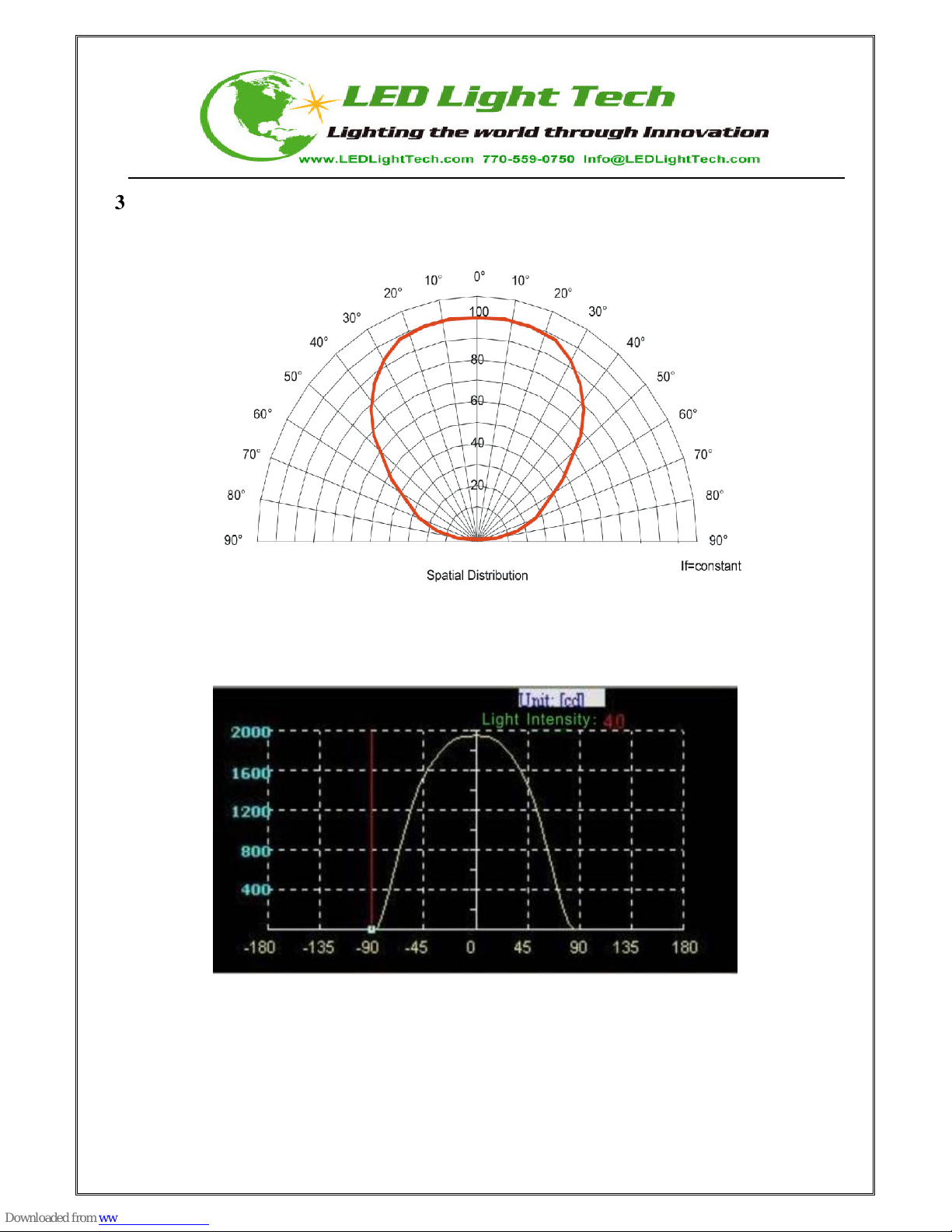

3. Light Distribution

6
4．
．．
．Illuminance Chart
Illuminance (lux)
Power Height Light Spot
Diameter Center
Illuminance
Average
Illuminance
4m 8m 180 90
5m 10m 110 55
30W
6m 12m 70 35
4m 8m 270 140
5m 10m 175 90
6m 12m 120 60
7m 14m 90 45
50W
8m 16m 70 35
4m 8m 320 160
5m 10m 210 105
6m 12m 150 75
7m 14m 110 55
7.5m 15m 90 45
60W
8m 16m 70 35
4m 8m 405 205
5m 10m 255 130
6m 12m 170 90
7m 14m 130 70
8m 16m 95 50
9m 18m 75 40
80W
10m 20m 65 35
4m 8m 420 255
5m 10m 270 165
6m 12m 190 115
7m 14m 140 85
8m 16m 110 65
LED High
Bay/Low Bay
Luminaire
100W
9m 18m 90 50

7
10m 20m 70 40
11m 22m 60 35
8m 16m 140 85
9m 18m 118 65
10m 20m 90 50
11m 22m 78 42
12m 24m 65 36
13m 26m 55 32
14m 28m 45 25
120W
15m 30m 35 20
8m 16m 170 105
9m 18m 145 78
10m 20m 110 60
11m 22m 95 50
12m 24m 80 42
13m 26m 65 35
14m 28m 55 29
150W
15m 30m 50 25
10m 20m 145 78
11m 22m 125 65
12m 24m 104 55
13m 26m 85 46
14m 28m 77 37
15m 30m 66 32
16m
32m 55 28
17m 34m 50 24
18m 36m 42 19
LED High
Bay/Low Bay
Luminaire
200W
19m 38m 36 16

8
5. Lumen Test Report
All LED bay light lumen tests indicate a typical 18% light depreciation after 5328 hours’ non-stop performance.
Railway Station
Factory

9
6. Product Profile
6.1 Fixture Dimensions
30W 50W
60W 80W
100W 120W
150W 200W

10
6.2 Component Break-Down
7. Installation Guide
Step 1: Remove the four pieces PWM5×10 screws from the bay light fixture body, which are prefixed
for shipment:
Remove the 4pcs
PWM5×10 screws
For Bay Light Fixture at 30W, 50W, 60W, 80W, 100W and 120W

11

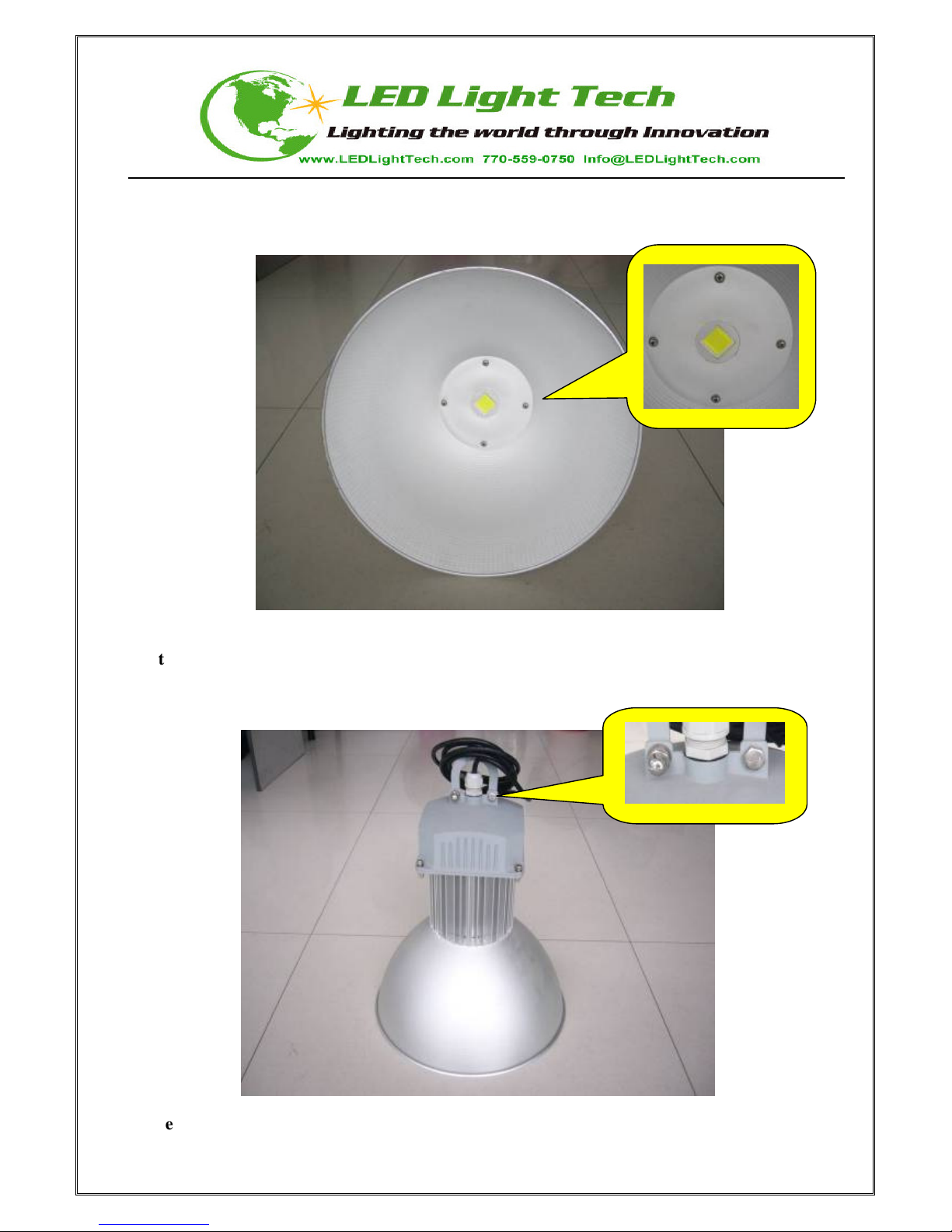

Step 2: Assemble the reflector to the lamp body with the four pieces PWM5×10 screws:
Step 3: Check and ensure the hanging ring bolts are properly tightened:
Step 4: Test light the lamp before hanging.

12

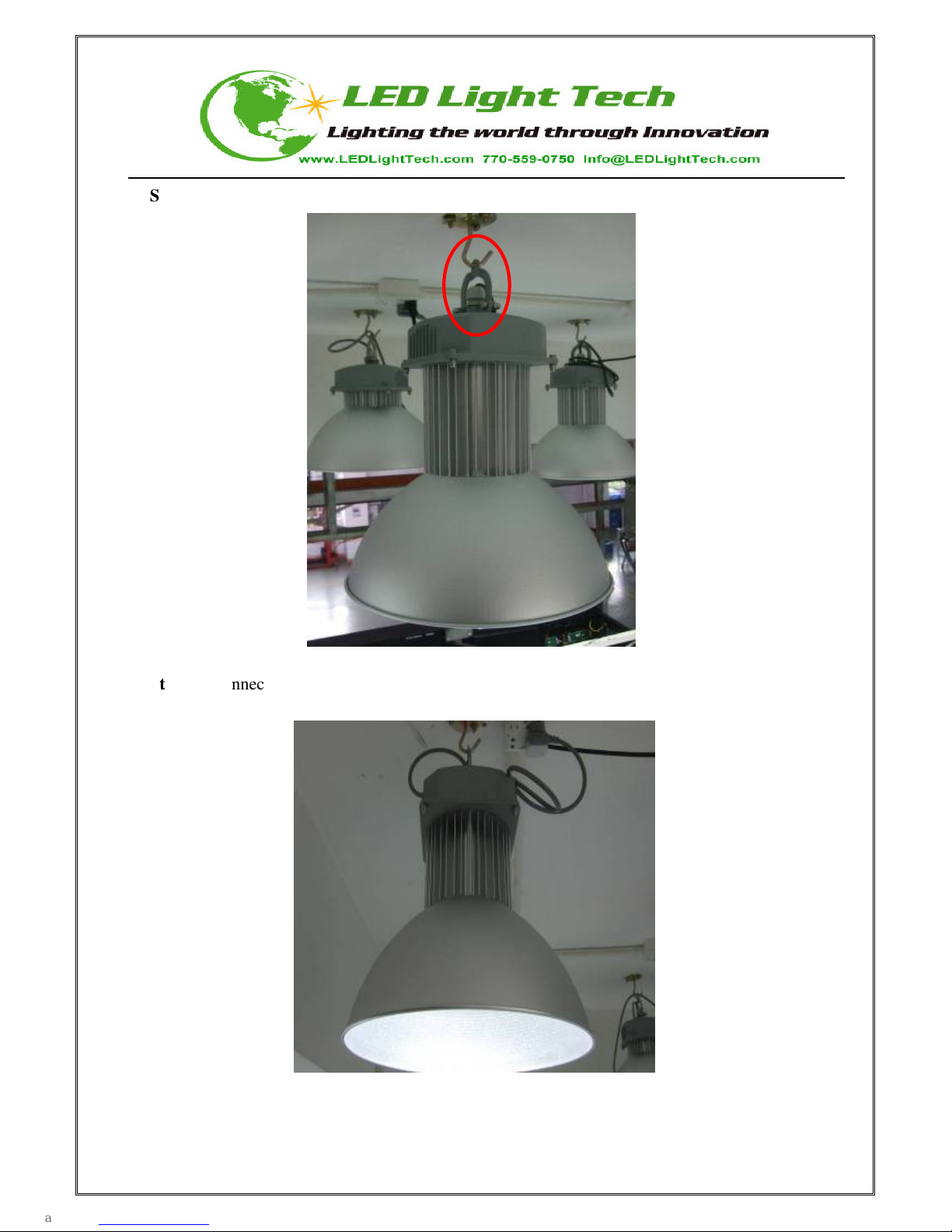

Step 5: Hang up the fixture to the hook from the ceiling securely:
Step 6: Connect the power core and turn on the power:

13
Step 1: Remove the four pieces PWM5×10 screws from the bay light fixture body, which are prefixed
for shipment:
Remove the 4pcs
PWM5×10 screws
For Bay Light Fixture 150W and 200W
Step 2: Assemble the reflector to the lamp body with the four pieces PWM5×10 screws:

14

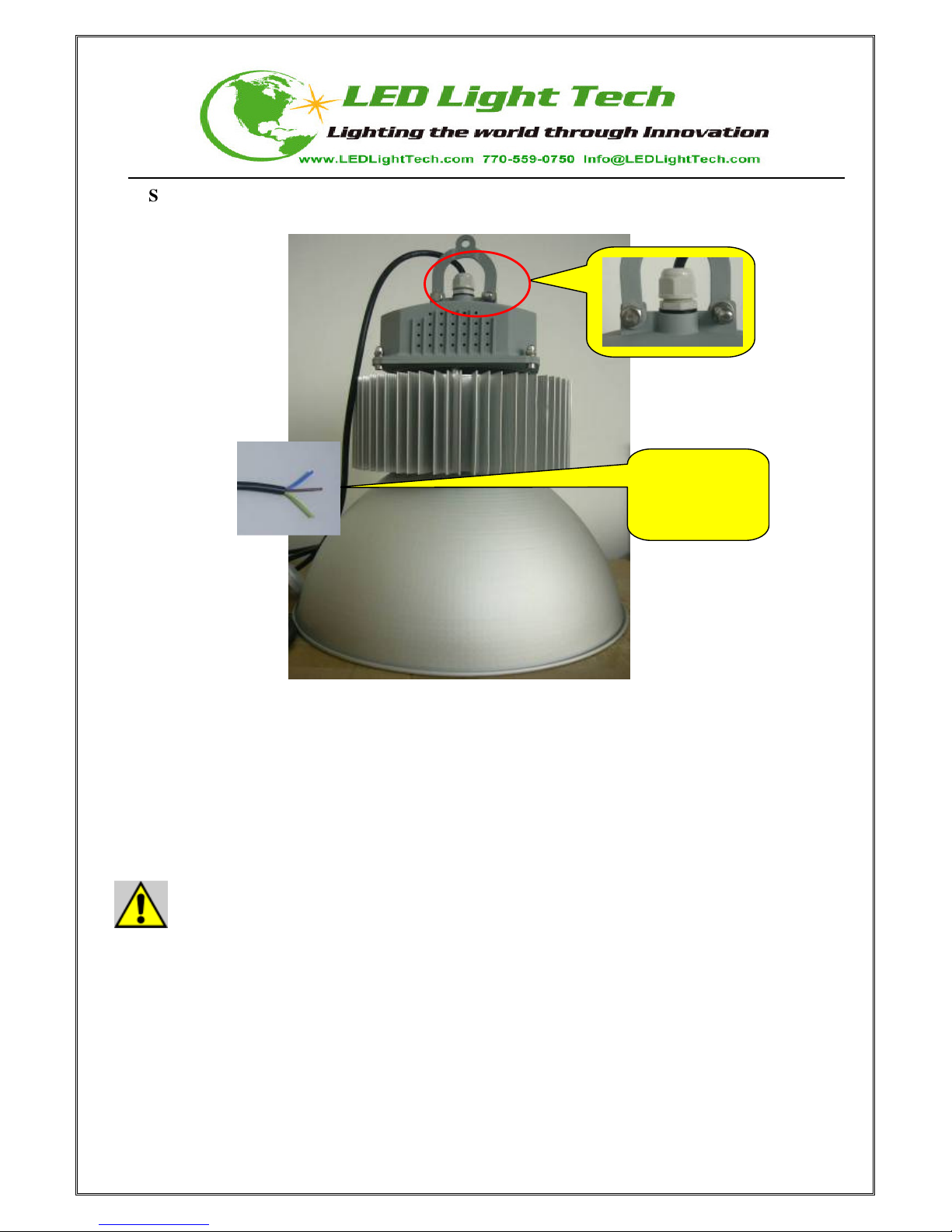

Step 3: Check and ensure the hanging ring bolts are properly tightened:
Caution:
Turn off power before cable connection
Anti-static hand ring is required when replacing any electronics components
Ensure all the AC power connections are properly done before turning power on.
Do not touch the power driver when power is on
Turn off power in case of any maintenance.
Brown-Live
Blue-Neutral
Green/Yellow-Ea
Step 4: Test light the lamp before hanging.
Step 5: Hang up the fixture to the hook from the ceiling securely. Connect the power core
and turn on the power

15

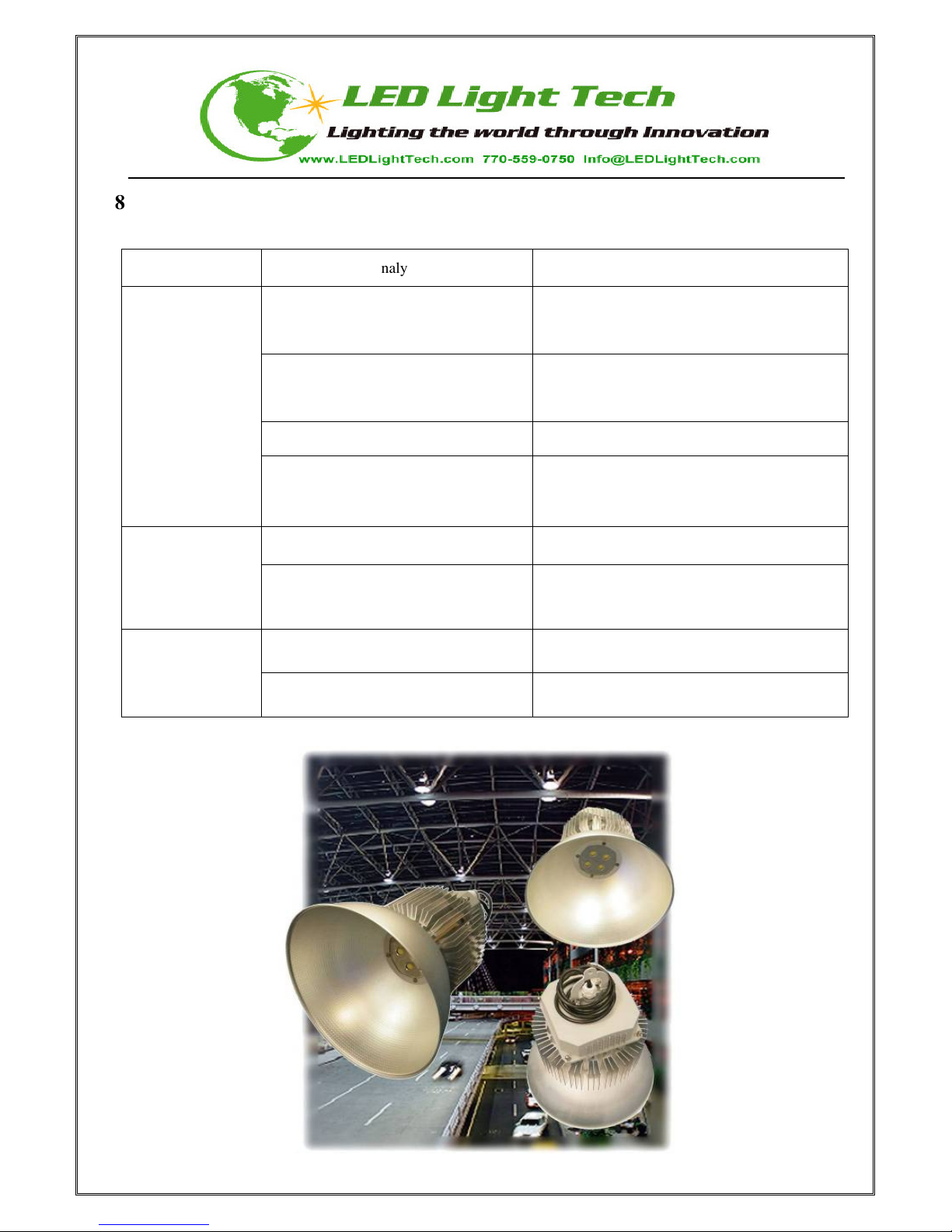

8. Troubleshooting
Description Analysis Solution
1. Check whether the power line
connection is right 1. Reconnect the power line in the right way
2. Check whether the power plug is
loose 2. Re-plugged the loose power plug
3. Driving power supply failure 3. Replace qualified power supply
LED lamp doesn’t
light
4. LED integrated light source has
been damaged.
4. Replace a new LED integrated light
source.
1. Driving power output is abnormal 1. Replace qualified driving power
LED lamp light
output is dim 2. LED integrated light source supply
failure. 2. Replace new LED integrated light source.
3. Driver output is abnormal 3. Replace with new driver
LED lamp is
flashing
4. LED integrated chips failure. 4. Replace with new LED integrated chips.

16

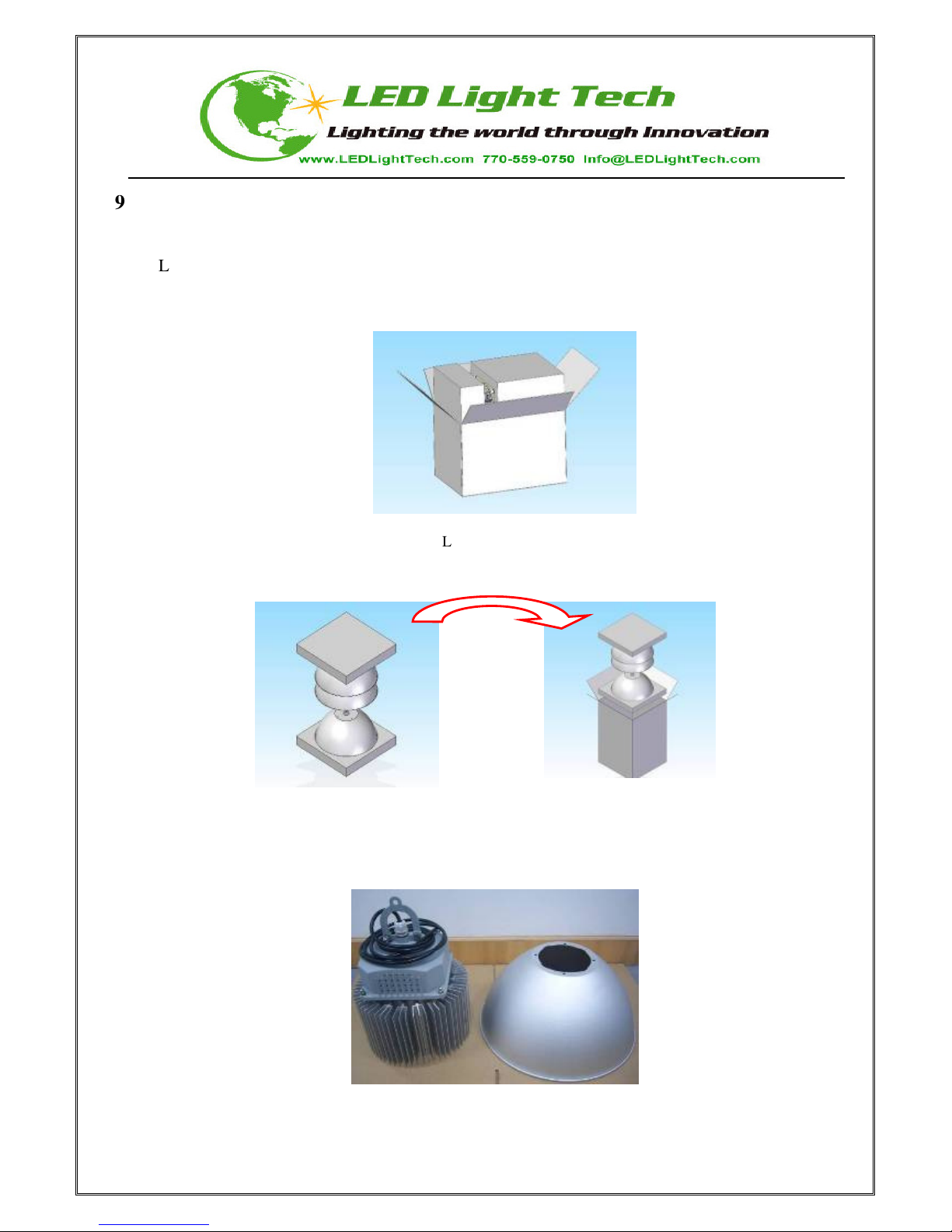

9. Package Information
LED bay light’s lamp body and lamp shade are packed separately:
Lamp Body packing
Lamp Shades Packing
Removed from package.

17
LLT Bay Light Order Code Flux(lm) Power
Voltage Equivalent power
of HID/Vapor lamp
LLT-19-HB-30-2700-7000-110-240
2400 30W 110-240 100W
LLT-19-HB-30-2700-7000-110-277
2400 30W 110-277 100W
LLT-19-HB-50-2700-7000-110-240
4000 50W 110-240 150W
LLT-19-HB-50-2700-7000-110-277
4000 50W 110-277 150W
LLT-19-HB-60-2700-7000-110-240
4800 60W 110-240 200W
LLT-19-HB-60-2700-7000-110-277
4800 60W 110-277 200W
LLT-19-HB-80-2700-7000-110-240
6000 80W 110-240 250W
LLT-19-HB-80-2700-7000-110-277
6000 80W 110-277 250W
LLT-19-HB-100-2700-7000-110-240
7200 100W 110-240 300W
LLT-19-HB-100-2700-7000-110-277
7200 100W 110-277 300W
LLT-19-HB-120-2700-7000-110-240 9500 120W
110-240 350W
LLT-19-HB-120-2700-7000-110-277 9500 120W
110-277 350W
LLT-19-HB-150-2700-7000-110-240 11500 150W
110-240 400W
LLT-19-HB-150-2700-7000-110-277 11500 150W
110-277 400W
LLT-19-HB-200-2700-7000-110-240 15000 200W
110-240 700W
LLT-19-HB-200-2700-7000-110-277 15000 200W
110-277 700W
10. Lamp Order Codes & Comparison - LED vs. Conventional

18
NOTE:
The Product design and specifications are subject to change without prior notice for the purposes of
performance improvement.
100W LED High Bay Vs 250W Mercury Vapor Lamp
Power saving by 60% Reduction of greenhouse gas emission
by 505kg Save 36 trees per year
Gymnasium

19
Other Similar Products
LED Floodlight
Up to 25,500 lumen for 36m
high-mount applications
IP65 protection
60% power saving, 90% reduction
in greenhouse gas emission.
Long lifetimes and highly reliable
service, greatly reducing
maintenance costs.
Original Cree chips used
50,000 hours service life.
Led Garage Light
60% power saving, 90% reduction
in greenhouse gas emission.
Long lifetimes and highly reliable
service, greatly reducing
maintenance costs.
LED's own cutoff light property
provides high vertical illuminance
with minimum glare.
IP30 protection
50,000 hours service life.
