LEDLight LT-GL01B User manual

User Instructions
Please read these instructions and retain them for future reference.
Important information
It is recommended that the fittings are installed by a qualified electrician ensuring the installation
complies with current IEE wiring regulations & local building control.
• These products are designed for connection to a 220-240V mains supply.
• This luminaire is suitable for a GU10 LED or Halogen lamp, 50W max (halogen).
• We cannot accept responsibility for any claims arising from a poor installation.
Never fit lamps of a higher wattage or of a type other than those specified on the label as this may
cause overheating and damage the fitting.
Important User Advice
• Always switch off mains supply before installation.
• The light fitting is Class I and it requires an earth connection.
Dimensions: Specifications:
LT-GL01B
Black Garden Spike / Wall Light
IP65
220V
-
240V
50W
max.
GU10
Ø100 mm
165 mm
320 mm 155 mm
Ø100 mm
75 mm
95 mm
• Mains GU10 LED or Halogen Lamp
(not included)
• Voltage: 220-240V/AC
• Frequency: 50/60Hz
• Max Load: 50W (Halogen)
• IP Rating: IP65
• Body Colour: Black
• Tempered Glass
• Die Cast Aluminium Body
• Pre wired with 2m rubberised cable
• Complete with Allen Key & Hex Screws
• 2 year warranty

Check the packaging and make sure that you have all the required parts. •
Follow each assembly step in order to prevent incorrect installation. •
Decide the position of the fitting. Depending on the location an outdoor rated plug and socket •
may be required. Alternatively an IP rated outdoor connection box may be used.
• Position cables and connector box away from areas where they may be at risk from being cut,
trapped or damaged.
• Do not install in very wet or boggy areas or near electrical cables, water or gas pipes.
Make sure all screws / nuts, including electrical connections etc are fully tightened before use. •
Before you start the installation
Wiring
E
L
N
GREEN/ YELLOW
Earth
Neutral
Live
3A Fuse
BLUE
BROWN
To 240V Mains
Garden
Light
IP65 Junction Box:
Brown = Live
Green/Yellow = Earth
Blue = Neutral
3 pin Plug:
• The garden light must be connected to a 240V AC supply.
• It can be fitted to a rewireable 3 pin UK plug with a 3 amp fuse. Should the fuse require replacement,
it must be replaced with a fuse rated at 3 amp. Please see Fig. 1 for wiring instructions.
Brown - Live
Green/Yellow - Earth
Blue - Neutral
IP Rated Outdoor Connection Box:
• Having correctly identified the wiring from your garden light fitting, connect the cable to the IP rated
outdoor connection box terminal block as shown in Fig. 2.

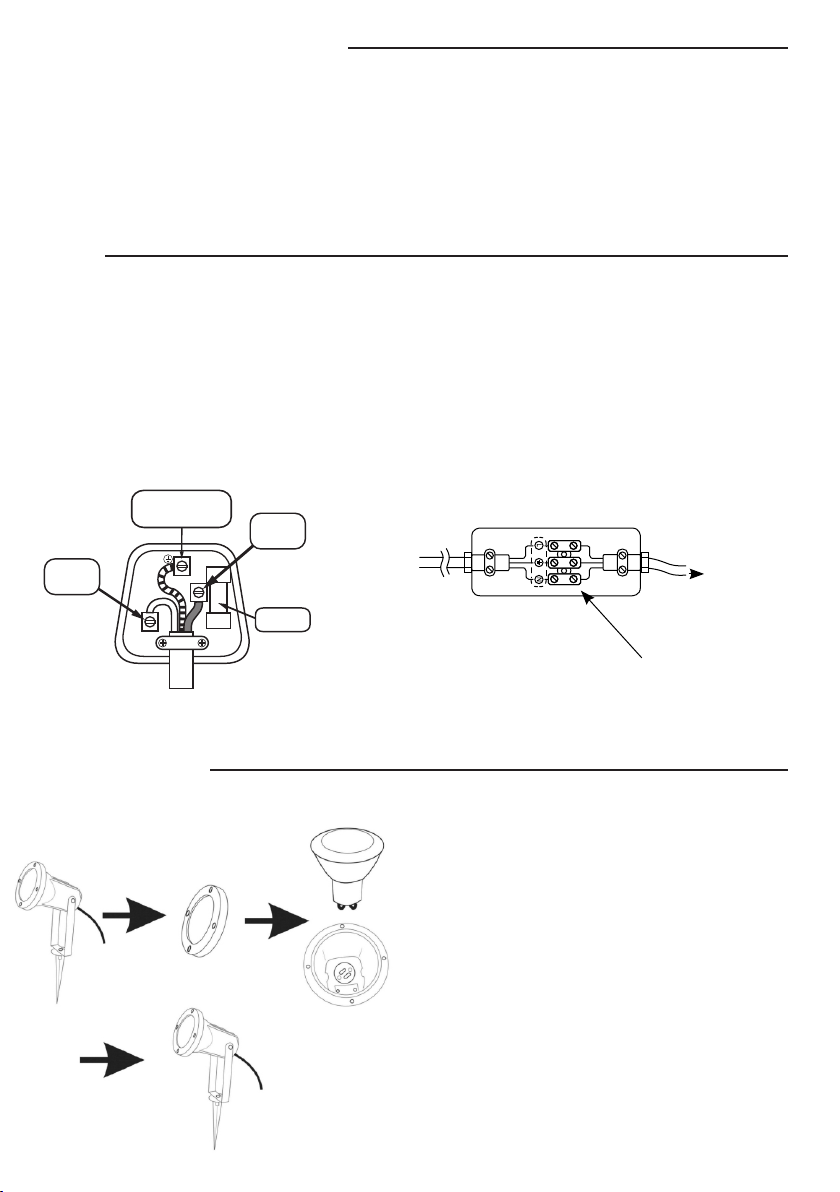

Fig. 1
3 pin UK Plug wiring
Fig. 2 (EG.)
IP Rated Outdoor Connection Box wiring
Installation Steps
Install the garden light as shown in the Fig. 3 using the following steps:
Fig. 3
Installation Steps
1. Switch off the mains supply.
2. Screw the fitting in place on the wall or mount on
the spike fully inserting into the ground.
3. Remove the cover by unscrewing the Allen screws
with the Allen key provided.
4. Insert the lamp into the GU10 socket inside
the fitting. Do not exceed the maximum wattage.
5. Attach the cover ensuring the gasket is fitted
correctly.
6. Tighten the screws in a cross-wide order using the
Allen key provided to achieve an even pressure
on the gasket.
7. Power up the fitting and test for correct operation.
GU10 240V
50W MAX
(not included)
