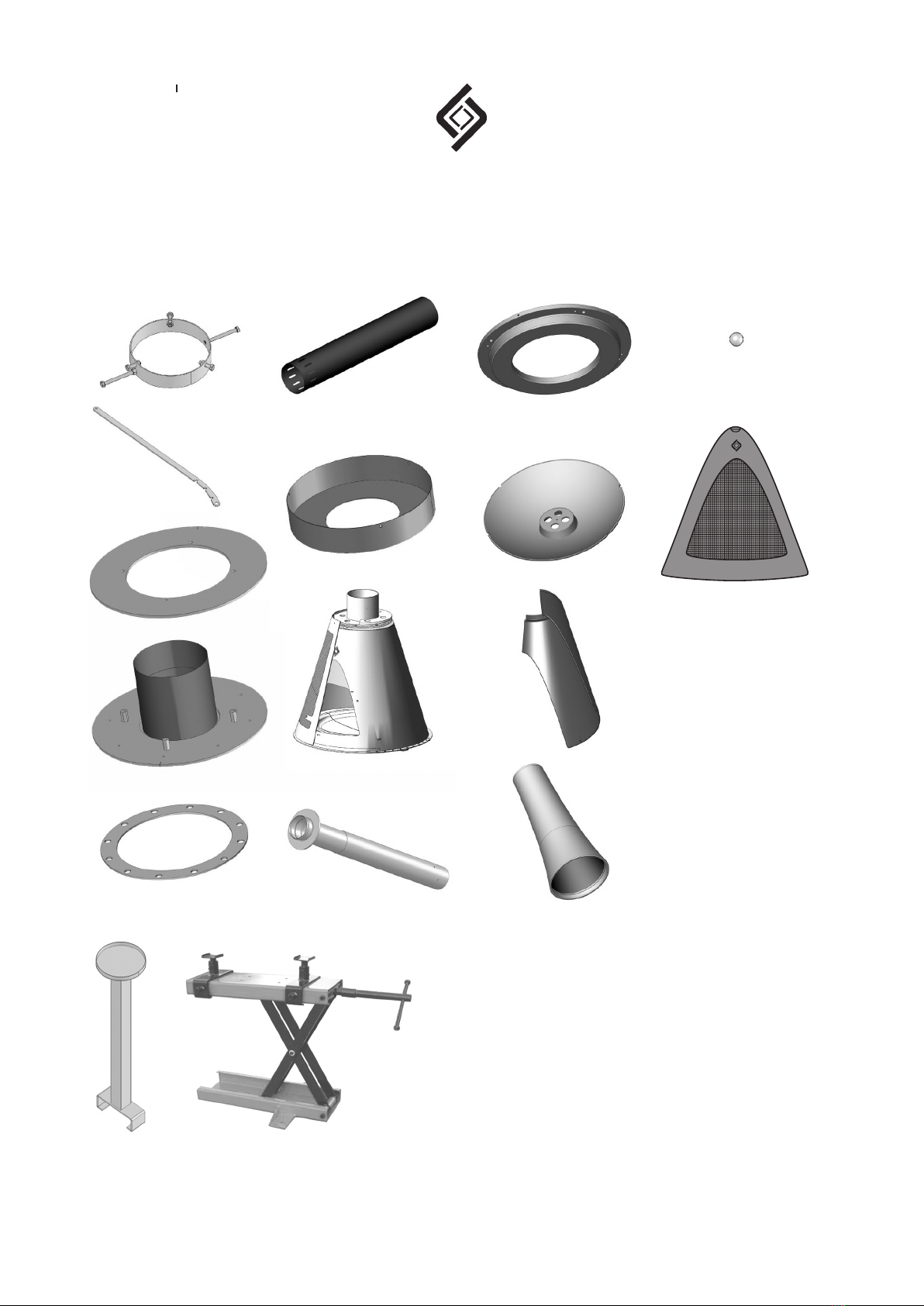

Materials and tools required
1x mounng ring
1x ceiling-oor support plate
1x pipe with ring plate
1x ball-holding ring
1x ap-control handle
1x decorave pipe
1x nishing cover
1x pre-assembled frame
1x stove pipe
1x bearing plate
2x shell parts
1x column
16x balls (+ 3 spares)
1x lower shell
Materials required
• 4x Treaded rod M8
(L=1000)
• 4x Bodywork-ring M8
• 7x Bolt M8x20
(Hex. wrench)
• 5x Bolt M6x20
(Hex. wrench)
• 3x Bolt M4x8 (Crosshead)
• 1x Nut M6
• 8x Nut M8
• 1x Bolt M6x75
(Hex. wrench)
• 1x Self-locking nut M6
• 3x Bodywork-ring M6
Tools
• Open-end/socket spanner
j.w. 10
• Open-end/socket spanner
j.w. 13
• Socket-head wrench 3
• Crosshead screwdriver
• Spirit level
• Drilling machine
• Concrete bit Ø 6
• Concrete bit Ø 14
• Handtruck
• Plumb line
• Step ladder (for 2 persons)
1x Spark screen
1x stove-pipe support 1x Pharos liing jack

PHAROS INTERIOR LEENDERS
201725.001.I.EN
1. Preparaon
• Have a hole of Ø 280 mm drilled by a concrete driller.
• Allow for the minimum distance (X) from any flammable materials
(see: “General instructions and regulations”.)
4. Preparing the stove pipe
•Grease inside of bearing plate sufficiently for balls (using grease supplied with stove).
• Place the ball-holding ring into the bearing plate and add the 16 balls.
• Slip this assembly on the stove pipe so that the flange of the stove pipe rests on the balls; this fits
one way only. (Turn until the three screws fit into the recess).
• Push the mounting ring against the bearing plate and fasten it with the 3 M8x20 bolts (socket or
open-end spanner j.w. 13).
• Note: Place the mounting ring so that the long hexagon-head bolts (M8 x120) are at the lower
part and the three short screws (M8 x20) at the upper part of the ring.
3. Under roof slope
2. Installing the ceiling-oor support plate
• Cut the four threaded rods included in the delivery to the proper length,
 longenoughtobeputthroughtheceilinganded.
• Fixtheceiling-oorsupportplateandthepipewithringplate 
in the manner as shown in the picture.
• Keeptheindicaonmark(providedonbothplates)attherearofthestove.
Nut M8 (4x)
Nut M8 (4x)
Pipe with
ring plate
Indication mark on the backside
Bodywork-ring M8 (4x)
Ceiling-floor support plate
Treaded rod M8 (4x)
Stove-pipe
flange
Ball-holding ring
Balls
Bearingplate
Mounting-ring

PHAROS INTERIOR LEENDERS
201725.001.I.EN

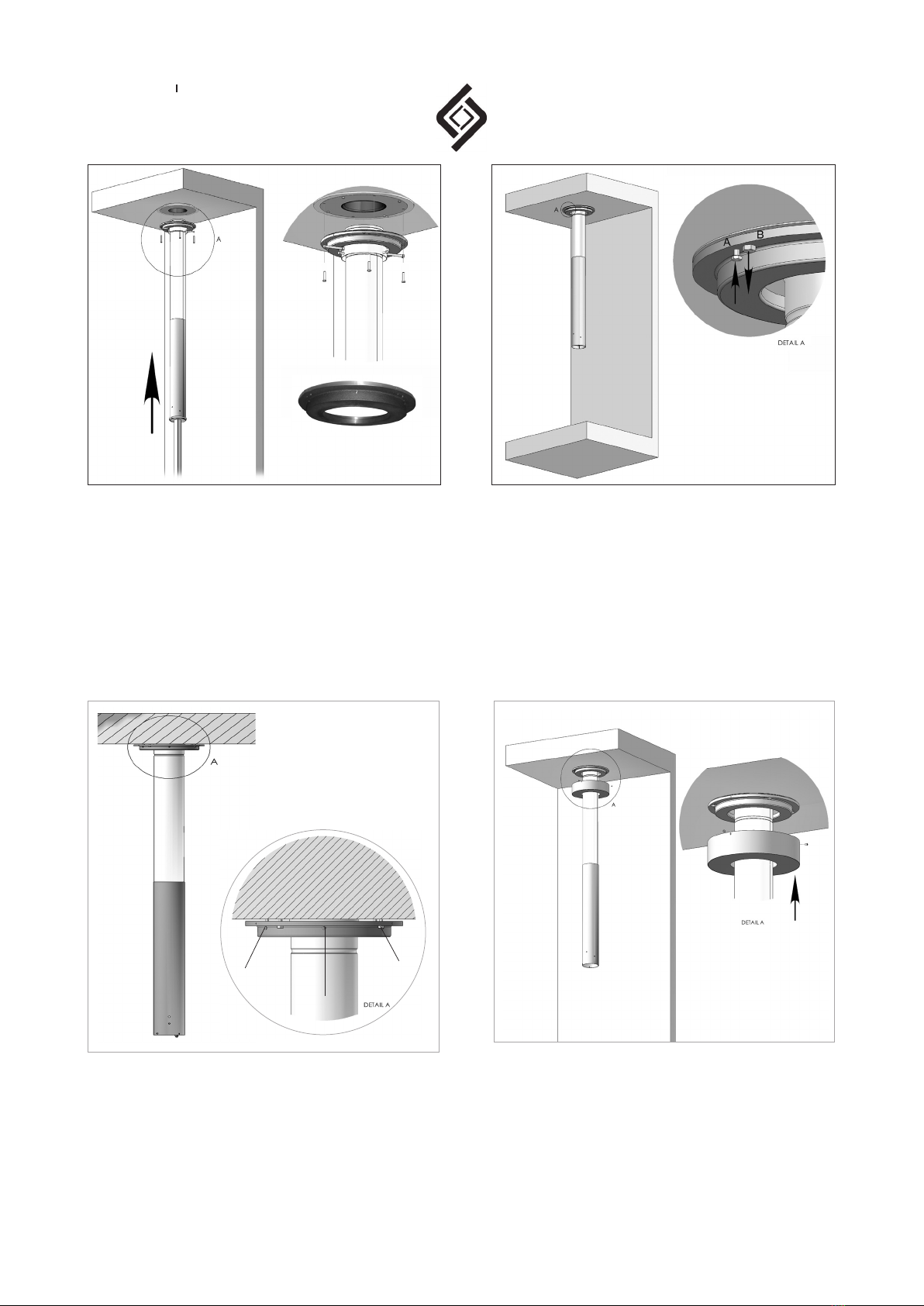

5. Fixing the stove pipe
• The bearing plate has a rear side: when installing it, ensure it is in fact at
the back (see mark on bearing plate);
• Slip the stove-pipe support on the Pharos liing jack (the liing jack must
be in its lowermost posion);
• Determine the centre of the pipe on the stove-pipe support (plumb line);
• Place the stove pipe on the stove-pipe support;
• Jack the stove pipe up using the Pharos liing jack;
• Fix the bearing plate to the ceiling using the 4 M8x20 bolts (socket or
open-end spanner and step ladder);
8. Installing the nishing cover
• Note: First, make the stove rotatable if desired (see step 7).
• Slip the nishing cover on the stove pipe and move it upwards.
• Fasten the nishing cover with 3 M4 x 8 screws (cross-sloed)
(crosshead screwdriver small).
6. Levelling
• Then fit the M6x20 bolts (A) into the holes that are still open.
(Socket-head wrench 3).
• Level the stove pipe by turning the A bolts in or out (spirit level).
• Tighten the B bolts when the stove pipe is hanging level (Check this).
• Remove the mounting ring.
7. Rotatable...?
• The stove can be made rotatable if the customer so desires.
• The 3 bolts provided at the back of the bearing plate serve this purpose.
• Possibilies: Fixed (non-rotatable): leave screws A and B in place
(stove is locked); 2 x 60° rotatable: slacken or remove 2x screws A
(crosshead screwdriver small) and leave B in place; 360° rotatable: slacken
or remove screws A and B.
AA
B
Stovepipe
support
Hexagon-
head bolt
M8 x 20
The centre hole indicates
the middle of the rear side of the
bearing plate.
A: 4x bolt M6x20
B: 4x bolt M8x20

PHAROS INTERIOR LEENDERS
201725.001.I.EN

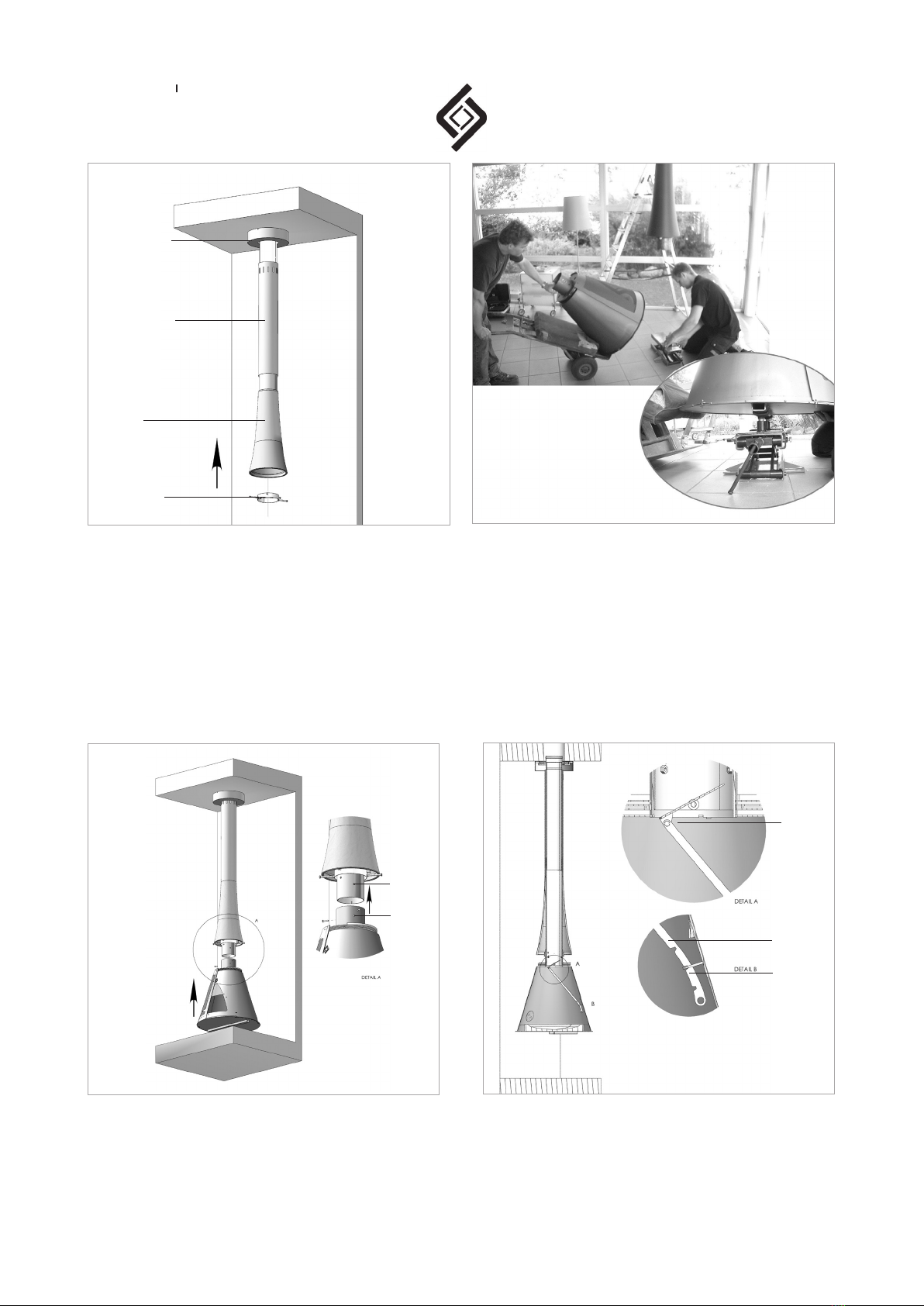

10. Preparing the stove
• Bring the pre-assembled frame to the place of installaon using a
handtruck.
• Remove the stove-pipe support from the Pharos ling jack.
• Place the sliding pieces under the liing jack.
• Place the pre-assembled frame on the Pharos liing jack (Ensure that the
liing jack is in its lowermost posion).
• Push the liing jack holding the frame under the stove pipe; keeping
the re opening at the front.
12. Mounng the ap
• Hook the ap-control handle into the eye.
• Fasten the ap-control handle to the ap with the M6 x 20 bolt together
with an M6 bodywork ring on both sides.
• Fit a self-locking M6 nut on the bolt and ghten it (socket or
open-end spanner j.w. 10).
• Check the ap for proper operaon.
11. Hanging the stove
• Ensure that the welded seam in the stove pipe is on the
right-hand side and the re opening on the front side.
• Jack the frame up unl it ts over the stove pipe.
• Fasten the frame to the stove pipe with 3 M8x20 bolts.
(socket or open-end spanner j.w. 13).
Welded
seam at
right-
hand
side
Bolt
M8x20
Bolt
+rings
+nuts
Flap-control
handle
Eye
9. Installing the decorave pipe and column
• Slide the decorave pipe (the slots at the upper end) and the column
on the stove pipe and move them upwards as far as possible)
(the decorave pipe slides over the cord and into the nishing cover).
• Also slip the mounng ring on the stove pipe moving it as ghtly as
possible against the column and fasten it with the 3 M8 x 20 bolts
(socket or open-end spanner j.w. 13).
• Note: Place the mounng ring so that the long hexagon-head bolts
(M8 x120) are at the lower part and the three short screws (M8 x20) at
the upper part of the ring.
• Tighten the bolts rmly!
Finishing cover
Decorative pipe
Column
Mounting ring

PHAROS INTERIOR LEENDERS
201725.001.I.EN
Lowering the column
• Remove the two bolts (M8 x 120) from the mounng ring, and
carefully lower the column on the shell parts.
• Note: The column bears stamped numbers as well: they must
be on the front side of the stove.
• Remove the Pharos liing jack.
• The Pharos Interior is now ready for use. Check its performance.
Bolt
M8x120
Stamped
numbers
Installing the shell parts
• Place both shell parts with the hollows on the points of the
posioning screws.
• Note: The shell parts bear stamped numbers:
the stamped numbers must be on the front side of the stove.
• Place the boom shell on the Pharos liing jack and jack it up
against the boom of the frame.
• Insert the M6x75 bolt with an M6 nut and an M6 bodywork ring on it
into the hole of the boom shell, and ghten it unl it
cannot go any further (there is sll some thread le).
• Tighten the M6 nut against the boom shell in order to secure
the shell (Open-end spanner j.w. 13).
Stamped
numbers
Shell part
Lower shell
Bolt+rings+nut
Check interior
Parts in the interior and combuson chamber can shi during transport. Check the heat
shield and all other interior ceramics to make sure everything is in the right place.

PHAROS INTERIOR LEENDERS
201725.001.I.EN
General instrucons and regulaons
Installaon
To secure the warranty, the Pharos Interior must be installed by a properly qualied person employed
by a dealer recognized by Leenders. See leenders.nl for a current list of addresses of recognized
dealers or contact the manufacturer.
The stove is suscepble to scratching. Handle with care.
Aer installaon, check the draught by burning some kindling wood.
Use
• All local regulaons including those referring to naonal and European standards must be
observed when installing the appliance.
• Ensure there is sucient venlaon/air supply in the room where the stove is installed. Air
extractors such as a cooker hood may cause problems due to ue gases escaping from the stove
into the room.
• The stove is suitable for use with a chimney venlator.
• The appliance must be installed at a ceiling having sucient bearing capacity.
• The appliance is not suitable for a shared ue system.
• Ensure adequate access for cleaning the appliance, the ue-gas connecon and the chimney.
Safety instrucons
• For general safety, we refer to the VCA guidelines.
• Note: Aer installaon, ensure there is no inammable and/or explosion-hazardous material in or
on the stove such as a spray can, packing material and the like.
Distance to combusble materials
• Back 40 cm
• Side 60 cm
• Front 120 cm
Specicaons Pharos Interior
• Nominal power = 9.0 kWh
• Heat output capacity = 9.0 kWh
• Flue gas mass ow = 26,7 g/s
• Appliance weight = 125 kg
• Minimum chimney draught = 0.11 mbar
• Flue gas temperature directly over the stove = 387 °C
• Energy Eciency 40,5%, class F, index 49,7
F
