Legend Flame EF262-265A User manual

Electric Fireplace Insert
Model Number: EF262-265A
OWNER’S MANUAL
WARNING
CAUTION
DO NOT RETURN!
Contact our customer service team for help first.
Call: 949-385-6588
E-mail: [e-mail]
Read and understand this entire owner's manual, including
all safety information, before plugging in or using this
product. Failure to do so could result in fire, electric shock,
or serious personal injury.
Keep this owner's manual for future reference. If you sell or
give this product away, make sure this manual accompanies
this product.



CONTENT
1. Important Safety Information …………………………………..………........... 1
2. Technical Specifications ………………………….…………………………………... 4
3. Before Installation …...........………………………….…………...................... 5
4. Installation Instruction .................................................................... 6
5. Operation Instruction ……………………………………................................ 8
5a. Manual Control Panel ……………..………………………….……............... 8
5b. Remote Control ………………………………......................................... 10
6. Care and Maintenance …………………….………..................................... 12
7. Limited Warranty …………………...……………………................................ 13
8. Troubleshooting Guide ..……………………………………………………........... 14
9. Schematic Diagram …………………………………................... ...................
16
....
...
...
....
...
...
...
...
...
...
...

1
1. IMPORTANT SAFETY INFORMATION
WARNING
•Read all instructions before using this heater!
•This heater is hot when in use. To avoid burns, DO NOT let bare
skin touch hot surfaces. If provided, use handles when moving
this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9m) from the front of the heater, and keep them away from
the sides and rear.
•Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.
•DO NOT operate any heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or damaged
in any manner. Discard heater, or return to authorized service
facility for examination and/or repair.
•DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening, as this may cause electric
shock or fire, or damage the heater.
•INDOOR use only! NEVER use this heater outdoors! Doing so
may result in electric shock!
•To disconnect heater, turn controls to off, and turn off power to
heater circuit at main disconnect panel (or operate internal
disconnect switch if provided).
•To prevent a possible fire, DO NOT block air intakes or exhaust
in any manner. Doing so could cause a fire. DO NOT use on soft
surfaces, like a bed, where openings may become blocked.
•A heater has hot and arcing or sparking parts inside. DO NOT
use it in areas where gasoline, paint, or flammable liquids are
used or stored.
•Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fir e ,

2
electric shock, or injury to persons.
•Connect to properly grounded outlets ONLY.
•DO NOT place the heater near a bed because objects such as
pillows or blankets can fall off the bed and be ignited by the
heater.
•NEVER use this heater in bathrooms, laundry rooms, or any
other location where the heater could fall into a bathtub or
pool, become damp, or come in contact with water.
•AVOID FIRE! Regularly inspect all air vents to make sure they
are free from dust, lint, or other blockage. Unplug the unit and
clean with a vacuum ONLY. DO NOT rinse or get wet.
•WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK-
--DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED
CONTROL DEVICES.
•For residential use only! NOT for commercial use! Any
commercial or public use of this heater voids all warranties,
and could cause injury.
•This product is not intended to be a primary heat source. It is
for supplemental heat only.
•NEVER modify this heater. Doing so could result in personal
injury or property damage. Modification of this fireplace
completely voids all warranties.
•ALWAYS disconnect this unit from the power supply before
performing any assembly or cleaning, or before relocating the
electric fireplace.
•NEVER leave this heater unattended. ALWAYS unplug this
heater when not in use.
•ALWAYS store this heater in a dry location. NEVER use the
fireplace if it has become wet.
•ONLY use this heater on a 120V AC 15-Amp circuit. NEVER
overload the circuit. If this heater trips the circuit breaker,
unplug all other appliances on the same circuit before the next
use. Avoid plugging other appliances into the same circuit as

3
this heater.
•NEVER plug this heater into an outlet that is old, cracked, or
has any loose wires or connections. Plugging this heater into a
faulty outlet could result in electric arcing within the outlet
that could cause the outlet to overheat or catch fire.
•ALWAYS check your heater cord and plug connections with
each use!
1. MAKE SURE the plug fits ti g ht in the outlet! Faulty wall
outlet connections or loose plugs can cause the outlet to
overheat.
2. Heaters draw more current than small appliances.
Overheating may occur even if it has not occurred with the
use of other appliances.
3. During use check frequently to see if the plug outlet or
faceplate is HOT!
4. If the outlet or faceplate is HOT,discontinue use immediately
and have a qualified electrician inspect and/or replace the
faulty outlets.
This heater has a three-blade grounding type plug as show in
below picture. If there is a two-slot receptacles only, an adapter
should be used for connecting three-blade grounding type plugs.
The grounding lug extending
from the adapter must be
connected to a permanent
ground such as a properly
grounded outlet box by a
metal screw. T he ad apter
should not be used if a three-
slot grounded receptacle is
available.
SAVE THESE INSTRUCTIONS!
Adapter
Grounding Pin
Metal Grounding
Screw

24.4
26.4
30.4
34.4
A
620
671
773
874
28.7
30.7
34.7
38.7
25.1
27.1
31.1
35.1
19.1
21.1
25.1
29.1
D
486
537
639
740
21.3
24.3
26.1
26.1
E
540
616
663
663
16.4
19.4
21.2
21.2
F
416
492
539
539
19.5
22.5
24.3
24.3
G
495
571
618
618
10.4
10.4
10.4
10.4
H
264
264
264
264
9.4
9.4
9.4
9.4
Inch
Inch
4
2. TECHNICAL SPECIFICATIONS
Electric Specifications
Model Watt (min/max)
Heang Area(max)
Volt BTU(max) Amp
Hz
EF262-
265A 120 750/1500 60 500012.5 400 square feet
Product Dimensions
B
E
G
H
I
D
C
A
F
unit
B C I
EF262A
mm 728 637 239
EF263A mm
779 688 239
EF264A
mm 881 790 239
EF265A
Inch
mm 982
892 239
Inch
Model

Remote Handset (1 pc)
5

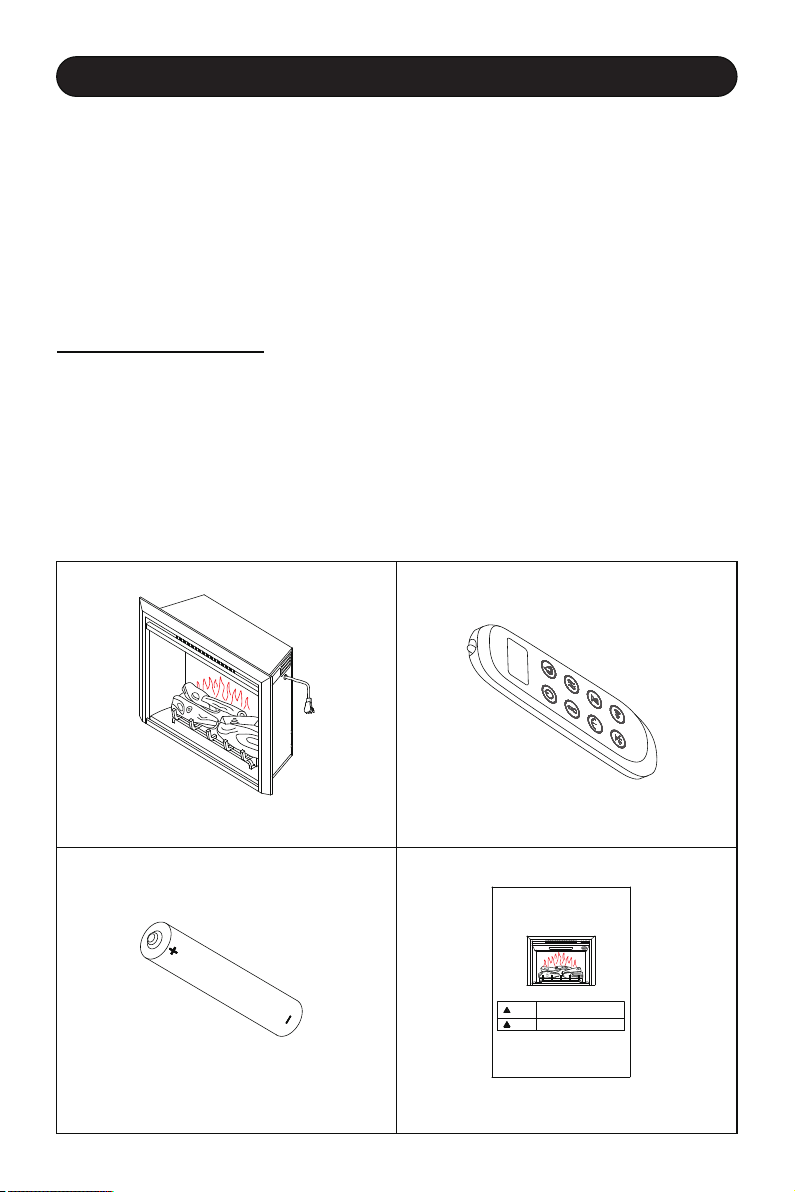

Check Spare Parts
3. BEFORE INSTALLATION
Note:
Keep the packaging (carton, poly bag, polystyrene, etc.) for
future transportation and/or storage.
If the unit needs to be returned, please make sure all the
spare parts are packed inside and packed the same as the
original packing.
•
•
Open the packaging carefully and remove the polystyrene.
Check the spare part list below to verify all parts have been
received.
Carefully check if any damages that may have for the insert or
spare parts.
•
•
•
Electric Fireplace Insert
Model N umber:E F262-265A
OWNE R'S MA NUAL
WARNING
Read and under stand this entire own er's manual, includi ng all safety
information, b efore plugging in or usi ng this product. Failure to do so
could result in fi re, electric shock , or serious persona l injury.
CAUTIO N Keep this own er's manual for future reference. If you s ell or give this
product away, ma ke sure this manual accompanies th is product.
DO NOT R ETURN!
Contact ou r customer servic e team for help first.
Call 949 385 6588
E-Mail: s ervice5@fireandfi replaceservice.com
Insert (1 pc)
Battery (2 pcs) Owner’s Manual (1 pc)
AB
CD

Function Testing
Locating the Appliance
Note: This model can NOT be hard wired.
Minimum Clearance to Combustibles
Sides............................0 inch
Floor............................0 inch
Back.............................0 inch
Top (shelf or TV)..........8 inch
Front..........................36 inch
Electrical Supply Circuit Requirements
Please refer to section 5a. Manual Control Panel and 5b. Remote
Control to test the appliance first before insta ll at ion. Should any
defects found, please contact service team for help. Call 949-
385-6588 or Email [e-mail].
4. INSTALLATION INSTRUCTIONS
Your new electric fireplace may be installed virtually anywhere in
your home. However, when choosing a location , ensure that the
general instructions for safety are followed.
For best results, install out of direct sunlight, water or very
damp air.
Power supply service must be installed within proximity of
electric fireplace prior to finishing avoiding reconstruction.
•
•
WA R N I N G ! Risk of Fire! Keep electrical cords, drapery,
furnishings or other combustibles at least 3ft. (0.9 m) from the
front of the electric fireplace.
6
Plan the location of the appliance so that it will have adequate
electric power. A 15 AMP, 60Hz circuit is required for 120V
installation. The appliance should ideally be located close to a
suitable main socket to enable power connection.
•

7
Installation
W
H
D
The power cord is 6ft long and locates on the right side of the
unit. If the cord is found not long enough to reach the outlet, a
grounded extension could be run from an existing socket outlet
but a minimum size 14 AWG with a minimum rating 1875W
would be recommended, and it should not be longer than 7ft
and 10 31/64”.
Always make sure the outlet is in good condition and the plug is
not loose. NEVER exceed the maximum amperage of the
circuit.
•
•
This insert can be recessed into a wall or installed into a wood
mantel or cabinet. The installation is very easy, just prepare the
opening and outlet, plug it on and push it into the opening, NO
extra steps need to take.
The opening depth 9.7” (247mm) is suggested for better
ventilation.
8” clearance would be suggested if there is a TV mounted
directly above the unit.
•
•
•

8
Opening sizes
Unit W H D (min) D (suggest)
EF262A Inch 25.1-27.9 19.7-21.1 9.4 9.7
mm 637-708 501-535 239 247
EF263A Inch 27.1-29.9 22.7-24.1 9.4 9.7
mm 688-759 577-611 239 247
EF264A Inch 31.1-33.9 24.6-25.9 9.4 9.7
mm 790-861 624-658 239 247
EF265A Inch 35.1-37.9 24.6-25.9 9.4 9.7
mm 892-962 624-658 239 247

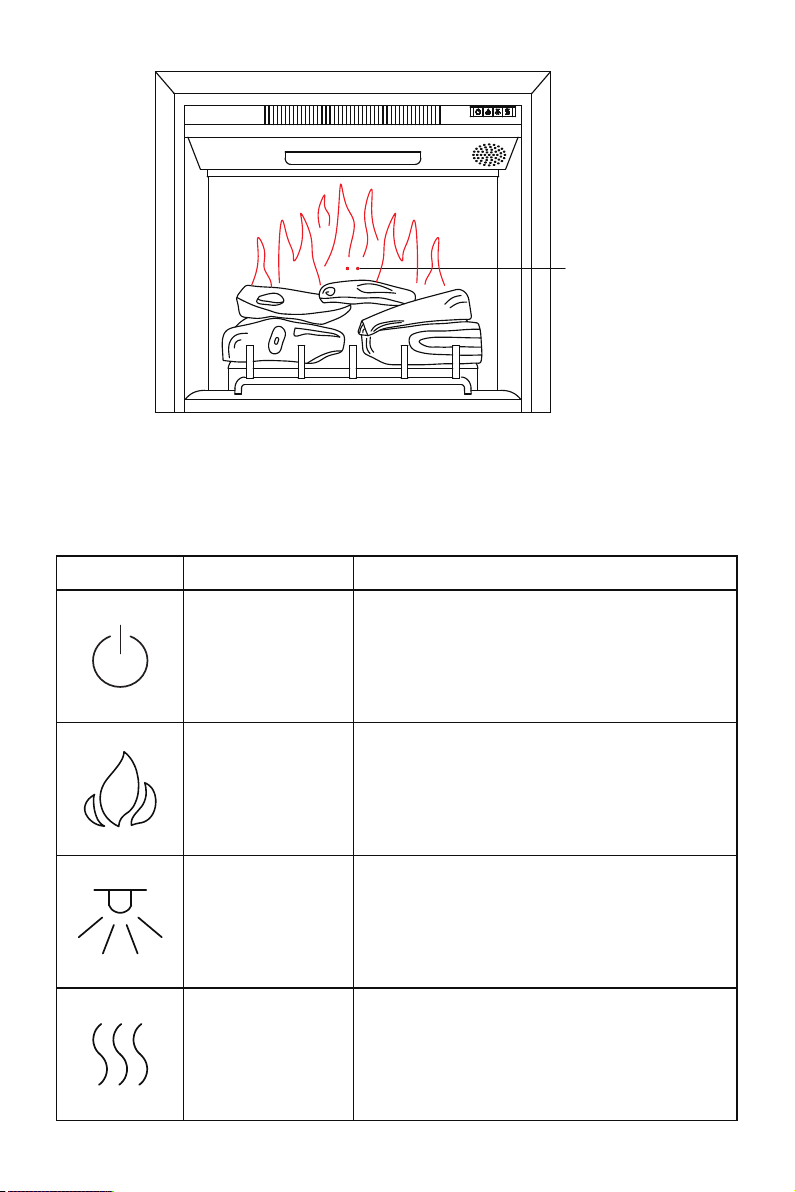

Standby
Flame
Heater
Mood Light
If the opening existing is too large for the insert, trim kits are
available to be purchased separately, just contact the service
te a m fo r p u r c h a s e l i n k . C a l l 9 4 9 - 3 8 5 - 6 5 8 8 o r E m a i l
[e-mail].
•
5. OPERATING INSTRUCTIONS
Read and understand this entire owner's manual,
including all safety information , before plugging in or
using this product. Failure to do so could result in
electric shock, fire, serious injury, or death.
WARNING! Do not operate the unit if it is damaged or
has malfunctioned. If you suspect the unit is damaged,
call a qualified service technician to inspect and
replace any part of the electrical system if necessary.
5a. Manual Control Panel
Model

9
Heating Indicator
Light & Remote
Receiver
Note: When the heater is first turned on, a slight odor may be
present. This is normal and should not occur again unless the
heater is not used for a long period of time.
BUTTON NAME FUNCTION
Standby
Flame Press to cycle through 4 flame effects
and off .
Mood Light Press to cycle through 9 mood light
effects .
Heater
Press to cycle through Low – High –
off.
Heater will work regardless of the
room temperature.
Press to power the fireplace on and
enter standby mode or turn off all the
functions at once.
and off

10
Crackling
Flame Speed
Heat
Time
Temperature
Flame
Flame Standby
Heater Temperature
Timer Flame Speed
Crackling Mood Light
Note: Aim the remote control at the remote receiver.

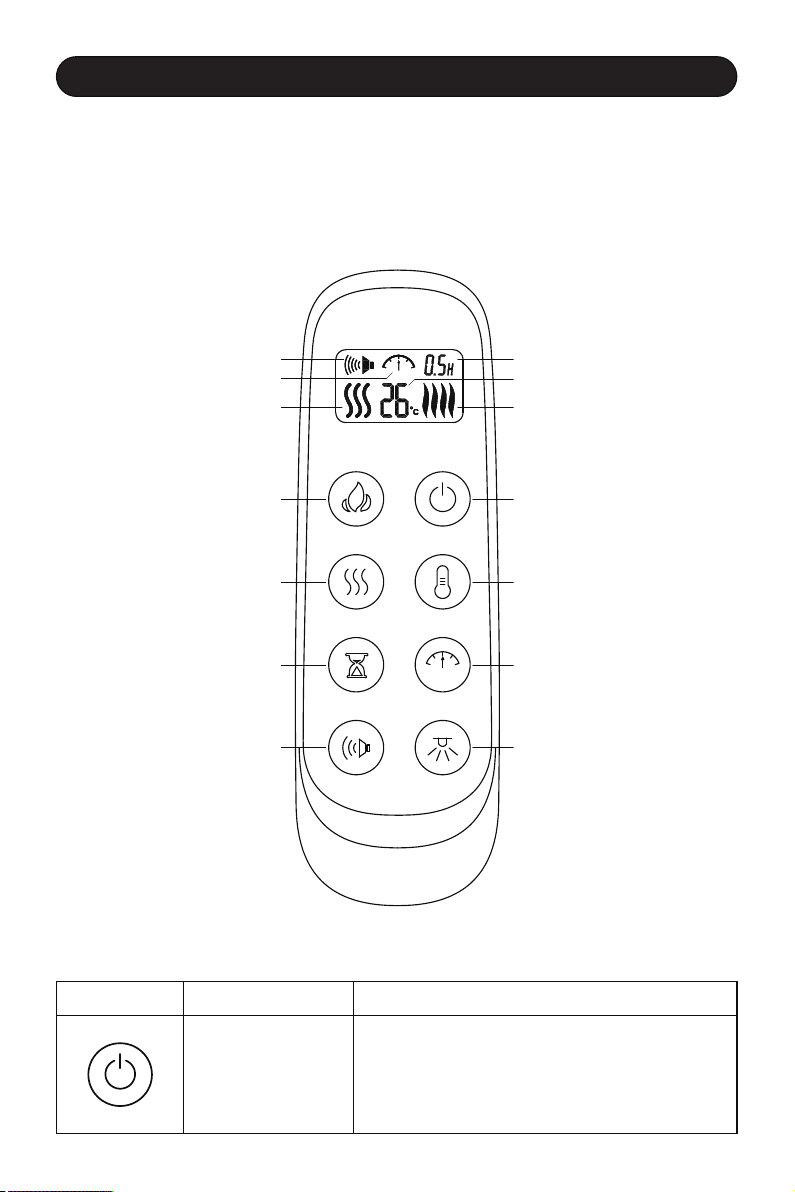

5b. Remote Control
Remote Control Battery
This remote control uses two AAA batteries (included).
Battery must be recycled or disposed of properly. Check with
your local authority for recycling advice in your area.
BUTTON FUNCTION
Standby
Press to turn the fireplace on and
enter standby mode or turn off all
the functions at once.
TITLE

11
NOTICE:
Press the 'FLAME' button on the unit for 3s at least to cancel
the beeps.
The heater can be turned on without the flames. The red LED
indicators will turn on for 10s (one for low heating and two for
high heating), and the 3rd mood light at 5% brightness will keep
on.
The blower will turn on 10s before the heater is on and turn off
10s after the heater is off.
•
•
•
Flame
Mood Light
Crackling
Timer
Flame Speed
Heater
Temperature
Press to cycle through 4 flame effects
and off .
Press to cycle through 5 cracking and
Press to set the timer from 0.5H to
9.0H and
Press to cycle through 5 flame
speeds.
Press to cycle through Low – High –
off.
Press to cycle through 9 mood light
and off .effects
Press to set the room temperature
from 60 °F - 84 °F (16 °C - 28 °C) and
Hold for 3 seconds to change the
unit between °C and °F.
off.
off.
off.

12
Cleaning
Metal:
Glass:
Plastic:
Maintenance
6. CARE AND MAINTENANCE
ALWAYS turn the heater OFF and unplug the power
cord from the outlet before cleaning, performing
maintenance, or moving this fireplace. Fail to do so
could result in electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so
could result in electric shock, fire, or personal injury.
using a soft cloth, slightly dampened with a citrus oil-based
product.
DO NOT use brass polish or household cleaners as these
products will damage the metal trim.
Buff
•
•
Use a good quality glass cleaner and dry thoroughly with a
paper towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner
that could scratch the surface.
•
•
Wipe gently with a slightly damp cloth and a mild solution of
dish soap and warm water.
NEVER use abrasive cleansers, liquid sprays, or any cleaner
that could scratch the surface.
•
•
Vents:
Use a vacuum or duster to remove dust and dirt from the heater
and vent areas.
Clean the exterior of the fireplace with a slightly damp cloth or
duster.
•
•

7. LIMITED WARRANTY
13
Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not
require lubricaon.
Electrical components are integrated in the fireplace and are
not serviceable by the consumer.
•
•
Storage:
Store heater in a clean dry place when not in use.
•
Replacement parts:
Use only replacement parts supplied by the manufacturer. Use
of any other parts, or modifying the fireplace in any way, will
void all warranes.
•
This warrants to the original purchaser that this product is free
from defects in material and workmanship as of the date of
purchase and that it will, under normal use and proper care,
remain so for one year from the date of purchase. Missing or
initially defecve parts will be replaced free of charge during the
period of this limited warranty. If parts are unavailable,
comparable replacement of refund will be given. The original
dated sales receipt is required for all warranty claims. This
warranty does not cover damage which has occurred during
transport from the point of purchase to the consumer's home.
This warranty does not cover glass, light bulbs, batteries,
transportation, labor, or other issues not associated with the
manufacture of the product.
Risk o f el e c t ric s h o c k ! D O N O T O P E N ! N o u s e r-
serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord
from the outlet before cleaning, performing maintenance,
or moving this fireplac e. Failure to do so could result in
electric shock, fire, or personal injury.

1.Make sure the unit has power. If it does not, the
will not work.
2.If it has, but the functions do not work, please
[e-mail]
functions
e-mail us at
14
This product is for residential use only. Any and all commercial
use of this product voids all warranties, and frees the
manufacturer from all liability.
Read and understand all assembly and operating instructions,
and all safety information and warnings, before use. The
following will void this warranty: Damage caused from
tampering with, modifying, or altering the fireplace insert in any
manner; Damage due to incorrect assembly, improper care,
misuse, or abuse; Damage from being used with the wrong
power source; Water damage; Damage caused from this insert
being used outdoors; Damage caused from this insert being used
for excessive periods of time; Damage caused by the insert being
used in a commercial application; Damage from use as a primary
heat source; Other misuse or abuse not specifica lly listed herein.
This product is not intended to be used as a primary heat
source. It is for supplemental heating purposes only.
8. TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
1.Make sure the power cord is plugged into a
functioning and properly grounded 15 Amp 120V AC
electrical outlet.
2.If the unit had been working, but then turned off by
itself, the temperature limiting control may need to
be reset.
3.Check for damage to the power cord or plug. If
damaged, DO NOT USE.
The control
panel
functions
do not
work.
There is no
power to
the
fireplace ,
or it does
not turn
on.

15
The heater
does not
work.
This is normal. The fans blow cool air while the
heater gradually heat up. The fans blow aer the
heater turn off to cool the heater and prevent
overheating.
The remote
control
does not
work.
1.Make sure the batteries are properly installed.
2.Make sure the unit has power. The remote control
will not work unless the unit is powered on.
3.Aim the remote control at the receiver.
4.Remove objects that may be in the way. Items
between the remote control and the remote control
receiver will block the signal.
5.Don't press the remote control buttons too quickly.
Give the unit time to respond to your commands.
The
thermostat
does not
work.
1.Make sure the heater is turned on. The thermostat
will not work unless the heater is turned on.
2.Make sure the thermostat is not set too low. If the
thermostat is set lower than room temperature, the
heater will turn on.
The FLAME
button
doesn't
work.
The heater
does not
blow hot
air when it
turns on
and off.
1.Make sure the unit has power.
2.If it has, but the flame does not work, please
[e-mail]
e-mail us at
2.Control Panel: Press the heater button on the
control panel to override the thermostat at any time.
3.Remote control: Make sure the thermostat is not set
too low. If the thermostat is set lower than room
temperature, the heater will not turn on.
4.If none of these solutions work, please e-mail us at
[e-mail]
1.Make sure the unit has power.

16

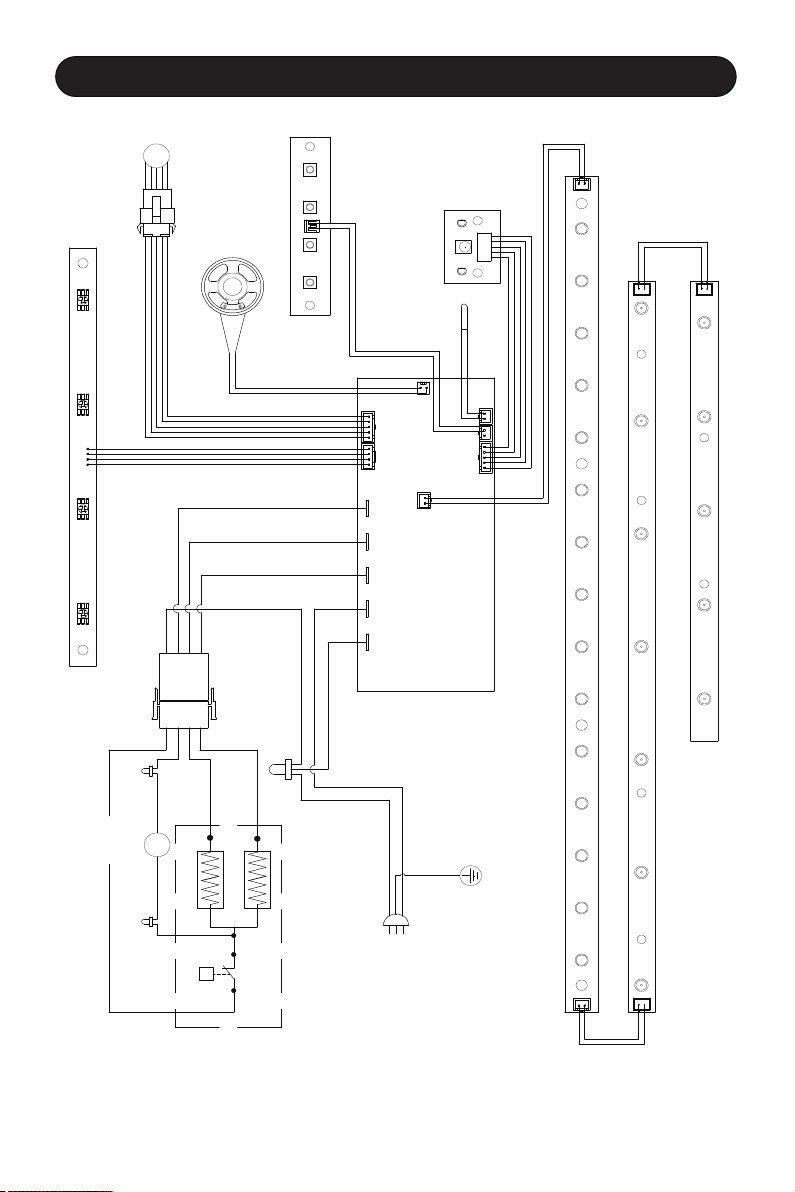

9. SCHEMATIC DIAGRAM
AC120V/
60Hz
LNE
M
～
M
～
θ
Speaker
Heater
motor
Heat
element
Mood
light
LED
board
Flame
motor
Buon
panel
Sensor
Receiver
PCB
RC01-046A01
Flame
LED
board
Fuel
bed
LED
board
Log
LED
board
Power
cord
Thermostat
AC L
AC N
HEAT2
HEAT1
FA N
LE D1
LE D4
SIREN
IR
KE Y
RT
LE D2

3.EF.262.05.007 A0
Legend Flame Group LLC
Address: 92 Corporate Park, Ste. C655 Irvine, CA 92606, United States
