LEGOOIN SWING.001 User manual

USER INSTRUCTION
LEGOOIN METAL SWING SET
S
FOR RESIDENTIAL USE ONLY

２
INTRODUCTION
Dear Customer,
Congratulations on your LEGOOIN metal swing sets purchase! Please
read and completely understand the contents of this owner's manual.This
manual contains specific instructions and warnings that must be followed to
prevent injuries.
This metal swing sets is for residential use only.This metal sewing set is
NOT intended for public or commercial use.The product is designed for use
by kids between the ages of 5-16. Children must NOT play on this set until it
is properly assembled and inspected by an adult.Adult supervision is
required at all times while children are playing on the equipment.Do not
allow children under seven (7) years old to be near during the assembly of
this product due to choking hazards of small parts.
The equipment must be installed on level ground.The uneven ground
must be leveled prior to installation.Installation on sloping or uneven ground
will put stress on the joints,causing the unit to become loose and unstable
which may result in serious injuries.You must ensure there are no
obstructions or structures (e.g.electrical wires,branches,house,fence,
garage)within six (6) feet from the equipment.
The Consumer Product Safety Commission's Outdoor Home Playground
Safety Handbook recommends installing and maintaining the playground
equipment over at least 9inches of wood chips,mulch or shredded rubber
(for equipment up to 8feet high)or sand or pea gravel (for equipment no
more than 5feet high)as shock-absorbing material.Dirt and grass,which
are the most prevalent surfaces under home playground equipment,do not
adequately protect children from serious head injuries.Install protective
surfacing at least six feet in all directions from play equipment.For swings,
the surface should extend,in back and front,twice the height of the
suspending bar.Do not install your metal swing sets over hard surfaces,e.g.
asphalt,packed earth,tile,or brick floor.
Do not allow kids to use the product during windy or wet weather conditions.
The product must be anchored into the ground to prevent movement and
to make the swing sets more stable during use.
The equipment must be checked before each use and maintained
regularly.This includes,but is not limited to inspecting the swing sets for
cracks,excess wear,missing parts,loose connections,and for overall
integrity.When the equipment shows any signs of weakness or damage,you
must stop using the swing set immediately,properly store the set or restrict
access by users until the condition is resolved.

３
TABLE OF CONTENTS
IMPORTANT INSTRUCTIO NS AND WA RNI NGS ....................................................................................................................3-5
IMPORTANT CO NSUMER INFORMATION SHEET ............................................................................................................... 5-9
CARE AND MAINTENANCE CHECKLIST ................................................................................................................................. 10

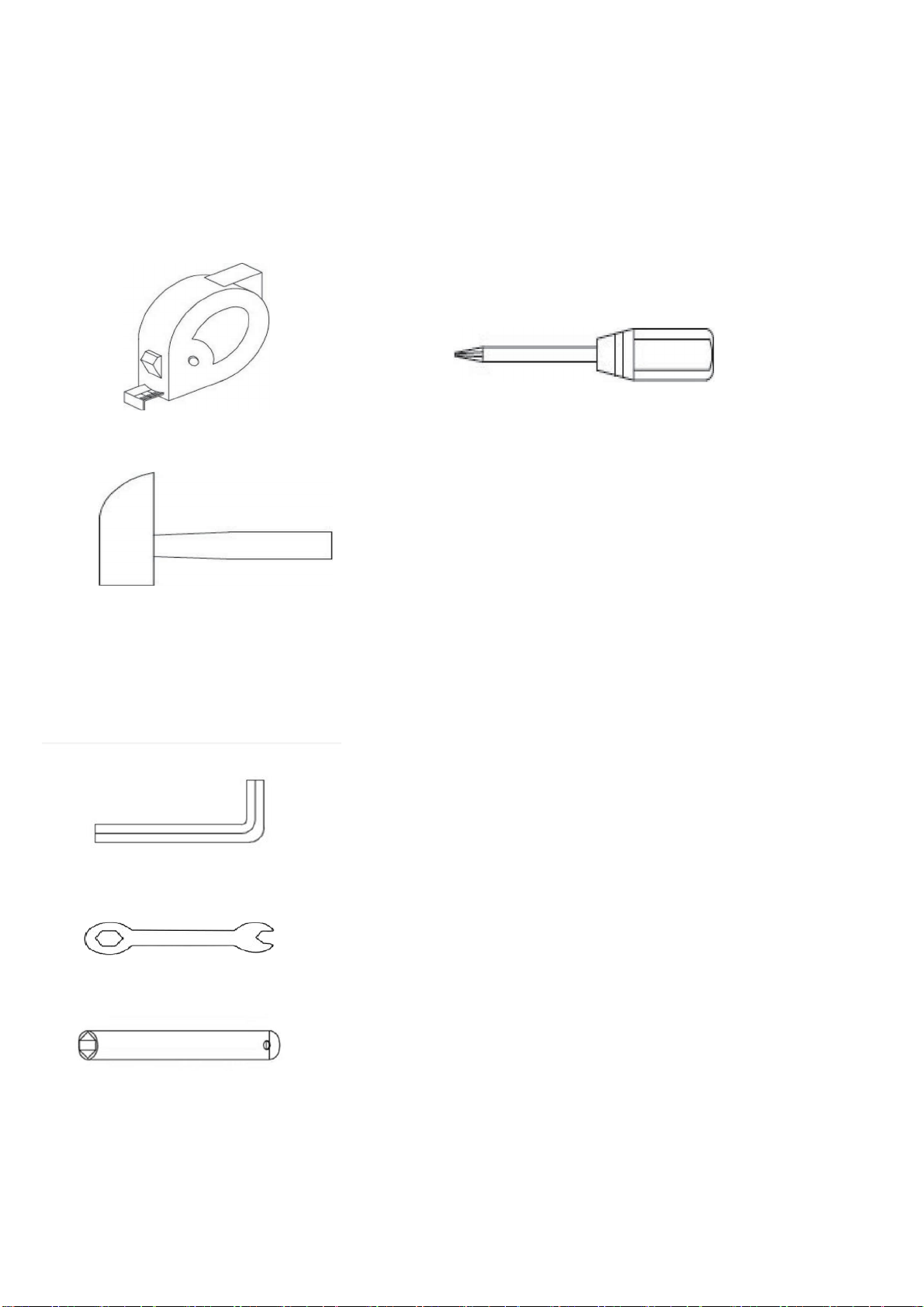

TOOLS NEEDED ........................................................................................................................................................................... 11
PARTS LIST................................................................................................................................................................................ 12-13
ASSEMBLY AND INSTALLATION INSTRUCTIONS............................................................................................................ 14-22
FAREXON QUALITY ASSURANCCE ...................................................................................................................................23-24
IMPORTANT INS TRUCTIO NS AND WARNINGS
W ARNING
READ ALL INSTRUCTIO NS BEFO R E ASSEMBLING O R USI N G THIS EQUIPMENT
AGE LIMIT
This product is designed to be used by up to between the ages of 5 to 16. A combined maximum weight of 440
pounds (199kg).
The metal swing set is designed for children over six (6) years of age. Use by smaller children can result in
entrapment.
On-site adult supervision is required at all times for children of all ages.
Do not allow use by children with any physical condition that may affect his/her ability to use this equipment safely.
BEFORE YOU BEGIN
Carefully read all instructions in this manual before assembling and using this product.
The unit must be assembled by adults. Heavy duty working gloves must be worn to avoid injuries during assembly.
Children must not use the equipment until it is properly assembled and anchored.
Adult supervision is required during the use of this equipment at all times.
Unpack all parts. Take a complete inventory of all parts and hardware using the parts and hardware lists in the
following pages.
LOCATION OF METAL SWING SETS
The equipment must be placed more than six (6) feet (1.8 meters) from any structures or obstructions, including
but not limited to buildings, fence, garage, trees, laundry lines, electrical wires. Children can be seriously injured
running or swinging into obstacles.
The metal swing sets must be installed on level ground. Uneven ground must be leveled prior to installation.
Installation on sloping or uneven ground will put stress on the joints, causing the unit to become loose and
unstable which may result in serious injuries.
Remove any tripping hazards from the safe play area, such as roots, tree stumps, rocks, landscaping, sprinkler
heads, railroad ties, plumbing and electrical connections.
Do not install your metal swing set over hard surface, e.g. asphalt, packed earth, tile or brick floor. A
fall onto a hard surface can result in serious injury or death to the user. The following is a list of
recommended ground covers from the Consumer Product Safety Commission:

４
SUGGESTED MATERIAL UNCOMPRESSED DEPTH
Double Shredded Bark Mulch 9”
Uniform Wood Chips 12”
Fine Gravel 12”
Fine Sand 12”
The Consumer Product Safety Commission’s Outdoor Home Playground Safety Handbook recommend to install and
maintain the playground equipment over at least 9 inches of wood chips, mulch or shredded rubber (for equipment up
to 8 feet high) or sand or pea gravel (for equipment no more than 5 feet high) as shock absorbing material.
Dirt and grass, which are the most prevalent surfaces under home playground equipment,do not adequately protect
children from serious head injuries.
Install protective surfacing at least six feet in all directions from play equipment. For swings, the surface should extend,
in back and front, twice the height of the suspending bar.
Do not install your metal swing sets over hard surface, e.g. asphalt,packed earth, tile or brick floor. Please refer
to the CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY
HANDBOOK for detailed guidelines to prevent injuries from falls and other hazards on public and home
playgrounds.
WARNINGS！
The product must be anchored into the ground to prevent movement and to make the swing set more
stable during use.
Some consumers want an anchoring system that allows the product to be moved to different locations.
Other consumers want to keep their swing set in a permanent location.
There are different types and different methods of anchoring this product.SIHANM does not make a
specific anchoring recommendation as each consumer ’ s need and conditions can vary.
Do Not use this equipment if the swing seat, slide or any parts are wet. Use the metal swing set only when
the parts are clean and dry. If the equipment is wet, the user could slip and suffer injuries.
Please be aware of weather conditions when using the equipment. If it is too windy, users could lose
control and suffer injuries.
The Swing set equipment must be properly anchored, stored away or restricted from use during inclement
weather such as heavy winds or severe weather storms.
PLAY SUPERVISION
DO NOT allow more than one child to play on the individual swing, slide or other component at any one time.
DO NOT allow children to stand on of the swing any.
DO NOT allow children to walk too close to moving parts. ALWAYS keep a safe distance to avoid being struck
by other children while playing on swings, slides, etc.
DO NOT allow children to twist the swing chains or ropes, or loop them over the top support bar as this may
reduce the strength of the chain or rope.
DO NOT swing empty seats as this may cause injuries.
ALWAYS guide children to sit in the center of swinging parts, with their full weight placed in the seat center
and holding on to the swing chains.
DO NOT allow children to jump off the equipment while it is in motion. ALWAYS come to a full stop before
dismounting.
ALWAYS dress children appropriately for proper play, e.g. wear well-fitted rubber sole shoes, and remove
loose or sharp items such as jewelry, hair accessories, scarves which may become entangled in the equipment
or cause injuries.
ALWAYS make sure children remove their bike or other sports helmets before playing on the playground.
DO NOT allow children to climb onto swing or jump to/from different play areas of the equipment.
ALWAYS return safely to the ground before approaching another play area.
DO NOT allow children to climb on structural parts (--e.g. legs, top bar). These are structural components and
are not designed for play.
ALWAYS check the slide or other parts exposed to the body for extreme heat from the sun before allowing
children to use the equipment.
ALWAYS prevent access and secure from any unauthorized use when there is no adult supervision.

５
DO NOT allow pets or other animals near the equipment to prevent damage or injuries.
INSPEATIO N PRIO R TO EACH USE O R DAILY INSPEATION
DO NOT use the equipment if any bolts or nuts are missing or loose. ALWAYS check to ensure the equipment
and all parts are well secured and stable before each use.
ALWAYS clear the play area of any rocks, sharp objects, or any materials that could be potentially hazardous to
users.
DO NOT attach items to the equipment that are not specifically designed for use with the equipment, including, but
not limited to, jump ropes, clothesline, pet leashes, cables and chains as they may cause choke hazards.
The steel and plastic parts used in your product are subject to normal wear. Gradual deterioration of the material
will occur, the speed of which will depend on the level of exposure to UV rays, airborne pollution, outdoor weather
conditions such as rain and wind and the amount of use. You must inspect the equipment prior to every use. This
includes, but is not limited to inspecting the set for cracks, excess wear, missing parts, loose connections, and for
overall integrity. When the set shows any signs of weakness, you must stop using the metal swing set immediately,
properly store the set or restrict access by users until the condition is resolved.
Verify that the suspended climbing ropes, chain or cable are secured at both ends and tightened, so that
there is no loose ropes, chain or cable hanging that can result in choking hazard.
CA RE & MAINTENANCE IN S TRUCTIONS
Inspect all nuts and bolts twice monthly during the usage season for tightness and tighten as required. It is
particularly important that this procedure is followed at the beginning of each season.
Oil all metallic moving parts monthly during the usage period.
Sand rusted areas on metal tubing and repaint using a non-lead-based paint meeting the requirements of Title 16
CFR Part 1303.
Check swing seats, ropes, cables and chains monthly during usage season for deterioration.
Check all coverings for bolts and sharp edges twice monthly during usage season to be certain that they are in
place and replace when necessary. It is especially important to do this at the beginning of each new season.
Do not use when the temperature drops below 32 degrees F (0 degrees C); remove and store the plastic swing
seats and Large platform swing indoors.
IMPORTANT CONSUMER INFORMATION SHEET
The Consumer Product Safety Commission estimates there are about 200,000 playground related injuries involving
children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and
have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground
equipment can be a major factor in determining the injury-causing potential of a fall. It is self evident that a fall onto a shock
absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. Playground equipment should never
be placed on hard surfaces such as or asphalt and while grass may appear to be acceptable it may quickly turn to hard
packed earth in areas of high traffic. Shredded bark, mulch, wood chips, fine sand or fine gravel are considered to be
acceptable shock absorbing surface when installed and maintained at a sufficient depth under and around playground
equipment.
Table below lists the maximum height from which a child would not be expected to sustain a life-threatening head
injury in a fall onto four different loose-fill surfacing materials if they are installed and maintained at depths of 6”
(15.25CM), 9” (22.9CM), and 12” (30.5CM).
FALL HEGHT INFEET FROM WHICH
ALIFE THREAENING HEAD INJURY WOULD NOT BE EXPECTED
TYPE OF MATERIAL
6"(15.25CM) DEPTH
9"(22.9cm) DEPTH
12"(30.5CM) DEPTH
Double shredded bark mulch
6’’(15.25cm)
10’’(25.4cm)
11’’(27.94cm)
Wood Chips
6’’(15.25cm)
7’’(17.8cm)
12’’(30.5cm)
Fine Sand
5’’(12.7cm)
5’’(12.7cm)
9’’(22.86cm)
Fine Gravel
6’’(15.25cm)
7’’(17.8cm)
10’’(25.4cm)

６
However, it should be recognized that all injuries due to falls cannot be prevented no matter what surfacing material is
used.
We recommend that a shock absorbing material should extend a minimum of 6ft in all directions from the perimeter
of stationary equipment such as climbers and slides. However, because children may deliberately jump from a moving
swing, the shock absorbing material should extend in the front and rear of a swing a minimum distance of 2 times the
height of the pivot point measured from a point directly beneath the pivot on the supporting structure.
This information is intended to assist in comparing the relative shock-absorbing properties of various materials. No
particular material is recommended over another. However, each material is only effective when Properly maintained.
Materials should be checked periodically and replenished to maintain correct depth as determined necessary for your
equipment. The choice of a material depends on the type and height of the playground equipment, the availability of the
material in your area and its cost.
This information has been extracted from the CPSC publication on" Playground Safety".
ANCHORING
(NOTE:ANCHORS ARE NOT INCLUDED,MUST BE PURCHASED SEPARATELY)
There are different ways of anchoring the equipment, depending on the type of ground on which
the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping.
The following anchoring options may be considered:
Corkscrew Anchoring (Corkscrew Anchors not included）
 If your soil is hard (clay, etc.), the corkscrew method may be suitable.
 Be sure that the swing set is located on level ground.
 Twist the corkscrew anchor into the ground until only the end with the hook is above the ground
and next to the leg. Insert the hook into the bottom opening of the leg.
Ensure that the hook is secured onto the leg opening.

７
Concrete Anchoring (Materials not included）
。
If the swing set is set up on grounds with sandy soil (soft( condition) it must be anchored
with concrete footing (concrete not included）
。 Be sure that the swing set is assembled and placed on level ground
。 Dig holes around swing leg tube) as shown in drawing in the next page. As you dig deeper)
enlarge the diameter of the hole to fix the cement
。
Place . inches of brick or gravel underneath the leg) as shown in drawing in the next page
。
Use about 24 lbs. of concrete per leg
。 Cover the concrete with dirt and protective surface material
。
Allow 6,7 days for the concrete to dry properly

８
FRAME LEG
CONCRETE
5”
2”
BRICK OR GRAVEL BED

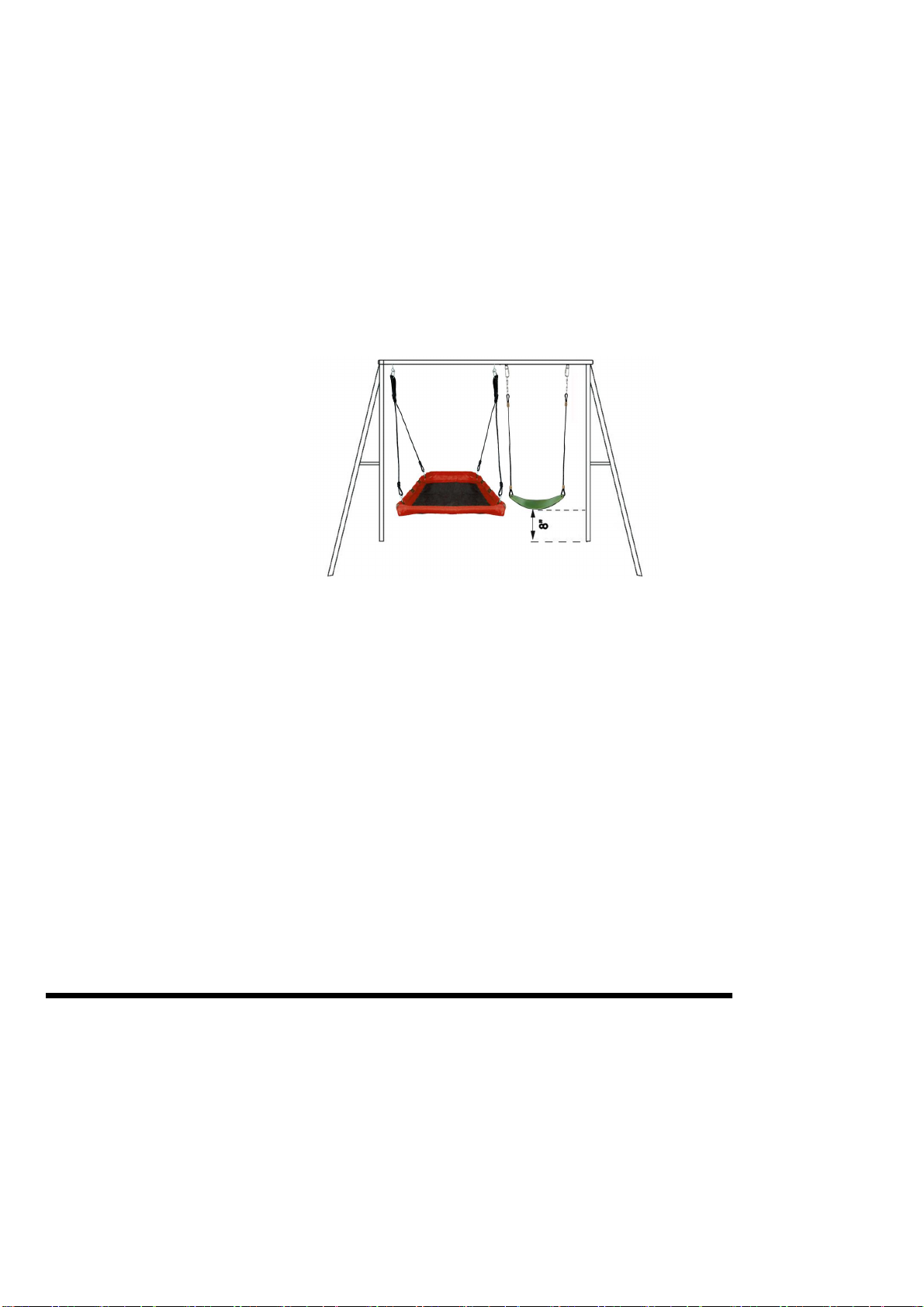

Note: The maximum fall height for this product is 6 feet. The minimum ground
clearance between the bottom of the suspended plays and the playing or
ground surface must be 8 inches.
You must maintain a minimum of 8 inches of ground clearance.
W ARNING
Please properly anchor the swing set to minimize the risk of injury or death.
If the swing set is used without proper anchoring, it may be dangerous and may
tilt over.

10
CARE AND MAINTENANCE CHECKLIST
AT THE BEGINNING OF EACH PLAY SEASON:
 Tighten allhardware.
 Lubricate all metallic moving parts per manufacturer’s instructions.
 Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked,
or missing.
 Check all moving parts including swing seats, ropes, cables and chains for wear, rust or
other deterioration. Replace asneeded.
 Check metal parts for rust. If found, sand and repaint using a non-lead paint meeting the
requirements of 16 CFR1303.
 Reinstall any plastic parts, such as swing seats or any other items that were removedfor the
cold season.
 Rake and check depth of loose fill protective surfacing materials to prevent compaction and to
maintain appropriate depth. Replace as needed.
TWICE A MONTH DURING :
 Tighten allhardware.
 Check all protective coverings on bolts,pipes, edges and corners. Replace if they are loose, cracked
or missing.
 Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as needed.
As a general rule, maintenance should be performed at any time it is deemed
necessary.
DISPOSAL INSTRUCTIONS
 Please use care when disassembling the equipment, when it is no longer in operational condition.
Wear heavy duty working gloves to avoid injuries.
 Fully disassemble the entire swing and slide setsbefore disposal. Do not leave partially
disassembled parts in areas accessible by children.
 Should you wishto recycle the steel tubing, please take the frameto yourlocal recycling center.
 All plastic parts can be recycled, take it to your local recycling center. Do not let children play with
any disassembled parts meant for disposal, such as chains, slide, tubing, bolts, nuts, screws, etc.
 Ownersshallberesponsibleformaintainingthelegibility of the warning labels.

11
TOOLS NEEDED
PIease prepare the following tooIs prior to assembIing this equipment.
T00LS N0T INCLUDED:
Tape Measure Flat head and philips head screwdriver
Hammer
(May be needed or instaIling anchor)
T00LS INCLUDED:
Allen wrench x 1
Plum blossom + open-end wrench x 1
Socket wrench x 1

12
16
44
8
5
6 66
PARTS LIST
Part list for main frame assembly
Part No. Picture Description Quantity
A1 RIGHT TOP BAR 1
A2
LEFT TOP BAR （Shrink head）
1
A3
MIDDLE TOP BAR
1
A4
LEGS
8
A5
CROSS BAR 2
B3 1NYLON NUT 5/16 2
B4 PLASTIC CAP (WITH ARC WASHER) 8
B5 2
ARC WASHER5/16 4
B6 FLAT WASHER 4
B9
1
BOLT5/16” x53 0
B11 BOLT 5/16" x70 4
Parts List - Flying Saucer and Swing Seat
9
Wavy ground nail
4
8Cushion + chain buckle + triangle screw
buckle
1
6Square Frisbee Cloth-Orange + Black 1
7
Frisbee rope/blackS
2
P 1
CAP NUT 0
Z3 1
Splinter5/16
0
R4-4 Flying disc elbow 2
R4-5 Frisbee connecting pipe (both ends shrinking) 2

13
R4-6 Frisbee connecting pipe (one end shrinking) 2

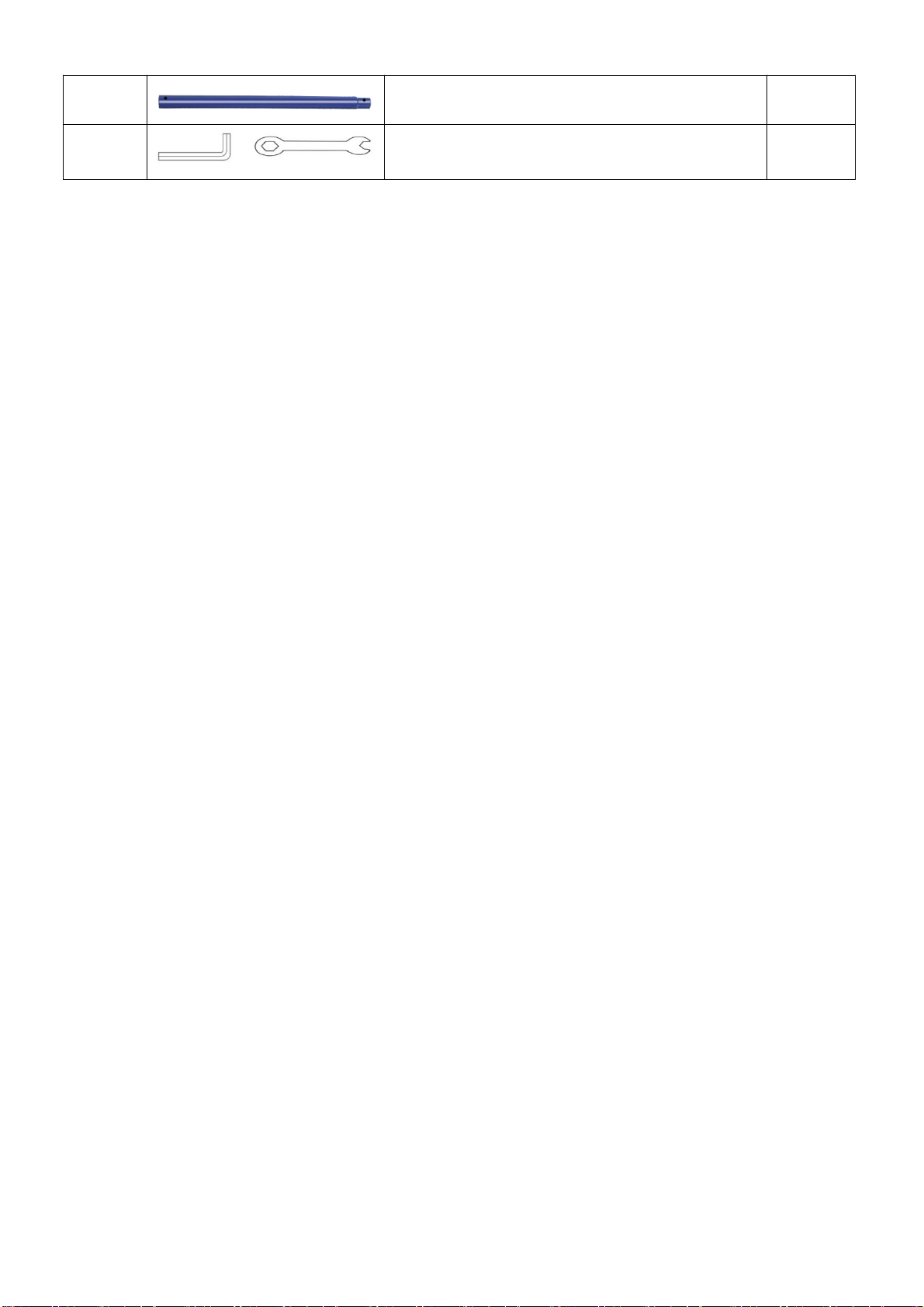

H*Y Allen wrench*1 Plum blossom + open-end
wrench*1
2

14
ASSEMBLY I NS TRUCTIO NS
 Place the playground equipment on level ground and not less than 6ft (1.8m) from any
structure or obstruction such as a fence, garage, house, overhanging branches, laundry
line, or electrical wires.
 Do not install the playground equipment over, asphalt, packed earth, or any other hard
surface; a fall onto a hard surface can result in serious injury or death to the equipment
user.
TIGHTE N1 NG NUTS & BO LTS
 For ease of installation, do not over-tighten the nuts and bolts initially when you are
starting to assemble the equipment. This will allow for adjustments duringinstallation.
 After you have finished assembling the main components of the metal swing set, go
back and fully tighten all nuts and bolts and close all plastic caps. Check the entire unit
and make sure all parts are properly assembled before allowing children to use the
playground equipment.
ASSEMBLY AND INSTALLATION INSTRUCTIONS

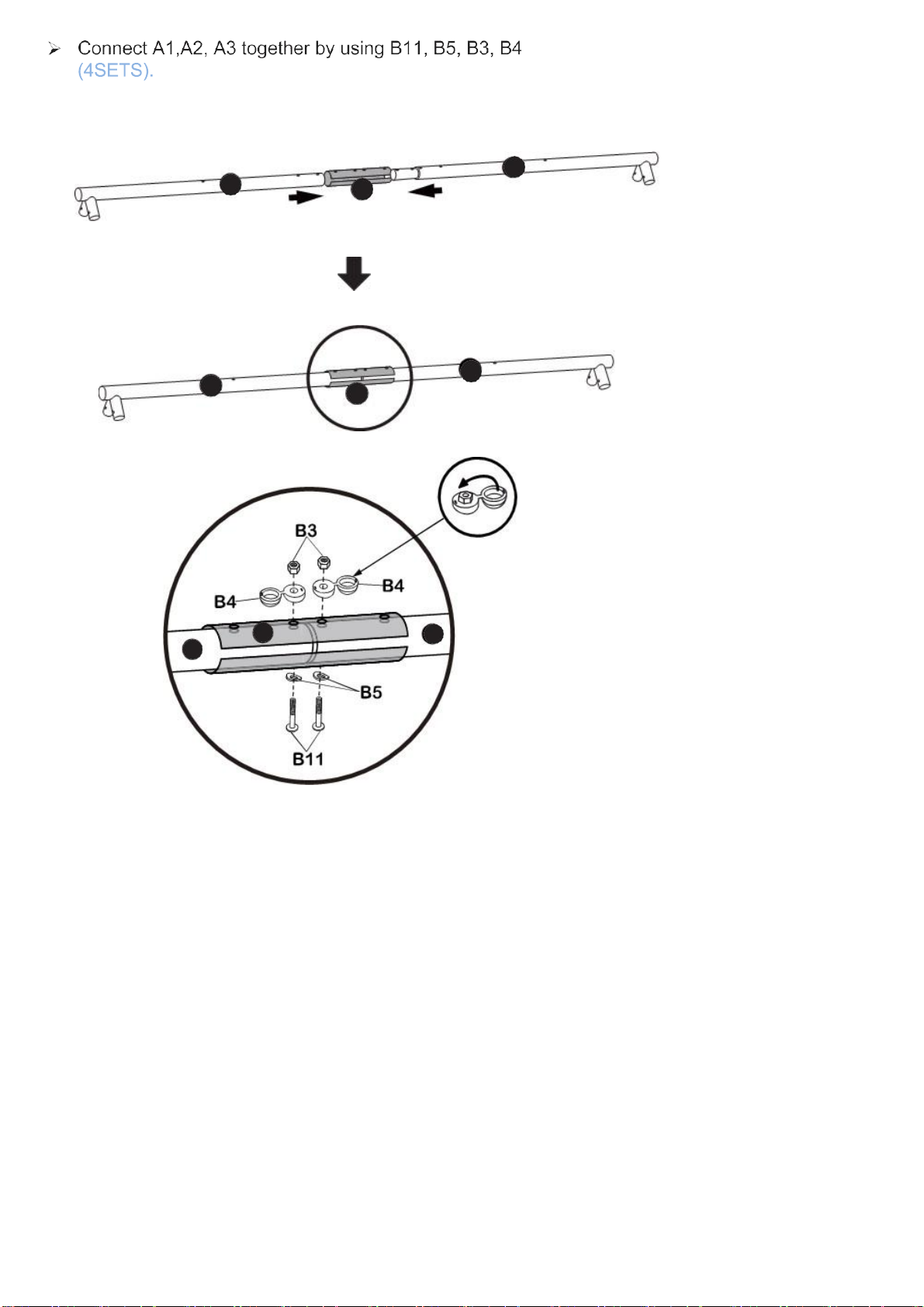

Step 1

15
2
1
3
1
2
3
3
1
2

16
Step 2
┐
1
22
22
1
22

17
4
4
4
4
5
5
5
A
Step 3

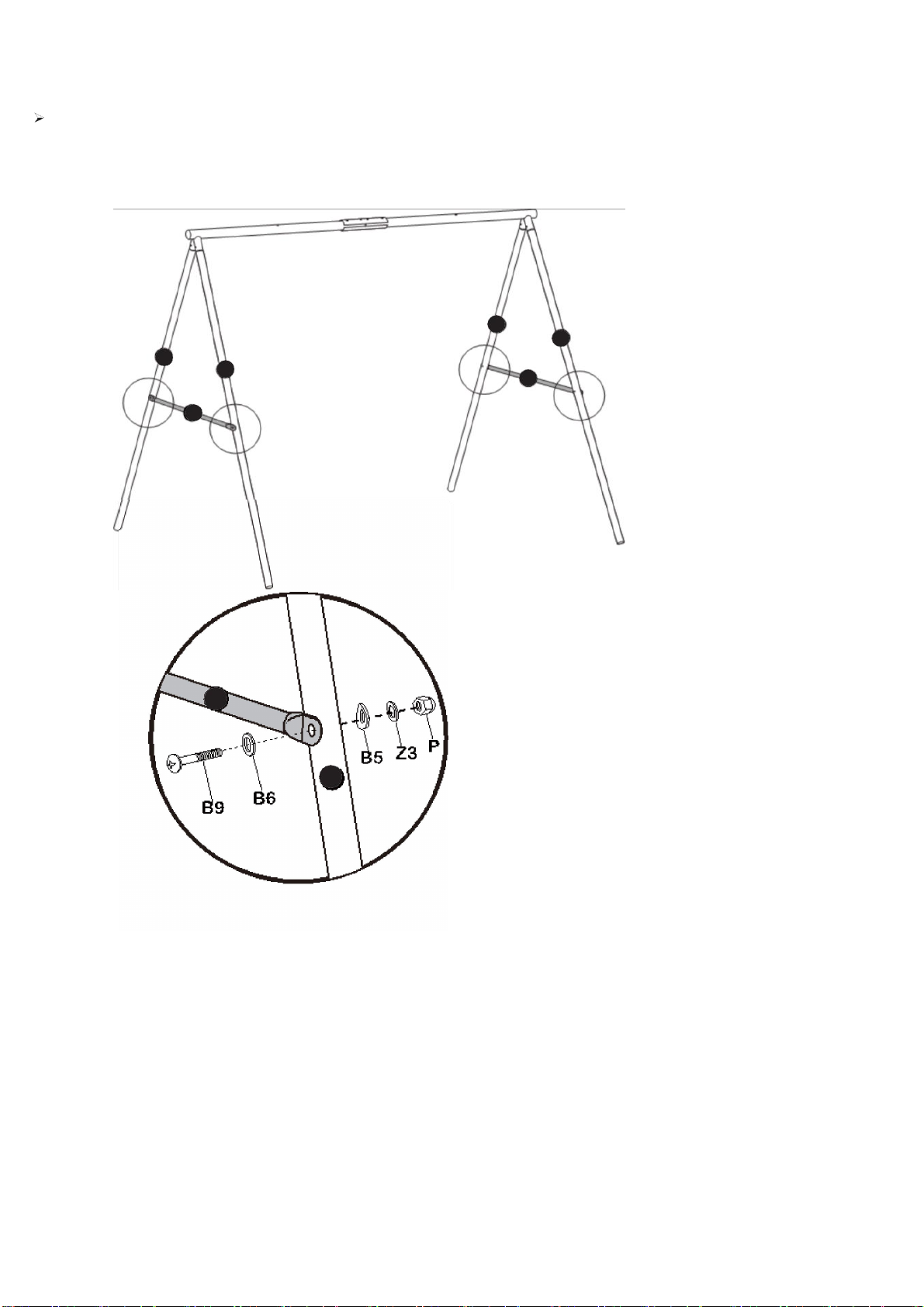

Attach Cross Bare (A5) to the Legs (A4),using 9,5,B6,Z3,andp.

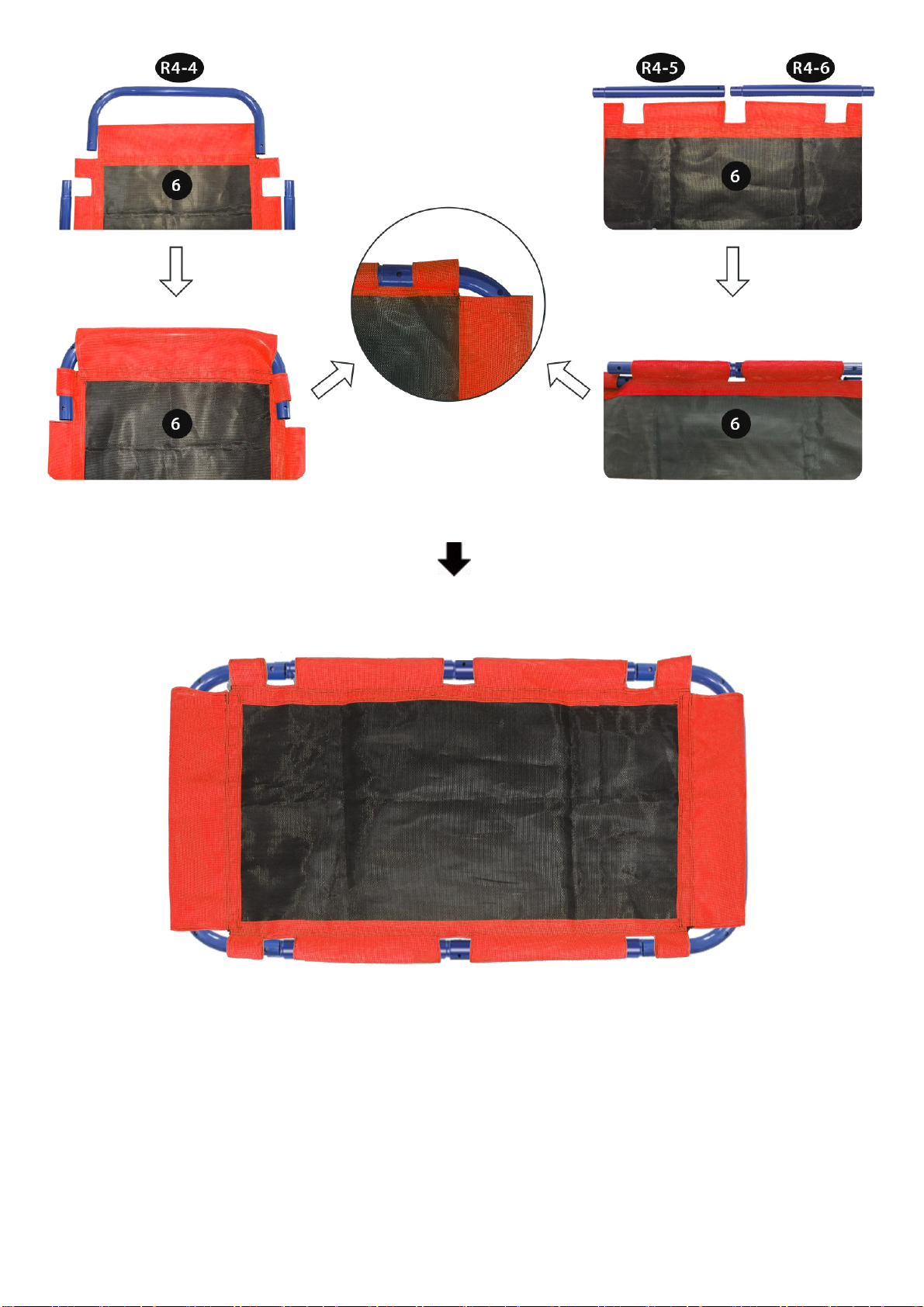

STEP 4
Insert into 6 R4-4 is installed on both sides first, then R4-5, R4-6 are aligned with the connecting pipe on
both sides at the same time and pressed down forcefully

Insert the curved frame pole (R4-4) into the saucer swing mat (6). Join the curved frame poles together and then
fasten them by using the bolt at the end of the Rope (7). (See above).
Repeat this for the other side, and then the Nest Swing becomes two semicircles (See below).

21
STEP 5
Insert eye bolt (8)for swing chain into the holes of the A1 bar .secure withB3 and B4
Attch ,swing seat (8)to (A1)using B4 and B3 as shown.
Step 6

22
Congratulations!
You have now completed installing the equipment. Please make sure to go back and check all
hardware and ensure all bolts and nuts are securely tightened before using the playground equipment.
