LEGRAND Galion 2 824 48/48m User manual

87045 Limoges Cedex
Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88

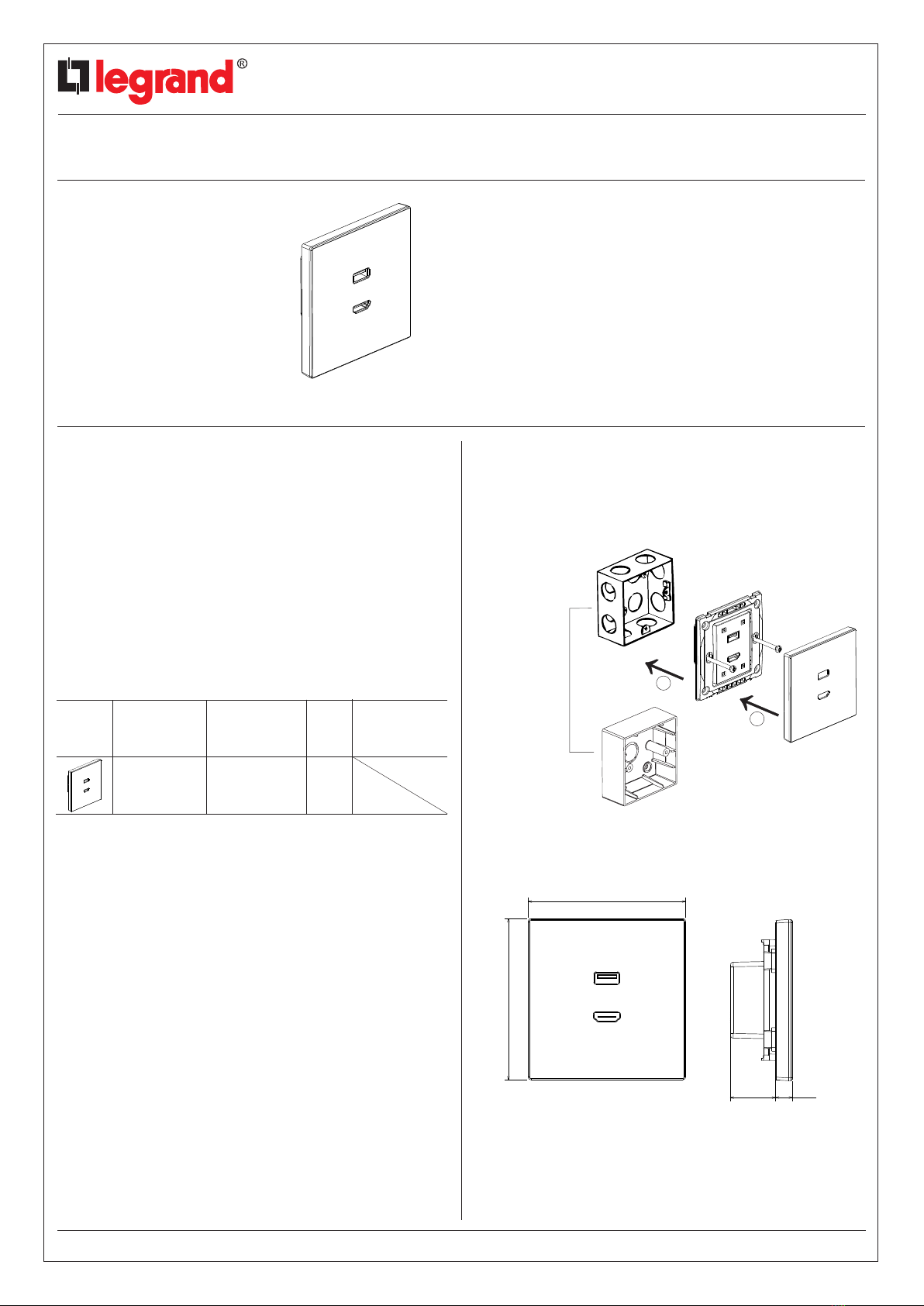

Technical data sheet:F02871EN/00 Updated: 30/08/2019 Created: 30/08/2018
GalionTM
USB&HDMI Cat. No(s): 2 824 48/48m
1. USE
Data transmission.
(Supplied with M3.5 screws for BS boxes. Flush mounting or Surface
mounting.)
3. PREPARATION
3.1 General preparation
2. RANGE
Colours
- front: white/rose golden/champagne/dark silver
- rear: white/rose golden/champagne/dark silver
X XXX XX white
X XXX XX-C1 rose golden
X XXX XX-C2 champagne
X XXX XX-C3 dark silver
X XXX XX-C matt black
2 824 48/48m
Designation
USB and HDMI
Socket 2 824 48/48m
Cat. No. Weight
(g)
Characteristics
1/2
- flushing
mounting
box:
- surface
mounting
box:
CONTENTS
1. Use.......................................1
2. Range...................................1
3. Pr ep aration .. ....... ....... .. ....... 1
4. Overall dimensions.................1
5. Connection...........................2
6. Technical characteristics......2
7. Cleaning.................................2
8. Conformity - Approvals..................2
1
2
4. OVERALL DIMENSIONS
Profile Size: 86×88 mm
Distance of installation hole: 60.3 mm
Minimum depth of the box>35 mm
79
88
86
24.8 9.2
5. CONNECTION
5.1 Circuit diagrams
Technical data sheet:F02871EN/00 Updated: 30 Created: /08/2019 30/082019
2/2
6. TECHNICAL CHARACTERISTICS
6.1 Material characteristics
Plate: Polycarbonate
Frame: Polycarbonate
Base: Polycarbonate
Self-extinguishing:
+ 850° C / 30 s for insulating parts holding live parts in place
+ 650° C / 30 s for other parts made of insulating materials
6.3 Climatic characteristics
Storage temperatures: -10℃ to +70℃
Operating temperatures: -5℃ to +45℃
6.4 Mechanical characteristics
Impact test: IK04
Protection against liquids: IP20
7. CLEANING
Surface cleaning with a soft, slightly damp cloth.
Do not use: acetone, tar remover, trichloroethylene
8. CONFORMITY - APPROVALS
Conform to BS EN 60669-1; MS/IEC 60669-1
USB&HDMI
GalionTM
Cat. No(s): 2 824 48/48m
