LEHR BV025HH User manual

technolo
B
Understanding Your
Oil Information .................
Understanding
2
3
5
........... 6
........... 7
8
9
10
11
.............12
.........16
........16
17
........18 iiiiiiiiiiiiiiiiii
RN
RETAILER
II 1-866-9, -HR (5347)

LFId FCO-BLOWF
4CYG{ P:_OPAN: BLOW!_iVAC
For service call 1-866-941-LEHR in the United
States, to obtain a list of authorized service
dealers near you. For more details about your
unit, visit our web site at:
www.golehr.com.
DO NOT RETURNTHE UNIT TOTHE RETAILER.
PROOFOFPURCHASEWILL BEREQUIREDFOR
WARRANTYSERVICE.
THISPRODUCTISCOVEREDBYONEORMORE
U.S.PATENTS.OTHERPATENTSAREPENDING.
Service on this unit both within and after the
warranty period should be performed only by an
authorized and approved service dealer.
SP:>_{KA_{i{!S/Or:!NOTE
NOTE:For users on U.S.Forest Land and in the
states of California, Maine, Oregon, and
Washington. All U.S.Forest Land and the states of
California (Public Resources Codes 4442 and 4443),
Oregon, and Washington require by law that
certain internal combustion engines operated
on forest brush and/or grass-covered areas be
equipped with a spark arrestor, maintained in
effective working order, or the engine be
constructed, equipped and maintained for the
prevention of fire. Check with your state or local
authorities for regulations pertaining to these
requirements. Failure to follow these requirements
could subject you to liability or a fine. This unit is
factory equipped with a spark arrestor.
All information, illustrations, and specifications in
this manual are based on the latest production
information available at the time of printing. We
reserve the right to make changes at any time
without notice.

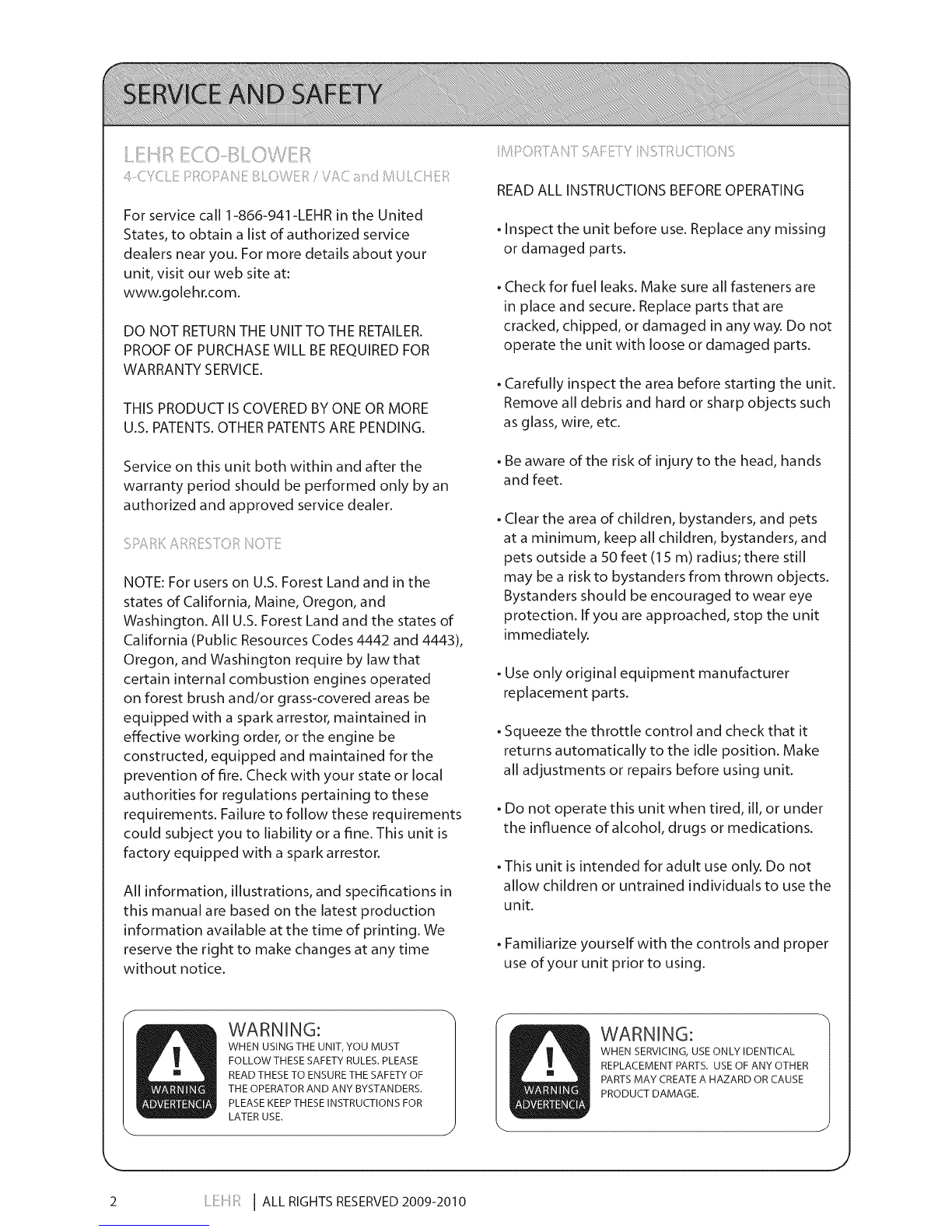

YPO!:!/AN/SA::::_/Y flS/!:! CTONS
READALL INSTRUCTIONSBEFOREOPERATING
• Inspect the unit before use. Replace any missing
or damaged parts.
•Check for fuel leaks. Make sure all fasteners are
in place and secure. Replace parts that are
cracked, chipped, or damaged in any way. Do not
operate the unit with loose or damaged parts.
•Carefully inspect the area before starting the unit.
Remove all debris and hard or sharp objects such
as glass, wire, etc.
•Be aware of the risk of injury to the head, hands
and feet.
•Clear the area of children, bystanders, and pets
at a minimum, keep all children, bystanders, and
pets outside a 50 feet (15 m) radius; there still
may be a risk to bystanders from thrown objects.
Bystanders should be encouraged to wear eye
protection. If you are approached, stop the unit
immediately.
•Use only original equipment manufacturer
replacement parts.
•Squeeze the throttle control and check that it
returns automatically to the idle position. Make
all adjustments or repairs before using unit.
•Do not operate this unit when tired, ill, or under
the influence of alcohol, drugs or medications.
•This unit is intended for adult use only. Do not
allow children or untrained individuals to usethe
unit.
•Familiarize yourself with the controls and proper
use of your unit prior to using.
k.
WARNING:
WHEN USING THE UNIT, YOU MUST
FOLLOW THESE SAFETY RULES. PLEASE
READ THESETO ENSURE THE SAFETY OF
THE OPERATOR AND ANY BYSTANDERS.
PLEASE KEEPTHESE INSTRUCTIONS FOR
LATER USE.
WARNING:
WHEN SERVICING, USEONLY IDENTICAL
REPLACEMENT PARTS. USE OF ANY OTHER
PARTSMAY CREATE A HAZARD OR CAUSE
PRODUCT DAMAGE.
2 L[IIi4J: I ALL RIGHTSRESERVED2009-2010

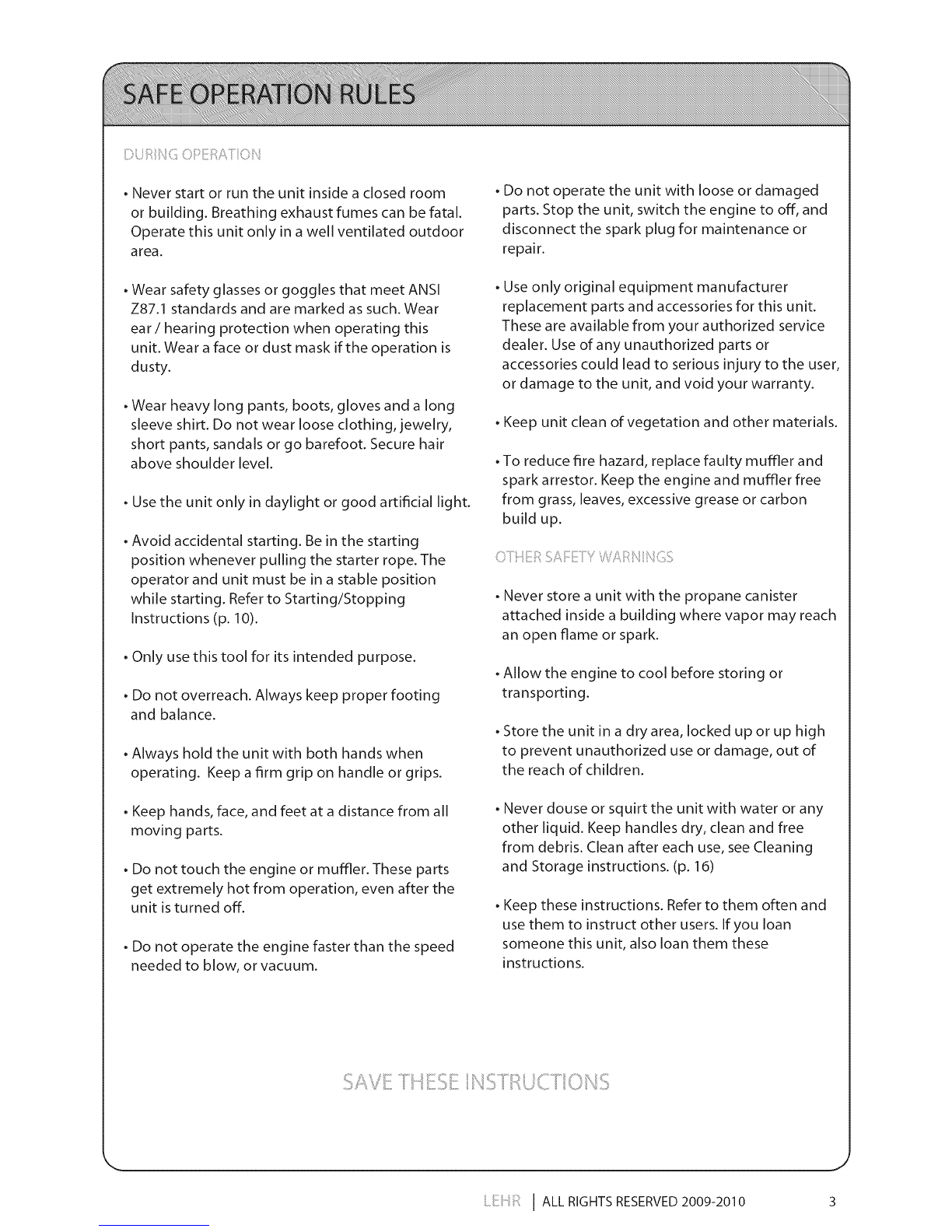

DU_iNG Oi:>_ATION
•Never start or run the unit inside a closed room
or building. Breathing exhaust fumes can be fatal.
Operate this unit only in a well ventilated outdoor
area.
•Wear safety glasses or goggles that meet ANSI
Z87.1 standards and are marked as such. Wear
ear /hearing protection when operating this
unit. Wear a face or dust mask if the operation is
dusty.
•Wear heavy long pants, boots, gloves and a long
sleeve shirt. Do not wear loose clothing, jewelry,
short pants, sandals or go barefoot. Secure hair
above shoulder level.
Use the unit only in daylight or good artificial light.
Avoid accidental starting. Be in the starting
position whenever pulling the starter rope. The
operator and unit must be in a stable position
while starting. Refer to Starting/Stopping
Instructions (p. 10).
Only use this tool for its intended purpose.
•Do not overreach. Always keep proper footing
and balance.
Always hold the unit with both hands when
operating. Keep a firm grip on handle or grips.
• Keep hands, face, and feet at a distance from all
moving parts.
• Do not touch the engine or muffler. These parts
get extremely hot from operation, even after the
unit is turned off.
Do not operate the engine faster than the speed
needed to blow, or vacuum.
Do not operate the unit with loose or damaged
parts. Stop the unit, switch the engine to off, and
disconnect the spark plug for maintenance or
repair.
Use only original equipment manufacturer
replacement parts and accessories for this unit.
These are available from your authorized service
dealer. Use of any unauthorized parts or
accessories could lead to serious injury to the user,
or damage to the unit, and void your warranty.
Keep unit clean of vegetation and other materials.
To reduce fire hazard, replace faulty muffler and
spark arrestor. Keep the engine and muffler free
from grass, leaves, excessive grease or carbon
build up.
Never store a unit with the propane canister
attached inside a building where vapor may reach
an open flame or spark.
• Allow the engine to cool before storing or
transporting.
Store the unit in a dry area, locked up or up high
to prevent unauthorized use or damage, out of
the reach of children.
•Never douse or squirt the unit with water or any
other liquid. Keep handles dry, clean and free
from debris. Clean after each use, see Cleaning
and Storage instructions. (p. 16)
Keep these instructions. Refer to them often and
use them to instruct other users. If you loan
someone this unit, also loan them these
instructions.
SAY!ill TqESE NS/ UCTONS
I ALL RIGHTSRESERVED2009-2010 3

/? Ei S_A } _i_, ONA LV !_OLS
This operator's manual describes safety and international symbols and pictographs that may appear on this
product. Read the operator's manual for complete safety, assembly, operating, maintenance and repair
information.
WARNING: Indicates danger, warning or caution.
May be used in conjunction with other symbols or
pictographs.
WARNING: READ OPERATOR'SMANUAL:
Read the operat0r's manual and follow all Warnings
and safety instructi0ns. Failure to do S0can resu!t in
Seri0us injury to the 0perat0r and!or bystande[s.
©WEAR EYE AND HEARING PROTECTION WARNING:
Thrown objects and loud noise can cause severe eye
injury and hearing loss. Wear eye protection meeting
ANSI Z87.1 standards and ear protection when
operating this unit. Use a full face shield when needed.
}(Z_ii:ilii!:!_i:ii!!i!/_/:iii:}iI_}i/_i!i {i i/i !ii){iiiii{i/i
OIL! Refe r 1:0Operator's manual for _he p[oPer iype Of oiL
ION!OFF CONTROL ON!START!RUN
Oiiiii_ii}ii__i_!//ii(iiiii}i:!__iili_iiii}/)iii_iiii!ii!ii:}_ili!!i_!!ii_!!ii_!!ii_!!ii_!!ii_!!ii_!!ii_
ON/OFF CONTROL OFF or STOP
50F[
(15m) KEEPBYSTANDERSAWAY WARNING:
Keep all bystanders, especially children and pets, at
least 50 feet (15 m) from the operating area.
....!!_IZ:Z_ /fi}% II!7!77_ZTI!Z:71!!7-_!TZT_:::!T::'?:!-_7:_:_Ti:_:x:_I!I¸¸c
HOT SURFACE WARNING
DO not touch a hot muffler, gea[ housing orcyl!nder.You may
get burned.These parts get extremely hot from operation.
They remain hot for a short t!m e after the un! t is turned off.
k.
THROWN OBJECTS CAN CAUSE SEVERE INJURY WARNING:
Do not blow objects towards bystanders. Propelled objects
can cause serious injury.
BLOWER IMPELLER CAN CAUSE SERIOUS INJURY
Make SUre to t urn the eng! ne off and wait for th e ins Pei!er io
c0me to a €onsp!ete St0p befoie Opening th e cage I Never
insert hands into the vacuum tube while unit is on.
4 [ ALL RIGHTSRESERVED2009-2010

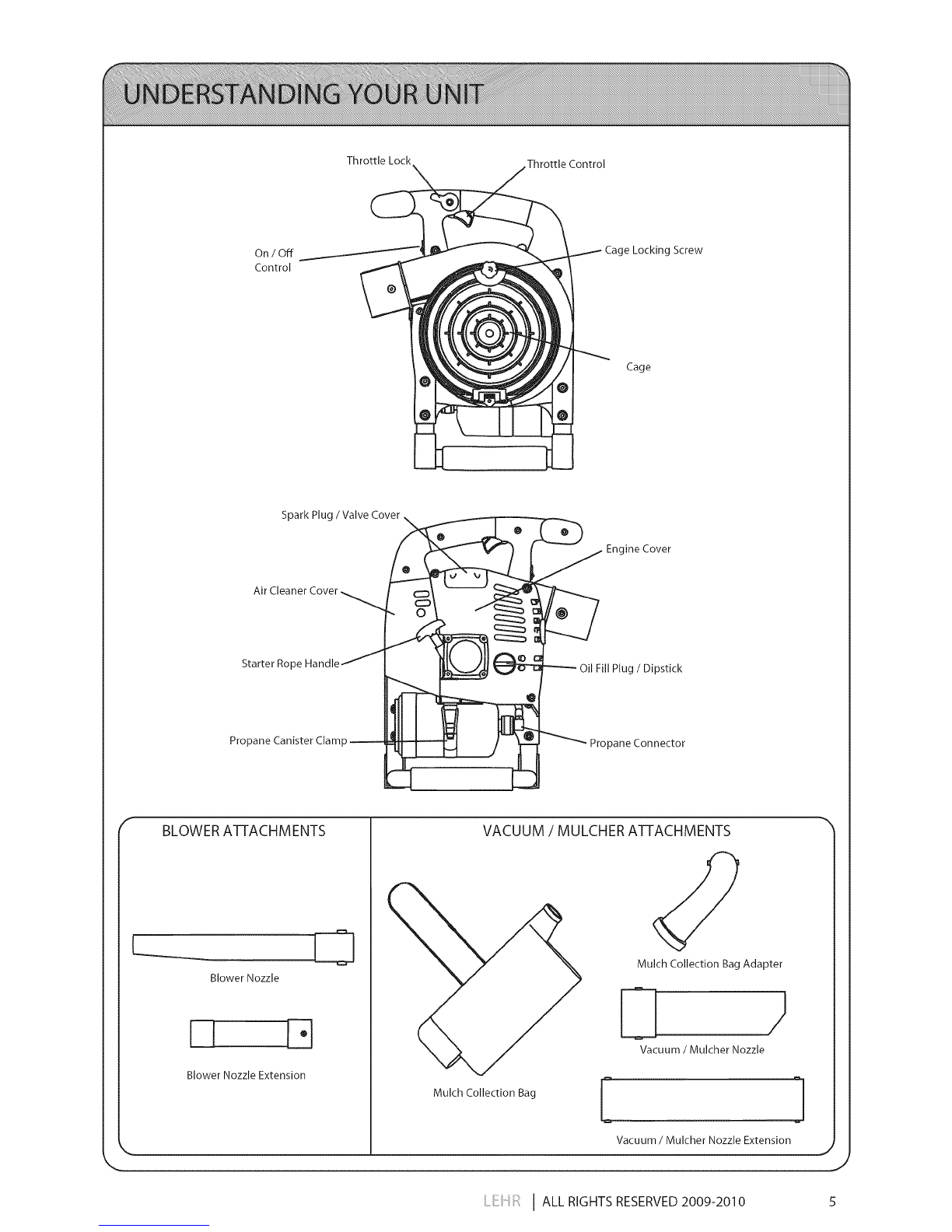

Throttle Lock Throttle Control
On /Off
Control
Screw
Cage
Spark Plug/Valve Cover
Air Cleaner Cover
Starter Rope Handle_
Propane Canister Clamp
Engine Cover
Oil Fill Plug /Dipstick
pane Connector
k.
BLOWERATTACHMENTS
Blower Nozzle
Blower Nozzle Extension
VACUUM /MULCHERATTACHMENTS
Mulch Collection Bag Adapter
J
Vacuum /Mulcher Nozzle
E
Mulch Collection Bag
Vacuum /Mulcher Nozzle Extension
[ ALL RIGHTSRESERVED2009-2010 5

U::ii!!!COiViJVii!!!!Hi::}_i!!!!i}3_OiL 1YPi!!!!
Using the proper type and weight ofoil in the
crankcase is extremely important. Check the oil
before each useand change the oil regularly.
Failure to usethe correct oil, or using dirty oil, can
cause premature engine wear and failure. Usea
high-quality SAE10W-40 weight oil of API
(American Petroleum Institute) service classSF,SG,
orSH.
Ai]>i]>iNG ,C}iL10 1Hi!!!!Ci:iAHKCASi!!!!
UHil7\L LiiSi!!!!
NOTE:This unit is shipped without oil in the
crankcase. In order to avoid damage to the unit,
put oil in the crankcase before you attempt to
start the unit.
Your unit issupplied with one 1.7fluid oz. (50 mL)
bottle of SAE10W-40 SF,SGor SHoil (Fig. 1).
1.Unscrew the top of the bottle of oil and remove
the sealcovering the opening. Replace the top
(Fig. 1).
2. Placethe unit (cage side down) on a level
surface (Fig. 2).
Fig. 2
3. Remove the oil plug /dipstick from the crankcase
byturning it counterclockwise (Fig. 3).
4. Pour the entire bottle of oil into the oil fill hole
(Fig. 3). Oil Fill Plug/Dip Stick
\®
Oil Fill Hole Y
4-Cycle Motor Oil
k.
Fig. 1
WARNING:
OVERFILLING CRANKCASE MAY CAUSE HOT OILTO
DRIP FROM AIR FILTER, AND SMOKE TO COME OUT
FROMTHE EXHAUST. CHECKAND MAINTAIN THE
PROPER OIL LEVEL INTHE CRANK CASE; IT IS IMPORTANT
AND CANNOT BE OVEREMPHASIZED. CHECKTHE OIL
BEFORE EACH USE AND CHANGE AS NEEDED.
SEECHANGING THE OIL (p.13).
Fig. 3
Check oil before each use and change as needed.
Refer to Changing the Oil (p.13).
5. Wipe up any oil that may have spilled and
reinstall the oil plug /dipstick.
6 [ ALL RIGHTSRESERVED2009-2010

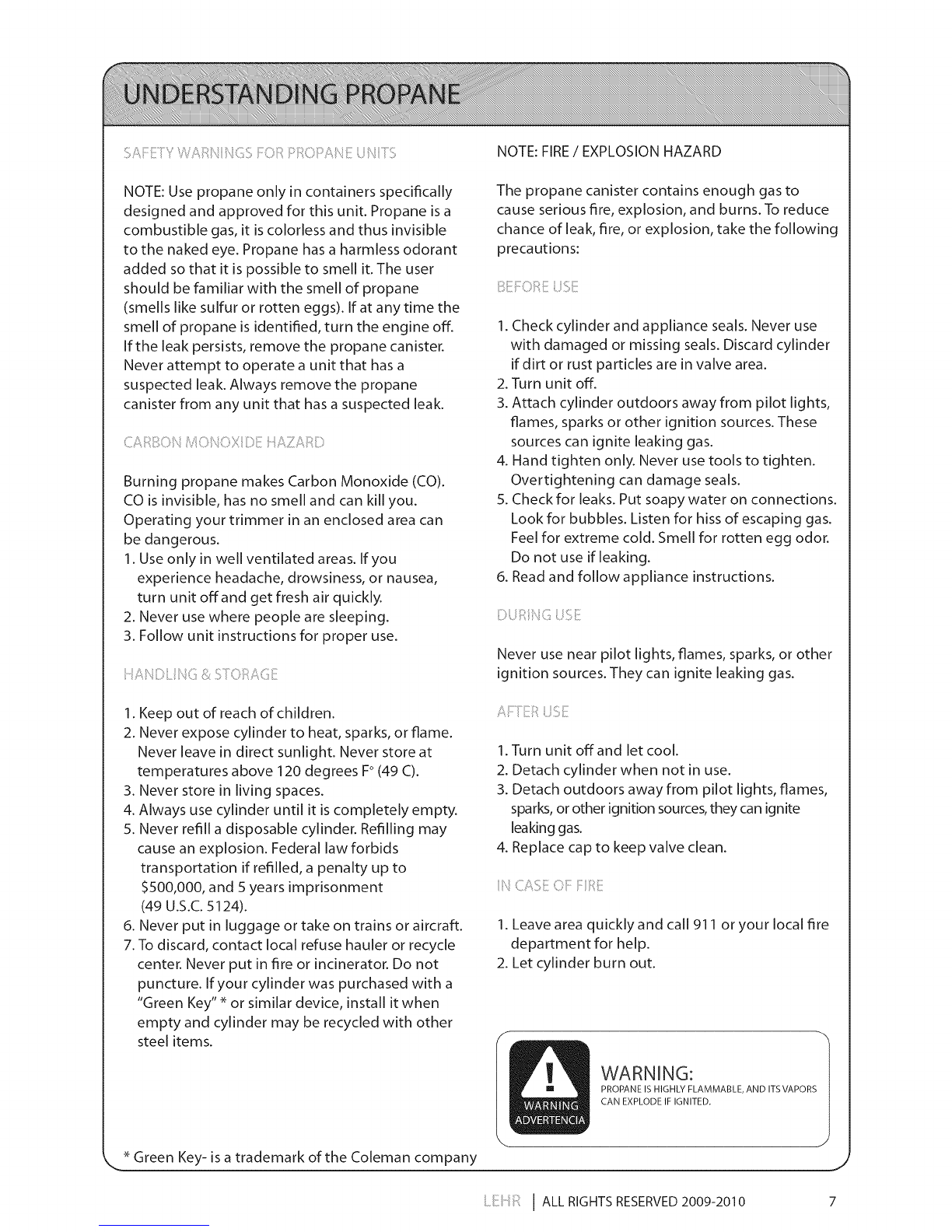

_Ai::::_TYWArNiNGS U::::O_P_OPAN_ JNiT$ NOTE:FIRE/EXPLOSIONHAZARD
NOTE: Use propane only in containers specifically
designed and approved for this unit. Propane is a
combustible gas, it is colorless and thus invisible
to the naked eye. Propane has a harmless odorant
added so that it is possible to smell it. The user
should be familiar with the smell of propane
(smells like sulfur or rotten eggs). If at anytime the
smell of propane is identified, turn the engine off.
If the leak persists, remove the propane canister.
Never attempt to operate a unit that has a
suspected leak. Always remove the propane
canister from any unit that has a suspected leak.
Burning propane makes Carbon Monoxide (CO).
CO is invisible, has no smell and can kill you.
Operating your trimmer in an enclosed area can
be dangerous.
1. Use only in well ventilated areas. If you
experience headache, drowsiness, or nausea,
turn unit offand get fresh air quickly.
2. Never use where people are sleeping.
3. Follow unit instructions for proper use.
The propane canister contains enough gas to
cause serious fire, explosion, and burns. To reduce
chance of leak, fire, or explosion, take the following
precautions:
BE_O_ JSE
1. Check cylinder and appliance seals. Never use
with damaged or missing seals. Discard cylinder
if dirt or rust particles are in valve area.
2. Turn unit off.
3. Attach cylinder outdoors away from pilot lights,
flames, sparks or other ignition sources. These
sources can ignite leaking gas.
4. Hand tighten only. Never use tools to tighten.
Overtightening can damage seals.
5. Check for leaks. Put soapy water on connections.
Look for bubbles. Listen for hiss of escaping gas.
Feel for extreme cold. Smell for rotten egg odor.
Do not use if leaking.
6. Read and follow appliance instructions.
DUi_iNG d_E
Never use near pilot lights, flames, sparks, or other
ignition sources. They can ignite leaking gas.
1. Keep out of reach of children.
2. Never expose cylinder to heat, sparks, or flame.
Never leave in direct sunlight. Never store at
temperatures above 120 degrees F° (49 C).
3. Never store in living spaces.
4. Always use cylinder until it is completely empty.
5. Never refill a disposable cylinder. Refilling may
cause an explosion. Federal law forbids
transportation if refilled, a penalty up to
$500,000, and 5 years imprisonment
(49 U.S.C. 5124).
6. Never put in luggage or take on trains or aircraft.
7. To discard, contact local refuse hauler or recycle
center. Never put in fire or incinerator. Do not
puncture. If your cylinder was purchased with a
"Green Key" * or similar device, install it when
empty and cylinder may be recycled with other
steel items.
k,. * Green Key- is a trademark of the Coleman company
A::::/:::!$:
1.Turn unit offand let cool.
2. Detach cylinder when not in use.
3. Detach outdoors away from pilot lights, flames,
sparks, or other ignition sources, they can ignite
leaking gas.
4. Replace cap to keep valve clean.
!_iCA$i ©::::::::::!!
1. Leave area quickly and call 911 or your local fire
department for help.
2. Let cylinder burn out.
WARNING:
PROPANE IS HIGHLY FLAMMABLE, AND ITS VAPOR
CAN EXPLODE IF IGNITED.
L/IIiii: I ALL RIGHTSRESERVED2009-2010 7

k.
L,iiSi!!!!1Hi!!!!COi::ii::i_!!!!C/ PD::iOi:::_/\Ni!!!!CANDS1i!!!!i:::i
Always use propane canisters or "bottles" that are
the correct size. The 17 ounce or 16.4 ounce /465g
canisters that are approximately 3-7/8 inches A
(9.5 cm) in diameter are the correct canisters //
(Fig. 4). Do not use smaller diameter canisters as
they will not latch securely to the unit and vibration
may cause damage to the unit and potentially
result in a dangerous leak.
Fig. 4
1. Make sure the engine is off.
2. If the propane canister to be installed has a
protective plastic cap over the threaded end,
remove it. Make sure the canister clamp is in the
un-latched position.
3. Insert the threaded end of the propane canister
into the canister clamp until it contacts the
canister stop (Fig. 5).
4. Insert the propane connector onto the threaded
end of the canister and screw it onto threads
clockwise (Fig. 6). Screw it until snug. Do not over
tighten. It may be normal to hear or smell a slight
momentary leak of propane as the connector
is being screwed in. Make sure that the connector
is installed tight enough that any leakage stops.
Hand tight is sufficient.
5. Latch the canister clamp. v"
Canister
Stop
1[!Canister
Clamp Fig. 5
Fig.6
1. Make sure the engine is off.
2. Un-latch the canister clamp and remove the
propane connector by turning it
counterclockwise.
3. Remove the empty canister.
4. Dispose of empty propane canisters in
accordance to Federal, State and local
Regulations.
WARNING:
NEVER ATTEMPT TO FORCE A CONNECTOR
ONTO A PROPANE CANISTER THAT HAS
IMPROPER OR DAMAGEDTHREADS,
f
f
J
WARNING:
THISCONTAINERAND BY-PRODUCTSOFTHE
COMBUSTIONOFITSCONTENTSCONTAINCHEMICALS
KNOWNTOTHESTATEOFCALIFORNIATOCAUSE
CANCER,BIRTHDEFECTSOROTHERREPRODUCTIVE
HARM.
J
WARNING:
EXTREMELY FLAMMABLE FIRE/EXPLOSION,
HAZARD CONTENTS UNDER PRESSURE,
CARBON MONOXIDE HAZARD,
J
WARNING:
PROPANE IS EXTREMELY FLAMMABLE, VAPOR
MAY EXPLODE. ALWAYS STOPTHE ENGINE AND
ALLOW ITTO COOL BEFORE REPLACING THE
PROPANE CANISTER, DO NOT SMOKE. KEEP
SPARKSAND OPEN FLAMES AT A DISTANCE
FROM THE AREA,
8 [ ALL RIGHTSRESERVED2009-2010

%OV%iR MODi!ii
NOTE: Place the unit on the ground or on a work
bench to make attachment installation or removal
easier.
1. Install blower attachments in sequence shown, aligning
the grooves on the nozzles with the pegs (Fig. 7).
2. Slide the nozzles onto the pegs.
3. Twist the nozzles clockwise to lock in place.
NOTE: Make sure the Cage Screw is tightened down.
Peg
Groove
Peg
Cage
Screw
Cage
Blower Nozzle
Extension
Blower Nozzle
Vi_ V_,'v! Fig. 7
1. Loosen the Cage Screw and pull down the Cage (Fig. 8).
2. Install vacuum attachments in sequence shown, aligning the grooves on the nozzles with the pegs.
3. Slide the nozzles onto the pegs.
4. Twist nozzles clockwise to lock in place.
5. Secure Mulch Collection Bag onto the Mulch Collection Bag Adapter by strapping down the Velcro Strap.
Place the shoulder strap over your left shoulder and adjust the Shoulder Strap Adjustment as necessary.
Shoulder
Strap Groove
Adjustment Velcro
Strap
Peg
Groove
Peg Groove
k.
Mulch Collection
Bag Adapter
Mulch Collection Bag
Fig. 8
Cage Cage Screw Vacuum Nozzle
Extension
Vacuum Nozzle
WARNING:
TOAVOIDSERIOUSINJURYAND DAMAGE
TOTHEUNIT,SHUTOFFTHEUNITBEFORE

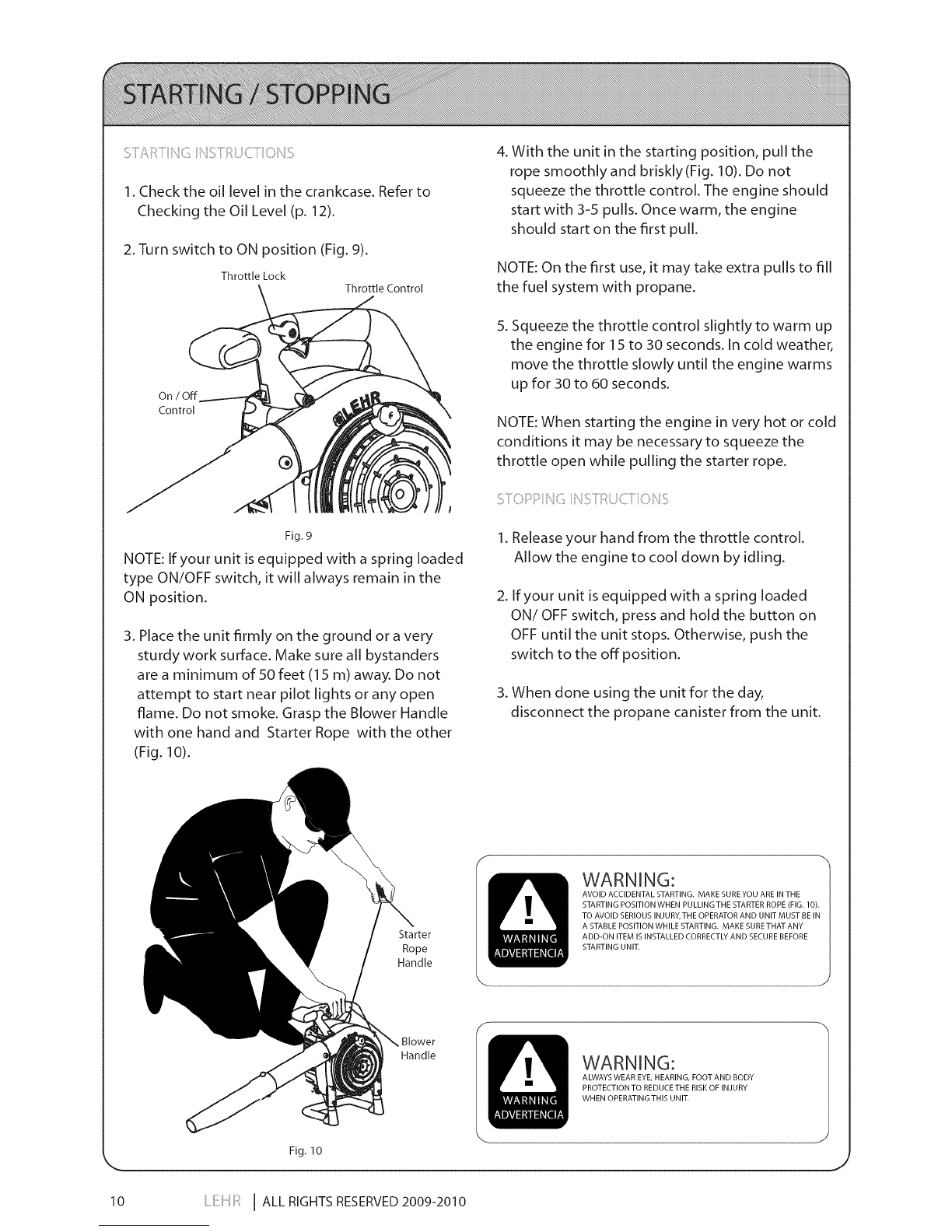

REMOVINGORINSTALLINGATTACHMENTS.
[ ALL RIGHTSRESERVED2009-2010 9

S/A_/!_IG!_iS/!:!:CTO!_iS
1.Checktheoillevelinthecrankcase.Referto
CheckingtheOil Level (p. 12).
2. Turn switch to ON position (Fig. 9).
Throttle Lock Throttle Control
On /Off
Control
@
Fig. 9
NOTE: If your unit is equipped with a spring loaded
type ON/OFF switch, it will always remain in the
ON position.
3. Place the unit firmly on the ground or a very
sturdy work surface. Make sure all bystanders
are a minimum of 50 feet (15 m) away. Do not
attempt to start near pilot lights or any open
flame. Do not smoke. Grasp the Blower Handle
with one hand and Starter Rope with the other
(Fig. 10).
4. With the unit in the starting position, pull the
rope smoothly and briskly(Fig. 10). Do not
squeeze the throttle control. The engine should
start with 3-5 pulls. Once warm, the engine
should start on the first pull.
NOTE:On the first use, it may take extra pulls to fill
the fuel system with propane.
5. Squeeze the throttle control slightly to warm up
the engine for 15 to 30 seconds. In cold weather,
move the throttle slowly until the engine warms
up for 30 to 60 seconds.
NOTE: When starting the engine in very hot or cold
conditions it may be necessary to squeeze the
throttle open while pulling the starter rope.
1.Releaseyour hand from the throttle control.
Allow the engine to cool down by idling.
2. If your unit isequipped with a spring loaded
ON/OFF switch, press and hold the button on
OFF until the unit stops. Otherwise, push the
switch to the off position.
3. When done using the unit for the day,
disconnect the propane canister from the unit.
Starter
Rope
Handle
WARNING:
AVOID ACCIDENTAL STARTING. MAKE SURE YOU ARE IN THE
STARTING POSITION WHEN PULLINGTHE STARTER ROPE (FIG. 10).
TO AVOID SERIOUS INJURY, THE OPERATOR AND UNIT MUST BE IN
A STABLE POSITION WHILE STARTING. MAKE SURETHATANY
ADD-ON ITEM IS INSTALLED CORRECTLY AND SECURE BEFORE
STARTING UNIT.
Blower
Handle WARNING:
ALWAYS WEAR EYE, HEARING, FOOT AND BODY
PROTECTION TO REDUCETHE RISK OF INJURY
WHEN OPERATING THIS UNIT.
k. Fig. 10
J
1o I ALL RIGHTSRESERVED2009-2010

i!_LOWi!!!i:::iiViODi!!!!
Before operating the unit, check for the following:
•The operator iswearing proper clothing, eye and
ear protection.
•All blower attachments are properly installed and
secure.
1.Start the unit.
2. Direct the nozzle in the direction in which to blow
(Fig 11).
3. Pull the throttle control.
4. Set the throttle lock at any desired speed by
pushing the knob to the lock position. To adjust
throttle speed, push the throttle lock to the off
position, adjust, and relock the throttle control.
Before operating the unit, check for the following:
• All vacuum attachments are properly installed and
secure.
• Make sure Mulch Collection Bag is not twisted or
constricted in any way.
1. Start the unit.
2. Place collection bag strap over the left shoulder
and adjust the strap as necessary (Fig 13).
3. Pull the trigger to start the vacuum.
4. Set the throttle lock at desired speed.
5. Empty the bag as necessary by removing it from
unit and opening the zipper Located at the top
edge.
Fig. 11
NOTE:The lower grip isan assist handle, which
will allow the operator to hold the unit with both
hands. Besure to hold the assist handle with your
right hand only (Fig. 12).
Fig. 13
NOTE:Do not operate this unit with the cage side
up or the handle side down. This will cause oil
contamination and smoke to come out the exhaust
(Fig. 14).
L
Fig. 12
Fig. 14
FI WARNING:
-Never allow gasoline,kerosine,or any other flammable substance I
to enter the unit during vacuum mode. Otherwise firemay occur. I
-Do not allow oversized wood chips, metal, glass,or any other |
material to enter the vacuum. Otherwise failure may occur. |
-Never overfill the vacuum collection bag. |
-Do not store debris inside vacuum collection bag. |
-Never reach inside vacuum tubes with hands while unit is |
operating, sever injury may result from mulch blade. ._ J
[ ALL RIGHTSRESERVED2009-2010 11

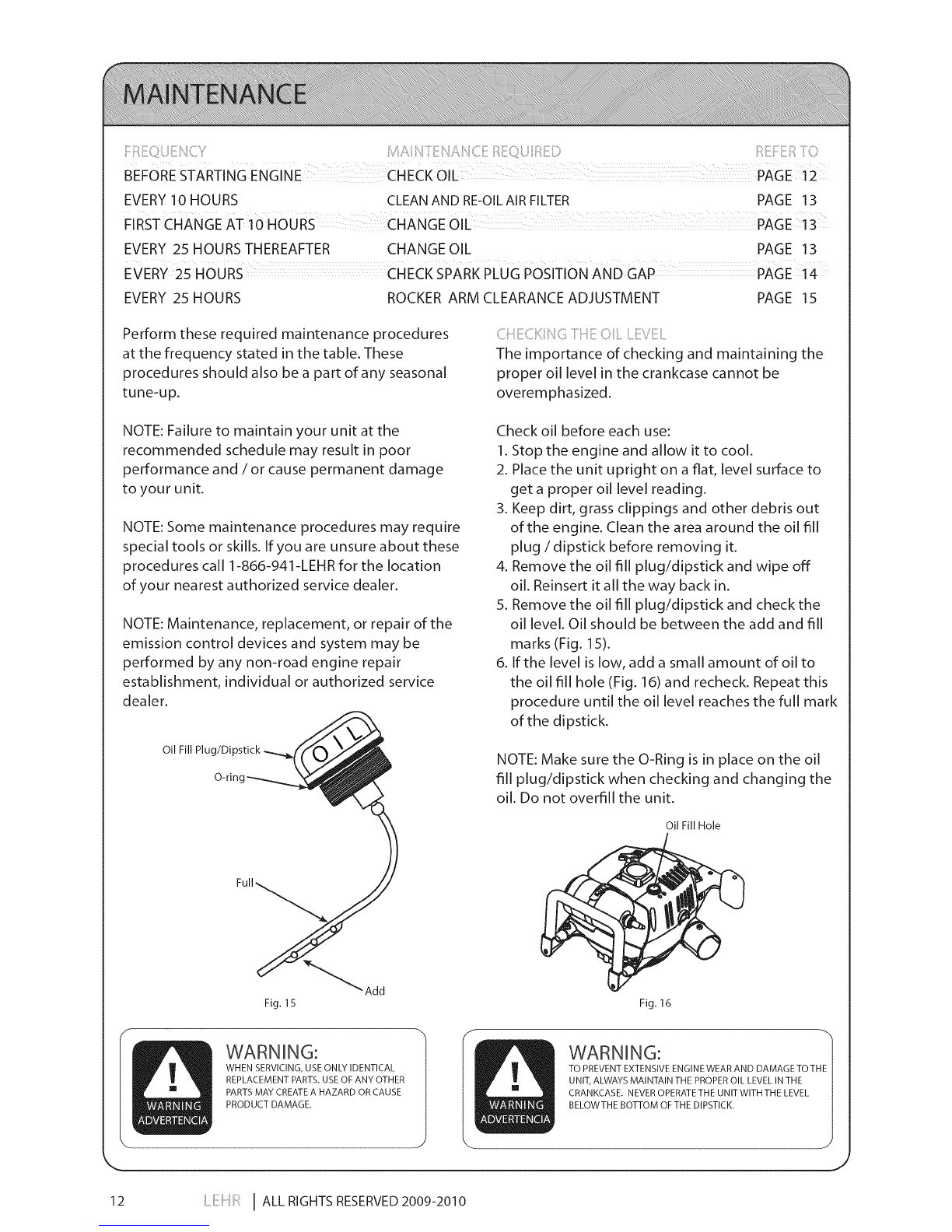

BEFORESTARTINGENGINE CHEcKOIL PAGE 12
EVERY10 HOURS CLEANANDRE-OILAIRFILTER PAGE 13
FIRSTcHANGE AT 10 HOURS CHANGE OIL PAGE
EVERY25 HOURSTHEREAFTER CHANGEOIL PAGE 13
EVERY25 HOURS CHECKSPARKPLUGPOSITIONAND GAP PAGE 14
EVERY25 HOURS ROCKERARM CLEARANCEADJUSTMENT PAGE 15
Perform these required maintenance procedures
at the frequency stated in the table. These
procedures should also be a part of any seasonal
tune-up.
::: ( C ....
The importance of checking and maintaining the
proper oil level in the crankcase cannot be
overemphasized.
NOTE: Failure to maintain your unit at the
recommended schedule may result in poor
performance and /or cause permanent damage
to your unit.
NOTE:Some maintenance procedures may require
special tools or skills. If you are unsure about these
procedures call 1-866-941-LEHR for the location
of your nearest authorized service dealer.
NOTE:Maintenance, replacement, or repair of the
emission control devices and system may be
performed by any non-road engine repair
establishment, individual or authorized service
dealer.
Oil Fill Plug/Dipstick
O-fin(
Check oil before each use:
1. Stop the engine and allow it to cool.
2. Place the unit upright on a fiat, level surface to
get a proper oil level reading.
3. Keep dirt, grass clippings and other debris out
of the engine. Clean the area around the oil fill
plug /dipstick before removing it.
4. Remove the oil fill plug/dipstick and wipe off
oil. Reinsert it all the way back in.
5. Remove the oil fill plug/dipstick and check the
oil level. Oil should be between the add and fill
marks (Fig. 15).
6. If the level is low, add a small amount ofoil to
the oil fill hole (Fig. 16) and recheck. Repeat this
procedure until the oil level reaches the full mark
of the dipstick.
NOTE:Make sure the O-Ring is in place on the oil
fill plug/dipstick when checking and changing the
oil. Do not overfill the unit.
Oil Fill Hole
Fig, 15 Add Fig, 16
k.
WARNING:
WHEN SERVICING, USE ONLY IDENTICAL
REPLACEMENT PARTS. USE OF ANY OTHER
PARTS MAY CREATE A HAZARD OR CAUSE
PRODUCT DAMAGE.
WARNING:
TO PREVENT EXTENSIVE ENGINE WEAR AND DAMAGE TO THE
UNIT, ALWAYS MAINTAIN THE PROPER OIL LEVEL INTHE
CRANKCASE. NEVER OPERATETHE UNITWlTH THE LEVEL
BELOWTHE BOTTOM OF THE DIPSTICK.
J
12 [ ALL RIGHTSRESERVED2009-2010

Ci_ANGiNGTi_ OiL
For a new engine, change the oil after the first 10
hours of operation. Change the oil while the
engine is still warm but not hot. The oil will flow
freely and carry away more impurities.
1. Unplug spark plug boot to prevent accidental
starting.
2. Remove the oil fill plug /dipstick.
3. Pour the oil out of the oil fill hole and into a
container by tipping the unit to its side (Fig. 17).
Allow ample time for complete drainage.
Clean and re-oil the air filter every 10 hours of
operation. It is an important item to maintain.
Failure to maintain your air filter properly can result
in poor performance or can cause permanent
damage to your engine.
1.Remove phillips head screw in air filter cover.
Then remove the air filter cover (Fig. 19).
2. Remove the air filter (Fig. 19).
Air Filter Base Plate
Air Filter
Air Filter Cover
Screws
Fig.17
NOTE: Wear gloves to prevent injury when
handling the unit.
4. Wipe up any oil residue on the unit and clean
up any oil that may have spilled. Dispose of the
oil according to Federal, State and local
regulations.
5. Refill the crankcase with 1.7fluid oz. (50 mL) of
SAE10W-40 SF,SG,or SHoil (Fig. 18).
NOTE: Carefully check the oil level with the
dipstick. If the level islow, add a small amount
of oil and recheck. Do not over fill (Fig. 15).
6. Replace the oil fill plug /dipstick.
7. Reconnect the spark plug boot.
Fig. 19
3. Wash the filter in detergent and water. Rinse the
filter thoroughly and allow it to dry.
4. Apply enough clean SAE 10W-40 motor oil to
lightly coat the filter.
5. Squeeze the filter and remove excess oil.
6. Replace the filter.
NOTE: If the unit is operated without the air filter,
you will VOID the warranty.
7. Reinstall the air filter cover.
k..
4 Cycle Motor Oil
Fig. 18 IWARNING: l
TO AVOID SERIOUS PERSONAL INJURY, BE
SURETOTURN THE UNIT OFF BEFORE
SERVICING IT.
L[IIIiR [ ALL RIGHTSRESERVED2009-2010 13

U::i_!!!!i:::_LAC:iNG/ iii!!!!:_iPAi:ii_i:::_LLii_ili;_i
The idle speed of the engine is adjustable. An idle
adjustment screw is on the rear side of the
carburetor (Fig. 20).
NOTE: Careless adjustments can seriously damage
your unit. An authorized service dealer should
make carburetor adjustments.
The condition of the air filter is important to the
operation of the unit. A dirty or oil saturated air
filter will restrict air flow. This is often mistaken for
an out of adjustment carburetor. Check the
condition of the air filter before adjusting the idle
speed screw. Refer to Cleaning the Air Filter (p. 13).
If, after checking the fuel and cleaning the air filter,
the engine still will not idle, adjust the idle speed
screw as follows:
Use a replacement part number NGK CMR6A, or
Champion RCJ6Y. The correct air gap is 0.02 in.
(0.5 mm). Remove the plug after every 25 hours of
operation and check its condition.
1. Stop the engine and allow it to cool. Remove the
spark plug cover. Grasp the plug wire firmly and
pull the cap from the spark plug.
2. Clean dirt from around the spark plug. Remove
the spark plug from the cylinder head by using
a 5/8 in. socket turning it counterclockwise.
3. Replace cracked, fouled or dirty spark plug. Set
the air gap at 0.02 in. (0.5 mm.) using afeeler
gauge (Fig. 21).
4. Install a correctly-gapped spark plug in the
cylinder head. Turn the 5/8 in. socket clockwise
until snug.
NOTE: If using a torque wrench torque to:
110-120 in. lb. (12.3-13.5 N-m). Do not over
tighten.
k.
1. Start the engine and let it run at a high idle for a
minute to warm up. Refer to Starting /Stopping
(p. 10).
2. Release the throttle trigger and let the engine
idle. If the engine stops, use a small phillips or
fiat blade to turn the idle speed screw in,
clockwise, 1/8 of a turn at a time (as needed)
until the engine idles smoothly(Fig. 20).
NOTE:Checking the fuel, cleaning the air filter, and
adjusting the idle speed should solve most engine
problems. If not and all of the following are true:
•The engine will not idle.
•The engine hesitates or stalls on acceleration.
• There is a loss of engine power.
Check the spark plug for proper gap and condition.
If problem still occurs, have the carburetor
adjusted by an authorized service dealer.
IWARNING:
DO NOT SAND BLAST, SCRAPE, OR CLEAN
SPARKPLUG ELECTRODES. GRIT IN THE
ENGINE COULD DAMAGE THE CYLINDER. 1
Idle
Adjustment
Screw
0.02 in.
(0.5 ram)
t
I II il
[ J
Fig. 21
14 I ALL RIGHTSRESERVED2009-2010

U::i0 CKi!!!i:::iAi:ii\iiCLi!!!!Ai:iA?qCi!!!!Ai}}¢iUi$/i\ii i!!!!N/
This requires partial disassembly of the engine.
If you feel unsure or unqualified to perform this,
take the unit to an authorized service center.
NOTE: Inspect the valve to rocker arm clearance
with a feeler gage after the first 25 hours of
operation. The engine must be cold when checking
or adjusting the valve clearances. This task should
be performed in a clean dust free environment.
1. Remove the five screws on the engine cover
with a phillips head screw driver (Fig. 22).
2. Remove the engine cover.
3. Disconnect the spark plug wire.
4. Clean dirt from around the spark plug. Remove
the spark plug by using a 16mm socket, turn CCW.
Enc
8. Pull the starter rope slowly to bring the piston
to the top of its travel, (This position isknown as
top dead center). Check that the piston is at the
top of its travel by looking down into the spark
plug hole. Both valves should be closed and the
rocker arms should move freely. If this statement
is not true, repeat this step.
9. Slide a feeler gage between the rocker arm and
the valve return spring. Measure the distance
between the rocker arm and valve stem (Fig. 24).
Take care to only measure the free play. It is very
easy to insert too thick a feeler gauge and
accidentally depress the valve and spring.
Measure both the intake and exhaust valve
clearances.
Adjusting Screws Rocker Arms
Jam Gauge
-Exhaust Valve
Remove Five
Screws
Fig.22
5. Clean dirt from around the rocker arm cover.
6. Remove the three screws holding the rocker
arm cover with a phillips head screwdriver.
7. Remove the rocker arm cover and gasket (Fig. 23).
Rocker Arm Cover Spark Plug
Spark Plug Wire
k.
Remove Three Screws
Fig. 23
Fig.24
10. Check the spark plug and reinstall. Refer to
Replacing the Spark Plug (p.14).
11. Reinstall the spark plug wire.
::::T_: C_:A_AIIC; SNOTW/ _!_ISP:C::::CA/O:_I
1. Loosen the jam nut and turn the adjusting screw
as necessary. To increase the clearance, turn the
adjusting screw CCW. To decrease the clearance,
turn the adjusting screw CW.
2. Tighten the jam nut when the clearance is set.
3. Recheck the both clearances. Readjust if
necessary.
4. Reinstall the rocker arm cover using a new
gasket.
5. Tighten cover screws evenly until snug.
6. Reinstall the engine cover checking the
alignment of the cover. Tighten the five engine
cover screws until snug.
•The recommended clearance for both intake and
exhaust is 0.003-0.006in (0.076-0.152mm).
• Use a standard automotive O.O05in(0.127mm) feeler
gage.
L/IIiii! I ALL RIGHTSRESERVED2009-2010 15

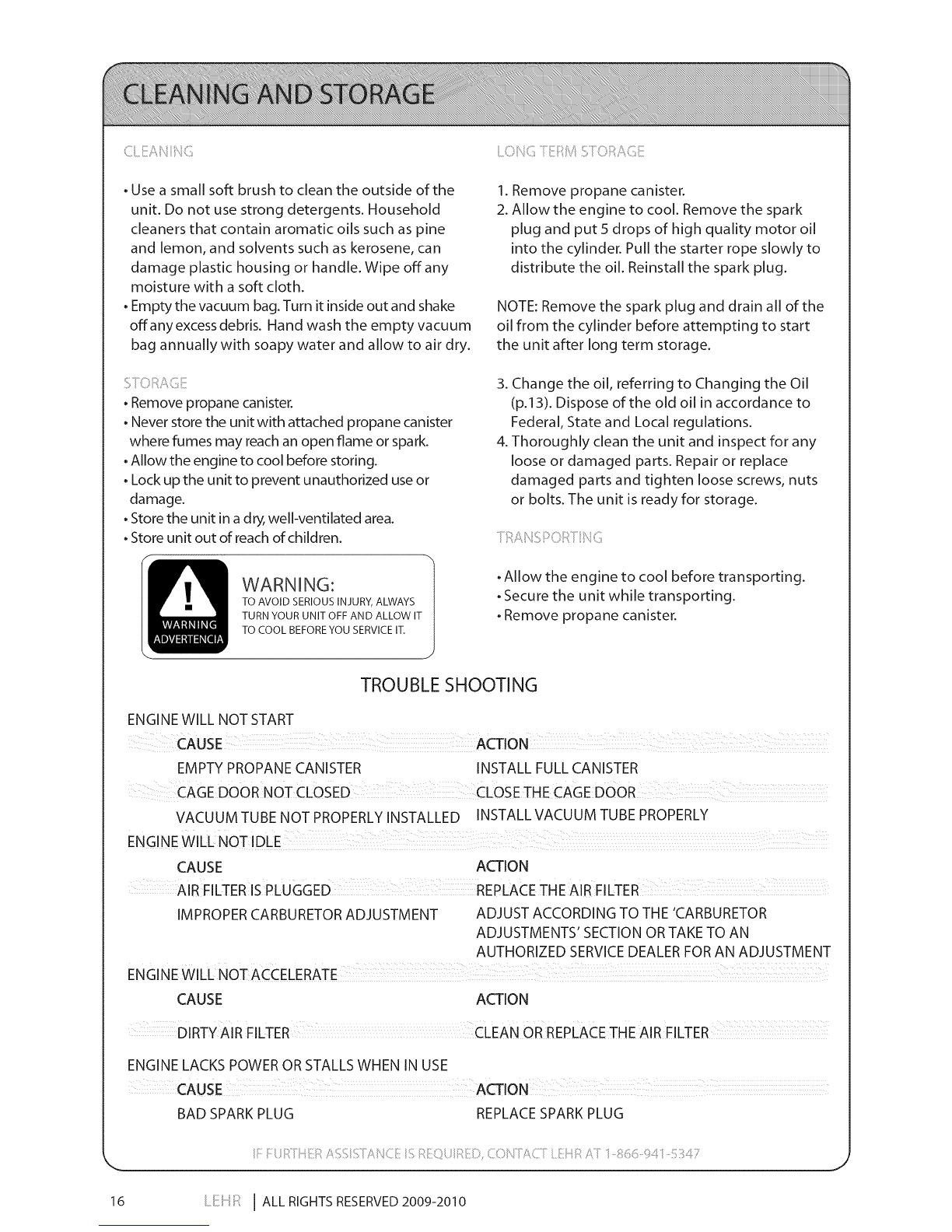

C_ANUNG
Use a small soft brush to clean the outside of the
unit. Do not use strong detergents. Household
cleaners that contain aromatic oils such as pine
and lemon, and solvents such as kerosene, can
damage plastic housing or handle. Wipe offany
moisture with a soft cloth.
Empty the vacuum bag.Turn it insideout and shake
offany excessdebris. Hand wash the empty vacuum
bag annually with soapy water and allow to air dry.
Remove propane canister.
Never store the unit with attached propane canister
where fumes may reach an open flame or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or
damage.
Store the unit in a dry, well-ventilated area.
Store unit out of reach of children.
WARNING:
TO AVOID SERIOUSINJURY, ALWAYS
TO COOL BEFOREYOU SERVICE IT.
,ONG $ /O:::J:_G!
1.Remove propane canister.
2.Allow the engine to cool. Remove the spark
plug and put 5 drops of high quality motor oil
into the cylinder. Pull the starter rope slowly to
distribute the oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the
oil from the cylinder before attempting to start
the unit after long term storage.
3. Change the oil, referring to Changing the Oil
(p.13). Dispose of the old oil in accordance to
Federal, State and Local regulations.
4. Thoroughly clean the unit and inspect for any
loose or damaged parts. Repair or replace
damaged parts and tighten loose screws, nuts
or bolts. The unit is ready for storage.
TI!ANSPOI:_Trig
•Allow the engine to cool before transporting.
Secure the unit while transporting.
• Remove propane canister.
ENGINEWILL NOT START
TROUBLESHOOTING
EMPTYPROPANECANISTER INSTALLFULLCANISTER
CAGEDOOR NOT CLOSED CLOSETHECAGEDOOR
VACUUM TUBE NOT PROPERLYINSTALLED INSTALLVACUUM TUBEPROPERLY
CAUSE ACTION
AIR FILTERISPLUGGED REPLACETHEAIR FILTER
IMPROPERCARBURETORADJUSTMENT ADJUSTACCORDINGTO THE 'CARBURETOR
ADJUSTMENTS'SECTIONORTAKETO AN
AUTHORIZEDSERVICEDEALERFORAN ADJUSTMENT
CAUSE ACTION
DIRTYAIR FILTER CLEAN ORREPLACETHEAIR FILTER
ENGINELACKSPOWERORSTALLSWHEN IN USE
BAD SPARKPLUG REPLACESPARKPLUG
k. FF R/Hi:RA%t/ANCi: tRi:Q Ri:D CON/AC/i:HRA/ 86694 5_47
16 LEiA I ALL RIGHTSRESERVED2009-2010

MODEL BVO25HH
DISPLACEMENT 25.4 CC
IDLESPEED 3,000-3,400 R.P.M.
IGNITION SWITCH SPRINGLOADED ON/OFFSWITCH
VALVE CLEARANCE 0,003:0,006 in; (0;076:0.152 ram)
SPARKPLUGGAP 0.020 INCH (0.5 mm)
LUBRICATION SAE 10W'40 OIL
CRANKCASEOILCAPACITY 1.7FLOZ (50mL)
FUEL .......................... PROPANE16.40Z CANISTER
CARBURETOR CHOKE-LESS,ALL POSITION
MUFFLER BAFFLEDWITH GUARD
THROTTLE SAFETYLOCKWITH MANUAL SPRINGRETURN
THROTTLECONTROL FINGER-TIP TRIGGER
MAX. AIR VOLUME 370 cfm
....2 i'ii i'; i{;_;I;7,, iiii iii'ii J;ii iiii ;;;)i{;_t;:ii ',;;;;;)ii7i;i'iiii;;;) i'll iiii iiii;
W { {g } { ;} { : 7: : :<: J s .......
........ v ..... ......
k.
I ALL RIGHTS RESERVED 2009-2010 17

k.
The limited warranty set forth below is given by LEHR with respect to new
merchandise purchased and used in the United States and Canada, its
possessions and territories.
LEHR warrants to the original purchaser that each new LEHR brand power
tool or attachment is free from defects in material and workmanship and
agrees to repair or replace under this warranty any defective power
product or attachment as follows from the original date of purchase.
3 YEARS -- Parts and Labor, on carbureton
2 YEARS -- Parts and Labor, when used for household purposes.
90 DAYS -- Parts and Labor, when used for commercial, professional, or
income producing purposes.
30 DAYS -- Parts and Labor, if used for rental purposes.
This warranty is not transferable and does not cover damage or liability
caused by improper handling, improper maintenance, or the use
not specifically recommended by LEHR for this product. In addition, it does
not cover any product that has been subject to misuse, neglect,
negligence, or accident, or has been operated in any way contrary to the
operating instructions specified in this operator's manual. Additionally,
this warranty does not cover tune-ups, spark plugs, carburetor
adjustments, filters, starter pulley, or parts that will wear and require
replacement with reasonable use during the warranty period.
This warranty does not cover pre delivery setup or normal adjustments
explained in the instruction manual.
THIS WARRANT GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE. NO CLAIMS FOR
CONSEQUENTIAL OR OTHER DAMAGES WILL BE ALLOWED, AND THERE
ARE NO OTHER EXPRESS WARRANTIES EXCEPTTHOSE EXPRESSLY
STIPULATED HEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LAST OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.
LEHR does not extend any warranty for products sold or exported outside
of the United States or Canada, its possessions and territories, except
those sold through LEHR's authorized channels of export distribution.
The policy of LEHR is to continuously improve its products. Therefore, LEHR
reserves the right to change, modify, or discontinue models, designs,
specifications, and accessories of all products at any time without notice
or obligation to any purchaser.
HOW TO OBTAIN SERVICE: Warranty service is available, with proof of
purchase through your local authorized service dealen To locate the
dealer in your area, visit our website at www.golehncom or call
1-866-941-LEHR or write to 8922 Ellis Ave. LA, CA 90034.
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board, the Environmental Protection Agency
and LEHR, Inc. are pleased to explain the emissions control system's
warranty on your 2009 and later small off-road engine. In California and
the 49 states, new equipment that use small off-road engines must be
designed, built, and equipped to meet the State's stringent anti-smog
standards. LEHR, Inc. must warrant the emissions control system on your
small off-road engine for the period listed below provided there has been
no abuse, neglect or improper maintenance of your equipment. Your
emissions control system may include parts such as: carburetors or fuel
injection system, ignition system, catalytic converters, fuel tanks, valves,
filters, clamps, connectors, and other associated components. Also,
included may be hoses, belts, connectors, sensors, and other emission-
related assemblies. Where a warrantable condition exists, LEHR will repair
your small off-road engine at no cost to you including diagnosis, parts and
labor at an authorized service dealen
MANUFACTURER'S WARRANTY COVERAGE:
This emissions control system is warranted for two years. If any emissions-
related part on your equipment is defective, the part will be repaired or
replaced by LEHR.
OWNER'S WARRANTY RESPONSIBILITIES:
As the small off-road engine owner, you are responsible for performance
of the required maintenance listed in your owner's manual. LEHR
recommends that you retain all receipts covering maintenance on your
small off-road engine, but LEHR cannot deny warranty solely for the lack of
receipts or your failure to ensure the performance of all scheduled
maintenance. As the small off-road engine owner, you should be aware
that LEHR may deny you warranty coverage if your small off-road engine
or a part has failed due to abuse, neglect, or improper maintenance or
unapproved modifications.
You are responsible for presenting your small off-road engine to a LEHR
service center as soon as the problem exists. The warranty repairs should
be corn pleted in a reasonable amount of time, not to exceed 30 days. If
you have a question regarding your warranty coverage, you should contact
LEHR at 1-866-941-LEHR.
DEFECTS WARRANTY REQUIREMENTS:
(a) The warranty period begins on the date the engine or equipment is
delivered to an ultimate purchaser.
(b) General Emissions Warranty Coverage. The manufacturer of each small
off-road engine or equipment must warrant to the ultimate purchaser
and each subsequent owner that the engine or equipment is:
Designed, built, and equipped so asto conform with all applicable
regulations adopted by the Air Resources Board; and free from defects in
materials and workmanship that causes the failure of a warranted part for
a period of two years.
(c) The warranty on emissions-related parts will be interpreted as follows:
Any warranted part that is not scheduled for replacement as required
maintenance in the written instructions required by Subsection (d) Must
be warranted for the warranty period defined in Subsection (b). If any
such part fails during the period of warranty coverage, it must be repaired
or replaced by the manufacturer according to Subsection (1) below. Any
such part repaired or replaced under the warranty must be warranted for
the remaining warranty period.
Any warranted part that is scheduled only for regular inspection in the
written instructions required by Subsection (d) must be warranted for the
warranty period defined in Subsection (b). A statement in such written
instructions to the effect of "repair or replace as necessary" will not reduce
the period of warranty coverage. Any such part repaired or replaced under
warranty must be warranted for the remaining warranty period.
Any warranted part that is scheduled for replacement as required
maintenance in the written instructions required by Subsection (d) must be
warranted for the period of time prior to the first scheduled replacement
point for that part. If the part fails prior to the first scheduled replacement,
the part must be repaired or replaced by the engine manufacturer
according to Subsection (1) below.
Section 1: Any such part repaired or replaced under warranty must be
warranted for the remainder of the period prior to the first scheduled
replacement point for the part. Repair or replacement of any warranted
part under the warranty must be performed at no charge to the owner at
a warranty station.
Notwithstanding the provisions of Subsection (1) above, warranty services
or repairs must be provided at all manufacturer distribution centers that
are franchised to service the subject engines. The owner must not be
charged for diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such diagnostic work is
performed at a warranty station. The manufacturer is liable for damages to
other engine components proximately caused by a failure under warranty
of any warranted part. Throughout the emissions warranty period defined
in Subsection (b), the manufacturer must maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
Any replacement part may be used in the performance of any warranty
maintenance or repairs and must be provided without charge to the owner.
Such use will not reduce the warranty obligations of the manufacturer.
Add-on or modified parts that are not exempted by the Air Resources Board
may not be used. The use of any non-exempted add-on or modified parts
will be grounds for disallowing a warranty claim. The manufacturer will not
be liable to warrant failures of warranted parts caused by the use of a non-
exempted add-on or modified part. The manufacturer issuing the warranty
shall provide any documents that describe that manufacturer's warranty
procedures or policies within five working days of request by the Air
Resources Board.
(d) Emission Warranty Parts List.
The following components are included in the emission related warranty
of the engine:
Air Filter, Carburetor, Regulator, Fuel Lines & Fittings, Fuel Valve, Ignition Coil,
Spark Plug, Valves, CAM and Muffler.
LEHR will furnish with each new engine written instructions for the
maintenance and use of the engine by the owner.
18 I ALL RIGHTSRESERVED2009-2010

k.
[ ALL RIGHTSRESERVED2009-2010
J
19

k.
20 [ ALL RIGHTSRESERVED2009-2010
