LEHR BV025HH User manual

LEHR | ALL RIGHTS RESERVED 2009-2010
TABLE OF CONTENTS
Service and Safety...........................................................................2
Safe Operation Rules......................................................................3
Understanding Your Unit...............................................................5
Oil Information.................................................................................6
Understanding Propane...............................................................7
Installing the Propane Canister..................................................8
Assembly............................................................................................9
Starting / Stopping.......................................................................10
Operation.........................................................................................11
Maintenance...................................................................................12
Cleaning and Storage..................................................................16
Troubleshooting...........................................................................16
Specications.................................................................................17
Warranty..........................................................................................18
BlowerVac and Mulcher
MODEL: BV025HH
WARNING:
THE ENGINE EXHAUST FROM THIS
PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS
OR OTHER REPRODUCTIVE HARM.
DO NOT RETURN THE UNIT
TO THE RETAILER
Call 1-866-941-LEHR (5347)
PROPANE POWERED ECO BLOWER
OPERATOR’S MANUAL
16.4 oz Propane Bottle
Not Included

SERVICE AND SAFETY
2LEHR | ALL RIGHTS RESERVED 2009-2010
LEHR ECO-BLOWER
4-CYCLE PROPANE BLOWER / VAC and MULCHER
For service call 1-866-941-LEHR in the United
States, to obtain a list of authorized service
dealers near you. For more details about your
unit, visit our web site at:
www.golehr.com.
DO NOT RETURN THE UNIT TO THE RETAILER.
PROOF OF PURCHASE WILL BE REQUIRED FOR
WARRANTY SERVICE.
THIS PRODUCT IS COVERED BY ONE OR MORE
U.S. PATENTS. OTHER PATENTS ARE PENDING.
Service on this unit both within and after the
warranty period should be performed only by an
authorized and approved service dealer.
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the
states of California, Maine, Oregon, and
Washington. All U.S. Forest Land and the states of
California (Public Resources Codes 4442 and 4443),
Oregon, and Washington require by law that
certain internal combustion engines operated
on forest brush and/or grass-covered areas be
equipped with a spark arrestor, maintained in
eective working order, or the engine be
constructed, equipped and maintained for the
prevention of re. Check with your state or local
authorities for regulations pertaining to these
requirements. Failure to follow these requirements
could subject you to liability or a ne. This unit is
factory equipped with a spark arrestor.
All information, illustrations, and specications in
this manual are based on the latest production
information available at the time of printing. We
reserve the right to make changes at any time
without notice.
WARNING:
WHEN USING THE UNIT, YOU MUST
FOLLOW THESE SAFETY RULES. PLEASE
READ THESE TO ENSURE THE SAFETY OF
THE OPERATOR AND ANY BYSTANDERS.
PLEASE KEEP THESE INSTRUCTIONS FOR
LATER USE.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE OPERATING
•Inspect the unit before use. Replace any missing
or damaged parts.
•Check for fuel leaks. Make sure all fasteners are
in place and secure. Replace parts that are
cracked, chipped, or damaged in any way. Do not
operate the unit with loose or damaged parts.
• Carefully inspect the area before starting the unit.
Remove all debris and hard or sharp objects such
as glass, wire, etc.
• Be aware of the risk of injury to the head, hands
and feet.
• Clear the area of children, bystanders, and pets
at a minimum, keep all children, bystanders, and
pets outside a 50 feet (15 m) radius; there still
may be a risk to bystanders from thrown objects.
Bystanders should be encouraged to wear eye
protection. If you are approached, stop the unit
immediately.
• Use only original equipment manufacturer
replacement parts.
• Squeeze the throttle control and check that it
returns automatically to the idle position. Make
all adjustments or repairs before using unit.
• Do not operate this unit when tired, ill, or under
the inuence of alcohol, drugs or medications.
• This unit is intended for adult use only. Do not
allow children or untrained individuals to use the
unit.
• Familiarize yourself with the controls and proper
use of your unit prior to using.
WARNING:
WHEN SERVICING, USE ONLY IDENTICAL
REPLACEMENT PARTS. USE OF ANY OTHER
PARTS MAY CREATE A HAZARD OR CAUSE
PRODUCT DAMAGE.

SAFE OPERATION RULES
LEHR | ALL RIGHTS RESERVED 2009-2010 3
DURING OPERATION
• Never start or run the unit inside a closed room
or building. Breathing exhaust fumes can be fatal.
Operate this unit only in a well ventilated outdoor
area.
• Wear safety glasses or goggles that meet ANSI
Z87.1 standards and are marked as such. Wear
ear / hearing protection when operating this
unit. Wear a face or dust mask if the operation is
dusty.
• Wear heavy long pants, boots, gloves and a long
sleeve shirt. Do not wear loose clothing, jewelry,
short pants, sandals or go barefoot. Secure hair
above shoulder level.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting
position whenever pulling the starter rope. The
operator and unit must be in a stable position
while starting. Refer to Starting/Stopping
Instructions (p. 10).
• Only use this tool for its intended purpose.
• Do not overreach. Always keep proper footing
and balance.
• Always hold the unit with both hands when
operating. Keep a firm grip on handle or grips.
• Keep hands, face, and feet at a distance from all
moving parts.
• Do not touch the engine or muffler. These parts
get extremely hot from operation, even after the
unit is turned off.
• Do not operate the engine faster than the speed
needed to blow, or vacuum.
• Do not operate the unit with loose or damaged
parts. Stop the unit, switch the engine to off, and
disconnect the spark plug for maintenance or
repair.
• Use only original equipment manufacturer
replacement parts and accessories for this unit.
These are available from your authorized service
dealer. Use of any unauthorized parts or
accessories could lead to serious injury to the user,
or damage to the unit, and void your warranty.
• Keep unit clean of vegetation and other materials.
• To reduce fire hazard, replace faulty muffler and
spark arrestor. Keep the engine and muffler free
from grass, leaves, excessive grease or carbon
build up.
OTHER SAFETY WARNINGS
• Never store a unit with the propane canister
attached inside a building where vapor may reach
an open flame or spark.
• Allow the engine to cool before storing or
transporting.
• Store the unit in a dry area, locked up or up high
to prevent unauthorized use or damage, out of
the reach of children.
• Never douse or squirt the unit with water or any
other liquid. Keep handles dry, clean and free
from debris. Clean after each use, see Cleaning
and Storage instructions. (p. 16)
• Keep these instructions. Refer to them often and
use them to instruct other users. If you loan
someone this unit, also loan them these
instructions.
SAVE THESE INSTRUCTIONS

SAFE OPERATION RULES
4LEHR | ALL RIGHTS RESERVED 2009-2010

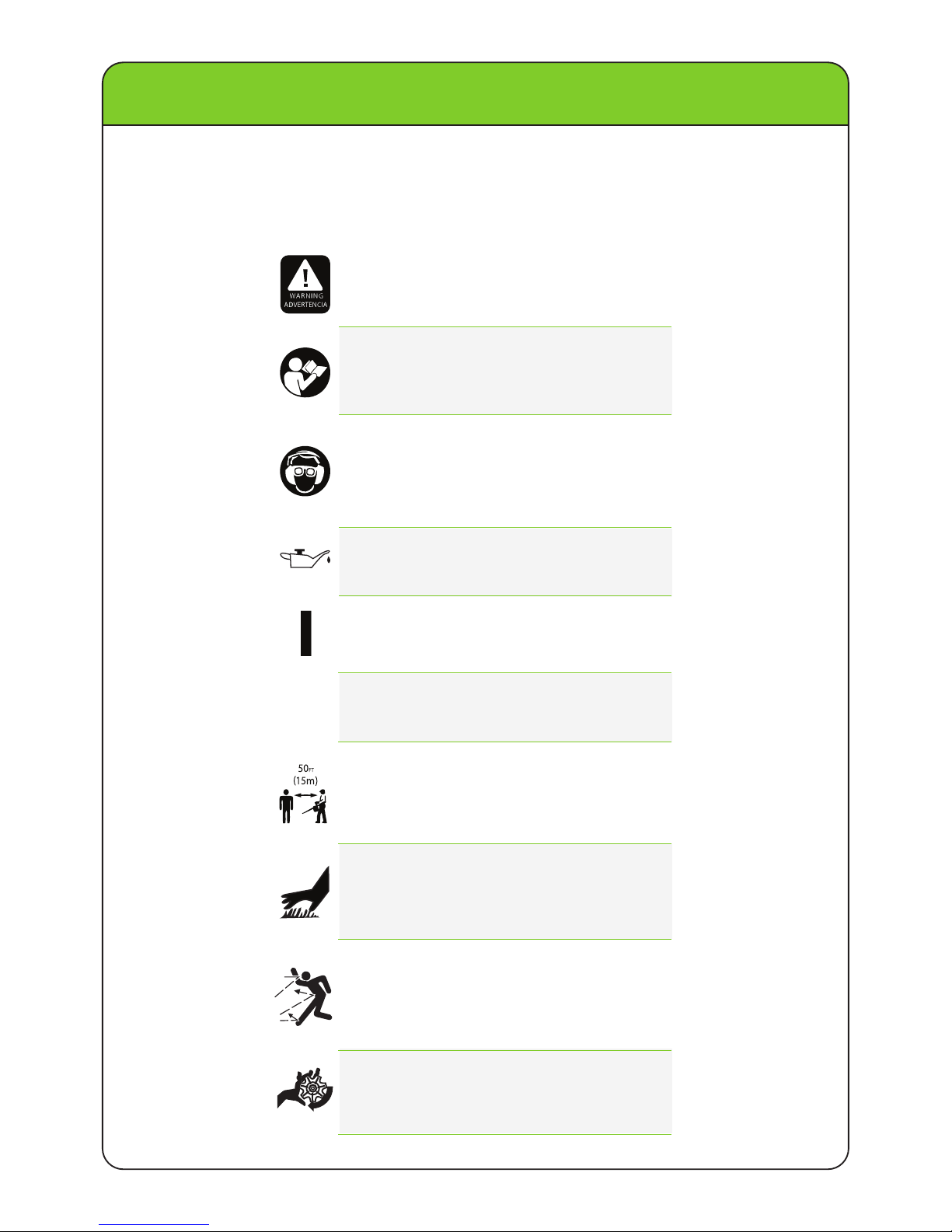

SAFETY AND INTERNATIONAL SYMBOLS
This operator’s manual describes safety and international symbols and pictographs that may appear on this
product. Read the operator’s manual for complete safety, assembly, operating, maintenance and repair
information.
WARNING: Indicates danger, warning or caution.
May be used in conjunction with other symbols or
pictographs.
WARNING: READ OPERATOR’S MANUAL:
Read the operator’s manual and follow all warnings
and safety instructions. Failure to do so can result in
serious injury to the operator and/or bystanders.
WEAR EYE AND HEARING PROTECTION WARNING:
Thrown objects and loud noise can cause severe eye
injury and hearing loss. Wear eye protection meeting
ANSI Z87.1 standards and ear protection when
operating this unit. Use a full face shield when needed.
OIL: Refer to operator’s manual for the proper type of oil.
Keep all bystanders, especially children and pets, at
least 50 feet (15 m) from the operating area.
Do not touch a hot mufer, gear housing orcylinder. You may
get burned. These parts get extremely hot from operation.
They remain hot for a short time after theunit is turned o.
I
o
ON/OFF CONTROL ON/START/RUN
ON/OFF CONTROL OFF or STOP
KEEP BYSTANDERS AWAY WARNING:
HOT SURFACE WARNING
Do not blow objects towards bystanders. Propelled objects
can cause serious injury.
THROWN OBJECTS CAN CAUSE SEVERE INJURY WARNING:
Make sure to turn the engine o and wait for the impeller to
come to a complete stop before opening the cage. Never
insert hands into the vacuum tube while unit is on.
BLOWER IMPELLER CAN CAUSE SERIOUS INJURY

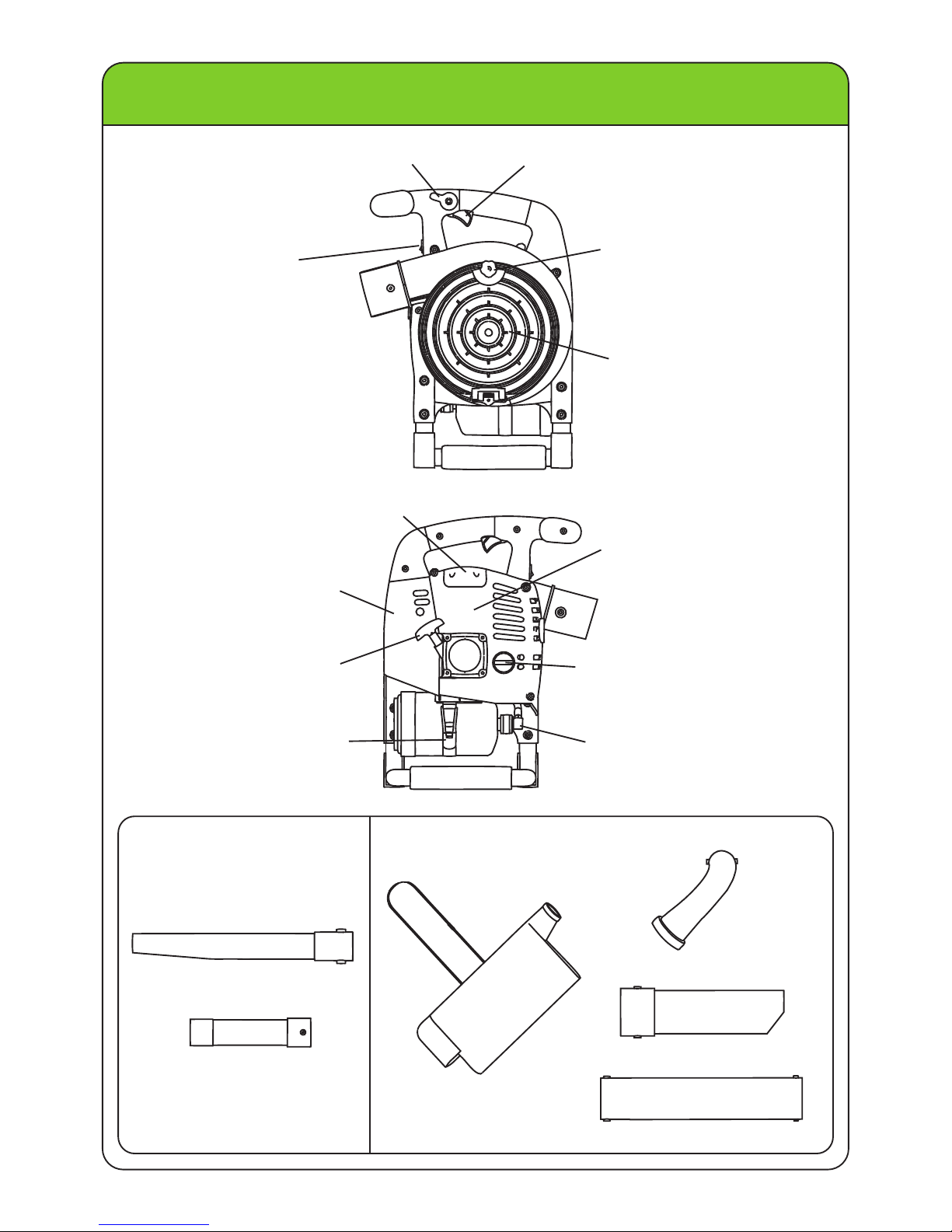

UNDERSTANDING YOUR UNIT
LEHR | ALL RIGHTS RESERVED 2009-2010 5
Oil Fill Plug / Dipstick
Starter Rope Handle
Propane Connector
Spark Plug / Valve Cover
On / O
Control
Throttle Lock Throttle Control
Cage
Cage Locking Screw
Blower Nozzle
Blower Nozzle Extension
Mulch Collection Bag
Mulch Collection Bag Adapter
Vacuum / Mulcher Nozzle
Vacuum / Mulcher Nozzle Extension
Air Cleaner Cover
Engine Cover
BLOWER ATTACHMENTS VACUUM / MULCHER ATTACHMENTS
Propane Canister Clamp

OIL INFORMATION
6LEHR | ALL RIGHTS RESERVED 2009-2010
RECOMMENDED OIL TYPE
Using the proper type and weight ofoil in the
crankcase is extremely important. Check the oil
before each use and change the oil regularly.
Failure to usethe correct oil, or using dirty oil, can
cause premature engine wear and failure. Use a
high-quality SAE 10W-40 weight oil of API
(American Petroleum Institute) service class SF, SG,
or SH.
ADDING OIL TO THE CRANKCASE
INITIAL USE
NOTE: This unit is shipped without oil in the
crankcase. In order to avoid damage to the unit,
put oil in the crankcase before you attempt to
start the unit.
Your unit is suppliedwith one 1.7 uid oz. (50 mL)
bottle of SAE 10W-40 SF, SG or SH oil (Fig. 1).
1. Unscrew the top of the bottle ofoil and remove
the sealcovering the opening. Replace the top
(Fig. 1).
2. Place the unit (cage side down) on a level
surface (Fig. 2).
3. Remove the oil plug / dipstick from thecrankcase
by turning it counterclockwise (Fig. 3).
4. Pour the entire bottle of oil into the oil ll hole
(Fig. 3).
Check oil before each use and change as needed.
Refer to Changing the Oil (p.13).
5. Wipe up any oil that may have spilled and
reinstall the oil plug / dipstick.
Fig. 1
4-Cycle Motor Oil
WARNING:
OVERFILLING CRANKCASE MAY CAUSE HOT OIL TO
DRIP FROM AIR FILTER, AND SMOKE TO COME OUT
FROM THE EXHAUST. CHECK AND MAINTAIN THE
PROPER OIL LEVEL IN THE CRANK CASE; IT IS IMPORTANT
AND CANNOT BE OVEREMPHASIZED. CHECK THE OIL
BEFORE EACH USE AND CHANGE AS NEEDED.
SEE CHANGING THE OIL (p.13).
Oil Fill Hole
Oil Fill Plug / Dip Stick
Fig. 3
Fig. 2

UNDERSTANDING PROPANE
LEHR | ALL RIGHTS RESERVED 2009-2010 7
SAFETY WARNINGS FOR PROPANE UNITS
NOTE: Use propane only in containers specically
designed and approved for this unit. Propane is a
combustible gas, it is colorless and thus invisible
to the naked eye. Propane has a harmless odorant
added so that it is possible to smell it. The user
should be familiar with the smell of propane
(smells like sulfur or rotten eggs). If at any time the
smell of propane is identied, turn the engine o.
If the leak persists, remove the propane canister.
Never attempt to operate a unit that has a
suspected leak. Always remove the propane
canister from any unit that has a suspected leak.
CARBON MONOXIDE HAZARD
Burning propane makes Carbon Monoxide (CO).
CO is invisible, has no smell and can kill you.
Operating your trimmer in an enclosed area can
be dangerous.
1. Use only in well ventilated areas. If you
experience headache, drowsiness, or nausea,
turn unit o and get fresh air quickly.
2. Never use where people are sleeping.
3. Follow unit instructions for proper use.
HANDLING & STORAGE
1. Keep out of reach of children.
2. Never expose cylinder to heat, sparks, or ame.
Never leave in direct sunlight. Never store at
temperatures above 120 degrees F° (49 C).
3. Never store in living spaces.
4. Always use cylinder until it is completely empty.
5. Never rell a disposable cylinder. Relling may
cause an explosion. Federal law forbids
transportation if relled, a penalty up to
$500,000, and 5 years imprisonment
(49 U.S.C. 5124).
6. Never put in luggage or take on trains or aircraft.
7. To discard, contact local refuse hauler or recycle
center. Never put in re or incinerator. Do not
puncture. If your cylinder was purchased with a
“Green Key” * or similar device, install it when
empty and cylinder may be recycled with other
steel items.
* Green Key- is a trademark of the Coleman company
NOTE: FIRE / EXPLOSION HAZARD
The propane canister contains enough gas to
cause serious re, explosion, and burns. To reduce
chance of leak, re, or explosion, take the following
precautions:
BEFORE USE
1. Check cylinder and appliance seals. Never use
with damaged or missing seals. Discard cylinder
if dirt or rust particles are in valve area.
2. Turn unit o.
3. Attach cylinder outdoors away from pilot lights,
ames, sparks or other ignition sources. These
sources can ignite leaking gas.
4. Hand tighten only. Never use tools to tighten.
Over tightening can damage seals.
5. Check for leaks. Put soapy water on connections.
Look for bubbles. Listen for hiss of escaping gas.
Feel for extreme cold. Smell for rotten egg odor.
Do not use if leaking.
6. Read and follow appliance instructions.
DURING USE
Never use near pilot lights, ames, sparks, or other
ignition sources. They can ignite leaking gas.
AFTER USE
1. Turn unit o and let cool.
2. Detach cylinder when not in use.
3. Detach outdoors away from pilot lights, ames,
sparks, or other ignition sources, they can ignite
leaking gas.
4. Replace cap to keep valve clean.
IN CASE OF FIRE
1. Leave area quickly and call 911 or your local re
department for help.
2. Let cylinder burn out.
WARNING:
PROPANE IS HIGHLY FLAMMABLE, AND ITS VAPORS
CAN EXPLODE IF IGNITED.

INSTALLING THE PROPANE CANISTER
8LEHR | ALL RIGHTS RESERVED 2009-2010
USE THE CORRECT PROPANE CANISTER
Always use propane canisters or “bottles” that are
the correct size. The 17 ounce or 16.4 ounce / 465g
canisters that are approximately 3-7/8 inches
(9.5 cm) in diameter are the correct canisters
(Fig. 4). Do not use smaller diameter canisters as
they will not latch securely to the unit and vibration
may cause damage to the unit and potentially
result in a dangerous leak.
ATTACHING THE PROPANE CANISTER
1. Make sure the engine is o.
2. If the propane canister to be installed has a
protective plastic cap over the threaded end,
remove it. Make sure the canister clamp is in the
un-latched position.
3. Insert the threaded end of the propane canister
into thecanister clamp until it contacts the
canister stop (Fig. 5).
4. Insert the propane connector ontothe threaded
end of the canister and screw it onto threads
clockwise(Fig. 6). Screw it untilsnug. Do not over
tighten.It may be normal to hear or smell a slight
momentary leak of propane as the connector
is being screwed in. Make sure that the connector
is installed tight enough that any leakage stops.
Hand tight is sucient.
5. Latch the canister clamp.
16.4 OUNCE/
465 GRAM
CANISTER
Fig. 4
WARNING:
NEVER ATTEMPT TO FORCE A CONNECTOR
ONTO A PROPANE CANISTER THAT HAS
IMPROPER OR DAMAGED THREADS.
WARNING:
THIS CONTAINER AND BY-PRODUCTS OF THE
COMBUSTION OF ITS CONTENTS CONTAIN CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
WARNING:
EXTREMELY FLAMMABLE FIRE / EXPLOSION.
HAZARD CONTENTS UNDER PRESSURE.
CARBON MONOXIDE HAZARD.
WARNING:
PROPANE IS EXTREMELY FLAMMABLE. VAPOR
MAY EXPLODE. ALWAYS STOP THE ENGINE AND
ALLOW IT TO COOL BEFORE REPLACING THE
PROPANE CANISTER. DO NOT SMOKE. KEEP
SPARKS AND OPEN FLAMES AT A DISTANCE
FROM THE AREA.
Propane
Connector
Canister
Clamp
Fig. 6
Fig. 5
REMOVING THE PROPANE CANISTER
1. Make sure the engine is o.
2. Un-latch the canister clamp and remove the
propane connector by turning it
counterclockwise.
3. Remove the empty canister.
4. Dispose of empty propane canisters in
accordance to Federal, State and local
Regulations.
Canister
Stop

ASSEMBLY
BLOWER MODE
NOTE: Place the unit on the ground or on a work
bench to make attachment installation or removal
easier.
1. Install blower attachments in sequence shown, aligning
the grooves on the nozzles with the pegs (Fig. 7).
2. Slide the nozzles onto the pegs.
3. Twist the nozzles clockwise to lock in place.
NOTE: Make sure the Cage Screw is tightened down.
VACUUM / MULCHER MODE
1. Loosen the Cage Screw and pull down the Cage (Fig. 8).
2. Install vacuum attachments in sequence shown, aligning the grooves on the nozzles with the pegs.
3. Slide the nozzles onto the pegs.
4. Twist nozzles clockwise to lock in place.
5. Secure Mulch Collection Bag onto the Mulch Collection Bag Adapter by strapping down the Velcro Strap.
Place the shoulder strap over your left shoulder and adjust the Shoulder Strap Adjustment as necessary.
WARNING:
TO AVOID SERIOUS INJURY AND DAMAGE
TO THE UNIT, SHUT OFF THE UNIT BEFORE
REMOVING OR INSTALLING ATTACHMENTS.
Cage
Cage
Screw
Blower Nozzle
Extension
Blower Nozzle
Peg
Groove
Shoulder
Strap
Adjustment Velcro
Strap
Mulch Collection Bag
Fig. 7
Fig. 8
Cage Screw
Vacuum Nozzle
Vacuum Nozzle
Extension
Peg
Groove
Peg
Peg
Cage
Peg
Groove Groove
Groove
Mulch Collection
Bag Adapter
LEHR | ALL RIGHTS RESERVED 2009-2010 9

STARTING / STOPPING
10 LEHR | ALL RIGHTS RESERVED 2009-2010
STARTING INSTRUCTIONS
1. Check the oil level in the crankcase. Refer to
Checking the Oil Level (p. 12).
2. Turn switch to ON position (Fig. 9).
NOTE: If your unit is equipped with a spring loaded
type ON/OFF switch, it will always remain in the
ON position.
3. Place the unit rmly on the ground or a very
sturdy work surface. Make sure all bystanders
are a minimum of 50 feet (15 m) away. Do not
attempt to start near pilot lights or any open
ame. Do not smoke. Grasp the Blower Handle
with one hand and Starter Rope with the other
(Fig. 10).
4. With the unit in the starting position, pull the
rope smoothly and briskly (Fig. 10). Do not
squeeze the throttle control. The engine should
start with 3-5 pulls. Once warm, the engine
should start on the rst pull.
NOTE: On the rst use, it may take extra pulls to ll
the fuel system with propane.
5. Squeeze the throttle control slightly to warm up
the engine for 15 to 30 seconds. In cold weather,
move the throttle slowly until the engine warms
up for 30 to 60 seconds.
NOTE: When starting the engine in very hot or cold
conditions it may be necessary to squeeze the
throttle open while pulling the starter rope.
STOPPING INSTRUCTIONS
1. Release your hand from the throttle control.
Allow the engine to cool down by idling.
2. If your unit is equipped with a spring loaded
ON/ OFF switch, press and hold the button on
OFF until the unit stops. Otherwise, push the
switch to the o position.
3. When done using the unit for the day,
disconnect the propane canister from the unit.
WARNING:
AVOID ACCIDENTAL STARTING. MAKE SURE YOU ARE IN THE
STARTING POSITION WHEN PULLING THE STARTER ROPE (FIG. 10).
TO AVOID SERIOUS INJURY, THE OPERATOR AND UNIT MUST BE IN
A STABLE POSITION WHILE STARTING. MAKE SURE THAT ANY
ADD-ON ITEM IS INSTALLED CORRECTLY AND SECURE BEFORE
STARTING UNIT.
WARNING:
ALWAYS WEAR EYE, HEARING, FOOT AND BODY
PROTECTION TO REDUCE THE RISK OF INJURY
WHEN OPERATING THIS UNIT.
Throttle Lock
Throttle Control
On / O
Control
Fig. 9
Fig. 10
Starter
Rope
Handle
Blower
Handle

OPERATION
LEHR | ALL RIGHTS RESERVED 2009-2010 11

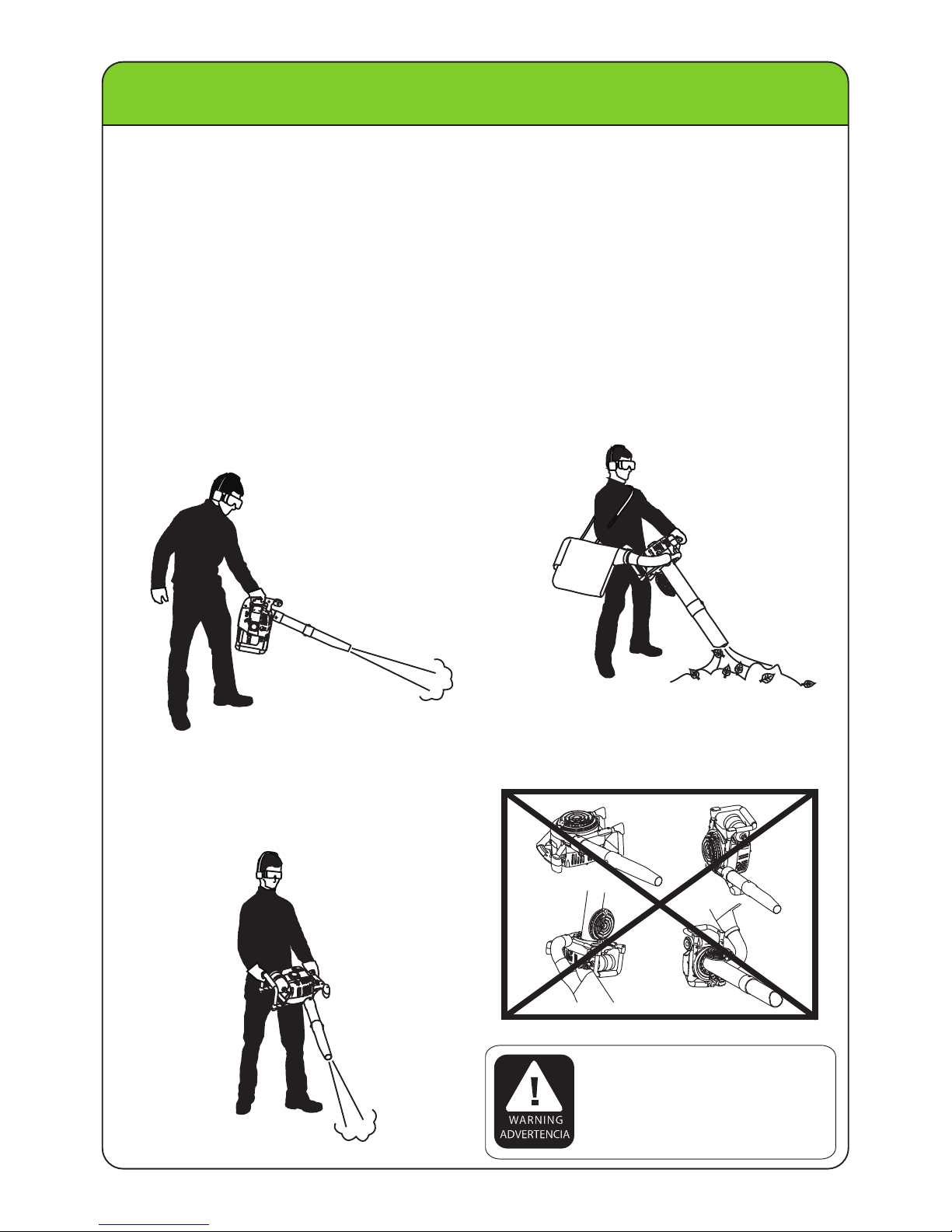

BLOWER MODE
Before operating the unit, check for the following:
• The operator is wearing proper clothing, eye and
ear protection.
• All blower attachments are properly installed and
secure.
1. Start the unit.
2. Direct the nozzle in the direction in which to blow
(Fig 11).
3. Pull the throttle control.
4. Set the throttle lock at any desired speed by
pushing the knob to the lock position. To adjust
throttle speed, push the throttle lock to the off
position, adjust, and relock the throttle control.
NOTE: The lower grip is an assist handle, which
will allow the operator to hold the unit with both
hands. Be sure to hold the assist handle with your
right hand only (Fig. 12).
VACUUM / MULCHER MODE
Before operating the unit, check for the following:
• All vacuum attachments are properly installed and
secure.
• Make sure Mulch Collection Bag is not twisted or
constricted in any way.
1. Start the unit.
2. Place collection bag strap over the left shoulder
and adjust the strap as necessary (Fig 13).
3. Pull the trigger to start the vacuum.
4. Set the throttle lock at desired speed.
5. Empty the bag as necessary by removing it from
unit and opening the zipper Located at the top
edge.
NOTE: Do not operate this unit with the cage side
up or the handle side down. This will cause oil
contamination and smoke to come out the exhaust
(Fig. 14).
WARNING:
-Never allow gasoline, kerosine, or any other ammable substance
to enter the unit during vacuum mode. Otherwise re may occur.
-Do not allow oversized wood chips, metal, glass, or any other
material to enter the vacuum. Otherwise failure may occur.
-Never overll the vacuum collection bag.
-Do not store debris inside vacuum collection bag.
-Never reach inside vacuum tubes with hands while unit is
operating, sever injury may result from mulch blade.
Fig. 11
Fig. 12
Fig. 13
Fig. 14

MAINTENANCE
12 LEHR | ALL RIGHTS RESERVED 2009-2010
WARNING:
TO PREVENT EXTENSIVE ENGINE WEAR AND DAMAGE TO THE
UNIT, ALWAYS MAINTAIN THE PROPER OIL LEVEL IN THE
CRANKCASE. NEVER OPERATE THE UNIT WITH THE LEVEL
BELOW THE BOTTOM OF THE DIPSTICK.
FREQUENCY MAINTENANCE REQUIRED REFER TO
BEFORE STARTING ENGINE CHECK OIL PAGE 12
EVERY 10 HOURS CLEAN AND RE-OIL AIR FILTER PAGE 13
FIRST CHANGE AT 10 HOURS CHANGE OIL PAGE 13
EVERY 25 HOURS THEREAFTER CHANGE OIL PAGE 13
EVERY 25 HOURS CHECK SPARK PLUG POSITION AND GAP
PAGE 14
EVERY 25 HOURS ROCKER ARM CLEARANCE ADJUSTMENT PAGE 15
Oil Fill Plug/Dipstick
O-ring
Full
Add
Fig. 15
WARNING:
WHEN SERVICING, USE ONLY IDENTICAL
REPLACEMENT PARTS. USE OF ANY OTHER
PARTS MAY CREATE A HAZARD OR CAUSE
PRODUCT DAMAGE.
Perform these required maintenance procedures
at the frequency stated in the table. These
procedures should also be a part of any seasonal
tune-up.
NOTE: Failure to maintain your unit at the
recommended schedule may result in poor
performance and / or cause permanent damage
to your unit.
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about these
procedures call 1-866-941-LEHR for the location
of your nearest authorized service dealer.
NOTE: Maintenance, replacement, or repair of the
emission control devices and system may be
performed by any non-road engine repair
establishment, individual or authorized service
dealer.
CHECKING THE OIL LEVEL
The importance of checking and maintaining the
proper oil level in the crankcase cannot be
overemphasized.
Check oil before each use:
1. Stop the engine and allow it to cool.
2. Place the unit upright on a at, level surface to
get a proper oil level reading.
3. Keep dirt, grass clippings and other debris out
of the engine. Clean the area around the oil ll
plug / dipstick before removing it.
4. Remove the oil ll plug/dipstick and wipe o
oil. Reinsert it all the way back in.
5. Remove the oil ll plug/dipstick and check the
oil level. Oil should be between the add and ll
marks (Fig. 15).
6. If the level is low, add a small amount of oil to
the oil ll hole (Fig. 16) and recheck. Repeat this
procedure until the oil level reaches the full mark
of the dipstick.
NOTE: Make sure the O-Ring is in place on the oil
ll plug/dipstick when checking and changing the
oil. Do not overll the unit.
O I L
Oil Fill Hole
Fig. 16

MAINTENANCE
CHANGING THE OIL
For a new engine, change the oil after the rst 10
hours of operation. Change the oil while the
engine is still warm but not hot. The oil will ow
freely and carry away more impurities.
1. Unplug spark plug boot to prevent accidental
starting.
2. Remove the oil ll plug / dipstick.
3. Pour the oil out of the oil ll hole and into a
container by tipping the unit to its side (Fig. 17).
Allow ample time for complete drainage.
NOTE: Wear gloves to prevent injury when
handling the unit.
4. Wipe up any oil residue on the unit and clean
up any oil that may have spilled. Dispose of the
oil according to Federal, State and local
regulations.
5. Rell the crankcase with 1.7 uid oz. (50 mL) of
SAE 10W-40 SF, SG, or SH oil (Fig. 18).
NOTE: Carefully check the oil level with the
dipstick. If the level is low, add a small amount
of oil and recheck. Do not over ll (Fig. 15).
6. Replace the oil ll plug / dipstick.
7. Reconnect the spark plug boot.
CLEANING THE AIR FILTER
Clean and re-oil the air lter every 10 hours of
operation. It is an important item to maintain.
Failure to maintain your air lter properly can result
in poor performance or can causepermanent
damage to your engine.
1. Remove phillips head screw in air lter cover.
Then remove the air lter cover (Fig. 19).
2. Remove the air lter (Fig. 19).
3. Wash the lter in detergent and water. Rinse the
lter thoroughly and allow it to dry.
4. Apply enough clean SAE 10W-40 motor oil to
lightly coat the lter.
5. Squeeze the lter and remove excess oil.
6. Replace the lter.
NOTE: If the unit is operated without the air lter,
you will VOID the warranty.
7. Reinstall the air lter cover.
Fig. 17
Fig. 18
4-Cycle Motor Oil
Fig. 19
WARNING:
TO AVOID SERIOUS PERSONAL INJURY, BE
SURE TO TURN THE UNIT OFF BEFORE
SERVICING IT.
Air Filter Cover
Air Filter
Air Filter Base Plate
Screws
LEHR | ALL RIGHTS RESERVED 2009-2010 13

MAINTENANCE
14 LEHR | ALL RIGHTS RESERVED 2009-2010
CARBURETOR ADJUSTMENT
The idle speed of the engine isadjustable. An idle
adjustment screw ison the rear side of the
carburetor (Fig. 20).
NOTE: Careless adjustments can seriously damage
your unit. An authorized service dealer should
make carburetor adjustments.
CLEAN AIR FILTER
The condition of the air lter is important to the
operation of the unit. A dirty or oil saturated air
lter will restrict air ow. This is often mistaken for
an out of adjustment carburetor. Check the
condition of the air lter before adjusting the idle
speed screw. Refer to Cleaning the Air Filter (p. 13).
ADJUST IDLE SPEED SCREW
If, after checking the fuel and cleaning the air lter,
the engine still will not idle, adjust the idle speed
screw as follows:
1. Start the engine and let it run at a high idle for a
minute to warm up. Refer to Starting / Stopping
(p. 10).
2. Release the throttle trigger and let the engine
idle. If the engine stops, use a small phillips or
at blade to turn the idle speed screw in,
clockwise, 1/8 of a turn at a time (as needed)
until the engine idles smoothly (Fig. 20).
NOTE: Checking the fuel, cleaning the air lter, and
adjusting the idle speed should solve most engine
problems. If not and all of the following are true:
• The engine will not idle.
• The engine hesitates or stalls on acceleration.
• There is a loss of engine power.
Check the spark plug for proper gap and condition.
If problem still occurs, have the carburetor
adjusted by an authorized service dealer.
REPLACING THE SPARK PLUGS
Use a replacement part number NGK CMR6A, or
Champion RCJ6Y. The correct air gap is 0.02 in.
(0.5 mm). Remove the plugafter every 25 hours of
operation and check its condition.
1. Stop the engine and allow it to cool. Remove the
spark plug cover. Grasp the plug wire rmly and
pull the cap from the spark plug.
2. Clean dirt from around the spark plug. Remove
the spark plug from the cylinder head by using
a 5/8 in. socket turning it counterclockwise.
3. Replace cracked, fouled or dirty sparkplug. Set
the air gap at 0.02 in. (0.5 mm.) using a feeler
gauge (Fig. 21).
4. Install a correctly-gapped spark plug in the
cylinder head. Turn the 5/8 in. socket clockwise
until snug.
NOTE: If using a torque wrench torque to:
110-120 in. lb. (12.3-13.5 N-m). Do not over
tighten.
0.02 in.
(0.5 mm)
Fig. 21
WARNING:
DO NOT SAND BLAST, SCRAPE, OR CLEAN
SPARK PLUG ELECTRODES. GRIT IN THE
ENGINE COULD DAMAGE THE CYLINDER.
Fig. 20
Idle
Adjustment
Screw

MAINTENANCE
ROCKER ARM CLEARANCE ADJUSTMENT
This requires partial disassembly of the engine.
If you feel unsure or unqualied to perform this,
take the unit to an authorized service center.
NOTE: Inspect the valve to rocker arm clearance
with a feeler gage after the rst 25 hours of
operation. The engine must be cold when checking
or adjusting the valve clearances. This task should
be performed in a clean dust free environment.
1. Remove the ve screws on the engine cover
with a phillips head screw driver (Fig. 22).
2. Remove the engine cover.
3. Disconnect the spark plug wire.
4. Clean dirt from around the spark plug. Remove
the spark plug by using a 16mm socket, turn CCW.
5. Clean dirt from around the rocker arm cover.
6. Remove the three screws holding the rocker
arm cover with a phillips head screwdriver.
7. Remove the rocker arm cover and gasket (Fig. 23).
8. Pull the starter rope slowly to bring the piston
to the top of its travel, (This position is known as
top dead center). Check that the piston is at the
top of its travel by looking down into the spark
plug hole. Both valves should be closed and the
rocker arms should move freely. If this statement
is not true, repeat this step.
9. Slide a feeler gage between the rocker arm and
the valve return spring. Measure the distance
between the rocker arm and valve stem (Fig. 24).
Take care to only measure the free play. It is very
easy to insert too thick a feeler gauge and
accidentally depress the valve and spring.
Measure both the intake and exhaust valve
clearances.
10. Check the spark plug and reinstall. Refer to
Replacing the Spark Plug (p.14).
11. Reinstall the spark plug wire.
IF THE CLEARANCE IS NOT WITHIN SPECIFICATION
1. Loosen the jam nut and turn the adjusting screw
as necessary. To increase the clearance, turn the
adjusting screw CCW. To decrease the clearance,
turn the adjusting screw CW.
2. Tighten the jam nut when the clearance is set.
3. Recheck the both clearances. Readjust if
necessary.
4. Reinstall the rocker arm cover using a new
gasket.
5. Tighten cover screws evenly until snug.
6. Reinstall the engine cover checking the
alignment of the cover. Tighten the ve engine
cover screws until snug.
• The recommended clearance for both intake and
exhaust is 0.003-0.006in (0.076-0.152mm).
• Use a standard automotive 0.005in (0.127mm) feeler
gage.

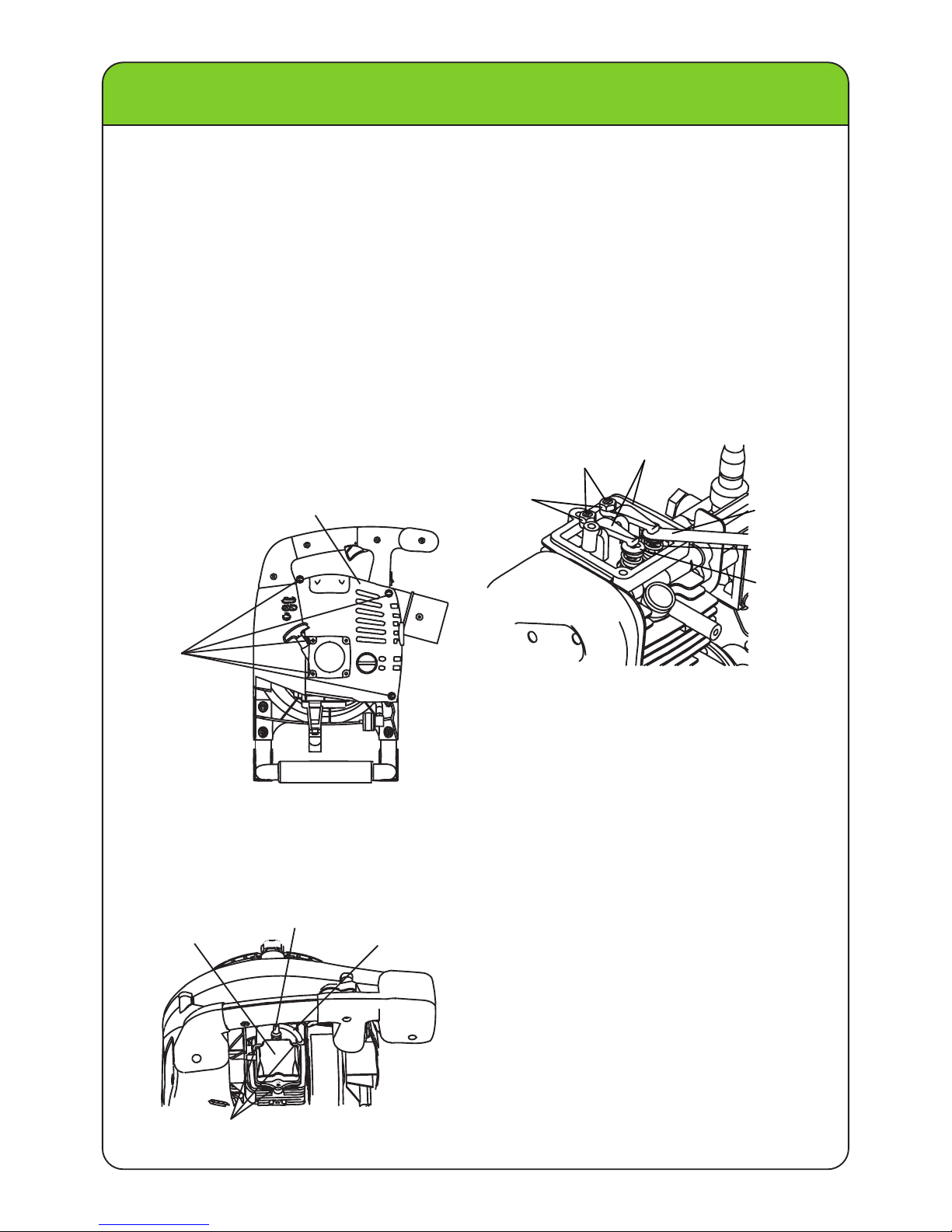

Fig. 22
Fig. 23
Fig. 24
Jam Nuts
Adjusting Screws Rocker Arms
Feeler Gauge
Exhaust Valve
Intake Valve
Remove Five
Screws
Engine Cover
Remove Three Screws
Rocker Arm Cover Spark Plug Wire
Spark Plug
LEHR | ALL RIGHTS RESERVED 2009-2010 15

CLEANING AND STORAGE
16 LEHR | ALL RIGHTS RESERVED 2009-2010
CLEANING
• Use a small soft brush to clean the outside of the
unit. Do not use strong detergents. Household
cleaners that contain aromatic oils such as pine
and lemon, and solvents such as kerosene, can
damage plastic housing or handle. Wipe o any
moisture with a soft cloth.
• Empty the vacuum bag. Turn it inside out and shake
off any excess debris. Hand wash the empty vacuum
bag annually with soapy water and allow to air dry.
STORAGE
• Remove propane canister.
• Never store the unit with attached propane canister
where fumes may reach an open ame or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or
damage.
• Store the unit in a dry, well-ventilated area.
• Store unit out of reach of children.
LONG TERM STORAGE
1. Remove propane canister.
2. Allow the engine to cool. Remove the spark
plug and put 5 drops of high quality motor oil
into the cylinder. Pull the starter rope slowly to
distribute the oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the
oil from the cylinder before attempting to start
the unit after long term storage.
3. Change the oil, referring to Changing the Oil
(p.13). Dispose of the old oil in accordance to
Federal, State and Local regulations.
4. Thoroughly clean the unit and inspect for any
loose or damaged parts. Repair or replace
damaged parts and tighten loose screws, nuts
or bolts. The unit is ready for storage.
TRANSPORTING
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Remove propane canister.
WARNING:
TO AVOID SERIOUS INJURY, ALWAYS
TURN YOUR UNIT OFF AND ALLOW IT
TO COOL BEFORE YOU SERVICE IT.
TROUBLE SHOOTING
ENGINE WILL NOT START
CAUSE
CAUSE
ACTION
EMPTY PROPANE CANISTER INSTALL FULL CANISTER
CAGE DOOR NOT CLOSED CLOSE THE CAGE DOOR
ENGINE WILL NOT IDLE
ACTION
AIR FILTER IS PLUGGED REPLACE THE AIR FILTER
IMPROPER CARBURETOR ADJUSTMENT
ENGINE WILL NOT ACCELERATE
CAUSE ACTION
ENGINE LACKS POWER OR STALLS WHEN IN USE
CAUSE ACTION
BAD SPARK PLUG
IF FURTHER ASSISTANCE IS REQUIRED, CONTACT LEHR AT 1-866-941-5347
CLEAN OR REPLACE THE AIR FILTER
ADJUST ACCORDING TO THE ‘CARBURETOR
ADJUSTMENTS’ SECTION OR TAKE TO AN
AUTHORIZED SERVICE DEALER FOR AN ADJUSTMENT
REPLACE SPARK PLUG
DIRTY AIR FILTER
VACUUM TUBE NOT PROPERLY INSTALLED INSTALL VACUUM TUBE PROPERLY

SPECIFICATIONS
MODEL BV025HH
ENGINE TYPE AIR COOLED 4-CYCLE
DISPLACEMENT 25.4 CC
OPERATING R.P.M. 6,800-9,300 R.P.M.
IDLE SPEED 3,000-3,400 R.P.M.
IGNITION TYPE ELECTRONIC
IGNITION SWITCH SPRING LOADED ON / OFF SWITCH
VALVE CLEARANCE
SPARK PLUG GAP 0.020 INCH (0.5 mm)
LUBRICATION SAE 10W-40 OIL
CRANKCASE OIL CAPACITY 1.7 FL OZ (50mL)
FUEL PROPANE 16.4 OZ CANISTER
CARBURETOR CHOKE-LESS, ALL POSITION
STARTER AUTO REWIND
MUFFLER BAFFLED WITH GUARD
THROTTLE SAFETY LOCK WITH MANUAL SPRING RETURN
THROTTLE CONTROL FINGER- TIP TRIGGER
MAX. AIR VELOCITY
*ALL SPECIFICATIONS ARE BASED ON THE LATEST PRODUCT INFORMATION AT THE TIME OF PRINTING.
WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.
0.003-0.006 in. (0.076-0.152 mm)
MAX. AIR VOLUME
150 MPH
370 cfm
LEHR | ALL RIGHTS RESERVED 2009-2010 17

MANUFACTURER’S LIMITED WARRANTY
The limited warranty set forth below is given by LEHR with respect to new
merchandise purchased and used in the United States and Canada, its
possessions and territories.
LEHR warrants to the original purchaser that each new LEHR brand power
tool or attachment is free from defects in material and workmanship and
agrees to repair or replace under this warranty any defective power
product or attachment as follows from the original date of purchase.
3 YEARS -- Parts and Labor, on carburetor.
2 YEARS -- Parts and Labor, when used for household purposes.
90 DAYS -- Parts and Labor, when used for commercial, professional, or
income producing purposes.
30 DAYS -- Parts and Labor, if used for rental purposes.
This warranty is not transferable and does not cover damage or liability
caused by improper handling, improper maintenance, or the use
not specically recommended by LEHR for this product. In addition, it does
not cover any product that has been subject to misuse, neglect,
negligence, or accident, or has been operated in any way contrary to the
operating instructions specied in this operator’s manual. Additionally,
this warranty does not cover tune-ups, spark plugs, carburetor
adjustments, lters, starter pulley, or parts that will wear and require
replacement with reasonable use during the warranty period.
This warranty does not cover pre delivery setup or normal adjustments
explained in the instruction manual.
THIS WARRANT GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE. NO CLAIMS FOR
CONSEQUENTIAL OR OTHER DAMAGES WILL BE ALLOWED, AND THERE
ARE NO OTHER EXPRESS WARRANTIES EXCEPT THOSE EXPRESSLY
STIPULATED HEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LAST OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.
LEHR does not extend any warranty for products sold or exported outside
of the United States or Canada, its possessions and territories, except
those sold through LEHR’s authorized channels of export distribution.
The policy of LEHR is to continuously improve its products. Therefore, LEHR
reserves the right to change, modify, or discontinue models, designs,
specications, and accessories of all products at any time without notice
or obligation to any purchaser.
HOW TO OBTAIN SERVICE: Warranty service is available, with proof of
purchase through your local authorized service dealer. To locate the
dealer in your area, visit our website at www.golehr.com or call
1-866-941-LEHR or write to 8922 Ellis Ave. LA, CA 90034.
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board, the Environmental Protection Agency
and LEHR, Inc. are pleased to explain the emissions control system’s
warranty on your 2009 and later small o-road engine. In California and
the 49 states, new equipment that use small o-road engines must be
designed, built, and equipped to meet the State’s stringent anti-smog
standards. LEHR, Inc. must warrant the emissions control system on your
small o-road engine for the period listed below provided there has been
no abuse, neglect or improper maintenance of your equipment. Your
emissions control system may include parts such as: carburetors or fuel
injection system, ignition system, catalytic converters, fuel tanks, valves,
lters, clamps, connectors, and other associated components. Also,
included may be hoses, belts, connectors, sensors, and other emission-
related assemblies. Where a warrantable condition exists, LEHR will repair
your small o-road engine at no cost to you including diagnosis, parts and
labor at an authorized service dealer.
MANUFACTURER’S WARRANTY COVERAGE:
This emissions control system is warranted for two years. If any emissions-
related part on your equipment is defective, the part will be repaired or
replaced by LEHR.
OWNER’S WARRANTY RESPONSIBILITIES:
As the small o-road engine owner, you are responsible for performance
of the required maintenance listed in your owner’s manual. LEHR
recommends that you retain all receipts covering maintenance on your
small o-road engine, but LEHR cannot deny warranty solely for the lack of
receipts or your failure to ensure the performance of all scheduled
maintenance. As the small o-road engine owner, you should be aware
that LEHR may deny you warranty coverage if your small o-road engine
or a part has failed due to abuse, neglect, or improper maintenance or
unapproved modications.
You are responsible for presenting your small o-road engine to a LEHR
service center as soon as the problem exists. The warranty repairs should
be completed in a reasonable amount of time, not to exceed 30 days. If
you have a question regarding your warranty coverage, you should contact
LEHR at 1-866-941-LEHR.
DEFECTS WARRANTY REQUIREMENTS:
(a) The warranty period begins on the date the engine or equipment is
delivered to an ultimate purchaser.
(b) General Emissions Warranty Coverage. The manufacturer of each small
o-road engine or equipment must warrant to the ultimate purchaser
and each subsequent owner that the engine or equipment is:
Designed, built, and equipped so as to conform with all applicable
regulations adopted by the Air Resources Board; and free from defects in
materials and workmanship that causes the failure of a warranted part for
a period of two years.
(c) The warranty on emissions-related parts will be interpreted as follows:
Any warranted part that is not scheduled for replacement as required
maintenance in the written instructions required by Subsection (d) Must
be warranted for the warranty period dened in Subsection (b). If any
such part fails during the period of warranty coverage, it must be repaired
or replaced by the manufacturer according to Subsection (1) below. Any
such part repaired or replaced under the warranty must be warranted for
the remaining warranty period.
Any warranted part that is scheduled only for regular inspection in the
written instructions required by Subsection (d) must be warranted for the
warranty period dened in Subsection (b). A statement in such written
instructions to the eect of “repair or replace as necessary” will not reduce
the period of warranty coverage. Any such part repaired or replaced under
warranty must be warranted for the remaining warranty period.
Any warranted part that is scheduled for replacement as required
maintenance in the written instructions required by Subsection (d) must be
warranted for the period of time prior to the rst scheduled replacement
point for that part. If the part fails prior to the rst scheduled replacement,
the part must be repaired or replaced by the engine manufacturer
according to Subsection (1) below.
Section 1: Any such part repaired or replaced under warranty must be
warranted for the remainder of the period prior to the rst scheduled
replacement point for the part. Repair or replacement of any warranted
part under the warranty must be performed at no charge to the owner at
a warranty station.
Notwithstanding the provisions of Subsection (1) above, warranty services
or repairs must be provided at all manufacturer distribution centers that
are franchised to service the subject engines. The owner must not be
charged for diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such diagnostic work is
performed at a warranty station. The manufacturer is liable for damages to
other engine components proximately caused by a failure under warranty
of any warranted part. Throughout the emissions warranty period dened
in Subsection (b), the manufacturer must maintain a supply of warranted
parts sufcient to meet the expected demand for such parts.
Any replacement part may be used in the performance of any warranty
maintenance or repairs and must be provided without charge to the owner.
Such use will not reduce the warranty obligations of the manufacturer.
Add-on or modied parts that are not exempted by the Air Resources Board
may not be used. The use of any non-exempted add-on or modied parts
will be grounds for disallowing a warranty claim. The manufacturer will not
be liable to warrant failures of warranted parts caused by the use of a non-
exempted add-on or modied part. The manufacturer issuing the warranty
shall provide any documents that describe that manufacturer’s warranty
procedures or policies within ve working days of request by the Air
Resources Board.
(d) Emission Warranty Parts List.
The following components are included in the emission related warranty
of the engine:
Air Filter, Carburetor, Regulator, Fuel Lines & Fittings, Fuel Valve, Ignition Coil,
Spark Plug, Valves, CAM and Mufer.
LEHR will furnish with each new engine written instructions for the
maintenance and use of the engine by the owner.
18 LEHR | ALL RIGHTS RESERVED 2009-2010

NOTES
LEHR | ALL RIGHTS RESERVED 2009-2010 19

NOTES
20 LEHR | ALL RIGHTS RESERVED 2009-2010
