Leica M-ADAPTER L User manual

DAS WESENTLICHE.
Leica Camera AG│Am Leitz-Park 5
35578 WETZLAR│DEUTSCHLAND
Telefon +49(0)6441-2080-0
Telefax +49(0)6441-2080-333
www.leica-camera.com
93533 VI/17/FX/B
M-ADAPTER L
ANLEITUNG | INSTRUCTIONS
NOTICE D’UTILISATION
GEBRUIKSAANWIJZING | ISTRUZIONI
INSTRUCCIONES |
使用說明書
说明书
| 설명서 |
ИНСТРУКЦИЯ
取扱説明書

1
1a
3
2
4
5a
5

Deutsch..........................................................................1-9
English .......................................................................10-17
Français .....................................................................18-25
Nederlands ................................................................26-33
Italiano.......................................................................34-41
Español ......................................................................42-49
繁體中文....................................................................50-57
简体中文....................................................................58-65
한국어........................................................................66-73
Pусский.....................................................................74-81
日本語 ....................................................................... 82-89

2 3
VORWORT
Sehr geehrte Kundin, sehr geehrter Kunde,
Leica möchte sich bei Ihnen für den Erwerb des Leica M-Adapter L
bedanken. Damit Sie alle Möglichkeiten dieses Adapters richtig nutzen
können, empfehlen wir Ihnen, zunächst diese Anleitung zu lesen.
BEZEICHNUNG DER TEILE
1. Objektivbajonett mit
a. Kontaktleiste
2. Roter Indexpunkt zum Ansetzen des Objektivs an den Adapter
3. Roter Indexpunkt zum Ansetzen des Adapters an die Kamera
4. Objektiv-Entriegelungsknopf
5. Leica M-Kamerabajonett mit
a. Sensor für Objektivkennung

2 3
ENTSORGUNG ELEKTRISCHER UND
ELEKTRONISCHER GERÄTE
(Gilt für die EU, sowie andere europäische Länder mit
getrennten Sammelsystemen)
Dieses Gerät enthält elektrische und/oder elektronische Bauteile und
darf daher nicht im normalen Hausmüll entsorgt werden! Stattdessen
muss es zwecks Recycling an entsprechenden, von den Gemeinden
bereitgestellten Sammelstellen abgegeben werden.
Dies ist für Sie kostenlos. Falls das Gerät selbst wechselbare Batterien
oder Akkus enthält, müssen diese vorher entnommen werden und ggf.
ihrerseits vorschriftsmäßig entsorgt werden. Weitere Informationen zum
Thema bekommen Sie bei Ihrer Gemeindeverwaltung, Ihrem Entsorgungs-
unternehmen, oder dem Geschäft, in dem Sie dieses Gerät erworben
haben.

4 5
VERWENDBARE KAMERAS UND OBJEKTIVE
Der Leica M-Adapter L erlaubt die Verwendung von Objektiven mit Leica
M-Bayonett (siehe Liste) am Leica L-Bayonett .
Nicht verwendbar sind alle Leica M-Objektive, deren Aufbau nach hinten
um mehr als 11mm über die Bayonett-Auflagefläche hinausragt.
SUPER-ELMAR-M 3,8/18mm ASPH. (11649)
SUPER-ELMAR-M 3,4/21mm ASPH. (11145)
SUMMILUX-M 1,4/21mm ASPH. (11647)
TRI-ELMAR-M 4/16-18-21mm ASPH. (11626)
TRI-ELMAR-M 4/16-18-21mm (11642)
SUMMILUX-M 1,4/24mm ASPH. (11601)
ELMAR-M 3,8/24mm ASPH. (11648)
SUMMICRON-M 2/28mm ASPH. (11604)
ELMARIT-M 2,8/28mm ASPH. (11606)
SUMMILUX-M 1,4/35mm ASPH. (11663)
SUMMICRON-M 2/35mm ASPH. (11879)
SUMMICRON-M 2/35mm ASPH. argent (11882)
SUMMARIT-M 2,5/35mm (11643)
NOCTILUX-M 0,95/50mm ASPH. (11602)
SUMMILUX-M 1,4/50mm ASPH. (11891)

4 5
SUMMILUX-M 1,4/50mm ASPH. argent (11892)
APO-SUMMICRON-M 2/50mm ASPH. (11141)
SUMMICRON-M 2/50mm (11826)
SUMMARIT-M 2,5/50mm (11644)
APO-SUMMICRON-M 2/75 ASPH. (11637)
SUMMARIT-M 2,5/75mm (11645)
APO-SUMMICRON-M 2/90mm ASPH. (11884)
SUMMARIT-M 2,5/90mm (11646)
MAKRO-ELMAR-M 4/90mm (11629)
APO-TELYT-M 3,4/135mm (11889)
Wichtig:
Die Verwendung von Objektiven mit Leica M-Bajonett anderer Anbieter
geschieht auf eigenen Gefahr, d. h. Leica Camera AG übernimmt keinerlei
Haftung für eventuelle Schäden, die in solchen Fällen an Kamera und
Objektiv entstehen.

6 7
ANSETZEN DES ADAPTERS AN DIE KAMERA /
DES OBJEKTIVS AN DEN ADAPTER
1. Der Adapter wird wie ein Objektiv angesetzt, bzw. abgenommen.
2. Das Leica M-Objektiv wird genauso an den Adapter angesetzt, bzw.
abgenommen, wie es an Leica M-Gehäusen erfolgen würde.Weitere
Einzelheiten entnehmen Sie bitte den jeweiligen Kamera-. bzw.
Objektiv-Anleitungen.
Hinweis:
• Beim Einsatz des Adapters mit dem eingebauten Blitzgerät wird das
AF-Hilfslicht der Kamera nicht aktiviert. Gleiches gilt für Aufsteck-
Blitzgeräte und ihre ggf. vorhandenen Hilfslichter.
FUNKTIONEN
Der Leica M-Adapter L besitzt auf beiden Seiten die Schnittstellen des
jeweiligen Kamera-Systems. Ist das verwendete Leica M-Objektiv mit der
6 Bit-Kodierung ausgestattet, überträgt er Objektivdaten an die Kamera

6 7
A. Scharfeinstellung
Mit Leica M-Objektiven steht ausschließlich die manuelle Scharfeinstel-
lung zur Verfügung.
Hinweis:
Die am Objektiv eingestellten Entfernungen sind bei der Verwendung am
Adapter jeweils geringfügig kürzer als bei der Verwendung direkt an Leica
M-Kameras. So wird z. B. die scharfe Abbildung eines entfernten Motivs
unmittelbar vor dem mechanischen Unendlich-Anschlag des Einstellrings
erreicht. Dies ist technisch bedingt und kein Fehler.
B. Belichtungsmessung
Es stehen alle 3 Messmethoden – Mehrfeld, mittenbetont und Spot - zur
Verfügung.
C. Belichtungs-Betriebsarten
Es stehen ausschließlich Zeitautomatik (A) und die manuelle Steuerung (M)
zur Verfügung, d.h. weder Programmautomatik (P), noch Blendenautomatik
(T), noch die Motiv-Programme. Ist eine dieser Betriebsarten eingeschal-
tet, wechselt die Kamera beim Ansetzen des Adapters automatisch zu
Zeitautomatik. Dementsprechend wechselt im Monitor auch die angezeigte
Betriebsart zu A. Als Blendenwert wird F 0.0 angezeigt.

8 9
TECHNISCHE DATEN
Maße (Ø x H) ca. 61 x 13,3 mm
Gewicht ca. 70g
LEICA INFODIENST
Anwendungstechnische Fragen zu den Leica Produkten, einschließlich
der ggf. mitgelieferten Software beantwortet Ihnen schriftlich, telefo–
nisch, oder per E-Mail der Leica Anwender-Service. Auch für Kaufbera-
tungen und die Bestellung von Anleitungen ist er Ihr Ansprechpartner.
Alternativ können Sie Ihre Fragen ebenso über das Kontaktformular auf
der Leica Camera AG Homepage an uns richten.
Leica Camera AG
Anwender-Service / Software-Support
Am Leitz-Park 5
D-35578 Wetzlar
Tel.: +49 (0) 6441-2080-111 / -108
Fax: +49 (0) 6441-2080-490

8 9
LEICA KUNDENDIENST
Für die Wartung Ihrer Leica Ausrüstung sowie in Schadensfällen steht
Ihnen der Customer Care-Abteilung der Leica Camera AG oder der
Reparatur-Service einer Leica Landesvertretung zur Verfügung
(Adressenliste siehe Garantiekarte).
Leica Camera AG
Customer Care
Am Leitz-Park 5
D-35578 Wetzlar
Tel.: +49 (0) 6441-2080-189
Fax: +49 (0) 6441-2080-339
customer.car[email protected]

10 11
FOREWORD
Dear Customer,
Leica would like to thank you for purchasing the Leica M adapter L. In
order to make best use of all the opportunities offered by this adapter,
we recommend that you first read these instructions.
DESIGNATION OF PARTS
1. Lens bayonet fitting with
a. Contact strip
2. Red index dot for attaching the lens to the adapter
3. Red index dot for attaching the adapter to the camera
4. Lens release button
5. Leica M camera bayonet fitting with
a. Sensor for lens identification

10 11
DISPOSAL OF ELECTRICAL AND ELECTRONIC
EQUIPMENT
(Applies within the EC, and for other European countries with
segregated waste collection systems)
This device contains electrical and/or electronic components and should
therefore not be disposed of in general household waste. Instead it
should be disposed of at a recycling collection point provided by the local
authority. This costs you nothing. If the device itself contains replaceable
(rechargeable) batteries, these must be removed first and, if necessary,
also be disposed of in line with the relevant regulations. Further
information on this issue is available from your local authority, your local
waste disposal company, or in the store where you purchased this
device.
The production date of your product can be found on the stickers in the
warranty card or on the packaging.
The notation is: Year(XXXX).Month(XX).Day(XX).

12 13
COMPATIBLE CAMERAS AND LENSES
The Leica M adapter L allows you to use lenses with a Leica M bayonet
fitting (see list) on the Leica L bayonet.
Leica M lenses whose construction protrudes backwards by more than
11mm over the bayonet contact area cannot be used.
SUPER-ELMAR-M 18mm f/3.8 ASPH. (11649)
SUPER-ELMAR-M 21mm f/3.4 ASPH. (11145)
SUMMILUX-M 21mm f/1.4 ASPH. (11647)
TRI-ELMAR-M 16-18-21mm f/4 ASPH. (11626)
TRI-ELMAR-M 16-18-21mm f/4 (11642)
SUMMILUX-M 24mm f/1.4 ASPH. (11601)
ELMARM 24mm f/3.8 ASPH. (11648)
SUMMICRON-M 28mm f/2 ASPH. (11604)
ELMARIT-M 28mm f/2.8 ASPH. (11606)
SUMMILUX-M 35mm f/1.4 ASPH. (11663)
SUMMICRON-M 35mm f/2 ASPH. (11879)
SUMMICRON-M 35mm f/2 ASPH., silver (11882)
SUMMARIT-M 35mm f/2.5 (11643)
NOCTILUX-M 50mm f/0.95 ASPH. (11602)
SUMMILUX-M 50mm f/1.4 ASPH. (11891)

12 13
SUMMILUX-M 50mm f/1.4 ASPH., silver (11892)
APO-Summicron-M 50mm f/2 ASPH. (11141)
SUMMICRON-M 50mm f/2 (11826)
SUMMARIT-M 50mm f/2.5 (11644)
APO-SUMMICRON-M 75mm f/2 ASPH. (11637)
SUMMARIT-M 75mm f/2.5 (11645)
APO-SUMMICRON-M 90mm f/2 ASPH. (11884)
SUMMARIT-M 90mm f/2.5 (11646)
MACRO-ELMAR-M90mm f/4 (11629)
APO-TELYT-M 135mm f/3.4 (11889)
Important:
The use of lenses with a Leica M bayonet fitting from other suppliers is at
the owner's risk, i.e. Leica Camera AG accepts no liability for any damage
caused to the camera and the lens as a result.

14 15
ATTACHING THE ADAPTER TO THE CAMERA /
THE LENS TO THE ADAPTER
1. The adapter is attached to and detached from the camera in the
same way as a lens.
2. The Leica M lens is attached to and detached from the adapter in
the same way as it would be to the body of the Leica M. For further
details, refer to the relevant camera and lens manuals.
Follow the instructions in reverse to detach.
Note:
• When using the adapter with the built-in flash unit, the AF auxiliary
light on the camera is not activated. The same applies to the auxiliary
lights on external flash units.
FUNCTIONS
The Leica M adapter L has interfaces on both sides for the relevant
camera system. If the Leica M lens used has 6-bit coding, it transmits
lens data to the camera.

14 15
A. Focusing
Only manual focusing is available with Leica M lenses.
Note:
The distances set on the lens are slightly shorter when using the adapter
than when used directly on Leica M cameras. For example, sharp
depiction of a distant subject is achieved immediately before the
mechanical infinity stop on the adjusting dial. This is for technical
reasons and it not a fault.
B. Exposure metering
All three metering methods - multiple field, center weighted and spot
- are available.
C. Exposure modes
Only aperture priority (A) and manual control (M) are available, i.e.
automatic program (P), shutter speed priority (T), and the subject
programs are not available. If one of these modes is selected, the camera
automatically switches to aperture priority mode when the adapter is
attached. The mode displayed in the monitor also changes to A. F 0.0 is
displayed as the aperture value.

16 17
TECHNICAL DATA
Dimensions (Ø x H) Approx. 61 x 13.3mm
Weight Approx. 70g
LEICA INFORMATION SERVICE
The Leica Information Service can provide you with an answer to any
technical questions relating to Leica products, including software
supplied, either in writing, on the telephone or by e-mail. They are also
the contact point for purchasing advice and to order instruction manuals.
Alternatively, you can send us your questions using the contact form on
the Leica Camera AG homepage.
Leica Camera AG
Customer Service / Software support
Am Leitz-Park 5
D-35578 Wetzlar
Tel.: +49 (0) 6441-2080-111 / -108
Fax: +49 (0) 6441-2080-490

16 17
LEICA CUSTOMER SERVICE
For servicing your Leica equipment or in the event of damage, the Leica
Camera AG Customer Care department or the repair service provided by
authorized Leica agents in your country are available (see the warranty
card for a list of addresses).
Leica Camera AG
Customer Care
Am Leitz-Park 5
D-35578 Wetzlar
Tel.: +49 (0) 6441-2080-189
Fax: +49 (0) 6441-2080-339
customer.car[email protected]

18 19
AVANT-PROPOS
Chère cliente, cher client,
Leica aimerait vous remercier d'avoir acheté l'adaptateur L de Leica M.
Pour profiter pleinement de toutes les capacités de cet adaptateur, nous
vous conseillons de lire d'abord ce mode d'emploi.
DESCRIPTION DES PIÈCES
1. Baïonnette de l'objectif avec
a. Réglette de contacts
2. Point d'index rouge pour le montage de l'objectif sur l'adaptateur
3. Point d'index rouge pour le montage de l'adaptateur sur l'appareil
4. Bouton de déverrouillage de l'objectif
5. Baïonnette de l'appareil Leica M avec
a. Capteur d'identification d'objectif
Other manuals for M-ADAPTER L
1
Table of contents
Languages:
Popular Adapter manuals by other brands

Flomec

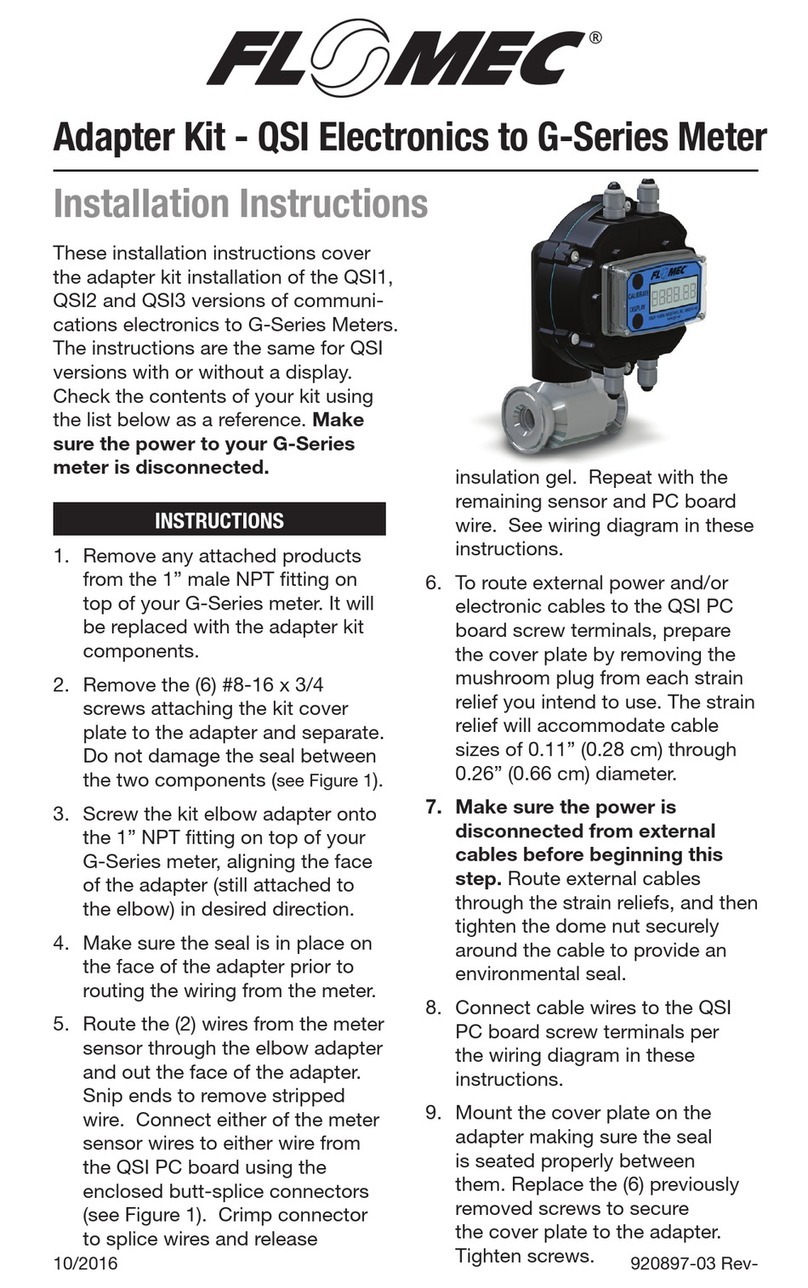

Flomec QSI Series installation instructions

Glogic Simplify
Glogic Simplify SANblade 4000 Series user guide

Pepperl+Fuchs
Pepperl+Fuchs WirelessHART Adapter quick start guide

TRENDnet
TRENDnet TEW-806UBH Quick installation guide

Insignia
Insignia NS-TADPT1 Quick setup guide

Tektronix
Tektronix Keithley 237-TRX-BAR manual
