Unity MotorhomeContents
1-2
Table of Contents
Introduction .................................5
Owner’s Manuals...........................5
Information Kit .............................5
Options and Equipment......................5
Vehicle Certication Labels ....................6
Reference Number Codes: ...................6
Service Assistance..........................9
Reporting Safety Defects.....................9
Coach Specications ........................9
Safety......................................11
General Safety............................11
Alarms ..................................12
Combination Carbon Monoxide/Smoke Alarm ...13
Smoke Alarm .............................13
Fire Prevention ...........................14
Fire Safety Tips ...........................14
Fire Extinguisher ..........................14
Emergency Escape ........................15
Vehicle Operation............................16
Vehicle Preparation . . . . . . . . . . . . . . . . . . . . . . . .16
Keys ....................................16
Vehicle Loading and Weights ................16
Towing ..................................17
Auxiliary Vehicle Towing ....................17
Pre-Trip Inspection ........................18
Emergency Equipment Checklist .............19
Final Checks .............................19
Maximum Occupancy ......................19
Seat / Shoulder Belts.......................20
Driver / Passenger Seat Controls .............21
Travelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Driving Characteristics......................23
Driving Safety Tips.........................23
Travel Tips ...............................24
Severe Weather Information . . . . . . . . . . . . . . . . .24
Emergencies While Driving ..................25
Hazard Warning Lights .....................25
Flat Tire .................................25
When the Vehicle is Disabled ................26
Overheating ..............................26
Parking..................................27
Stabilizers ...............................28
Prolonged Occupancy ......................28
Levelling the Motorhome ....................28
Refuelling................................29
Door Locks...............................30
Step Override Switch.......................30
Porch Light Switch.........................30
Exterior Lights Switch ......................30
Interior Overhead Light / Dimmer Switch .......30
Steps Cover ..............................31
Slide Out Room ...........................31
Slide Out Room Emergency Operation.........33
Awning ..................................34
Appliance and Equipment Operation ...........36
Refrigerator ..............................36
Stove Top ................................37
Microwave/Convection Oven.................37
LP Gas Furnace...........................38
Roof Air Conditioner with Heat Pump Cooling ...39
Heat Pump...............................39
Coach Power Roof Vent ....................40
Shower Cubicle Roof Vent...................41
Side Window Vents ........................41
TV .....................................42
TV Utility Panel ...........................43
Cable TV Connection ......................43
External Satellite TV Connection..............43
TV Antenna ..............................43
Radio Switch .............................44
HDMI Connection .........................44
Video Switch Box..........................44
Murphy Bed ..............................45
Murphy Bed Manual Lift Procedure............47
Seating / Sleeping .........................48

Unity Motorhome Contents
1-3
Electrical System Operation...................50
Electrical Supply ..........................50
System Monitor ...........................51
Power Converter 120 Volt AC to 12 DC Volt .....51
120 Volt AC System........................52
120 Volt AC Circuit Breakers .................52
12 Volt DC Coach Fuses ....................52
12 Volt DC Chassis Fuses...................52
Ground Fault Circuit Interrupter (GFCI).........53
Auxiliary LP Gas Generator (Optional) .........53
Auxiliary Diesel Generator (Optional) ..........54
Generator Safety ..........................55
Automatic Power Transfer Switch .............55
12 Volt DC system .........................56
Chassis Battery ...........................56
Coach Batteries 12 Volt DC..................56
Coach Battery Condition Meter ...............56
Battery Maintenance .......................56
Inverter..................................58
Inverter Remote Control Panel ...............58
Lighting Maintenance ......................59
Water / Plumbing System .....................61
Electrical Supply ..........................61
Fresh Water System .......................61
External Water Supply ......................61
Fresh Water Tank Filling ....................62
Water Pump Switch ........................63
Water Pump ..............................63
Fresh Water Tank and Water System Drain .....63
Water Pump Troubleshooting ................64
Water Filter ..............................64
Disinfection of Water Tank ...................65
Waste Systems ...........................65
Grey Water - Waste Holding Tank .............65
Black Water - Waste Holding Tank ............65
Dumping Holding Tanks.....................65
Black Water Waste Tank Rinse ...............66
Macerator................................67
Do’s and Don‘ts - Holding Tanks ..............67
Using On-Site Sewer Hook-Ups ..............67
Water Heater .............................68
Water Heater Bypass Valve..................69
Water Fixtures ............................69
Fresh Water Toilet .........................69
Liquid Propane Gas System...................72
LP Valve Gas Control (Utility Center) ..........72
Safe Use Of LP Gas .......................72
Selecting Fuel Types .......................72
How LP Gas Works ........................73
LP Gas Tank System .......................73
Air in the LP Gas Tank ......................74
Travelling with LP Gas......................74
LP Gas Tank Regulator . . . . . . . . . . . . . . . . . . . . .75
LP Gas Leaks ............................75
Avoiding Asphyxiation ......................76
Motorhome Maintenance .....................77
Exterior Care and Maintenance...............77
Interior Care..............................78
Storage and Winterization ....................80
Storage Checklist..........................80
Cold Temperature Storage ..................80
De-Winterizing the Water Systems ............83
Spring Startup ............................83
Cold Temperature Operation .................83
Chassis .................................83
LP Gas..................................83
Waste System ............................83
Maintenance and Service ...................84
2013 NEW VEHICLE LIMITED WARRANTY.......86

Unity Motorhome Introduction
1-5
Introduction
Congratulations on your choice of a Leisure Travel Vans Motorhome for your travelling and touring comfort and
enjoyment. Your Motorhome utilizes the latest design features and manufacturing techniques in order to enhance
safe, efcient, and trouble-free operation at all times.
Owner’s Manuals
This owner’s manual covers the operation and limitation of the systems and controls unique to your Motorhome.
All operator’s/occupants should read, understand, and follow all instructions in this manual, the chassis manual.
Your Motorhome is complex and incorporates components, equipment and appliances manufactured by companies
unrelated to Triple E Canada Ltd. Important operating and maintenance manuals for these specic components,
equipment and appliances are located in the information kit supplied with the Motorhome, see below for details.
A few minutes spent reading the appropriate manual will pay rich dividends in providing safe, efcient, and trouble-
free operation. Keep all manuals with the information kit in the Motorhome for ready reference. Pass this manual and
information kit on to any subsequent operator or operator.
For clarication or further details on any of the enclose information, please contact:
Your Leisure Travel Vans Dealer
or
Triple E RV Customer Service at:
Email: [e-mail]
Toll Free: 877-992-9906
Telephone: [phone]
Fax: [phone]
Information Kit
The information kit includes information on the following components, equipment and appliances listed below.
Refrigerator
Stove top
Furnace
Electrical Panel
Toilet
Water Heater
Water Pump
Vent (roof)
Fire Extinguisher
Smoke Detector
Thermostat
CO Detector
Propane Detector
Gas Regulator
TV Antenna
TV/DVD
Chassis
Air Conditioner
Generator
Stabilizers
Rearview Monitor
Inverter
Entertainment System
Safety
Flooring and Countertops
Electric Step
Water Filtration
Options and Equipment
Triple E Recreational Vehicles are available in various sizes and oor plan congurations and differing optional
equipment. The equipment, accessories and components described in this manual may not apply in all respects to
your motor. Read the material and manuals provided in the Information Kit for detailed instructions the equipment
specic to your Motorhome.

Unity MotorhomeIntroduction
1-6
Vehicle Certication Labels
The vehicle certication labels contain vehicle identication and other important reference information. Never remove
or destroy these labels. The labels are located on the driver & passenger door frames. See location details on the
following page.
Reference Number Codes:
Manufacture/Conversion Date:1.
The date on which the coach portion of your Motorhome was built.
Gross Vehicle Weight Rating (GVWR):2.
The maximum permissible weight of this fully loaded Motorhome.
Sleeping Capacity Weight Rating (SCWR):3.
The manufacturer’s designated number of sleeping positions multiplied by 154 lbs (70 Kgs).
Occupant and Cargo Carrying Capacity (OCCC):4.
The value equal to the GVWR minus UVW and LP. In other words, OCCC is how much weight in occupants, cargo,
water and trailer tongue weight that can be added to the Motorhome without exceeding the GVWR.
Designated Sleeping Capacity:5.
The manufacturer’s designated number of sleeping positions multiplied by 154 lbs (70 Kgs).
Gross Axle Weight Rating (GAWR):6.
The value specied as the load carrying capacity of a single axle system, as measured at the tire-ground
interface.
Tire Specication:7.
Recommended tires specication to meet handling, loading and safety requirements.
Replacement tires must meet these specications.
Cold Tire Ination Pressure:8.
Ination pressures recommended (while cold) for the tires originally installed on your Motorhome.
These tire pressure levels must be maintained to ensure proper handling, safety and fuel economy.
Cargo Carrying Capacity (CCC) (Canada):9.
Equal to GVWR minus each of the following: UVW, full fresh (potable) water weight (including water heater), full
LP-Gas weight and SCWR.
Unloaded Vehicle Weight (UVW):10.
The weight of this Motorhome as manufactured at the factory with full fuel, engine oil and coolants.
Mass of Waste Water Tanks:11.
Total weight of the black and grey water tanks when lled to capacity.
Vehicle Identication Number (VIN):12.
This number Identies the chassis on which the Motorhome is built.
Type:13.
States the National Highway Trafc Safety Association (NHTSA) designated usage classication for your
Motorhome. MPV signies a Multi-purpose vehicle.

Unity Motorhome Introduction
1-7

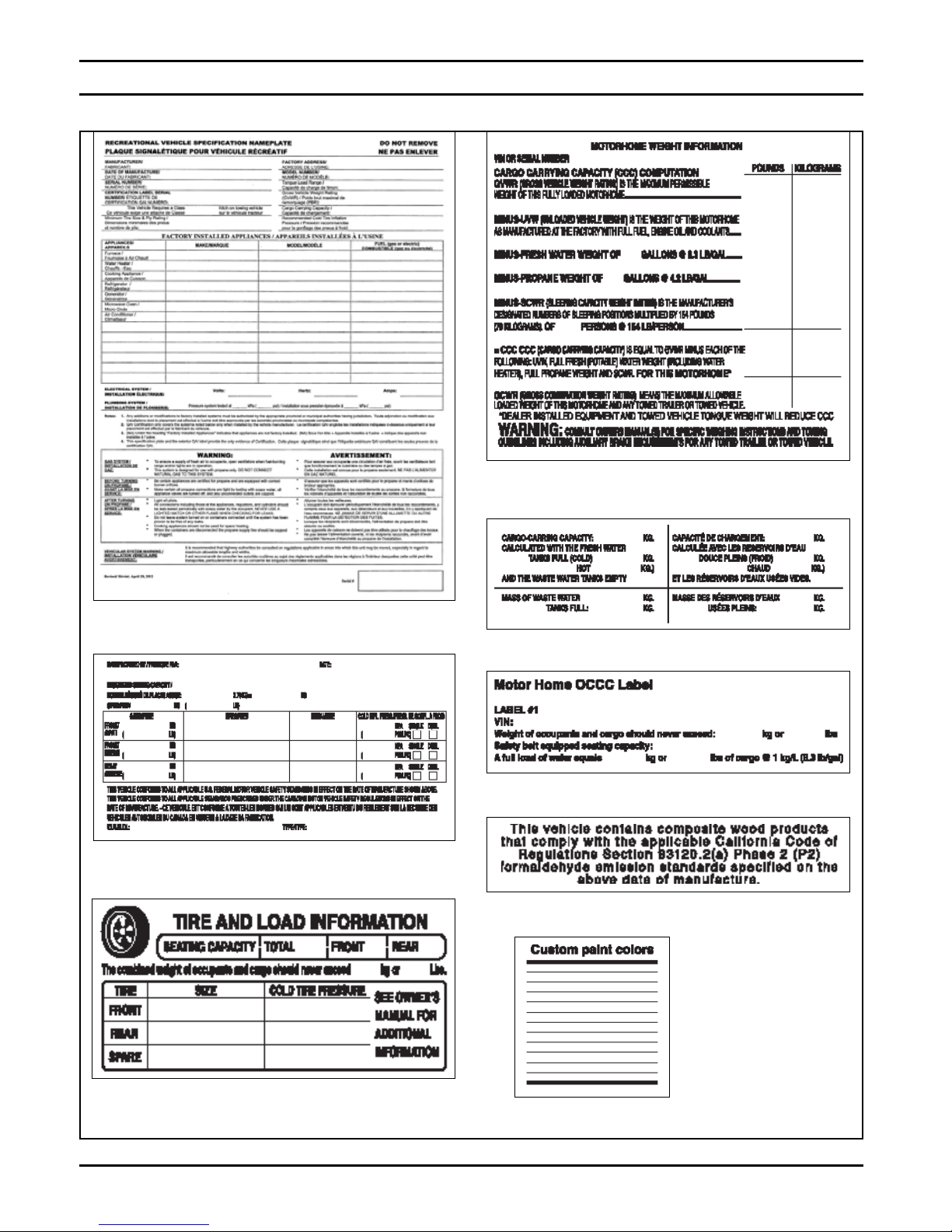

Certication Label Samples
Located in Wardrobe
Located in wardrobe closet (all models)
Located in wardrobe closet (all models)
Located on drivers door frame (all models)
Located on drivers door frame (US models only)
Located on passenger door frame (US models only)
Located on drivers door frame (Canada models only)
Located in the back of owners manual and on passenger
door frame (US models only)

Unity MotorhomeIntroduction
1-8
Curbside
Roadside
Front Rear
Air ConditionerSlide Out Room
Diesel Fill
Refrigerator Vents Side CamerasFurnace ExhaustStorage Compartment
120 V Shore Power Connection Water Heater Utility Center
Rear
Camera
Diesel Exhaust
Fluid (DEF)
Located under hood -
passenger side

Unity Motorhome Introduction
1-9
Service Assistance
Your dealer will be glad to provide any additional information you need and to answer any questions you may have
about the operation of your Motorhome. When it comes time for service, remember that your dealer knows your
Motorhome best and is dedicated to your satisfaction. Your dealer will provide quality maintenance and assistance
during the period of your ownership. It is advisable that you follow a regular maintenance schedule to keep your
Motorhome functioning at its best.
Should you require warranty assistance while travelling, call:
Triple E RV: 1-877-992-9906
Canada Sprinter Customer Service: 1-800-387-0100 www.thesprinter.ca
US Sprinter Customer Service: 1-877-762-8267 www.mbsprinterusa.com
Reporting Safety Defects
If you believe that your Motorhome has a safety defect of any kind that could cause injury, or death, contact Leisure
Travel Vans immediately. Also, contact the National Highway Trafc Safety Administration (NHTSA) in the US, or
Transport Canada to report your concern.
NHTSA will investigate the concern should there be a number of similar complaints. They have the authority to order
a recall and repair campaign depending on the nature and severity of the problem.
NHTSA may be reached by using the Auto Safety Hotline at 1-800-424-9393 (366-0123 in the Washington, DC area)
or by writing to: NHTSA, US Department of Transportation, Washington, DC 20590. The Hotline will also provide you
with additional information on motor vehicle safety.
In Canada, call 1-613-993-9851 or write to: Transport Canada and Road Safety, 2780 Shefeld Road, Ottawa, Ontario
K1B 3V9.
Coach Specications
Chassis Sprinter
Engine - MBE 3.0L V6 Diesel
Transmision - Mercedes 5 speed Auto
w/Autostick
U24MB U24CB U24IB U24TB
GVWR - lbs (kg) 11030 (5003) 11030 (5003) 11030 (5003) 11030 (5003)
Wheelbase - in (mm) 170.3” (4326) 170.3” (4326) 170.3” (4326) 170.3” (4326)
Length Not incl spare - ft (mm) 24’7” (7493) 24’7” (7493) 24’7” (7493) 24’7” (7493)
Width - ft (mm) 7’8.5” (2351) 7’8.5” (2351) 7’8.5” (2351) 7’8.5” (2351)
Height Incl A/C - ft (mm) 10’5.5” (3188) 10’5.5” (3188) 10’5.5” (3188) 10’5.5” (3188)
*Fresh Water Capacity - gal (L) 30 (114) 36 (137) 36 (137) 36 (137)
Black Water Holding Capacity - gal (L) 29 (110) 29 (110) 29 (110) 29 (110)
Grey Holding Tank Capacity - gal (L) 37 (140) 37 (140) 37 (140) 37 (140)
Fuel Capacity - gal (L) 26.4 (100) 26.4 (100) 26.4 (100) 26.4 (100)
Propane Capacity - gal (L) 13.2 (50) 13.2 (50) 13.2 (50) 13.2 (50)
Exterior Storage Capacity 38 cu. ft. 40 cu. ft. 70 cu. ft. 62 cu. ft.
*Includes 6 gal water heater. All Capacities in US Gallons

Unity MotorhomeIntroduction
1-10

Unity Motorhome Safety
1-11
Safety
Safety, comfort and ease of operation are key considerations during the design and manufacture of all Triple E
Motorhomes.
It is the responsibility of the owner or operator to read, understand, and follow all instructions in this manual, the
chassis manual and any appliance/equipment system manuals located in the information kit and from safety signs on
the Motorhome. Specic items, procedures or instructions are identied with the key words Important, Caution and
Warning emphasizing areas of special concern. These key words are dened as:
Caution
The safety symbol used in conjunction with the Caution and Warning symbols, identies an area that involves
the personal safety of the operator, passengers or a bystander. Always read, understand and follow the instructions
and information in the safety sign or manual instruction. Do not take chances with safety. Most accidents can be
prevented.
In this section we have compiled a series of items relating to safety that everyone should follow. Although this compilation
is thorough, we realize that it does not cover all situations. Each person who operates or occupies the Motorhome or
any of its components, devices or subassemblies should be familiarized with this manual and the information kit. Each
operator or occupant has the responsibility of following all listed safety items covered in this and other manuals.
General Safety
The most important safety feature on this Motorhome is a safe and knowledgeable operator. It is the operator’s ●
responsibility to read, understand and follow all safety and operating instructions in the vehicle, chassis, appliance
and system manuals. Most accidents can be prevented.
An operator who has not read and understood all operating and safety instructions is not qualied to operate this ●
Motorhome.
An untrained or uninformed operator or occupant exposes themselves, passengers and other drivers/vehicles/●
property to possible serious injury or death and property damage.
Do not modify the Motorhome in any way. Unauthorized modication may impair the function and/or safety and ●
could affect the life of the Motorhome .
All approved driver and passenger seats are equipped with seatbelts. When occupied while driving, each must be ●
locked in the forward facing direction. Each passenger must occupy only the approved seats and fasten seatbelts
when the Motorhome is moving. Do not allow any passengers in the Motorhome unless they have their seatbelt
attached while in an approved seat. When the Motorhome is moving, no one should be using the sleeping, cooking,
bathroom or living areas. Seats installed by the manufacturer with seatbelts are approved seats.
Always fasten the seatbelt low on the torso and keep it snug to transmit the force from the belt into the hip/pelvic ●
area of the body. Pregnant women should wear a lap/shoulder belt whenever possible. Wear the belt snug and low
throughout the pregnancy.
Establish a monthly re extinguisher inspection program to keep the extinguisher in good condition and fully ●
charged. Inspect the extinguisher prior to each time the Motorhome is operated or occupied.
Warning
Important is used to highlight or emphasize a specic
procedure, information or result for a system or the
Motorhome.
Caution is used to highlight or emphasize a specic
procedure or information that if not followed can involve
your personal safety as well as cause Motorhome
damage.
Warning is used to highlight or emphasize a specic
procedure or information that if not followed can involve
your personal safety as well as cause Motorhome
damage.
IMPORTANT

Unity MotorhomeSafety
1-12
Alarms
All models are equipped with an LP gas and combined
carbon monoxide/smoke alarm as standard safety
equipment.
IMPORTANT
Recurring alarm(s) indicate the slow accumulation
of LP gas, carbon monoxide, smoke, or low battery
levels. Have an authorized service center check the
system and identify the source. Correct the problem
before resuming use of the unit. Keep all alarms in
good working order.
For detailed information, refer to alarm manual(s)
provided in the information kit.
LP Gas Alarm
The LP gas monitor (1) is mounted on the lower
cabinets.
The LP gas monitor sounds whenever there is an unsafe amount of LP gas in the Motorhome.
Follow instructions on safety sign next to stove and air out vehicle to silence the alarm.1.
Have a qualied service person nd the leak and correct the problem before using the 2. Motorhome again.
Refer to “Liquid Propane Gas System” section in this manual and LP Gas Alarm owners manual located in the 3.
information kit for further details.
If you smell gas:
Extinguish any open ames, pilot lights and all smoking materials.1.
Do not touch electrical switches.2.
Shut off the LP tank valve.3.
Open doors, windows and roof vent after making sure the roof vent fan is “OFF”.4.
Leave the area until odor is gone.5.
Have the system checked for leaks and make the necessary corrections and repairs.6.
NOTE: The label on the glass stove top cover SHOULD NOT be removed.
1
Warning

Unity Motorhome Safety
1-13
Combination Carbon Monoxide/Smoke Alarm
The combination carbon monoxide/smoke alarm (1) is
mounted on the ceiling.
Carbon Monoxide Alarm
2
1
Check alarm on a regular basis. Check when removing 2.
from storage, before trips and weekly thereafter.
Depress the button (2) to test alarm electronics. Test
alarm sensor by blowing smoke (from safe, re-free
source) past sensor. If alarm does not sound when
testing, determine source of problem and correct or
replace alarm.
Do not remove battery to silence alarm. When alarm 3.
“beeps” every minute, battery is weak and must be
replaced. Do not allow battery to go dead. Be sure
to replace with recommended battery. Replace the
battery at least annually and test after battery is
replaced. To replace battery, remove cover, exposing
compartment. Remove and replace battery.
Make certain wires are properly connected. Position 4.
and close cover.
Clean and vacuum opening on smoke alarm once a 5.
month.
Do not try to repair alarm. Replace it.6.
Smoke alarms are not perfect and do not respond in 7.
all situations. The best safeguard is re prevention.
Warning
Carbon Monoxide gas is an odorless and colorless gas
that is lethal to people.
Do not breathe any exhaust, heating, or cooking fumes
to prevent asphyxiation.
The carbon monoxide alarm sounds whenever there
is an unsafe amount of carbon monoxide gas in the
Motorhome.
Open doors, vents and windows to air out 1. Motorhome
and silence the alarm.
Have a qualied service technician check all burners. 2.
Clean, repair or replace any defective burners.
Remove all fuel or wood burning devices from inside3.
the Motorhome.
Have a qualied service technician check all engine 4.
exhaust system components. Repair or replace any
defective components.
Position the5. Motorhome so the wind blows exhaust
fumes away from the Motorhome.
Smoke Alarm
The smoke alarm sounds whenever there is an unsafe
amount of smoke in the Motorhome. Always use the roof
vent when cooking.
Open doors, vents and windows to air out vehicle 1.
and silence the alarm. Correct and eliminate smoke
source.

Unity MotorhomeSafety
1-14
Fire Prevention
Fires can be started in a variety of ways including but not limited to careless smoking, malfunction of appliances
or equipment, ammable material on hot surfaces, etc. Fires are best prevented rather than put out. Prevent but
anticipate what to do if they occur. Review the following sections with everyone on a regular basis.
Fire Safety Tips
Establish and maintain good housekeeping practices. Never allow combustible materials to accumulate.1.
Make sure you store ammable liquids in approved containers in a well-ventilated space.
Make sure you have charged re extinguishers readily accessible.2.
Avoid using ammable products in the Motorhome.3.
Never smoke in bed or when relaxing on the couch.4.
Do not overload electrical outlets.5.
Do not leave cooking food unattended.6.
Keep children away from electrical outlets and LP gas controls.7.
Never use a naked ame to check for LP gas leaks. If there is a re, get everyone out of the Motorhome. If possible, 8.
use your re extinguisher. If possible close all LP gas valves. Call the re department and stay a safe distance away
from the Motorhome. Do not re-enter the Motorhome until the re ofcials declare that it’s safe to do so.
Fire Extinguisher
The re extinguisher is located in the coach entrance.
Operation
Stay a safe distance from the re and near an exit. 1.
The chemical from the re extinguisher will shoot at
least 10 feet. Stay close to the oor to avoid heat and
fumes.
Pull the pin; grasp the re extinguisher rmly, holding it 2.
in an upright position.
Push the lever down. Aim at the base of the re, 3.
spraying the entire base area. DO NOT spray at the
smoke or ames.
After the re is out, watch for “ashback”.4.
Discharge the re extinguisher entirely and get it 5.
recharged or replaced immediately. For detailed
information, refer to the re extinguisher manual
provided in the information kit.
Function
Fire extinguishers are designed to put out a re in 1.
its initial stages. Once a re is out of control and you
cannot get within 10 feet (3 m), it is probably too big to
ght with your extinguisher.
Do not discharge your re extinguisher to test it. Once 2.
it is discharged even for a few seconds it will lose
pressure and become useless.
Check the pressure indicator on your re extinguisher 3.
periodically. If it loses pressure, the dry chemical
cannot be discharged effectively.
IMPORTANT
If the pointer on the gauge (1) does not indicate in the
green, replace the extinguisher immediately. Record
the inspection date on the tag provided.
1

Unity Motorhome Safety
1-15
Emergency Escape
Use the side entry doors or rear emergency window exit
as emergency escape routes. Escape routes are easily
identied by the exit decals.
To open the rear emergency window exit, pull the two
handles (1) up and push the window out.
1

Unity MotorhomeVehicle Operation
1-16
Vehicle Operation
Vehicle Preparation
Before you even begin to consider taking an extended trip, get to know your Motorhome, its components, features,
appliances and limitations. Take some time to read and study this manual and understand the operation of all
components.
Preparation is the key to an enjoyable and successful trip. Your Motorhome really gives you the freedom to do what
you want, where you want, and when. The time you spend getting to know your Motorhome will go a long way in
making you totally satised with your purchase.
Keys
It is a good idea to keep a record of all key code numbers and keep them in a safe place - not in your Motorhome.
Key codes on the Unity/Sprinter models can only be obtained through your local authorized Sprinter dealer.
Vehicle Loading and Weights
The components of your vehicle are designed to provide satisfactory service if the Motorhome is not over-loaded in
excess of either the gross vehicle weight rating (GVWR) or the maximum front and rear gross axle weight ratings
(GAWR’s). These ratings are listed on the Canada and U.S. Department of Transport decal located on the driver door
post.
The (GVWR) Gross Vehicle Weight Rating is the maximum permissible weight of the fully loaded Motorhome.
The (UVW) Unloaded Vehicle Weight is the weight of this Motorhome as manufactured at the factory with full fuel,
engine oil and coolants.
The (CCC) (Canada) Cargo Carrying Capacity is the weight equal to GVWR minus UVW, full fresh (potable) water
weight (including water heater), full LP-Gas weight and SCWR.
The (OCCC) Occupant and Cargo Carrying Capacity is equal to the GVWR minus UVW and LP. In other words, OCCC
is how much weight in occupants, cargo, water and trailer tongue weight that can be added to the Motorhome without
exceeding the GVWR.
The (GVWR) Gross Combination Weight Rating means the maximum allowable loaded weight of this Motorhome and
any towed trailer or towed vehicle.
The (GAWR) Gross Axle Weight Rating is the value specied as the load carrying capacity of a single axle system, as
measured at the tire-ground interface.
To check that your Motorhome is properly loaded, drive the fully loaded vehicle to a scale and weigh as follows:
Drive only the front wheels onto the scale to obtain the front gross axle weight.1.
Next, place the entire vehicle (both axles) onto the scale to obtain the gross vehicle weight.2.
Drive forward till only the rear wheels are on the scale and obtain the rear gross axle weight.3.
To obtain corner weight for your Motorhome drive each tire individually onto the scale and record the weight.4.
Compare the gross vehicle weight with the GVWR on the sticker. If the gross vehicle weight exceeds the GVWR on
the sticker, check the front and rear gross axle weights against the front and rear GAWR’s on the sticker. If either axle
weight exceeds the GAWR for that axle, redistribute the load to ensure that loads on front and rear axles are within
the required limit.
Heavier items should be loaded as centrally and as low as possible. Lighter items may be stored in cabinets, closets
and drawers. Luggage or similar cargo inside your Motorhome should be secured to prevent it from causing damage
or injury.

Unity Motorhome Vehicle Operation
1-17
Total vehicle load should NOT exceed the respective maximum GVWR/GAWR/GCWR of the chassis.
Caution
For safe towing and vehicle handling, maintain proper Motorhome and trailer weight distribution. The total weight of
the Motorhome and the towed vehicle or trailer must not exceed the GCVW rating as stated on the vehicle certication
label.
Warning
Towing
Towing a trailer can affect the handling, durability, performance and economy of your Motorhome. The factory installed
certied class 3 towing hitch is rated for:
A. 500 lb (227 kg) - maximum hitch or tongue weight B. 5000 lb (2270 kg) - maximum trailer weight.
The combined weight of the Motorhome and any towed vehicle must not exceed the Gross Combined Weight Rating
(GCWR). Also, the combined weight of the Motorhome and any towed vehicle must not exceed the Motorhome’s
Gross Vehicle Weight Rating (GVWR) or its rear Gross Axle Weight Rating (GAWR) as listed on the vehicle certication
label.
(GCWR) = 15,250 lb (6917 kg)
To be sure of the correct balance in weight, you should take your loaded Motorhome to a weighscale to determine
actual weight distribution. After you have done this once, you will have a better idea on how to load in the future.
Remember, your Motorhome will handle differently with a trailer in tow. Stopping distances will be longer. Make sure
your trailer is equipped and connected to your Motorhome with the proper brake system. When descending a steep or
long grade, reduce speed and shift to a lower gear to control speed. Avoid prolonged or frequent application of brakes
to prevent overheating and possible failure of the braking system. (See chassis manual for further information.)
Auxiliary Vehicle Towing
If you are planning to tow another vehicle or a trailer with your Motorhome, your dealer will provide you with the
necessary information and advice.

Unity MotorhomeVehicle Operation
1-18
Pre-Trip Inspection
Ensure the Motorhome and all of its components, devices, systems and subsystems are serviced and ready for 1.
travel.
Inspect wheel lugs for tightness. Examine tires for road damage and wear. Ensure that all tires are inated to proper 2.
pressure.
Check All Fluids:3.
Engine / Crankcase Oil●
Power Steering Fluid●
Radiator Recovery System●
Reservoir Level●
Battery Electrolyte Level●
Windshield Washer Reservoir●
Transmission Fluid●
Check oil level in generator power plant (if installed). Refer to generator instruction and maintenance manual located 4.
in the information kit for details on pre-use requirements.
Consult the chassis manual for a recommended list of pre-trip checks.5.
Verify that all lights are in working order.6.
Check the engine compartment for wildlife. Wildlife and pets like the warmth of the engine compartment and can 7.
become entangled in the moving engine components.
Sanitize and ll the fresh water tank if required. Turn off the water pump, unless water is needed. The water pump 8.
should also be turned off when leaving the unit for any length of time. (See “System Monitor” in “Electrical System”
section for details.)
Start the refrigerator a day ahead of time so it will be cold for your trip.9.
Fill the LP gas tank to a max of 80% capacity. Be careful not to overll the LP gas tank. An overlled LP gas tank will 10.
cause the gas regulator to fail, and may result in problems with LP gas components. Turn off the LP gas valve control
located in the utility center. Make sure all LP gas controls are turned off (furnace, stove top, refrigerator). Check for LP
gas leaks regularly using soapy water.
Check that sewer connections are properly stored and all external compartments and ller openings are closed and/11.
or locked.
Check the roof vent to ensure it closes and opens.12.
Be sure all doors are closed, latched, travel locks in place, and all loose objects secured including cabinet and 13.
refrigerator contents.
Deodorize the waste holding tank. (See details in “Black Water - Waste Holding Tank” in “Water / Plumbing” 14.
Section).
Check that all blocks and chocks are removed and/or stowed.15.
Check that there are no obstructions in the Motorhome pathway before moving. Be sure there is proper clearance 16.
between adjacent and overhead objects to prevent contact.
Disconnect and stow the shoreline power cord. (See details in this section).17.
Lock exterior compartment doors.18.
Check that the re extinguisher is in good condition and fully charged. (See details in Safety section).19.
All appliances must be turned off during refuelling of any Motorhome fuel tanks, propane or LP gas tanks. Do not
smoke when refuelling.
Warning

Unity Motorhome Vehicle Operation
1-19
All occupants must be in seats equipped with lap or shoulder harness seatbelts and the seatbelt fastened when the
Motorhome is in motion. Small children should always be placed in a certied child restraint system and secured with
a seatbelt.
Warning
Emergency Equipment Checklist
Use this list as a guide to identify the minimum amount of emergency or safety equipment. Take extra provisions as
appropriate for your travel or personal needs.
First Aid Kit1.
Emergency Flares2.
Toolbox and Tools3.
Plastic Bucket4.
Tow Rope or Chain5.
Wheel Blocks or Jacks6.
Water Hose7.
Electrical Cord Extension (100-150 ft/minimum 3 wire/50 amp)8.
Fire Extinguisher9.
Spare Tire10.
Final Checks
Check that TV antenna is retracted, stowed and secure.1.
Secure all objects in vehicle. Tie, latch or lock all loose objects as appropriate. Unsecured objects can become 2.
dangerous projectiles in a sudden maneuver or accident.
Securely close and lock all doors to minimize the chance of a door coming open in an accident.3.
Adjust the rearview mirrors to provide the best rearward visibility.4.
Set the driver’s seat to provide the desired leg to pedal spacing for your personal comfort.5.
Fasten seatbelts low on the torso and be sure they are snug. All passengers should be in a seat that is equipped with 6.
a seatbelt. All pregnant riders should be in a seat equipped with a shoulder strap for maximum safety.
Small children should always be strapped into a carseat facing rearward.7.
Do not carry any passengers unless they are in a seat equipped with a seatbelt and the belt is fastened.8.
Maximum Occupancy
The belted seating positions in your Motorhome may be different than the stated sleeping capacity. In the US this is
referred to as the Occupant and Cargo Carrying Capacity (OCCC) or the Cargo Carrying Capacity (CCC) in Canada.
Triple E RV uses belted seating positions to determine the OCCC or CCC. You may use all the belted seating positions
available in your Motorhome provided you stay within the GVWR listed on your vehicle certication Label.

Unity MotorhomeVehicle Operation
1-20
Lap / Shoulder Belts
The driver and passenger seats are equipped with a
combination lap and shoulder belt (1) for maximum
restraint.
Lap Belts
The dinette is equipped with lap belts (2). Never allow
occupants to travel in a seat that is not equipped with a
lap or shoulder belt.
Seat / Shoulder Belts
Every occupant must be seated in an approved seat with the belt fastened whenever the Motorhome is in motion.
Accident statistics prove the importance of using seatbelts. Vehicle occupants not seated in an approved seat and
restrained with a seatbelt are likely to suffer more injuries of a more serious nature than those properly restrained.
IMPORTANT
All seatbelts retractors are equipped with locks that engage when the belt extends too fast. Move the spade
end of the seatbelt slowly and steadily across your body when fastening to prevent the lock from engaging. If
the belt locks while extending, release the tension and allow it to retract fully. Then pull out again to fasten.
Pregnancy
Pregnant women should wear their lap belts low on their torso and should straps diagonally across their chest. Do not
position the strap against the neck. Wearing a seat or shoulder/lap belt properly will protect both the mother and the
unborn child.
Child Restraints
Child restraint systems are legally required in many jurisdictions in North America. Statistics prove that children not
secured under a certied and appropriate child restraint system experience more severe and more frequent injuries
than those properly restrained. National Highway Trafc Safety Administration, and any equivalent Canadian, rules
requiring anchors and tethers for child restraint systems mandated in passenger vehicles and SUVs do not apply
to your Motorhome. Accordingly, your Motorhome does not employ, and is not equipped with, any anchor or tether
restraint system for use in connection with child restraint seats. In evaluating and providing the safest conditions for
your young passengers, you must take into account the following considerations:
You must familiarize yourself with the laws and regulations of all states and provinces in which you will use the 1.
Motorhome which govern transport of children and the use and/or anchoring of child restraint systems and seats in
the Motorhome.
Your Motorhome, in accordance with applicable law, is not manufactured with any anchor or tether system on any of 2.
its forward facing seats.
Placing a child or child restraint system in a rear-facing or side- facing seat is not safe under any circumstances.3.
1
2
