Leisure Cockmaster CS90F530 User manual

Dual Fuel Range Cooker
Cockmaster
(§ 90530

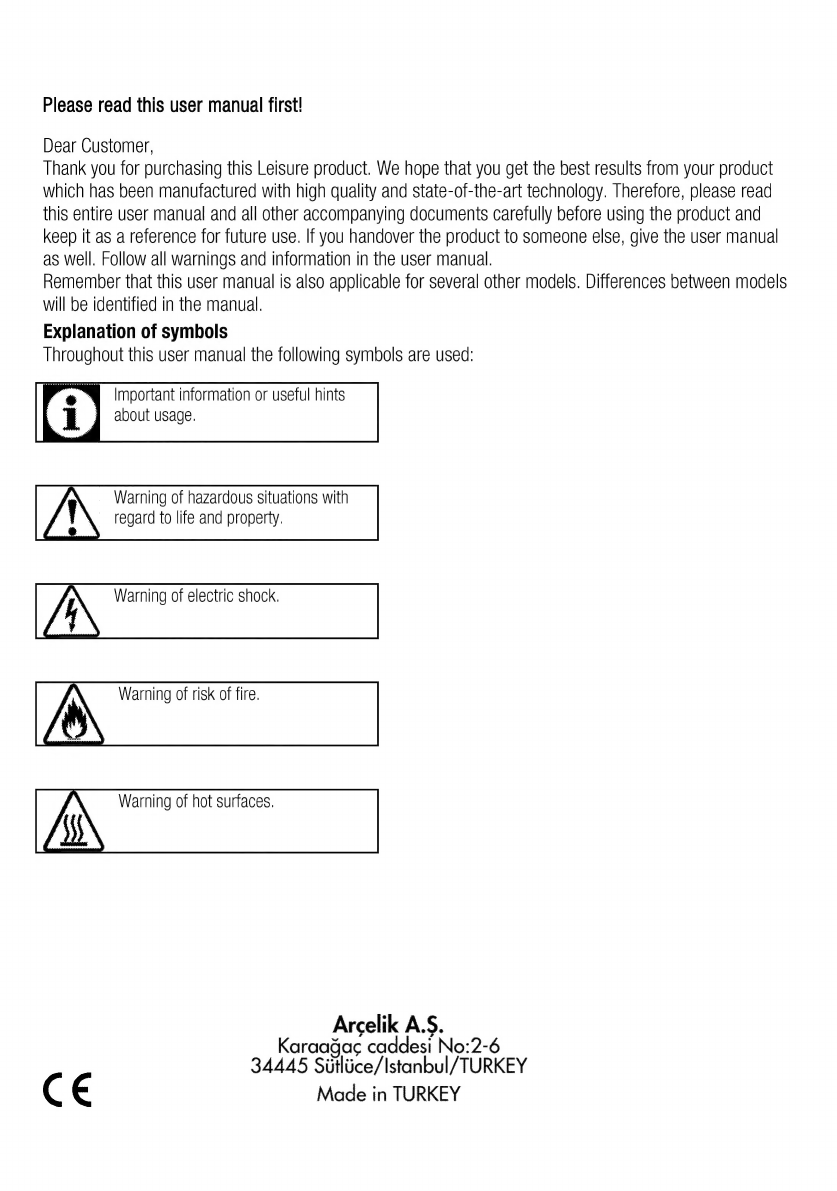

Please read this user manual first!
Dear Customer,
Thank you for purchasing this Leisure product. We hope that you get the best results from your product
which has been manufactured with high quality and state-of-the-art technology. Therefore, please read
this entire user manual and all other accompanying documents carefully before using the product and
keep it as a reference for future use. If you handover the product to someone else, give the user manual
as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences between models
will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
-Warning of hazardous situations with
regard to life and property.
A Warning of electric shock.
Warning of risk of fire.
A Warning of hot surfaces.
Arcelik A.S.
Karaağaç caddesi No:2-6
34445 Sitliice/Istanbul/TURKEY
CE Made in TURKEY

1 Important instructions and warnings
for safety and environment 4
General Sally Aas turutvarts n 4
Safety when working with gaS... 4
Electrical safety... 5
PROGUCE safely 2et uence toc Dac bhatt tcates art tthe he hats 6
mended Usare 7
Safety for CHIE IVs aiia isc siaenseneteees cers ee tncmare 8
Disposing of the old product s. 8
Package information... 8
2 General information 9
OVENI E W eran a a o 9
Technical specifications... 10

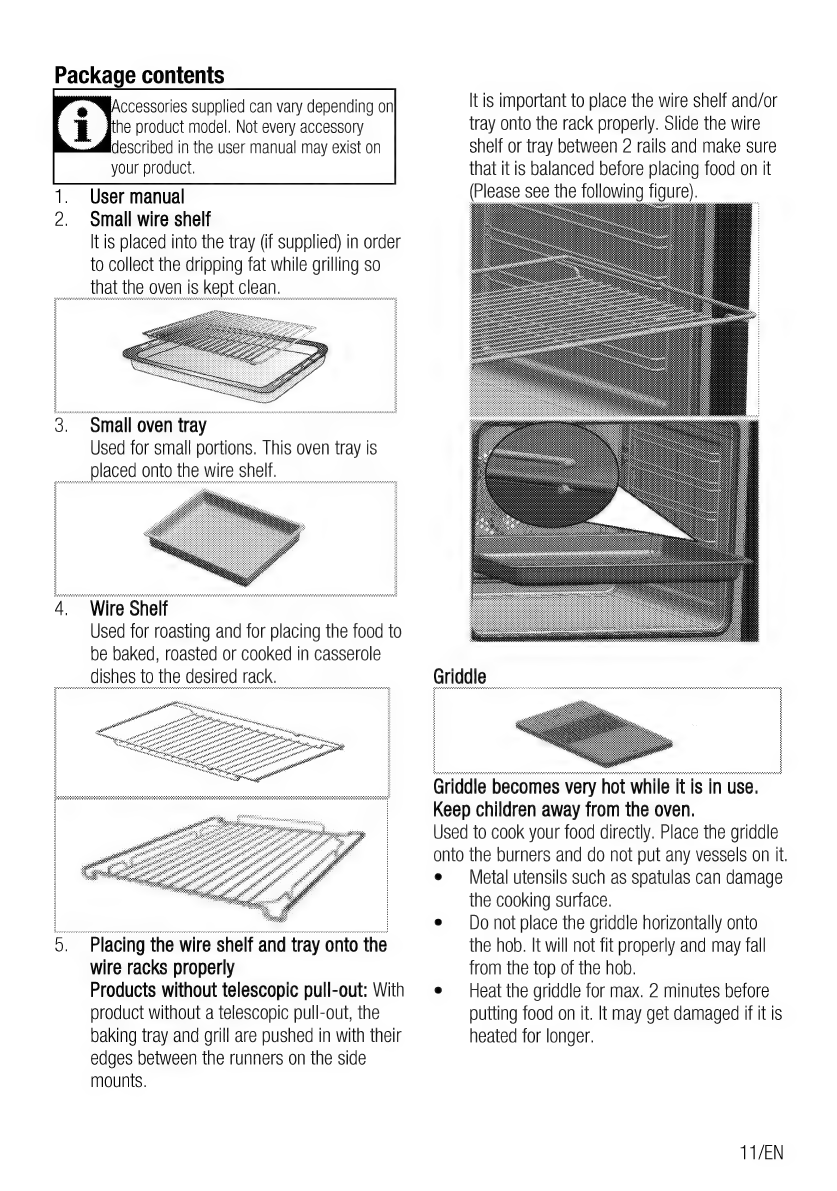

Package contents... 11
Mecon TaD E nsaan A 12
Installation 13

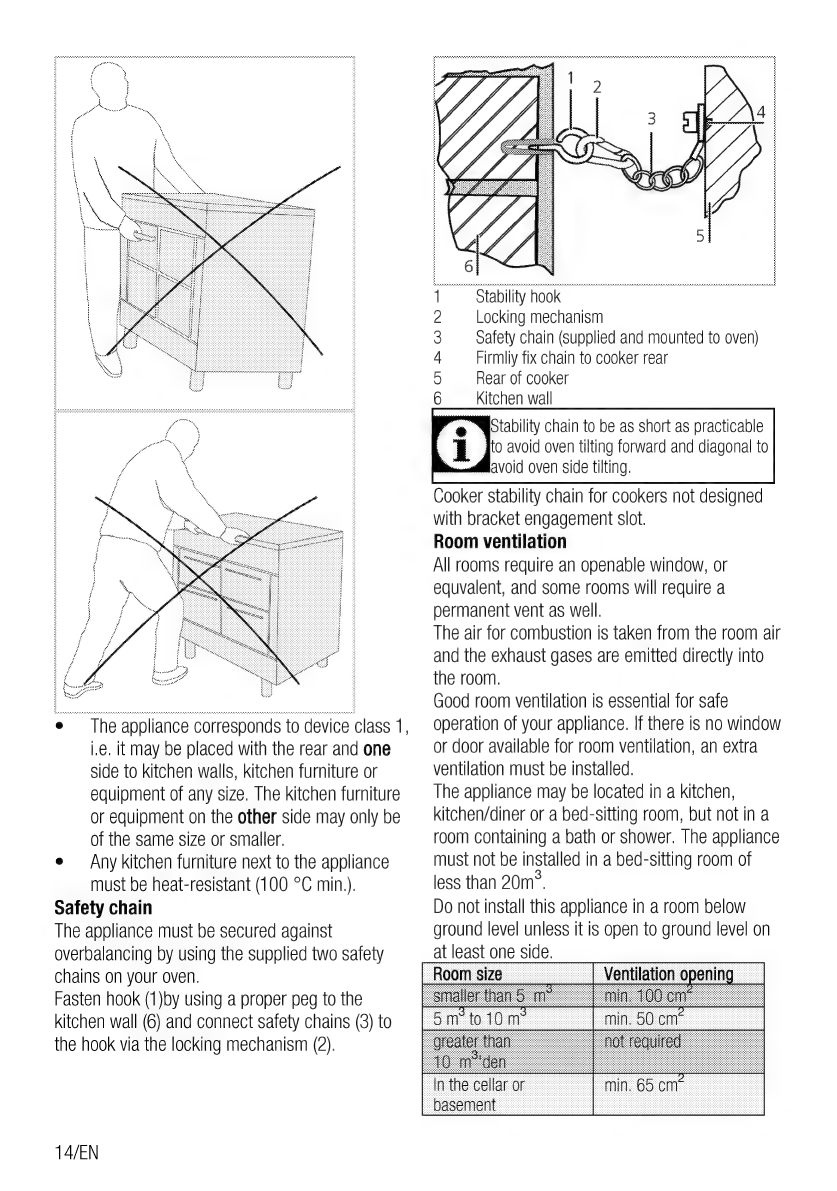

Before installation ......n 13

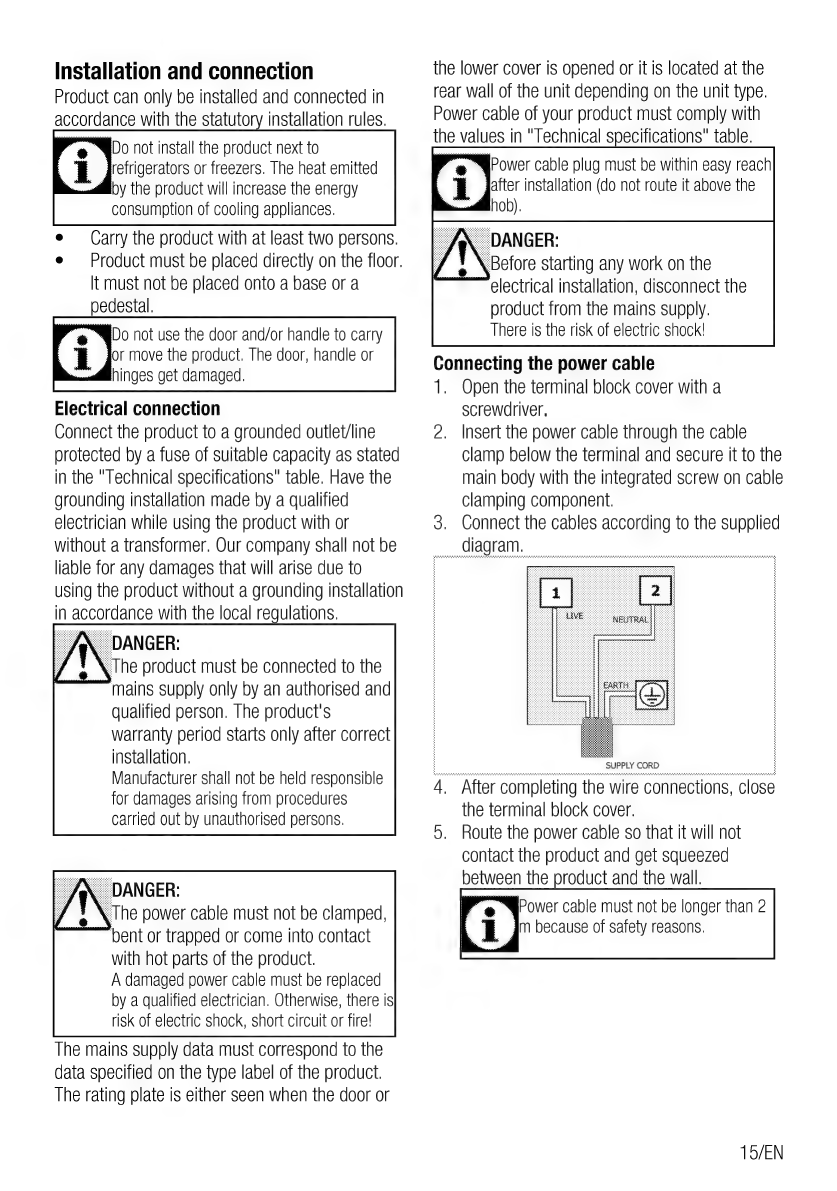

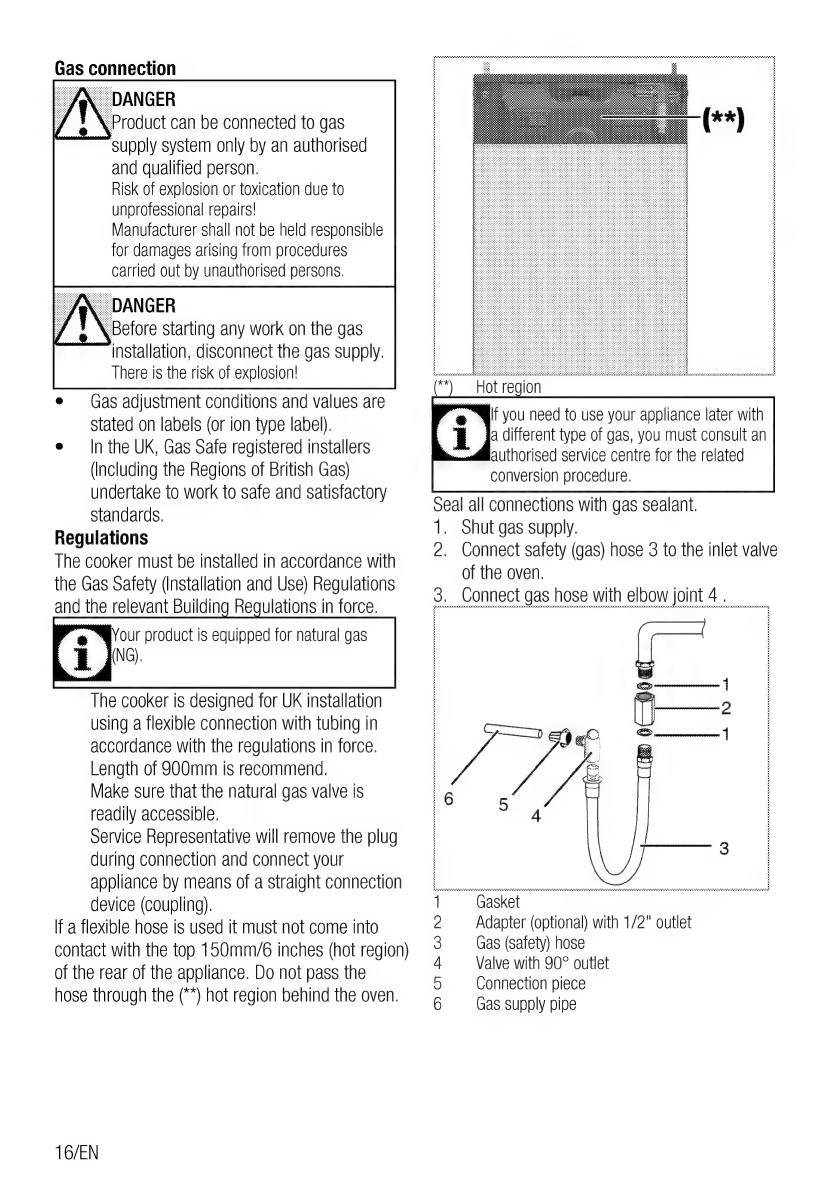

Installation and connection scasc 15

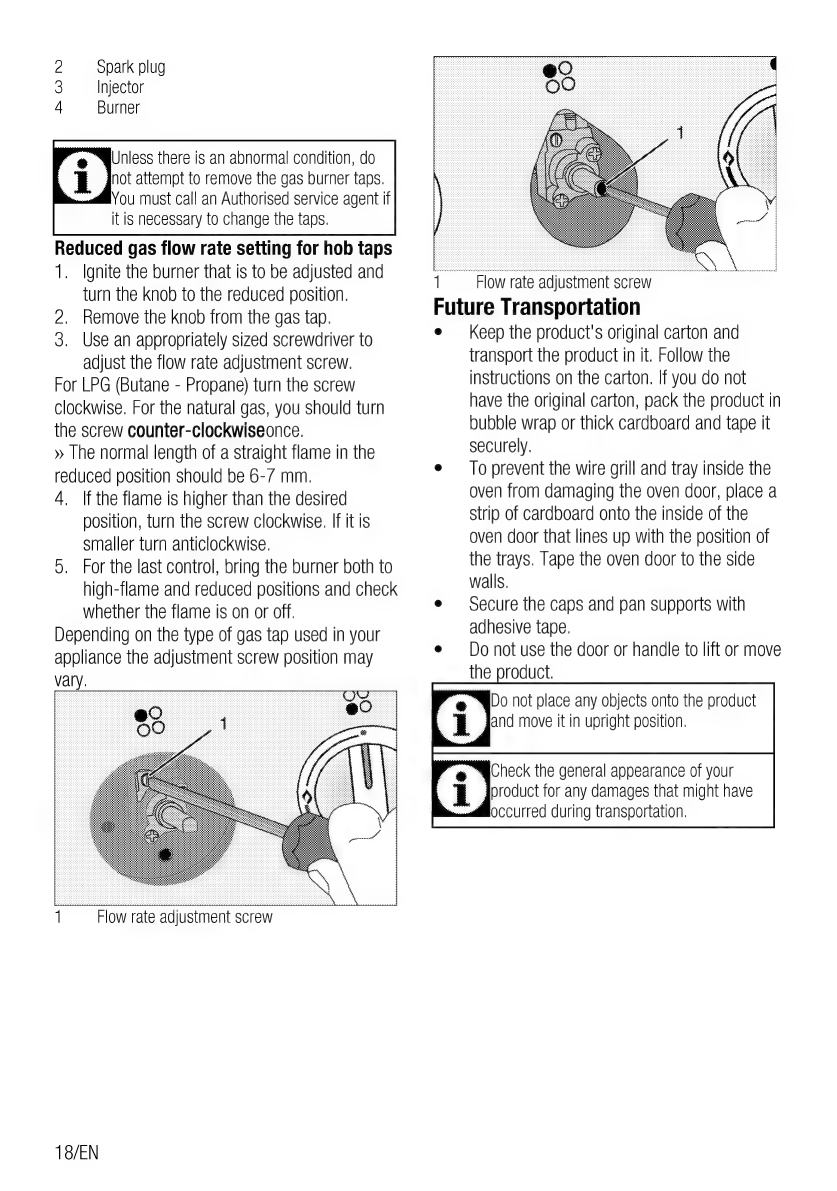

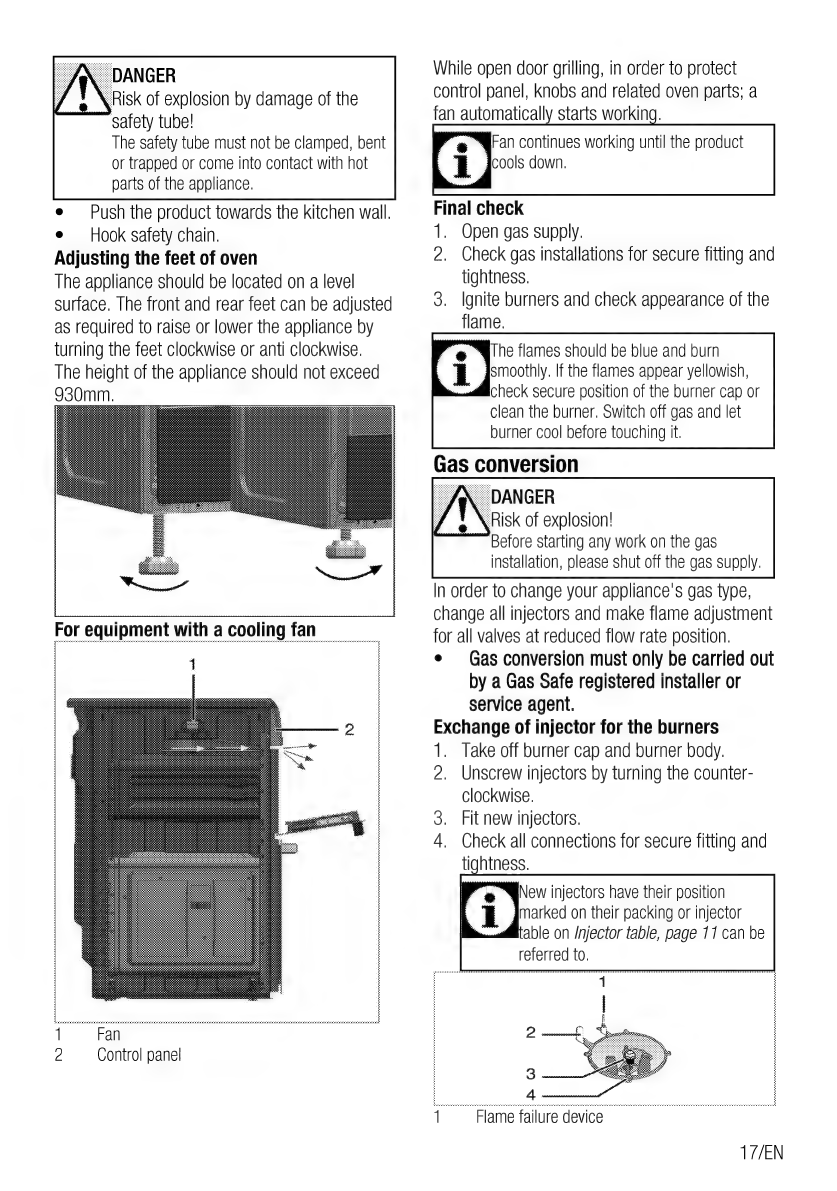

Gas CONVErSİON sy exiiciivecevrseteacsataanasaind estas tuan tate 17
Future Transportation i.n 18
Preparation 19
Tips for saving energy „s.n 19
WIVES aana 19
NNE SEUN eaa 19
First cleaning of the appliance... 20
MIAME GUNG Sid were E E E 20
How to use the hob 21
General information about cooking ............... 21
WISIN AC HONS aan 21
How to operate the oven 23
General information on baking, roasting and
O aE ace 23
How to operate the main electric oven (LHS) . 23
Using the oven CloCK..sirerririrrrsrrerrrnn 24
USing ME KEY IOGK noiera 20
Using the clock as an alarm ccr 20
Cooking times table for LHS -main oven ....... 26
How to operate the top OVEN wo... cece 2T
Cooking times table... 2/
How to operate the top grill... eee 29
Top oven cooking times table for grilling ....... 29
How to operate the RHS OVEN... 30
Cooking times table for RHS Oven... 31
Maintenance and care 32
General information sieners 32
Gleanna Ne Micscarananeniosennni 32
Cleaning the control panel rn 32
Cleaning the oven/grill cavities 0.0.0... 32
Removing the drop down oven doors............ 33
Removing the door inner glass... 30
Replacing the oven lamp... 34
Troubleshootin 35
GUARANTEE and SERVICE 36
3/EN

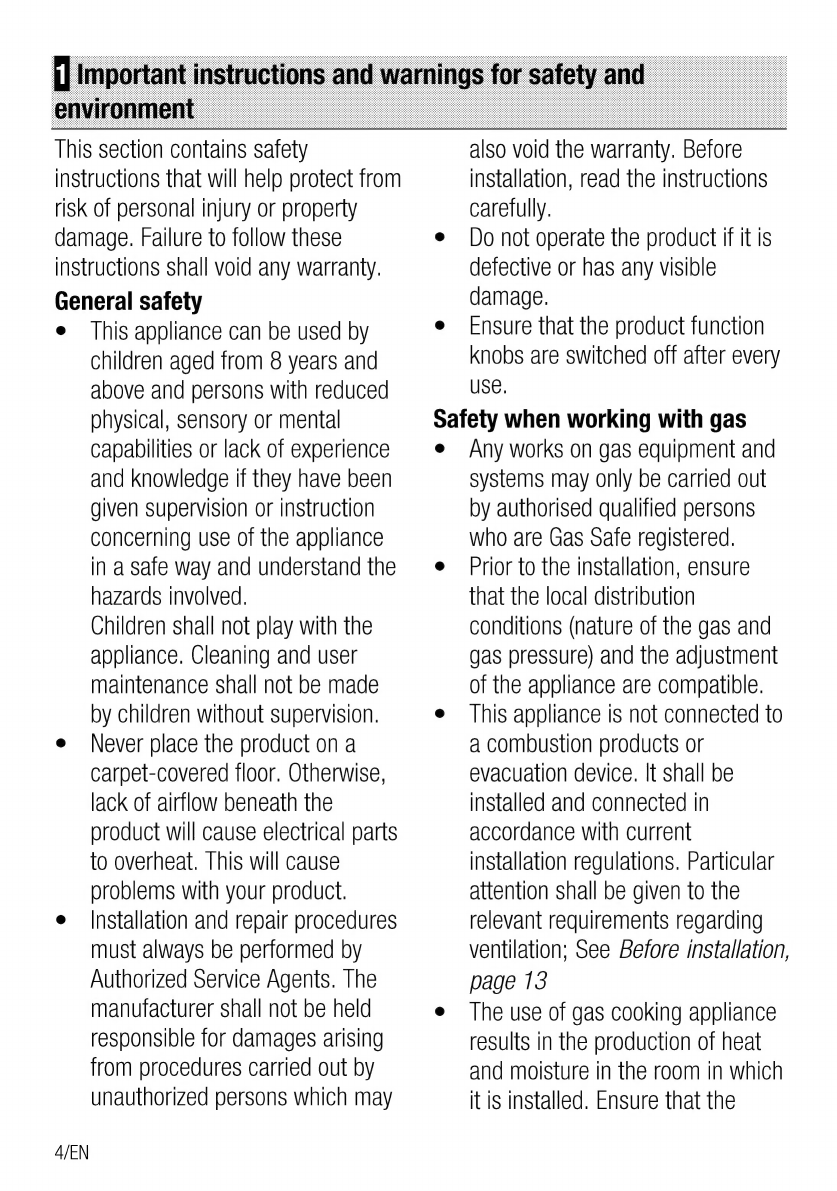

This section contains safety
instructions that will helo protect from
risk of personal injury or property
damage. Failure to follow these
instructions shall void any warranty.
General safety
e [his appliance can be used by
children aged from 8 years and
above and persons with reduced
ohysical, sensory or mental
Capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a Safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
e Never place the product ona
carpet-covered floor. Otherwise,
lack of airflow beneath the
product will cause electrical parts
to overheat. This will cause
problems with your product.
e \nstallation and repair procedures
must always be performed by
Authorized Service Agents. The
manufacturer shall not be held
responsible for damages arising
from procedures carried out by
unauthorized persons which may
A/EN
also void the warranty. Before
installation, read the instructions
carefully.
Do not operate the product if it is
defective or has any visible
damage.
Ensure that the product function
knobs are switched off after every
USE.
Safety when working with gas
Any works on gas equipment and
systems may only be carried out
by authorised qualified persons
who are Gas Safe registered.
Prior to the installation, ensure
that the local distribution
conditions (nature of the gas and
gas pressure) and the adjustment
of the appliance are compatible.
This appliance is not connected to
a combustion products or
evacuation device. It shall be
installed and connected in
accordance with current
installation regulations. Particular
attention shall be given to the
relevant requirements regarding
ventilation; See Before installation,
page 13
The use of gas cooking appliance
results in the production of heat
and moisture in the room in which
it is installed. Ensure that the

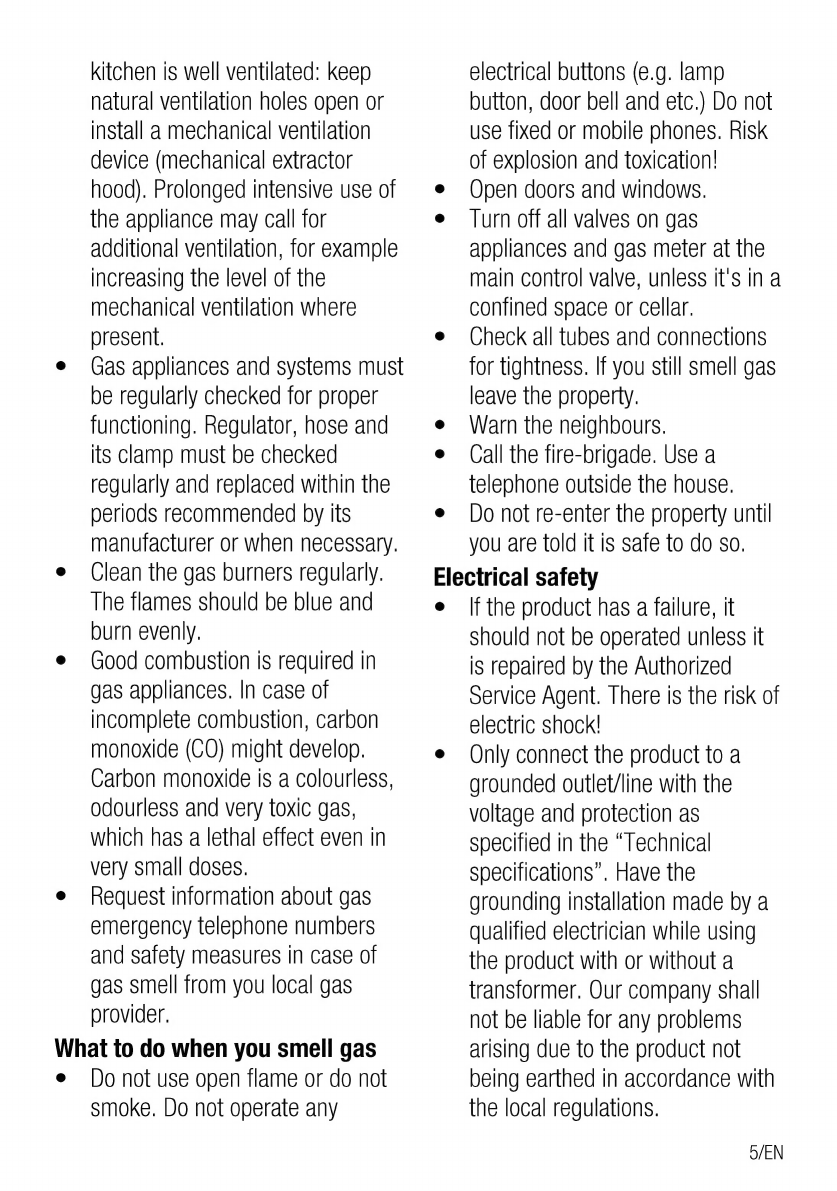

kitchen is well ventilated: keep
natural ventilation holes open or
install a mechanical ventilation
device (mechanical extractor
hood). Prolonged intensive use of
the appliance may call for
additional ventilation, for example
increasing the level of the
mechanical ventilation where
present.
Gas appliances and systems must
be regularly checked for proper
functioning. Regulator, hose and
its clamp must be checked
regularly and replaced within the
periods recommended by its
manufacturer or when necessary.
Clean the gas burners regularly.
The flames should be blue and
burn evenly.
Good combustion is required in
gas appliances. In case of
incomplete combustion, carbon
monoxide (CO) might develop.
Carbon monoxide is a colourless,
odourless and very toxic gas,
which has a lethal effect even in
very small doses.
Request information about gas
emergency telephone numbers
and safety measures in case of
gas smell from you local gas
provider.
What to do when you smell gas
Do not use open flame or do not
smoke. Do not operate any
electrical buttons (e.g. lamp
button, door bell and etc.) Do not
use fixed or mobile phones. Risk
of explosion and toxication!
Open doors and windows.
Turn off all valves on gas
appliances and gas meter at the
main control valve, unless it's in a
confined space or cellar.
Check all tubes and connections
for tightness. If you still smell gas
leave the property.
Warn the neighbours.
Call the fire-brigade. Use a
telephone outside the house.
Do not re-enter the property until
you are told it is safe to do so.
Electrical safety
lf the product has a failure, it
should not be operated unless it
is repaired by the Authorized
service Agent. There is the risk of
electric shock!
Only connect the product to a
grounded outlet/line with the
voltage and protection as
specified in the “Technical
specifications”. Have the
grounding installation made by a
qualified electrician while using
the product with or without a
transformer. Our company shall
not be liable for any problems
arising due to the product not
being earthed in accordance with
the local regulations.
5/EN

6/EN
Never wash the product by
spreading or pouring water onto it!
There is the risk of electric shock!
The product must be
disconnected during installation,
maintenance, cleaning and
repairing procedures.
lf the power connection cable for
the product is damaged, it must
be replaced by the manufacturer,
its service agent or similarly
qualified persons in order to avoid
a hazard.
The appliance must be installed
so that it can be completely
disconnected from the mains
supply. The separation must be
provided by a switch built into the
fixed electrical installation,
according to construction
regulations.
Rear surface of the oven gets hot
when it is in use. Make sure that
the gas/electrical connection does
not contact the rear surface;
otherwise, connections can get
damaged.
Do not trap the mains cable
between the oven door and frame
and do not route it over hot
surfaces. Otherwise, cable
insulation may melt and cause
fire as a result of short circuit.
Any work on electrical equipment
and systems should only be
carried out by authorized and
qualified persons.
In case of any damage, switch off
the product and disconnect it
from the mains. To do this, turn
off appropriate switch in the
consumer unit in your home.
Make sure that fuse rating is
compatible with the product.
Product safety
The appliance and Its accessible
parts become hot during use.
Care should be taken to avoid
touching heating elements.
Children less than 8 years of age
shall be kept away unless
continuously supervised.
Never use the product when your
judgment or coordination is
impaired by the use of alcohol
and/or drugs.
Be careful when using alcoholic
drinks in your dishes. Alcohol
evaporates at high temperatures
and may cause fire since it can
ignite when it comes into contact
with hot surfaces.
Do not place any flammable
materials close to the product as
the sides may become hot during
use.
During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.

Keep all ventilation slots clear of
obstructions.
Do not heat closed tins and glass
jars in the oven. The pressure
that would build-up in the tin/jar
may cause it to burst.
Do not place baking trays, dishes
or aluminium foil directly onto the
bottom of the oven. The heat
accumulation might damage the
bottom of the oven.
Don't line the grill pan with
aluminium foil, as this could
result in an increase risk of fire or
damage to your cooker.
Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven door glass since
they can scratch the surface,
which may result in shattering of
the glass.
Do not use steam cleaners to
clean the appliance as this may
cause an electric shock.
Use the shelves as described in
“How to operate the electric
oven’.
Do not use the product if the front
door glass removed or cracked.
Do not use the oven handle to
hang towels for drying. Do not
hang up towel, gloves, or similar
textile products when the grill
function is at open door.
Always use heat resistant oven
gloves when putting in or
removing dishes into/from the hot
oven.
Ensure that the appliance is
switched off before replacing the
lamp to avoid the possibility of
electric shock.
Unattended cooking on a hob with
fat or oil can be dangerous and
may result in fire. NEVER try to
extinguish a fire with water, but
switch off the appliance and then
cover flame e.g. with a lid or a
fire blanket.
Danger of fire: Do not store items
on the cooking surfaces.
Prevention against possible fire risk!
Ensure all electrical connections
are secure and tight to prevent
risk of arcing.
Do not use damaged cables or
extension cables.
Ensure liquid or moisture is not
accessible to the electrical
connection point.
Ensure the gas connection is
sound and not likely to cause a
gas leak.
Intended use
This product is designed for
domestic use. Commercial use
will void the guarantee.
This appliance is for cooking
purposes only. It must not be
used for other purposes, for
example room heating.
TEN

e [his product should not be used
for warming the plates under the
grill, drying towels, dish cloths etc.
by hanging them on the oven
door handles. This product should
also not be used for room heating
purposes.
e [he manufacturer shall not be
liable for any damage caused by
improper use or handling errors.
e The oven can be used for
defrosting, baking, roasting and
grilling food.
Safety for children
e Accessible parts may become hot
during use. Young children should
be kept away.
e The packaging materials will be
dangerous for children. Keep the
packaging materials away from
children. Please dispose of all parts
of the packaging according to
environmental standards.
e Electrical and/or gas products are
dangerous to children. Keep
children away from the product
when it is operating and do not
allow them to play with the product.
e Do not place any items above the
appliance that children may reach
for.
e When the door is open, do not load
any heavy object on it and do not
allow children to sit on it. It may
8/EN
overturn or door hinges may get
damaged.
Disposing of the old product
Dispose of the old product in an
environmentally friendly manner.
This equipment bears the selective
sorting symbol for waste electrical and
electronic equipment (WEEE). This
means that this equipment must be
handled pursuant to European Directive
2002/96/EC in order to be recycled or
dismantled to minimize its impact on
the environment. For further
information, please contact local or
regional authorities.
Refer to your local dealer or solid waste
collection centre in your area to learn
how to dispose of your product.
Before disposing of the product, cut off
the power cable plug and make the
door lock (if any) unusable to avoid
dangerous conditions to children.
Package information
e Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations.
Do not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by the
local authorities.

Overview
Burner plate
Control panel
RHS oven
4 LHS Main oven
LHS Top oven
mo or WP —-
1 2 34 56
Normal burner Rear left
Rapid burner Front left
Thermostat lamp for LHS top oven
Oven knob for LHS top oven
Thermostat lamp for LHS main oven
Oven knob for LHS main oven
8 9 10 11 12
Digital timer
Wok burner Middle
Auxiliary burner Front right
Normal burner Rear right
Thermostat lamp for RHS oven
Oven knob for RHS oven
9/EN

Technical specifications
Technical specifications may be changed
§without prior notice to improve the quality of
mihe product.
“SgFigures in this manual are schematic and
TO/EN
imay not exactly match your product.
Values stated on the product labels or in the
adocumentation accompanying it are
obtained in laboratory conditions in
accordance with relevant standards.
Depending on operational and
environmental conditions of the product,
these values may vary.
