Leisure PAS241MB User manual

User Manual
PAS241MB

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked under the most
meticulous quality control procedures, will provide you with effective service.
For this, we recommend you to carefully read the entire manual of your product before using it and keep
it at hand for future references.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful
usage tips.
AWarning against dangerous
conditions for life and property.
BWarning against electric voltage.
Packaging materials of the product are
manufactured from recyclable materi-
als in accordance with our National
Environment Regulations.

2 / 30 EN Refrigerator / User Manual
1. Safety and environment instructions3
2 Your refrigerator 7
3 Installation 8
3.1. Appropriate installation location . . . . . . .8
3.2. Installing the plastic wedges. . . . . . . . . .8
3.3. Electrical connection . . . . . . . . . . . . . . .8
3.4. Adjusting the feet. . . . . . . . . . . . . . . . . .9
3.5. Illumination lamp . . . . . . . . . . . . . . . . . .9
3.6. Door open warning. . . . . . . . . . . . . . . . .9
3.7. Water connection . . . . . . . . . . . . . . . .10
3.8. Connecting the water hose to the
refrigerator . . . . . . . . . . . . . . . . . . . . .10
3.9. Connecting of the water hose to the cold
water mains line . . . . . . . . . . . . . . . . .11
3.10.Water filter. . . . . . . . . . . . . . . . . . . . . .12
3.11. Mounting the external filter onto the wall12
3.12.Activating water filter change warning. .13
3.13. Before starting to use the water/ice
dispenser . . . . . . . . . . . . . . . . . . . . . .13
3.14.Transportation of the product . . . . . . . .14
4 Preparation 15
4.1. Things to be done for energy saving . . .15
4.2. Efficient operation . . . . . . . . . . . . . . . .15
4.3. Recommendations on the fridge
compartment. . . . . . . . . . . . . . . . . . . .15
4.4. Initial use. . . . . . . . . . . . . . . . . . . . . . .15
5 Operating the product 17
5.1. Indicator panel. . . . . . . . . . . . . . . . . . .17
5.2. NeoFrost Cooling System . . . . . . . . . . .20
5.3. Freezing fresh food . . . . . . . . . . . . . . .20
5.4. Recommendations for preserving the frozen
food . . . . . . . . . . . . . . . . . . . . . . . . . .21
5.5. Placing the food. . . . . . . . . . . . . . . . . .21
5.6. Deep-freeze information. . . . . . . . . . . .21
5.7. Chiller compartment. . . . . . . . . . . . . . .22
5.8. Butter & cheese section . . . . . . . . . . .22
5.9. Egg section . . . . . . . . . . . . . . . . . . . . .22
5.10.Crisper . . . . . . . . . . . . . . . . . . . . . . . .22
5.11.Odour filter . . . . . . . . . . . . . . . . . . . . .22
5.12. Using the dispenser . . . . . . . . . . . . . . .23
5.13. Minibar . . . . . . . . . . . . . . . . . . . . . . . .23
5.14.Drip tray . . . . . . . . . . . . . . . . . . . . . . .24
5.15.Ice-maker . . . . . . . . . . . . . . . . . . . . . .24
5.16 Humidity controlled crisper . . . . . . . . . .26
6 Maintenance and cleaning 27
6.1 Avoiding bad odours. . . . . . . . . . . . . . .27
6.2 Protecting the plastic surfaces . . . . . . .27
7 Troubleshooting 28

3 / 30 EN
Refrigerator / User Manual
1. Safety and environment instructions
This section provides the safety
instructions necessary to prevent
the risk of injury and material
damage. Failure to observe these
instructions will invalidate all
types of product warranty.
Intended use
A
WARNING:
Keep ventilation openings,
in the appliance enclosure
or in the built-instructure,
clear of obstruction.
A
WARNING:
Do not use mechanical
devices or other means
to accelerate the
defrostingprocess, other
than those recommended
by the manufacturer.
AWARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use electrical
appliances inside
the food storage
compartments of the
appliance, unless
they are of the type
recommended by the
manufacturer.
1.1.General safety
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical,sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the
appliance.
• In case of malfunction, unplug
the device.
• After unplugging, wait at least
5 minutes before plugging in
again.
• Unplug the product when not in
use.
• Do not touch the plug with wet
hands! Do not pull the cable to
plug off, always hold the plug.
• Do not plug in the refrigerator if
the socket is loose.
• Unplug the product during
installation, maintenance,
cleaning and repair.
• If the product will not be used
for a while, unplug the product
and remove any food inside.
• Do not use the product when
the compartment with circuit
cards located on the upper

4 / 30 EN Refrigerator / User Manual
Important instructions for safety and environment
back part of the product
(electrical card box cover) (1) is
open.
1
1
• Do not use steam or steamed
cleaning materials for cleaning
the refrigerator and melting the
ice inside. Steam may contact
the electrified areas and cause
short circuit or electric shock!
• Do not wash the product by
spraying or pouring water on it!
Danger of electric shock!
• In case of malfunction, do not
use the product, as it may
cause electric shock. Contact
the authorised service as soon
as possible.
• Plug the product into an
earthed socket. Earthing
must be done by a qualified
electrician.
• If the product has LED type
lighting, contact the authorised
service for replacing or in case
of any problem.
• Do not touch frozen food with
wet hands! It may adhere to
your hands!
• Do not place liquids in bottles
and cans into the freezer
compartment. They may burst.
• Place liquids in upright position
after tightly closing the lid.
• Do not spray flammable
substances near the product,
as it may burn or explode.
• Do not keep flammable
materials and products with
flammable gas (sprays, etc.) in
the refrigerator.
• Do not place containers
holding liquids on top of the
product. Splashing water on
an electrified part may cause
electric shock and risk of fire.
• Exposing the product to rain,
snow, sunlight and wind will
cause electrical danger. When
relocating the product, do not
pull by holding the door handle.
The handle may come off.
• Take care to avoid trapping any
part of your hands or body in
any of the moving parts inside
the product.

5 / 30 EN
Refrigerator / User Manual
Important instructions for safety and environment
• Do not step or lean on the door,
drawers and similar parts of
the refrigerator. This will cause
the product to fall down and
cause damage to the parts.
• Take care not to trap the power
cable.
1.1.1 HC warning
If the product comprises a cooling
system using R600a gas, take
care to avoid damaging the
cooling system and its pipe while
using and moving the product.
This gas is flammable. If the
cooling system is damaged, keep
the product away from sources
of fire and ventilate the room
immediately.
CThe label on the inner
left side indicates the
type of gas used in the
product.
1.1.2 For models with
water dispenser
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
• If there is a risk of water
hammer effect in your
installation. Consult a plumber.
• Do not install on the hot water
inlet. Take precautions against
of the risk of freezing of the
hoses. Water temperature
operating interval shall be 33°F
(0.6°C) minimum and 100°F
(38°C) maximum.
• Use drinking water only.
1.2.Intended use
• This product is designed for
home use. It is not intended for
commercial use.
• The product should be used to
store food and beverages only.
• Do not keep sensitive
products requiring controlled
temperatures (vaccines,
heat sensitive medication,
medical supplies, etc.) in the
refrigerator.

6 / 30 EN Refrigerator / User Manual
Important instructions for safety and environment
• The manufacturer assumes no
responsibility for any damage
due to misuse or mishandling.
1.3. Child safety
• Keep packaging materials out of children’s
reach.
• Do not allow the children to play with the
product.
• If the product’s door comprises a lock, break
off the lock when eventually disposing of the
product.
1.4. Compliance with WEEE
Directive and Disposing
of the Waste Product
This product complies with EU WEEE
Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and
electronic equipment (WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and electronic
equipment. Please consult your local authorities to
learn about these collection centers.
1.5. Compliance with
RoHS Directive
• This product complies with EU WEEE Directive
(2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.6. Package information
• Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

7 / 30 EN
Refrigerator / User Manual

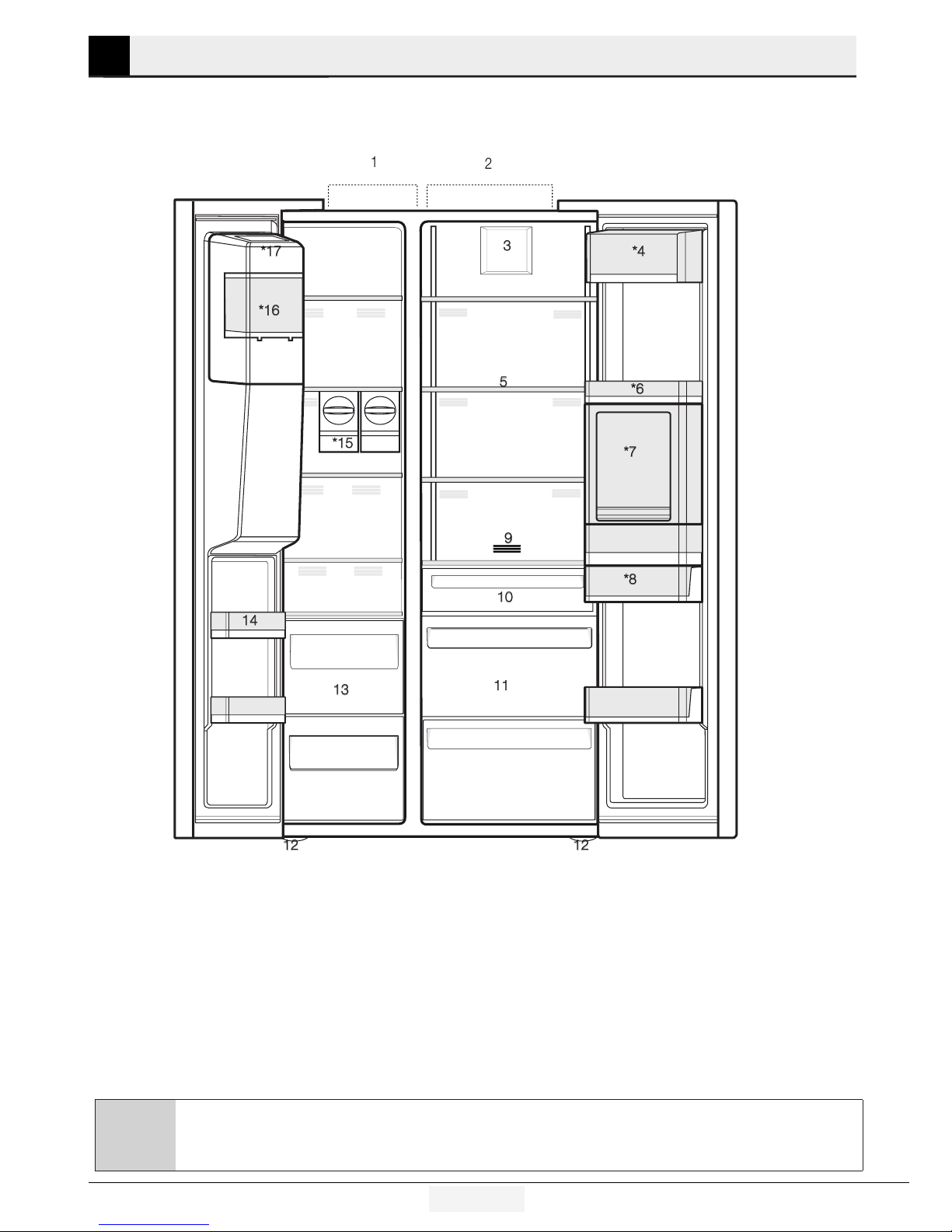

2 Your refrigerator
C*Optional: Figures in this user manual are schematic and may not match the product exactly. If
the relevant parts are not available in the product you purchased, it applies to other models.
2
1
3*4
5*6
*7
*8
11
10
13
14
9
*15
*16
*17
1212
1- Freezer compartment
2- Fridge compartment
3- Fan
4- Butter-cheese compartments
5- Glass shelves
6- Fridge compartment door racks and egg
compartment
7- Minibar accessory
8- Water dispenser tank
9- Odour filter
10- Chiller compartment
11- Crisper compartment
12- Adjustable feet
13- Frozen food storage compartments
14- Freezer compartment door racks
15- Ice makers
16- Ice storage compartment
17- Ice maker decorative cover

8 / 30 EN Refrigerator / User Manual
3 Installation
Always have the repair procedures carried out by
the Authorised Service Agent. Manufacturer shall
not be held liable for damages that may arise from
procedures carried out by unauthorised persons.
To make the product ready for use, make sure
that the electricity installation is appropriate before
calling the Authorised Service Agent. If not, call
a qualified electrician to have any necessary
arrangements carried out.
C
Preparation of the location and electrical
installation at the place of installation is
under customer's responsibility.
B
Product must not be plugged in during
installation. Otherwise, there is the risk of
death or serious injury!
B
WARNING:Manufacturer shall not
be held liable for damages that may
arise from procedures carried out by
unauthorised persons.
A
WARNING: Prior to installation,
visually check if the product has any
defects on it. If so, do not have it
installed. Damaged products cause risks
for your safety.
CMake sure that the power cable is not
pinched or crushed while pushing the
product into its place after installation or
cleaning procedures.
3.1. Appropriate
installation location
A
WARNING: If the door of the room
where the product will be placed is too
small for the product to pass, then the
product's doors can be removed and the
product turned aside to pass it through.
• Choose a place at where you would use the
product comfortably.
• Install the product at least 30 cm away from
heat sources such as hobs, ovens, heater cores
and stoves. Product must not be subjected to
direct sun light and kept in humid places after
installation.
• Appropriate air ventilation must be provided
around your product in order to achieve an
efficient operation. If the product is to be placed
in a recess in the wall, pay attention to leave at
least 5 cm distance with the ceiling and side
walls.
• Do not place the product on the materials such
as rugs or carpets.
• Place the product on an even floor surface to
prevent jolts.
• Do not install the product in places where the
temperature falls below -5°C.
C
If two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
3.2. Installing the
plastic wedges
Plastic wedges are used to create the distance
for the air circulation between the product and
the rear wall. Insert the 2 plastic wedges onto the
rear ventilation cover as illustrated in the figure.
To install the wedges, remove the screws on the
product and use the screws given in the same
pouch with the wedges.
3.3. Electrical connection
Connect the product to a grounded outlet
protected by a fuse complying with the values in
the rating plate. Our company shall not be liable
for any damages that will arise when the product
is used without grounding in accordance with the
local regulations.

9 / 30 EN
Refrigerator / User Manual
Installation
• Electrical connection must comply with national
regulations.
• Power cable plug must be within easy reach
after installation.
• The voltage and allowed fuse or breaker
protection are specified in the Rating Plate
which is affixed to interior of the product. If
the current value of the fuse or breaker in the
house does not comply with the value in the
rating plate, have a qualified electrician install a
suitable fuse.
• The specified voltage must be equal to your
mains voltage.
• Do not make connections via extension cables
or multi-plugs.
BWARNING: Damaged power cable
must be replaced by the Authorised
Service Agents.
BWARNING:If the product has a
failure, it should not be operated unless
it is repaired by the Authorised Service
Agent! There is the risk of electric shock!
3.4. Adjusting the feet
If the product stands unbalanced after installation
adjust the feet. Taking help from someone to
slightly lift the refrigerator will facilitate this
process.
BWARNING: First unplug the product.
Product must not be plugged in when
adjusting the feet. There is the risk of
electric shock!
Turn the front feet to balance the product. The
corner where the foot exists is lowered when you
turn in the direction of arrow and raised when you
turn it in the opposite direction.
In order to adjust the doors vertically,
•Loosen the fixing nut at the bottom
•Screw adjusting nut (CW/CCW) according to the
position of the door
•Tighten the fixing nut for the final position
In order to adjust the doors horizontally,
• Loosen the fixing bolt on the top
• Screw the adjusting bolt (CW/CCW) on the side
according to the position of the door
• Tighten the fixing bolt on the top for the final
position
3.5. Illumination lamp
Do not attempt to repair yourself but call the
Authorised Service Agent if the LED illumination
lamps do not go on or are out of order.
3.6. Door open warning
(This feature is optional)
An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed or
any of the display buttons (if any) are pressed.
adjusting nut
fixing nut
fixing nut
adjusting nut

10 / 30 EN Refrigerator / User Manual
Installation
3.7. Water connection
(This feature is optional)
Water system installation of the refrigerator must
be performed by a competent person.
Depending on the model of the refrigerator, you
may not have to connect to water main.First you
must connect the water hose to the refrigerator.
Check that following parts have been delivered
together with the product:
1. Union for connecting the water hose to the rear of
the refrigerator
2. 3 pieces of pipe clips (used to secure the water
hose)
3. 5-meter long water hose (1/4 inch in diameter)
4. (4) Cold mains water valve with mesh filter (tap
adapter)
5. (5) External water filter.
c
a
a
b
1
2
3
1
4
2
*5
3.8. Connecting the water
hose to the refrigerator
1. Slip the union (b) onto the water hose (a).
2. Push the water hose downwards firmly to slip it
onto the water inlet valve (c).
3. Tighten the union (c) by hand to secure it onto the
water inlet valve.
C
Normally, you are not required to tighten
the union with a tool. However, you can use
a spanner or pliers to tighten the union if
there is a leakage.

11 / 30 EN
Refrigerator / User Manual
Installation
3.9. Connecting of the water
hose to the cold water mains line
(This feature is optional)
If you will use the refrigerator by connecting it
to the cold water mains line, you must install a
standard 1/2" valve connector to the cold water
installation of your home. If this valve is not present
or you are not sure, consult a qualified plumber.
1. Separate the union from the tap adaptor.
2. Install the tap adaptor to standard 1/2” valve
connector.
3. After inserting the water hose to the union, install
it to the tap adaptor and insert to the union to the
tap adapter.
4. Tighten the union by hand.
A
WARNING: Secure the water
hose to suitable points by means of the
clips supplied to avoid any damage or
displacement or accidental disconnection.
A
WARNING: After turning on the
water valve, make sure that there is no
leakage at both connection points of the
water hose. If there is a leakage, turn off
the valve immediately and tighten all joints
again using a spanner or a pliers.
A
WARNING: Make sure that standard
1/2" valve connector is available and
completely turned off on your cold water
mains line.

12 / 30 EN Refrigerator / User Manual
Installation
3.10.Water filter
(This feature is optional)
Your refrigerator may be equipped with an external
or internal filter depending on its model. To fit the
water filter, follow the instructions below referring
to the figures supplied:
3.11.Mounting the external
filter onto the wall
1. First, determine the location to mount the external
filter.
2. Then, determine the distance between the
filter and the tap and filter and the water inlet
respectively. Prepare hoses at required lengths.
3. Mount the filter connection kit onto the wall by
using a screwdriver and attach the filter.
B
WARNING: Water filter must be
held upright as shown in the figure. It
is critical to connect the water inlet and
outlet hoses on the filter correctly.
C
After connecting the filter, do not
consume the first 10 glasses of
water.
B
WARNING: Never mount the filter
onto the refrigerator. Coolant pipes might
be pierced!

13 / 30 EN
Refrigerator / User Manual
Installation
3.12.Activating water
filter change warning
(For products connected to the mains water line
and equipped with filter)
Water filter change warning is activated as follows:
1. Within 60 seconds after switching on the
refrigerator, press and hold the Display and
Vacation buttons for 3 seconds.
A
3
42
1
2. Then enter 1-4-5-3 as password.
Confirming the entered Selecting the
password password numbers
A
3
42
1
Enter 1-4-5-3 as follows:
Press FF set button for once.
Press FRZ set button for once.
Press FF set button for 4 times.
Press FRZ set button for once.
Press FF set button for 5 times.
Press FRZ set button for once.
Press FF set button for 3 times.
Press FRZ set button for once.
If the password is entered correctly, buzzer will sound
shortly and Filter Change Warning indicator will turn on.
Automatic filter usage time calculation is not enabled
ex factory.
It must be enabled in products equipped with a filter.
The refrigerator will give filter change warning with
6-month intervals automatically.
If the same procedure is repeated when the automatic
filter usage time calculation is enabled, then the
function will be canceled.
3.13.Before starting to use
the water/ice dispenser
(This feature is optional)
• If the water pressure is below 1 bar then a
separate pump may need to be used.
• Water system of the refrigerator must be
connected to the cold water line. It must not be
connected to hot water line.
• No water may be obtained in the initial start-
up of the refrigerator. Because there is air in
the system. To discharge air from the system,
press dispenser latch for 1-2 minutes until
water comes from the dispenser. Water flow
may be irregular at the beginning. After the
air in the system is discharged, water flow will
return to normal.
• During initial use, you will have to wait
approximately 12 hours for the water to cool
down.
• It will take around 1-2 days for the system to
produce the full amount of ice.
• Water pressure must be between 1-8 bars for
the operation of ice/water dispenser smoothly.
For this, check that 1 glass of water (100 cc)
can be filled in 10 seconds.
• The first 10 glasses of water should not be
consumed.
• You must wait approximately 12 hours to
obtain ice from the ice dispenser for the first
time. If there is not enough ice in the ice
container, ice may not be obtained from ice
dispenser.
• Do not consume the first 30 pieces (3-4 Liters)
of ice cubes.
• First several glasses of water may be cloudy
when the filter is used for the first time.
Therefore, do not consume the first several
glasses of water.

14 / 30 EN Refrigerator / User Manual
Installation
• If the water dispenser is not used for a long
period of time, first 1-2 glasses of water can
be not so cold.
• If a power outage or a temporary failure occurs
while the refrigerator is operating, ice can melt
down a little bit and then get frozen again. In
such a case, ice cubes can stick to each other.
If the outage or failure prolongs, ice can melt
down causing water leakage. If you experience
such a problem, empty and clean the ice
container.
• Ice cubes can stick to each other if they are left
in the container for a long time.
• If the product is to be connected to the water
mains, make sure that you use potable water.
• Water system of the product is designed to
operate only with water. Do not use beverage
such as soft drinks and/or juices in the water
system.
• It is recommended that the water is
disconnected if you will not be using the
refrigerator for a long period of time due to
vacation or similar reasons.
• Do not attempt to dismantle the ice container
group assembly parts.
• Do not attempt to clean the ice container
assembly without removing it from the
refrigerator.
3.14.Transportation
of the product
1. Unplug the product before transporting it.
2. Remove water connections.
3. Secure the shelves, accessories, crisper and
etc. in the refrigerator by adhesive tape before
repackaging it.
CPackaging must be adequate and the rules
of transportation printed on the package
must be followed.
COriginal packaging and foam materials
should be kept for future transportations.
AWARNING: Packaging materials
are dangerous for the children. Keep
packaging materials in a safe place away
from reach of the children.

15 / 30 EN
Refrigerator / User Manual
4 Preparation
4.1. Things to be done
for energy saving
AConnecting the product to electric energy
saving systems is risky as it may restrict
operation of the product.
• Do not leave the doors of your refrigerator
open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload the refrigerator. Cooling
capacity will fall when the air circulation inside
is hindered.
• Do not place the refrigerator in places subject
to direct sunlight. Install the product at least
30 cm away from heat sources such as hobs,
ovens, heater cores.
• Store your food in refrigerator in closed
containers.
• Thawing frozen food in fridge compartment
will both provide energy saving and preserve
the food quality.
CThe ambient temperature of the room
where you install the refrigerator
should at least be 5°C. Operating your
refrigerator under cooler conditions than
this is not recommended.
CInside of your refrigerator must be
cleaned.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
4.2. Efficient operation
Specified energy consumption value of your
refrigerator is determined under maximum load by
removing the freezer compartment upper rack and
while other racks and two bottom drawers are in
place. there is no harm to remove a shelf or drawer
to accommodate the shapes and size of food to be
frozen.
4.3. Recommendations on
the fridge compartment
• Do not allow the food to touch the
temperature sensor in fridge compartment.
To allow the fridge compartment to keep its
ideal storage temperature, sensor must not
be hindered by food.
• Do not put hot food and beverages inside the
product.
4.4. Initial use
Before starting to use the product, check that all
preparations are made in accordance with the
instructions in sections "Important instructions
for safety and environment" and "Installation".
• Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section. Check that inside of it is
dry before operating it.
• Plug the refrigerator into the grounded wall
outlet. When the door is opened the interior
illumination will turn on.
• Run the refrigerator without putting any food
for 6 hours and do not open its door unless
absolutely necessary.

16 / 30 EN Refrigerator / User Manual
Preparation
CYou will hear a noise when the compressor
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is quite normal.
CFront edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.

17 / 30 EN
Refrigerator / User Manual
5 Operating the product
C*Optional:Figures in this user manual are schematic and may not match the product exactly. If the
subject parts are not included in the product you have purchased, then those parts are valid for other
models.
5.1. Indicator panel
Indicator panels may vary according to the product model.
1. Freezer compartment temperature setting
2. Economy mode
3. Energy saving function (display off)
4. Power failure/High temperature / error warning
indicator
5. Cooler compartment temperature setting
6. Rapid cooling
7. Vacation function
8. Keypad lock / filter replacing alert cancellation
9. Water, fragmented ice, ice cubes selection
10. Ice making on/off
11. Display on/of/Alarm off warning
12. Autoeco
13. Rapid freezing
123
56
8
910
4
11
5
6
124
3
(*)
13
12
78
9
10
11.111.2
7.2 7.1

18 / 30 EN Refrigerator / User Manual
Operating the product
1. Freezer compartment temperature setting
Pressing the button ( ) will enable the freezer
compartment temperature to be set at -18,-19,-
20,-21 ,-22,-23,-24,-18...
2. Economy mode
Indicates the refrigerator is running on energy-
saving mode. This indicator will be active when the
freezer compartment temperature is set at -18 or
the energy-saving cooling is engaged by eco-extra
function. ( )
3.Energy saving function (display off)
If the product doors are kept closed for a long time
energy saving function is automatically activated and
energy saving symbol is illuminated. When energy
saving function is activated, all symbols on the display
other than energy saving symbol will turn off. When
the Energy Saving function is activated, if any button is
pressed or the door is opened, energy saving function
will be canceled and the symbols on display will return
to normal.
Energy saving function is activated during delivery
from factory and cannot be canceled.
4. Power failure/High temperature / error
warning indicator
This indicator ( ) will light up in case of
temperature faults or fault alerts. If you see this
indicator is lit up, please see the "recommended
solutions for problems" section in this guide.
This indicator illuminates during power failure,
high temperature failures and error warnings.
During sustained power failures, the highest
temperature that the freezer compartment reaches
will flash on the digital display. After checking the
food located in the freezer compartment press the
alarm off button to clear the warning.
Please refer to "remedies advised for
troubleshooting" section on your manual if you
observe that this indicator is illuminated.
5. Cooler compartment temperature setting
After pressing the button ( ), the cooler
compartment temperature can be set to
8,7,6,5,4,3,2.. respectively.
6. Rapid cooling
For rapid cooling , press the button; this will
activate the rapid cooling indicator ( ).
Press this button again to deactivate this function.
Use this function when placing fresh foods into
the cooler compartment or to rapidly cool the
food items. When this function is activated, the
refrigerator will be engaged for 1 hour.
7. Vacation function
When the Vacation function ( ) is active, the
cooler compartment temperature indicator displays
the inscription "- -" and no cooling process will be
active in the cooling compartment. This function is
not suitable to keep food in the cooler compartment.
Other compartments will remain cooled with the
respective temperature set for each compartment.
Press the vacation function button again to cancel
this function. ( )
8. Keypad lock / Keypad lock / filter replacing
alert cancellation
Press keypad lock button ( ) to activate the keypad
lock. You may also use this function to prevent
changing the refrigerator's temperature settings. The
refrigerator's filter must be replaced every 6 months.
If you follow the instructions in the section 5.2, the
refrigerator will automatically calculate the remaining
period and the filter replacing alert indicator ( ) will
light up when filter expires.
Press and hold the button ( ) for 3 seconds to turn
off the filter alert light.
9. Water, fragmented ice, ice cubes selection
Navigate the water ( ), ice cube ( ) and
fragmented ice ( ) selections using the button
number 8. The active indicator will remain lit.
10. Ice making on/off
Press the button ( ) to cancel ( ) or
activate ( ) ice-making.
11.1 Display on/off
Press the button ( ) to cancel (XX) or
activate ( ) display on/off.

19 / 30 EN
Refrigerator / User Manual
Operating the product
11.2 Alarm off warning
In case of power failure/high temperature alarm, after
checking the food located in the freezer compartment
press the alarm off button to clear the warning.
12. Autoeco
Press the auto eco button ( ), for 3 seconds
to activate this function. If the door remains closed
for a long time when this function is activated, the
cooler section will switch to economic mode. Press
the button again to deactivate this function.
The indicator will light up after 6 hours when the
auto eco function is active. ( )
13. Rapid freezing
Press the button ( ) for rapid freezing. Press the
button again to deactivate the function.
