LENCO DVL-1662BK User manual

Model No.: DVL-1662BK, DVL-1962BK, DVL-2262BK, DVL-2462BK
DVL-2862WH, DVL-2862BK, DVL-3252WH, DVL-3252BK
LED-1922BK, LED-2422BK, DVL-240, DVL-3242WH
DVL-3242BK, DVL-320BK, LED-2822BK
LED-3222BK
, LED-4022BK
Download full manual on Lenco.com/

Contents
Caution .......................................................................................3 Safety Information .....................................................................3

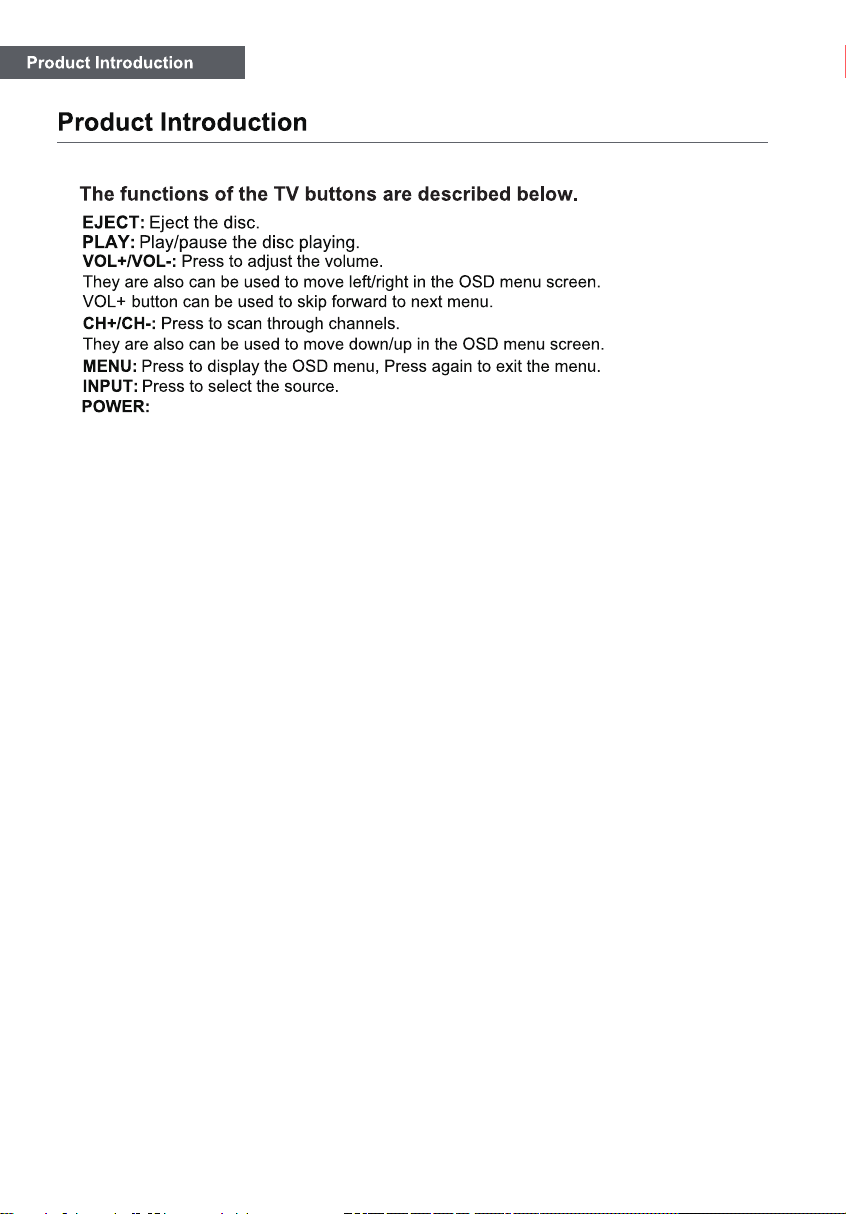

Product Introduction .................................................................6
Technical Specification............................................................................ 5
Connections ............................................................................... 8

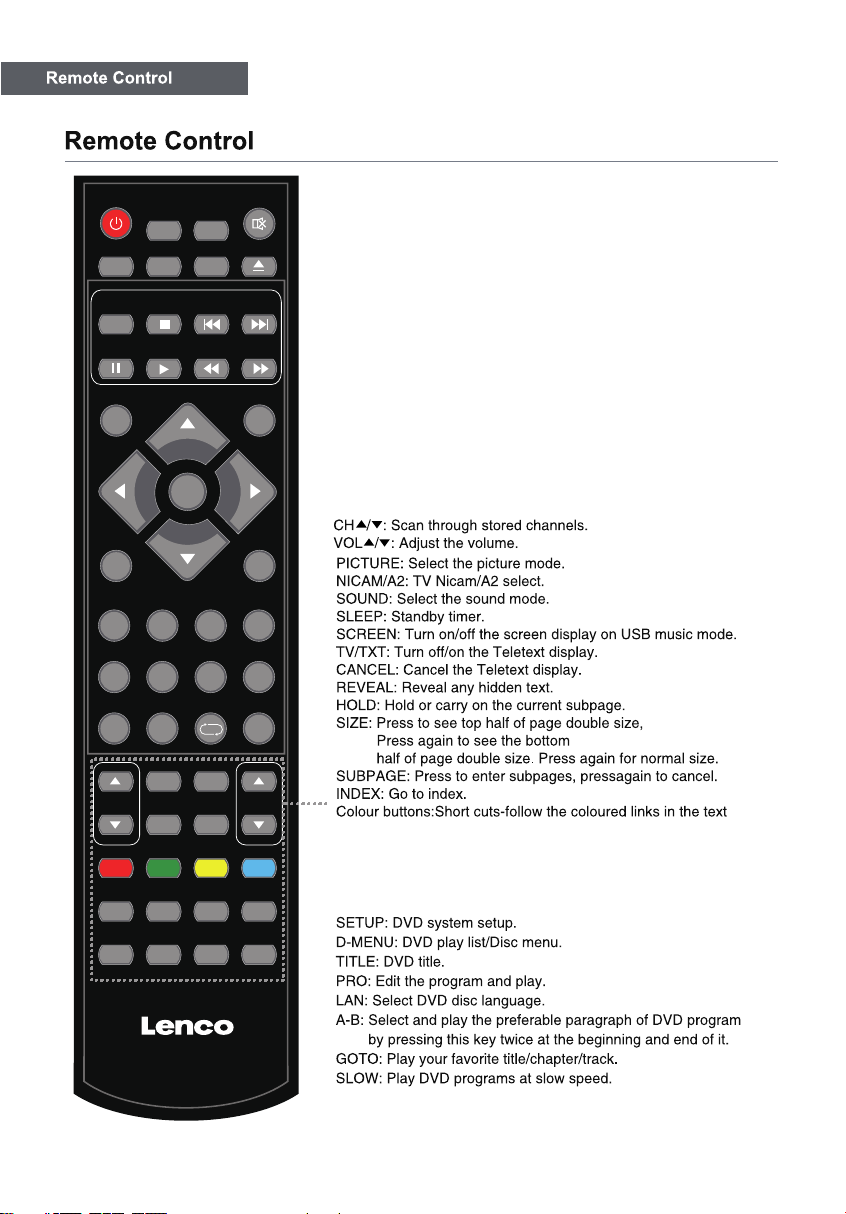

Remote Control..........................................................................10

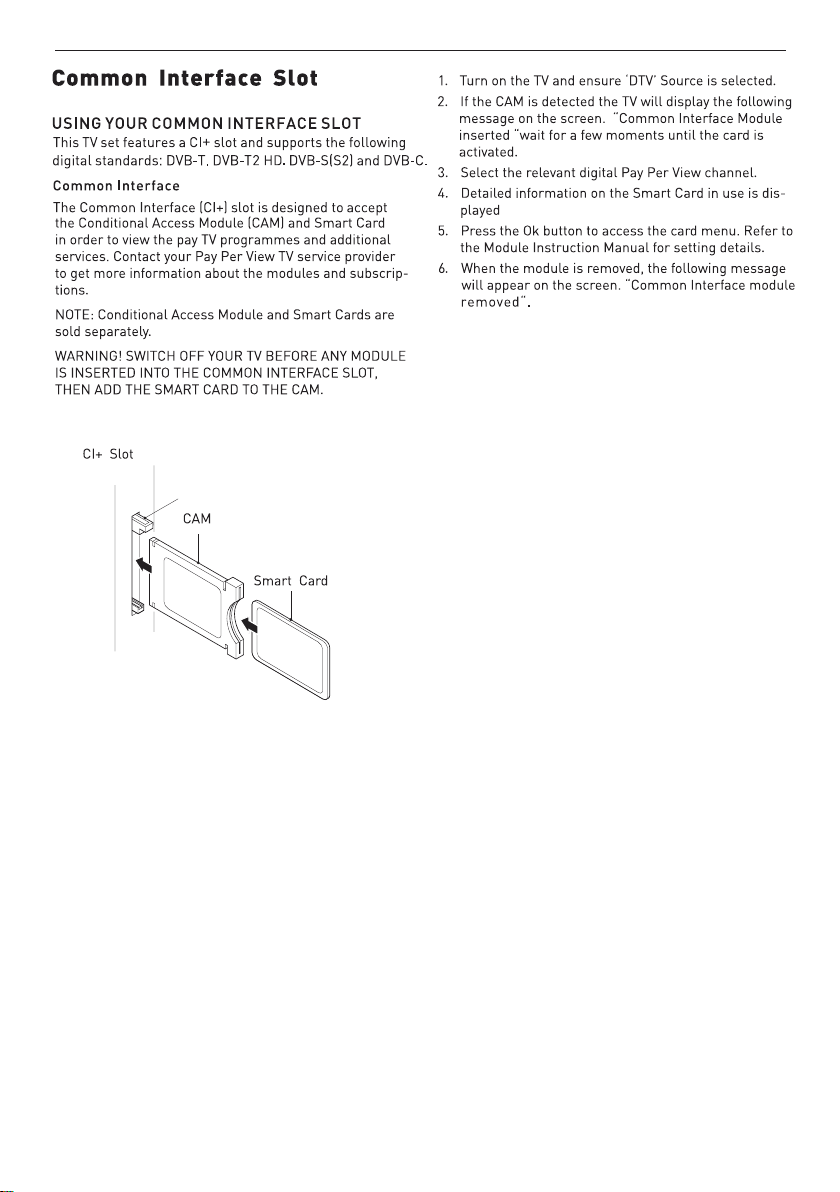

Common Interface Slot ............................................................. 12

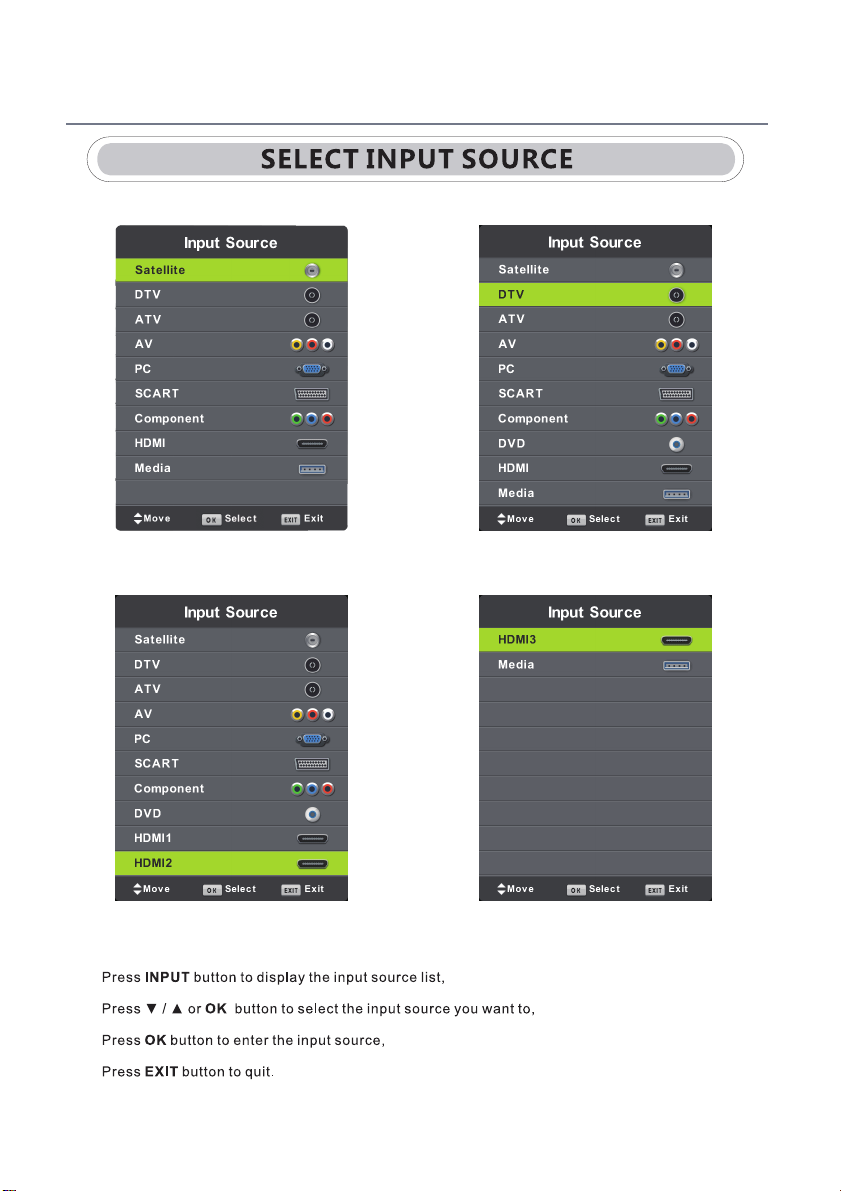

Select Input Source .......... ........................................................13
First Time Installation.............................................................. ..14
2

3
Warning

CAUTION:
Usage of controls or adjustments or performance of procedures other than those specified herein
may resulte in hazardous radiation exposure.
Thisunit shouldnot beadjustedor repaired by anyone except qualifiedservice personnel.
PRECAUTIONS BEFORE USE
KEEP THESE INSTRUCTIONS IN MIND:
1. Do not use this device near water.
2. Clean only with a slightly damp cloth.
3. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm
(2 ) free space around the whole device.
4. Install in accordance with the supplied user manual.
5. Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the
cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep
the entire device out of children’s reach! When playing with the power cable, they can
seriously injure themselves.
6. Unplug this device during lightning storms or when unused for a long period.
7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other
heat-generating products.
8. Avoid using the device near strong magnetic fields.
9. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart
the device following the instruction manual. During file transmission, please handle with care
and operate in a static-free environment.
10. Warning! Never insert an object into the product through the vents or openings. High voltage
flows through the product and inserting an object can cause electric shock and/or short circuit
internal parts. For the same reason, do not spill water or liquid on the product.
11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
12. Do not use this device when condensation may occur.
13. Although this device is manufactured with the utmost care and checked several times before
leaving the factory, it is still possible that problems may occur, as with all electrical appliances.
If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you
should disconnect the plug from the main power socket immediately.
14. This device must be well ventilated at all time!
15. This device must operate on a power source as specified on the specification label. If you are
not sure of the type of power supply used in your home, consult your dealer or local power
company.
16. The socket outlet must be installed near the equipment and must be easily accessible.
17. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
18. Devices with class 1 construction should be connected to a main socket outlet with a protective
earthed connection.
19. Devices with class 2 construction do not require a earthed connection.
20. Keep awayfrom rodents. Rodents enjoy biting on power cords.
21. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord.
This can cause a short circuit.
22. Avoid placing the device on any surfaces that may be subject to vibrations or shocks.
23. To protect the device during a thunderstorm, unplug the ac power adaptor.
24. When the device is not in use for long periods, unplug the ac power adaptor for safety reasons.
25. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove
severe stains, you may use a damp cloth with dilute detergent.
26. The supplier is not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
27. Do not interrupt the connection when the device is formatting or transferring files. Otherwise,
data may be corrupted or lost.
28. The usb memory stick should be plugged into the unit directly. Don’t use an usb extension
cable because it can cause interference resulting in failing of data.
29. The apparatus shall not be exposed to dripping or splashing and make sure that no objects
filled with liquids, such as vases, are placed on or near the apparatus.
30. To completely disconnect the power input, the mains plug of the apparatus shall be
disconnected from the mains, as the disconnect device is the mains plug of apparatus.
31. The mains plug of the apparatus should not be obstructed or should be easily accessed during
intended use.
32. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
33. Minimum distance of 10cm around the apparatus is needed for sufficient ventilations.
34. The ventilation should not be impeded by covering the ventilation openings with items such as
newspapers, table-cloths, curtains etc.
35. No naked flame sources such as lighted candles should be placed on the apparatus.
4

36. on should be drawn to the environmental aspects of battery disposal.
37. The apparatus can only be used in moderate extremely cold or climates warm environments
should be avoided.
38. The rating label has been marked on the bottom panel of the apparatus.
39. This device is not intended for use by people (including children) with physical, sensory or
mental disabil or a lack of experience and knowledge, unless they!re under supervision or
have received instructions about the correct use of the device by the person who is responsible
for their safety.
40. This product is intended for household use only and not for commercial or industrial use.
41. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an
unstable position or by failure to follow any other warning or precaution contained within this
user manual will not be covered by warranty.
42. Never remove the casing of this apparatus.
43. Never place this apparatus on other electrical equipment.
44. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive
dust or vibration.
45. Do not clean this product with water or other liquids.
46. Do not block or cover the slots and holes in the product.
47. Do not push foreign objects into the slots or holes in the product.
48. Do not allow children access to bags.
49. Please check that the voltage on the type plate of your appliance corresponds with your house
electricity supply (type plate is located on the back of the unit).
50. Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
51. Only use hments/accessories specified by the manufacturer.
52. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as the power supply cord or the plug, when liquid has been
spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
53. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or
electric shock.
Warning: prolonged exposure to loud sounds from personal music players may lead to temporary or
permanent hearing loss.
INSTALLATION
• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other
conn have been made.
• Do not cover any vents and make sure that there is a space of several cen around the
unit for ventilation.
5
Icon
Climate Warning:
moderate
D
P

6
Insert disc with label side towards back
DVL-2262BK
DVL-2862WH
DVL-2862BK
DVL-2862WH
DVL-1662BK
DVL-1662BK
LED-2822BK
DVL-2862BK
DVL-2462BK
DVL-1962BK
LED-1922BK
DVL-1962BK LED-1922BK
Insert disc with label side towards back
DVL-3252WH
D
DVL-3242WH
DVL-3242BK
LED-3222BK
LED-3222BK
VL-3252BK
Insert disc with label side towards back
DVL-240
DVL-320BK
LED-4022BK
LED-2422BK
Insert disc with label side towards back

7
Turn on from standby-mode / turn off to standby-mode.

8
DVL-2262BK
LED-2422BK DVL-1962BK LED-1922BK
DVL-1662BK LED-2822BK
DVL-3252BK,DVL-3252WH
DVL-3242BK,DVL-3242WH
DVL-320BK
ONLY DVL-3252BK,DVL-3252WH
DVL-3242BK,DVL-3242WH
DVL-320BK
ONLY LED-2822BK
DVL-2462BK, DVL-240 DVL-2862WH, DVL-2862BK
RFDVB-S2SCARTPC AUDIOVGA HDMI1
HDMI2 HDMI3 COAX MINI YPbPrMINI AV
Common Interface USB
HDMI USB MINI
YPbPr
MINI
AV
Common Interface
SCARTVGA DVB-S2 RFDC PC
AUDIO IN COAX
HDMI MINI
YPbP r
MINI
AV
Common In ter face
USB
5V 500mA
SCARTVGA DVB-S2 RFDC PC
AUDIO IN COAX
LED-4022BK LED-3222BK
Comm on Interfa ce
COAX MINI AV MIN I YPbP r
HDMI2 HDMI3
SCARTVGA PC AUDIO RF HDMI1
ONLY LED-4022BK
LED-3222BK
5V 500mA
5V 500mA

9
DVB-S2:
RF:
COAX:
or DC 12V Car adaptor.
or other equipment.
or other equipment
or other equipment

10
ASPEC
EPG：
T: Adjust picture size
Electronic television and radio program guide
(broad- caster- specific).
POWER MUTE
EPG
INPUT
MENU EXIT
VOL CH
SETUP
A-B GOTO
D-MENU
TITLE
HOLD SIZE SUBPAGE INDEX
NICAM/A2
TV/TXT CANCEL REVEAL
SOUND SLEEP
FAV
1234
5678
9 0
DISPLAY
REP
SUBTITLE
OK
CH/LISTASPECT
PRO
SLOW
SCREEN
LAN

11
NOTE: Below apply to DVL-1662BK, DVL-1962BK,
DVL-2262BK, DVL-2462BK, DVL-2862WH,
DVL-2862BK, DVL-3252WH, DVL-3252BK, DVL-240
POWER MUTE
EPG
INPUT
MENU EXIT
VOL CH
SETUP
A-B GOTO
D-MENU
TITLE
HOLD SIZE SUBPAGE INDEX
NICAM/A2
TV/TXT CANCEL REVEAL
SOUND SLEEP
FAV
1234
5678
9 0
DISPLAY
REP
SUBTITLE
OK
CH/LISTASPECT
PRO
SLOW
SCREEN
LAN
DVL-3242WH, DVL-3242BK

12

(The model without DVD)
)K, DVL-320BKB2423-LVD,HW2423-LVD,KB2523-LVD,HW2523-LVDotylppA(
13

14

15
Tuning Setup
Country Germany
Satellite 01 ASTRA 1...
Back
MENU
Scan Mode Network
Channel Type Free+Scramble
Service Type DTV
Start
ENTER
Select your satellite
Network does autom. scan all channels from this satellite
DTV stores TV-channels only
This TV stores max. 2000 satellite-channels (DTV + Radio + Data). If you tune 2 satellites,
tune one first, then delete unwanted channels. When done, start tuning the second
satellite. Otherwise, tuning will not store all channels from the second satellite, because
limit is 2000 channels for satellite-tuner.
Download full manual on L enco.com/ ÿÿ

16
Main Menu Operation
Channel Menu
Press MENU button to display the main menu. Press ◄/►button to select CHANNEL in
the main menu.
(Apply to DVL-3252WH, DVL-3252BK)
1. Press ▼/▲button to select the option that you want to adjust in the CHANNEL menu.
2. Press OK button to select.
3. After finishing your adjustment, Press OK button to save and return to the previous
menu.
Auto Tuning
Refer to P.13 and P.14.

17

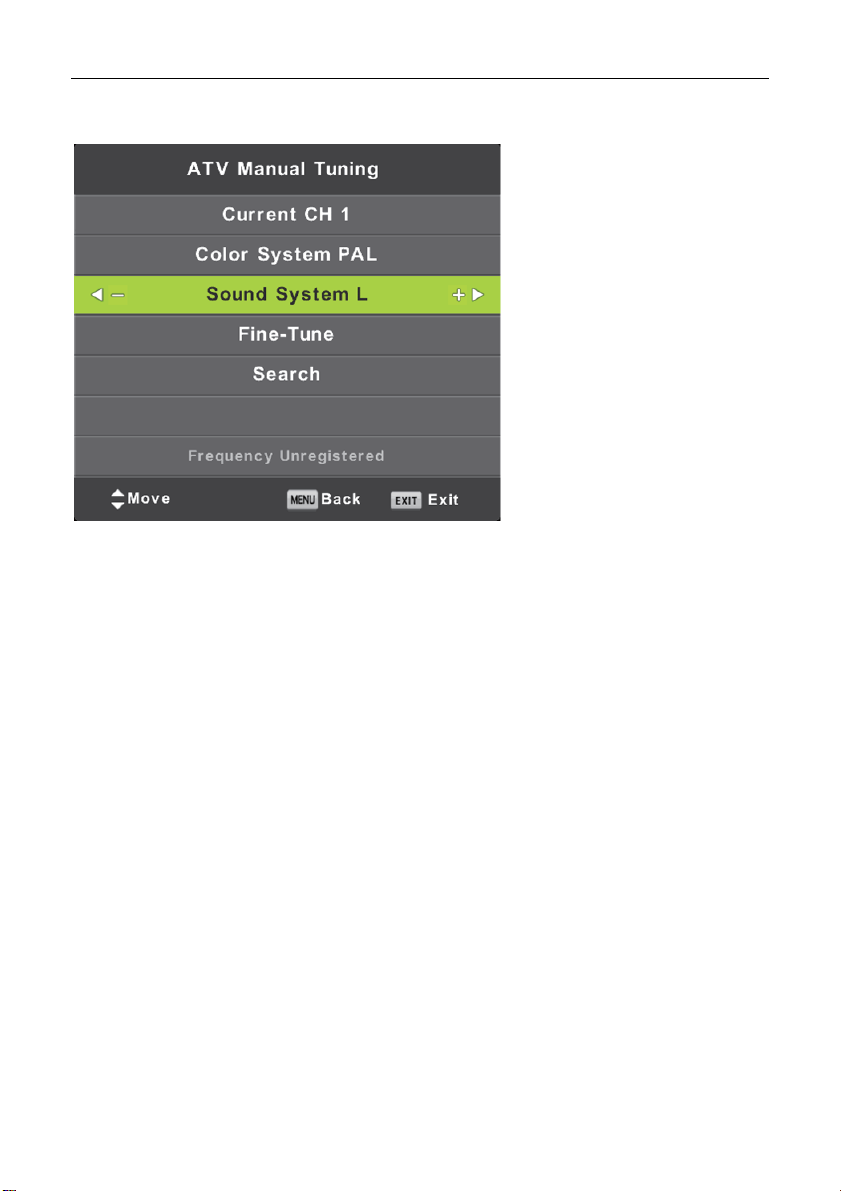

ATV Manual Tuning
Press MENU, then choose ATV Manual Tuning.
Current CH
Set the channel number.
Color System
Select the color system
(Available System: AUTO, PAL, SECAM)
Sound System
Select the Sound system
Fine-Tune
Adjust the frequency of the channel finely.
Search
Start searching channel by presing ►button.
Once a channel is found, it will automatically stored.
Repeat the step by changing the channel number.

18
DTV Manual Tuning
DVB-T Manual Tuning:
Enter the DTV Manual Tuning. Press ◄/►button to adjust the channel and press OK
button to manual tune.
DVB-C Manual Tuning:
Enter the CADTV Manual Tuning. Press ▲/▼button to select the item and press ◄/►
button to adjust the “Frequency”, “Symbol”, “QAM Type” and press OK button to manual
tune.

19
Program Edit
Press ▼/▲button to select Program Edit, then press OK button to enter sub-menu.
The three colored key is the shortcut key for programming the channel. First press ▼/▲to
highlight the channel you want to select, then:
Press the Red button to delete the program in the list.
Press the Yellow button to move the channel in favorite list.
Press the Blue button to skip the selected channel.
Press Fav button to add or remove the channel to/from your favorite list. (Your TV set will
skip the channel automatically when using CH+/- to view the channels.)
Signal Information
Press ▼/▲button to select Signal Information, press the OK button to see the detail
information about the signal. Only available when there is signal in DTV.

20
Picture Menu
Press MENU button to display the main menu. Press ◄/►button to select PICTURE in the
main menu.
1. Press ▼/▲button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the
previous menu.
