LENCO DVL-1662BK User manual

Model No.: DVL-1662BK, DVL-1962BK, DVL-2262BK, DVL-2462BK
DVL-2862WH, DVL-2862BK, DVL-3252WH, DVL-3252BK
LED-1922BK, LED-2422BK, DVL-240, DVL-3242WH
DVL-3242BK, DVL-320BK, LED-2822BK
LED-3222BK, DVL-2462BK
, LED-4022BK
Download full manual on Lenco.com/

Contents
Caution .......................................................................................3 Safety Information .....................................................................3

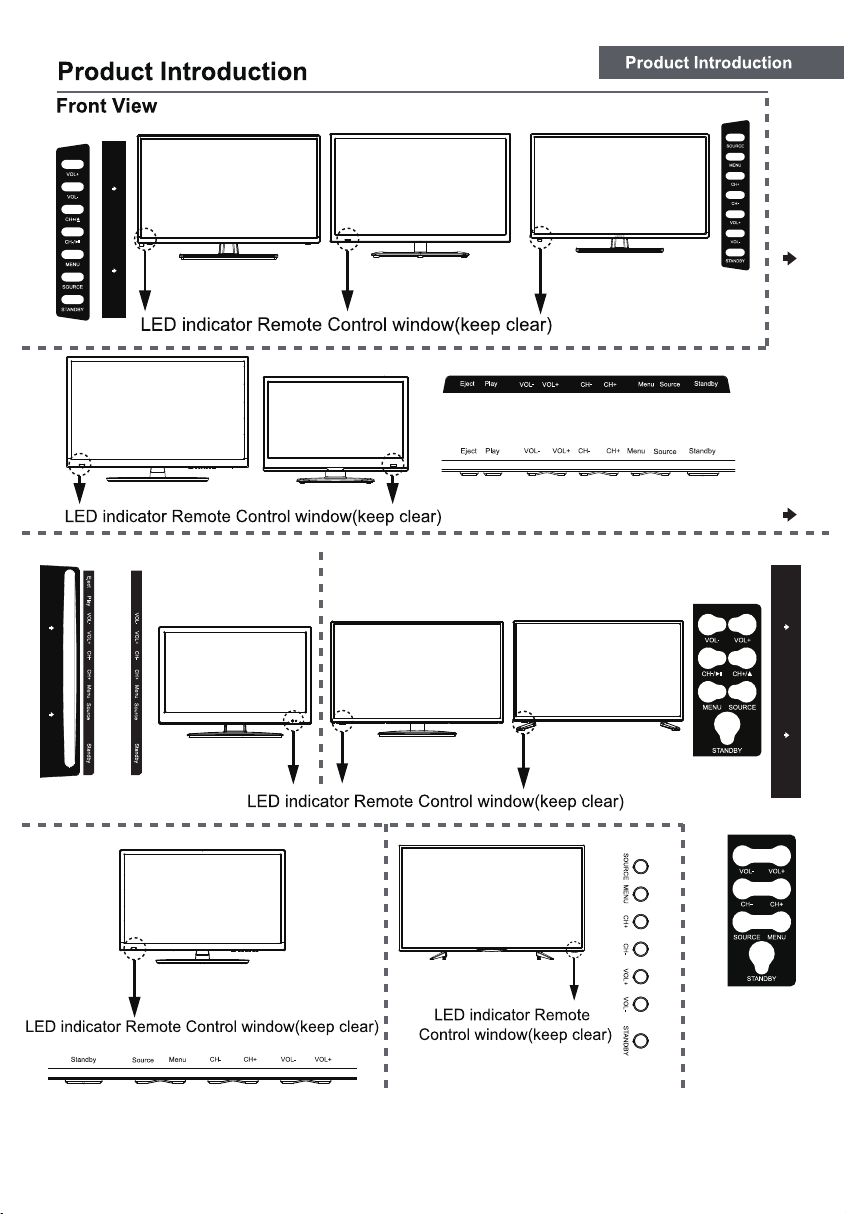

Product Introduction .................................................................6
Technical Specification............................................................................ 5
Connections ............................................................................... 8

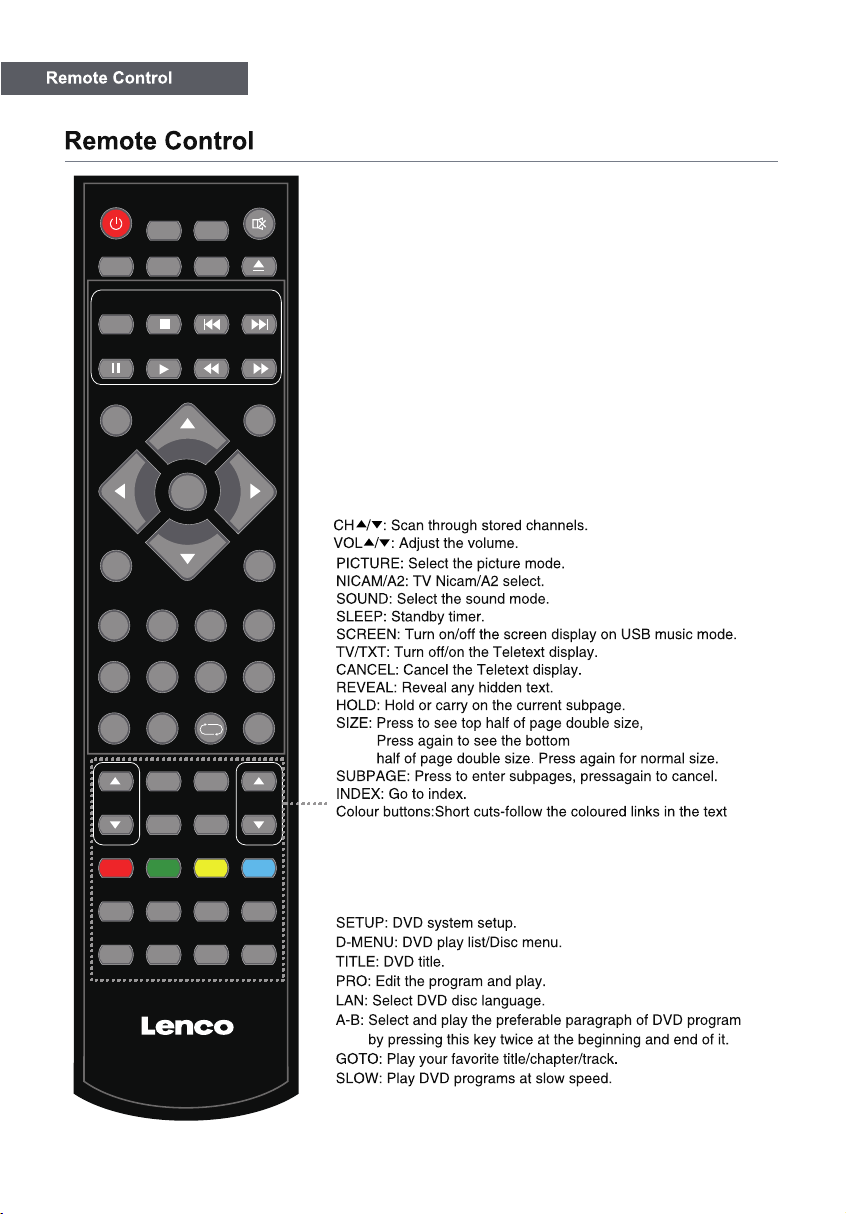

Remote Control..........................................................................10

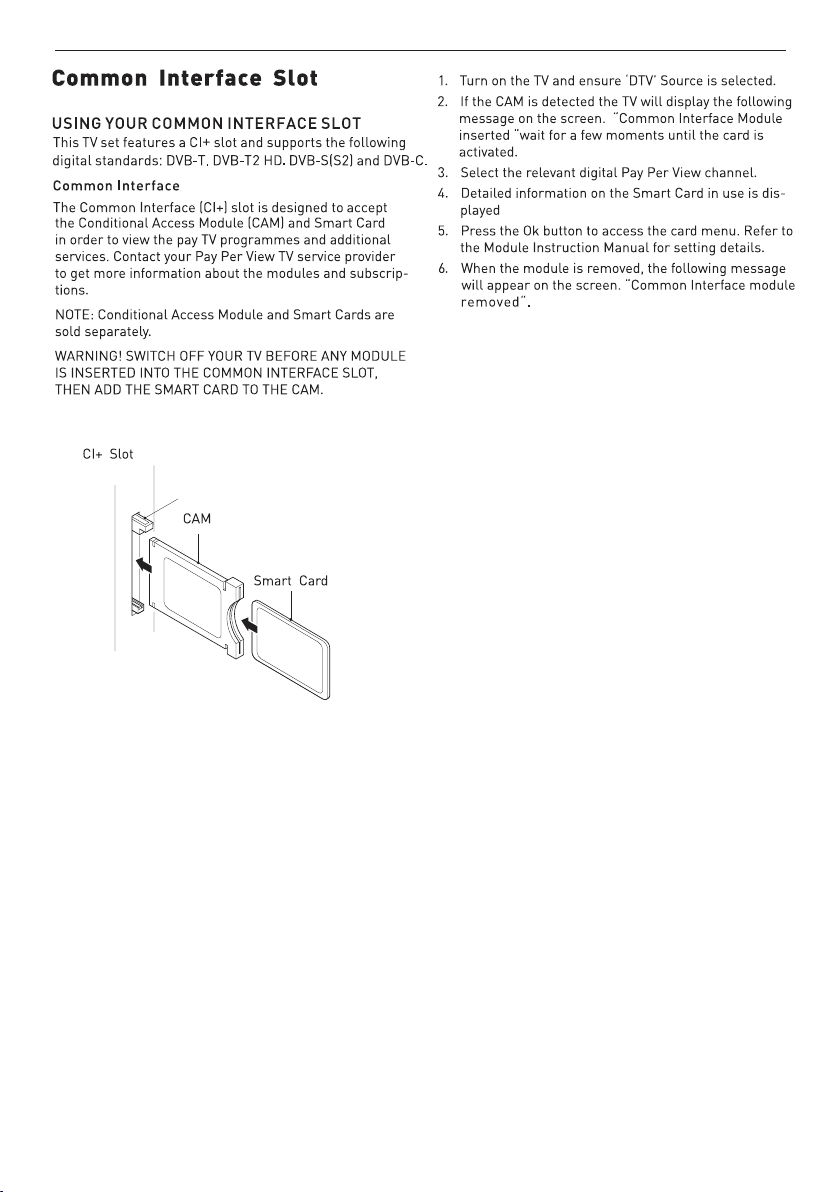

Common Interface Slot ............................................................. 12

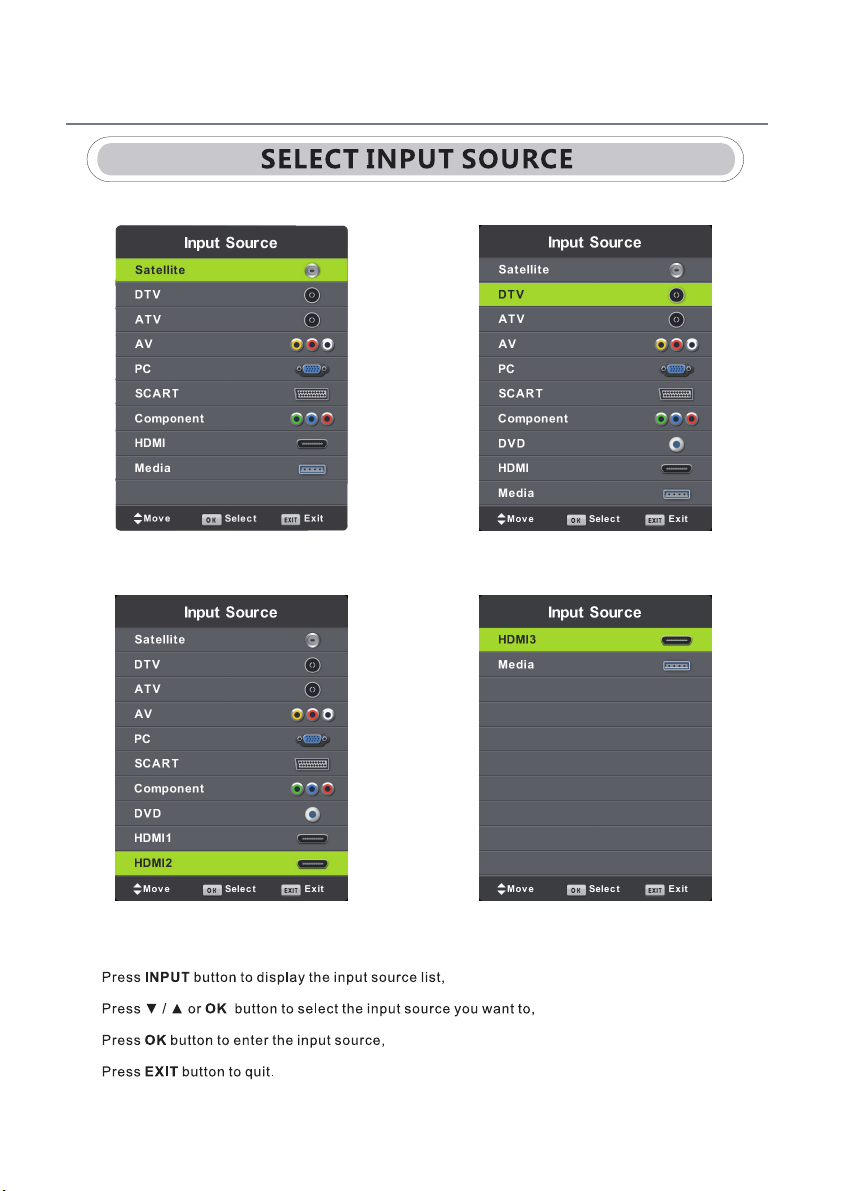

Select Input Source .......... ........................................................13
First Time Installation.............................................................. ..14
2

3

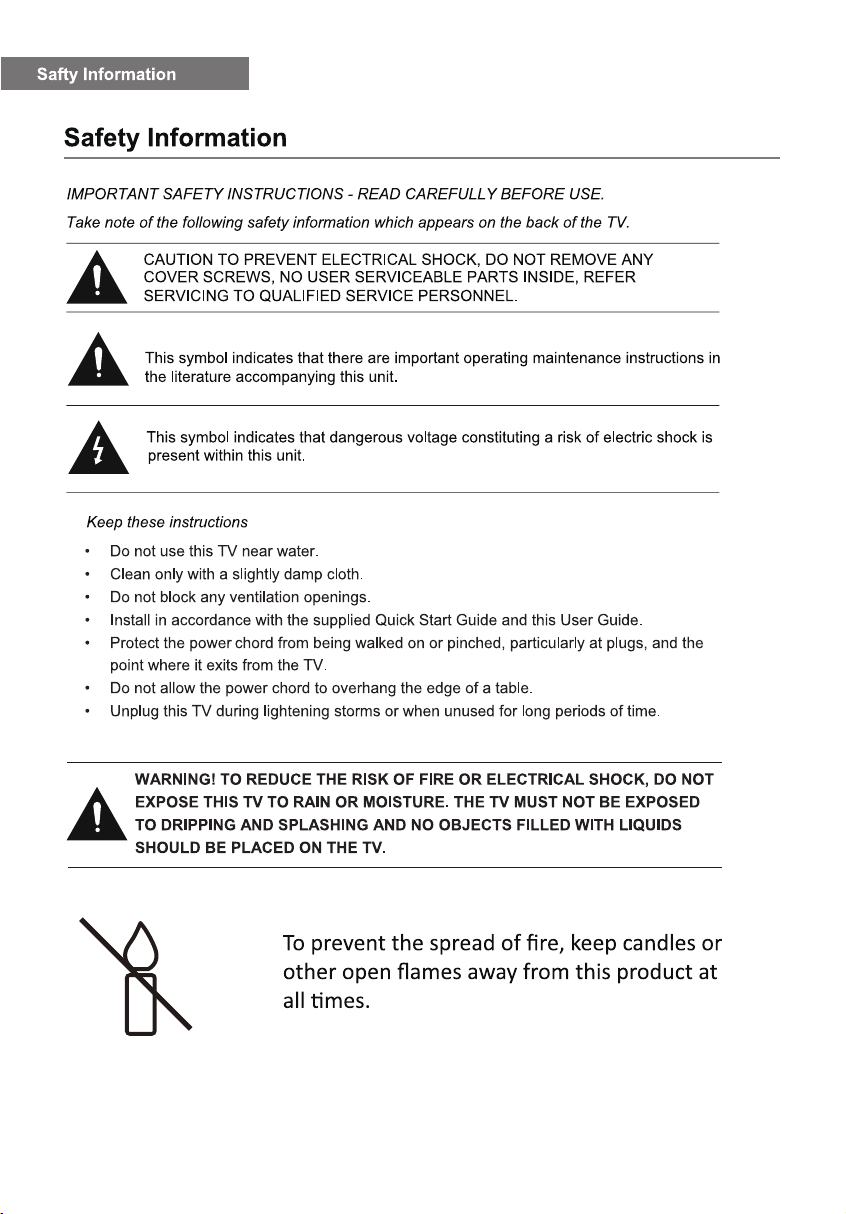

Warning

4
CAUTION:
Usage of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
PRECAUTIONS BEFORE USE
KEEP THESE INSTRUCTIONS IN MIND:
1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”)
free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-
generating products or naked flame. The apparatus can only be used in moderate climates.
Extremely cold or warm environments should be avoided. Working temperature between 0° and
35° C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the
device following the instruction manual. During file transmission, please handle with care and
operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows
through the product and inserting an object can cause electric shock and/or short circuit internal
parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with
liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room
with damp, water droplets or condensation may occur inside the unit and the unit could maybe not
work properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit
should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving
the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice
smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect
the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not
sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from rodents. Rodents enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe
stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification
of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data
may be corrupted or lost.
16. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly.
Don’t use an usb extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the apparatus.
18. This device is not intended for use by people (including children) with physical, sensory or mental
disabilities, or a lack of experience and knowledge, unless they’re under supervision or have
received instructions about the correct use of the device by the person who is responsible for their
safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an
unstable position vibrations or shocks or by failure to follow any other warning or precaution
contained within this user manual will not be covered by warranty.
21. Never remove the casing of this apparatus.
22. Never place this apparatus on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or
objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
26. Prolonged exposure to loud sounds from personal music players may lead to temporary or
permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor :
If any trouble occur, disconnect the AC power card and refer servicing to qualified personnel.
To completely disconnect the power input, the mains plug of the apparatus shall be
disconnected from the mains, as the disconnect device is the mains plug of apparatus.

5
Icon D
P
* ThoseinstructionarerelatedonlytoproductsusingpowercableorACpoweradaptor.
Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the
cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep
the entire device out of children’s reach! When playing with the power cable, they can
seriously injure themselves.
Unplug this device during lightning storms or when unused for a long period.
The socket outlet must be installed near the equipment and must be easily accessible.
Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
Devices with class 1 construction should be connected to a main socket outlet with a
protective earthed connection.
Devices with class 2 construction do not require a earthed connection.
Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord.
This can cause a short circuit.
Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or
electric shock.
28. If the product contains or is delivered with a remote control containing coin / cell batteries:
Warning:
“Do not ingest battery, Chemical Burn Hazard” or equivalent working.
[The remote control supplied with] This product contains a coin / button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away
from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
29. Caution about the use of Batteries:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type.
Battery cannot be subjected to high or low extreme temperatures, low air pressure at high
altitude during use, storage or transportation.
Replacement of a battery with an incorrect type that can result in an explosion or the leakage of
flammable liquid or gas.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that
can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment that can result in an
explosion or that leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the leakage of
flammable liquid or gas.
Attention should be drawn to the environmental aspects of battery disposal.
INSTALLATION
• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other
connections have been made.
Warning for CD / DVD player :
WARNING
Class 1 Laser Product
Warning : Do not touch the lens.

6
Insert disc with label side towards back
DVL-2262BK
DVL-2862WH
DVL-2862BK
DVL-2862WH
DVL-1662BK
DVL-1662BK
LED-2822BK
DVL-2862BK
DVL-2462BK
DVL-1962BK
LED-1922BK
DVL-1962BK LED-1922BK
Insert disc with label side towards back
DVL-3252WH
D
DVL-3242WH
DVL-3242BK
LED-3222BK
LED-3222BK
VL-3252BK
Insert disc with label side towards back
DVL-240
DVL-320BK
LED-4022BK
LED-2422BK
DVL-2462BK
Insert disc with label side towards back

7
Turn on from standby-mode / turn off to standby-mode.

8
DVL-2262BK
LED-2422BK DVL-1962BK LED-1922BK
DVL-1662BK LED-2822BK
DVL-3252BK,DVL-3252WH
DVL-3242BK,DVL-3242WH
DVL-320BK ONLY DVL-3252BK,
DVL-3252WH,
DVL-3242BK,
DVL-3242WH,
DVL-320BK
ONLY LED-2822BK
DVL-2462BK, DVL-240 DVL-2862WH, DVL-2862BK
RFDVB-S2SCARTPC AUDIOVGA HDMI1
HDMI2 HDMI3 COAX MINI YPbPrMINI AV
Common Interface USB
HDMI USB MINI
YPbPr
MINI
AV
Common Interface
SCARTVGA DVB-S2 RFDC PC
AUDIO IN COAX
HDMI MINI
YPbPr
MINI
AV
Common In ter face
USB
5V 500mA
SCARTVGA DVB-S2 RFDC PC
AUDIO IN COAX
LED-4022BK LED-3222BK DVL-2462BK
Comm on Interfa ce
COAX MINI AV MIN I YPb Pr
HDMI2 HDMI3
SCARTVGA PC AUDIO RF HDMI1
ONLY LED-4022BK
LED-3222BK
5V 500mA
5V 500mA

9
DVB-S2:
RF:
COAX:
or DC 12V Car adaptor.
or other equipment.
or other equipment
or other equipment

10
ASPEC

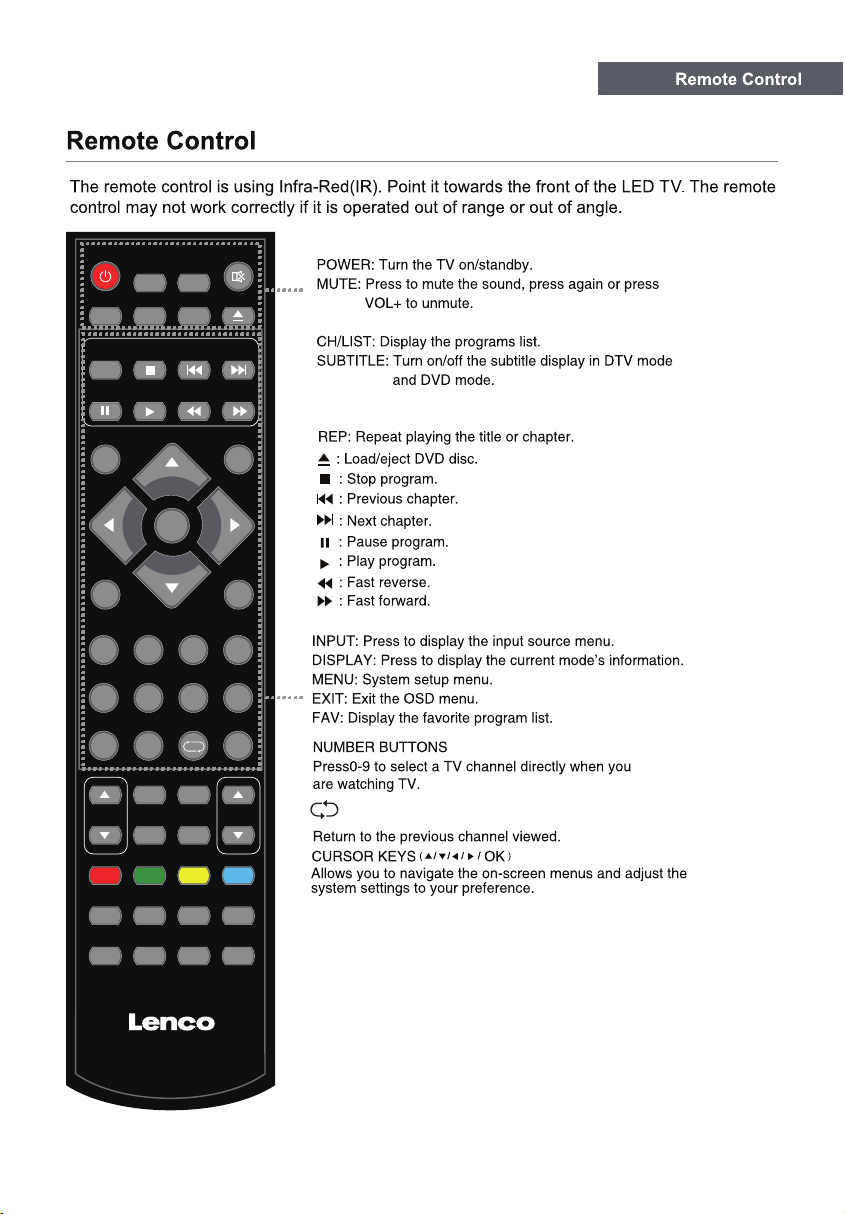

EPG：T: Adjust picture size Electronic television and radio program guide
(broad-caster-specific).
POWER MUTE
EPG
INPUT
MENU EXIT
VOL CH
SETUP
A-B GOTO
D-MENU
TITLE
HOLD SIZE SUBPAGE INDEX
NICAM/A2
TV/TXT CANCEL REVEAL
SOUND SLEEP
FAV
1234
5678
9 0
DISPLAY
REP
SUBTITLE
OK
CH/LISTASPECT
PRO
SLOW
SCREEN
LAN

11
NOTE: Below apply to DVL-1662BK, DVL-1962BK,
DVL-2262BK, DVL-2462BK, DVL-2862WH,
DVL-2862BK, DVL-3252WH, DVL-3252BK, DVL-240
POWER MUTE
EPG
INPUT
MENU EXIT
VOL CH
SETUP
A-B GOTO
D-MENU
TITLE
HOLD SIZE SUBPAGE INDEX
NICAM/A2
TV/TXT CANCEL REVEAL
SOUND SLEEP
FAV
1 2 3 4
5 6 7 8
9 0
DISPLAY
REP
SUBTITLE
OK
CH/LISTASPECT
PRO
SLOW
SCREEN
LAN
DVL-3242WH, DVL-3242BK

12

(The model without DVD)
)K, DVL-320BKB2423-LVD,HW2423-LVD,KB2523-LVD,HW2523-LVDotylppA(
13

14

15
Tuning Setup
Country Germany
Satellite 01 ASTRA 1...
Back
MENU
Scan Mode Network
Channel Type Free+Scramble
Service Type DTV
Start
ENTER
Select your satellite
Network does autom. scan all channels from this satellite
DTV stores TV-channels only
This TV stores max. 2000 satellite-channels (DTV + Radio + Data). If you tune 2 satellites,
tune one first, then delete unwanted channels. When done, start tuning the second
satellite. Otherwise, tuning will not store all channels from the second satellite, because
limit is 2000 channels for satellite-tuner.
Download full manual on Lenco.com/ÿÿ

1. Guarantee
Lenco offers service and warranty in accordance to European law, which means that
in case of repairs (both during and after the warranty period) you should contact
your local dealer.
Important note: It is not possible to send products that need repairs to Lenco
directly.
Important note: If this unit is opened or accessed by a non-official service center in
any way, the warranty expires.
This device is not suitable for professional use. In case of professional use, all
warranty obligations of the manufacturer will be voided.
2. Disclaimer
Updates to Firmware and/or hardware components are made regularly. Therefore
some of the instruction, specifications and pictures in this documentation may differ
slightly from your particular situation. All items described in this guide for illustration
purposes only and may not apply to particular situation. No legal right or
entitlements may be obtained from the description made in this manual.
3. Disposal of the Old Device
This symbol indicates that the relevant electrical product or battery
should not be disposed of as general household waste in Europe. To
ensure the correct waste treatment of the product and battery,
please dispose them in accordance to any applicable local laws of
requirement for disposal of electrical equipment or batteries. In so
doing, you will help to conserve natural resources and improve standards of
environmental protection in treatment and disposal of electrical waste (Waste
Electrical and Electronic Equipment Directive).

4. Service
For more information and helpdesk support, please visit www.lenco.com
Lenco Benelux BV, Thermiekstraat 1a, 6361 HB The Netherlands., Nuth,

GEBRUIKSAANWIJZING
Modelnr.: DVL-1662BK, DVL-1962BK, DVL-2262BK, DVL-2462BK
DVL-2862WH, DVL-2862BK, DVL-3252WH, DVL-3252BK
LED-1922BK, LED-2422BK, DVL-240, DVL-3242WH
Lees voor het gebruik van deze TV de aanwijzingen door en bewaar deze gebruiksaanwijzing op een
veilige plaats om hem later te kunnen raadplegen.
Download de volledige handleiding op Lenco.com/ www.lenco.com
DVL-3242BK, DVL-320BK, LED-2822BK, LED-4022BK
LED-3222BK, DVL-2462BK

2
Inhoud
Veiligheidsinformatie......................................................................................................................................... 3
Inleidingtothetproduct.................................................................................................................................... 7
Aansluitingen...................................................................................................................................................... 9
Afstandsbediening.............................................................................................................................................. 11
CommonInterface-sleuf................................................................................................................................... 13
INGANGSBRONSELECTEREN............................................................................................................................ 14
Eerstekeerinstalleren...................................................................................................................................... 15

Veiligheidsinformatie
3
Veiligheidsinformatie
BELANGRIJKEVEILIGHEIDSAANWIJZINGEN-LEESZEVOORHETGEBRUIKZORGVULDIGDOOR.
Neemnotavandevolgendeveiligheidsinformatie,diezichopdeachterkantvandeTVbevindt.
OMHETRISICOOPELEKTRISCHESCHOKKENTEVOORKOMEN,VERWIJDERNOOITDE
SCHROEVENVANDEBEHUIZING,GEENINTERNEONDERDELENDIEUZELFKUNTREPAREREN,
LAATREPARATIESOVERAANGEKWALIFICEERDPERSONEEL.
Ditsymboolgeeftaandaterzichbelangrijkebedienings-ofonderhoudsaanwijzingenindebij
dittoestelgevoegdedocumentatiebevinden.
Ditsymboolgeeftaandaterzichindittoesteleengevaarlijkespanningbevindt,dieeenrisico
opelektrischeschokkenvormt .
Bewaardezeaanwijzingen
Gebruikhetapparaatnietindebuurtvanw at er.
Reinighetuitsluitendmeteenlichtvochtigedoek.
Blokkeergeenventilatieopeningen.
InstalleerhettoestelinovereenstemmingmetdemeegeleverdeSnelstartgidsendeze
gebruiksaanwijzing.
Beschermhetnet snoertegenbeknelling,inhetbijzonderbijstekkersenophetpuntwaarhetuitdeTV
komt .
Laathetnetsnoernietoverderandvaneent afelhangen.
OntkoppeldeTVtijdensonweerofwanneerhijgedurendelangeretijdnietwordtgebruikt.
WAARSCHUW ING!STELDEZETVNIETBLOOTAANREGENOFVOCHT,OMHETRISICOOP
BRANDOFELEKTRISCHESCHOKKENTEVERMINDEREN.DETVMAGNIETWORDEN
BLOOTGESTELDAANDRUPPELSOFSPETTERSENERMOGENGEENMETVLOEISTOFFEN
GEVULDEVOORWERPEN,ZOALSVAZEN,OPDETVWORDENGEZET.
Waarschuwing
Om de verspreiding van vuur te voorkomen, houd dit product te allen tijde uit de
buurt van kaarsen of andere open vlammen.
