Service Literature
EL196UHE SERIES UNITS
EL196UHE series units are high-efficiency gas fur
naces manufactured with Lennox DuralokPlustalumi
nized steel clamshell-type heat exchangers, with a stainless
steel condensing coil. EL196UHE units are available in
heating input capacities of 30,000 to 110,000 Btuh and cool
ing applications from 2 through 5 tons. Refer to Engineering
Handbook for proper sizing.
Units are factory equipped for use with natural gas. A kit is
available for conversion to LP/Propane operation. All
EL196UHE units are equipped with a hot surface ignition
system. The gas valve is redundant to assure safety
shut-off as required by C.S.A.
The heat exchanger, burners and manifold assembly can be
removed for inspection and service. The maintenance section
gives a detailed description on how this is done.
All specifications are subject to change. Procedures outlined
in this manual are presented as a recommendation only
and do not supersede or replace local or state codes.
WARNING
Electric shock hazard. Can cause injury
or death. Before attempting to perform
any service or maintenance, turn the
electrical power to unit OFF at discon
nect switch(es). Unit may have multiple
power supplies.
Table of Contents
Specifications 2.................................
Optional Accessories 3..........................
Blower Performance Data 4......................
I-Unit Components 7............................
II Placement and Installation .................... 21
III-Start-Up ................................... 42
IV-Heating System Service Checks .............. 43
V-Typical Operating Conditions ................. 47
VI-Maintenance ............................... 48
VII-Sequence of Operation and Flow Charts ...... 51
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, person
al injury or loss of life. Installation and service must
be performed by a licensed professional HVAC in
staller (or equivalent), service agency or the gas sup
plier.
CAUTION
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal in
jury. Take care while handling this equipment and
wear gloves and protective clothing.

Page 2
SPECIFICATIONS
Gas
Heating
Performance
Model No. EL196UH030XE24B EL196UH045XE24B EL196UH045XE36B
1AFUE 96% 96% 96%
Input - Btuh 30,000 44,000 44,000
Output - Btuh 29,000 42,000 42,000
Temperature rise range - °F 30 - 60 40 - 70 35 - 65
Gas Manifold Pressure (in. w.g.)
Nat. Gas / LPG/Propane 3.5 / 10 3.5 / 10 3.5 / 10
High static - in. w.g. 0.5 0.5 0.5
Energy Star® Certied Yes Yes Yes
Connections
in.
Intake / Exhaust Pipe (PVC) 2 / 2 2 / 2 2 / 2
Gas pipe size IPS 1/2 1/2 1/2
Condensate Drain Trap (PVC pipe) - i.d. 3/4 3/4 3/4
with furnished 90° street elbow 3/4 slip x 3/4 Mipt 3/4 slip x 3/4 Mipt 3/4 slip x 3/4 Mipt
with eld supplied (PVC coupling) - o.d. 3/4 slip x 3/4 MPT 3/4 slip x 3/4 MPT 3/4 slip x 3/4 MPT
Indoor
Blower
Wheel nom. dia. x width - in. 10 x 8 10 x 8 10 x 8
Motor Type DC Brushless DC Brushless DC Brushless
Motor output - hp 1/2 1/2 1/2
Tons of add-on cooling 1 - 2 1 - 2 1.5 - 3
Air Volume Range - cfm 260 - 990 260 - 990 520 - 1345
Electrical Data Voltage 120 volts - 60 hertz - 1 phase
Blower motor full load amps 6.8 6.8 6.8
Maximum overcurrent protection 15 15 15
Shipping Data lbs. - 1 package 129 129 129
SPECIFICATIONS
Gas
Heating
Performance
Model No. EL196UH070XE36B EL196UH090XE48C EL196UH110XE60C
1AFUE 96% 96% 96%
Input - Btuh 66,000 88,000 110,000
Output - Btuh 63,000 85,000 106,000
Temperature rise range - °F 35 - 65 50 - 80 45 - 75
Gas Manifold Pressure (in. w.g.)
Nat. Gas / LPG/Propane 3.5 / 10 3.5 / 10 3.5 / 10
High static - in. w.g. 0.5 0.5 0.5
Energy Star® Certied Yes Ye s Ye s
Connections
in.
Intake / Exhaust Pipe (PVC) 2 / 2 2 / 2 2 / 2
Gas pipe size IPS 1/2 1/2 1/2
Condensate Drain Trap (PVC pipe) - i.d. 3/4 3/4 3/4
with furnished 90° street elbow 3/4 slip x 3/4 Mipt 3/4 slip x 3/4 Mipt 3/4 slip x 3/4 Mipt
with eld supplied (PVC coupling) - o.d. 3/4 slip x 3/4 MPT 3/4 slip x 3/4 MPT 3/4 slip x 3/4 MPT
Indoor
Blower
Wheel nom. dia. x width - in. 10 x 8 10 x 10 11-1/2 x 10
Motor Type DC Brushless DC Brushless DC Brushless
Motor output - hp 1/2 3/4 1
Tons of add-on cooling 1.5 - 3 2.5 - 4 3 - 5
Air Volume Range - cfm 550 - 1380 760 - 1740 1055 - 2220
Electrical Data Voltage 120 volts - 60 hertz - 1 phase
Blower motor full load amps 6.8 8.4 10.9
Maximum overcurrent protection 15 15 15
Shipping Data lbs. - 1 package 134 158 170
NOTE - Filters and provisions for mounting are not furnished and must be eld provided.
1 Annual Fuel Utilization Efciency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

Page 3
OPTIONAL ACCESSORIES - ORDER SEPARATELY
NOTE - FURNACES CANNOT BE TWINNED!
“B” Width
Models
“C” Width
Models
CABINET ACCESSORIES
Horizontal Suspension Kit - Horizontal only 51W10 51W10
Return Air Base - Upow only 50W98 50W99
High Performance Economizer (Commercial Only) 10U53 10U53
CONDENSATE DRAIN KITS
Condensate Drain Heat Cable 6 ft. 26K68 26K68
24 ft. 26K69 26K69
Heat Cable Tape Fiberglass - 1/2 in. x 66 ft. 36G53 36G53
Crawl Space Vent Drain Kit US 51W18 51W18
Canada 15Z70 15Z70
CONTROLS
Blower Relay Kit (for two-stage outdoor units) 85W66 85W66
FILTER KITS
1Air Filter and Rack
Kit
Horizontal (end) Size of lter - in. 87L96 - 18 x 25 x 1 87L97 - 20 x 25 x 1
Side Return Single 44J22 44J22
Ten Pack 66K63 66K63
Size of lter - in. 16 x 25 x 1 16 x 25 x 1
SERVICE KIT
Night Service Kit 84W48 84W48
TERMINATION KITS
See Installation Instructions for specic venting information.
Termination Kits -
Direct Vent
Applications Only
Concentric US - 2 in. 71M80 69M29
3 in. - - - 60L46
Canada - 2 in. 44W92 44W92
3 in. - - - 44W93
Flush-Mount US - 2, 2-1/2 or 3 in. 51W11 51W11
Canada - 2, 2-1/2 or 3 in. 51W12 51W12
Wall - Close
Couple
US - 2 in. 22G44 - - -
3 in. 44J40 44J40
Wall - Close
Couple WTK
Canada - 2 in. 30G28 - - -
3 in. 81J20 81J20
Termination Kits -
Direct or Non-Direct
Vent
Roof 2 in. 15F75 15F75
Wall Ring Kit 2 in. 15F74 315F74
Roof Termination Flashing Kit - Direct or Non-
Direct Vent (2 ashings)
3 in. 44J41 44J41
1 Cleanable polyurethane frame type lter.
2 Kits contain enough parts for two, non−direct vent installations.
3Non-direct vent only.
NOTE - Termination Kits (44W92, 44W93, 30G28, 51W12, 51W19, 81J20) and Crawl Space Vent Drain Kit (15Z70) are certied to ULC S636 standard for use in
Canada only.

Page 4
Blower Data
EL196UH030XE24B AND EL196UH045XE24B PERFORMANCE (Less Filter)
External
Static
Pressure
in. w.g.
Air Volume / Watts at Various Blower Speeds
High Medium-High Medium Medium-Low Low
cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts
0.00 1125 160 1015 125 935 105 830 65 905 70
0.10 1070 165 980 130 885 110 775 70 700 60
0.20 1035 175 950 140 845 115 715 75 560 50
0.30 1000 185 915 150 810 125 670 85 495 55
0.40 965 195 875 160 770 135 625 95 435 60
0.50 925 205 835 170 730 140 580 100 365 65
0.60 890 215 800 180 685 150 530 105 325 70
0.70 855 225 770 190 635 155 485 110 270 75
0.80 820 230 720 195 600 165 430 115 230 80
EL196UH045XE36B PERFORMANCE (Less Filter)
External
Static
Pressure
in. w.g.
Air Volume / Watts at Various Blower Speeds
High Medium-High Medium Medium-Low Low
cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts
0.00 1460 335 1285 235 1190 170 910 85 870 75
0.10 1430 350 1260 245 1155 185 885 95 830 85
0.20 1405 365 1235 255 1125 200 860 105 800 90
0.30 1375 370 1205 265 1090 210 825 115 755 95
0.40 1350 380 1175 275 1055 215 780 125 710 105
0.50 1315 385 1145 285 1020 230 735 130 665 115
0.60 1245 375 1110 295 980 240 685 140 620 125
0.70 N/A N/A 1070 305 940 250 640 145 575 135
0.80 N/A N/A 1020 310 905 260 600 155 530 140
EL196UH070XE36B PERFORMANCE (Less Filter)
External
Static
Pressure
in. w.g.
Air Volume / Watts at Various Blower Speeds
High Medium-High Medium Medium-Low Low
cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts
0.00 1445 315 1315 215 1215 165 930 85 925 75
0.10 1445 335 1275 230 1170 180 905 94 860 80
0.20 1415 345 1240 240 1125 190 870 101 800 85
0.30 1380 355 1205 250 1090 200 830 109 760 95
0.40 1345 370 1175 265 1055 210 790 117 710 105
0.50 1315 385 1150 280 1020 220 735 129 665 115
0.60 1275 390 1110 290 985 230 685 137 625 125
0.70 1210 395 1075 300 950 240 640 146 565 130
0.80 N/A N/A 1030 305 915 250 595 148 535 135

Page 5
Blower Data
EL196UH090XE48C PERFORMANCE (Less Filter)
External
Static
Pressure
in. w.g.
Air Volume / Watts at Various Blower Speeds
High Medium-High Medium Medium-Low Low
cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts
0.00 1765 375 1535 250 1410 180 1315 155 1155 115
0.10 1735 390 1500 260 1365 200 1270 165 1130 125
0.20 1700 405 1465 275 1330 215 1230 175 1095 135
0.30 1660 425 1435 290 1295 225 1195 190 1055 145
0.40 1640 435 1400 300 1265 235 1165 200 1010 155
0.50 1615 450 1370 315 1230 250 1125 215 965 165
0.60 1575 465 1340 325 1190 265 1080 230 925 180
0.70 1530 470 1305 340 1150 280 1045 235 885 190
0.80 N/A N/A 1260 345 1115 285 1000 245 845 195
EL196UH110XE60C PERFORMANCE (Less Filter)
External
Static
Pressure
in. w.g.
Air Volume / Watts at Different Blower Speeds
Bottom Return Air, Side Return Air with Return Air from Both
Sides or Return Air from Bottom and One Side.
Single Side Return Air − Air volumes in bold require
Optional Return Air Base and eld fabricated transition to
accommodate 20 x 25 x 1 in. air lter in order to maintain
proper air velocity.
High Med-High Medium Med-Low Low High Med-High Medium Med-Low Low
cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts
0.00 2220 655 1975 440 1800 325 1665 390 1050 180 2180 685 1910 460 1750 345 1660 285 1430 195
0.10 2185 680 1925 460 1750 345 1625 285 1440 200 2155 705 1885 480 1720 360 1610 295 1415 205
0.20 2150 705 1880 480 1710 365 1590 300 1390 220 2130 725 1855 495 1685 380 1565 305 1380 220
0.30 2110 720 1850 495 1680 380 1560 320 1350 230 2085 745 1825 510 1655 390 1535 325 1335 230
0.40 2080 735 1810 520 1650 405 1515 330 1310 245 2060 760 1795 530 1625 405 1495 340 1295 245
0.50 2045 755 1785 530 1610 415 1470 350 1265 255 2030 775 1765 545 1585 425 1450 355 1255 265
0.60 2010 775 1740 545 1575 430 1440 370 1220 270 1995 785 1725 565 1550 435 1420 370 1205 275
0.70 1980 790 1705 565 1525 450 1400 375 1170 280 1960 795 1690 575 1505 455 1385 385 1165 290
0.80 1950 795 1670 580 1485 460 1360 390 1140 293 1895 790 1650 590 1465 470 1335 395 1120 295

Page 6
EL196UHE PARTS IDENTIFICATION
FIGURE 1
TOP CAP
BURNER BOX
ASSEMBLY
DuralokPlusTM
HEAT EXCHANGER
ASSEMBLY
CONTROL BOX
(includes integrated ignition control, trans
former, circuit breaker and interlock switch)
COMBUSTION AIR
INDUCER
OUTER
ACCESS
PANEL COMBUSTION
AIR PRESSURE
SWITCH
PRIMARY LIMIT
GAS VALVE
BLOWER
ASSEMBLY
FLEXIBLE NO-HUB
EXHAUST COLLAR
COLD END
HEADER BOX
BAG ASSEMBLIES
(shipping location)
BLOWER ACCESS
PANEL

Page 7
I-UNIT COMPONENTS
ELECTROSTATIC DISCHARGE (ESD)
Precautions and Procedures
CAUTION
Electrostatic discharge can affect elec
tronic components. Take precautions
to neutralize electrostatic charge by
touching your hand and tools to metal
prior to handling the control.
EL196UHE unit components are shown in figure 1. The
combustion air inducer, gas valve and burners can be ac
cessed by removing the outer access panel. The blower
and control box can be accessed by removing the blow
er access panel.
A-Control Box Components (Figure 2)
Unit transformer (T1) and integrated ignition control (A92)
are located in the control box. In addition, a door interlock
switch (S51) is located in the control box.
FIGURE 2
EL196UHE Control Box
Integrated Control
Door Interlock
Switch
Transformer
Circuit Breaker
1. Transformer (T1)
A transformer located in the control box provides power to
the low voltage section of the unit. The transformers on all
models are rated at 40VA with a 120V primary and 24V
secondary.
2. Door Interlock Switch (S51)
A door interlock switch rated 14A at 120VAC is located on
the control box. The switch is wired in series with line volt
age. When the blower door is removed the unit will shut
down.
3. Circuit Breaker (CB8)
A 24V circuit breaker is also located in the control box. The
switch provides overcurrent protection to the transformer
(T1). The breaker is rated at 3A at 32V. If the current ex
ceeds this limit the breaker will trip and all unit operation will
shutdown. The breaker can be manually reset by pressing
the button on the face.
4. Integrated Ignition Control (A92)
103217-03 & 107163-01
WARNING
Shock hazard.
Disconnect power before servicing. Control is not
field repairable. If control is inoperable, simply re
place entire control.
Can cause injury or death. Unsafe operation will re
sult if repair is attempted.
The hot surface ignition control system consisting of an in
tegrated control (figure 3 or 5 with control terminal desig
nations in tables 1, 2 and 3), sensor and ignitor (figure 6).
The integrated control and ignitor work in combination to
ensure furnace ignition and ignitor durability. The inte
grated control, controls all major furnace operations. The
integrated control also features a RED LED for trouble
shooting and two accessory terminals rated at (1) one
amp. See table 4 for troubleshooting diagnostic codes.
The nitride ignitor is made from a non-porous, high
strength proprietary ceramic material that provides long
life and trouble free maintenance.
TABLE 1
4-Pin Terminal Designation
PIN # FUNCTION
1Combustion Air Inducer Line
2Ignitor Line
3Combustion Air Inducer Neutral
4Ignitor Neutral
TABLE 2
12-Pin Terminal Designations
PIN # FUNCTION
1High Limit Output
2IFC 103217-03 Not Used
IFC 107163-01 Flame Sense
324V Line
4Not Used
5Rollout Switch Out
624V Neutral
7High Limit Input
8 Ground
9Gas Valve Common
10 Pressure Switch In
11 Rollout Switch In
12 Gas Valve Out

Page 8
TABLE 3
1/4” QUICK CONNECT TERMINALS
120HUM Humidifier 120VAC
LINE 120VAC
XFMR Transformer 120VAC
CIRC Indoor blower 120VAC
EAC Indoor air quality accessory 120VAC
NEUTRALS Common 120VAC
HUM24 Humidifier 24VAC
3/16” QUICK CONNECT TERMINALS
COOL Cooling tap 24VAC
HEAT Heating tap 24VAC
FAN Continuous blower 24 VAC
PARK (no power) Park terminal for unused speed taps
FS Flame sense
24 COM Common 24VAC
TABLE 4
Ignition Control 103217-03
The integrated control is equipped with an LED light for troubleshooting. The diagnostic codes are listed below in table 4.
RED LED
Flash Code 2Diagnostic Codes / Status of Furnace
Off No power to control or board fault detected
Heartbeat
1
Normal Operation - Idle, Continuous Fan, Cool
Continuous Rapid
Flash Call For Heat / Burner Operation
1Reverse Line Voltage Polarity
2Improper Earth Ground
3Burner failed to light, or lost flame during heat demand
4Low Flame Signal - check flame sensor
5Watchguard - burner failed to light, exceeded maximum number of retries or recycles.
6Not Used
7Primary or Secondary Limit Open or Watchguard Mode - Limit Switch Open longer than 3 min
utes
8Rollout Switch Open
9Pressure Switch failed to close or opened during heat demand
10 Watchguard - Pressure Switch opened 5 times during one heat demand
11 Pressure Switch stuck closed prior to activation of combustion air inducer
12 Flame Sensed without gas valve energized
13 Low Line Voltage
Notes
Note 1 A ”Heartbeat” is indicated by a ”Slow Flash” - 1 sec on 1 sec off, repeating
Note 2 Error codes are indicated by a ”Rapid Flash” - the LED flashes X times at 1/2 sec on 1/2 sec
off, remains off for 3 sec, then repeats
Note 3
Last 10 error codes are stored in memory including when power is shut off to the unit. - To recall,
press and release button, most recent will be displayed first, LED off for 3 sec, then next error
code is displayed, etc. To clear error codes, depress and hold button longer than 5 seconds.

Page 9
FIGURE 3
BLOWER OFF DELAY
RED LED RECALL BUTTON
IGNITION CONTROL 103217-03
Electronic Ignition

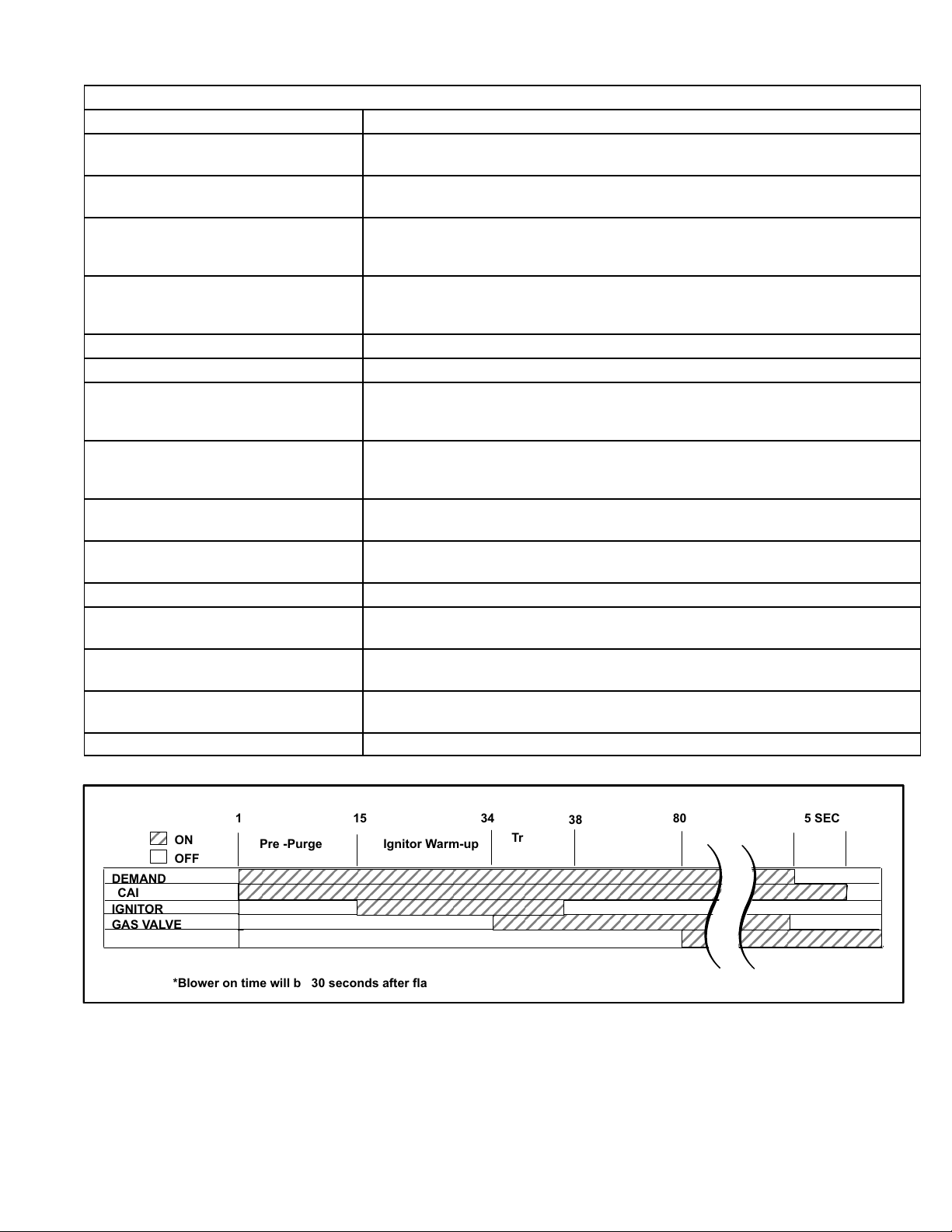

On a call for heat the integrated control monitors the com
bustion air inducer pressure switch. The control board will
not begin the heating cycle if the pressure switch is closed
(by-passed). Once the pressure switch is determined to be
open, the combustion air inducer is energized. When the
differential in the pressure switch is great enough, the pres
sure switch closes and a 15-second pre-purge begins. If
the pressure switch is not proven within 2-1/2 minutes, the
integrated control goes into Watchguard-Pressure Switch
mode for a 5-minute re-set period.
After the 15-second pre-purge period, the ignitor warms up
for 20 seconds during which the gas valve opens at 19 sec
onds for a 4-second trial for ignition. The ignitor remains
energized for the first 3 seconds during the 4 second trial. If
ignition is not proved during the 4-second period, the inte
grated control will try four more times with an inter purge
and warm-up time between trials of 35 seconds. After a to
tal of five trials for ignition (including the initial trial), the inte
grated control goes into Watchguard-Flame Failure mode.
After a 60-minute reset period, the integrated control will
begin the ignition sequence again.
Fan Time Control - Ignition Control 103217-03
Heating Fan On Time
The fan on time of 30 seconds is not adjustable.
Heating Fan Off Time
Fan off time (time that the blower operates after the heat
demand has been satisfied) can be adjusted by moving the
jumper to a different setting. The unit is shipped with a fac
tory fan off setting of 90 seconds. For customized comfort,
monitor the supply air temperature once the heat demand
is satisfied. Note the supply air temperature at the instant
the blower is de-energized.
Adjust the fan-off delay to achieve a supply air temperature
between 90° - 110° at the instant the blower is de-ener
gized. (Longer delay times allow for lower air temperature,
shorter delay times allow for higher air temperature). See
figure 4.
Cooling Fan On Time
The fan on time is 2 seconds and is not adjustable.
Cooling Fan Off Time
The control has a 45 second fan off delay after cooling de
mand has been met. This delay is factory set and not ad
justable.
HEAT FAN‐OFF TIME IN SECONDS
To adjust fan-off timing, reposition jumper across pins to
achieve desired setting.
NO JUMPER
FIGURE 4
60 90
120
180
60 90
120
180
60 90
120
180
60 90
120
180
60 Second
off Time
90 Second
off Time
120 Second
off Time
180 Second
off Time

Page 10

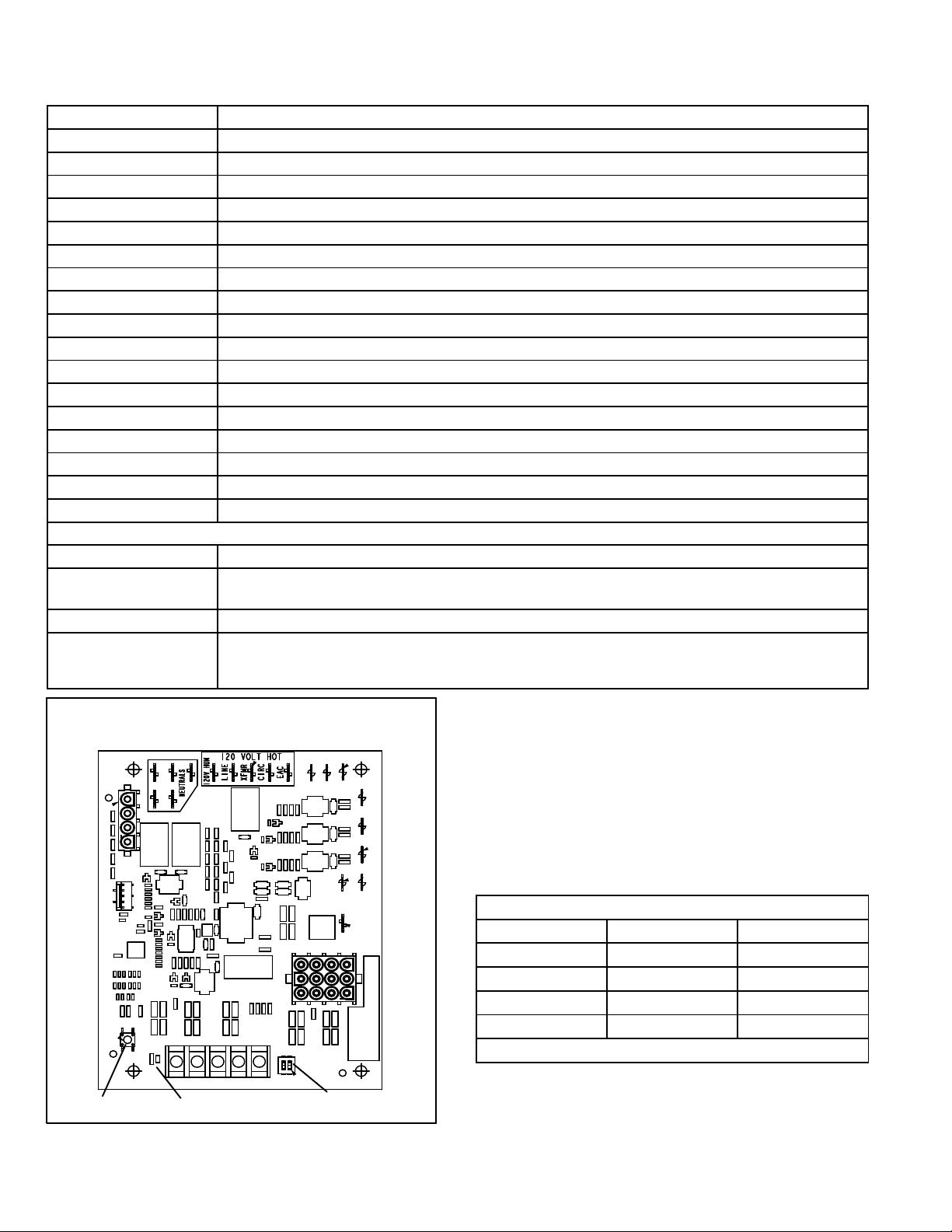

TABLE 5
Ignition Control 107163-01
RED LED Flash Code Diagnostic Codes / Status of Furnace
Off No Power to Control or Board Fault Detected
On Board Fault Detected
Fast Heartbeat3Call for Heat / Burner Operation
Slow Heartbeat1Normal Operation – Idle, Continuous Fan, or Coo
1 Flash2Reverse Line Voltage Polarity or Phasing of 120V power
2 Flashes2Improper Earth Ground
3 Flashes2Burner failed to light, or lost flame during heat demand
4 Flashes2Low Flame Signal - check flame sensor
5 Flashes2Watchguard - burner failed to light, exceeded maximum number of retries or recycles. 1 hour lockout.
6 Flashes2Not Used
7 Flashes2Primary or Secondary Limit Open or Watchguard Mode - Limit Switch Open longer than 3 minutes
8 Flashes2Rollout Switch Open
9 Flashes2Pressure Switch failed to close or opened during heat demand, inducer on.
10 Flashes2Watchguard - Pressure Switch opened 5 times during one heat demand
11 Flashes2Pressure Switch stuck closed prior to activation of combustion air inducer
12 Flashes2Flame Sensed without gas valve energized
13 Flashes2Low Line Voltage
Notes
Note 1 A slow heartbeat is indicated by 1s on / 1s off. It is used for idle, continuous fan and cool modes.
Note 2 Error codes are indicated by a ”Rapid Flash” - the LED flashes X times at 1/2 sec on 1/2 sec off, remains
off for 3 sec, then repeats
Note 3 A fast heartbeat is indicated by 0.5s on / 0.5s off. It is only used during a heat call.
Note 4
Last 10 error codes are stored in memory including when power is shut off to the unit. - To recall, press
and release button, most recent will be displayed first, LED off for 3 sec, then next error code is displayed,
etc. To clear error codes, depress and hold button longer than 5 seconds.
FIGURE 5
IGNITION CONTROL 107163-01
Push Button
Error Recall
Diagnostic LED Heating Blower Off
Delay Selector Switch
FAN
HEAT
COOL
24VCOM
PARKS
HUM24
Ignition Control 107163-01
The heat fan-on time of 30 seconds is not adjustable. The
cool fan-on time of 2 seconds is not adjustable. The heat
fan-off delay (amount of time that the blower operates after
the heat demand has been satisfied) may be adjusted by
changing the two position dip switch on the integerated
control, to one of four selections. Blower off delay is factory
set at 90 seconds. For other blower off delay settings,
please refer to the following chart:
Blower Delay Select
SW2-1 SW2-2
60 OFF ON
90 OFF OFF
120 ON OFF
180 ON ON
Factory Setting is 90

Page 11
FIGURE 6
EL196UHE Burner Box Assembly
Gas Valve
Burner Box Front
Rollout Switch(s)
Flame Sensor
Ignitor
Burner Assembly
B-Heating Components
Combustion air inducer (B6), primary limit control (S10), ig
nitor, burners, flame rollout switch (S47), gas valve (GV1),
combustion air pressure switch (S18), and heat exchangers
are located in the heating compartment. The heating
compartment can be accessed by removing the outer ac
cess panel.
1. Flame Rollout Switches (Figure 6)
Flame rollout switches S47 are SPST N.C. high temperature
limits located on the left and right of the front buner box plate.
S47 is wired to the burner ignition control A92. When ei
ther of the switches sense flame rollout (indicating a
blockage in the combustion passages), the flame rollout
switch trips, and the ignition control immediately closes
the gas valve. Switch S47 in all EL196UHE units is factory
preset to open at 210_F + 12_F (99_C + 6.7_C) on a tem
perature rise. All flame rollout switches are manual reset. See
table 4 flash code 8 for troubleshooting.
2. Heat Exchanger (Figure 7)
EL196UHE units use an aluminized steel primary and
stainless steel secondary heat exchanger assembly.
Heat is transferred to the air stream from all surfaces of
the heat exchanger. The shape of the heat exchanger en
sures maximum efficiency.
The combustion air inducer pulls fresh air through the burn
er box. This air is mixed with gas in the burners. The gas /
air mixture is then burned at the entrance of each clam
shell. Combustion gases are then pulled through the primary
and secondary heat exchangers and exhausted out the ex
haust vent pipe.
3. Primary Limit Control (Figure 7)
Primary limit (S10) used on EL196UHE units is located in the
heating vestibule panel. When excess heat is sensed in the
heat exchanger, the limit will open. Once the limit opens, the
furnace control energizes the supply air blower and de-en
ergizes the gas valve. The limit automatically resets when
unit temperature returns to normal. The switch is factory
set and cannot be adjusted. For limit replacement remove
wires from limit terminals, remove mounting screws, rotate
limit switch 90 degrees and slowly remove from the vesti
bule panel. Install replacement limit with same care. See
table 4 flash code 7 for troubleshooting if limit switch
opens during operation.

Page 12
FIGURE 7
Primary Limit Location and Heat Exchanger
Install limit face down
4. Gas Valve (Figure 8)
The EL196UHE uses an internally redundant valve to assure
safety shut‐off. If the gas valve must be replaced, the same
type valve must be used.
24VAC terminals and gas control switch are located on
top of the valve. All terminals on the gas valve are con
nected to wires from the ignition control. 24V applied to the
terminals opens the valve.
Inlet and outlet pressure taps are located on the valve. A
manifold adjustment screw is also located on the valve. An
LP/Propane changeover kit is available.
FIGURE 8
GAS VALVE SHOWN IN ON POSITION
MANIFOLD
PRESSURE
OUTLET
PORT
INLET
PRESSURE
PORT
MANIFOLD PRESSURE
ADJUSTMENT SCREW
(under barbed fitting)
5. Flame Sensor (Figure 6)
A flame sensor is located on the left side of the burner sup
port. The sensor is mounted on the front burner box plate
and the tip protrudes into the flame envelope of the left-
most burner. The sensor can be removed for service (use
steel wool only to clean) without removing any part of the
burners. During operation, flame is sensed by current
passed through the flame and sensing electrode. The igni
tion control allows the gas valve to remain open as long as
flame signal is sensed.
NOTE - The EL196UHE is polarity sensitive. Make sure
that the furnace is wired correctly and is properly grounded.
A microamp DC meter is needed to check the flame signal
on the integrated control.
Flame (microamp) signal is an electrical current which passes
from the integrated control to the sensor during unit operation.
Current passes from the sensor through the flame to ground to
complete a safety circuit.
To Measure Flame Signal - Integrated Control:
Use a digital readout meter capable of reading DC micro
amps. See figure 9 for flame signal check.
1 - Set the meter to the DC amps scale.
2 - Turn off supply voltage to control.
3 - Remove sensor wire from integrated control.
4 - Connect (-) lead to flame sensor wire.
5 - Connect (+) lead to Terminal FS on integrated control.
6 - Turn supply voltage on and close thermostat contacts to
cycle system.
7 - When main burners are in operation for two minutes, take
reading.
6. Ignitor (Figure 6)
EL196UHE units use a nitride ignitor made from a propri
etary ceramic material. To check ignitor, measure its resist
ance and voltage. A value of 39 to 70 ohms indicates a
good ignitor. Voltage to the ignitor should be 102 - 132VAC.
See figure 10 for resistance and voltage checks.

Page 13

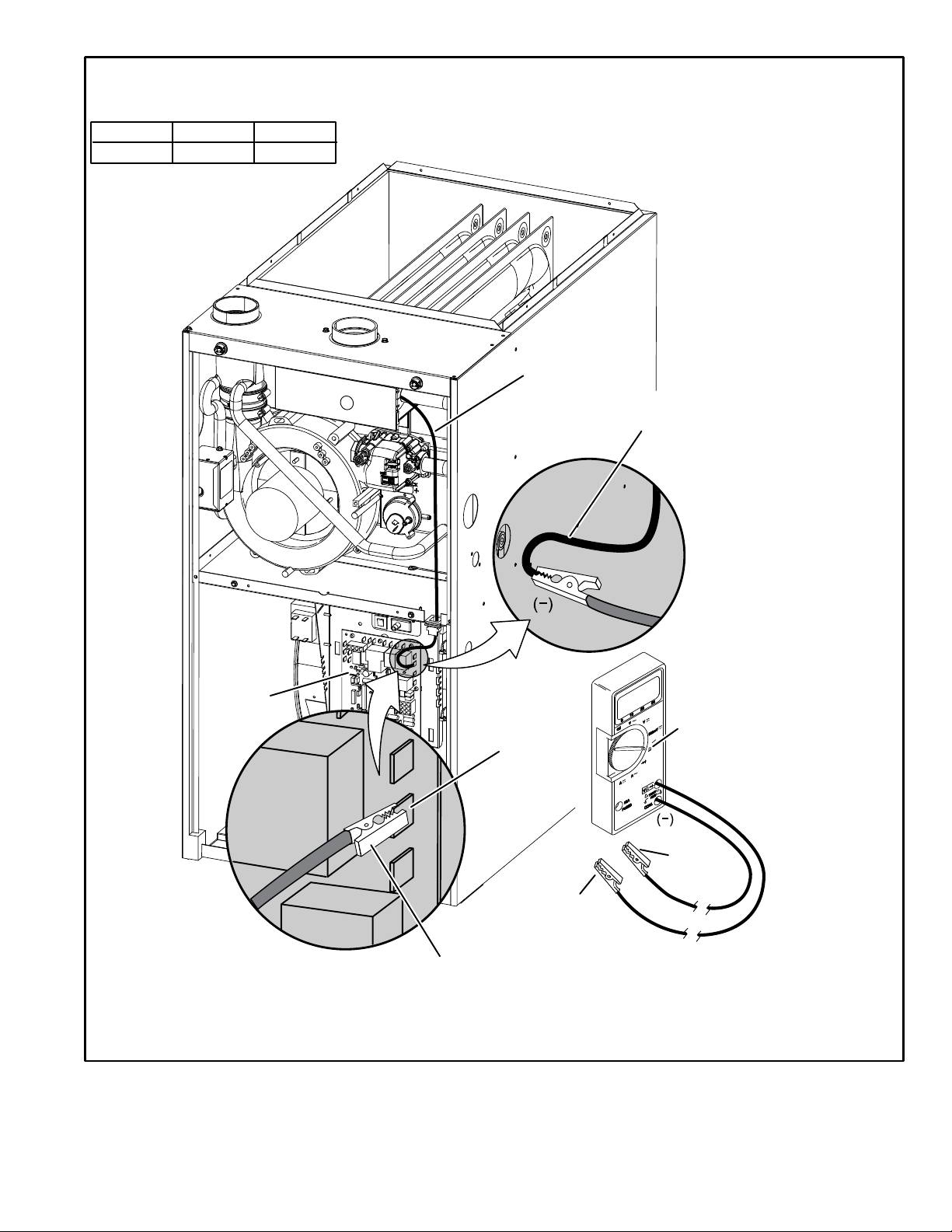

FIGURE 9
Measuring Flame Signal
Flame Signal In Microamps
Normal Low Drop Out
1.5 0.5 - 1.4 0.4
Set Dial to DC MicroAmps
(+)
Multi−Meter
(+)
(+) To Control
Sensor Terminal
(−) To Flame
Terminal
Flame Sensor
Terminal
Flame Sensor
Wire
Intergrated
Control
Remove sensor from integrated
control and connect alligator clip
(−) to flame sensor lead.
Remove sensor from integrated
control and connect alligator clip
(+) to terminal on control.

Page 14
FIGURE
10
Test 1
Check ignitor circuit for correct resistance.
Remove 4-pin plug from control.
Check ohms reading across terminals 2 and 4.
Reading should be between 39 and 70 ohms. If
value is correct, this is the only test needed.
If the reading on the meter is not correct, (0 or
infinity) then a second test is needed.
Test 2
Check ignitor for correct resistance.
Seperate the 2-pin jack-plug near the manifold and check
resistance of ignitor at the plug. Reading should be
between 39 and 70 ohms. If the reading is correct, then
the problem is with the wiring between the jack-plug and
the control. If reading is not correct, the issue is the ignitor.
Test 3
Check ignitor for correct voltage
Insert meter probes into terminals 2 and 4 (use small
diameter probes in order not to damage plug).
Check voltage during 20 second ignitor warm up period.
Voltage should read 120 volts + 10%. If voltage reads below
these values, check for correct supply voltage to furnace.
Multi−Meter
(set to ohms)
Multi−Meter
(set to ohms)
Multi−Meter
(set to VAC)

Page 15
7. Combustion Air Inducer (B6)
& Cold End Header Box
All EL196UHE units use a combustion air inducer to
move air through the burners and heat exchanger during
heating operation. The blower uses a shaded pole
120VAC motor. The motor operates during all heating op
eration and is controlled by integrated control A92. Blower
operates continuously while there is a call for heat. The in
tegrated control will not proceed with the ignition sequence
until combustion air inducer operation is sensed by the prov
ing switches.
The combustion air inducer is installed on the cold end
header box. The cold end header box is a single piece
made of hard plastic. The box has an internal channel
where the combustion air inducer creates negative pres
sure at unit start up. The channel contains an orifice used
to regulate flow created by the combustion air inducer.
The box has pressure taps for the combustion air inducer
pressure switch hoses. The pressure switch measures
the pressure across the combustion air inducer orifice or
difference in the channel and the box. If replacement is
necessary the gaskets used to seal the box to the
vestibule panel and the combustion air inducer to
the box, must also be replaced.
TABLE 6
EL196UHE Unit Combustion Air Inducer
Orifice Size
-030 0.525”
-045 0.618”
-070 0.775”
-090 0.905”
-110 1.040”
8. Combustion Air Pressure Switch
(Figure 11)
EL196UHE series units are equipped with a differential
pressure switch located on the cold end header box. The
switch monitors across the combustion air inducer orifice to in
sure proper flow through the heat exchanger.
The switch is a SPST N.O. pressure switch electrically con
nected to the integrated control. The purpose of the switch is
to prevent burner operation if the combustion air inducer is not
moving enough air for proper combustion.
FIGURE 11
Pressure Switch
On start‐up, the switch monitors whether the combustion air
inducer is operating. It closes a circuit to the integrated
control when the difference in pressure across the com
bustion air inducer orifice exceeds a non-adjustable factory
setting. If the switch does not successfully sense the re
quired differential, the switch cannot close and the fur
nace cannot operate. If the flue or air inlet become ob
structed during operation, the switch senses a loss of
pressure differential and opens the circuit to the integrated
control. If the condensate line is blocked, water will back up
into the header box and reduce the pressure differential
across the switch. The pressure switch opens if the differ
ential drops below the set point. See table 7.
Checks of pressure differential can aid in troubleshooting.
When measuring the pressure differential, readings should be
taken at the pressure switch. See figure 12and table 8. Lack of
differential usually indicates problems in the intake or exhaust
piping, but may indicate problems in the heat exchanger,
condensing coil, header boxes, combustion inducer or
other components.
TABLE 7
Unit
Altitude ft.
0 - 4500 4501 - 7500 7501 - 10000
Set Point “w.c. Set Point “w.c Set Point “w.c.
-030 -0.65 -0.65 -0.60
-045 -0.65 -0.65 -0.60
-070 -0.95 -0.85 -0.75
-090 -0.90 -0.80 -0.65
-110 -0.90 -0.85 -0.65
*Set point is factory set and non-adjustable

Page 16
To Cold End Header Box
Field Provided Tubing
To Pressure Switch
To Cold End Header Box
FIGURE 12
1 - Remove thermostat demand and allow unit to
cycle off.
2 - Install a tee in the negative (-) line (red and black tubing
or red tubing) and a tee in the positive (+) line (black
tubing) running from the pressure switch to the cold
end header box.
3 - Install a manometer with hose from the negative (-)
side of the manometer to the tee installed in the
negative (-) line and with hose from the positive (+)
side of the manometer to the tee in the positive (+)
line.
NOTE - Both sides of the cold end header box are nega
tive. However the (+) port reads less negative pressure
than the (-) port.
4 - Operate unit and observe manometer reading.
Readings will change as heat exchanger warms.
a. Take one reading immediately after start‐up.
b. Take a second reading after unit has reached
steady state (approximately 5 minutes). This will be
the pressure differential.
The pressure differential should be greater
than those listed in table 7.
5 - Remove thermostat demand and allow to cycle off.
6 - Remove manometer and tee's. Reinstall combustion
air sensing hoses to the pressure switch.
Measuring Pressure Differential
Black Tubing
(positive +)
Red and Black Tubing
or Red Tubing
(negative -)
“+”
High
“-”
Low

Page 17
TABLE 8
Pressure Switch Troubleshooting Guide
Problem Corrective Action
Pressure switch stuck closed Check that the pressure switch is open without the combustion air inducer operat
ing. Replace if defective.
Pressure switch does not close due to
obstruction in vent pipe.
Check for restricted vent. Remove all blockage.
Check for proper vent sizing. See table 13.
Pressure switch does not close due to
incorrect routing of the pressure
switch tubing.
Check that the pressure switch tubing is correctly routed. Correctly route pressure
witch line.
Pressure switch does not close due to
obstructions in the pressure switch
line.
Remove any obstructions from the the pressure switch line and/or taps
Pressure switch tubing damaged. Check pressure switch tubing for leaks. Replace damaged tubing if necessary.
Condensate in pressure switch tubing. Check pressure switch tubing for condensate. Remove condensate from tubing.
Pressure switch does not close due to
a low differential pressure across the
pressure switch.
Check the differential pressure across the pressure switch.
Check for restricted inlet vent. Remove all blockage.
Check for proper vent sizing and run length. See table13.
Wrong pressure switch installed in the
unit, or pressure switch is out of cal
ibration
Check that the correct pressure switch is installed in the unit. Replace pressure
switch if necessary.
Miswiring of furnace or improper con
nections at pressure switch.
Check for correct wiring and loose connections. Correct wiring and/or replace any
loose connections.
Pressure switch failure. If all the above modes of failure have been checked, the pressure switch may have
failed. Replace pressure switch and determine if unit will operate.
Damaged condensate trap. Check trap for any cracks or damage and replace if necessary.
Cold end header box does not drain
properly.
Check that the furnace is set properly with a slight tilt (0 - 1/2”) towards the front
if necessary. See furnace installation instruction.
Air leakage around the combustion air
inducer gasket. Check gasket and replace if necessary.
Air leakage around the cold end head
er box gasket. Check gasket and replace if necessary.
Damaged cold end header box tubing. Check tubing and replace if necessary.
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
É
É
DEMAND
CAI
GAS VALVE
15
ON
OFF
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
É
É
38
ÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉ
IGNITOR
341
Pre -Purge Ignitor Warm-up Trial for
Ignition Post
Purge
5 SEC80
*Blower on time will be 30 seconds after flame is sensed. Blower off time will depend on “OFF TIME” Setting.
INDOOR BLOWER
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
Blower “On”*
Delay
ELECTRONIC IGNITION
FIGURE 13

Page 18
C- Blower Compartment
IMPORTANT
Each blower is statically and dynamically balanced
as an assembly before installation in the unit.
EL196UHE units are equipped with a constant torque ECM
motor. It has a DC motor coupled to an electronic control
module both contained in the same motor housing. The mo
tor is programmed to provide constant torque at each of the
five selectable speed taps. Each tap requires 24 volts to en
ergize.
Input Voltage Requirements
The circuit is designed to be operated with AC voltage. To
enable a tap requires 12 to 33VAC. Expected current draw
will be less than 20mA.
Troubleshooting the Motor
Troubleshooting the motor is an easy process. Follow
steps below.
1- Shut off power to unit.
2- Remove input plugs P48 and P49 from motor. See
figure 17 for troubleshooting procedure.
Note - Figure 17 is a typical ignition control illustration.
If correct voltage is present in tests 1 and 2 and motor is not
operating properly, replace motor. The motor is not field re
pairable.
If replacing the indoor blower motor or blower wheel is nec
essary, placement is critical. The blower wheel must be cen
tered in the blower housing as shown in figure 14. When re
placing the indoor blower motor the set screw must be
aligned and tightened with the motor shaft as shown in figure
15.
9. Secondary Limit Controls
The secondary limit is located in the blower compartment on
the back side of the blower housing. See figure 16. When ex
cess heat is sensed in the blower compartment, the limit will
open. If the limit is open, the furnace control energizes the sup
ply air blower and closes the gas valve. The limit automatically
resets when unit temperature returns to normal. The secon
dary limit cannot be adjusted.
FIGURE 14
Center Blower Wheel
in Blower Housing
BLOWER WHEEL REPLACEMENT
FIGURE 15
Set Screw
Housing Hub
ALIGN AND TIGHTEN SET SCREW WITH
FLAT SIDE OF MOTOR SHAFT
Motor
Shaft
FIGURE 16
SECONDARY LIMIT CONTROL
Secondary Limits

Page 19
1
2
3
4
5
C
L
G
N
Multi−Meter
(set to VAC)
P48
P49
120 120
Turn on power to unit. Check for 120 volts across terminals
“L” and “N” on input plug P48. If voltage is present continue
to test 2. If voltage is not present problem may be may be up
stream of plug P48 and proceed to test 3.
1
2
3
4
5
C
L
G
N
Multi−Meter
(set to VAC)
P48
P49 24
Switch thermostat to CONTINUOUS FAN MODE. Check for
24 volts across terminal “C” on input plug P48and speed tap
used for continuous fan. (1, 2, 3, 4 or 5) on input plug P49. If
24 volts is not present problem may be up stream of plug P49.
Proceed to test 4.
Multi−Meter
(set to VAC)
120 120
24
Multi−Meter
(set to VAC)
Check for 24 volts across terminals “24 COM” and “FAN” ter
minals on the integrated control. If voltage is present, prob
lem is with the harness. If voltage is not present problem
may be may be with the integrated control
Check for 120 volts across terminals “CIRC” and “Neutrals”
on the integrated control. If voltage is present, problem is
with the harness. If voltage is not present problem may be
may be with the integrated control.
Test 1
Test 2
Test 3 (if necessary)
Test 4 (if necessary)
FIGURE 17

12
3
4
5
6
7
8
9
10
11 12
1/16
TURN
Page 20
Replacing the Motor Module
1. Disconnect electrical power to unit.
2. Remove unit access panel.
3. Unplug the two harnesses from the motor control mod
ule. See figure 18.
TWO HARNESS
CONNECTIONS
MOTOR CONTROL MODULE
MOTOR
FIGURE 18
Unplug the Two Harness Connection
4. Remove the two hex head bolts securing the motor
control module to the motor (see figure 19).
REMOVE BOTH HEX
HEAD BOLTS
FIGURE 19
Remove the Hex Head Bolts
5. Slide the motor control module away from the motor to
access and disconnect the internal three wire connec
tor. It is not necessary to remove blower motor itself.
Set both hex head bolts aside.
Testing the Motor (Figure20)
If any motor fails the below tests, do not install the new con
trol module. The motor is defective and it also must be re
placed. The new control can fail if placed on a defective mo
tor.
1. Using an ohmmeter check the resistance from any one
of the motor connector pins to the aluminum end plate
of the motor. This resistance should be greater than
100k ohms.
2. Check the resistances between each of the three mo
tor connector pins. These should all read approxim
ately the same resistance within an ohm.
3. Check to see if the blower wheel spins freely.
FIGURE 20
Motor Test
TABLE 9
Scale Measurement range in
words ohms
2 M two megohm-two million
ohms 0 - 2,000,000
200 K two hundred kilo-ohm-two
hundred thousand ohms 0 - 200,000
20 K twenty kilo-ohm-twenty
thousand ohms 0 - 20,000
2 K two kilo-ohm two-thousand
ohms 0 - 2,000
200 two hundred ohms 0 - 200
Motor Module Installation
All replacement motor control modules look similar; how
ever, each module is designed for a specific motor size. It is
very important to make sure that you are using the correct
replacement motor control module. USE OF THE WRONG
MOTOR CONTROL MODULE MAY RESULT IN UNEX
PECTED UNIT OPERATION.
1. Verify electrical power to unit is disconnected.
2. Connect three-wire harness from motor to control
module.
3. Mount new motor control module
to motor using two hex head bolts
removed in figure 19. Torque bolts
to 22 inch pounds or 1/16th clock
turn as exampled to the right.
4. Reconnect the two harnesses to
the motor control module.
5. The electrical connectors of the motor should be facing
down to form a drip loop (figure21). This will directs
moisture away from the motor and its electric connec
tions on the motor.
CONNECTOR
ORIENTATION
BETWEEN 4 AND 8
O'CLOCK
BACK OF CONTROL
MODULE
DRIP LOOP
FIGURE 21
Drip Loop
