Lennox ComfortSense Touchscreen Thermostat User manual

advanced control
for your great indoors
ComfortSense™
TOUCHSCREEN THERMOSTAT

2
All the comforts of home at your fingertips.
There’s no place like home, especially
when the air inside suits your comfort
level. But if you can’t see the air or touch
it, how can you put your finger on it?
Lennox’ new ComfortSense™thermostat
makes it so simple!
With its intuitive touchscreen operation
and flexible programming options, the
ComfortSense thermostat is easy to use
and designed to enhance your family’s
comfort—and your heating and cooling
system’s performance. The ComfortSense
thermostat helps you conserve energy,
too, and that can reduce utility costs.

3
HOME
Easy to read. Even easier to use.

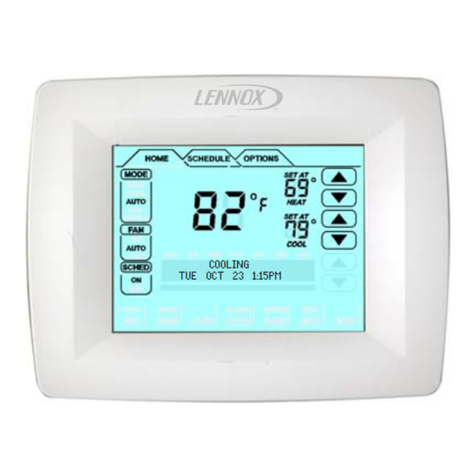

➊Large, easy-to-read touchscreen
display – Soft blue backlight with
adjustable brightness and
real-time clock
➋Unique, tabbed interface –
User-friendly, file folder-type tabs
allow for easy navigation
➌Program schedule touchfield –
Select ON and the system follows the
schedule; Select OFF and the system
allows you to keep the same
temperature until you decide to
change it or resume the schedule
➍Outdoor temperature display –
Makes it easy to check the current
temperature outdoors, so there’s no
need to wait for the local weather on
TV, radio or the Internet
➎Temporary temperature change –
Allows you to pause the schedule for
just a few hours or a few days, and to
set the exact date and time you want
the schedule to resume
➋
➊
➌
➎
➍

4
So easy, you don’t really need an instruction manual.
Day or night – your ComfortSense™
thermostat stays on the job, keeping the
temperature just how you want it.
➊Programming mode – Simply press the
SCHEDULE tab to begin programming;
the EDIT button, NEXT button and
ARROWS are used to select and enter
your desired settings
➊

5
SCHEDULE
➋Flexible programming options – Select
temperature settings for a full week, a
work-week-and-weekend combination,
or for individual days of the week –
based on your family’s schedule
➌Event programming – Program your
thermostat for two or four events per
day, selecting ideal temperatures for
the time you wake up, leave the
house, return home and go to sleep
➋
➌

6
It thinks of everything so you don’t have to.
You’re always on time, because the
ComfortSense™thermostat’s real-time
clock automatically adjusts for
daylight saving time and leap years.
➊Auto adjust time settings – When
this function is on, your thermostat
automatically adjusts for the change
from daylight saving time to
standard time; date function also
adjusts for leap years
➊

7
OPTIONS
➋Reminders – The OPTIONS screen
allows you to select from a series of
service and parts replacement
REMINDERS that are then clearly
displayed on the HOME screen
➌Contact Information – When it’s time
for service, a screen display tells you
how to reach your local Lennox dealer
The ComfortSense thermostat keeps
your indoor air quality systems,
like Humiditrol®and PureAir,
™
performing effectively and efficiently.
➋
➌

8
ComfortSense™TOUCHSCREEN THERMOSTAT
© Lennox Industries Inc. 2007
Visit us at www.lennox.com.
36W83 CS7000 2/08 PC52856
A ComfortSense™thermostat functions as
the command center for Lennox®heating,
cooling and indoor air quality systems.
– Works with any Lennox furnace
(oil, gas or electric)
– Works with any Lennox air conditioner
– Dual-fuel capable
– Alerts you when it’s time for routine service or
parts replacement
Your link to whole-home comfort
