Chapter 1. Getting to know your computer
Top view -------------------------------------------------------------------------
Note: The dashed areas indicate parts that are not visible externally.
Attention:
•Do not open the display panel beyond 170 degrees. When closing the display panel, be
careful not to leave pens or any other objects in between the display panel and the
keyboard. Otherwise, the display panel may be damaged.

aIntegrated
camera (on select
models)
Use the camera for video communication.
bBuilt-in
microphone (on
select models)
Capture sound which can be used for video conferencing,
voice narration, or audio recording.
cWireless LAN
antennas 
(V130-14IKB)
Connect to a wireless LAN adapter to send and receive
wireless radio signals.
dComputer display The LCD display with LED backlight provides brilliant
visual output.
eWireless LAN
antennas 
(V330-14ISK/
V330-14IKB/
V330-14IGM/
V130-14IGM)
Connect to a wireless LAN adapter to send and receive
wireless radio signals.
fVentilation slots Dissipate internal heat.
gPower button Press this button to turn on/off the computer.
hFingerprint
reader (on select
models)
Registers fingerprints that can be used as passwords to
secure your computer.
iTouch pad The touch pad functions as a conventional mouse.
Touch pad: To move the pointer on the screen, slide your
fingertip over the pad in the direction in which you want
the pointer to move.
Touch pad buttons: The functions of the left/right side
correspond to those of the left/right mouse button on a
conventional mouse.
Note: You can enable/disable the touch pad by pressing F6 ( ).
Chapter 1. Getting to know your computer
2

Chapter 1. Getting to know your computer
3
Using the keyboard
Hotkeys

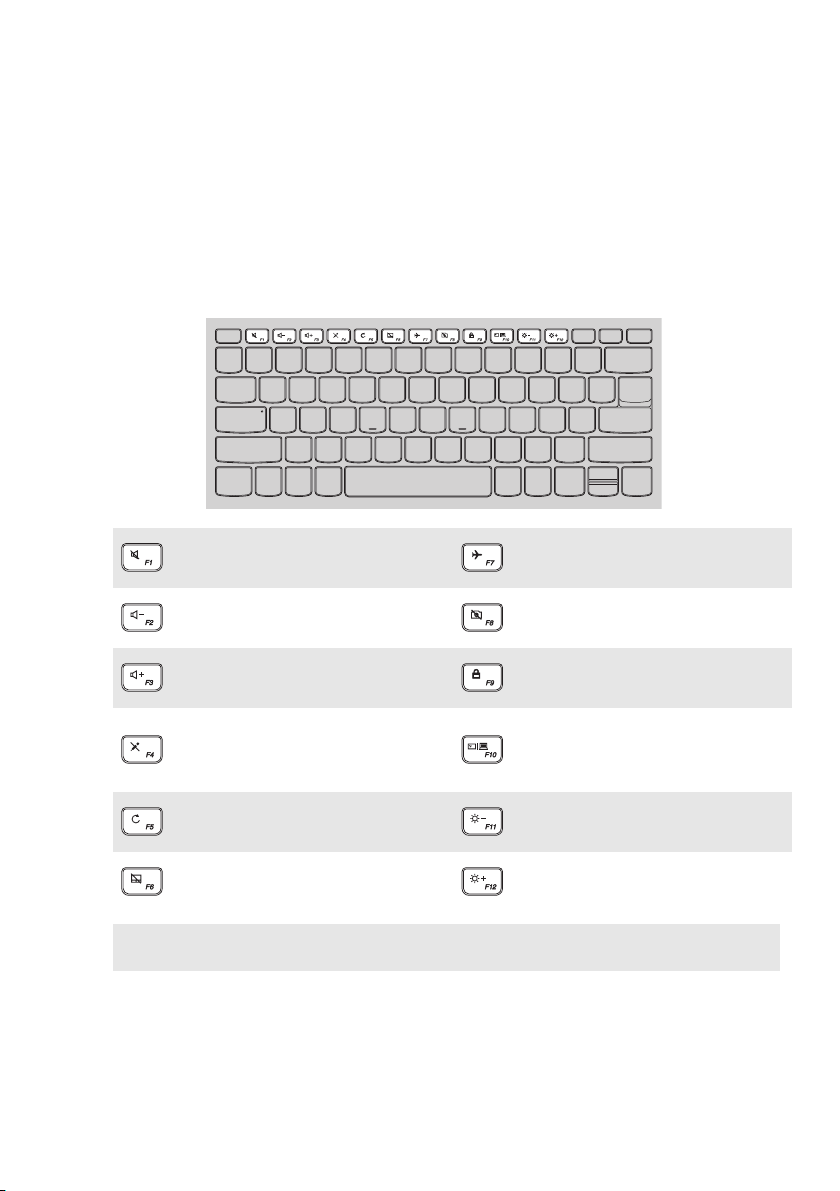

You can access certain system settings quickly by pressing the appropriate
hotkeys.
Mutes/unmutes the sound. Enables/disables airplane
mode.
Decreases the volume
level.
Enables/disables camera.
(on select models)
Increases the volume level. Locks/unlocks the LCD
screen.
Enables/disables
microphone. (on select
models)
Enables the external
projector or dangles the
external display.
Refreshes page. Decreases display
brightness.
Enables/disables the touch
pad.
Increases display
brightness.
Note: If you changed the Hotkey Mode from Enabled to Disabled in the BIOS setup utility,
you will need to press the Fn key in combination with the appropriate hotkey.

Chapter 1. Getting to know your computer
4
Function key combinations
Through the use of the function keys, you can change operational features

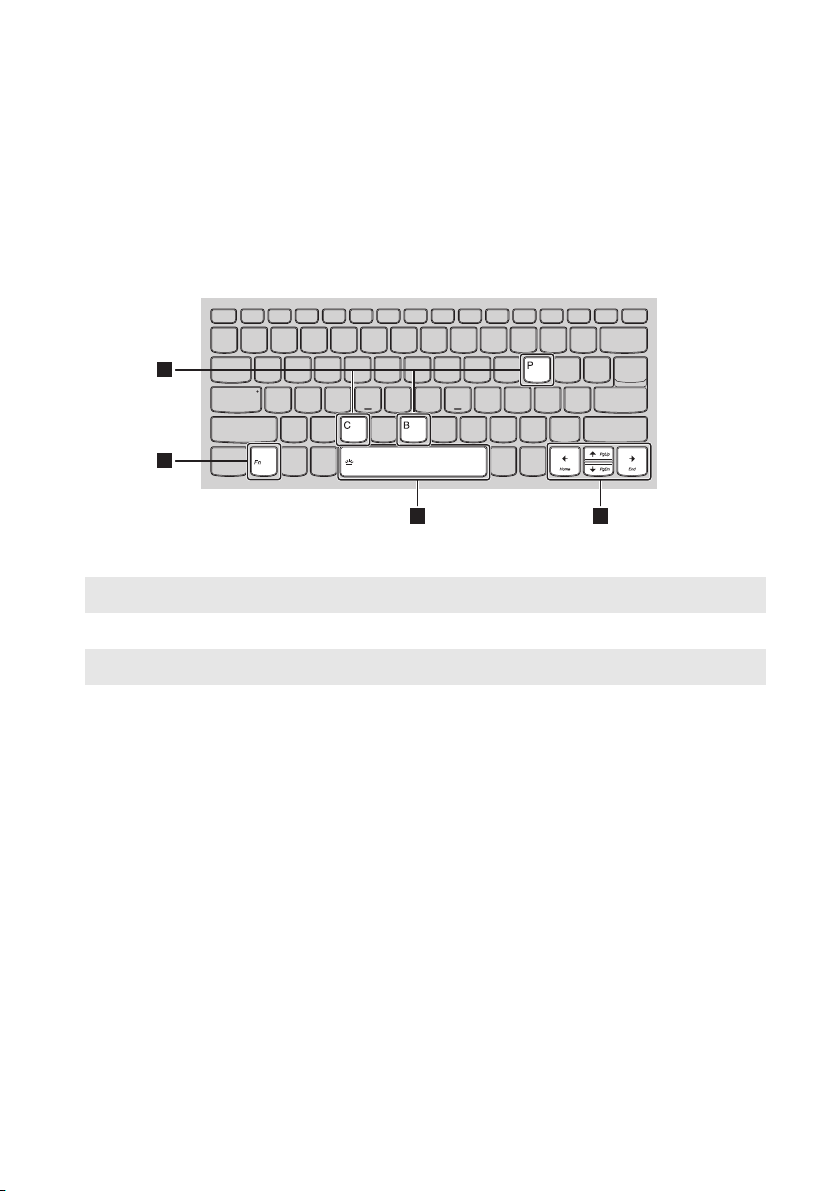

instantly. To use this function, press and hold Fn a; then press one of the
function keys b.
22
1
2
The following describes the features of each function key.
Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/Disables the scroll lock.
Fn + Space
(on select
models):
Adjusts the keyboard backlight.

Chapter 1. Getting to know your computer
5

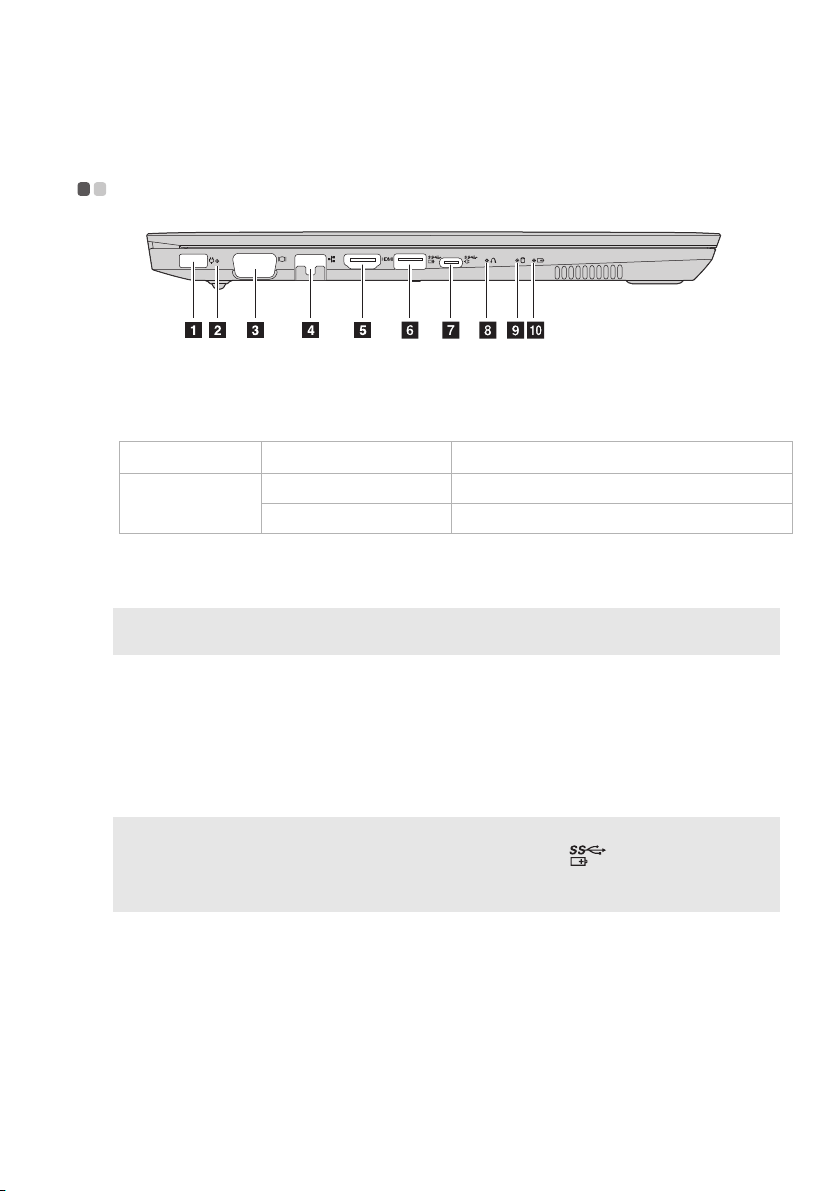

Left-side view ---------------------------------------------------------------
aAC power
adapter jack
Connects to the AC power adapter.
bDC-IN LED
Indicator Indicator status Meaning
Power status
indicator
On The computer is powered on.
Off The computer is powered off.
cVGA port (on
select models)
Connects to external display devices.
Note: If monitors are connected to the VGA and Type-C ports at the same time, the one
connected to the Type-C port takes priority.
dRJ-45 port Connects the computer to an Ethernet network.
eHDMI port Connects to devices with HDMI input such as a TV or a
display.
fUSB 3.0 port (on
select models)
Connects to USB devices.
•If the battery charge is more than 20%, the USB port with a ( ) mark supports
charging of an external USB device, even when the computer is turned off.
•For details, see “Connecting USB devices” on page 7.
gType-C port (on
select models)
Type-C port supports:
• USB 3.0
•PD
•DP
•Docking
Notes:

•You may need to install separate device drivers when connecting expansion docks or port
replicators using this connector. Read the device’s documentation before connecting it to
the computer.
•When the computer is in DC mode, Type-C port supports USB 3.0 only.
hNovo button When the computer is off, press this button to start the
System Recovery or the BIOS setup utility, or to enter the
boot menu.
iHDD LED
jBattery charger
status LED
AC power
adapter status
Indicator status Meaning
Disconnected
Off The computer is in sleep mode or
turned off; The battery has more than
20% charge.
Solid amber The battery has between 5% and 20%
charge.
Fast blinking amber The battery has between 1% and 5%
charge.
Connected
Slow blinking
amber
The battery is being charged. When
battery charge reaches 20%, the
blinking color changes to white.
Slow blinking white The battery has between 20% and 80%
charge and is still charging. When the
battery reaches 80% charge the light
will stop blinking.
Solid white The battery has more than 80% charge,
charging will continue until the battery
is fully charged.
Chapter 1. Getting to know your computer
6
Notes:

Chapter 1. Getting to know your computer
7
Connecting USB devices
You can connect a USB device to your computer by inserting its USB plug
(Type A) into the USB port on your computer.
The first time you plug a USB device into a particular USB port on your
computer, Windows automatically installs a driver for that device. After the
driver has been installed, you can disconnect and reconnect the device
without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs
the driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer
before connecting the device.
Before disconnecting a USB storage device, make sure your computer has
finished transferring data to that device. Click the Safely Remove Hardware
and Eject Media icon in the Windows notification area to remove the device
before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.

Chapter 1. Getting to know your computer
8
Right-side view ------------------------------------------------------------
aMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 10.
bCombo audio
jack
Connects to headsets.
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are
connected, due to different industry standards.
cType-C port (on
select models)
This USB Type-C connector does not support connecting
expansion docks or port replicators.
Type-C port supports:
• USB 3.0
dUSB 2.0/3.0 port
(on select
models)
Connects to USB devices.
eKensington Mini
Security slot
For attaching a Kensington MiniSaver™ Mobile (or
compatible) lock.
Attach a security lock (not supplied) here to help protect
your computer from theft and unauthorized use. You can
attach a security lock to your computer to help prevent it
from being removed without your permission. For details
on installing the security lock, please refer to the
instructions shipped with the security lock that you have
purchased.
Notes:

•Lock is not supplied. When purchasing a lock, choose one that utilizes the Cleat™ locking
mechanism and verify its compatibility with the slot before purchase. A lock utilizing the
T-Bar™ locking mechanism is not compatible with the Kensington Mini Security slot.
•Before purchasing any security product, verify that it is compatible with this type of
security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and
security features. Lenovo offers no comment, judgment, or warranty regarding the
function, quality, or performance of locking devices and security features.
Chapter 1. Getting to know your computer
9
Notes:

Chapter 1. Getting to know your computer
10
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• SD eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Inserting a memory card
Insert the memory card until it touches the bottom of the slot.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Note: Before removing the memory card, disable it by using the Windows safely remove
hardware and eject media utility to avoid data corruption.
Notes:

Chapter 1. Getting to know your computer
11
Bottom view ------------------------------------------------------------------
aVentilation slots Dissipate internal heat.
Note: Make sure that none of the ventilation slots are blocked, or else overheating of the
computer may occur.
bUSB 2.0 port (on
select models)
Connects to USB devices.
•Check that the dimensions of the device to be used match this port prior to use.
•After use, make sure to reinstall the battery pack (optional) or the dummy case.
Notes:
cSpeakers Provide audio output.
dBattery pack
(Optional)/
Dummy case

Chapter 1. Getting to know your computer
12
eBattery latch-
spring (on select
models)
Keeps the battery pack secured in place.

13
Chapter 2. Starting to use Windows 10
Configuring the operating system for the 
first time -------------------------------------------------------------------------
You may need to configure the operating system when it is first used. The
configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces -------------------------------------
The return of the Start menu

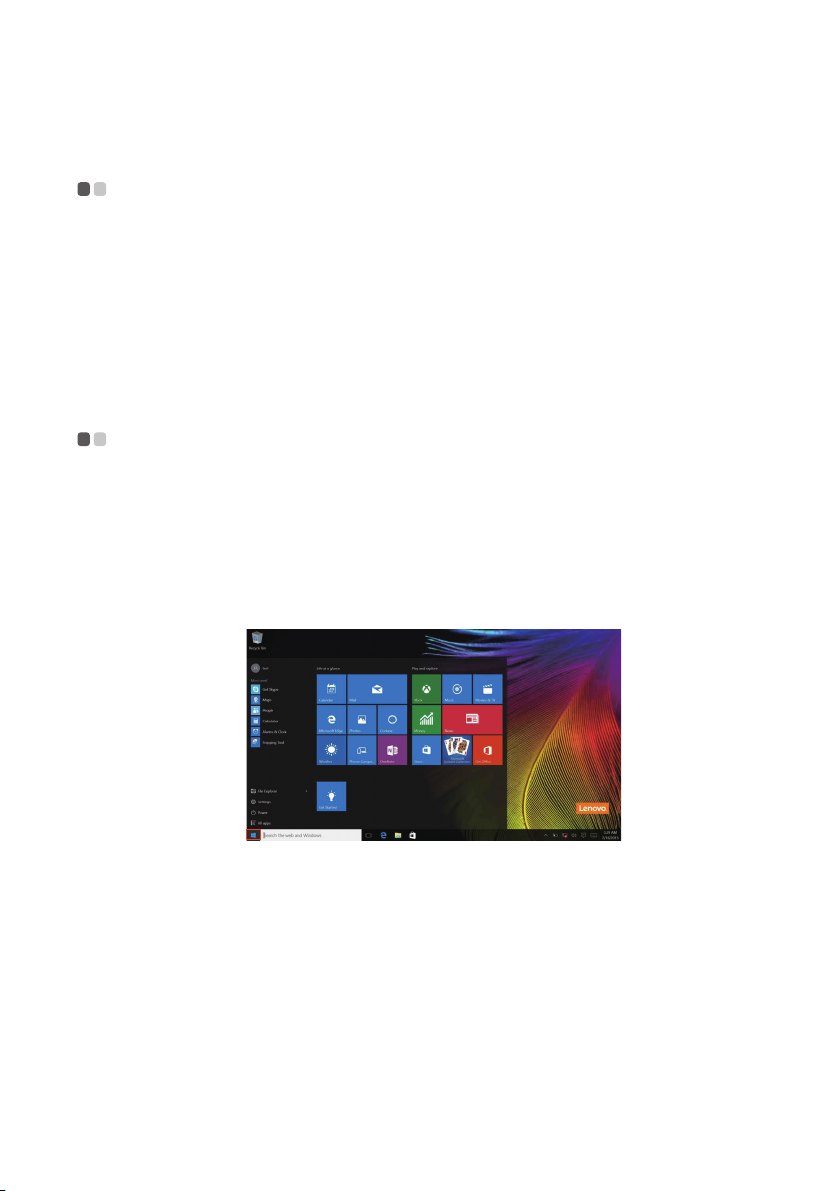

Windows 10 comes with a powerful and useful start menu. To open the start
menu, do one of the following:
• Select the Start button in the lower-left corner, the Start menu is displayed.
• Press the Windows key on the keyboard.

Chapter 2. Starting to use Windows 10
14
The power button is on the Start menu, click it you can choose to shut down
or restart the computer, or put the computer into sleep mode.
Through the Start menu, you can locate all the installed apps or view the
frequently used apps.

Chapter 2. Starting to use Windows 10
15
The ACTION CENTER
Select the ACTION CENTER icon on the taskbar and the ACTION
CENTER is displayed.
From the ACTION CENTER, you can examine important notifications from
Windows and your apps. Moreover, you can change common settings
quickly.
Task View in taskbar

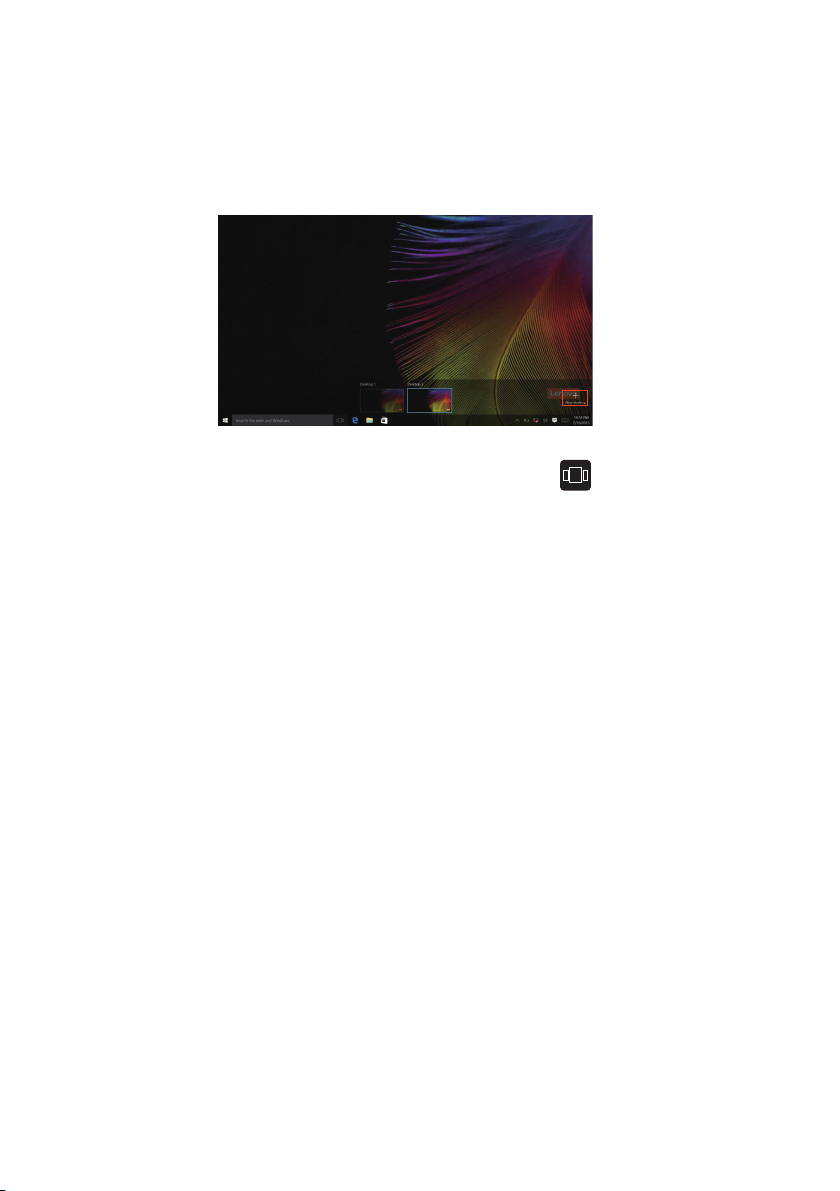

In Windows 10, you can add a new desktop and switch between different
desktops.
To add a new desktop, do the following:
• Click the Task View icon in the taskbar area.

Chapter 2. Starting to use Windows 10
16
•ClickNew desktop.
To switch between desktops, click the Task View icon , then select your
desired desktop.
