Shipping contents

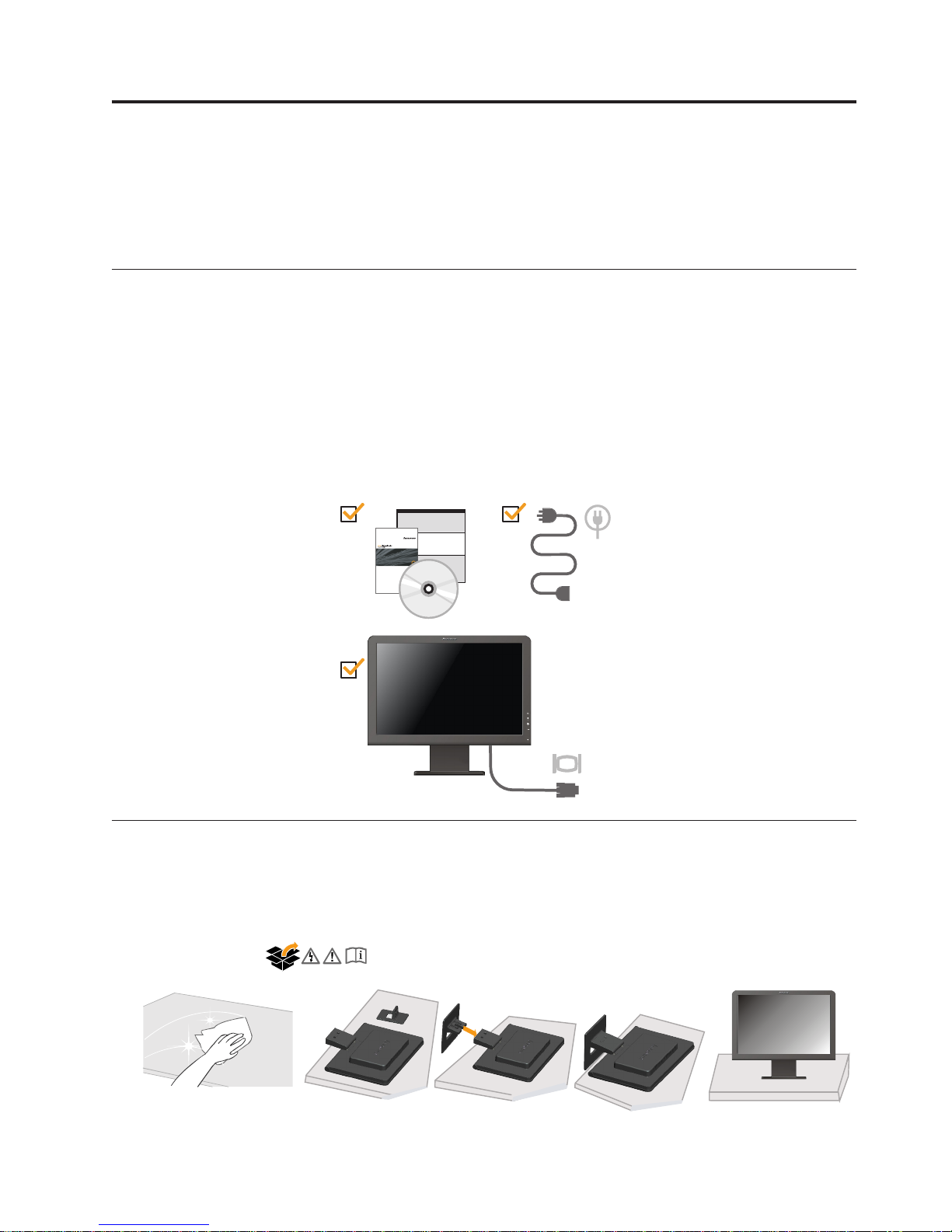

The product package includes the following items:
v Setup Poster
v Monitor Safety, Troubleshooting, and Warranty Guide
v Reference and Driver CD
v Flat Panel Monitor
v Power Cord
v Analog Interface Cable - Attached to monitor
Attaching the base and handling your monitor
To set up your monitor, please see the illustrations below.
Note: Do not touch the monitor within the screen area. The screen area is glass
and can be damaged by rough handling or excessive pressure.
©C opy right L enovo 2006. 1-1
Chapter 1. Getting started
This U ser ’s Guide contains detailed information on your ffffffffffffFFFFF Flat
Panel M onitor. For aquick overview, please see the Setup Poster that was shipped
with your monitor.

1-2 Flat Panel Monitor User’s Guide
-5 20
Product overview
This section provides information on adjusting monitor positions and setting user controls.
Adjusting the tilt

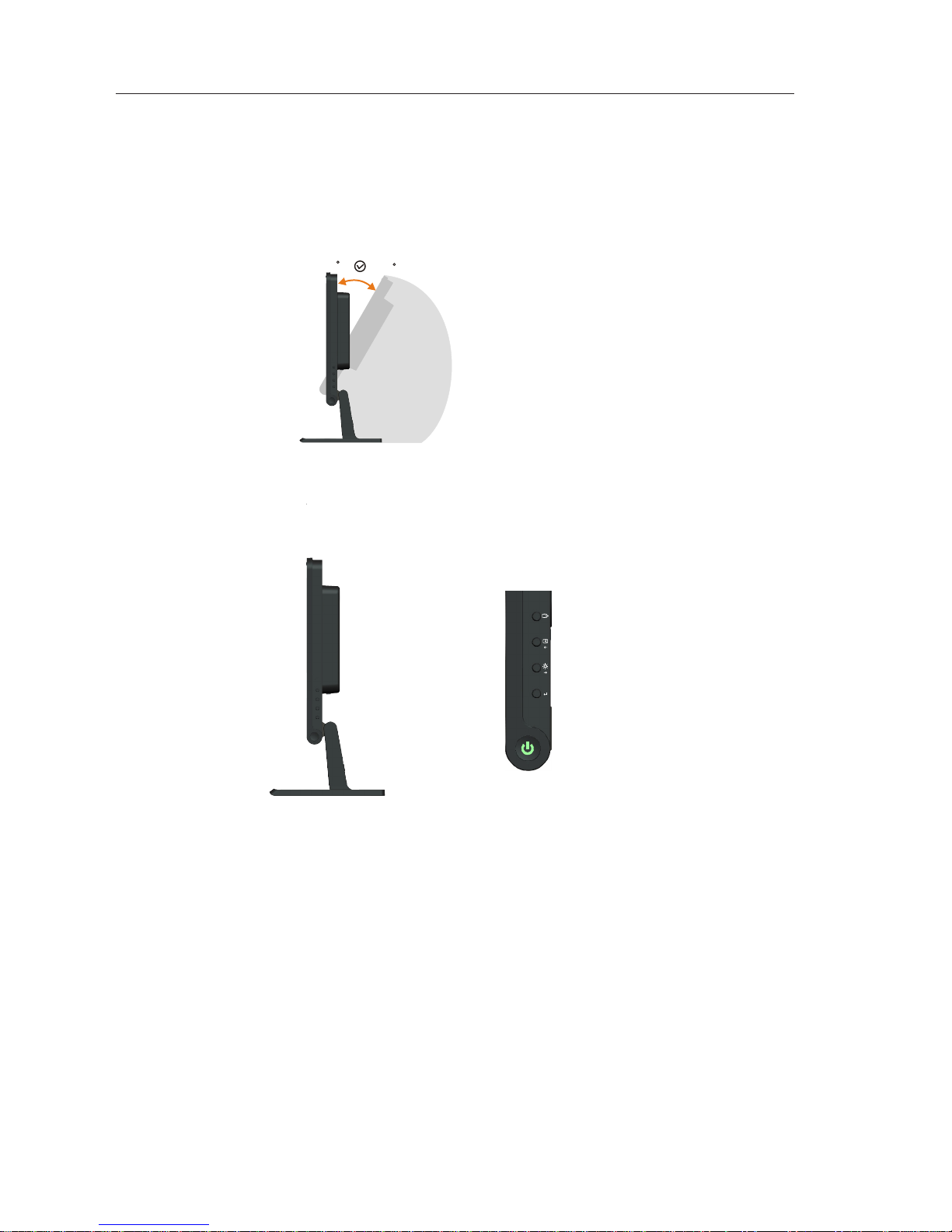

The illustration below shows the tilt range of the monitor. For more information, see

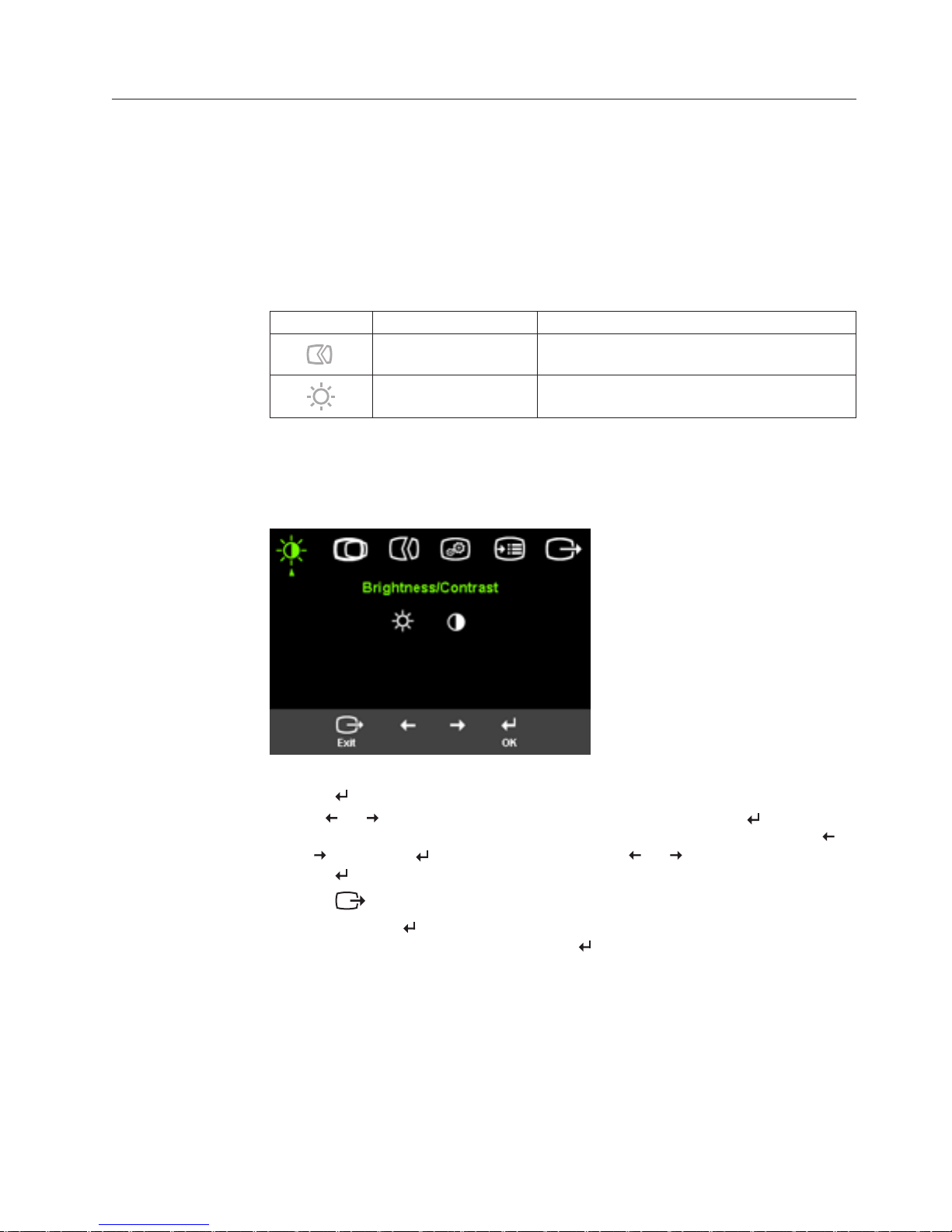

Monitor controls
The controls on the right side of your monitor enable you to adjust the display.
For information on how to use these controls, please see
“Adjusting your monitor image” on page 2-3.
"Positioning your monitor " on page 2-1.

Chapter 1. Getting started 1-3
2. Connect the analog signal cable to the video port on the back of the computer.
Note: One end of the signal cable is already pre-attached to your monitor.
Setting up your monitor
Connecting and turning on your monitor
Note: Be sure to read the Safety Information located in the Monitor Safety,
Troubleshooting, and Warranty Guide before carrying out this procedure.
1. Power off your computer and all attached devices, and unplug the computer
power cord.
This section provides instructions on setting up your monitor.

3. Insert the power cord into the monitor, then plug the monitor power cord and
the computer cord into grounded electrical outlets.
4. Power on the monitor and the computer.
1-4 Flat Panel Monitor User’s Guide

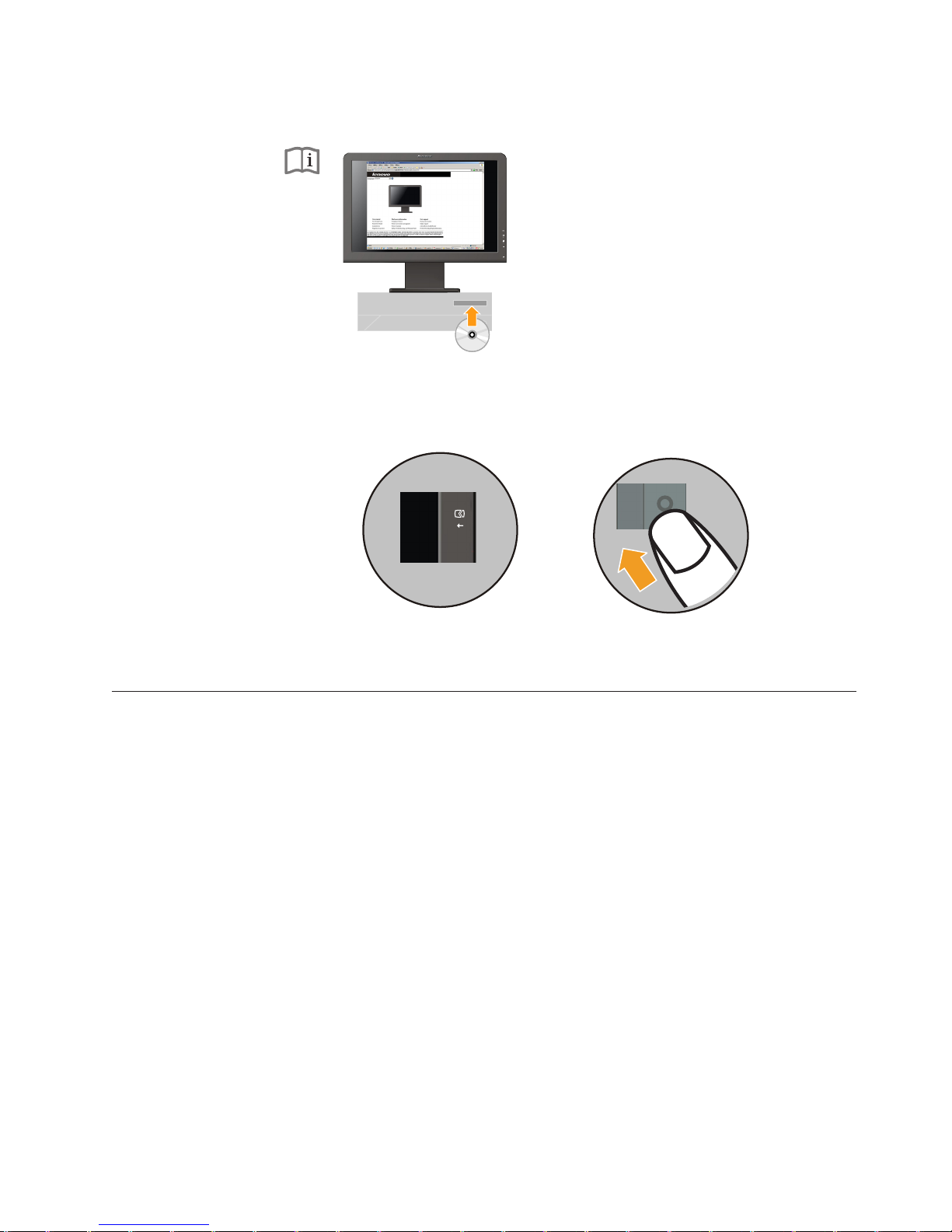

5. To install the monitor driver, insert the Reference and Driver CD,click Install
driver,and follow the on-screen instructions.
6. To optimize your monitor image, press the Automatic Image Setup key.
Automatic image setup requires that the monitor is warmed up for at least 15
minutes. This is not required for normal operation.
Registering your option
Thank you for purchasing this Lenovo
™ product. Please take afew moments to
register your product and provide us with information that will help Lenovo to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the following Web site:
http://www.lenovo.com/register
Lenovo will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive further
information.
Chapter 1. Getting started 1-5
Note: If automatic image setup does not establish the image that you prefer,you
you can perform a manual image setup. See "Manual image setup" on page 3-3 for more information.

©C opy right L enovo 2006. 2-1
Chapter 2. Adjusting and using your monitor
This section information on adjusting and using your monitor. provides
Comfort and accessibility
Good ergonomic practice is important to get the most from your personal
computer and to avoid discomfort. Arrange your workplace and the equipment
you use to suit your individual needs and the kind of work that you perform. In
addition, use healthy work habits to maximize your performance and comfort
while using your computer.
For more detailed information on any of these topics, visit the Healthy Computing
Web site at: http://www.lenovo.com/healthycomputing/
Arranging your work area
Use a work surface of appropriate height and space to allow you
to work in
comfort.
Organize your work area to match the way you use materials and equipment.
Keep your work area clean and clear for the materials that you typically use and
place the items that you use most frequently, such as the computer mouse or
telephone, within the easiest reach.
Equipment layout and setup play a large role in your working posture. The
following topics describe how to optimize equipment setup to achieve and
maintain good working posture.
Positioning your monitor
Position and adjust your computer monitor for comfortable viewing by considering
the following items:
v Viewing distance: Optimal viewing distances for monitors range from
approximately 510 mm to 760 mm (20 in to 30 in) and can vary depending on
ambient light and time of day. You can achieve different viewing distances by
repositioning your monitor or by modifying your posture or chair position. Use
a viewing distance that is most comfortable for you.
v Monitor height: Position the monitor so your head and neck are in a
comfortable and neutral (vertical, or upright) position. If your monitor does not
have height adjustments, you might have to place books or other sturdy objects
under the base of the monitor to achieve the desired height. A general guideline
is to position the monitor such that the top of the screen is at or slightly below
your eye-height when you are comfortably seated. However, be sure to optimize
your monitor height so the line of site between your eyes and the center the
monitor suits your preferences for visual distance and comfortable viewing
when your eye muscles are in a relaxed state.
v Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen
content and to accommodate your preferred head and neck posture.
v General location: Position your monitor to avoid glare or reflections on the
screen from overhead lighting or nearby windows.
The following are some other tips for comfortable viewing of your monitor:
