Lenox PDVD1300 User manual



PORTABLEDVDPLAYER
MODELPDVD1300
INSTRUCTIONMANUAL



1

CONTENTS
TABLE OF CONTENTS
1
FOREWORD
2
CAUTION AND WARNING
3-4
PANEL
5-6
INTERFACE CONNECTION
7

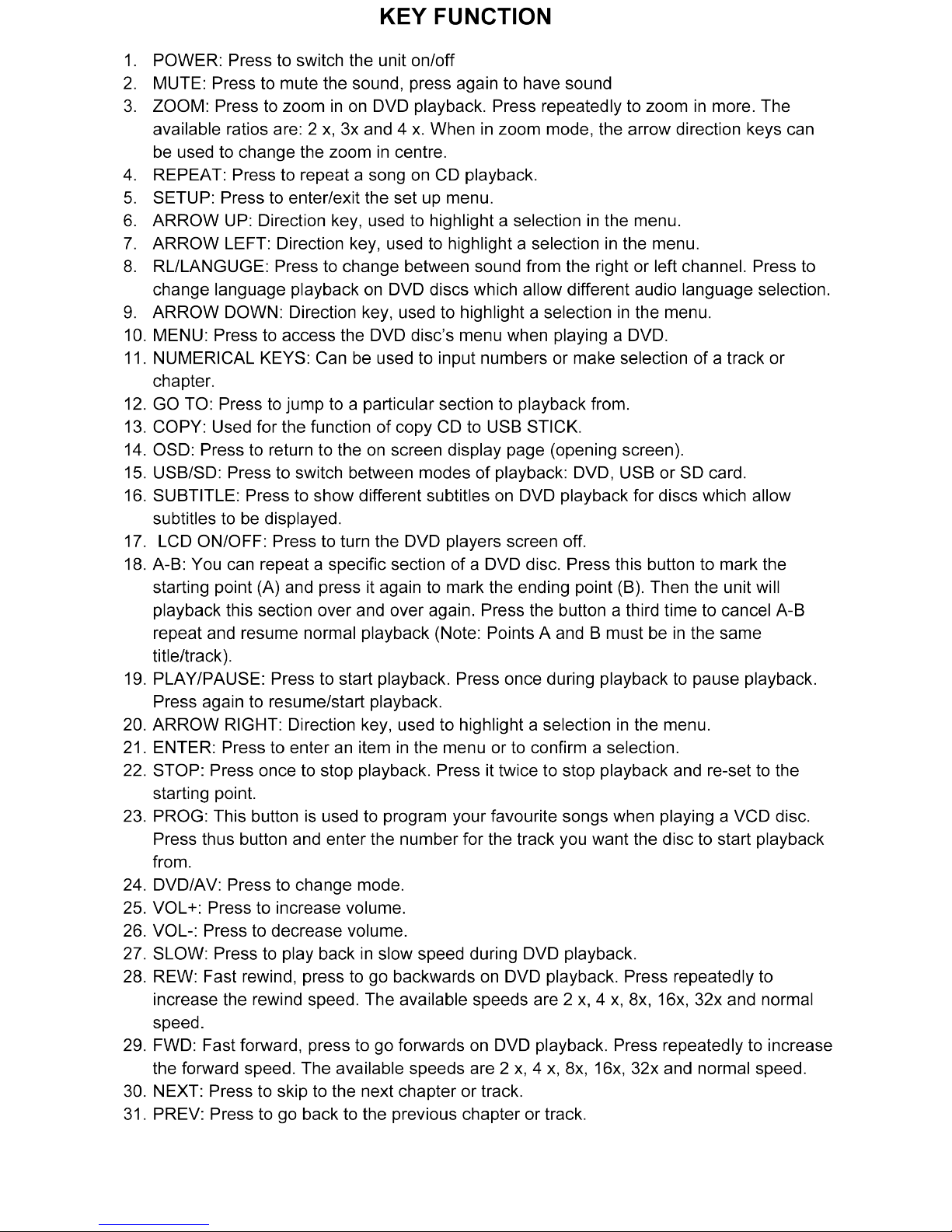

KEY FUNCTION
8-9
CHARGING AND CONNECTION
10
SYSTEM SET UP
11-13
PLAYBACK
14
SPECIFICATION
15
TROUBLESHOOTING
16

2

FORWEORD
Thank you for your purchase of our product. Please read through this manual before making
connections and operation. Please retain this manual for future reference.
FEATURES:
TFT LCD screen
Earphone jack
USB PORT
SD card slot
DVD/CD/JPG/MP3 compatible
Playback controls: play/pause/fast forward/fast rewind
Two optional aspect ratios: 16:9 and 4:3
Working voltage: DC9-12V

3


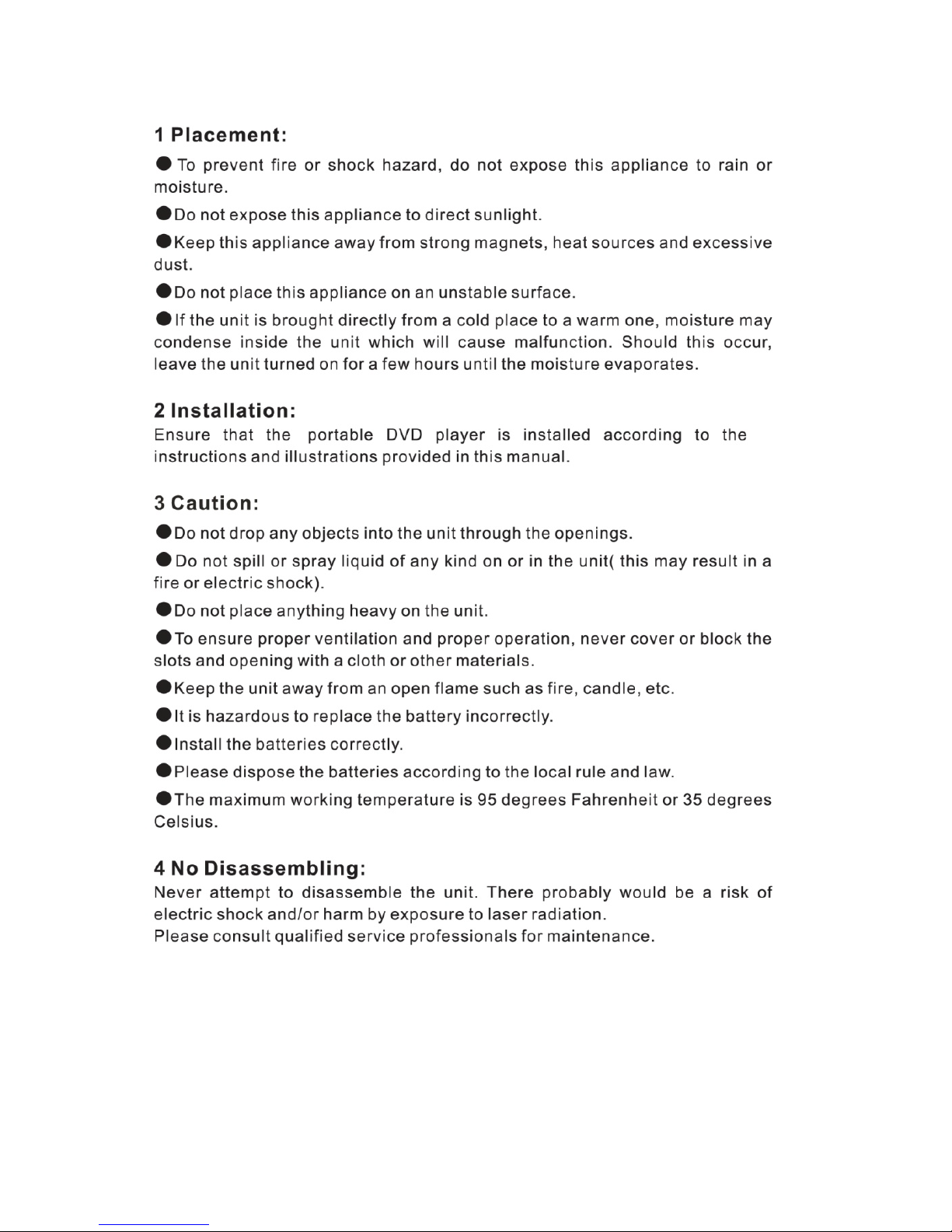

CAUTION AND WARNING






4










5

PANEL
LCD/ON/OFF: When the DVD player is on, press to turn the screen off only. Press again to
turn the screen back on.
MENU: Press to access the DVD disc’s menu when playing a DVD.
STOP: Press once to stop playback. Press it twice to stop playback and re-set to the starting
point.
PLAY/PAUSE: Press to start playback. Press once during playback to pause playback.
Press again to resume/start playback.
VOL+: Press to increase volume.
VOL-: Press to decrease volume.
OK: Press to confirm a selection.
OPEN: Press to release DVD tray lid.
DVD/USB/SD: Press to change between DVD playback, USB flask stick playback or SD
card playback.
MODE: Press to change between the modes DVD/USB/SD playback
SETUP: Press to enter the setup menu. Use the directional arrow keys on the remote control
to use the menu.
NEXT/CH-: Press to skip to the next chapter or track. Also an arrow directional key to be
used when highlighting a selection in a menu.
PREV/CH+: Press to go back to the previous chapter or track, Also an arrow directional key
to be used when highlighting a selection in a menu.

6

FWD: Fast forward, press to go forwards on DVD playback. Press repeatedly to increase the
forward speed. The available speeds are 2 x, 4 x, 8x, 16x, 32x and normal speed. Also an
arrow directional key to be used when highlighting a selection in a menu.
REV: Fast rewind, press to go backwards on DVD playback. Press repeatedly to increase
the rewind speed. The available speeds are 2 x, 4 x, 8x, 16x, 32x and normal speed. Also an
arrow directional key to be used when highlighting a selection in a menu.























7


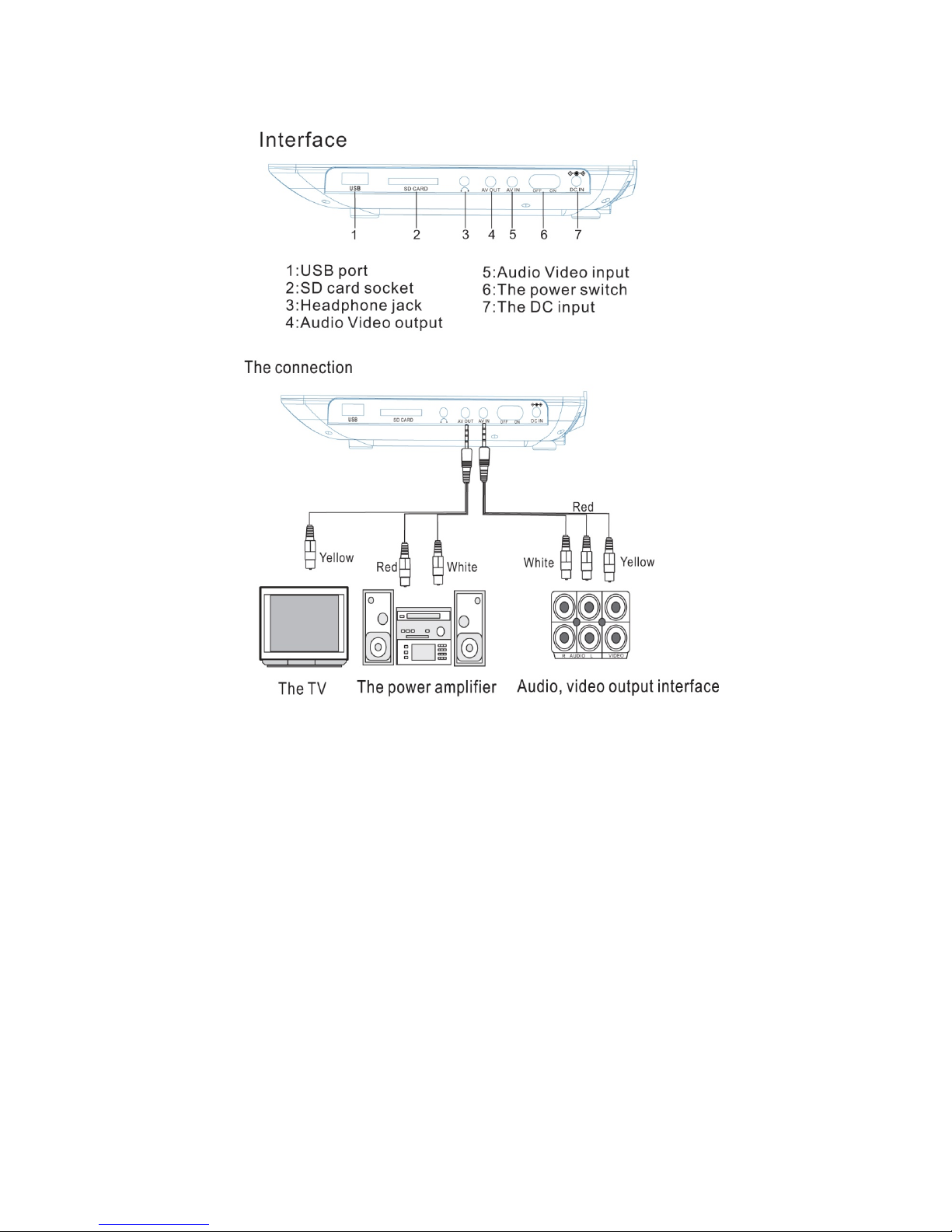

INTERFACECONNECTION

AVout:
TheportableDVDplayerconnectedtoaTV:
AVoutconnectionfromtheplayertotheTV’sAVinconnection.
RedandwhitetotheTV’saudioinconnections.
TheportableDVDplayerconnectedtoanamplifier:
AVoutconnectionfromtheplayertotheredandwhiteaudioinontheamplifier.
AVinput:
ConnectionfromanotherAVoutputtotheportableDVDplayer’sAVinputwith3.5mmAVcable
AVCABLENOTINCLUDEDWITHTHISUNIT.


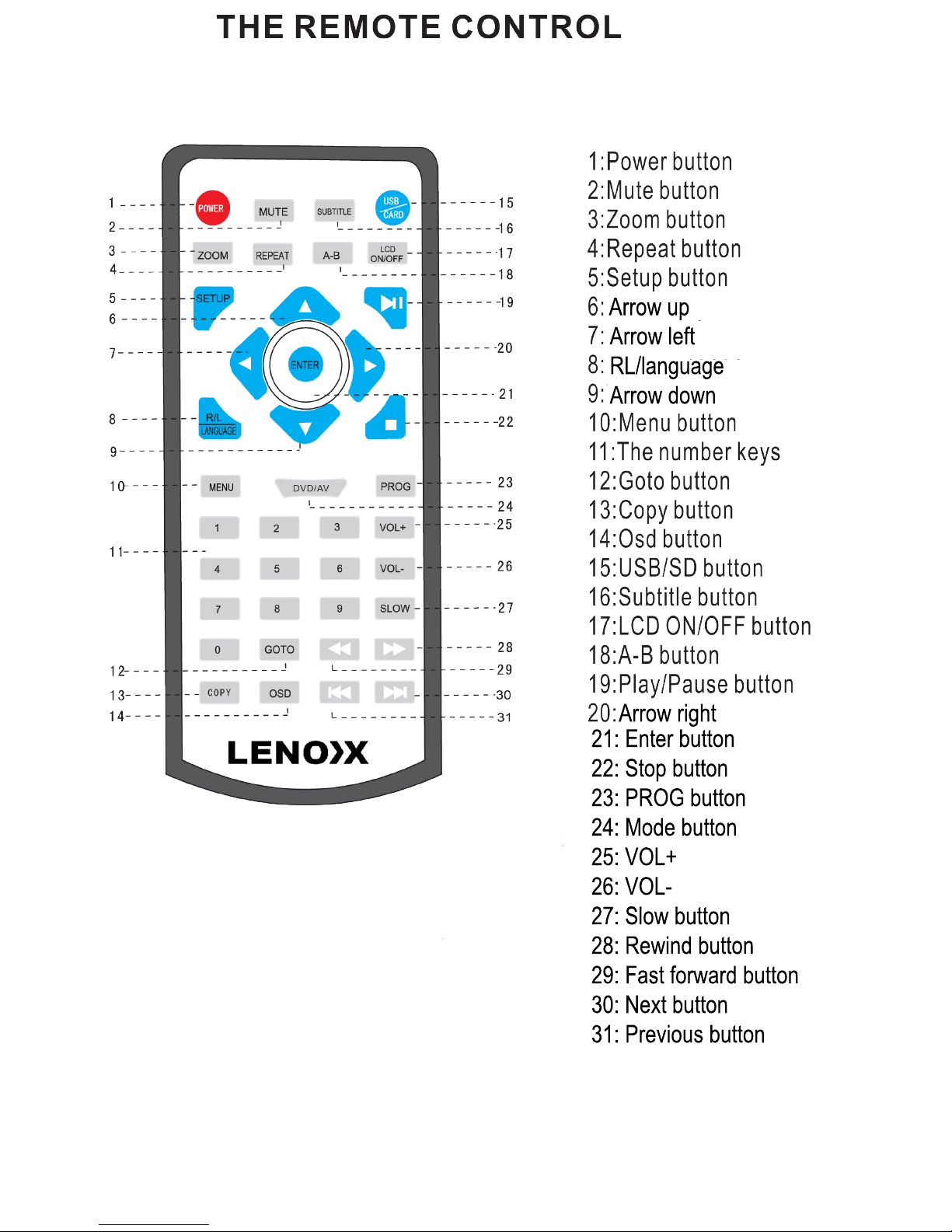

MENU
Arrow right
21: Enter button
22: Stop button
23: PROG button
24: Mode button
25: VOL+
26: VOL-
27: Slow button27: Slow button
28: Rewind button
29: Fast forward button
30: Next button
31: Previous button
Arrow up
Arrow left
RL/language
Arrow down

10


CHARGING AND CONNECTION
CD DISC COPY TO USB STICK
Put the CD disc into the DVD player. Allow it to read the disc. Press the COPY
button on the remote control. Wait to see the tracks displayed on the screen.
Use the arrow direction keys to select COPY and press the ENTER button on the
remote control.

11


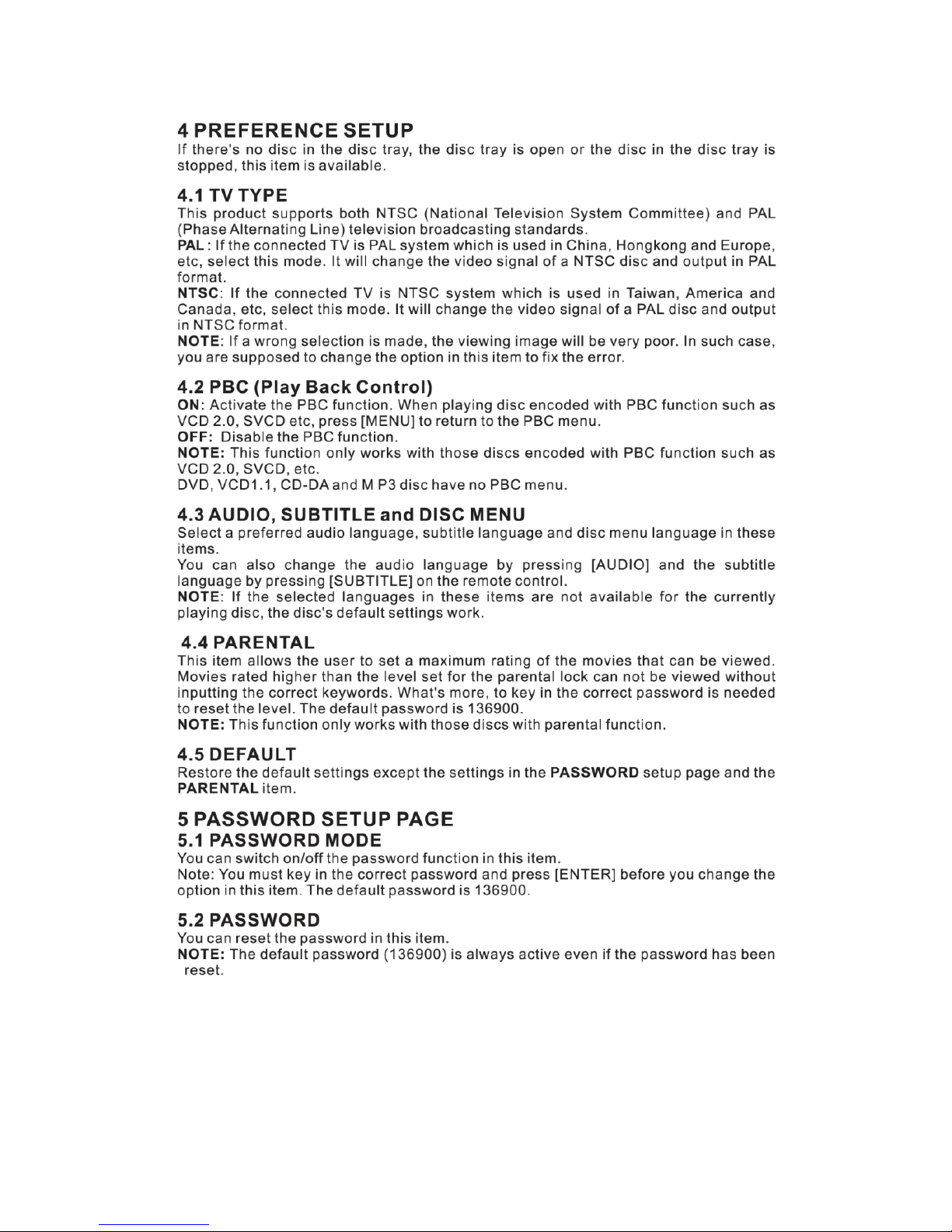

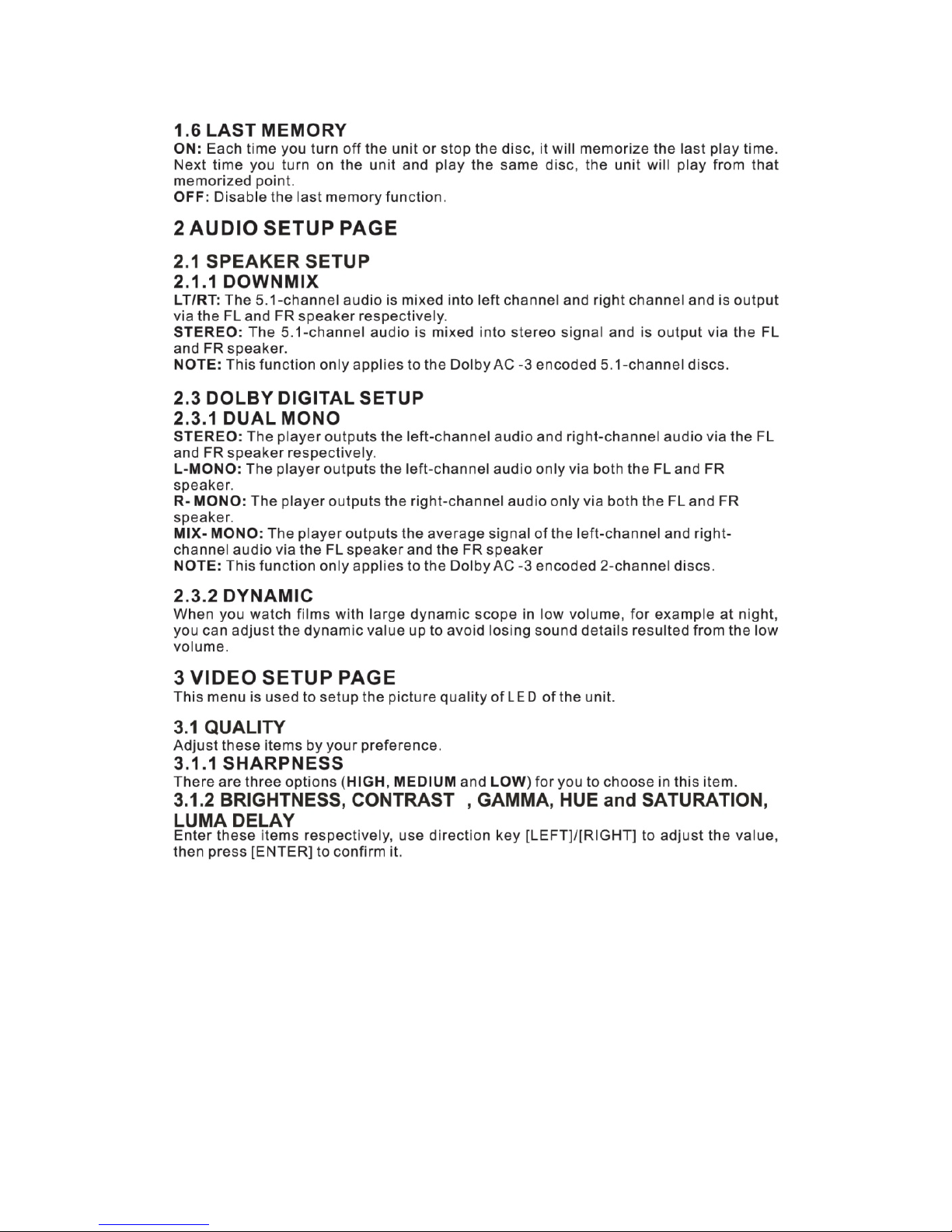

SYSTEM SET UP

12

SYSTEM SET UP

13

SYSTEM SET UP

14

PLAYBACK
Loading and playing a disc:
1. After connecting power to the unit or charging the battery, put the power switch in the ON
position.
2. Push the OPEN button on the DVD player to open the disc tray’s lid.
3. Place a disc in the DVD player with the label side facing up.
4. Close the lid to the disc tray.
5. The unit will load the disc.
6. Press the play button to begin playback.
MP3 disc playback:
1. After you have added an MP3 disc to the unit – as per the directions above – a menu will
be displayed on the screen showing the discs contents.
2. Use the directional arrow keys on the remote control to select and file or folder.
3. Press the ENTER button to enter the selected folder. The files/folder will be listed.
4. Use the directional arrow keys to make a selection. Press the ENTER button to begin
playback of a selected folder.
Kodak picture CD playback:
1. After you have added the KODAK picture CD to the unit – as per the directions above –
press the STOP button to display the menu showing the contents of the disc. In the
menu, use the directional arrow keys to select a picture and press ENTER to start
playback from the selected picture.
GOTO: Press this button and then use the numerical digit buttons on the remote control to
select a picture, then the playback will begin from that selected picture.
PLAY/PAUSE: Press the PLAY button to begin playback. Press the PAUSE button to pause
the playback, press it again to resume the playback.
REPEAT: Press the REPEAT button on the remote control repeatedly to switch between the
different repeat modes (single, repeat one, repeat folder, folder, cancel repeat).
FAST REWIND AND FAST FORWARD: Press these buttons on the remote control to skip to
the previous or next picture during playback.
LEFT/RIGHT ARROW DIRECTIONAL BUTTONS: Press these buttons on the remote control
to rotate the picture clockwise/anti clockwise during the playback.
ZOOM: Press this button on the remote control to zoom in or out or the picture.
USB flash stick and SD card playback:
1. Insert a USB flash drive to the USB port. Press the USB/SD button on the remote control
to select USB mode to playback the readable files from the flash stick.
Or
2. Insert a SD card into the SD card slot. USB/SD button on the remote control to select
MCR mode to playback the readable files from the SD card.
The max size capacity of USB flash stick and SD card this DVD player can playback from is
8GB.

15


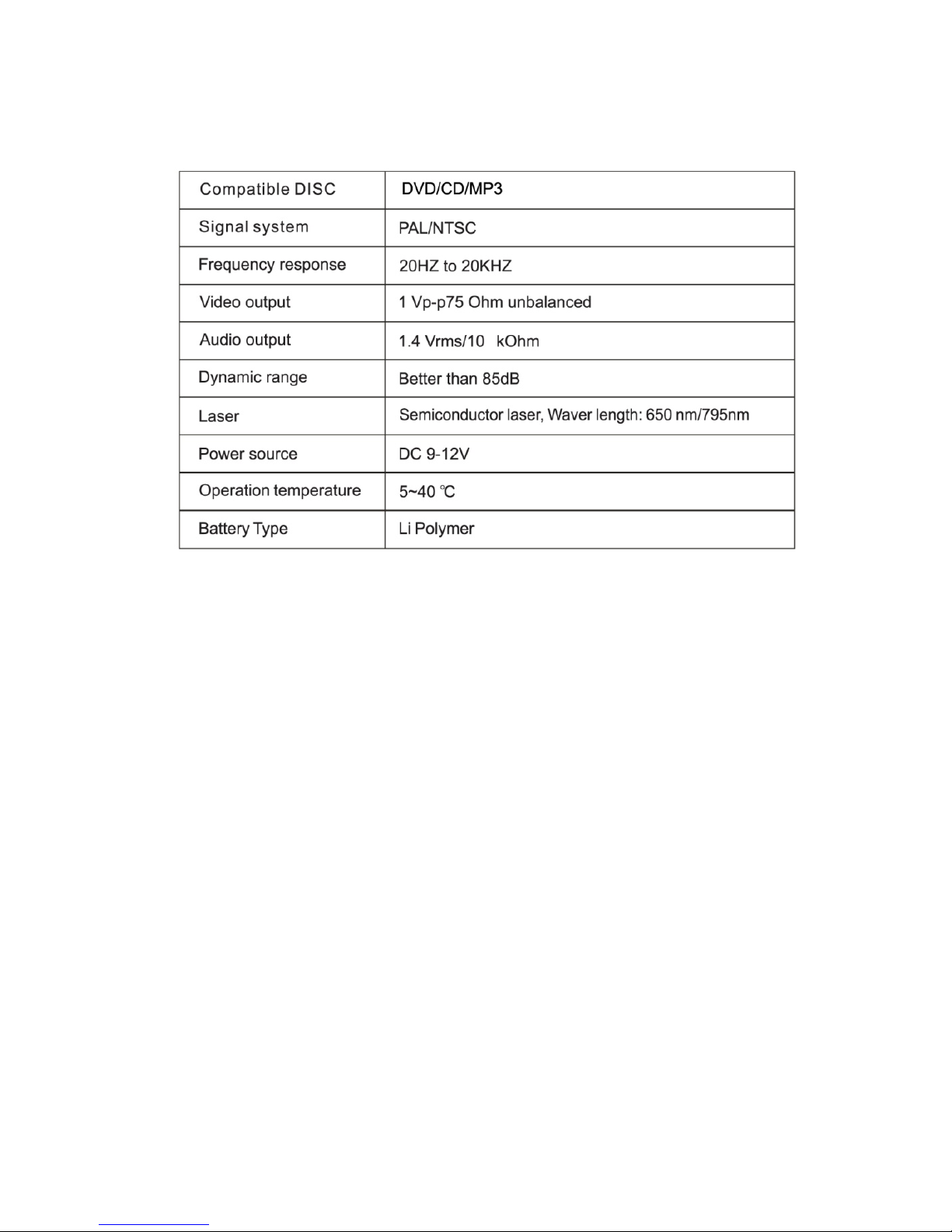

SPECIFICATION

16

TROUBLE SHOOTING
