LEO XKS-400PW User manual

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
GARDEN SUBMERSIBLE PUMP
Instruction Manual
XKS

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
CongratulationsonyourpurchaseofaLEOGardenSubmersiblePump
It is important that you read, fully understand and observe the following
safety precautions and warnings. Careless or improper use of the
machine may cause serious or fatal injury. The user is responsible for
any accidents involving other people or other people’s property.
This appliance can be used by children aged from 16 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
Attention!
If the appliance or the supply cord is damaged, it must be
repaired by manufacturer, its service agent or qualified person-
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities.
Contact your local government for information regarding the collection
systems available.

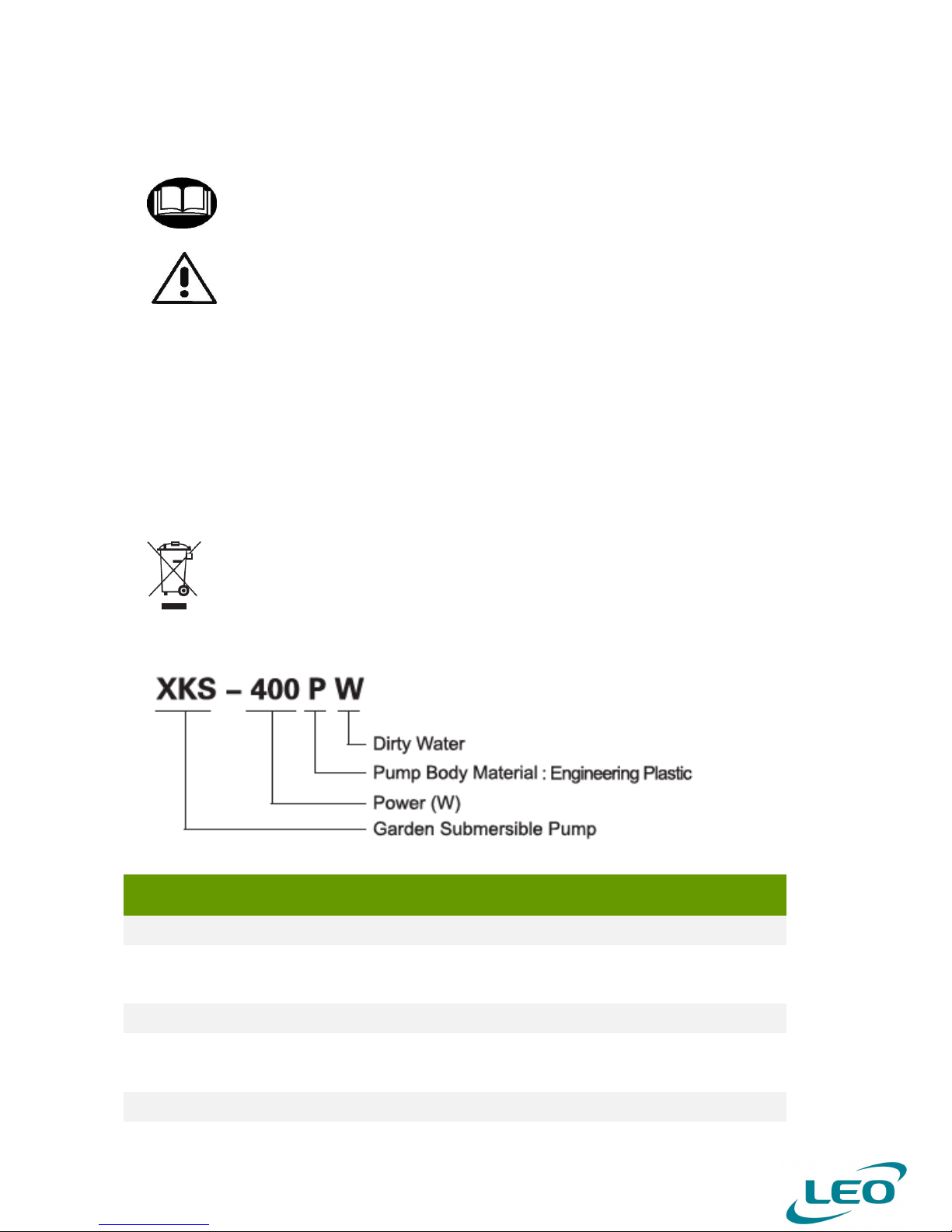

Model Description and Specifications
Type
XKS-400PW
XKS-750PW
Power
400 W / 0,5 HP
750 W / 1,0 HP
Outlet diameter
1.25”
1,5”
Q. max
9 m3/h
12 m3/h
H. max
4,3 m
7,6 m
Max. immersion depth
7 m
7 m
Gross weight
4,8 kg
6,2 kg
Package
200x150x300mm
200x150x300mm

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
Where to use your Pump
Correct use:
•The pump is intended for private use around the house and garden. It is
primarily intended for drainage purposes if flooding occurs but also for
transferring water to and from tanks and pumping them out, for drawing water
from wells and shafts, for draining boats and yachts and for aerating and
circulating water for limited periods.
Liquid conveyed:
•The pump is suitable for conveying:
•Submersible pump for clean water: clean to slightly dirty water with a max.
particle size of 5 mm.
•Submersible pump for dirty water: dirty water with a max. particle size of 35
mm.
•The pump can be fully submerged (watertight encapsulation) and can be
lowered down to a depth of 7m into the water.
•The pump must not be installed in swimming pools; it must be installed and
used in accordance with National installation rules.
•The pump is not intended for long term use (e. g. use for continuous
circulation) in a pond. The length of life of the pump will be shortened
accordingly if used in this way.
•Corrosive (chemicals, cleaning fluids etc...), flammable or explosive
substances (e.g. petrol, paraffin, cellulose thinners); grease, oil, salt water and
sewage must not be conveyed by the pump.
•The PH of water must between 6.5 and 8.5. Pollution of the liquid could occur
due to leakage of lubricants.
•The temperature of the liquid conveyed may not exceed 35 °C.
•Do not expose the plug to damp. Protect plug and power cable away from
heat, oil and sharp edges.
•Do not expose the pump to frost.
•Do not run the pump without water.
Safety Instructions
Before starting up the pump make sure that:
• The pump must not be used when people are in the water.
• Make sure that the electrical plug and socket connections are fitted in an area which
cannot flood. And protect power plug from moisture.
• Check out if there is any damage to the pump, especially to the cable and plug. A
damaged pump mustn’t be used any way.
• The pump must be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA.
The mains supply voltage matches the voltage indicated on the pump identification
plate.

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
Attention to your operating:
•Never carry the pump by its cable and do not pull the cable to disconnect it. For
submerging, lifting or securing the pump, fix a rope to the pump^ carrying handle is
the correct choice.
•Do not pull out the power cable from the socket as a method of turning the pump off.
Check out if the outlet and the inlet of the pump clog. Clear the outlet and the inlet
when need.
Automatic protection for safety:
•Thermal motor protector: The pump is automatically switched
off on overheating by the built-in thermal motor protector. After
having cooled down, the motor automatically switches on again.

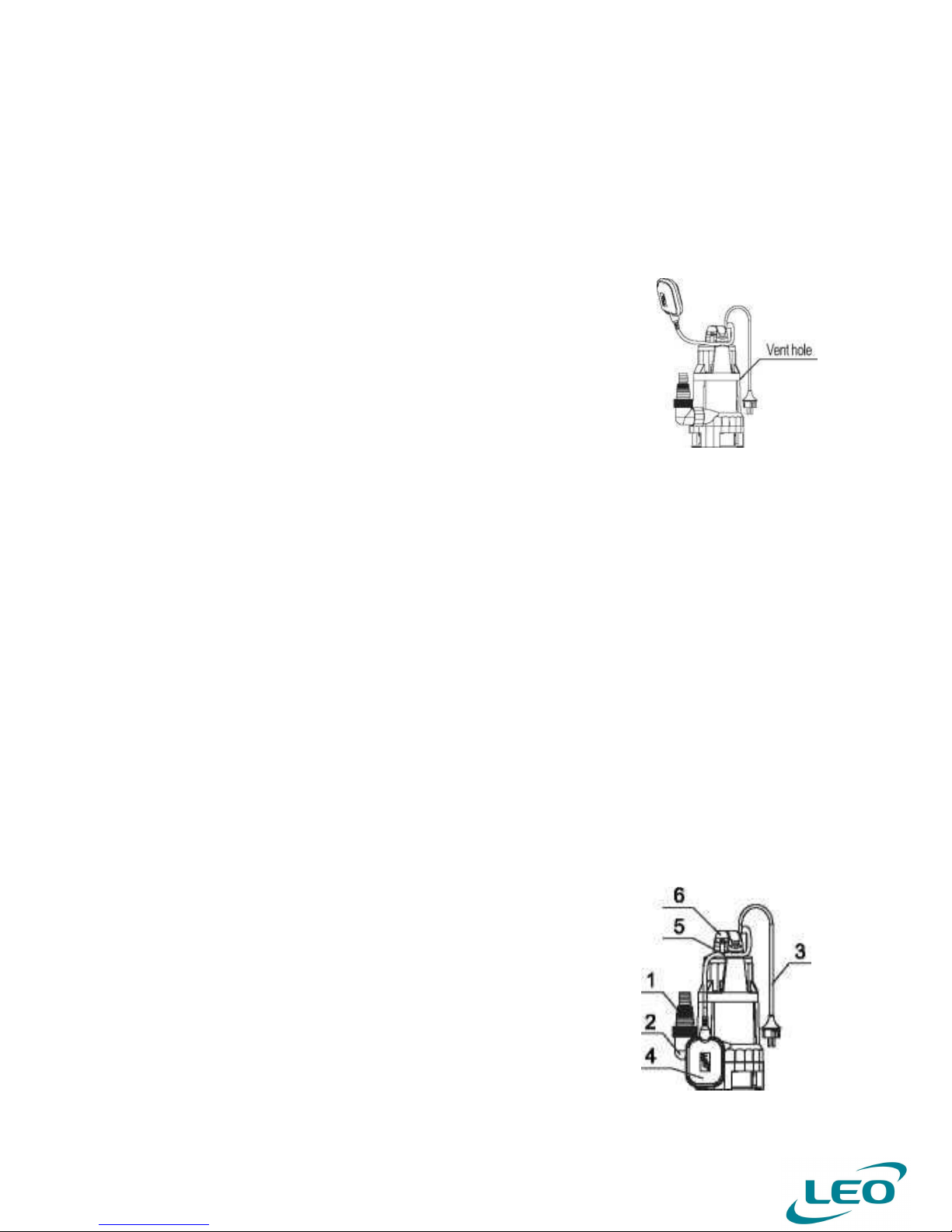

•Automatic Air bleed valve: The
automatic air bleed valve eliminates any air pockets in the
pump.
During this process, air escapes through the plastic plug on the
pump and air bubbles appear underwater. This is not a defect of
your pump, but serves to deaerate the pump, but serves to remove
air from the pump. It may take several seconds for the air to
escape when the pump is immersed for the first time.
Note: The position of vent hole may be different in some models.
Main power cables must not have a smaller cross-section than the rubber-sheathed
cables of the designation H05RN-F while the pump without power cable lighter than 5
kg and the designation H07RN-F while the pump without power cable heavier than 5
kg. The cable length must be at least 10m.
Operation
Automatic operation of the float switch:
The float switch 4 turns the pump on automatically when the water level exceeds the
cut-in height and the water is pumped out. The float switch 4 turns the pump off again
as soon as the water level falls below the cut-out hight.
(1) Stand the pump on a firm surface or use a rope attached through the bore hole in
the carrying handle 6 to immerse the pump in a well or shaft.
(2) During automatic operation, ensure that the float switch 4 can move freely.
Plug the power cable 3 into a mains socket.
Adjusting the Cut-in and Cut-out Height: Push the cable of
the float switch 4 into the float switch lock 5.
Do not select a cable length that is too long or short to
ensure that the float switch 4 can turn on and off properly.
The cable length between the float switch 4 and the float
switch lock 5 must always be at least 10 cm.

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
• The shorter the length of cable between the float switch 4 and the float switch lock 5,
the lower the cut-in height and the higher the cut-out height.
Manual operation of the float switch:
The pump can remain constantly in operation because it is switched on manually by
raising the float switch 4 as showed on the left.
(1) Stand the pump on a firm surface or use a rope attached through the bore hole in
the carrying handle 6 to immerse the pump in a well or shaft.
(2) Plug the power cable 3 into a mains socket.
left drawing, with the side of cable at the bottom. As long as the
float switch is positioned vertically with the cable at the bottom, the
pump will operate regardless of the water level.
Storage:
Clean and store the pump in a frost-free place before the first
frost arrives.

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
Troubleshooting
Symptoms
Cause
Corrective Action
The pump won't start.
Power not switched on.
The float switch is not
connected to the circuit.
Check the mains voltage.
Lift the float.
The pump won't
discharge
Air locks in the suction
base. -Feed impeller
clogged.
The discharge pipe is
stuck.
Wait for Max. 1 minute
until air escapes through
the vent bores
automatically. Switch off
and on in turn if
necessary.
Disconnect plug and
clean feed impeller.
Release the pipe.
The pump won't stop.
The float switch is blocked
in the upper part.
Release the float and
reposition the pump.
The flow rate is
inadequate.
The intake filter is
clogged.
Pumping flow rate falls
because the pump is
clogged with water
impurities
Clean the filter.
Clean the pump and its
environment.
The pump stops after
working for a short time.
Dirty particles are jammed
in the suction base.
The heat protector stops
the pump due to
overheating.
The heat protector stops
the pump due to clogging.
Pull out the plug and
clean the pump and
sump.
Make sure the water
temperature does not
exceed 35°C!
Clean the pump

Acquaer Ltd. H-4900, Fehérgyarmat, Szatmári út 11.
Guarantee terms
Please carefully retain the guarantee card completed by the seller, or the proof
of purchase.
Pre-conditions for the 24-month guarantee entitlement:
- Deployment of the device solely for private use.
The guarantee is reduced to 12 months in the commercial sector or leasing
business.
- Proper handling and observance of all information given in the operating manual,
which forms part of our guarantee terms.
- Observance of the prescribed maintenance intervals
- No unauthorized alteration of the design.
- Presentation of the completed guarantee card and/or proof of purchase.
Any guarantee claim shall be immediately void in the event of unauthorized
repairs. Faults and defects, which can be traced to material or manufacturing
faults will be rectified exclusively by our contracted workshops (the seller has
the right to remedy a defect) in your vicinity or by the manufacturer if the latter
is closer. Any claims going beyond the provision of a guarantee are ruled out.
Any transport damage should be reported not to us but to the shipper in
question since, otherwise, any compensation claims the shipper would be
voided.
Information concerning the packaging materials
The used packaging materials must be thrown into the relevant waste collector.
In case of the need of any parts, questions or service instructions please
contact:
 [email protected]
 [phone]
Acquaer Ltd., 4900 Fehérgyarmat, Szatmári u. 11 certifies CE conformity of the above-
mentioned product and that it complies with the technical data specified in the data
plate and the “Operating instructions”.
You can get detailed information about the CE declarations at: www.gamagarden.eu
