Features
Your automatic Slider Gate Motor has
many features which you will appreciate.
The components and materials used in its
control board are of the latest technology
and highest quality.

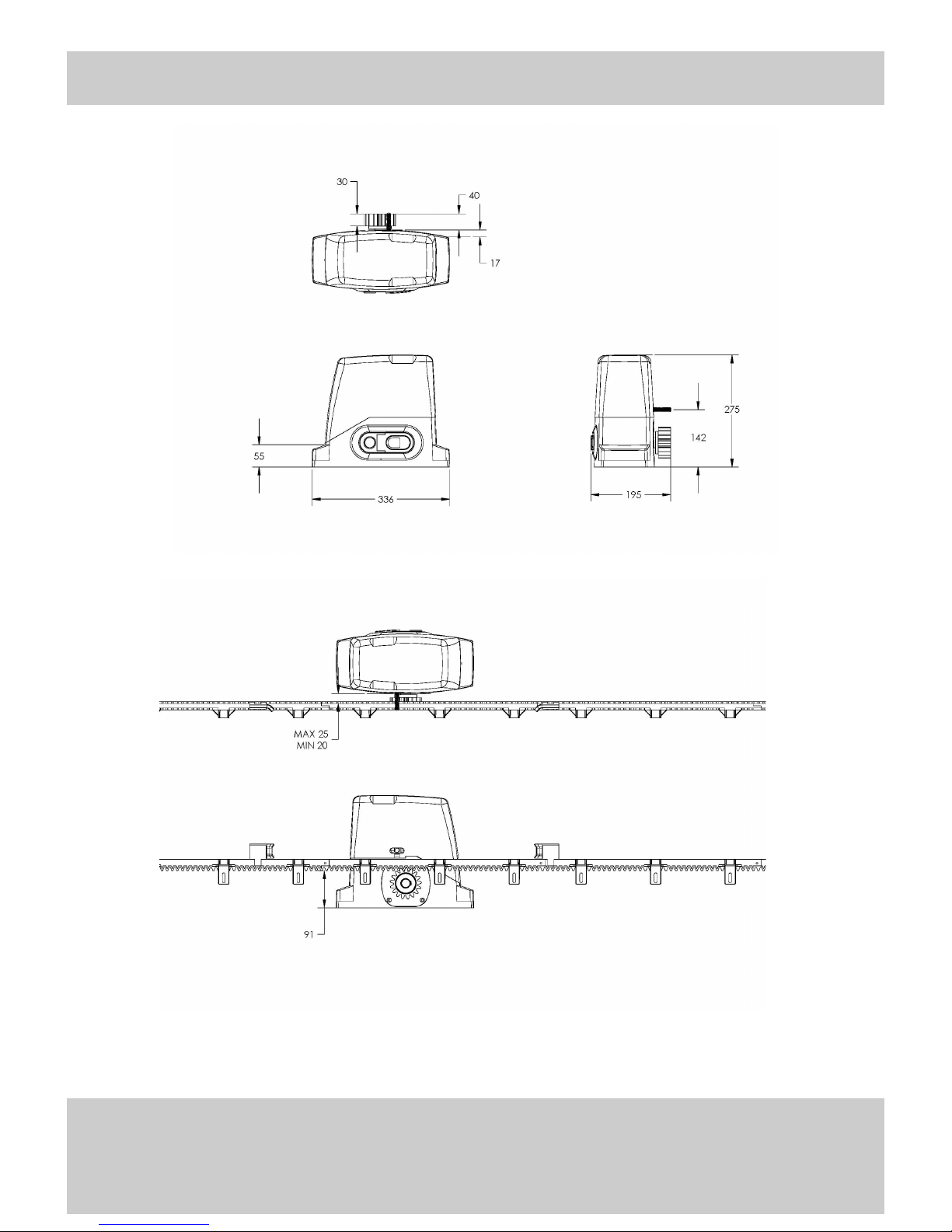

The motor is used to drive a sliding gate,
with the moving speed of 12 meters per
minute. This gate-operator is powered by
AC15V. It is featured with powerful starting
strength, capable of overload at short time.
When it’s overloaded, it’s protected
electrically and mechanically.
In case of power failure, a key can be used
to release the motor and move the gates
manually. Following lists some of its key
features.
OPERATION
To operate the slider door simply press the
remote control handset or the wall mounted
switch for two seconds and the door will
automatically open/close.
The gate can be stopped during on
opening or closing cycle by pressing the
remote control handset or wall switch. The
next actuation will move the gate in the
opposite direction.
SAFETY OBSTRUCTION REVERSE
While the gate is performing closing cycle
and it should hit an obstacle or be
restricted in some manner, it will
automatically reverse.
The amount of force the gate should
encounter before reversing is adjustable.
The gate will automatically stop if restricted
whilst opening. The Safety Obstruction
Forces should be checked at least once a
month.
SECURITY CODE STORE
The Sliding Gate Motor uses state of the
Microchip® technology in storing your
Slider Code Transmitter Security Code.
Up to 20 different transmitters can be
stored in the non-volatile memory device.
To store any code simply press the LEARN
button on the motor and press the
transmitter button twice. The codes can be
deleted at any time.
Security is enhanced because the fixed
and encrypted sections combined increase
the number of combinations to 7.38 x 109.
There is no Dip switch on the motor which
can be visually seen and copied.

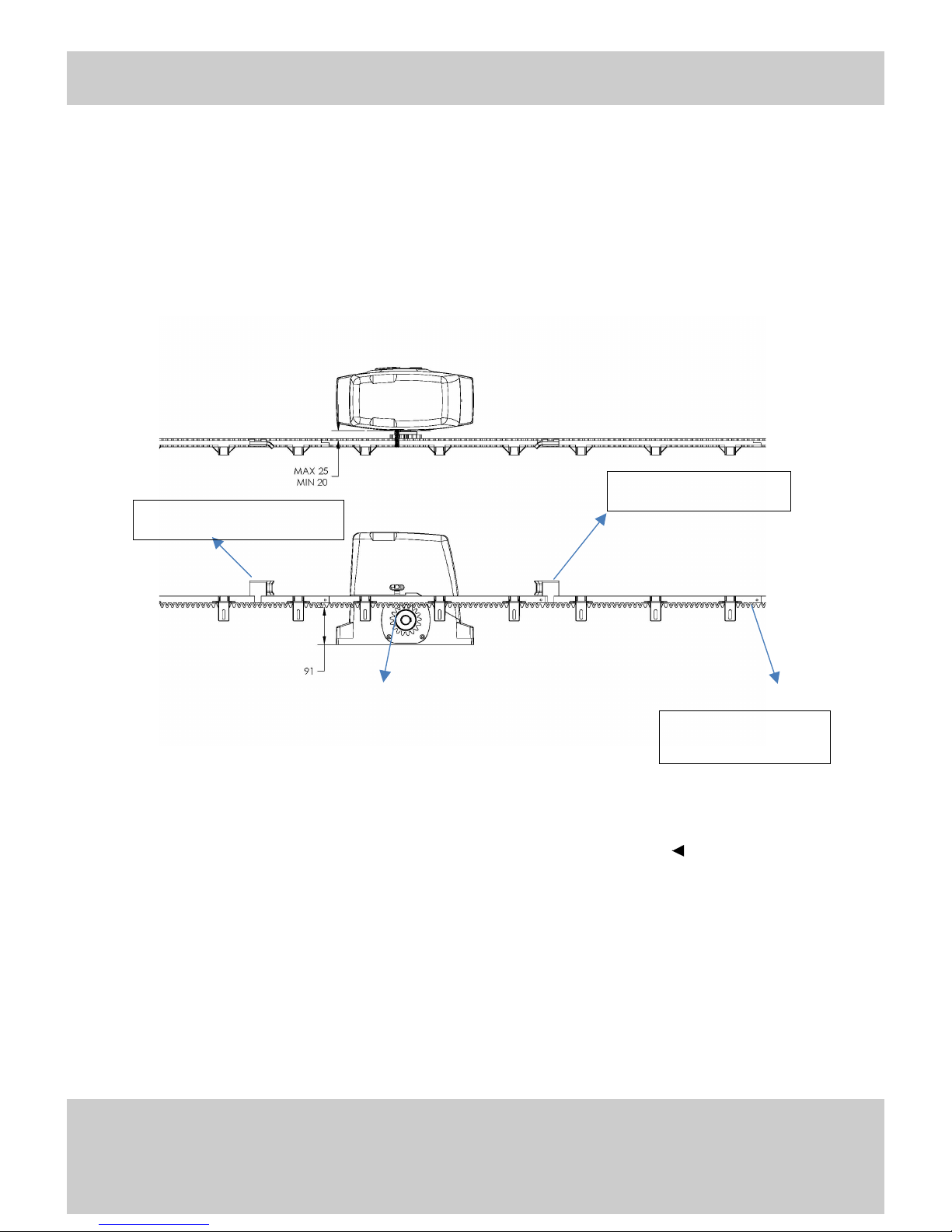

OPEN AND CLOSE DRIVE BUTTON
Another feature developed to aid in the
installation of the Slider Gate Motor is the
O/S/C Button. This button is used to help
set the open and close limit positions. A
quicker time setting and a more precise
limit position can be achieved using this
system.
AUTO CLOSE MODE
The Slider Gate Motor can be programmed
to automatically close at a selected period
(eg. thirty seconds) after the door has
opened. A photo-electric beam must be
installed if this mode is selected.

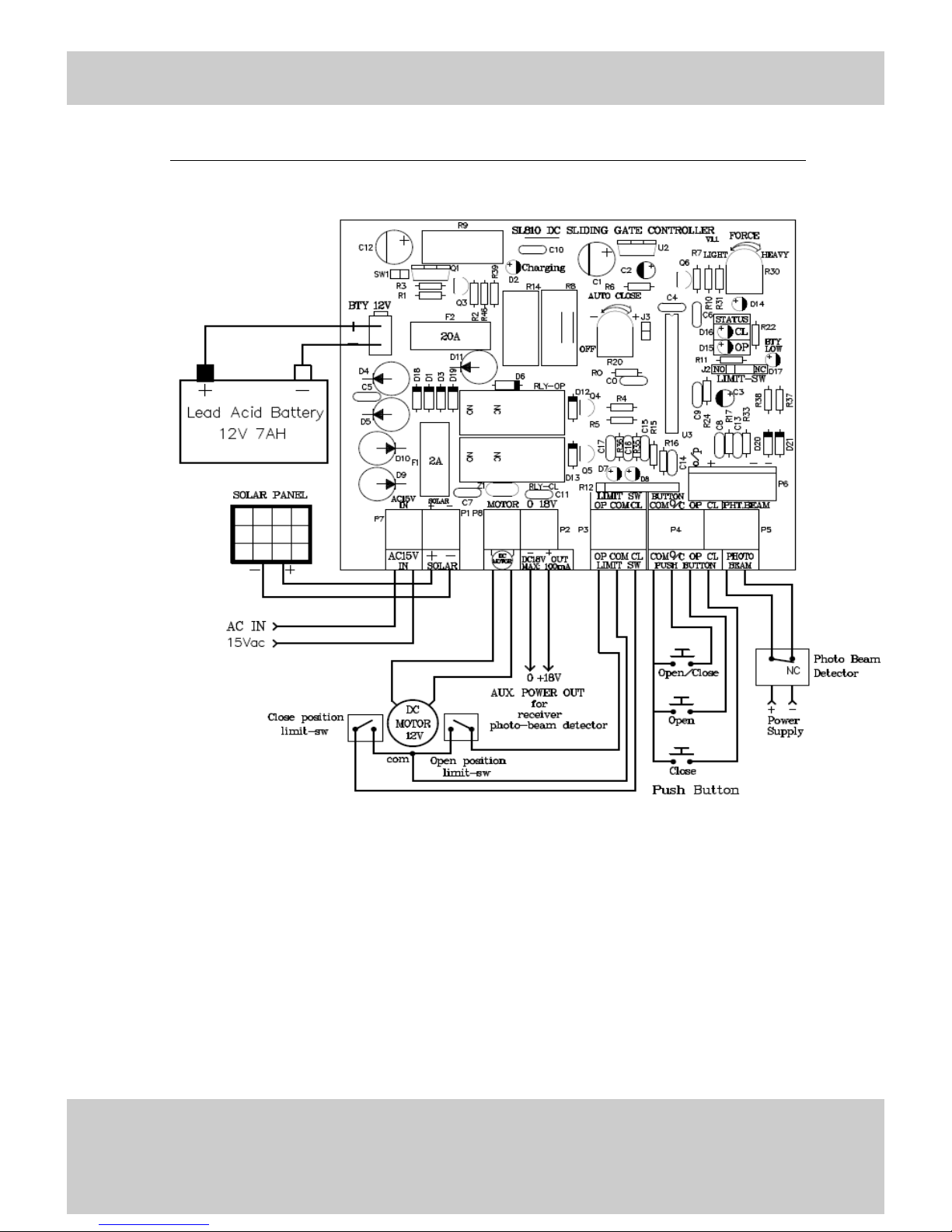

PHOTO ELECTRIC BEAM
The Sliding Gate Motor has an input for a
Photo-Electric Beam to be connected for
extra safety protection.
SOLAR COMPATIBLE
This device is able to use 12V DC, 24V DC
or 12V solar panel to operate.
