LevelOne FCS-5062 User manual

FCS-5062
5-Megapixel Day/Night PoE Outdoor Network Camera
User’s Manual
H/W: V1.0

Product name:
FCS-5062
Release Date:
2013/04/16
Manual Revision:
V1.0
Default Settings
IPAddress
DHCP
Username
admin
Password
admin

Table of Contents
Package Contents .......................................................................................................... 1
Hardware........................................................................................................................ 2
Device Appearance ..................................................................................................2
DI/DO Cable.............................................................................................................3
Hardware Reset .......................................................................................................3
Hardware Installation...................................................................................................... 4
Camera Connection........................................................................................................ 6
Software Installation ....................................................................................................... 9
Access to the Network Camera.................................................................................... 17
Check Network Settings.........................................................................................17
Add Password to prevent Unauthorized Access.....................................................17
Authentication.........................................................................................................18
Installing plug-in......................................................................................................18
Live View ...................................................................................................................... 19
Configuration................................................................................................................ 22
Camera/Video/Audio ..............................................................................................22
Camera .......................................................................................................... 22
Video.............................................................................................................. 26
Audio.............................................................................................................. 29
Privacy Mask Control ..................................................................................... 30
Network..................................................................................................................31
IP Settings...................................................................................................... 31
UPnP.............................................................................................................. 32
DDNS (dynamic domain name service) ......................................................... 32
HTTP/HTTPS................................................................................................. 34
Multicast......................................................................................................... 35
EasyLink......................................................................................................... 36
Event......................................................................................................................37
Event Settings................................................................................................ 37
Motion Detection ............................................................................................ 42
Digital Input (DI) ............................................................................................. 44
Audio Detection.............................................................................................. 44
Notifications............................................................................................................46
FTP Settings................................................................................................... 46
E-mail Settings............................................................................................... 47
Samba Settings.............................................................................................. 48

HTTP Settings................................................................................................ 48
Digital Output (DO)......................................................................................... 49
Audio Clip....................................................................................................... 50
Video Clip....................................................................................................... 51
Maintenance...........................................................................................................52
Language....................................................................................................... 52
User Management.......................................................................................... 52
IP Filter........................................................................................................... 53
Firmware Upgrade.......................................................................................... 53
Configuration.................................................................................................. 54
Reset to Default.............................................................................................. 55
Reboot............................................................................................................ 55
System ...................................................................................................................56
System Log .................................................................................................... 56
Date and Time................................................................................................ 57
Save File Folder............................................................................................. 58
Device Information ......................................................................................... 58

1
Package Contents
FCS-5062
Camera Bracket
Power Adapter
Quick Installation Guide
CD Manual/Utility

2
Hardware
Device Appearance

3

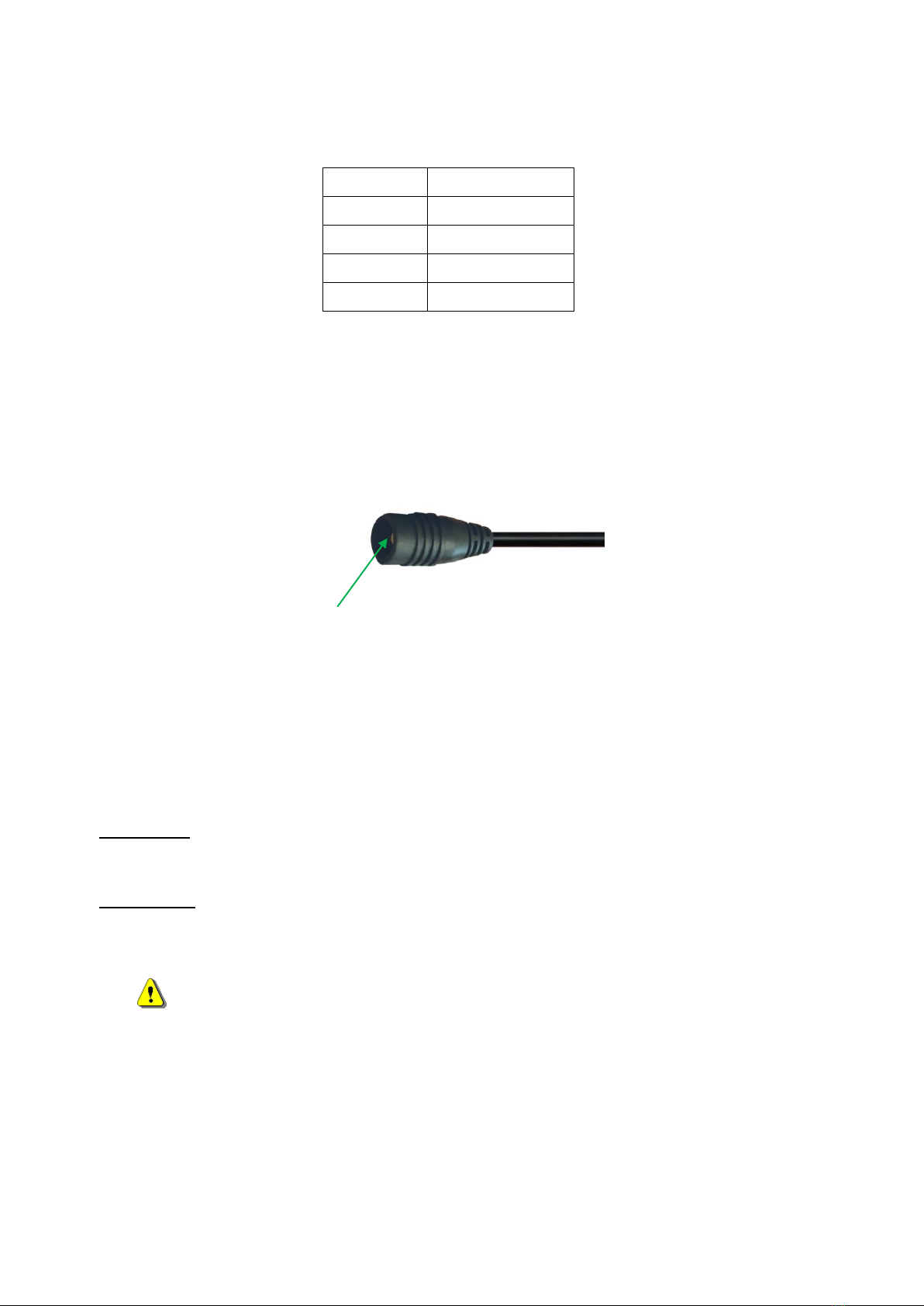

DI/DO Cable
Pin No.
Function
Pin 1
5V
Pin 2
DO
Pin 3
DI
Pin 4
GND
Hardware Reset
The Reset Button can be used to reboot the camera or restore it to factory default
settings. If the camera experiences a problem, rebooting the camera may correct the
problem. If the problem remains, please restore the camera to factory default settings
and reinstall the software.
To Reboot
Press and hold the Reset Button for one second. Wait for the camera to reboot.
To Restore
Press and hold the Reset Button for ten seconds. When successful restored, the LED
will be blue during normal operation.
NOTE - By restoring the camera, all settings will be restored to the factory
default settings.
Reset Button

4
Hardware Installation
WARNING: Do not mount the camera on a soft material or uneven surface.
1. Choose the location on the wall to place the camera. Use the bracket as a guide and
drill three holes into the wall. Hammer the supplied plastic anchors into the holes and
fasten the bracket with the supplied screws.
2. Place the network camera on the bracket and use two screws to secure it to the
bracket.

5

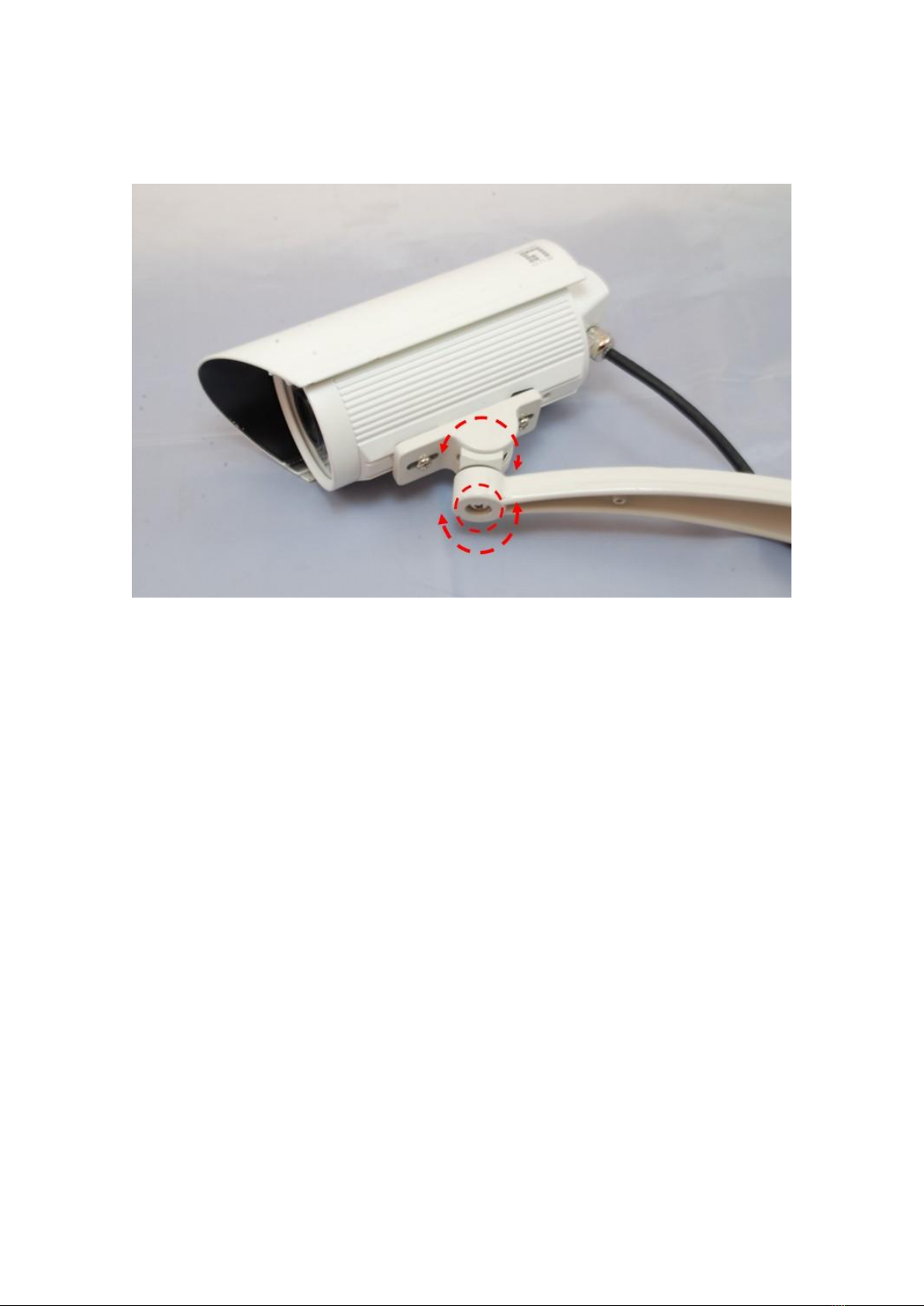

3. Adjust the angle of the bracket so the camera is facing the desired surveillance area
then fasten the screw.

6
Camera Connection
Basic Connection (Without PoE)
a. To attach external devices, such as sensors, alarms, speaker and microphone,
connect them to the extension I/O terminal block.
b. Connect the camera device to the Ethernet hub using a RJ45 Ethernet cable.
c. Connect the supplied power adapter to the camera and plug it into a power outlet.
Power over Ethernet (PoE) Connection
The camera is PoE compliant, so there are two options for connecting the camera to a
power and Ethernet source. The camera can either be connected to a PoE switch or a
non-PoE switch.
A. If using a PoE Switch
1. Use a single Ethernet cable to connect the camera to the PoE-enabled switch.

7
B. If using a non-PoE Switch
1. Use a standard RJ-45 cable to connect the camera to a PoE Injector.
2. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.
3. Use a standard power cable to connect the PoE Injector to a power outlet.

8
System Requirements
Operating System:
Microsoft Windows XP Home Edition SP2
Microsoft Windows XP Professional SP2
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
10/100Mbps Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
Audio:
The audio function will not work if a sound card is not installed in the PC.Audio
may be interrupted depending on network traffic.

9
Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant
user access to the camera.
After hardware connection checking, the users can run the Installation Wizard program
included in the product CD-ROM to automatically search for the Network Camera in the
Intranet. There may be many Network Cameras in the local network. Users can
differentiate the Network Cameras with the serial number. The serial number is printed
on the labels on the carton and the bottom of the Network Camera body.

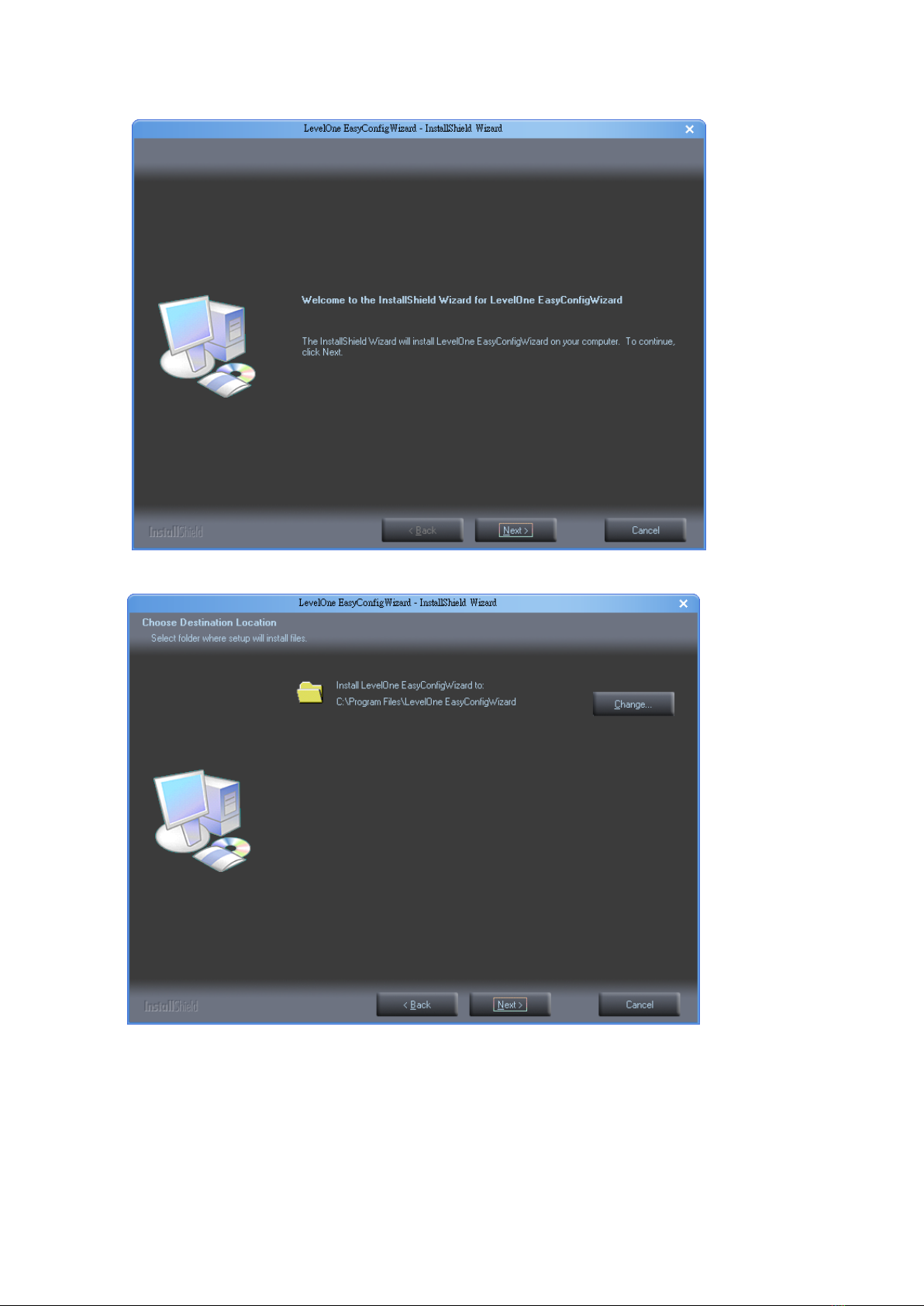

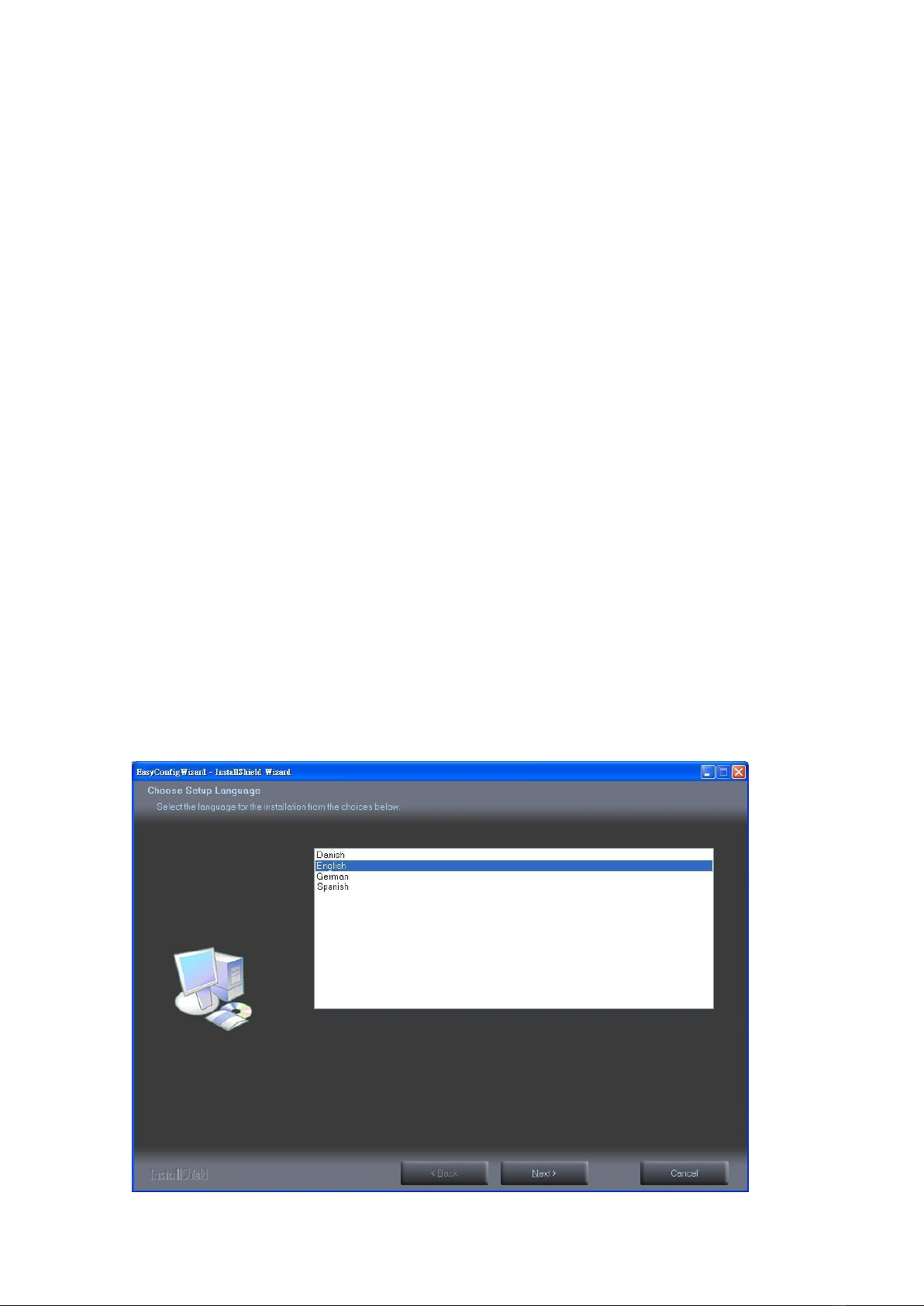

1. Insert the Installation CD into the CD-ROM driver. Click install and shows the
welcome screen. Follow the steps to install the Installation wizard on user’s
computer.

10

11

12

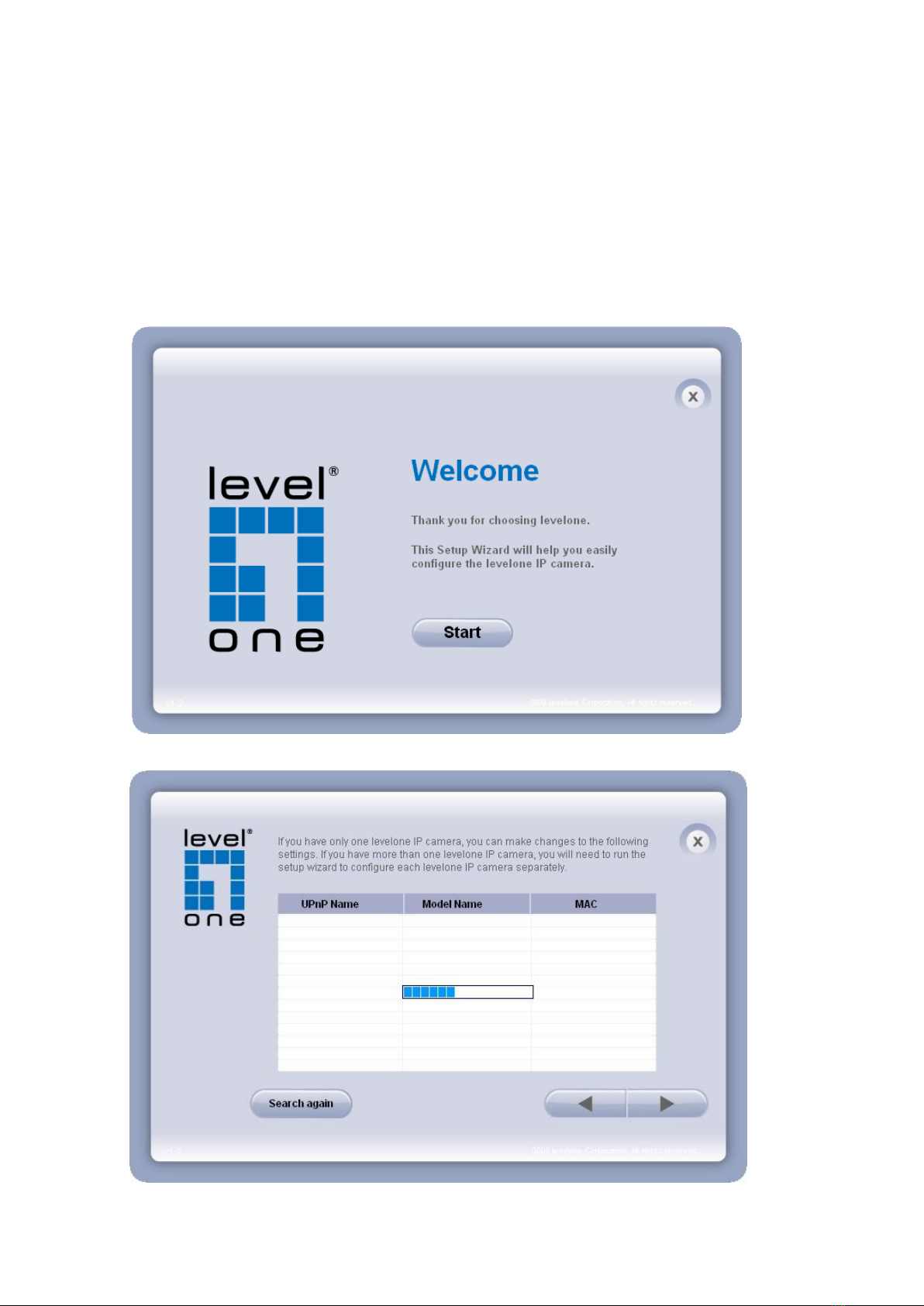

2. Do not check the box if user would like to check the hardware installation settings.
Otherwise click “Skip the hardware installation”to skip the hardware connection
checking, the program will automatically search for the Network Camera in the
Intranet.
Click “Start”to continue.

13

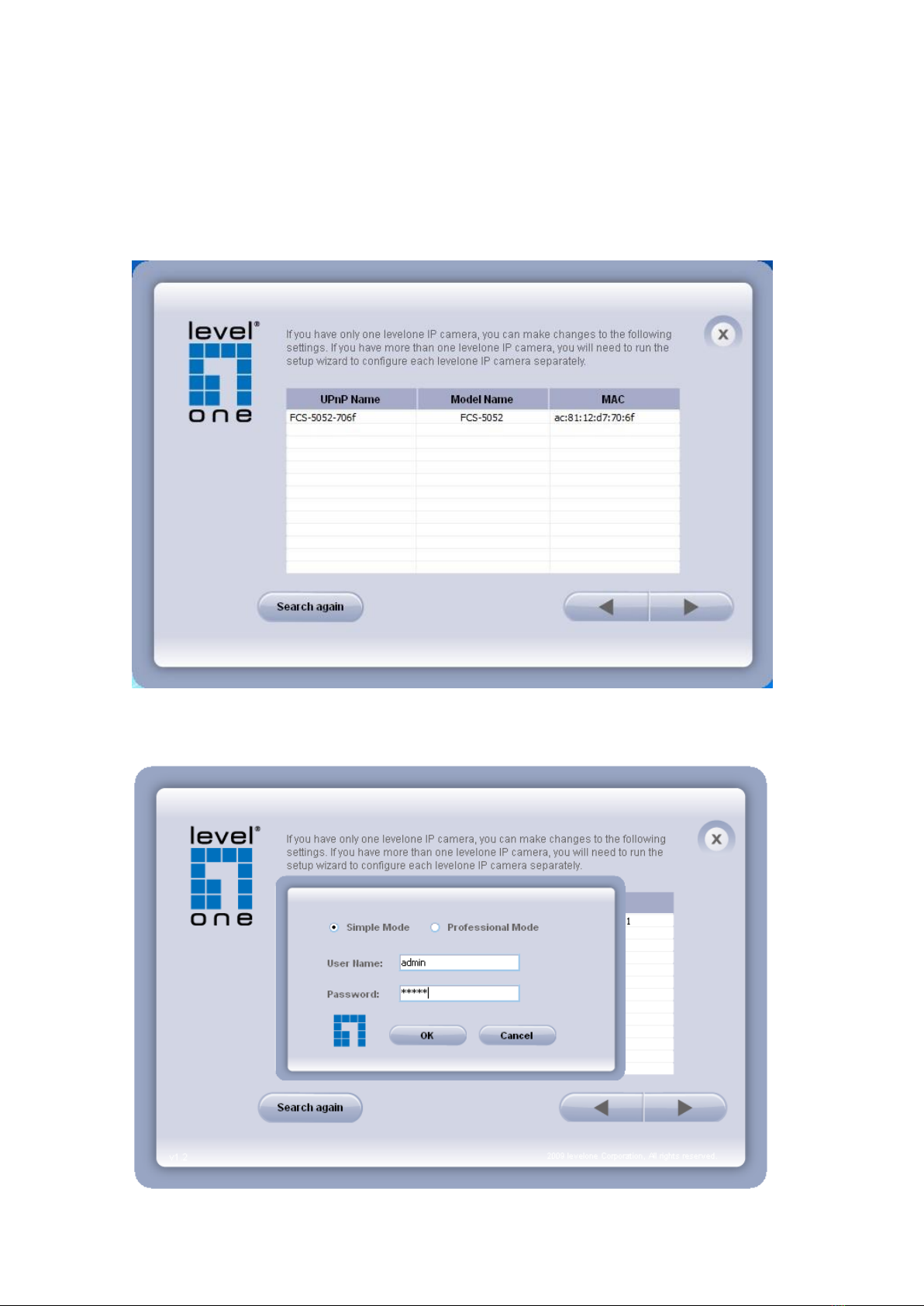

3. Select the Network Camera from the survey list and enter the user name and
password. The user name and password are assigned as “admin/admin”.

14
4. Setting the Network Camera IP address.
User can either select simple mode or professional mode for network camera IP
setting. If simple mode is selected, the easy configuration program will set up the
connection automatically. If professional mode is selected, the user will need to
configure the IP manually, The DHCP setting is recommended. If user wants to set
IP address manually, please refer to the product user manual.

15
5. Please make sure the internet connection is ready then start to do the internet
discovery, otherwise click “Skip”to finish the setting.
The default domain name is MAC address; you can also register with your own
name on-line.

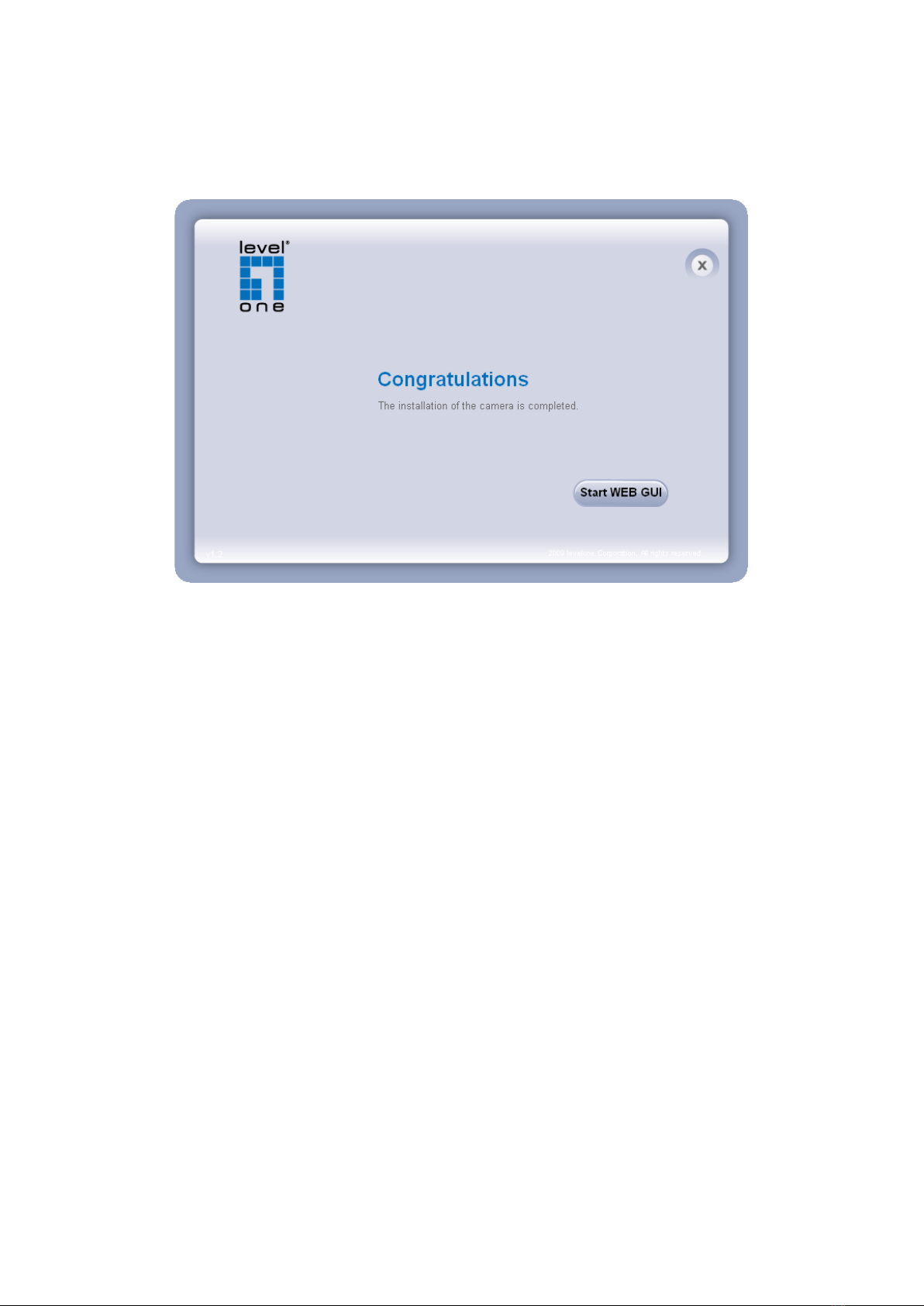

6. After finish setting, the connection successful or fail showed. If connection failed,
user can either try again or quit the installation. User can either select “Run

16
PC-NVR”or "Start Web GUI" to continue or click “X”on the top right of the screen to
finish the installation.
Once installation is completed, theAdministrator should proceed to the next section
"Access to the Network Camera" for necessary checks and configurations.
