Surveon CAM4210 User manual

CAM4210
Megapixel IR Dome Indoor
Network Camera
User Manual
Release 1.3
July, 2010

Surveon CAM4210
All Rights Reserved © Surveon Technology 2010
Copyright Statement
No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written consent of
Surveon Technology Inc.
Disclaimer
Surveon Technology makes no representations or warranties with respect to
the contents hereof and specifically disclaim any implied warranties of
merchantability or fitness for any particular purpose. Furthermore, Surveon
Technology reserves the right to revise this publication and to make changes
from time to time in the content hereof without obligation to notify any
person of such revisions or changes. Product specifications are also subject to
change without notice.
Trademarks
Surveon and Surveon logo are trademarks of Surveon Technology Inc. All
other names, brands, products or services are trademarks or registered
trademarks of their respective owners
1
Surveon Network Camera User Manual

Surveon CAM4210
Table of Contents
Copyright Statement.......................................................................... 1
Table of Contents ............................................................................. 2
Chapter 1. Overview.......................................................................... 4
1.1. Network Camera Introduction ......................................................4
1.2. Network Camera Features...........................................................4
1.3. Network Camera Specifications ....................................................5
System Structure ..........................................................................7
1.4. Network Camera Hardware Installation ..........................................7
Chapter 2. Connecting to the Network Camera......................................... 8
2.1. Connecting with a Web Browser ...................................................9
Logging into the System for the First Time ......................................... 10
Installing Active X Components in Internet Explorer .............................. 11
Logging Out of the System............................................................. 12
Using the Help Interface ............................................................... 12
2.2. Connecting with an RTSP Player .................................................13
Connecting with a Mobile Device RTSP Player...................................... 13
Chapter 3. Web Interface...................................................................14
3.1. Interface Layout.....................................................................14
Control Descriptions .................................................................... 15
3.2. Settings................................................................................17
General.................................................................................... 17
Basic Settings ....................................................................... 17
User Account ........................................................................ 19
Date & Time......................................................................... 22
Network................................................................................... 23
Network Configuration............................................................. 24
Port Settings......................................................................... 25
UPnP.................................................................................. 26
Video & Audio Settings ................................................................. 27
www.surveon.com
2

Surveon CAM4210
Basic Settings ....................................................................... 27
Image Appearance.................................................................. 28
Video Streams....................................................................... 31
Audio Settings....................................................................... 33
PTZ......................................................................................... 34
Recording................................................................................. 35
Recording Basic Settings .......................................................... 35
Recorded File Management....................................................... 36
Event Notification....................................................................... 38
Event Server......................................................................... 38
Motion Detection ................................................................... 40
Tampering Detection .............................................................. 41
Tampering Detection .............................................................. 42
DI & DO............................................................................... 43
Event Settings....................................................................... 45
System..................................................................................... 51
MicroSD Card Management........................................................ 51
System Status ....................................................................... 52
System log ........................................................................... 53
Firmware Upgrade.................................................................. 54
Reset to Factory Default .......................................................... 55
Export/Import & Reboot .......................................................... 56
3
Surveon Network Camera User Manual

Surveon CAM4210
Chapter 1. Overview
1.1. Network Camera Introduction
CAM4210 is a professional IP network camera utilizing Internet Protocol (IP) to
transmit video streams and control signals over networks. Capable of operating
over both LANs and WANs, CAM4210 provides a complete budget-conscious remote
surveillance solution that is ultra clear and highly integrated. The CAM4210
combines a user-friendly interface and simplified installation with a powerful
feature set, including Motion Detection and Tampering Detection to provide users
an easy upgrade path to new digital surveillance system in a virtual environment.
These highlights make CAM4210 an ideal choice for environments that require
remote surveillance or video transmission.
1.2. Network Camera Features
Supports up to 10 simultaneous users
Built-in web server to allow real-time remote surveillance and control
using standard web browsers
Built-in microSD card slot for local backup
Supports dynamic IP, LAN, and the Internet (ADSL, Cable modem)
Supports most network protocols including: HTTP, TCP/IP, SMTP, DDNS,
DNS, DHCP, FTP, RTSP,CIFS, PPPoE
Supports 2-way audio
Automatically adapts image compression rate to available bandwidth
Provides Signal loss and motion-detection alerts (adjustable area and
sensitivity level)
Supports image recording and still image capture
www.surveon.com
4

Surveon CAM4210
1.3. Network Camera Specifications
CAM4210
Image sensor 1/3” 1.3 megapixel progressive scan CMOS
Lens f=4.2 mm, F1.8
Viewing
Angle Diagonal:89°, Horizontal:71°, Vertical: 49.5°
Day/Night Dual band filter
IR LED Yes (15 m)
Min
illumination 0 lux (IR LEDs on)
Iris control N/A
Shutter time 1/5 ~ 1/15,000 s
Camera Angle
Adjustment Pan:0°~340°
Tilt 30°~90°
Video
compression H.264 / MPEG-4 / MJPEG
Resolution Up to 1280x1024
Video control Auto Gain Control, Auto White Balance, Auto
Electronic Shutter, Backlight Compensation, Image
adjustment
Frame rate 15 fps at SXGA (1280 x 1024), 15 fps at HD720 (1280 x 720), 30 fps at VGA (640 x 480), 30 fps at
QVGA (320 x 240)
Video stream 2 simultaneous streams
at H.264, MPEG-4, and MJPEG
Bit rate 32K ~ 10Mbps, VBR, CBR
Intelligent
video Motion detection, tempering detection (blocked, redirected, defocused, or spray-painted)
Built-in MIC Omni-directional
Audio
compression 32KHz, ADPCM
Audio input 3.5mm phone jack
Audio output 3.5mm phone jack
Alarm in 2, terminal block
Alarm out 1, terminal block
AUX Power
Output 12VDC 400mA
5
Surveon Network Camera User Manual

Surveon CAM4210
Video buffer 2 second pre-alarm
30 second post-alarm
Event action Send snapshot or video clip by FTP or email,
record to remote storage, record to local storage,
trigger DO
Supported
protocols IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, CIFS, PPPoE, UPnP, RTP, RTSP,
RTCP, 3GPP
Ethernet 10/100 Base-T / RJ45
Local storage microSD/SDHC card slot x 1 (Class 4/ Class 6 only)
RS-485 1 (2 pin on terminal block)
SDK Surveon SDK 2.0
OS Microsoft Windows XP/Vista/7
Browser Microsoft IE 6.0 or above
Software Surveon VMS 2.0
Temperature Operation: -10 ~ 50 ℃(14 ~ 122℉)
Storage: -30 ~ 70 ℃(-22 ~ 158℉)
Humidity 20% ~ 95%
Power 12VDC
PoE (IEEE 802.3af) with Class 3
Power
consumption Max. 8.64W without AUX power
Dimension ø 128.8 mm x 98.6 mm (ø 5.07" x 3.88)
Weight Net: 620g (1.37lb.)
Gross: 1290g (2.85lb.)
Certification Safety: LVD
EMC:FCC, CE
www.surveon.com
6

Surveon CAM4210
System Structure
1.4. Network Camera Hardware Installation
Before the network camera is configured:
1. Install the camera in a suitable spot. The camera should have an
unobstructed view of the area to be surveyed.
2. Connect the camera to a power source. CAM4210 can accept power
from a power adapter or from Power over Ethernet enabled switches.
3. Connect the camera to a switch using an Ethernet cable. The Ethernet
port is located on the rear of the camera.
7
Surveon Network Camera User Manual

Surveon CAM4210
Chapter 2. Connecting to the
Network Camera
This section demonstrates how to connect to the network camera through two
methods:
•Web Browser – A simple web-based interface. Internet Explorer is the
recommended web browser for use with Surveon network cameras, and
our examples will be from this browser. Usage on other browsers will
be similar.
•RTSP Player – These include common streaming media players, such as
RealPlayer or Quicktime Player. These players can provide live view of
the camera using the Real-Time Streaming Protocol (RTSP).
www.surveon.com
8

Surveon CAM4210
2.1. Connecting with a Web Browser
To connect to the Network Camera with a web browser:
1. Launch the web browser (Microsoft ® Internet Explorer 6.0 or higher is
recommended).
2. Enter the IP address of the network camera in the address bar of your
browser and press enter. The IP address can be obtained using the
Surveon IP Utility, or if your network does not have DHCP service, the
default IP address is 192.168.88.10.
3. The camera will start the web interface with a live-view page. Click
the Login button at the top of this page.
4. The camera will prompt for a user name and password. The default
user name and password is admin/admin. Enter your user name and
password, and click OK to login. If this is your first time accessing the
camera, please read the subsections to set up a new password and/or
install ActiveX, otherwise the live feed from the network camera will
be displayed in your web browser.
9
Surveon Network Camera User Manual

Surveon CAM4210

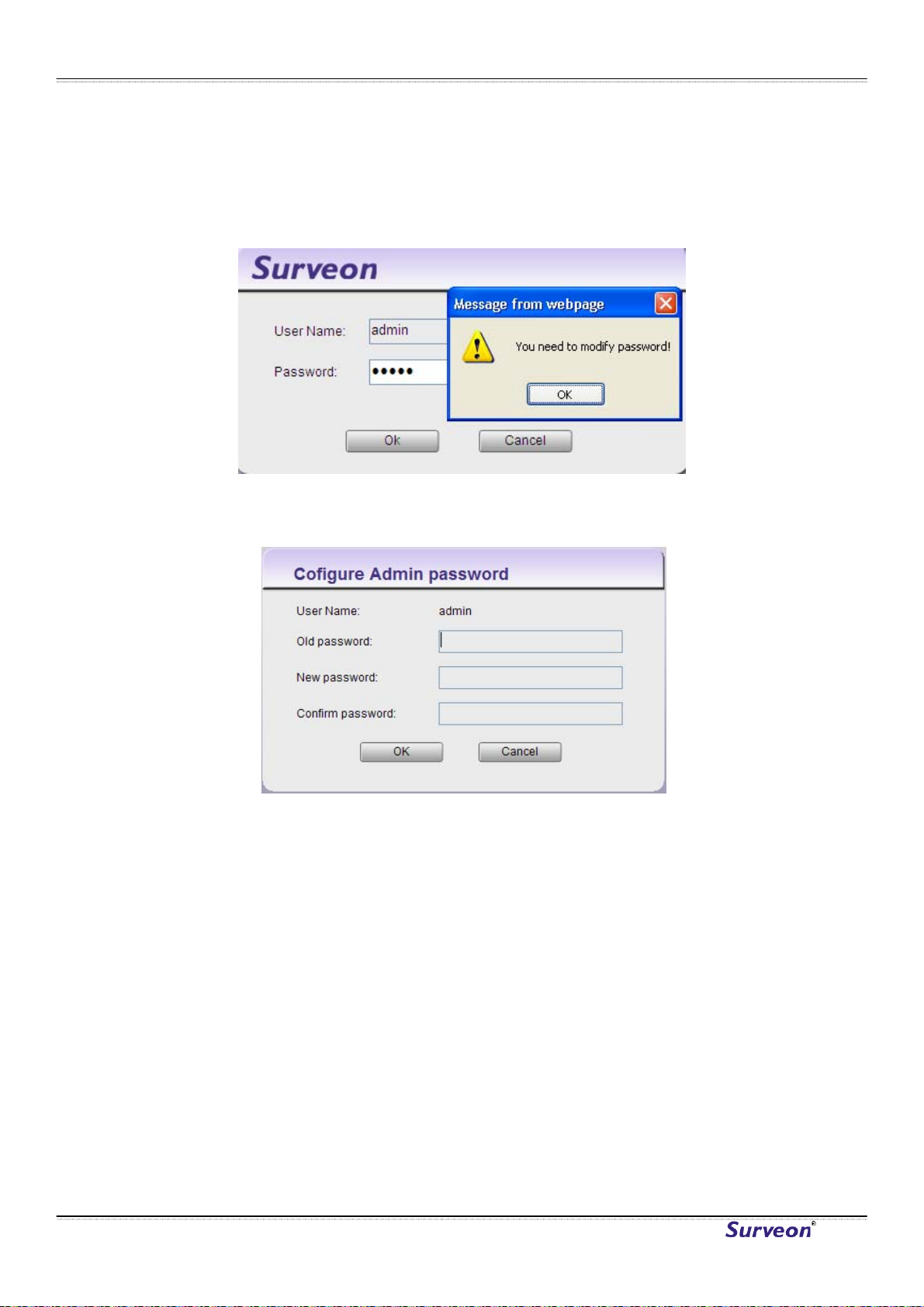

Logging into the System for the First Time
If this is the first time that the network camera is being accessed, the
camera will prompt you to change the administrator password after your first
login. Click Okay
1. Click OK when informed of the need to change your password. This will
In the Old password field, fill in the old password (def
cause a Configure Admin Password popup to display.
2. ault is admin).
w
4. change the password. If at any time you lose this password,
3. In the New password and Confirm new password field, fill in the ne
password.
Click OK to
performing a hard reset of the camera will restore the password back
to admin.
www.surveon.com
10

Surveon CAM4210
Installing Active X Components in Internet Explorer
You may be prompted to install ActiveX® components when accessing the
network camera’s Live View page; click Yes when prompted. You will be able
to access the camera after installation is completed. Under Windows, this
action may require administrator privileges.
If the dialog box suggests that you are not allowed to install ActiveX
components, try resolving the problem using the following steps:
1. In Internet Explorer, open Tools> Internet Options> Security. Click the
Custom level button.
2. Search for Download signed ActiveX controls. Under this heading select
Prompt and then click OK.
3. Continue installing the Active X components.
4. After installing ActiveX, go to Tools> Internet Options> Trusted
Websites> Sites and add the IP Address of the camera.
11
Surveon Network Camera User Manual

Surveon CAM4210
Logging Out of the System
Logging off of the camera can be performed by closing the browser window.
Users can also choose to click the Logout link located at the top of the
screen.
Using the Help Interface
While using the web interface, you may click on the Help link located under
the title bar. This will bring up a pop-up containing the IP Camera Help
manual. This provides simple explanation of the camera settings, and will
automatically open to the page relevant to your current screen.
The help manual is organized so that it matches the system menus, with
sections corresponding to each settings menu and the Live-view window.
www.surveon.com
12

Surveon CAM4210
2.2. Connecting with an RTSP Player
Surveon cameras support connections through RTSP Media Players such as
Real Player and QuickTime Player.
1. Launch Real Player or QuickTime Player；
2. Select File> Open URL, to open a URL dialog box.
3. Enter the camera URL in the address bar.
Note: The format for RTSP is: rtsp://<IP Address>/<Access>, where
<Access> can be found at Settings> Network> Port Settings> RTSP
Setting. By default the <Access> value should be stream1 and
stream2.
4. Click OK, the stream should begin playing.
Connecting with a Mobile Device RTSP Player
In order to access streaming video on 3GPP mobile devices, please make sure
the network camera is already online and connected to the Internet. In the IP
field under the IP Address section of the window, enter the IP address of the
IP camera.
1. Change the settings under Settings> Video & Audio> Stream2 Setting
to 3GPP Mode
2. Launch the RTSP Player on the 3GPP mobile device and enter the URL
address for the camera. The video should start playing.
Note: The format for RTSP is: rtsp://<IP Address>/<Access>, where
<Access> can be found at Settings> Network> Port Settings> RTSP
Setting. By default the <Access> value should be stream1 and
stream2.
13
Surveon Network Camera User Manual

Surveon CAM4210
Chapter 3. Web Interface
3.1. Interface Layout
This section demonstrates the layout of the network camera’s main
1. Menu Bar - The links on this bar allow use
interface. The 4 main areas on the interface are:
rs to toggle between live-
2. ew Controls - These controls allow users to configure the live
3. ckly access common
4. displays the stream
view and settings screens, as well as logout and pull up the help
menu.
Live Vi
view streams and camera live view functionality.
Button Bar - These controls allow the user to qui
features such as live view window resizing, video and still frame
capture, interface language, and audio controls.
Live View Window - This portion of the screen
selected in the Live View Control section of the web interface.
www.surveon.com
14

Surveon CAM4210
Control Descriptions
Control Description
Adjust Window Size: When clicked, the display window
size can be adjusted manually to fit the screen. The
screen size changes back to the actual image size
(resolution).
Full-Screen: Goes to full-screen when clicked; press
“ESC” to return to windowed view.
Image Capture: When clicked, captures the current
screen as an image in a new pop-up window and saves it
in C:\Surveon\Record. This location can be changed
under Settings> Recording> Recording Basic Settings.
The file name is set to “Camera
Name”+yyyymmdd_hhmmss (the Camera Name can be
changed under Settings> General> Basic Settings).
Manual Record: When clicked, records the current live
video. Stops recording when clicked again. The default
location for storing the recording is C:\Surveon\Record.
This location can be changed under Settings>
Recording> Recording Basic Settings.
Play Back: Enables video playback by linking to the to
the Record File Management page when clicked.
Audio-In: Turned off by default; clicking once allows
audio to be transmitted from a local microphone to the
camera. Clicking again stops audio transmission.
Multiple users may access the live view page and
receive audio from the camera, but only one user at
once is allowed to send audio to the camera.
Mute: Mutes the audio captured by the camera when
clicked, un-mutes the audio when clicked again.
Volume: Sets to the current computer volume; Dragging
the slider adjusts the volume.
15
Surveon Network Camera User Manual

Surveon CAM4210
Control Description
Language: Sets the UI language. Available languages
include English, Simplified Chinese, and Traditional
Chinese.
Streams: Allows users to choose which camera stream
to view. The indicator above the stream will turn light
green when the stream is selected.
Video Format: Sets the compression format for the
current stream. Available formats are H.264, MPEG4,
and MJPEG.
Image size (resolution): Sets the resolution of the
stream currently selected. 3 options are available for
each stream: SXGA (1280 x 1024), HD720 (1280 x 720),
VGA (640 x 480), QVGA (320 x 240) for stream 1 and
VGA (640 x 480), QVGA (320 x 240), QQVGA (160 x 120)
for stream 2.
Digital Zoom: When clicked, activates digital zoom in
the current live-view stream. 2 options are available
when clicked:
Zoom In
Zoom Out
Digital Output: Sets the Digital Output to High, Low,
or Off. Default is Off.
www.surveon.com
16

Surveon CAM4210
3.2. Settings
Camera settings may be changed by clicking on the Settings link located in
the title bar. This will bring up a menu list of configuration menus for all
major camera settings.
General
General setting menus are found under Settings> General.
Basic Settings
Basic settings may be accessed under General> Basic Settings.The following
settings can be made:
•Host Name: by default set to "model name + MAC address"; displays
on the center of the main page. Users may replace the default name
with a new name consisting of alphanumeric characters, spaces and
the ":" character.
•Camera Name: by default set to "Surveon + model name"; after
selecting Camera Name” from Settings> Video & Audio> Basic
Settings, the Camera Name will show on the display. Users may
replace the default name with a new name consisting of alphanumeric
characters, spaces and the ":" character.
•Power/Ethernet LED: turns on or off the power and Ethernet LEDs
indicator on the rear of the camera.
17
Surveon Network Camera User Manual

Surveon CAM4210
•System Status LED: changes the behavior of the status LED on the
front of the camera. There are four possible behaviors:
oLED on when camera is on - LED default on, flashing during
camera access.
oLED on during camera access - LED default off, flashing during
camera access
oLED off during camera access - LED default on, off during
camera access
oLED always off - LED always off
Click OK to save or Cancel to abort the changes before you leave the page.
www.surveon.com
18
