LFF LWS125 User manual

-USER MANUAL-
WIRELESS WEATHER STATION
Ref LWS125

PACKAGE LIST

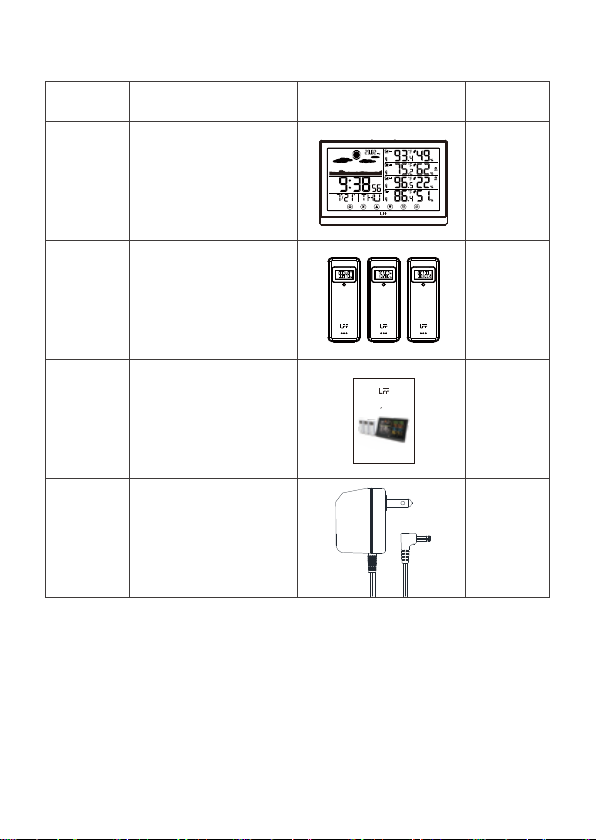

ITEM NO PART NAME FIGURE QTY
1
2
3
WEATHER STATION
OUTDOOR SENSOR
USER MANUAL
1
3
1
4AC
- AC ADAPTOR
(Output : 5V AC, 0.15A)
1
1
-USER MANUAL-
WIRELESS WEATHER STATION
Ref LWS163

2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
Please read this user manual carefully before you use this product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICIABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lighting flash and
arrow head within the
triangle is warning
sign alerting you of
dangerous voltage
inside the product
The exclamation point
within the triangle is a
warning sign alerting
you of important
instructions
accompanying the
product.
• Please do not expose the unit in the raining or moist environment to avoid fire
hazard or electric shock.
• On the machine should not receive the water drop or the water splashes, on the
machine could not lay object filled with liquid, like vase.
THE ADAPTOR MUST REMAIN EASILY ACCESSIBLE IN ORDER TO BE
ABLE TO DISCONNECT THE DEVICE IN CASE OF EMERGENCY.
Note:
Please use new alkaline battery for both sensors and weather station.
For the Time Zone Setting, there are 7 time zones to be selected: AST, EST, CST,
MST, PST, AKT, HAT. Set the Time Zone to your area for the hours to be correct.

3
1 WEATHER STATION UNIT
17 18
1
2
3
4
5
6 7 8 9 10 11 12
13
14
15
16

Light/Snooze touch buttons on the top (for adjust the backlight)
Atmospheric pressure and atmospheric pressure trend animation
Weather forecast display
Current time display
Month & Date
Set button
Alarm button
Weekday
Up/ button
Down/°C/°F/RCC button
Max/Min button
Channel button
Indoor temperature & humidity display
Outdoor temperature & humidity display for channel 3
Outdoor temperature & humidity display for channel 2
Outdoor temperature & humidity display for channel 1
Hanging slots
Battery compartment for 2 x AAA, 1.5 V batteries
4
2 MAIN FEATURES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
• 7 functional touch buttons: SET, ALARM, UP/ , DOWN/°C/°F/RCC, MAX/MIN,
CHANNEL, LIGHT and SNOOZE.
• Self setting accurate atomic time function.
• Time display: hour, minute, second.
• Calendar display: month/day with weekday.
• 7 time zones: AST, EST, CST, MST, PST, AKT, HST.
• 2 alarms with snooze functions.
• Indoor & Outdoor temperature display (°C/°F) & humidity.
• Comfort level.
• Barometric pressure reading. (hPa mB, inHg)
• Max/Min records for indoor & outdoor temperature and humidity.
• Weather forecasting.
• Low battery indication for both weather station and sensor.
• 3-level brightness of backlight.

5
3.1 MAIN FEATURES
4.1 PAIR THE OUTDOOR REMOTE SENSORS
• Temperature & Humidity measurement.
• Low Battery Indication.
3.2 TX BUTTONS ON THEBACK
1
2
3 OUTDOOR TEMPERATURE &HUMIDITY SENSOR STATION
RF Channel Selection.
Battery Compartment for 2 x AAA, 1.5V batteries.
1
2
4 FIRST TIME TO USE
First of all, it needs to do the pairing between outdoor remote sensors and
weather station. Please follow below procedure to pair the sensors.
1). Plug the included AC-AC adaptor into the weather station. (optional) insert 2
new “AAA”alkaline batteries for backup.
The screen is turned on. It starts to search sensors and register the received
sensors. During RF pairing, the signal strength icon will animate until the
sensors signal is received or for 5 minutes if no signal available.

6
12
Note: If no sensors is paired, you can pair the sensors again manually by
pressing and holding the 【 CHANNEL】 key over 2 seconds. Please refer to
“14 SEARCH FOR OUTDOOR SENSORS”.

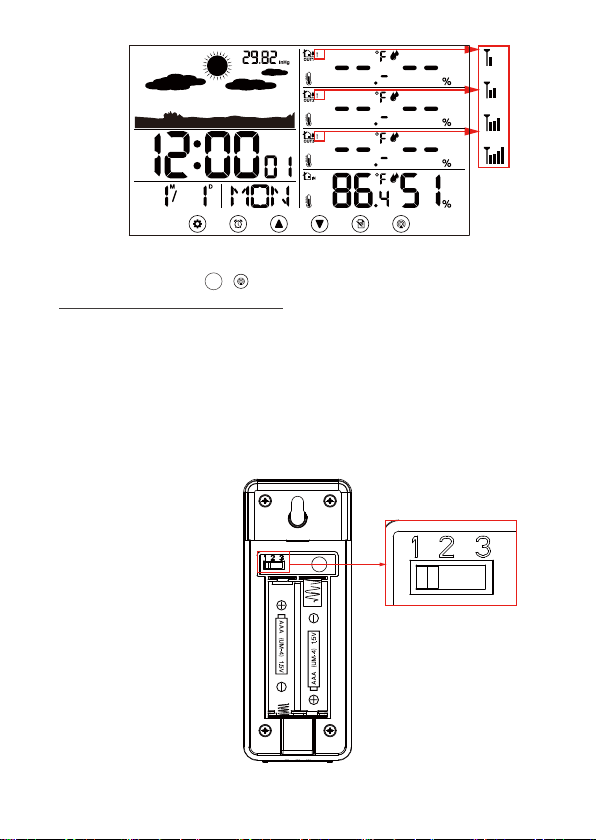

2). Slide the switch to CH1/CH2/CH3 of the outdoor sensors correspodingly and
insert the batteries.
Note: It needs different channels with 3 sensors in order to weather station
pairing properly.
3). The wireless remote sensors will transmit the signal and LED will flash during
transmission.

7
4). Keep the outdoor sensors 5-10 feet from the weather station.
5). When the RF connection is established, the temperature and humidity
readings will appear on the station.
6). After 5 minutes sensors pairing time, the weather station will automatically
receive atomic clock signal, the tower icon will be flashing.
7). When the weather station detects the atomic clock signal, the signal strength
indication will be indicated.

You can receive the atomic clock signal manually. In Normal time display, press
and hold the 【 Down/°C/°F/RCC】over 2 seconds to receive the atomic
clock signal manually.
The tower icon is flashing and will start atomic clock reception.
When the atomic clock signal is received successfully, the time and date will be
updated.
8
5 ATOMIC CLOCK RECEPTION
5.1 MANUAL RCC RECEPTION
8). Put the weather station away from interference, such as electronic devices
(TV, computer, microwave, radio, etc.)
9). When the atomic clock signal is received successfully , the time and date will
be updated.
10). Allow the outdoor sensors and weather to sit together for 15 minutes to
establish a strong connection.
11). Do not press button for 15 minutes.
12). After 15 minutes, place the sensors in a shaded outdoor location.
• The weather station automatically begins search WWVB signal and update the
time every day at 1:00am，2:00am，3:00am，4:00am，5:00am.
• The Atomic Time tower icon will flash while searching and will be solid when
it has connected.
10

9
6 TIME SETTING
During atomic clock reception, press and hold 【 Down/°C/°F/RCC】key
over 2 seconds to exit atomic clock reception.
During the RCC receive mode, only the 【 Light/Snooze】and
【 Down/°C/°F/RCC】buttons have a function, other buttons are not
functional. If you want to carry out other functions of operation, please press and
hold 【 Down/°C/°F/RCC】button over 2 seconds to exit the RCC receving
mode.
For information about WWVB, visit
www.nist.gov/pml/div688/grp40/wwvb.cfm
In Normal time display, press and hold 【 SET】over 2 seconds to enter the
time setting mode, RCC ON/OFF will be flashing.
Press 【 Up/ 】and 【 Down/°C/°F/RCC】to adjust the value. Hold
【 Up/ 】and 【 Down/°C/°F/RCC】to adjust the value quickly.
Press 【 SET】to confirm and move to the next item.
10
10
10
99
6
10
10
1
6
9
7 SETTING ORDER
1. RCC On/Off
4. DST On/Off
7. Date Format
10. Date
13. Air Pressure value
3. Time Zone
6. Minute
9. Month
12. Air pressure unit
2. 12/24 Hour Format
5. Hour
8. Year
11. Weather forecast pattern
14. End of Setting
Normal time display

10

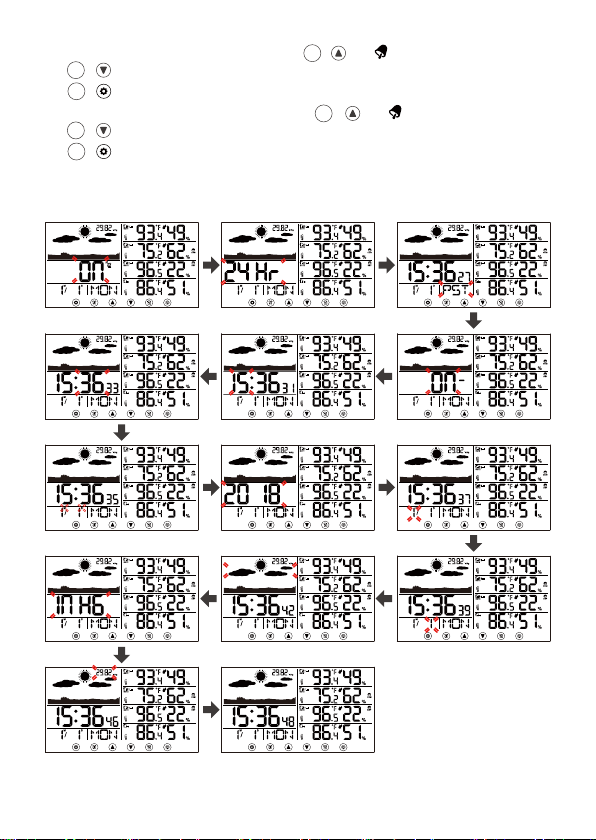

1.) Press and hold 【 SET】button 2 seconds entering the settings. RCC ON
flashes. Press 【 Up/ 】and 【 Down/°C/°F/RCC】to set RCC on or
off. Press 【 SET】to select 12/24 hour format.
Note: If RCC OFF is selected, you will skip Time Zone and DST settings and move
hour setting.
2.) When 12/24 hour format flashes, Press 【 Up/ 】and
【 Down/°C/°F/RCC】to set 12/24 hour format. Press 【 SET】to
select Time Zone.
3.) When Zone PST flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to set a different time zone (EST=Eastern, CST=Central, MST=Mountain,
PST=Pacific, AKT=Alaska, HST=Hawaii, AST=Atlantic). Press 【 SET】to
select DST on/off.
Note: For the Time Zone Setting, there are 7 time zones to be selected: AST, EST,
CST, MST, PST, AKT, HAT. Set the Time Zone to your area for the hours to be
correct.
4.) When DST ON flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to select DST on/off. Press 【 SET】to select Hour.
5.) When Hour flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to adjust the Hour. Press 【 SET】to select Minute.
6.) When Minute flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to adjust the Minute. Press 【 SET】to select Date Format.
7.) When Date Format flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to select Date Format. Press 【 SET】to select Year.
8.) When Year flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】button
to adjust the Year. Press 【 SET】to select Month.
9.) When Month flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to adjust the Month. Press 【 SET】to select Date.
10.) When Date flashes, press 【 Up/ 】or 【 Down/°C/°F/RCC】
button to adjust the Date. Press 【 SET】to select Weather forecast
pattern.
11.) When Weather forecast pattern flashes, press 【 Up/ 】or
【 Down/°C/°F/RCC】button to select current weather pattern. Press
【 SET】to select Air pressure unit.
6
6
6
6
6
6
6
6
6
6
6
6
9
9
9
9
10
10
910
910
910
9
9
10
10
9 10
9
10
10
10
For the Time Zone Setting, there are 7 time zones to be selected: AST, EST, CST,
MST, PST, AKT, HAT. Set the Time Zone to your area for the hours to be correct.

12.) When Air pressure unit flashes, press 【 Up/ 】or
【 Down/°C/°F/RCC】button to select Air Pressure Unit. Press
【 SET】to select Air Pressure value.
13.) When Air Pressure value flashes, press 【 Up/ 】or
【 Down/°C/°F/RCC】button to adjust the Air Pressure value. Press
【 SET】to save all settings and exit the setting.
Note: If there is no valid operation within 20 seconds, it will automatically return
to the normal time display mode from the setting mode.
11
6
9
10
6
9
10

Press and hold 【 Alarm】over 2 seconds to enter alarm setting mode.
Press and release 【 Up/ 】and 【 Down/°C/°F/RCC】to adjust the
values. Hold to adjust quickly.
Press and release 【 Alarm】to confirm and move to the next item.
• Press and hold 【 Alarm】over 2 seconds to enter alarm setting mode.

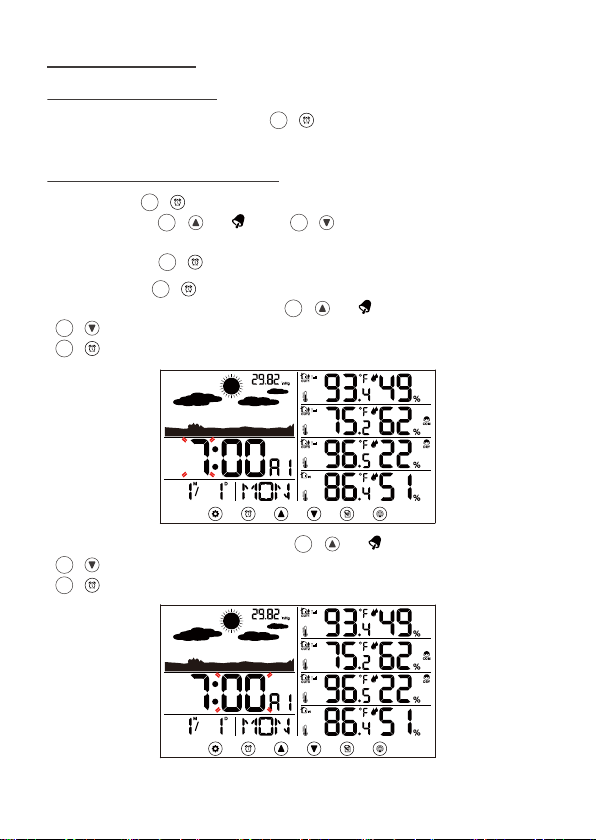

Hour of Alarm 1 starts to flash. press 【 Up/ 】or
【 Down/°C/°F/RCC】button to set required alarm hours. Press
【 Alarm】to select Minute of Alarm 1.
In Normal time display mode, press 【 Alarm】to toggle switch display
Alarm 1 and Alarm 2 time.
12
8 ALARM CLOCKS
8.1 CHECK ALARM TIME
9
9
10
10
8.2 SETTING THE DAILY ALARMS
7
7
7
7
7
• When Minute of Alarm 1 flashes, press 【 Up/ 】or
【 Down/°C/°F/RCC】button to set required alarm minutes. Press
【 Alarm】to select Hour of Alarm 2.
9
10
7

13
7
• When Hour of Alarm 2 flashes, press 【 Up/ 】or
【 Down/°C/°F/RCC】button to set required alarm hours. Press
【 Alarm】to select Minute of Alarm 2.
9
10
7
• When Minute of Alarm 2 flashes, press 【 Up/ 】or
【 Down/°C/°F/RCC】button to set required alarm minutes. Press
【 Alarm】to select Hour of Alarm 2.
Press 【 Alarm】to save all settings and exit the setting.
Note: If there is no valid operation within 20 seconds, it will automatically
return to the normal time display mode from the setting mode.
9
10
7

14
9
8.3 DEACTIVATE/ACTIVATE ALARM
8.4 SWITCHING OFF THE ALARM SIGNAL
8.5 SNOOZE FUNCTION
• When the alarm is ringing, press any buttons except 【 Light/Snooze】to
stop the alarm signal . It is not necessary to reactivate the alarm. It will ring
again this time next day.
• When the alarm rings, press 【 Light/Snooze】button to pause the alarm.
The snooze indicator icon keep flashing.
• The alarm will resume after 8 minutes.
• Press
【 Max/Min】 to display the maximum value of temperature/humdity
readings. 【 】icon will shown beside humidity reading.
• Press
【 Max/Min】 again to display the minimum value of temperature/
humdity readings.【 】icon will shown beside humidity reading.
• Press and hold
【 Max/Min】 over 2 seconds to re-record the maximum &
minimum value of the temperature & humidity.
• The memory of maximum & minimum value will be cleared at every 0:00am.
• The weather symbols indicate the weather fluctuation over the next 6-12 hours,
not the current weather.
• Please take the weather forecast from your local weather forecasting service
into account as well as the forecast from your weather station. If there are
1
1
11
• Press the 【 Up/ 】 to select the Alarm1 and Alarm 2 ON or OFF.
• If the alarm is on, its corresponding alarm icon ( and ) will be shown on
the display.
• Alarm 1 icon is shown on display, it means Alarm 1 is turned on.
• Alarm 2 icon is shown on display, it means Alarm 2 is turned on.
• Alarm 1 and Alarm 2 icon are shown on display, it means Alarm 1 and
Alarm 2 are turned on.
9 TO VIEW MAX/MIN TEMPERATURE & HUMIDITY DATA
RECORD
10 WEATHER FORECAST FUNCTION
11
11

15
The barometric pressure trend indicator update and look back over past hour.
Barometric pressure is
rising more than 2 hpa in
1 hour
Barometric pressure
does not change more
than 2 hpa in 1 hour
No display
Barometric pressure is
falling more than 2 hpa
in 1 hour
discrepancies between the information from your device and the from the local
weather forecasting service, please take the advice of the latter as authoritative.
• The weather forecaset is calculated from evaluation of fluctuations in the
barometric pressure and may deviate from teh actual weather condtions.
• The weather station displays the following weather symbols:
Slightly cloudy
Sunny
Cloudy
Rainy
Heavy rainy
Snowy
11 BAROMETRIC PRESSURE TREND DISPLAY

16
• The ice alert symbol will display and flash when the outdoor temperature at
30.2°F (-1°C) to 37.4°F (+3°C).
There are 3 comfort level indication based on the measured temperature and
humidity:
Note: When the temperature is not 20-28°C and the humidity is 40-70%, the
comfort level icon will not be displayed.
12 ICE ALERT
• In Normal time display, press 【 Channel】 to select the channel display of
the outdoor sensors. The selected channel will be flashing.
• During the channel display flashing, press and hold
【 Channel】 over 2
seconds to search the outdoor temperature and humidity sensor.
• The weather station can support up to 3 sensors with different channels 1/2/3.
• The signal strength icon will animate until the sensors signal is received, or
In Normal display, press and release
【 Down/°C/°F/RCC】 to interchange
the temperature unit between degree Celsius and degree Fahrenheit.
13 COMFORT LEVEL
14 SEARCH FOR OUTDOOR SENSORS
15 SWITCH TEMPERATURE UNIT
Dry
Comfort
Wet
The temperature is at 20-28°C and humidity is at 40-70%
The humidity is below 40%
The humidity is above 70%
12
12
10

17
16 BACKLIGHT
• When operating with the power cable, there are 3 levels of brightness for
adjustment.
• Press 【 Light/Snooze】to adjust backlight.
• When operating on batteries only, the backlight will come on shortly (about
10 seconds) when 【 Light/Snooze】is pressed.
17 LOW BATTERY INDICATION
• Low battery icon by outdoor humidity, replace batteries in the sensors.
• Low battery icon by indoor humidity, replace batteries in the weather station.
19 IMPORTANT PLACEMENT GUIDELINES
• Mounting under an eave or deck rail works well.
• Mount the remote sensor on the North side where to prevent sun from causing
incorrect readings
• Be sure the outdoor sensor is mounted vertically to drain moisture.
• Mount at least 6 feet in the air for a strong RF (radio frequency) signal.
• To prevent wireless interference, place units at least 3 ft (0.9 m) away from
electronic devices (TV, computer, microwave, radio, etc.).
• To maximize atomic signal reception, place the weather station away from large
Note: When there is low battery icon indication, it means the used battery level is
low, it may affect normal functions. Please replace new alkaline batteries soon in
order to keep normal function.
1
1
18 FACTORY RESTART
If there is malfunction, the Factory Restart is a great way to return your station to
"out of the box" condition.
18.1 FACTORY RESTART
1.) Remove all power (batteries and AC-AC adaptor) from outdoor sensors and
weather station.
2.) Leave both units without power for 10 minutes. (very important).
3.) Follow the operation “4 FIRST TIME TO USE” to start the pair the sensor.

18
metallic items, thick walls, metal surfaces, or other objects that may limit radio
communication.
• The maximum wireless transmission range must be within 300 feet (100m) in
open air, not including walls and floors.
20 CARE AND MAINTENANCE
21 SPECIFICATIONS
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard, Lithium, or Rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for intended
use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery
installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended
period of time.
• Promptly remove expired batteries.
Indoor
Outdoor
Power
Dimension
• Temperature Range: 14.2°F－122.0°F (-9.9°C－50.0°C)
• Humidity Range: 1－99% RH
• Temperature Range: -58.0°F－158.0°F (-50.0°C－70.0°C)
• Humidity Range: 1－99% RH
Note: Temperature below -4°F require Lithium batteries in
the outdoor sensor
• Distance: 330ft (100m)
• Transmission frequency: 433MHz
• Weather station primary AC-AC power: 5.0V AC, 0.15A
AC-AC adaptor (included)
• Battery Backup: 2 x AAA, IEC, LR3 batteries
• Sensors: 2 x AAA, IEC, LR3 batteries
• Weather station: 7.56 x 5 x 0.63 inches
• Sensors: 1.57 x 1.02 x 4.09 inches

19
22 FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may NOT cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates — and can radiate — radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If the equipment does not cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
