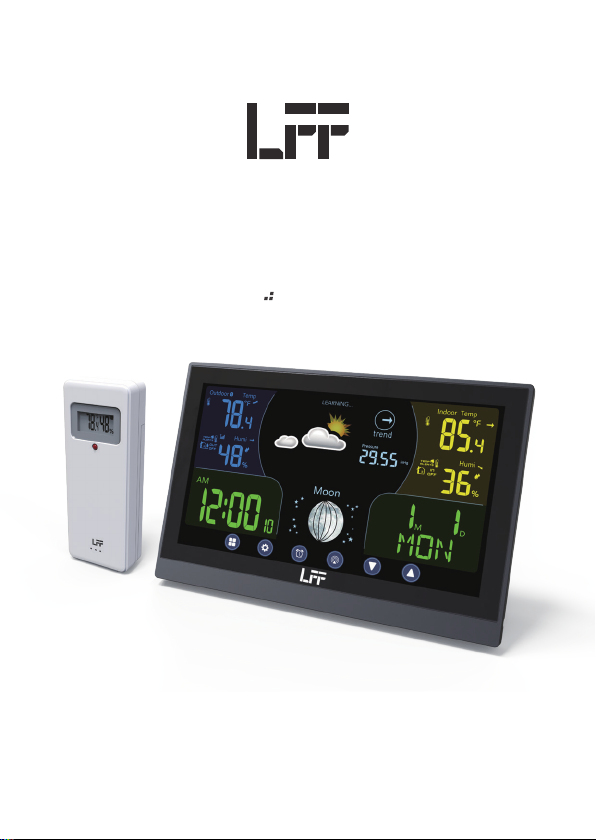

LFF LWS163 User manual

-USER MANUAL-
WIRELESS WEATHER STATION
Ref LWS163

1
The lighting flash and arrow
head within thetriangle is
warning sign alerting you of
dangerous voltage inside the
product
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
Please read this user manual carefully before you use this product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICIABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSON-
NEL.
The exclamation point within
thetriangle is a warning sign
alerting you of important ins-
tructions accompanying the
product.
• Please do not expose the unit in the raining or moist environment to avoid
fire hazard or electric shock.
• On the machine should not receive the water drop or the water splashes, on
the machine could not lay object filled with liquid, like vase.
THE ADAPTOR MUST REMAIN EASILY ACCESSIBLE IN ORDER TO BE ABLE TO
DISCONNECT THE DEVICE IN CASE OF EMERGENCY.
Note:
Please use new alkaline battery for both sensor and weather station.
Please make sure that both the Main Unit and the Outdoor Sensor are power on
within 5 minutes.
If the Main Unit is powered for over 5 minutes without the sensor on, it will not pair
with the Outdoor Sensor or receive signal anymore.

2

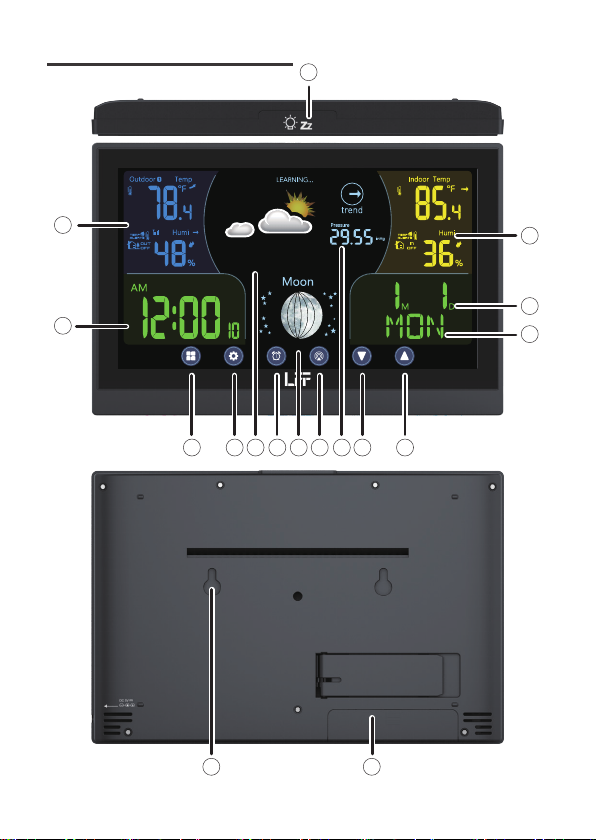

1 WEATHER STATION UNIT
1
4
2
3
65 87 9 10 11 12
13
14
15
16 17

3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Touch buttons on the top (for adjust the backlight)
Outdoor temperature & humidity display
Current time display
“Mode”key
“Settings” key
Weather forecast display
“Alarm Active/Deactive” key
Moon Phase
“Channel” key
Atmospheric pressure and atmospheric pressure trend animation
“Down /Rcc”key
“Up /Mem”key
Weekday
Month & Date
Indoor temperature & humidity display
Hanging slots
Battery compartment for 2 x AAA, 1.5 V batteries
2 MAIN FEATURES
• 7 functional touch buttons: MODE, SET, ALARM, CHANNEL, DOWN, UP, LIGHT,
AND SNOOZE.
• Self setting accurate atomic time function.
• Time display: hour, minute, second.
• Calendar display: month/day with weekday.
• 8 time zones: AST, NST, EST, CST, MST, PST, AKT, HAT.
• Moon phase function.
• 2 alarms with snooze functions.
• Indoor & Outdoor temperature display (°C/°F) & humidity with trend.
• Indoor & Outdoor temperture alert.
• Barometric pressure reading. (hPa, inHg)
• Pressure Trend Indicator.
• Max/Min records for indoor & outdoor temperature and humidity.
• Weather forecasting.
• Low battery indication for both weather station and sensor.
• 3-level brightness of backlight.

4
3.1 MAIN FEATURES
• Temperature & Humidity measurement.
• Low Battery Indication.
3.2 TX BUTTONS ON THEBACK
1
2
3 OUTDOOR TEMPERATURE &HUMIDITY SENSOR STATION
RF Channel Selection.
Battery Compartment for 2 x AAA, 1.5V batteries.
1
2
3
3Press and release to interchange the temperature unit between degree
Celsius and degree Fahrenheit.

2). Slide the switch to CH1 of the outdoor sensor and Insert 2 new “AAA”
alkaline batteries.
3). The wireless remote sensor will transmit the signal and LED will flash
during transmission.
5

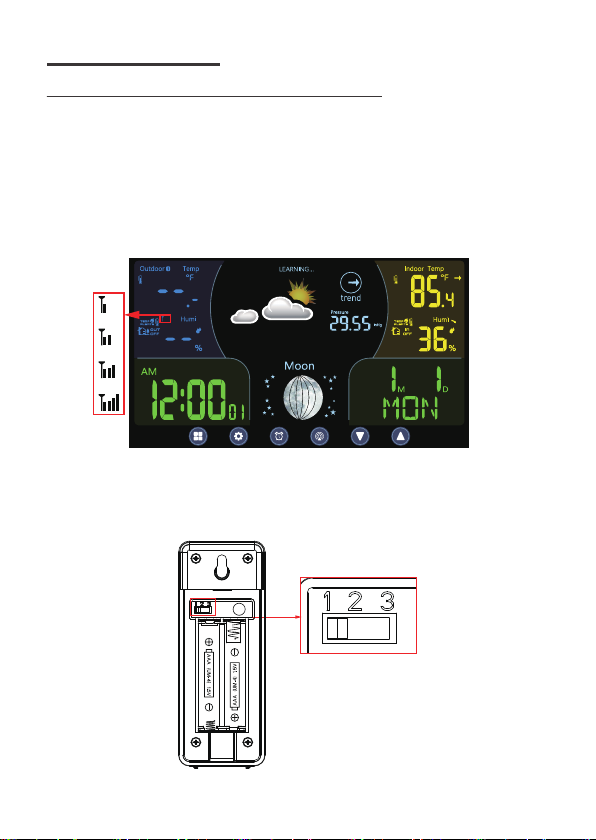

First of all, it needs to do the pairing between outdoor remote sensor and
weather station. Please follow below procedure to pair the sensor.
1). Plug the included DC adaptor into the weather station.
(optional) insert 2 new “AAA”alkaline batteries for backup.

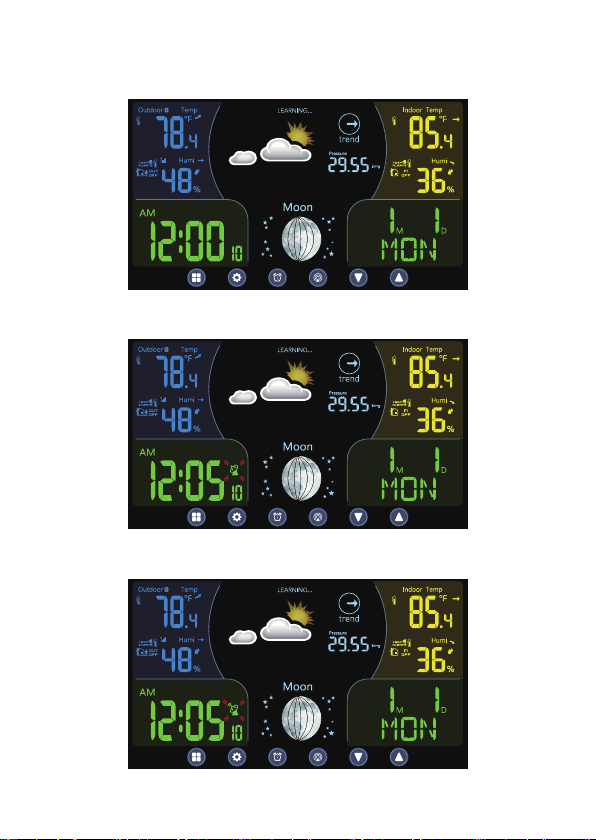

The screen is turned on. It starts to search sensor and register the received
sensor. During RF registration, the signal strength icon will animate until the
sensor signal is received or for 5 minutes if no signal available.
4.1 PAIR THE OUTDOOR REMOTE SENSOR
4 FIRST TIME TO USE

4). Keep the outdoor sensor 5-10 feet from the weather station.
5). When the RF connection is established, the temperature and humidity
readings will appear on the station.
6
7). When the weather station detects the atomic clock signal, the signal
strength indication will be indicated.
6). After 5 min sensor pairing time, the weather station will automatically
receive atomic clock signal, the tower icon will be flashing.

7
5 ATOMIC CLOCK RECEPTION
8). Put the weather station away from interference, such as electronic devices
(TV, computer, microwave, radio, etc.)
9). When the atomic clock signal is received successfully , the time and date
will be updated.
10). Allow the outdoor sensor and weather to sit together for 15 minutes to
establish a strong connection.
11). Do not press button for 15 minutes.
12). After 15 minutes, place the sensor in a shaded outdoor location.
Manual RCC Reception
• The weather station automatically begins search WWVB signal and update
the time every day at 1:00am，2:00am，3:00am，4:00am，5:00am.
• The Atomic Time tower icon will flash while searching and will be solid
when it has connected.
You can receive the atomic clock signal manually. In Normal display, press and
hold the Down /RCC over 3 sec to receive the atomic clock signal manually.
The tower icon is flashing and will start atomic clock reception.
When the atomic clock signal is received successfully, the time and date
will be updated.

8
During atomic clock reception, press and hold "Down /RCC" key over 3s to
exit atomic clock reception.
For information about WWVB, visit
www.nist.gov/pml/div688/grp40/wwvb.cfm
In Normal display, press to switch into different modes display.
Time/Calendar → Alarm → Atmospheric pressure → Indoor/Outdoor temperature
& humidity→ Normal Display
6 SWITCH DIFFERENT MODE DISPLAYS

9

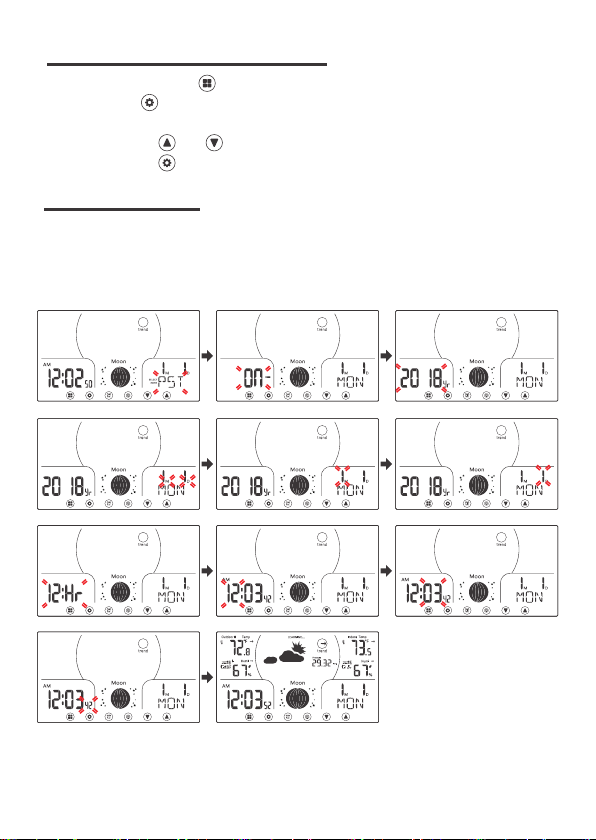

7 SETTIME ZONE, TIME, DATE etc.
In Normal display, press once switching to the time/Calendar display.
Press and hold over 2s to enter time set mode, time zone (Default: PST)
will be flashing.
Press and release and to adjust the values. Hold to adjust quickly.
Press and release to confirm and move to the next item.
1. Time Zone
4. Date Format
7. 12/24 Hour Format
10. Second
3. Year
6. Day
9. Minute
2. DST On/Off
5. Month
8. Hour
11. End of Setting
8 SETTING ORDER

10
9 SET ALARM TIME

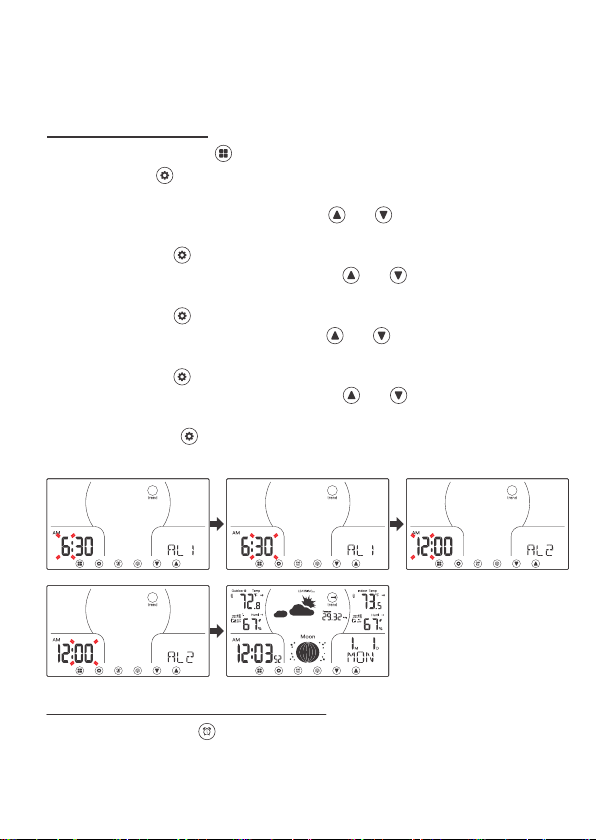

1. In Normal display, press twice switching to the alarm time display.
2. Press and hold over 2s to enter alarm time set mode, alarm 1 is starting
to set.
3. Alarm 1 hour is flashing, press and release and to adjust the values.
Hold to adjust quickly.
4. Press and release to confirm and move to set alarm 1 minute.
5. Alarm 1 minute is flashing, press and release and to adjust the
values. Hold to adjust quickly.
6. Press and release to confirm and move to set alarm 2 hour.
7. Alarm 2 hour is flashing, press and release and to adjust the values.
Hold to adjust quickly.
8. Press and release to confirm and move to set alarm 2 minute.
9. Alarm 2 minute is flashing, press and release and to adjust the
values. Hold to adjust quickly.
10. Press and release to confirm and exit the alarm setting and return to
normal display.
In Normal display, press to deactivate or activate the alarm.
The alam icon (bell) will show when active.
9.1 DEACTIVATE/ACTIVATE ALARM
For the Time Zone Setting, there are 8 time zones to be selected: AST, NST,
EST, CST, MST, PST, AKT, HAT. Set the Time Zone to your area for the hours to
be correct.

11
9.2 ALARM SETTING ORDER
11.1 TO SETTHE PRESSURE
AL1 on → AL2 on → AL1 & AL2 on → AL1 & AL2 off.
When the alarm rings, press button to pause the alarm for 5 minutes.
The alarm icon (bell) and Zz icon keep flashing.
Press any button except to silence alarm for 24 hours.
Usually the pressure varies with the different altitude, therefore pressure
setting is allowed for the user to adjust if the user feels that the pressure is not
reasonable.

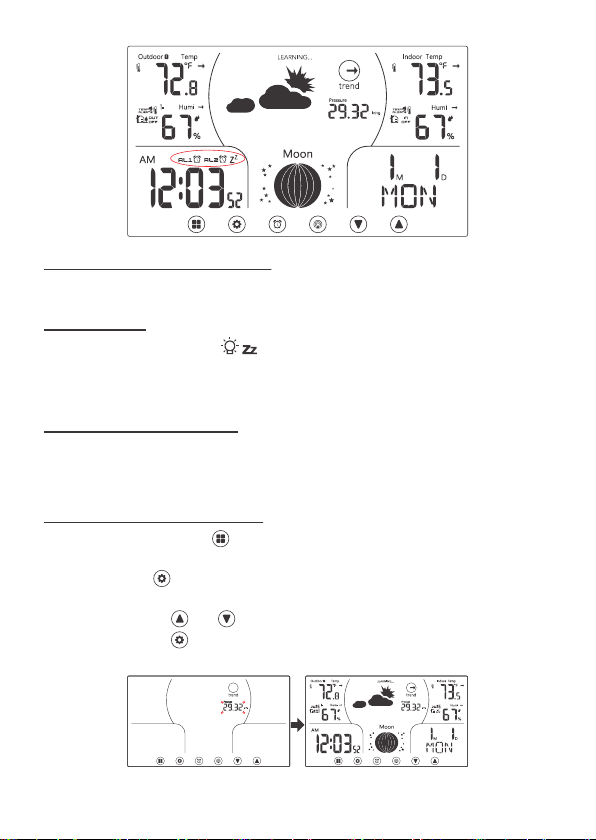

1. In Normal display, press three times switching to the pressure display
mode.
2. Press and hold over 2s to enter pressure setting mode, pressure value will
be flashing.
3. Press and release and to adjust the values. Hold to adjust quickly.
4. Press and release to confirm and exit the pressure setting and return to
normal display.
10 SNOOZE
11 PRESSURE SETTING

12
12 INDOOR & OUTDOOR TEMPERATURE ALERT
First you will arm the alert you wish to set, then you set the alert value. If an
alert is not armed (OFF), you will skip that alert value and move to arm the
next alert.

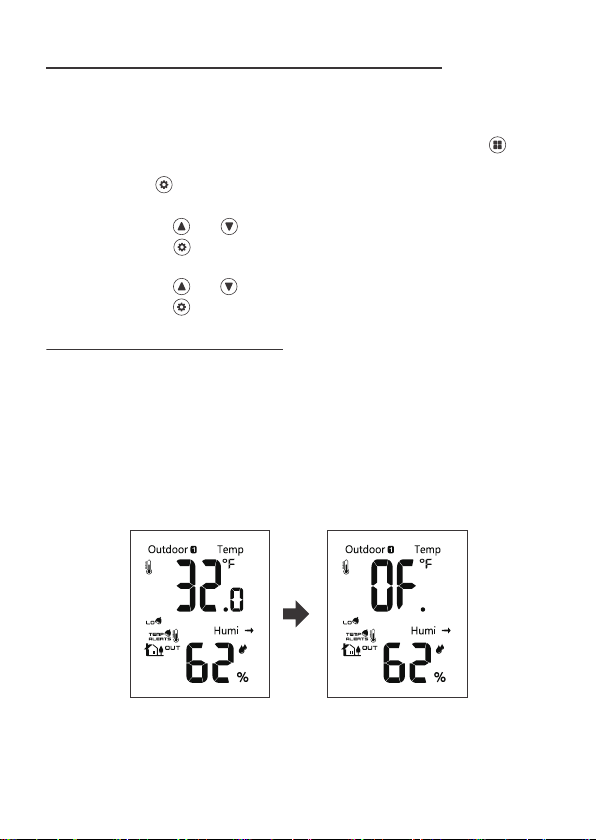

1. To set the indoor & outdoor temperature alert, in Home display, press
four times switching to the indoor & outdoor temperature/humidity display.
2. Press and hold over 2s to enter alert set mode, outdoor low temperature
alert value will be flashing.
3. Press and release and to adjust the values. Hold to adjust quickly.
4. Press and release to confirm and move to set outdoor low temperature
alert on/off.
5. Press and release and to set alert on/off.
6. Press and release to confirm and move to next alert.
12.1 ALERT SETTING ORDER
• Outdoor LOW Temperature Value
• Outdoor LOW Temperature ON/OFF
• Outdoor HIGH Temperature Value
• Outdoor HIGH Temperature ON/OFF
• Indoor LOW Temperature Value
• Indoor LOW Temperature ON/OFF
• Indoor HIGH Temperature Value
• Indoor HIGH Temperature ON/OFF
When the corresponding alerts turn on, the alert bell icon will be shown on
the display.

13
• When armed alert value is reached, station will beep 5 times each minute,
until out of alert range.
• The flashing alert icon will indicate the type of alert HI or LO.
• Press any button to stop the alert from sounding.
All HI/LO temperature/humidity records will reset automatically at 12:00
(midnight) when the corresponding alerts turn on, the alert bell icon will be
shown on the display.

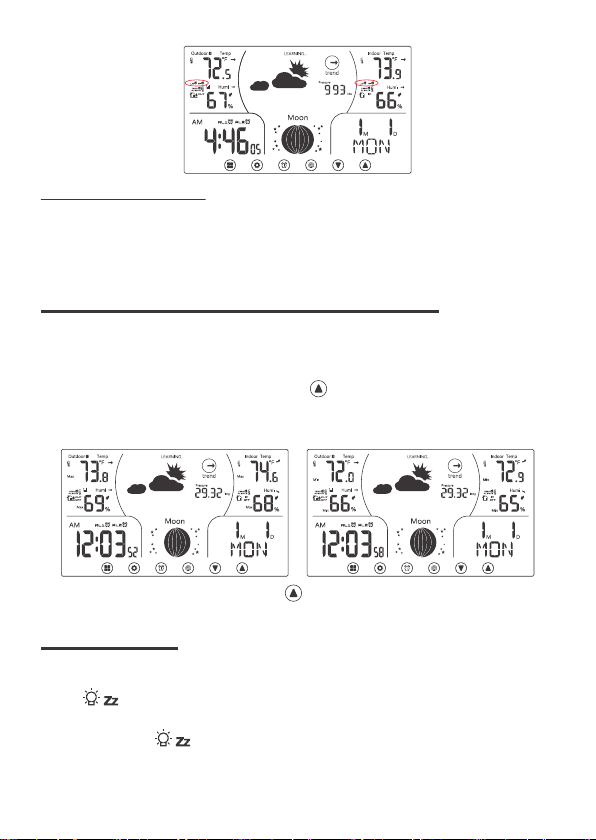

For Normal display, press and release “UP /Mem” to view:
• Maximum indoor & outdoor temperature & humidity.
• Minimum indoor & outdoor temperature & humidity.
For Normal display, press and hold "UP /Mem" to clear the maximum and
minimum indoor and outdoor temperature & humidity record.
• When operating with the power cable, there are 3 levels of brightness for
adjustment.
• Press to adjust backlight.
• When operating on batteries only, the backlight will come on shortly (about
10 seconds) when is pressed.
12.2 Alert Sounds:
13 HI/LO TEMPERATURE &HUMIDITY RECORDS
14 BACKLIGHT

14
15 TEMPERATURE TREND ARROWS
16 HUMIDITY TREND ARROWS

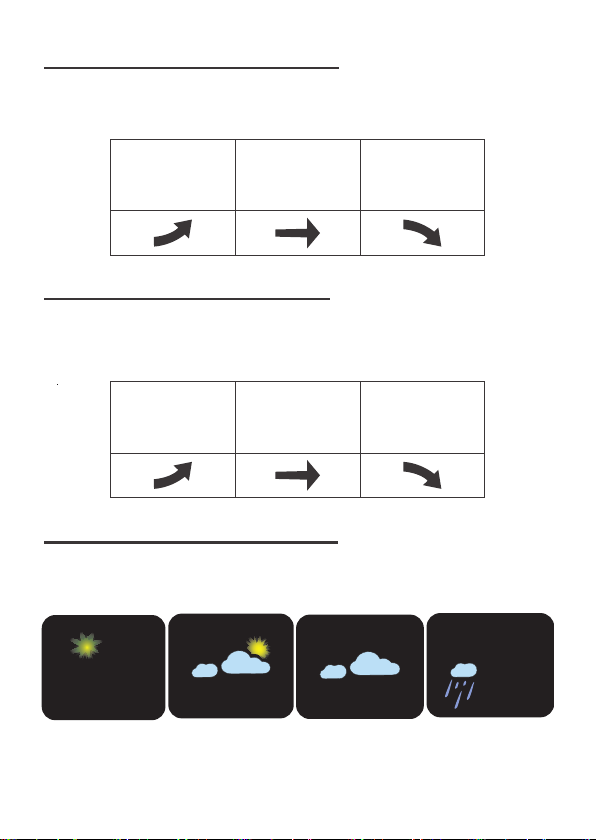

The temperature trend indicators update with every 15 minutes and look back
over the past hour.
• Change in temperature (2°F/1°C)
The humidity trend indicators update with every 15 minutes and look back
over the past hour.
• Change in humidity (5% RH)
Temperature has
not changed more
than 1°C/2°F in the
past hour
Temperature has
risen > 1°C/2°F in
the past hour
Temperature has
fallen < 1°C/2°F in
the past hour
Humidity has
not changed more
than 5% in the
past hour
Humidity has
risen > 5% in
the past hour
Humidity has
fallen < 5% in
the past hour
Sunny Partly Sunny Cloudy Light Rain
17 WEATHER FORECASTINGICONS
• This station learns. Please allow 7-10 days for barometric calibration. This
will ensure an accurate personal forecast for your location.
• The weather station offers 7 forecast icons based on barometric pressure.

15
Light Snow Heavy Rain Heavy Snow
• Low battery icon by outdoor humidity, replace batteries in the sensor.
Note: When there is low battery icon indication, it means the used battery level is
low, it may affect normal functions. Please replace new alkaline batteries
soon in order to keep normal function.
• Low battery icon by indoor humidity, replace batteries in the weather
station.
• In Normal display, press and hold over 2s to search the outdoor
temperature/humidity sensor.
• The weather station can support up to 3 sensors with different channels
1/2/3.
18 LOW BATTERY INDICATION
19 SEARCH FOR OUTDOOR SENSOR
• When the forecast would normally be light rain or heavy rain, and the
outdoor temperature is below 32°F, the forecast will show snow.
20 SWITCH PRESSURE UNIT
21 SWITCH TEMPERATURE UNIT
In Normal display, press and release to interchange the temperature unit
between degree Celsius and degree Fahrenheit.
In atmospheric pressure display, press and release to interchange the
pressure unit between inHg and hPa.
• The signal strength icon will animate until the sensor(s) signal is received, or
for 5 minutes if no signal available.

16
22 SWITCH READING DISPLAY FORTHE OUTDOOR
TEMPERATURE/HUMIDITY SENSORS
• Mounting under an eave or deck rail works well.
• Mount the remote sensor on the North side where to prevent sun from
causing incorrect readings
• Be sure the outdoor sensor is mounted vertically to drain moisture.
• Mount at least 6 feet in the air for a strong RF (radio frequency) signal.
• To prevent wireless interference, place units at least 3 ft (0.9 m) away from
electronic devices (TV, computer, microwave, radio, etc.)
• To maximize atomic signal reception, place the weather station away from large
metallic items, thick walls, metal surfaces, or other objects that may limit
radio communication.
• The maximum wireless transmission range must be within 300 feet (100m)
in open air, not including walls and floors.
• In Normal display, press and release to interchange the reading display
for the outdoor temperature/humidity sensors.
• There are CH1, CH2 CH3 or cycle display.
• In cycle display mode, the outdoor temperature/humidity reading will be
switched every 3s.
23 IMPORTANTPLACEMENT GUIDELINES
24 CARE AND MAINTENANCE
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard, Lithium, or Rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for intended
use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period
of time.
• Promptly remove expired batteries.

17
25 SPECIFICATIONS
Indoor
Outdoor
• Temperature Range: 14°F－122°F (-10°C－50°C)
• Humidity Range: 1－99% RH
• Temperature Range: -40°F－158°F (-40°C－70°C)
• Humidity Range: 1－99% RH
Note: Temperature below -4°F require Lithium
batteries in the outdoor sensor
• Distance: 330ft (100m)
• Transmission frequency: 433MHz
Power
Dimension
• Weather station primary AC-DC power: 5.0V
AC-DC adaptor (included)
• Battery Backup: 2-AAA, IEC, LR3 batteries
• Sensor: 2-AAA, IEC, LR3 batteries
• Weather station: 7.5x5x0.6 inches
• Sensor: 1.5*0.7*4.1 inches
This device complies with part 15 of FCC rules. Operation is subject to the
following two conditions:
1. This device may NOT cause harmful interference.
2.This device must accept any interference received, including interference
that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
26 FCC INFORMATION

18
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
NOTE:
The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could
void the user authorily to operate the equipment.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received, including interference
that may cause undesired operation of the device.

3
WEATHER STATION
Made in China
LWS163
support@lfftech.com
