LG ATNQ18GPLE6 User manual

Ceiling Cassette
www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
AIR
CONDITIONER
ATNQ18GPLE6 / ATNQ24GPLE6 / ATNQ30LNLE6
ATNQ36GNLE6 / ATNQ36LNLE6 / ATNQ48GMLE6 / ATNQ48LMLE6
ENGLISH
BAHASA INDONESIA
VIETNAMESE
Rev. : 04(07T17)
*MFL42763429*
I.15.LEI13.02944.0717

2TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con-
ditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block
the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• Installation MUST comply with local building codes.
If there is no local codes, comply with the Nation Electrical Code NFPA 70/ANSI C1-1003,
Canadian Electrical Code Part1 CSA C.22.1. or current edition.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment mal-
function, property damage, personal injury and/or death.
Installation
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service
Center. Do not disassemble or repair the product. There is risk of fire or electric shock.
• Always ground the product. There is risk of fire or electric shock.
• Install the panel and the cover of control box securely. There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker. Improper wiring or installation may cause fire or
electric shock
• Use the correctly rated breaker or fuse. There is risk of fire or electric shock.
• Do not modify or extend the power cable. There is risk of fire or electric shock.
• Do not install, remove, or re-install the unit by yourself (customer). There is risk of fire, electric
shock, explosion, or injury.
• Be cautious when unpacking and installing the product. Sharp edges could cause injury. Be
especially careful of the case edges and the fins on the condenser and evaporator.
• For installation, always contact the dealer or an Authorized Service Center. There is risk of
fire, electric shock, explosion, or injury.
• Do not install the product on a defective installation stand. It may cause injury, accident, or
damage to the product.
• Be sure the installation area does not deteriorate with age. If the base collapses, the air condi-
tioner could fall with it, causing property damage, product failure, and personal injury.
• Do not let the air conditioner run for a long time when the humidity is very high and a door or
a window is left open. Moisture may condense and wet or damage furniture.
!
!
!
3
ENGLISH

4IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Operation
• Take care to ensure that power cable could not be pulled out or damaged during operation.
There is risk of fire or electric shock.
• Do not place anything on the power cable. There is risk of fire or electric shock.
• Do not plug or unplug the power supply plug during operation. There is risk of fire or electric
shock.
• Do not touch(operate) the product with wet hands. There is risk of fire or electric shock.
• Do not place a heater or other appliances near the power cable. There is risk of fire and elec-
tric shock.
• Do not allow water to run into electric parts. There is risk of fire, failure of the product, or elec-
tric shock.
• Do not store or use flammable gas or combustibles near the product. There is risk of fire or
failure of product.
• Do not use the product in a tightly closed space for a long time. Oxygen deficiency could
occur.
• When flammable gas leaks, turn off the gas and open a window for ventilation before turning
the product on. Do not use the telephone or turn switches on or off. There is risk of explosion
or fire
• If strange sounds, or smell or smoke comes from product. Turn the breaker off or disconnect
the power supply cable. There is risk of electric shock or fire.
• Stop operation and close the window in storm or hurricane. If possible, remove the product
from the window before the hurricane arrives. There is risk of property damage, failure of
product, or electric shock.
• Do not open the inlet grill of the product during operation.(Do not touch the electrostatic filter,
if the unit is so equipped.) There is risk of physical injury, electric shock, or product failure.
• When the product is soaked (flooded or submerged), contact an Authorized Service Center.
There is risk of fire or electric shock.
• Be cautious that water should not enter the product. There is risk of fire, electric shock, or
product damage.
• Ventilate the product from time to time when operating it together with a stove, etc. There is
risk of fire or electric shock.
• Turn the main power off when cleaning or maintaining the product. There is risk of electric
shock.
• When the product is not to be used for a long time, disconnect the power supply plug or turn
off the breaker. There is risk of product damage or failure, or unintended operation.
• Take care to ensure that nobody should step on or fall onto the outdoor unit. This could result
in personal injury and product damage.
CAUTION
Installation
• Always check for gas (refrigerant) leakage after installation or repair of product. Low refriger-
ant levels may cause failure of product.
• Install the drain hose to ensure that water is drained away properly. A bad connection may
cause water leakage.
• Keep level even when installing the product. To avoid vibration or water leakage.
• Do not install the product where the noise or hot air from the outdoor unit could damage the
neighborhoods. It may cause a problem for your neighbors.
• Use two or more people to lift and transport the product. Avoid personal injury.
!

IMPORTANT SAFETY INSTRUCTIONS
• Do not install the product where it will be exposed to sea wind (salt spray) directly. It may
cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins,
could cause product malfunction or inefficient operation.
Operation
• Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.) This
could harm to your health.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is
a consumer air conditioner, not a precision refrigeration system. There is risk of damage or
loss of property.
• Do not block the inlet or outlet of air flow. It may cause product failure.
• Use a soft cloth to clean. Do not use harsh detergents, solvents, etc. There is risk of fire, elec-
tric shock, or damage to the plastic parts of the product.
• Do not touch the metal parts of the product when removing the air filter. They are very sharp!
There is risk of personal injury.
• Do not step on or put anything on the product. (outdoor units) There is risk of personal injury
and failure of product.
• Always insert the filter securely. Clean the filter every two weeks or more often if necessary.
A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction
or damage.
• Do not insert hands or other objects through the air inlet or outlet while the product is in oper-
ation. There are sharp and moving parts that could cause personal injury.
• Do not drink the water drained from the product. It is not sanitary and could cause serious
health issues.
• Use a firm stool or ladder when cleaning or maintaining the product. Be careful and avoid per-
sonal injury.
• Replace all the batteries in the remote control with new ones of the same type. Do not mix
old and new batteries or different types of batteries. There is risk of fire or explosion
• Do not recharge or disassemble the batteries. Do not dispose of batteries in the fire. They
may burn or explode.
• If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water.
Do not use the remote if the batteries have leaked. The chemicals in batteries could cause
burns or other health hazards.
• If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the re-
mote if the batteries have leaked. The chemicals in batteries could cause burns or other
health hazards.
5
ENGLISH

6TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
2TIPS FOR SAVING EN-
ERGY
3IMPORTANT SAFETY IN-
STRUCTIONS
7BEFORE USE
7Preparing for operation
7Usage
7Cleaning and maintenance
7Service
8PRODUCT INTRODUC-
TION
8Name and function of parts
9Operation Indication Lamps

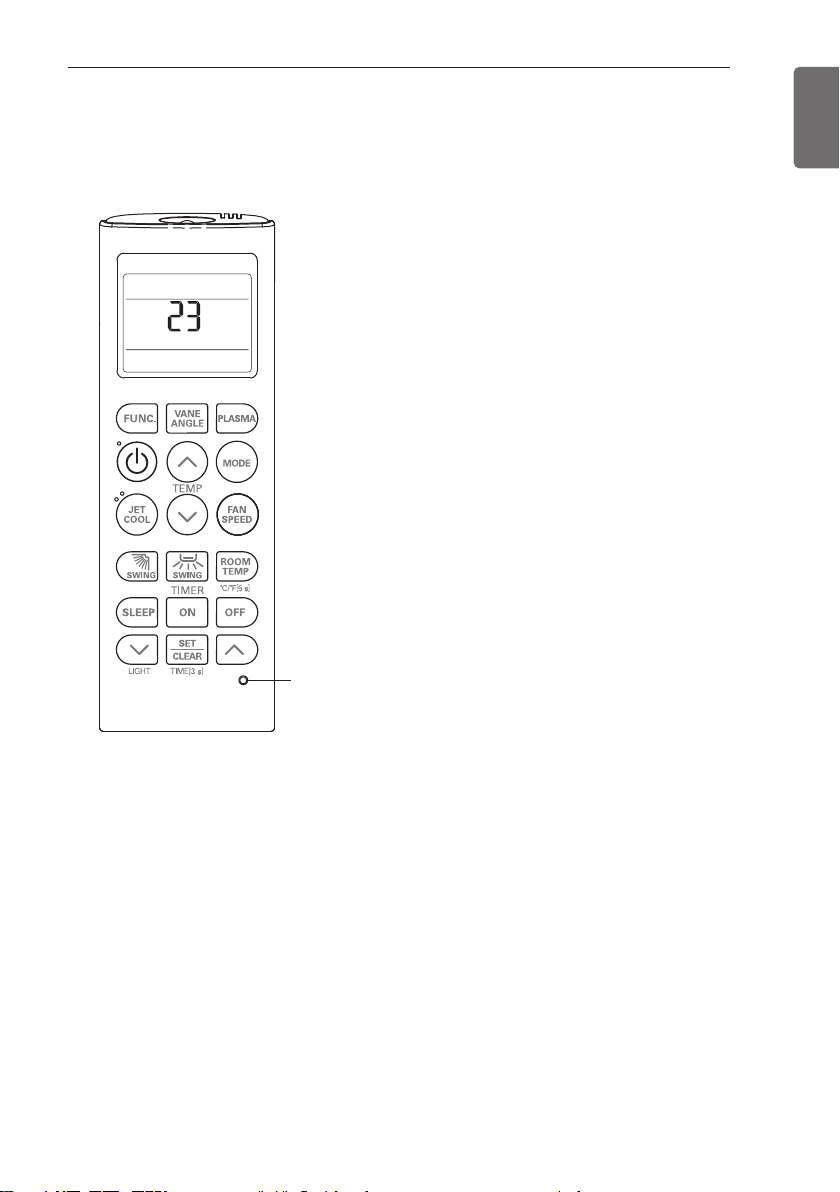

10 Wireless Remote Controller
12 OPERATING INSTRUC-
TION
12 How to insert the Batteries
12 Wireless Remote Controller Mainte-
nance
13 INSTALLATION IN-
STRUCTIONS
13 Installer Setting - Setting Address of
Central Control
13 Installer Setting - Checking Address of
Central Control
14 OWNER'S INSTRUC-
TION

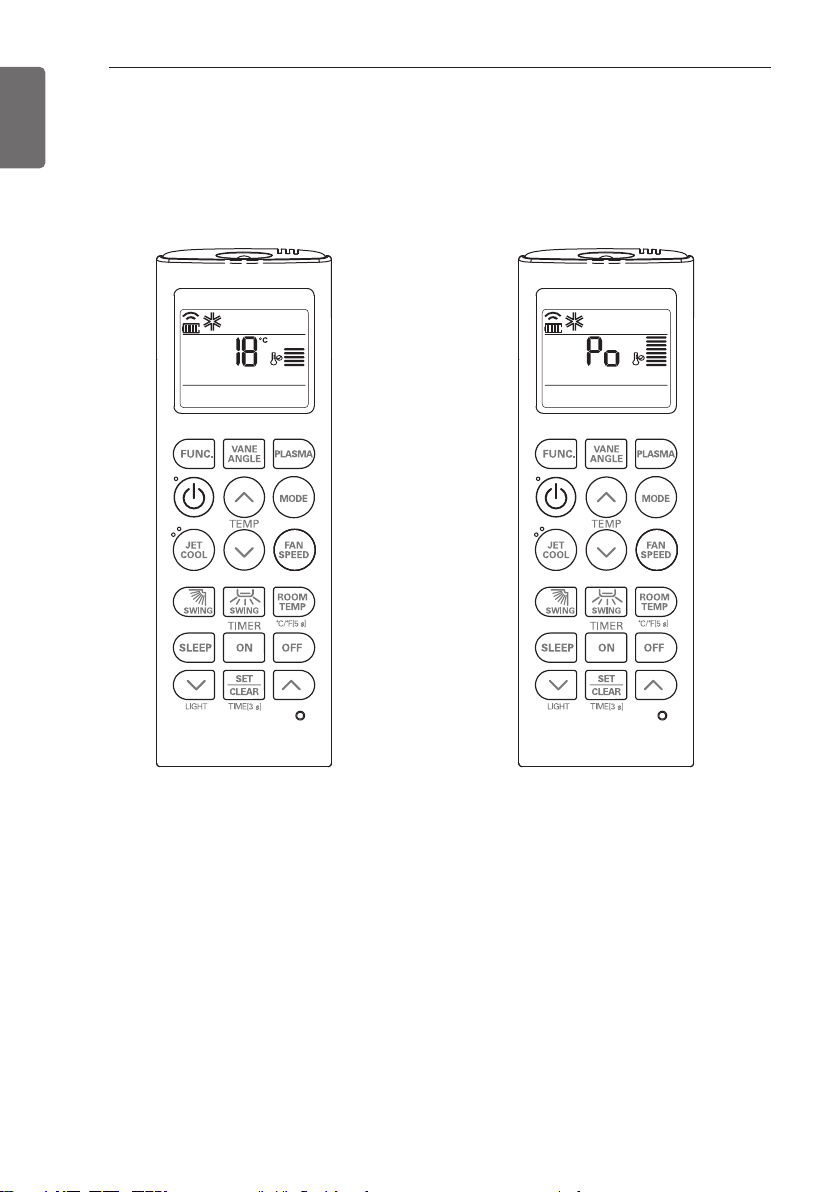

14 Cooling Mode -Standard Operation
14 Cooling Mode - Power Cooling
15 Auto Operation Mode
16 Dehumidification Mode
17 Fan Mode
18 Temperature Setting/Room Tempera-
ture checking
19 Airflow setting
19 Celsius/fahrenheit switching
20 Plasma Purification(Optional)
21 Individual vane angle control
22 Timer
23 MAINTENANCE AND
SERVICE
23 Indoor Unit
24 Purifying filter(Optional)
25 Operation tips!
26 Troubleshooting Tips! Save time and
money!
26 Call the service immediately in the fol-
lowing situations

BEFORE USE 7
ENGLISH
Preparing for operation
- Contact an installation specialist for installation.
- Use a dedicated circuit.
Usage
- Being exposed to direct airflow for an extended period of time could be hazardous to your
health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
- Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves
or other heating devices.
- Do not use this air conditioner for non-specified special purposes (e.g. preserving precision de-
vices, food, pets, plants, and art objects). Such usage could damage the items.
Cleaning and maintenance
- Do not touch the metal parts of the unit when removing the filter. Injuries can occur when han-
dling sharp metal edges.
- Do not use water to clean inside the air conditioner. Exposure to water can destroy the insula-
tion, leading to possible electric shock.
- When cleaning the unit, first make sure that the power and breaker are turned off. The fan ro-
tates at a very high speed during operation. There is a possibility of injury if the unit’s power is
accidentally triggered on while cleaning inner parts of the unit.
Service
For repair and maintenance, contact your authorized service dealer.
BEFORE USE

8PRODUCT INTRODUCTION
ENGLISH

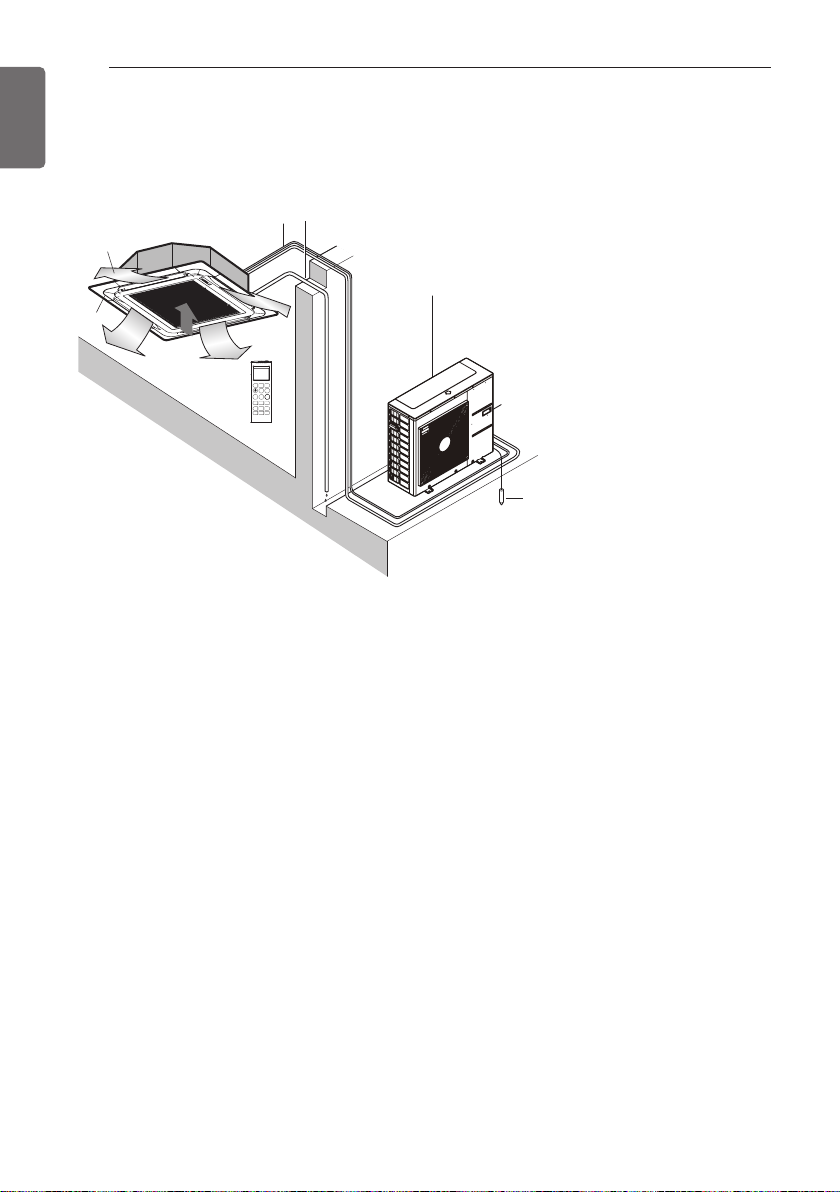

Name and function of parts
1Indoor unit
2Outdoor unit
3Remote controller
4Inlet air
5Discharge air
6Refrigerant piping, connection electric wire
7Drain pipe
8Ground wire
Wire to ground outdoor unit to prevent electrical shocks.
PRODUCT INTRODUCTION
3
7
8
6
1
5
4
4
2

PRODUCT INTRODUCTION 9
ENGLISH
Operation Indication Lamps
123 4 5 6
1Forced operation : Operation procedures when remote control can’t be used.
2Defrost Mode : Lights up during defrost mode or hot start operation.
(heat pump model only)
3Timer : Lights up during timer operation.
4Signal Receptor : Receives the signal from remote control (signal receiving sound: two short
beeps and one long beep)
5Filter sign : Lights up after 2400 hours from the time of first operation.
6On/Off : Lights up during system operation.

10 PRODUCT INTRODUCTION
ENGLISH
Wireless Remote Controller
This air-conditioner is equipped with wireless remote controller basically. But if you want to be
available with wired remote controller, you pay for it.
1 VANE ANGLE button
Used to set each vane angle.
2 FUNCTION SETTING button (Optional)
Used to set or clear auto clean, smart clean.
3 ON/OFF button
Used to turn on/off the unit.
4 JET COOL button
Speed cooling operates super high fan speed.
5 LEFT/RIGHT AIRFLOW button (Useless)
Used to set the desired left/right(horizontal)
airflow direction.
6 UP/DOWN AIRFLOW button
Used to stop or start louver movement and
set the desired up/down airflow direction.
7 ON TIMER button
Used to set the time of starting operation.
8 SLEEP TIMER button
Used to set the time of sleeping operation.
(Refer to timer setting)
9 SET / CLEAR button
Used to SET / CLEAR the timer.
Used to set the current time (if it input for 3
seconds).
10 PLASMA button (Optional)
Used to start or stop the plasma-purification
function.
11 ROOM TEMPERATURE SETTING button
Used to select the room temperature.
12 OPERATION MODE SELECTION button
Used to select the operation mode.
13 INDOOR FAN SPEED SELECTION button
Used to select fan speed in four steps low,
medium, high and auto.
14 ROOM TEMPERATURE CHECKING button
Used to check the room temperature.
15 OFF TIMER button
Used to set the time of stopping operation.
16 TIMER SETTING(Up/Down)/LIGHT button
Used to set the timer.
17 RESET button
Used to reset the remote controller.
Cooling Mode
Auto Operation Mode
Dehumidification Mode
Fan Mode
Operation Mode
3
4
6
8
9
5
7
14
15
17
16
10
12
13
11
2
1

PRODUCT INTRODUCTION 11
ENGLISH
NOTE
!
-
The wireless remote controller do not
operate the swirl mode.
-
The actual product can be different from
above contents depending upon model
type.
CAUTION
Caution of handling the Remote Controller
- Aim at the signal receiver on the wired re-
mote controller so as to operate.
- Be sure that there are no obstructions be-
tween the remote controller and the sig-
nal receptor.
- Do not drop or throw the remote con-
troller.
- Do not place the remote controller in a lo-
cation exposed to direct sunlight, or near
the heating unit, or any other heat source.
- Block a strong light over the signal recep-
tor with a curtain or etc. so as to prevent
the abnormal operation. (ex:electronic
quick start, ELBA, inverter type fluores-
cent lamp)
!

12
ENGLISH
How to insert the Batteries
Remove the battery cover by pulling it accord-
ing to the arrow direction.
Insert new batteries making sure that the (+)
and (-) of battery are installed correctly.
Reattach the cover by sliding it back into posi-
tion.
Wireless Remote Controller
Maintenance
Choose a suitable place where its safe & easy
to reach.
Fix the holder to wall etc with the supplied
screws firmly.
Slide the remote controller inside the holder.
OPERATING INSTRUCTION
NOTE
!
- Always use/replace both batteries of
same type.
- If the system is not to be used for a
long time, remove the batteries to save
their working life.
- If the display screen of remote con-
troller starts, fading replace both of the
batteries.
NOTE
!
- Remote controller should never be ex-
posed to direct sunlight.
- Signal transmitter & receiver should al-
ways be clean for proper communica-
tion. Use a soft cloth to clean them.
- In case some other appliances also get
operated with remote control, change
their position or consult your service-
man.
OPERATING INSTRUCTION

INSTALLATION INSTRUCTIONS 13
ENGLISH
INSTALLATION INSTRUCTIONS
Installer Setting - Setting Address of Central Control
Installer Setting - Checking Address of Central Control
1With the FUNC. button pressed, press the RESET button.
2Press the ON/OFF button toward the indoor unit 1 time, and the indoor unit will display the
set address in the display window.
- The address display time and method can differ by the indoor unit type.
3Reset the remote controller to use the general operation mode.
1With the MODE button pressed, press the
RESET button.
2By using the temperature setting button,
set the indoor unit address.
• Setting range : 00 ~ FF
3After setting the address, press the
ON/OFF button toward the indoor unit 1
time.
4The indoor unit will display the set address
to complete the address setting.
- The address display time and method can
differ by the indoor uint type.
5Reset the remote controller to use the
general operation mode.
RESET button

14 OWNER'S INSTRUCTION
ENGLISH
Cooling Mode -
Standard Operation
1Press the ON/OFF button.
The unit will respond with beep sound.
2Press MODE button to select Cooling
Mode.
3Set the desired temperature by pressing
TEMP button.
Press ROOM TEMP button to check the
room temperature. When setting the de-
sired temperature is higher than room tem-
perature, cooling wind isn’t blow out.
-
Setting Temp. Range : 18~30 °C(64~86 °F)
Cooling Mode - Power Cooling
1Press the ON/OFF button.
The unit will respond with beep sound.
2Press MODE button to select Cooling
Mode.
3Press the JET COOL button. The unit will
operate in super high fan speed in cooling
mode.
4To cancel the Power Cooling Mode press
the JET COOL or FAN SPEED or TEMP.
again and the unit will operate in high fan
speed in Cooling Mode.
OWNER'S INSTRUCTION

OWNER'S INSTRUCTION 15
ENGLISH
Auto Operation Mode
1Press the ON/OFF button.
The unit will respond with beep sound.
2Press MODE button to select Auto Opera-
tion Mode.
3Set the desired temperature.
The temperature and fan speed are auto-
matically set by the electronic controls
based on the actual room temperature.
If you feel hot or cold, press TEMP. but-
tons for more cooling or heating effect.
You cannot switch the indoor fan speed. It
has already been set by the Auto Opera-
tion Mode rule.
Code Feel
2 Cold
1 Slightly cool
0 Neutral
-1 Slightly warm
-2 Warm
❈Please select the code
depend on your feeling.
During Auto Operation Mode
- If the system is not operating as de-
sired, manually switch to another mode.
The system will not automatically
switch from the cooling mode to the
heating mode, or from heating to cool-
ing, then you must set the mode and
the desired temperature again.

16 OWNER'S INSTRUCTION
ENGLISH
Dehumidification Mode
1Press the ON/OFF button.
The unit will respond with beep sound.
2Press MODE button to select Dehumidifi-
cation Mode.
3Set the fan speed. You can select the fan
speed in four steps - low, medium, high, or
auto. Each time the button is pressed, the
fan speed mode is shifted.
During Dehumidification Mode
- If you select the dehumidification mode
on the operation selection button, the
indoor unit starts to run the dehumidifi-
cation function, automatically setting
the room temp. and air volume to the
best condition for dehumidification
based on the sensed room temp.
In this case, the setting temp. is not dis-
played in the Remote Controller and you
are not able to control the room temp.
either.
- During the healthy dehumidification
function, the air volume is automatically
set according to the algorithm respond-
ing to the current room temp. and
makes the room condition healthy and
comfortable even in the high humidity
season.

OWNER'S INSTRUCTION 17
ENGLISH
Fan Mode
1Press the ON/OFF button.
The unit will respond with beep sound.
2Press MODE button to select Fan Mode.
3Set the fan speed. You can select the fan
speed in four steps - low, medium, high, or
auto. Each time the button is pressed, the
fan speed mode is shifted.
Natural Wind by the auto Logic
- For more fresh feeling than other fan
speed, press the Indoor Fan Speed Se-
lector and set to auto mode. In this
mode, the wind blows like natural
breeze by automatically changing fan
speed according to the auto logic.
During Fan Mode
- The outdoor compressor doesn't work.
Have a function to circulate the indoor
as it sends out the air that doesn't have
much temperature difference with in-
door.

18 OWNER'S INSTRUCTION
ENGLISH
Temperature Setting/Room Temperature checking
We can simply adjust the desired tem-
perature
- Press the buttons to adjust the desired
temperature
: Increase 1 °C or 1 °F per one
time pressing
: Decrease 1 °C or 1 °F per one
time pressing
Room temp: Indicate the current room
temperature
Set temp: Indicate the temperature that
user want to set
The cooling mode doesn't work if desired
temperature is higher than room temper-
ature.
Please lower the desired temperature.
Whenever press button, the room tem-
perature will be displayed within 5 sec-
onds.
After 5 seconds, it turns to display the
desired temperature.
Because of location of remote controller,
the real room temperature and the this
displayed value can be different.

OWNER'S INSTRUCTION 19
ENGLISH
Up/down airflow direction control
The SWING (up/down) airflow can be adjusted
by using the remote controller.
1Press the ON/OFF button to start the unit.
2Press SWING (up/down) airflow button and
the louvers will swing up and down.
NOTE
!
- Always use the remote controller to ad-
just the up/down airflow direction.
Manually moving the direction louver by
hand, could damage the air conditioner.
Celsius/fahrenheit switching
- Press the ROOM TEMP button (5 seconds)
to change from celsius to fahrenheit or from
fahrenheit to celsius.
- Whenever press TEMP. button in fahrenheit
mode, the temperature
will increase/drop 1 °F.
Airflow setting

20 OWNER'S INSTRUCTION
ENGLISH
Plasma Purification(Optional)
1Press the ON/OFF button.
The unit will respond with beep sound.
2Press the PLASMA button. Plasma Purifi-
cation will start when the button is
pressed and stop when the button is
pressed again.
If you press the PLASMA button, Plasma Pu-
rification operates.
- Plasma filter is a technology developed by
LG to get rid of microscopic contaminants in
the intake air generating a plasma of high
charge electrons. This plasma kills and de-
stroys the contaminants completely to pro-
vide clean and hygienic air.
- This function can be used in any operation
mode and any fan speed can be used while
plasma filter is functioning.
This manual suits for next models
6
Table of contents
Languages:
Other LG Air Conditioner manuals
Popular Air Conditioner manuals by other brands

Mitsubishi Electric
Mitsubishi Electric Mr.Slim MS-GK36VA operating instructions

Daikin
Daikin RX15RMVJU installation instructions

Fujitsu
Fujitsu ASY7FSACW Service manual

Carrier
Carrier 50VL-D installation instructions

Frigidaire
Frigidaire FFMS121CQ10 installation manual

INVENTOR
INVENTOR V3MFI-24 user manual
