LG LP1415GXR User manual
LG
Portable
Air Conditioner
SERVICE MANUAL
LG
MODEL: LP1415GXR
CAUTION
website http://www.lgappliances.com
BEFORE SERVICING THE UNIT, READ THE SAFETY
PRECAUTIONS IN THIS MANUAL.
ONLY FOR AUTHORIZED SERVICE PERSONNEL.
- 2 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
1. SAFETY PRECAUCTION.............................................................................................................................2
3. FEATURES ............................................................................... ..................................................................4
.
.....................6
..........................7

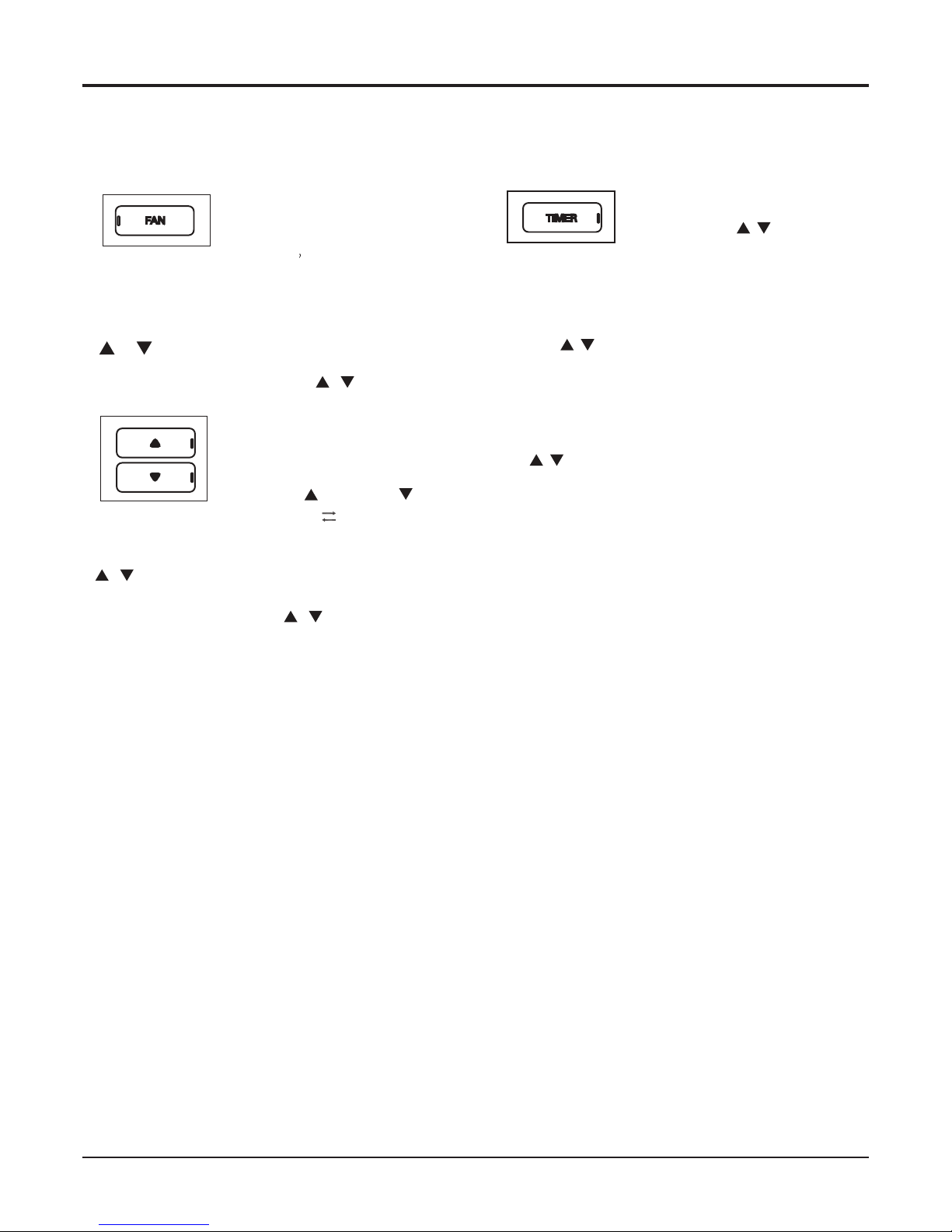

6. OPERATION.................................................................................................................................................16
8. CIRCUIT DIAGRAM.................................................................................................................................................31
..........................................................................20
............................................................................................................. 31.......................8-1 Circuit diagram
32........................ ...............................................................................................................8-2 PCB picture.........
33........................ ...............................................................................................................8-3 Wiring diagram.
11. Exploded View...........................................................................................................................................50
2-1 Spec.....................................................................................................................................................3
2-2 Dimensions...........................................................................................................................................3
..... 16............................ ...................................................................................................etomeRdnalenaPlortnoC1-6
9. TROUBLE SHOOTINGS.............................................................................................................................33
9-1 Safety caution...........................................................................................................................................33
9-2 Error code summary...........................................................................................................................33
2. SPECIFICATIONS........................................................................................................................................3
4. INSTALLATION ......................................................................... ..................................................................6
4-3 Window Vent Pane land Extensions........................................ .........................................
4-4 Installationin Vertical Sliding Windows.................................... ...................................
4-5 Installation in casement style windows.......................................................................................................11
4-2 Selection of Installation Location.....................................................................................
4-1 Preparing for Installation............................................................................................................
.....................8
..........................9
7. DISASSEMBLELY..............................................................
.9-3 TROUBLESHOOTING WITH ERROR...............................................................................................34........... ...............
.9-4 TROUBLESHOOTING ELSE ................ ....... ..................................................................................... 63........... ...............
10. COMPONENT TESTING IMFORMATION................................................................................................42
10-1 Transformer......................................................................................................................................42
10-2 Up motor...........................................................................................................................................43
10-3 Down motorr.....................................................................................................................................44
10-4 Water pump......................................................................................................................................45
10-5 Temp sensor.....................................................................................................................................46
10-6 Lever switch......................................................................................................................................48
10-7 Pressure switch.................................................................................................................................49

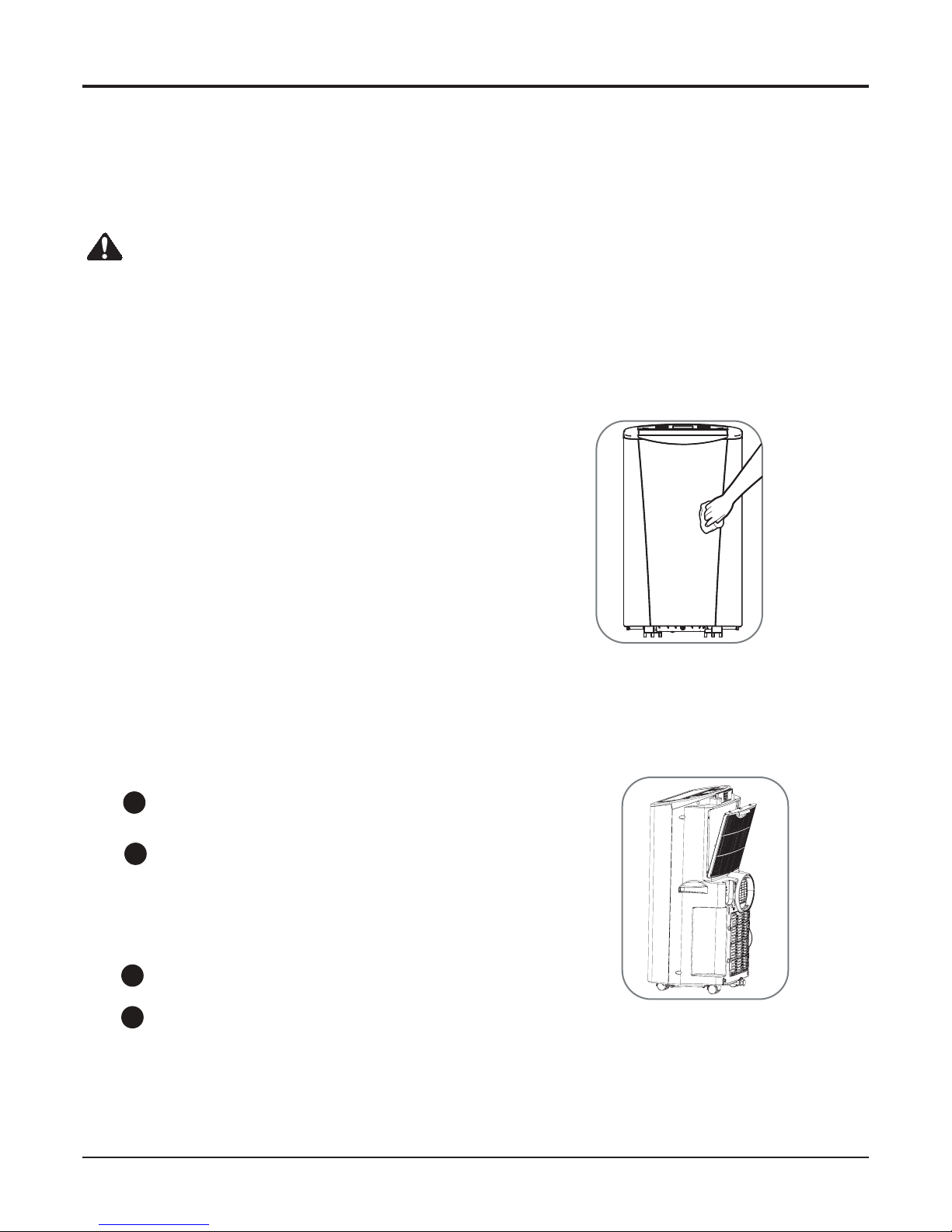

5. CARE AND CLEANING ............................................................................................................................13
5-1 Cleaning the case...............................................................................................................................13
5-2 Cleaning the air filter...........................................................................................................................13

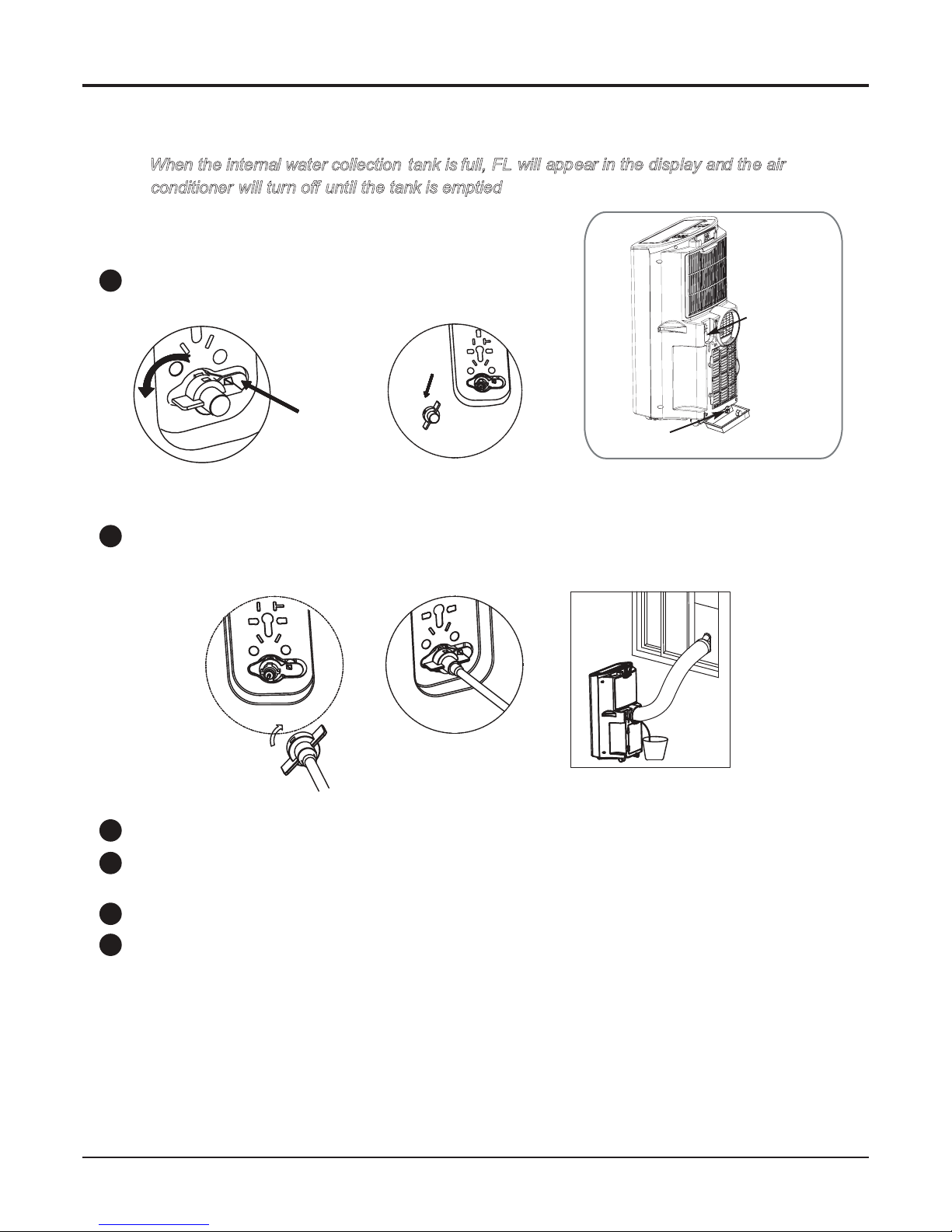

5-3 Emptying the water collection tank......................................................................................................14
Please read the following instructions before servicing your portable air conditioner.
1. Unplug the power before handling any electrical components.
2. Check the rated current, voltage, and capacity.
3. Take caution not to get water near any electrical components.
4. Use exact replacement parts.
5. Remove any objects from the top prior to tilting the product.
CONTENTS
1. SAFETY PRECAUCTION
- 3 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
2-2 dimensions
845mm
470mm
330mm
2-1 spec
2. SPECIFICATIONS
Buyer Model LP1415GXR
PERFORMANCE
Btu performance (Cooling) 14000
Dehumid. ( Pts/Hr) 3.4
Dry Air Flow (CFM) 270
dBA Level (Front) 56
ELECTRICAL RATINGS
Voltage / 60 Hz 115
Plug Type
Watts 1380
Rated Amps 12.0
FEATURES
Display Panel LED
Thermostat Control YES
Remote Controller LCD Remote Controller
Control Button Type Standard
Auto Swing Yes
Energy saver switch Yes
Auto Restart Yes
Auto Door Open/Close System Yes
Timer 24Hr,On/Off
Fan Speed : Cooling 3
Fan Only 3
Compressor Rotary
Indoor / Outdoor Fan Type Blower
Type Air Discharge Inclinded and Top
Water Full Indicator Yes(check)
Outdoor Vent / Exhaust Exhaust Only(1.5M)
Power Cord
Chassis Type Fixed
Panel Color Gray
Easy-Roll Casters Yes
Air Filter Washable
Window Installation Kit Yes
DIMENSIONS & WEIGHTS
Net Height_inch(mm) 33 1/16 (845)
Width 18 1/2 (470)
Depth 13 (330)
Carton Height_inch(mm) 34 7/16 (875)
Width 23 1/8 (587)
Depth 17 1/2 (444)
Net Weight_lbs.(kg) 69.9 (31.7)
Shippling Weight_lbs.(kg) 85.4 (38.7)
Stuffing Quantity (20ft/40ft/40ft High) 100/200/300
- 4 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

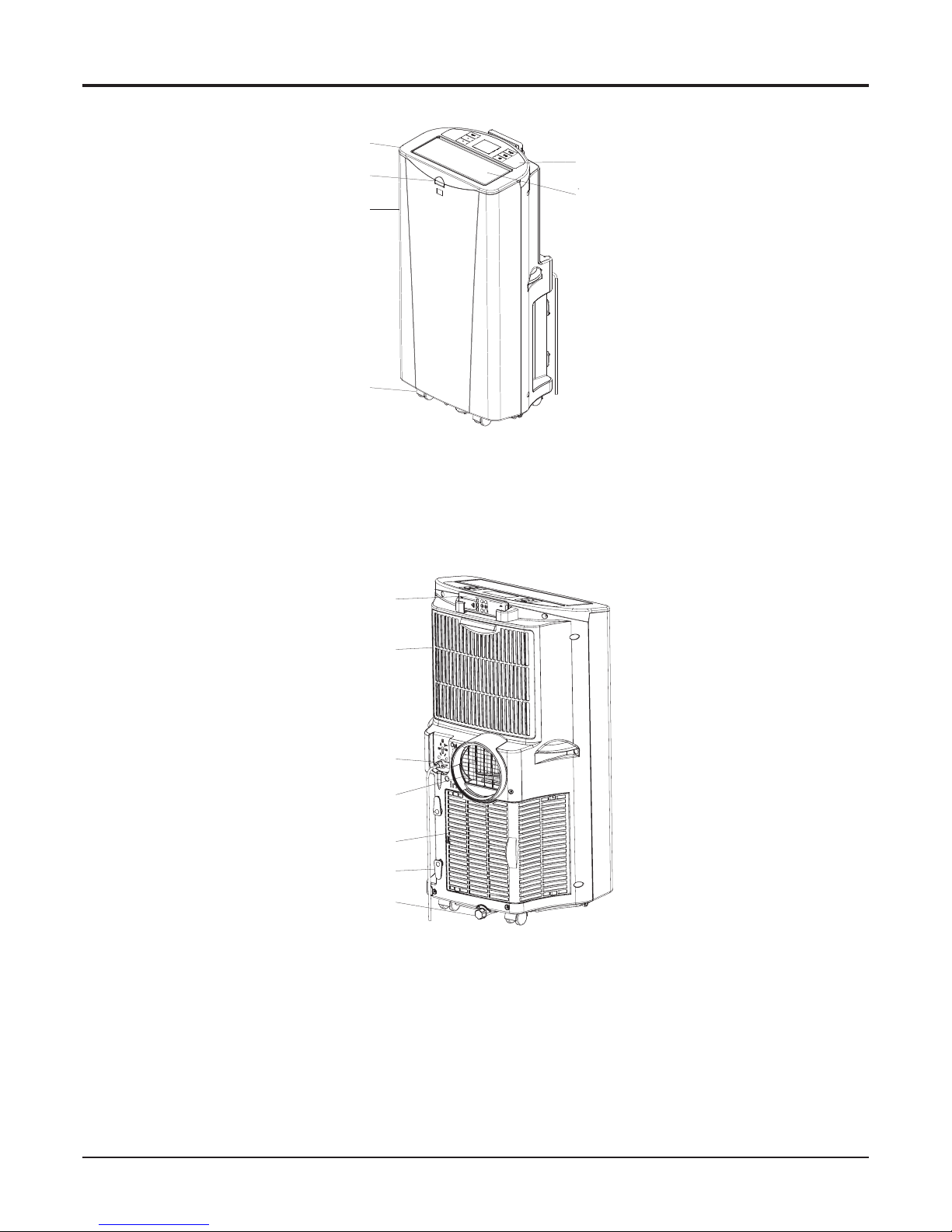

Top panel
Signal receiver
Front panel
wheel
Escutcheon
Swing panel
Remote
Evaporator filter grille
Outlet grille
Condenser filtergrille
Powder holder
Drain cover
Electric pump assemblely
3. FEATURES
- 5 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

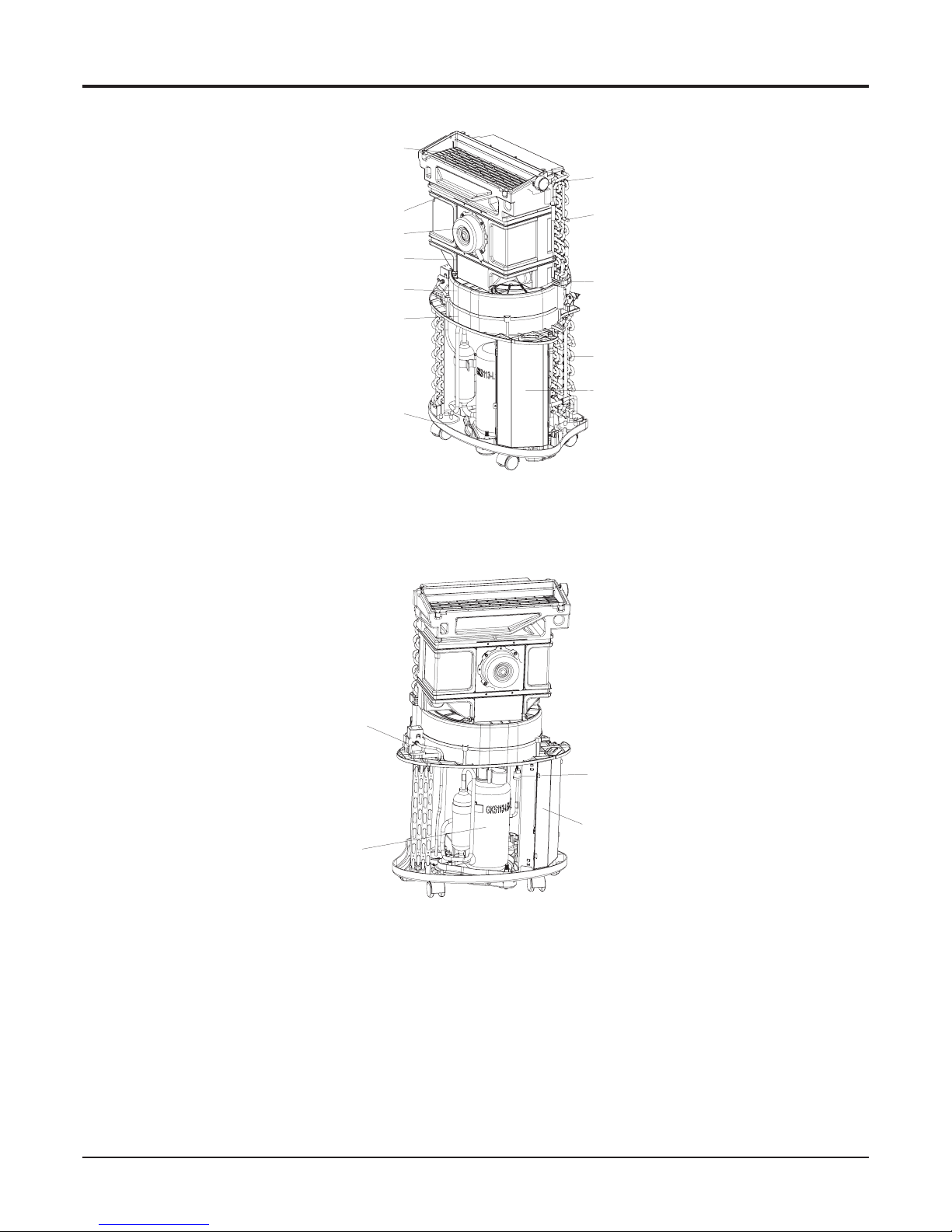

Air outlet
Upper motor bracket(up)
Upper motor
Upper motor bracket(down)
lower air channel(up)
lower air channel(down)
Base pan
Swing fan motor
evaporator
Drain pan
Condenser
C- box cover
Electric pump
Compressor
Pressure Switch
C-Box
3. FEATURES
- 6 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
4-1 PREPARING FOR INSTALLATION
2 Type A Screws 1 Type B Screw 1 Type C Screw
The following components are used for window venting.
Not all components are used for every installation.
EXHAUST COMPONENTS
Window Installation Kit (includes 1 Window
Vent Panel and 3 Extension Panels)
Flexible Venting Hose
2 Type A Foam Seals
(Adhesive)
Diffuser
Security Bracket
1 Type B Foam Seal
(Non-adhesive)
2 Type C Foam Seals
(Adhesive type-Shorter)
?):616/ <PMIQZKWVLQ\QWVMZQ[PMI^a=[M\_WWZUWZMXMWXTM\W
TQN\IVLQV[\ITT\PM]VQ\.IQT]ZM\WLW[WKW]TLZM[]T\QVJIKSQVR]ZaWZW\PMZQVR]ZQM[
1 Window Vent Panel
Panel A (18’’)
3 Extension Panels
Panel C (17’’) Panel D (17’’)
Panel B (9’’)
Fixing Nut
Additional Parts (For Heating Drainage)
Drain Pipe
(In The Accessory Box) (On the Vent Panel)
Nut Cover
4. INSTALLATION
- 7 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
4-2 SELECTION OF INSTALLATION LOCATION
Place the unit on a level floor.
For best performance,allow at least 20 in
of air space on all sides of the unit for
good air circulation.
1
2
20 in
20 in
Place the unit near a window. The hose
and diffuser will be used to connect the air
conditioner to the window installation kit to
vent exhaust air outside.
3
4. INSTALLATION
- 8 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
4-3 WINDOW VENT PANEL AND EXTENSIONS
The window installation kit allows you to install the air conditioner in most vertical-sliding windows
18" to 50" wide, or casement-style windows from 18" to 50" high.
For an 18" window opening, use the window
vent panel by itself.
For window openings from 19" to 26",
use the window vent panel (Panel A) and a
extension panel (Panel B).
use the window vent panel (Panel A) and a
extension panel (Panel C).
ehtesu,"05ot"53morfsgninepowodniwroF
window vent panel and two extension panels
(Panel C and Panel D).
Panel A
Panel A
18"
18"
Panel A
19" − 26"
19" − 26"
Panel B
Panel A
Fig. “a” Fig. “b”
27"−34"
Fig. “c” Fig. “d”
3ot"72morfsgninepowodniwroF4",
ABCD
18" 9" 17" 17"
18" Ĝa
19" − 26" ĜĜ b
ĜĜ c
Ĝd
Fig.
Panel
Window Length
ĜĜ
1. Please check your window length and choose the
fit panels from the above tabel.
2. If your window length need more than 2 panels, after
adjust the length, please use type A screw to fix them.
Panel D
Panel A
Panel C
Panel A
Panel C
Panel D
Panel A
Panel C
Screw A
27" − 34"
35" − 50"
27"−34"
35"−50"
35"−50"
Window Installation Kit (includes 1 Window
Vent Panel and 3 Extension Panels)
Panel A (18’’) Panel C (17’’) Panel D (17’’)
Panel B (9’’)
1 Window Vent Panel 3 Extension Panels
Panel B
Panel A
Panel C
4. INSTALLATION
- 9 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
NOTE: The window installation kit can be used with vertical sliding windows between
18" and 50" wide.
Foam seal A
(Adhesive type)
Foam seal C
(Adhesive type-shorter)
1Cut the foam seal A (adhesive type) &
C (adhesive type-shorter) to the proper
length, and attach it to the window sash
and frame.
2Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
Foam seal B
(Non-adhesive type)
3Cut the foam seal B (Non-adhesive type) to
the window width. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
4Install the security bracket with a type B
screw as shown if you need.
Type B
screw
Security Bracket
Extension panel
(if required)
Vent
Panel
4-4 INSTALLATION IN VERTICAL SLIDING WINDOWS
4. INSTALLATION
- 10 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

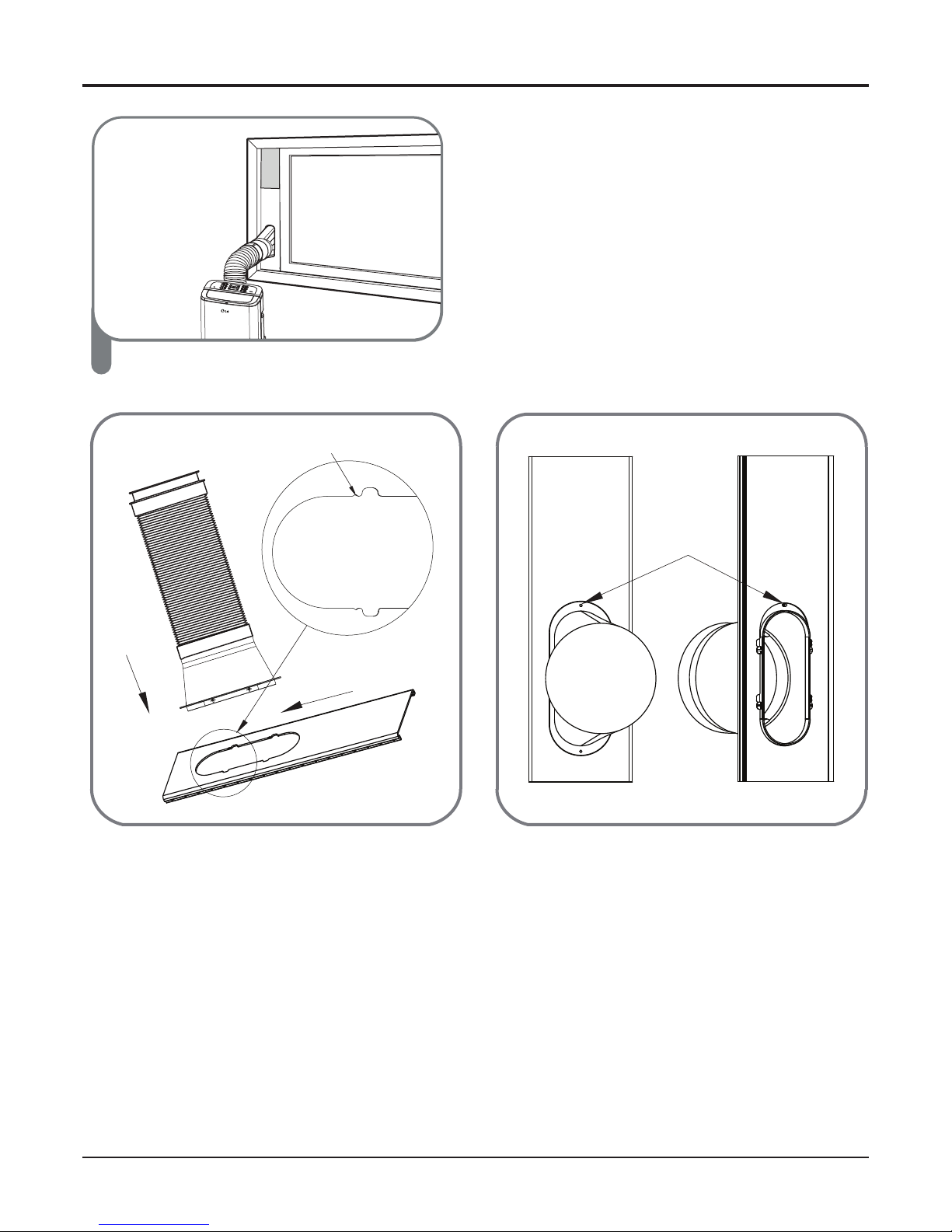

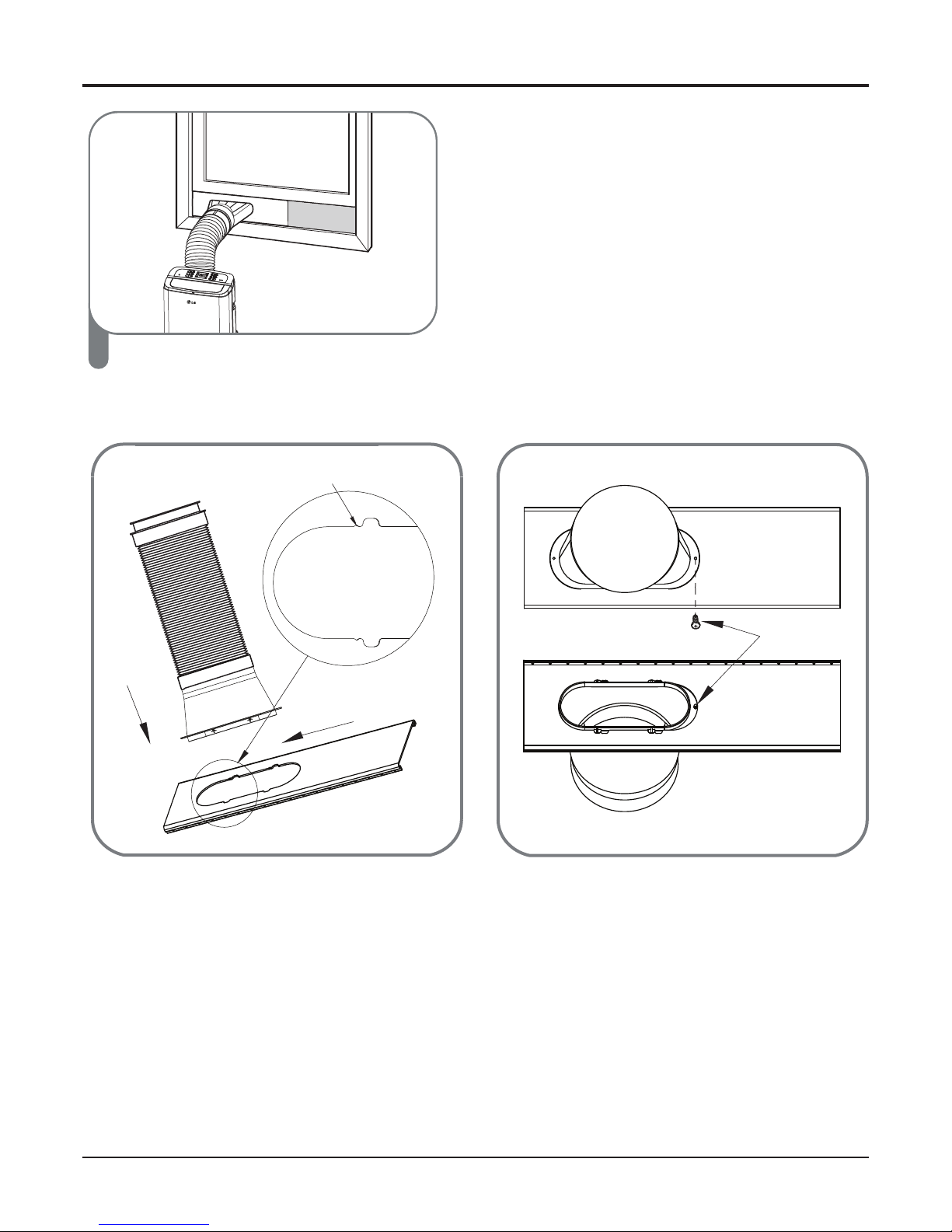

5Insert the diffuser into the Vent Panel. And
then slide.
If you want fix the diffuser more firmly, use
the type C screw.
Small gap
First
Insert
Second
Slide
First insert to the vent panel fully and then
slide for locking.
Type C screw
4. INSTALLATION
- 11 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
4-5 INSTALLATION IN CASEMENT STYLE WINDOWS
Foam seal A
(Adhesive type)
Foam seal C
(Adhesive
type-shorter)
1Cut the foam seal A (adhesive type) &
C (adhesive type-shorter) to the proper
length, and attach it to the window sash and
frame.
2Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
Foam seal B
(Non-adhesive type)
3Cut the foam seal B (Non-adhesive type) to
the window height. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
Vent
Panel
NOTE:The window installation kit can be used with casement windows between 18
ʺ
and 50
ʺ
tall.
Extension panel
(if required)
4
Install the window security bracket with a
type B screw as shown.
Type B s crew
Security
bracket
4. INSTALLATION
- 12 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
5Insert the diffuser into the Vent Panel. And
then slide.
If you want fix the diffuser more firmly, use
the type C screw.
Small gap
First
Insert
Second
Slide
First insert to the vent panel fully and then
slide for locking.
Type C screw
4. INSTALLATION
- 13 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Your air conditioner is designed for year-round
operation with only minimal cleaning and
maintenance.
For maximum efficiency, it is recommended
that you have the cooling coils inspected and
cleaned annually. Your local LG Authorized
Service Center can provide this inspection
and cleaning service for a nominal fee.
WARNING
• Unplug the air conditioner before cleaning or performing any maintenance or servicing.
• Be careful when cleaning coils or removing or reinstalling the filter-the cooling fins
are sharp!
Failure to follow the above precautions could result in electrical shock or personal injury.
5-1 CLEANING THE CASE
Wipe the case with a slightly damp cloth, then wipe dry
with a dry cloth or towel.
5-2 CLEANING THE AIR FILTER
The air filter should be cleaned every two weeks; depending on indoor air quality, more
frequent cleaning may be needed. A dirty air filter will decrease airflow and reduce efficiency.
Do not operate the air conditioner without
the air filter in place.
Grasp the grip which is in the center and on the top of
the filter and pull out the filter directly.
1
Use a vacuum cleaner to clean the filter. If the filter is
heavily soiled, it can be washed in warm water using a
mild detergent.
Do not use harsh cleaners or very hot water.
Do not wash in a dishwasher.
Allow the filter to dry completely before reinstalling.
2
3
4
• To prevent damage to the finish, do not use gasoline,
benzene, thinner, etc., or any abrasive cleansers to
clean the air conditioner; they may damage the finish.
• Never pour water onto or into the air conditioner.
It could damage internal components and create a
shock and fire hazard.
Reinsert the filter, making sure that the bottom of the
filter is between the tabs and the coil guard. Reinstall
the filter cover, making sure it clips into place.
5. CARE AND CLEANING
- 14 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
5-3 EMPTYING THE WATER COLLECTION TANK
When the internal water collection tank is full, FL
Using the upper drain port
Install end point of the drain pipe to the unit, and put the other end of the pipe into a bucket.
(Bigger than 28oz)
Remove the water plug firstly on the back of the product.
Push Here
before Rotation
Press TIMER and DOWN buttons simultaneously to activate drain pump inside of product.
This pump will be activated during 3 minutes. (If you want to stop draining before 3 minutes, you can
press TIMER and DOWN buttons simultaneously again.)
Pull out drain pipe from the product.
Reassemble the drainage cover.
will appear in the display and the air
will turn off until the tank is emptied.
conditioner
Bottom drain port
Upper drain port
2
1
3
4
5
6
5. CARE AND CLEANING
- 15 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Use Drain hose when use the DRY mode
Unplug the air conditioner, disconnect the exhaust hose from the back, and move the air conditioner
to a suitable drain location or outdoors. You may also place a pan under the drain that will hold up to
3 pints of water.
Remove the drain cap and the rubber plug from the drain outlet.
Once the water collection tank is drained, reinstall the rubber plug and the drain cap, making sure it is
on securely.
Place the air conditioner in the desired location, reconnect the exhaust hose, and plug in the air
conditioner.
When need running in high humidity, or during the DRY mode remove the drain cap and the
exhaust from the back of the unit.
NOTES: When turned on after being unplugged, the air conditioner will automatically reset to
COOL mode, with a temperature setting of 72°F.
2
1
3
4
Using the bottom drain port
1
Install a drain hose (3/4" [19.1mm] inside diameter) and place the open end of the hose a suitable
drain location or outdoors.
2
FL apperars in the display
The water collection tank is full, drain the tank and restart the air conditioner.
NOTICE
5. CARE AND CLEANING
- 16 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
6-1 CONTROL PANEL AND REMOTE
POWER ON/OFF
Turns the air conditioner on and off. When turning on,
a rising tone will sound to confirm. When turning off,
a descending tone will sound.
AUTO CLEAN
The AUTO CLEAN functio n is used to remove
moisture from the heat exchangers and helps
prevent odor from forming. This function can be
activated from the Remote only.
FAN SPEED
Adjusts the circulation fan speed between low (F1),
medium (F2), and high (F3).
MODE
Switches the air conditioner between COOL, FAN,DRY,
ENERGY SAVE modes.The
active mode will be
A PART shows the set temperature ( or ) ,
fan speed, or the selected TIMER delay.
B PART shows the active mode(COOL,FAN,DRY,ENERGY
SAVER and HEAT
),Auto clean,Water full and Timer.
/ (TEMP/TIMER)
Use these buttons to adjust the set temperature up or
down, or to adjust the timer delay time.
TIMER
Allows you to set a delay from 1 to 24 hours that will
turn the air conditioner on or off automatically.
5
1
4
9
2
7
6
3
8
Operation of functions is the same when using the remote or the
control panel, unless otherwise stated.
For detailed instructions on each function, see the following pages
!
AUTO SWING
Sets the motorized air discharge to oscillate,
improving air circulation in the room. This function
K
control.
an only be activated and displayed from the remote
shown in the LCD display.
LED DISPLAY
B PART
A PART
6
1
3
4
5
7
6
5
Use this button,the temperature display can be switched
between degrees Celsius(°C) and degrees Fahrenheit(°F)
6. OPERATION
- 17 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Press the POWER button to turn the air
conditioner ON or OFF. When you turn the air
c
tone will play and the LED
display will show the set
temperature and any active
onditioner on, an ascending
mode.The air discharge on the top of the air
conditioner wil automatically open.
When turning the air conditioner off, you will
hear a descending tone and the air discharge
on the top of the air conditioner will close.
Any control settings such as Mode, Set
Temperature, Auto Swing, etc. will be retained
in memory when the power is off.
NOTE: When turned on after being unplugged,
the air conditioner will automatically reset to
COOL mo d e,with atemperature setting of 22°C.
Any settings will need to be re-entered.
POWER
Control panel buttons shown. Operation
using the remote control is the same, unless
specifically noted.
NOTE:
The remote sensor is
located under the air discharge and on the top
of the front panel.
Always point the remote at the sensor. The
remote may not work if the sensor is in bright
light or if there is not a clear path between the
remote and the sensor.
Press the MODE button to select the operating
mode(COOL,FAN,DRY , ENERGY SAVER)
for the air conditioner.
And you can see the active
mode through the LED Display.
The default setting is COOL.
Press the MODE button to
change to FAN, press again to change to DRY,
again to change to ENERGY SAVER
and again to return to COOL.
MODE
USING THE CONTROLS
Mode Features
COOL
Compressor runs and cools the room. Use the
/and FAN buttons to set the desired
temperature and circulation fan speed.
FAN
Fan circulates air but compressor does not run.
Use t h e FAN button to set the desired fan speed.
DRY
Dry mode is used to remove humidity from the room
without additional cooling. Once the set temperature
is reached, the compressor and circulation fan turns
off and only the exhaust fan will run. Fan speed is
pre-set and cannot be adjusted.
ENERGY
SAVER
Under normal operation, the exhaust fan cycles on
and off with the compressor, and the circulation fan
runs at the set speed.
The mode helps reduce power consumption by
automatically turning off the circulation fan as well
as the exhaust fan when the compressor is off. The
air conditioner will automatically cycle both fans on
and off with the compressor as needed for cooling.
COOL FAN
DRY
→
→
ENERGY
SAVER
6. OPERATION
- 18 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Pressing the FAN button cycles the circulation
fan speed from low (F1) to medium (F2) to high
(F3).The selected fan speed
will be shown in the LED display.
The function can be used in
either COOL FAN modes.
When changing fan speeds, there is a brief
delay before the fan motor changes speed.
FAN
1V +774 IVL ,:A UWLM[ \PM
/ (TEMP/TIMER)
buttons adjust the set temperature up to 86°F or
down to 60°F ,in one degree
increments. The temperatu
re can
be switched between degrees
Fahrenheit and degrees Celsius,
pressing the button and button
When the TIMER function is selected, use the
/ (TEMP/TIMER)
buttons to adjust the delay
time from 1 to 24 hours, in one hour increments.
If you press and hold the
buttons, the set temperature or time will change
automatically after a few seconds.
NOTE: The displayed temperature is the SET
t
DRY,
ENERGY SAVER or HEAT
mode, the thermostat in the
emperature, not the room temperature.
In COOL,
air conditioner will run the compressor until the
set temperature is reached, then cycle the
compressor on and off to maintain the set
temperature.
/ (TEMP/TIMER)
When the
TIMER
function is selected, you can set
the air conditioner to either automatically turn
OFF or turn ON after a delay of
up to 24 hours. The display will
show 0.Use the
buttons to adjust the delay
time from 1 to 24 hours, in one
hour increments.
To set an automatic off delay, press the TIMER
button while the air conditioner is running and
use the buttons to adjust the
delay time. The air conditioner will automatically
turn OFF after the set delay.
To set an automatic on delay, press the TIMER
button while the air conditioner is off and use
the buttons to adjust the
delay time.
The display will show the number of hours
remaining
until the unit is set to come on. The
air conditioner will automatically turn ON
after the set delay.
If you want to know how many hours you have
setted, press the TIMER button and then you
can see the time through the LED display.
If you want to change the set timer,press the
TIMER button and adjust the time when the
number is flickering.
To cancel the Timer function,one method is
press the TIMER button and adjust the number
to”0” when the number is flickering,then the
function will be canceled in a few seconds.
Another better method is Press the TIMER
button and Press this button again when the
number is still flickering.
NOTE: Do not unplug the air conditioner when
using the timer function.
TIMER
/ (TEMP/TIMER)
/ (TEMP/TIMER)
/ (TEMP/TIMER)
/ (TEMP/TIMER)
at the same time,or pressing °F °C button on the
remote.
6. OPERATION
- 19 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
•
To us e AUTO CLEAN
With the air conditioner running in COOL,
DRY,ENERGY SAVER mode,
press the AUTO CLEAN button.
To cancel AUTO CLEAN, or to stop an
AUTO CLEAN cycle in process, simply press
the AUTO CLEAN button again. The
AUTO CLEAN function will not operate if the
air conditioner is already off.
AUTO CLEAN
1
2
AUTO SWING
When the displayed
temperature is °C (or °F), you
can press this button to swith
to °F (or °C).
To turn the AUTO CLEAN function on, press
the AUTO CLEAN button while the air
conditioner is running in COOL,
DRY, ENERGY SAVER.
This function can only be selected
from the remote; it is not available
from the control panel. It must be
set each time you wish to run the AUTO CLEAN
function.
AUTO CLEAN is used to remove moisture from
the heat exchange coils. This helps prevent the
formation of mildew and odors.
AUTO CLEAN will be displayed in the
LED diplay.
Press the POWER button to turn the air
conditioner off. AUTO CLEAN will run
the circulation and exhaust fans with the
compressor off for a few minutes after
the power is turned off.
AUTO SWING function can only be activated
with the remote. When this function is on, the
air discharge will oscillate to
circulate air more evenly
through the room. To turn this
function off, simply press the
AUTO SWING button with the
remote again.
With AUTO SWING off, you may also manually
adjust the air discharge to the desired position.
It will maintain this position until the air
conditioner is turned off or AUTO SWING is
activated.
6. OPERATION
- 20 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Prior to disassembly the unit,make sure that the POWER is OFF and the power cord is
unplugged from the wall receptacle.
CAUTION:
Fig1-1
Fig1-2
Fig1-4 Fig1-5
Fig1-6
Fig1-3
Fig1
1-1 Remove the 2 back inlet with the filter. (Fig1-1)
1-2 Screw the16 screws in back panel. (Fig1-2)
1-3 Rise up the top panel and ligtly put it on the machine for it'connecting the display PCB. (Fig1-3)
1-4 Remove the screw fixed of base pan and front panel.(Fig1-4)
1-5 Remove the 4 side screw.(Fig1-5)
1-6 Remove the front panel and rear panel. (Fig1-6)
1 Top Front and Real panel (Fig1)
7. DISASSEMBLELY
Other manuals for LP1415GXR
5
Table of contents
Other LG Air Conditioner manuals
