• Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after
reading it thoroughly.
IMPORTANT
OWNER'S MANUAL

2Room Air Conditioner
Room Air Conditioner Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need
it to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use
and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call
for service at all.
PRECAUTION
•Contact the authorized service technician for
repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by
young children or invalids without supervision.
• Young children should be supervised to ensure
that they do not play with the air conditioner.
•When the power cord is to be replaced,
replacement work shall be performed by
authorized personnel only using only genuine
replacement parts.
•Installation work must be performed in
accordance with the National Electric Code by
qualified and authorized personnel only.
Safety Precautions.........................3
Prior to Operation ..........................8
Electrical Safety .............................9
Operating Instructions.................11
Maintenance and Service............22

Owner's Manual 3
Safety Precautions
ENGLISH
Safety Precautions
To prevent the injury of the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified
by the following indications.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■The meanings of the symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.

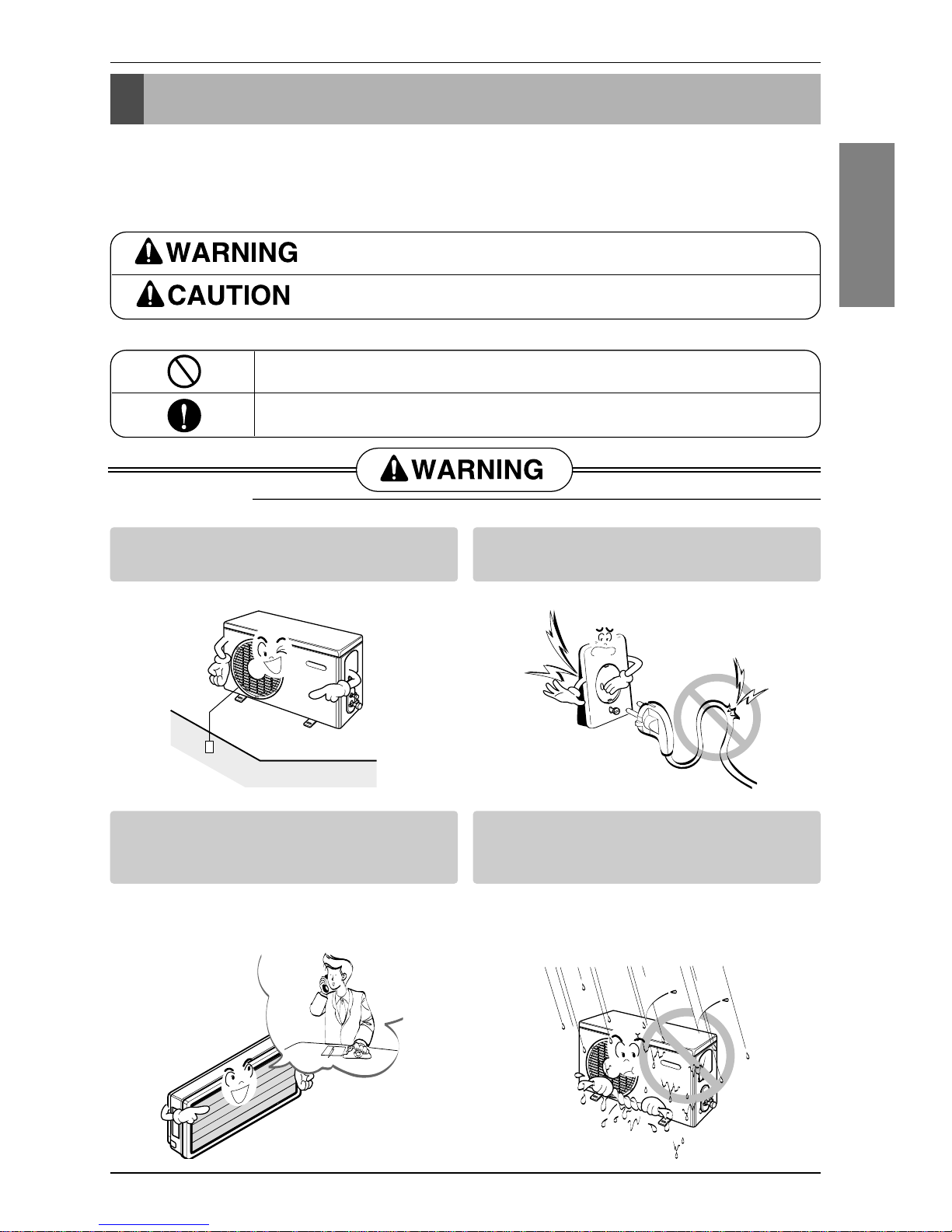

■Installation
Always perform grounding.
• Otherwise, it may cause electrical shock.
Don’t use a power cord, a plug or a loose
socket which is damaged.
• Otherwise, it may cause a fire or electrical shock.
For installation of the product, always
contact the service center or a professional
installation agency.
• Otherwise, it may cause a fire, electrical shock,
explosion or injury.
Securely attach the electrical part cover to
the indoor unit and the service panel to the
outdoor unit.
• If the electrical part cover of the indoor unit and
the service panel of the outdoor unit are not
attached securely, it could result in a fire or
electric shock due to dust, water, etc.

4Room Air Conditioner
Safety Precautions
Always install an air leakage
breaker and a dedicated
switching board.
• No installation may cause a fire
and electrical shock.
Do not keep or use
flammable gases or
combustibles near the air
conditioner.
• Otherwise, it may cause a fire
or the failure of product.
Ensure that an installation
frame of the outdoor unit is
not damaged due to use for
a long time.
• It may cause injury or an
accident.
Do not disassemble or
repair the product
randomly.
• It will cause a fire or electrical
shock.
Do not install the product at
a place that ther is concern
of falling down.
• Otherwise, it may result in
personal injury.
Use caution when
unpacking and installing.
• Sharp edges may cause injury.
Do not share the outlet with
other appliances.
• It will cause an electric shock or
a fire due to heat generation.
Do not use the damaged
power cord.
• Otherwise, it may cause a fire
or electrical shock.
Do not modify or extend the
power cord randomly.
• Otherwise, it may cause a fire
or electrical shock.
Take care so that the power
cord may not be pulled
during operation.
• Otherwise, it may cause a fire
or electrical shock.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
• Otherwise, it may cause
electrical shock or a fire.
Keep the flames away.
•Otherwise,itmaycauseafire.
■Operation
Wax
Thinner

Owner's Manual 5
Safety Precautions
ENGLISH

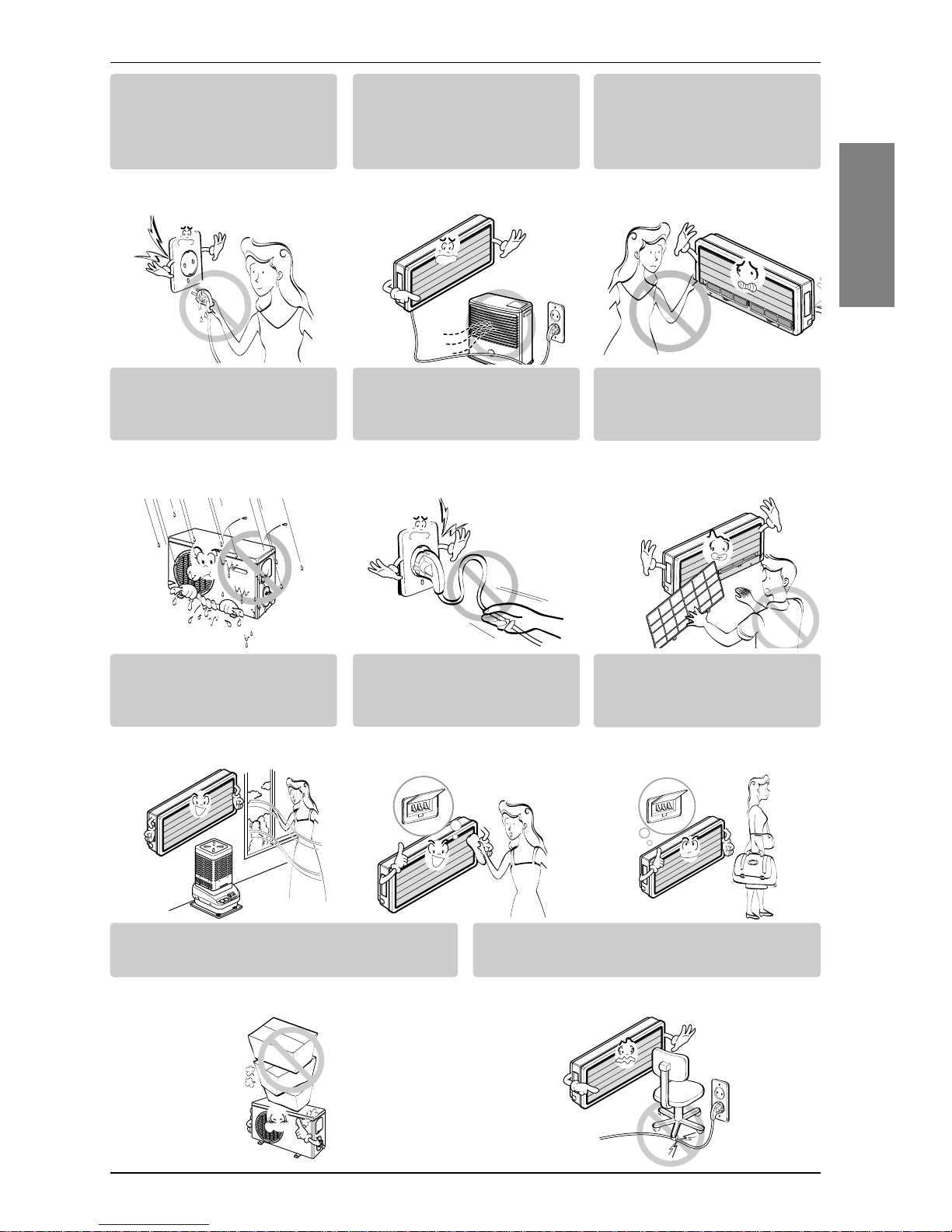

Take the power plug out if
necessary, holding the head
of the plug and do not touch
it with wet hands.
•Otherwise,itmaycauseafire
or electrical shock.
Do not use the power cord
near the heating tools.
• Otherwise, it may cause a fire
and electrical shock.
Do not open the suction
inlet of the indoor/outdoor
unit during operation.
• Otherwise, it may electrical
shock and failure.
Do not allow water to run
into electrical parts.
•Otherwise,itmaycausethe
failure of machine or electrical
shock.
Hold the plug by the head
when taking it out.
• It may cause electric shock and
damage.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may cause
injury.
Ventilate the room well
when using this appliance
together with a stove, etc.
• An oxygen shortage may occur.
When cleaning the unit, first
make sure the power and
breaker are turned off.
• Otherwise, it may cause
electrical shock.
Turn off the main power
switch when not using the
product for a long time.
• Otherwise, it may cause the
failure of product or a fire.
Do not step on the indoor/outdoor unit and
do not put anything on it.
• It may cause an injury through dropping of the unit
or falling down.
Do not place a heavy object on the power
cord.
• Otherwise, it may cause a fire or electrical shock.

6Room Air Conditioner
Safety Precautions

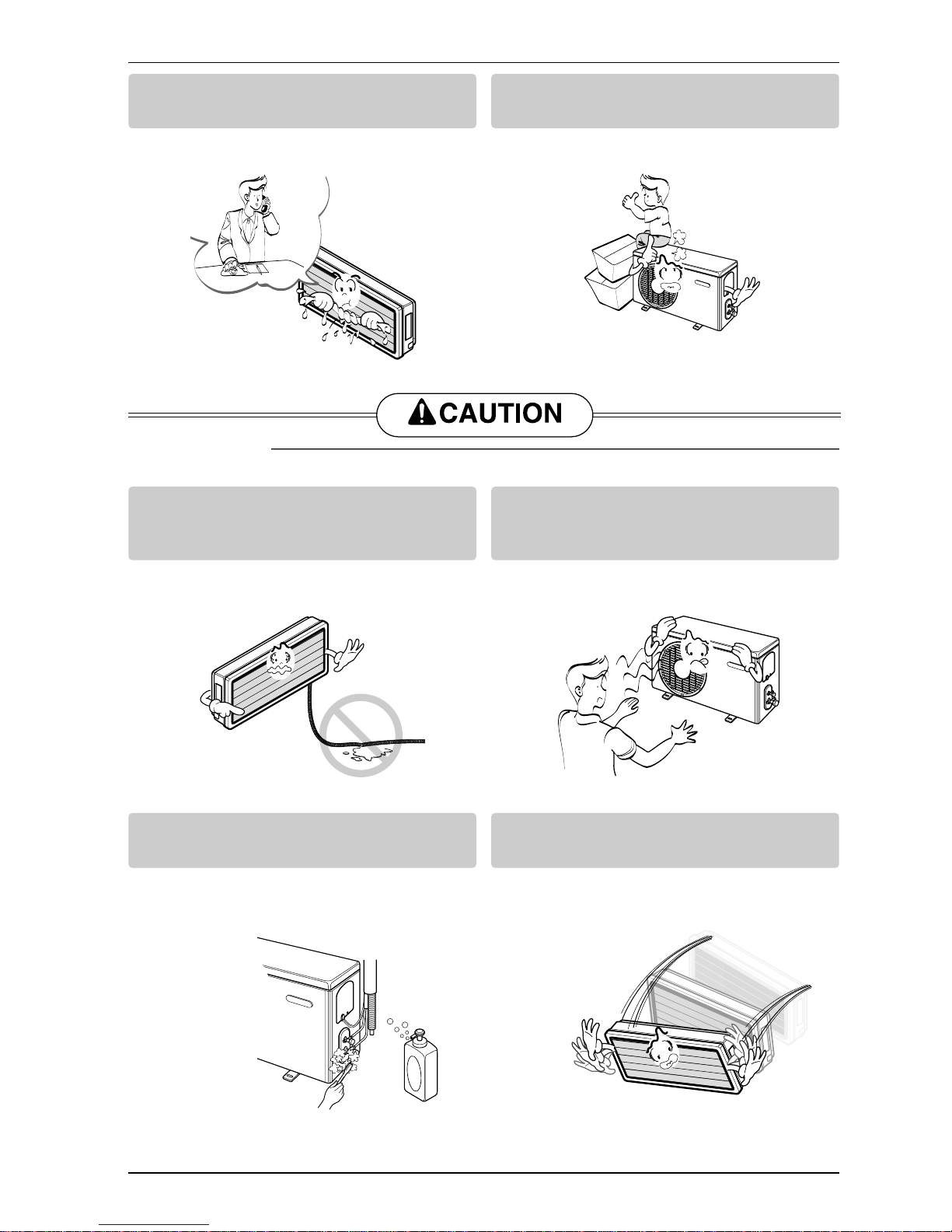

When the product is submerged into water,
always contact the service center.
• Otherwise, it may cause a fire or electrical shock.
Take care so that children may not step on
the outdoor unit.
• Otherwise, children may be seriously injured due
to falling down.
Install the drain hose to ensure that drain
can be securely done.
• Otherwise, it may cause water leakage.
Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
• Otherwise, it may cause dispute with the
neighbors.
Always inspect gas leakage after the
installation and repair of product.
• Otherwise, it may cause the failure of product.
Keep level parallel in installing the product.
• Otherwise, it may cause vibration or water
leakage.
■Installation

Owner's Manual 7

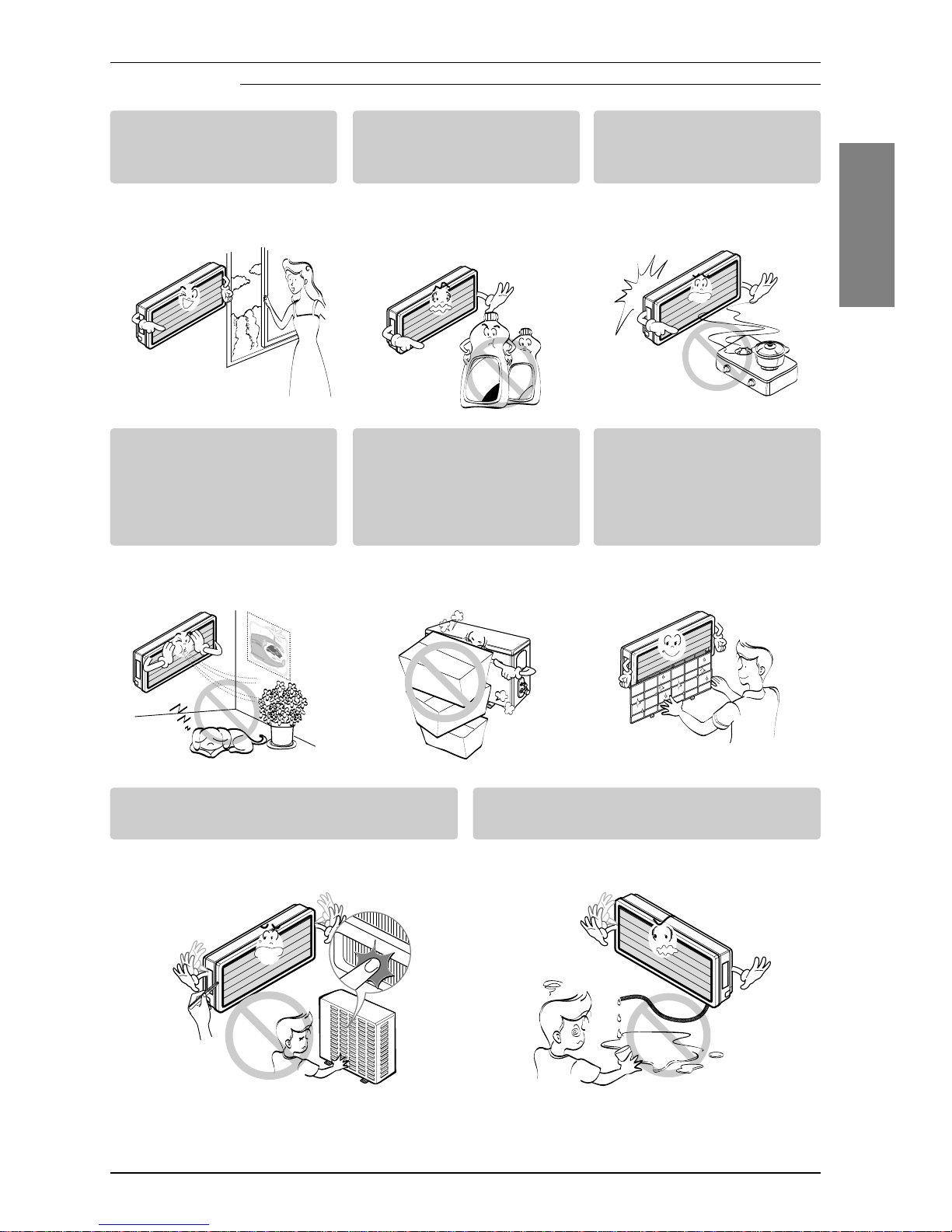

Safety Precautions
ENGLISH
Do not insert the hands or bars through the
air inlet or outlet during operation.
• Otherwise, it may cause personal injury.
Do not drink water coming out of the air
conditioner.
• Otherwise, it may cause stomachache.
Avoid excessive cooling
and perform ventilation
sometimes.
• Otherwise, it may do harm to
your health.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
When gas leaks, open the
window for ventilation
before operating the unit.
• Otherwise, it may cause
explosion, and a fire.
Do not use an appliance for
special purposes such as
preserving animals
vegetables, precision
machine, or art articles.
• Otherwise, it may damage your
properties.
Do not place obstacles
around the flow inlet or
outlet.
• Otherwise, it may cause the
failure of appliance or an
accident.
Always insert the filter
securely. Clean it every two
weeks.
• Operation without the filter will
cause failure.
■Operation
Wax
Thinner

8Room Air Conditioner
Prior to Operation
Prior to Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.
1. Being exposed to direct airflow for a long time may be hazardous to your health. Do not expose
occupants, pets, or plants to direct airflow for a long time.
2. Due to the possibility of oxygen deficiency, ventilate the room when using the appliance together with
stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purpose (e.g. preserving precision devices,
food, pets, plants, or art objects). Such use may damage your properties.
1. Do not touch the metal parts of the unit when removing the filter. Injury can occur.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,
leading to electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a
very high speed during operation. There is a possibility of injury if the unit’s power is triggered while
cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for Operation
Usage
Cleaning and Maintenance
Service

Owner's Manual 9
Electrical Safety
ENGLISH

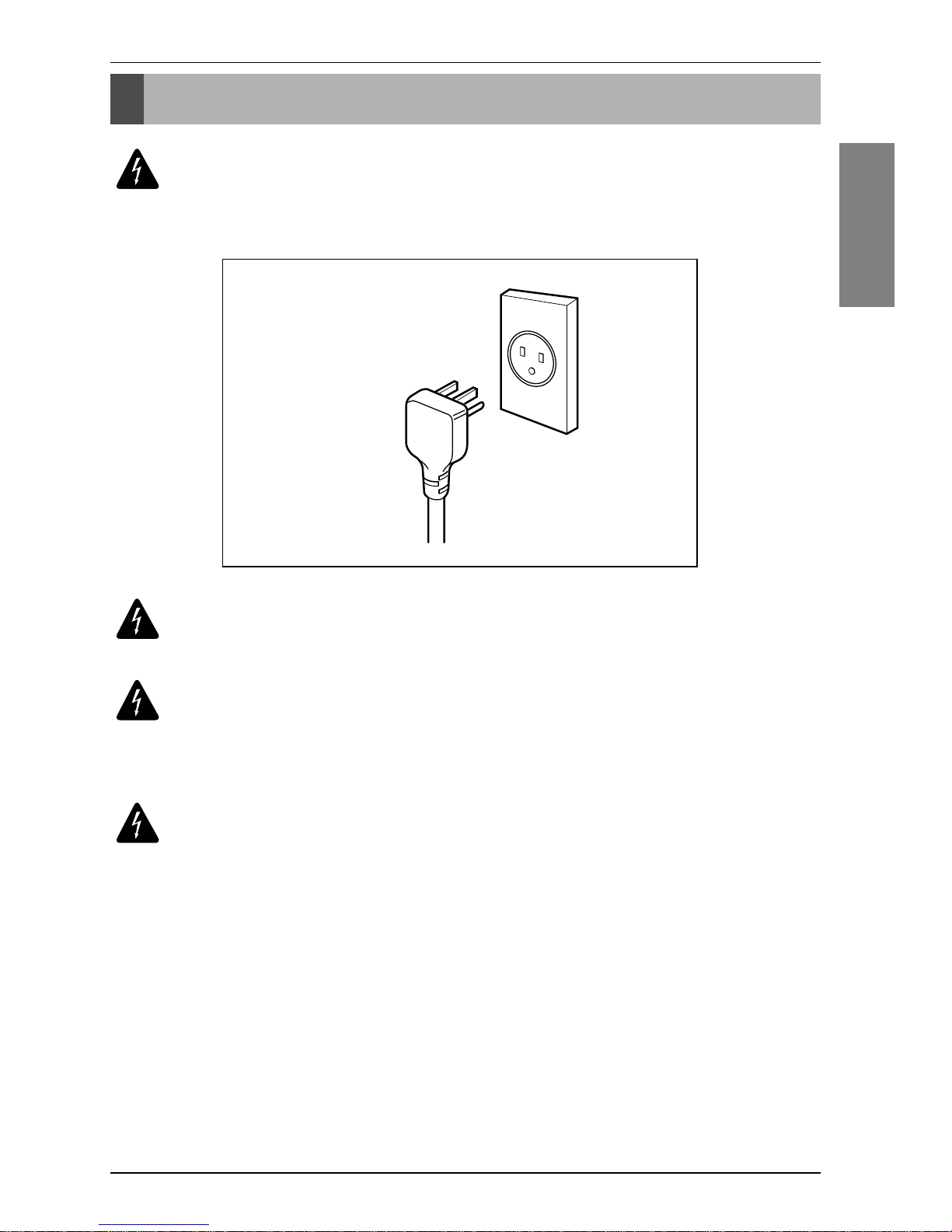

WARNING: This appliance must be properly grounded.
To minimize the risk of electric shock, you must alway plug into a grounded oulet.
WARNING: Do not cut or remove the grounding prong from the
power plug.
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by
a qualified electrician.
Preferred method
Ensure proper ground
exists before use
Electrical Safety

10 Room Air Conditioner
Electrical Safety
We strongly discourage the use of an adapter due to potential safety hazards. For temporary
connections, use only a UL-listed adapter, available from most local hardware stores. Ensure that the
large slot in the adapter is aligned with the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground
terminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal
damage.
WARNING: Never use the appliance with a broken adapter.
We strongly discourage the use of an extension cord due to potential safety hazards. For temporary
situations, use only CSA certified and UL listed 3-wire grounded extension cords, rated 15 A, 125 V.
Temporary method
Adapter Plug
Receptacle Cover
Metal Screw
Temporary Use of an Adapter
Temporary Use of an Extension Cord

ENGLISH
Owner's Manual 11
Operating Instructions
Operating Instructions

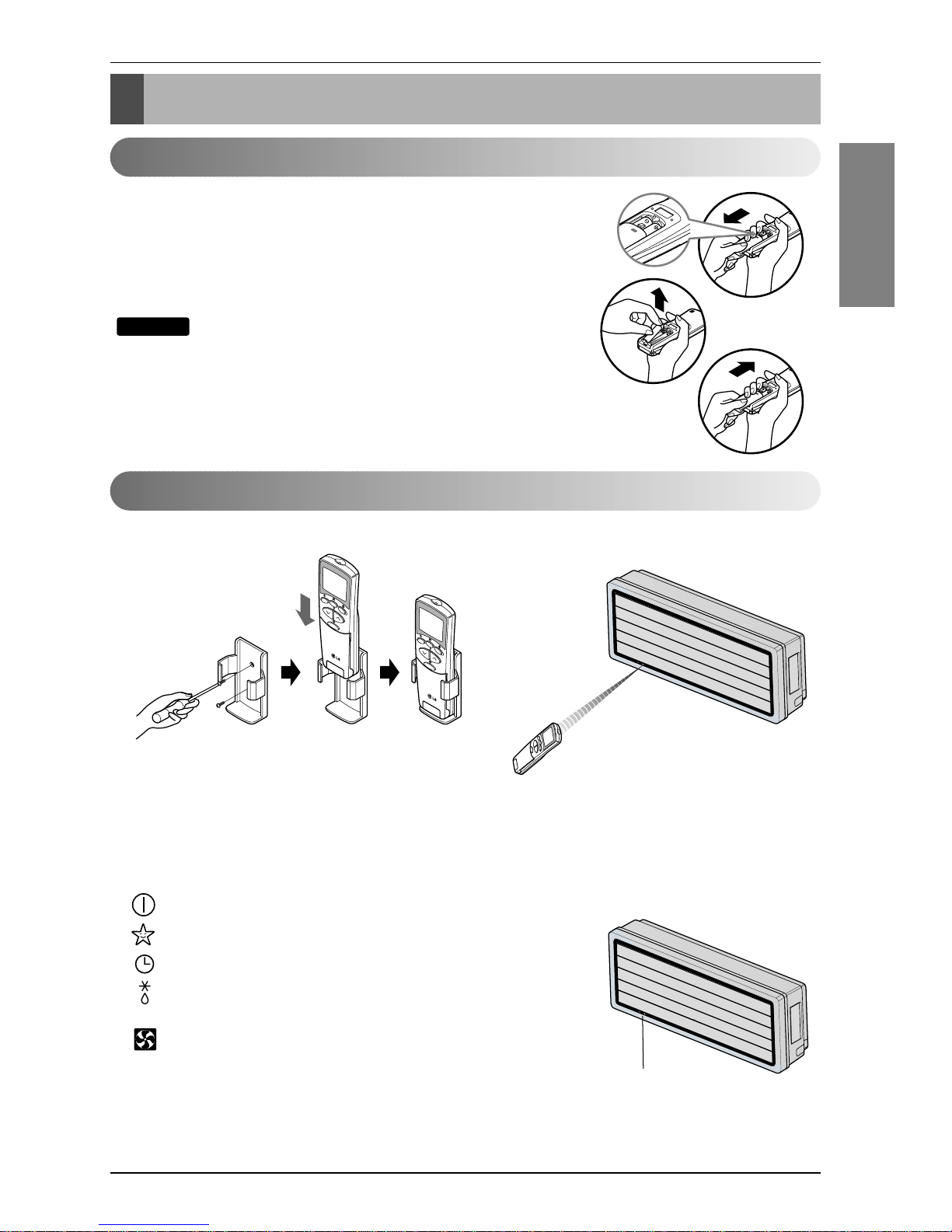

How to insert the Batteries
Storage and Tips for using the Remote Controller
1. Remove the battery cover by pulling it according to the arrow
direction.
2. Insert new batteries making sure that the (+) and (-) of battery are
installed correctly.
3. Reattach the cover by sliding it back into position.
Use 2 AAA(1.5volt) batteries.
Do not use rechargeable batteries.
NOTICE
•The remote controller may be stored by mounting
it on a wall. •To operate the room air conditioner, aim the remote controller at the signal receptor.
Operation indication lamps
Signal Receptor
Receives the signals from the remote control.(Signal receiving sound: two short beeps or one long beep.)
Operation Indication Lamps
On/Off : Lights up during the system operation.
Sleep Mode : Lights up during Sleep Mode Auto operation.
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or
Hot Start operation.(Heat pump model only)
Outdoor unit operation : Lights up during outdoor unit operation.
(Cooling model only)

12 Room Air Conditioner
Operating Instructions
Controls
The controls will look like the following.
Remote Control Operations
1. START/STOP BUTTON
Operation starts when this button
is pressed and stops when the button
is pressed again.
2. OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
3. ROOM TEMPERATURE
SETTING BUTTONS
Used to select the room temperature.
4. INDOOR FAN SPEED SELECTOR
Used to select fan speed in four steps
low, medium, high and CHAOS.
5. JET COOL/HEATING(OPTIONAL)
Used to start or stop the speed
cooling/heaing.(speed cooling/heating
operates super high fan speed in
cooling/heatig mode.)
6. CHAOS SWING BUTTON
Used to stop or start louver movement and
set the desired up/down airflow direction.
7. ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping
operation. (See page 19)
8. TIME SETTING BUTTONS
Used to adjust the time. (See page 19)
9. TIMER SET/CANCEL BUTTON
Used to set the timer when the desired time is
obtained and to cancel the Timer operation. (See
page 19)
10. SLEEP MODE AUTO BUTTON
Used to set Sleep Mode Auto operation.
(See page 19)
11. AIR CIRCULATION BUTTON
Used to circulate the room air without cooling or
heating. (See page 20)
12. ROOM TEMPERATURE CHECKING BUTTON
Used to check the room temperature.
13. RESET BUTTON
Used prior to resetting time.
14.2ndFButton
Used prior to using modes printed in blue at the
bottom of buttons. (See page 18)
15. °CTO°F SWITCHING BUTTON
Used to switch temperature reading from
Centigrade to Fahrenheit.
AUTO CLEAN
ON OFF
CANCEL
SET
°C/°F
1
3
5
4
9
10
12
15
14
7
2
8
13
11
6
Cooling Operation
Auto Operation or Auto Changeover
Healthy Dehumidification Operation
Flip-up door
(opened)
Heating Operation
Signal transmitter
• Cooling Model( ), Heat Pump Model( )
Operation Mode

Owner's Manual 13
Operating Instructions
ENGLISH
ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
Press the Start/Stop button.
The unit will respond with
a beep.

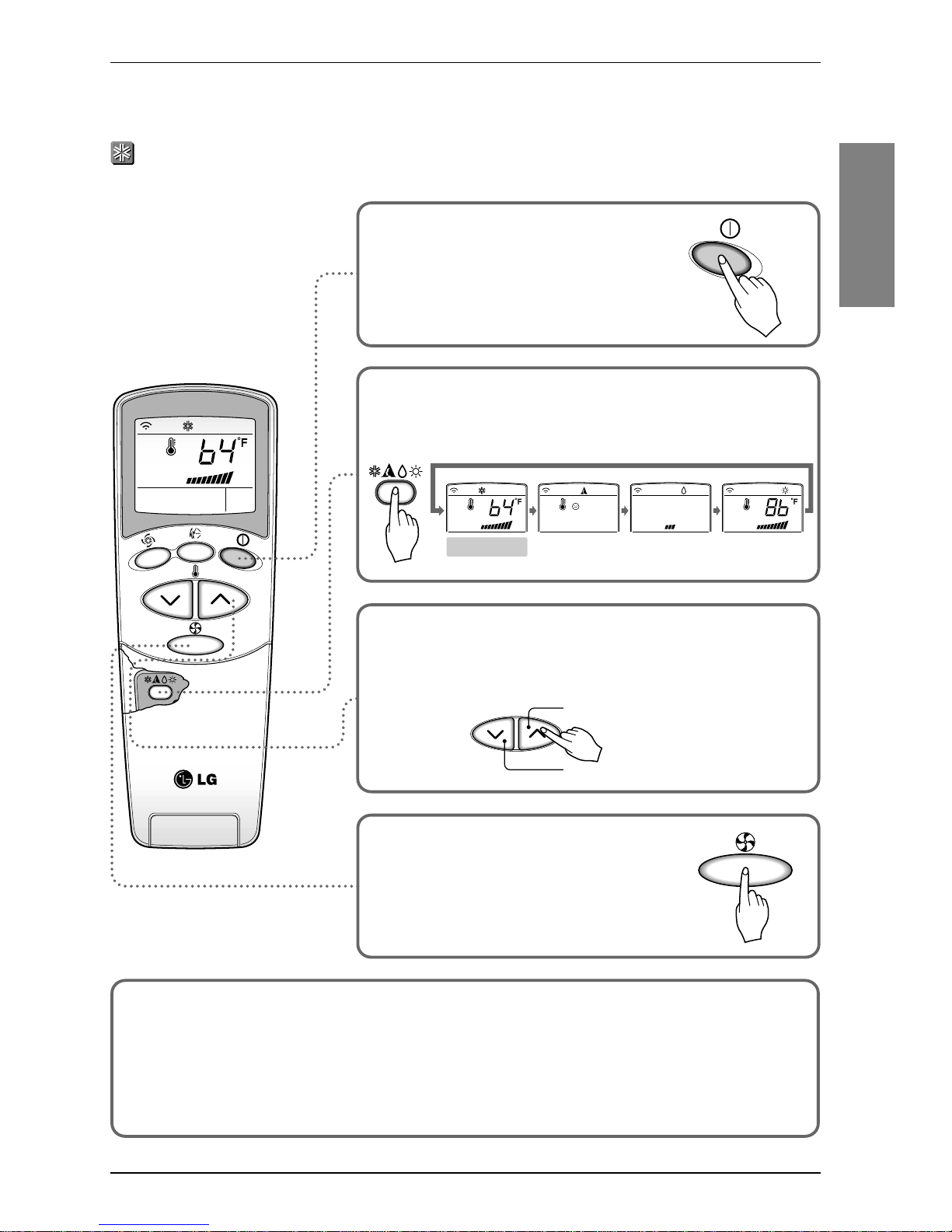

Open the door of the remote controller. To select Cooling
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shiftedinthedirectionofthearrow.
Close the door of the remote controller. Set the temperature
lower than the room temperature. The temperature can be
set within a range of 64°F~86°F(18°C~30°C) at intervals of
2°F(1°C).
Set the fan speed again with the door
of the remote controller still closed.
You can select the fan speed in four
steps-low, medium, high and CHAOS.
Each time the button is pressed, the
fan speed mode is shifted.
1
2
3
4
Natural wind by the CHAOS logic
❏For fresher feeling, press the Indoor fan speed selector and set to CHAOS mode. In this mode, the wind
blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.
Cooling operation

ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door of the remote controller. To select Auto
Operation, press the operation mode selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
The temperature and fan speed are automatically set by the
electronic controls based on the actual room temperature. If
you want to change the set temperature, press the Room
Temperature Setting buttons. The cooler or warmer you feel,
themoretimes(uptotwotimes)youshouldpressthebutton.
The set temperature will be changed automatically.
During Auto Operation
❏You cannot control the indoor fan speed. It has already been set by the Fuzzy rule.
❏If the system is not operating as desired, manually switch to another mode. The system will not
automatically switch from the cooling mode to the heating mode, or from heating mode to cooling
mode, it must be done by manually resetting.
❏During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and
down automatically. If you want to stop auto-swing, press the chaos swing button again.
1
2
3
Auto operation (Cooling model only)
14 Room Air Conditioner
Operating Instructions

ENGLISH
Owner's Manual 15
ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
Operating Instructions
Press the Start/Stop button.
The unit will respond with
a beep.

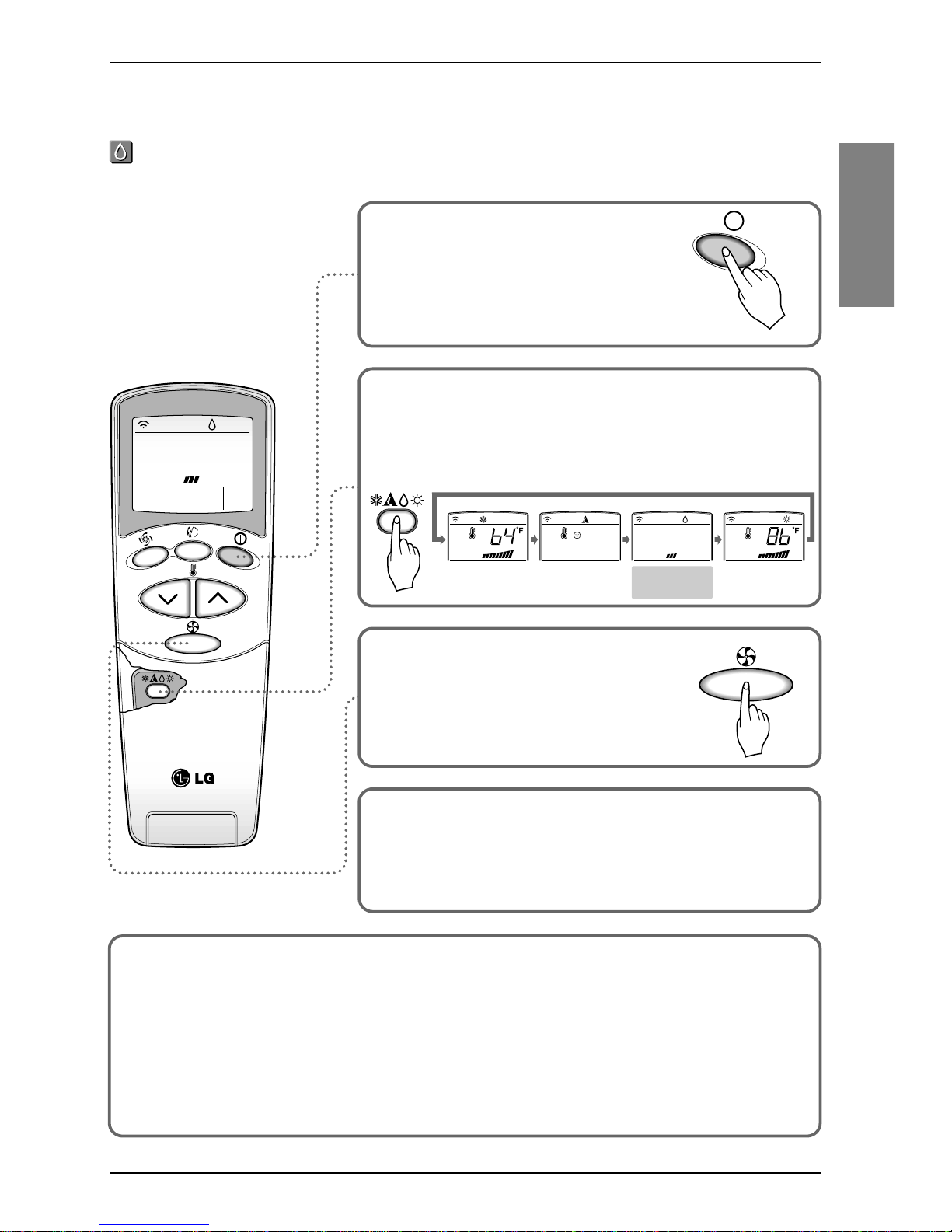

Open the door of the remote controller. To select Healthy
Dehumidification Operation, press the Operation Mode
Selection button.
Each time the button is pressed, the operation mode is
shiftedinthedirectionofthearrow.
1
2
Set the fan speed again with the door
of the remote controller still closed.
You can select the fan speed in four
steps-low, medium, high, or CHAOS.
Each time the button is pressed, the
fan speed mode is shifted.
3
Natural wind by the CHAOS logic
❏For fresher feeling, press the Indoor Fan Speed Selector and set
to CHAOS mode. In this mode, the wind blows like a natural
breeze by automatically changing fan speed according to the
CHAOS logic.
Healthy dehumidification operation
During Healthy Dehumidification Operation
❏If you select the dehumidification mode on the operation selection button, the A/C starts to run the
dehumidification function. It automatically sets the room temp. and airflow volume to the best condition
for dehumidification, based on the sensed current room temp.
In this case, however, the setting temp. is not displayed on the remote controller and you are not able to
control the room temp. either.
❏During the healthy dehumidification function, the airflow volume is automatically set according to the
optimization algorithm responding to the current room temp. status, so that the room condition is kept
healthy and comfortable even in the very humid season.

16 Room Air Conditioner
ON
Cooling Healthy
Dehumidification
Auto
Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
Operating Instructions
Heating operation (Heat pump model only)
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door of the remote controller. To select Heating
Operation, press the Operation Mode Selection button.
Eachtimethebuttonispressed,theoperationmodeis
shiftedinthedirectionofthearrow.
Close the door of the remote controller.
Set the temperature higher than the room temperature.
The temperature can be set within a range of
60°F~86°F(16°C~30°C) at intervals of 2°F(1°C).
Set the fan speed again with the door of the
remote controller still closed. You can
select the fan speed in four steps–low,
medium, high and CHAOS. Each time the
button is pressed, the fan speed mode is
shifted.
1
2
3
4
Natural wind by the CHAOS logic
❏For fresher feeling, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the
wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

ENGLISH
Owner's Manual 17
or or
Operating Instructions
❏During the JET COOL/HEAT function at any moment, the A/C starts to blow the cool/heat air at
extremely high speed for 30 minutes setting the room temp. automatically to
64°F/86°F(18°C/30°C).
It is especially used to cool/heat the room temperature in the shortest time.
❏In order to return to the normal cooling/heating mode from the Jet Cool/Heat mode, you just
press either the operation mode selection button, airflow volume selection or temp. setting
button or the JET COOL/HEAT button again.
NOTICE
Press the Start/Stop button.
The unit will respond with
a beep.

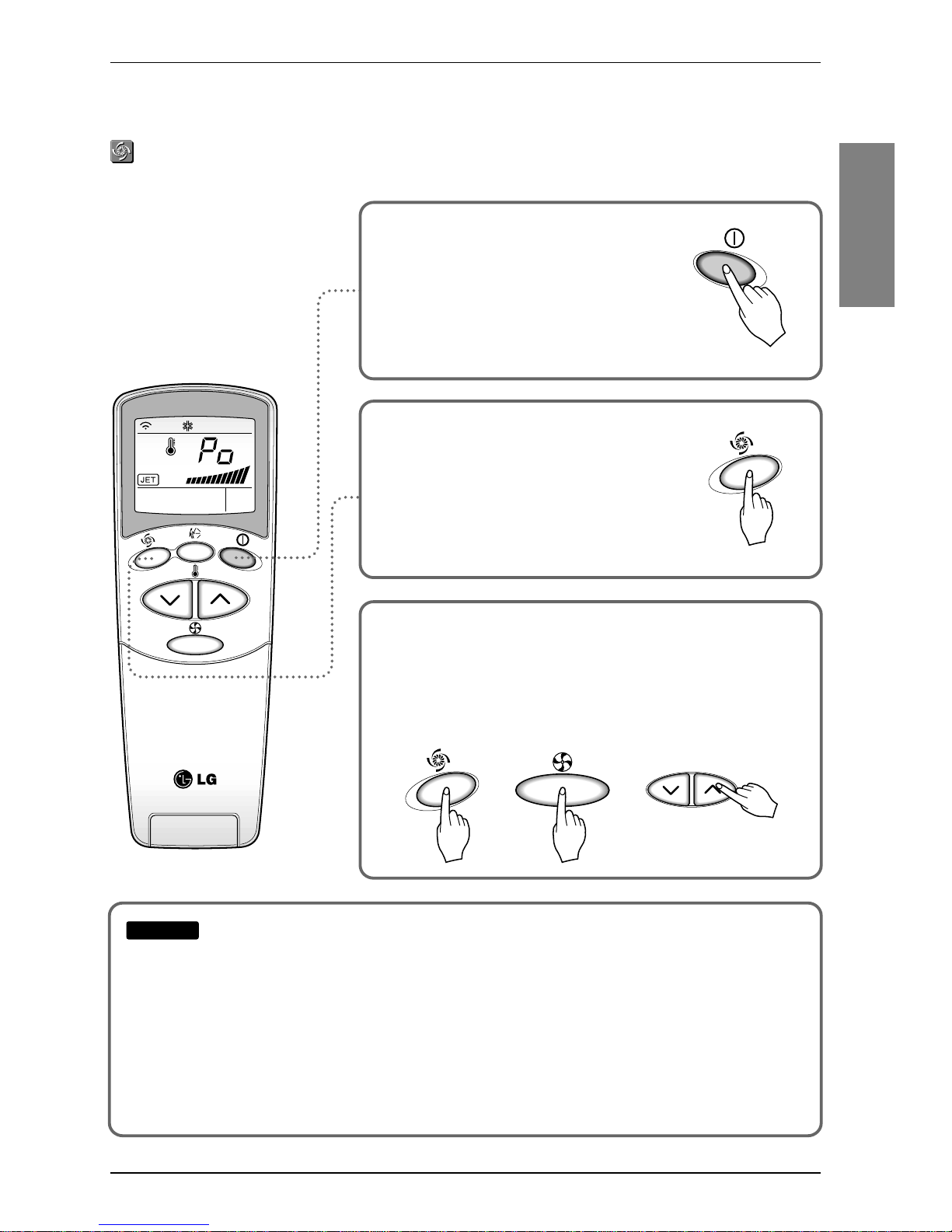

Press the Jet Cool button to operate
the speed cooling mode and the unit
will operate at super high fan speed
on cooling mode for 30 minutes.
To cancel the Jet Cool mode, press the Jet Cool button, the
fan speed button or the room temperature setting button
again and the unit will operate at high fan speed on cooling
mode.
1
2
3
Jet cool operation

ON OFF
CANCEL
SET
°C/°F
ON OFF
SET
18 Room Air Conditioner
Operating Instructions
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door of the remote control and press the 2nd
Function button to operate functions printed in blue unter
buttons.
(Check the indication of 2nd function on the display of the
remote controller.)
These buttons can set the timer as follows:
2nd function disappears in a short time automatically or when
the button is pressed again.
1
2
3
2nd F operation
For more details, refer to functions next pages.

ENGLISH
Owner's Manual 19
Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFFTimer
Operating Instructions
Sleep mode
1.PresstheSleepModeAutobuttontosetthetimeyouwanttheunittostopautomatically.
2. The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. The
sleep mode is available for 1 to 7 times. To alter the time period in steps of 1 hour, press the Sleep Mode
Button while aiming at air conditioner.
3. Make sure the Sleep Mode Auto LED lights up.
To cancel the Sleep Mode, press the sleep Mode Auto button several times until the star
( ) disappears from the operation display.
The Sleep Mode will be operated at slow fan speed (cooling) or medium fan speed (heat pump
only) for a comfortable sleep.
In cooling mode or healthydehumidification mode:
The temperature will automatically rise by 2°F(1°C) over the next 30 minutes and by 4°F(2°C) in 1 hour for a
comfortable sleep.
NOTICE
Setting the time
1. Time can be set only when you press the Reset button. Having replacing the batteries,
you should press the reset buttons to reset the time. Press the Start/Stop button.
2. Press 2nd F button and check if 2nd F icon is on.
3. Press the Time Setting buttons until the desired time is set.
4. Press the Timer SET button.
Check the indicator for A.M. and P.M.
NOTICE
1. Make sure the time is set correctly on the display of the remote controller.
2. Press 2nd F button.
3. Press the ON/OFF Timer buttons to turn Timer on or off.
4. Press the Time Setting buttons until the desired time is set.
5. To set the selected time, press the Timer setting button aiming the remote controller at the
signal receptor.
To cancel the timer setting
Checkif2ndFiconisoff.
Press the Timer Cancel button aiming the remote controller at the signal receptor.
(The timer lamp on the air conditioner and the display will go out.)
Delay start/Pre-set stop
Select one of the following four types of operation.
NOTICE
with the unit running
ON OFF
CANCEL
SET
CANCEL
SET
CANCEL
SET
Additional Features

20 Room Air Conditioner
Fan speed is on low. Fan speed is on medium. Fan speed is on high.CHAOS Air
Operating Instructions

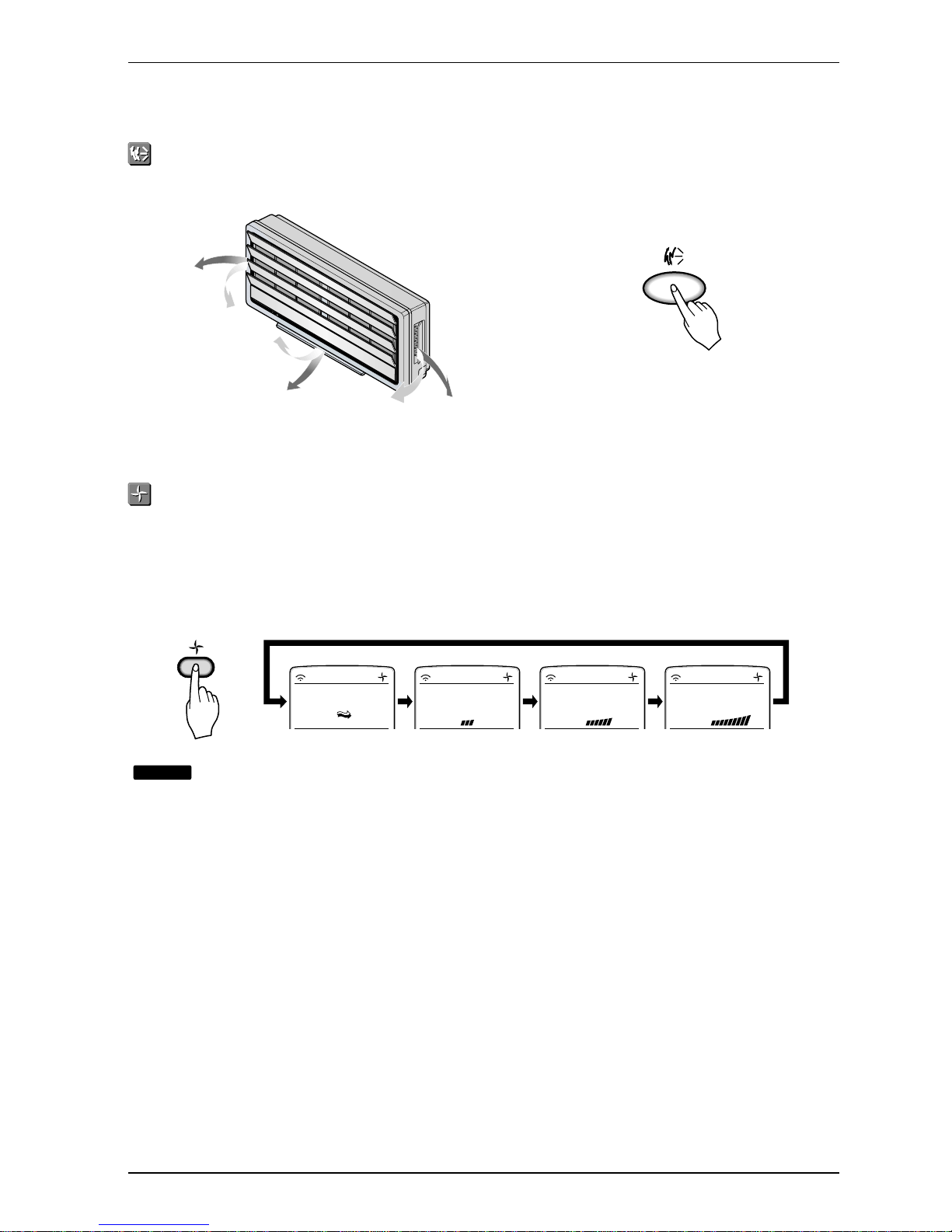

Airflow direction control
The up/down and right/left airflow can be adjusted by
using the remote control. Press Chaos Swing button and the louvers will swing.
Press the Start/Stop button to start the unit.
Press the button again and the louvers will stop. After
30 minutes, the louvers return to the maximum airflow
position automatically.
Air circulation mode
Circulates the room air without cooling or heating.
1. Press the Start/Stop button. the unit will respond with a beep.
2. Open the door on the remote control. Press the Air Circulation button. Close the door on the remote control.
Now each time that you press the Indoor Fan Speed Selector, the fan speed is shifted from low to CHAOS
and back to low again.
CHAOS Air economizes power consumption and prevents overcooling. The fan speed is
automatically changed from high to low or vice versa, depending on the ambient temperature.
NOTICE
